QUARTZ WATCH CHRONOGRAPH <TZ(KFE)>
INSTRUCTION MANUAL
Thank you for choosing our product. To ensure prolonged use and optimum
performance, please read this instruction manual carefully and familiarize
yourself with the terms of the guarantee.
Please keep this Instruction Manual handy for future reference.
SAFETY PRECAUTIONS
Make absolutely sure to observe the demarcated contents indicated below to
prevent any possible physical danger and property damage to you as well as
other people concerned.
... A demarcation with this symbol represents the contents
assuming imminent danger for death or serious injury
when the product is used in any manner different from
given instructions.
... A demarcation with this symbol represents the contents
assuming possibility for death or serious injury
when the product is used in any manner different from
given instructions.
... A demarcation with this symbol represents the contents
assuming possibility of causing human injury or
material damage only when a product is used in any
manner different from given instructions.
WARNING
!
DANGER
!
CAUTION
!

2
ENGLISH
IN HANDLING THE WATCH
(1) Water-resistance
Conditions
of use
Type
Underwater
operation of
crown and
operation
of crown
with drops
of water
on it
Exposure
to small
amounts
of water
(face-
washing,
rain, etc.)
Water sports
(swimming,
etc.),
frequent
contact with
water (car-
washing,
etc.)
Skin diving
(air tanks
are not
used)
Scuba
diving
(air tanks
are used)
Mixed-gas
Diving
(using
helium
gas)
Non water resistant
Without
WATER
RESISTANT
(WATER
RESIST)
××××××
Water
resistant
watches
Water
resistant for
daily life
WATER
RESISTANT
(WATER
RESIST) ×××××
Reinforced
water
resistance
for daily
life I
WATER
RESISTANT
(WATER
RESIST)
50m (5bar)
×  ×××
Reinforced
water
resistance
for daily
life II
WATER
RESISTANT
(WATER
RESIST)
100m (10bar)
200m (20bar)
×× ×
Diver’s
watches
Diver’s
watch for Air
Diving
AIR DIVER’S
100m / 150m
200m ××
Diver’s
watch for
Mixed-gas
Diving
He-GAS
DIVER’S
200m / 300m /...
×
* It is recommended that you use the watch correctly following the above-mentioned scope of usage
after ascertaining water resistance precautions marked on the dial or caseback.

3
ENGLISH
1A watch with water resistance for daily life 30m (3 bar) can be used during
face-washing, etc. but cannot be used in an environment in which it will be
submerged in water.
2A watch with reinforced water resistance for daily life I 50m (5 bar) can be
used while swimming, etc. but cannot be used during any type of diving
including skin diving.
3A watch with reinforced water resistance for daily life II 100m or 200m (10
or 20 bar) can be used while skin diving, but cannot be used while scuba
diving using oxygen tanks or saturation diving using helium gas, etc.
4Keep the crown pushed in at all times (in the normal position) while using
the watch. If the crown is the screwed-down type, check that it is securely
screwed down.
5Do not operate the crown underwater, or while the watch is wet. Water
may enter the interior of the watch and defeat the water resistance.
6If your watch is non-water resistant, beware of splashes of water (during
face washing, rain, etc.) and sweat. If the watch becomes wet from water
or sweat, wipe the moisture off with a dry, soft cloth.
7Even with a water resistant watch for everyday use, avoid directing strong
jets of mains water onto the watch. Water pressure above the limit can
apply, which may defeat the water resistance.
8With a water resistant watch for everyday use, rinse sea water off the case
after exposure, then wipe it thoroughly to avoid corrosion and other effects.
9The interior of the watch contains some amount of moisture, which may
cause fogging on the inside of the glass when the outside air is cooler than
the internal temperature of the watch. If the fogging is temporary it causes
no harm inside the watch, but if prolonged, or if water enters the watch,
consult your place of purchase and do not leave the problem untreated.
CAUTION
!

4
ENGLISH
(2) Handling the Battery
1If a button battery or coin battery is ingested, it may cause chemical burns
or perforation of mucous membrane even in a short period of time, and in
the worst-case scenario, may result in death. Never leave button batteries
or coin batteries within the reach of infants or young children.
If a button battery or coin battery is ingested, or there is a possibility
that one was ingested, it must be removed at once. Please treat as an
emergency situation and contact a doctor immediately.
2Do not remove the battery from the watch. Contact the place of purchase
of the watch or your nearest ORIENT authorized service center for
assistance when wanting to remove the battery.
3The battery used in this watch is not a rechargeable battery, so it cannot be
recharged and used again. Do not attempt to charge the battery as doing
so could cause it to overheat or explode.
4A skin rash or other symptom may develop if leaking battery fluid comes
into contact with skin. Do not leave depleted batteries sitting around for
long periods of time.
(3) Replacing the Battery
1Depleted batteries that are left sitting in the watch for long periods of time
may begin to leak battery acid, which could lead to malfunction. Be sure to
replace depleted batteries as soon as possible.
2Replace the watch battery only with the specified battery type.
3Battery replacement requires special-purpose tools, techniques, etc.
Reversing the polarities when inserting the battery may cause the battery
to overheat or explode. Contact the place of purchase or your nearest
ORIENT authorized service center for assistance when wanting to replace
the battery.
DANGER
!
WARNING
!
CAUTION
!

5
ENGLISH
4The watch comes equipped with a battery end of life indicator.
If the small second hand begins to advance two tick marks for every
movement, it means that the battery is nearing the end of its life and will
need to be replaced.
Contact the place of purchase or your nearest ORIENT authorized service
center immediately for assistance with battery replacement.
5Steps to be taken after the battery is replaced
After you have the battery replaced, be sure to set the time and set the
stopwatch hands to the “0” position.
(Refer to SETTING THE TIME AND ADJUSTING THE STOPWATCH
HAND POSITION (Hands for time display and stopwatch hands) for more
information.)
(4) Shock
1Be sure not to carry the watch when you engage in strenuous
sports, whereas playing such light sports as golf, etc., will not
adversely influence the watch.
2Avoid a violent shock such as dropping the watch on the
floor.
(5) Magnetism
1If the watch is left at a location with strong magnetism for an extended
period of time, the components may be magnetized, resulting in
malfunction. Be careful.
2The watch may temporarily speed up or slow down when exposed to
magnetism. Precision is restored when placed away from magnetism. In
such a case, reset the time.
(6) Vibration
The watch may lose precision if subjected to strong
vibrations such as from riding motorcycles, using
jackhammers, chain saws, etc.

6
ENGLISH
(7) Temperature
In the environment below and above the normal temperatures
<5°C~35°C>, the watch may malfunction and stop.
CAUTION
!
Do not use the watch at high temperatures, such as in a sauna. The watch
may heat and cause burns.
(8) Chemicals, Gases, etc.
Utmost caution must be exercised when coming into contact with gases,
mercury, chemicals (paint thinner, gasoline, various solvents, detergents
containing such components, adhesives, paint, drugs, perfumes,
cosmetics, etc.), and so forth. Such may cause discoloration of the
watchcase, watchband, and dial face. Discoloration, deformation, and
damage to various resin-based component parts may also occur.
(9) About accessory parts
Do not attempt to disassemble or modify this product.
Store the bracelet/strap pin and other small parts out of the reach of
children.
If any small parts are swallowed, immediately contact a doctor.
(10)Allergic reactions
If you develop a skin rash or your skin becomes abnormally irritated due to
contact with the watch or strap, stop wearing the watch immediately and
consult a doctor.
WARNING
!
CAUTION
!
CAUTION
!

7
ENGLISH
(11) About “luminous light”
Some Products have luminous light on the hands and dial.
The luminous light is a safe paint that stores sunlight and artificial light
without using any radioactive material, and emits that light in a dark
setting. As the paint discharges the stored light, it will become dimmer
over time. The amount of light emitted and the time that light is emitted
depends on various factors when the light is stored, such as the shape
of the glass, the thickness of the paint, surrounding brightness level, the
distance from the watch to the light source, and the light absorption level.
Please note that when not enough light energy is stored, the watch may
emit weak light or emit light for only a short time.
(12)Water resistant watchband
Some products employ leather and nylon bands on which a special
treatment to resist perspiration and water absorption have been applied.
Please understand that the water resisting effect of this watchband can be
lost depending on the period and conditions of use.

8
ENGLISH
FEATURES
(1) This is an analog crystal oscillator watch.
(2) The current time is indicated by the hour, minute, and second hands.
(3) The watch also comes with a calendar function (date) and stopwatch
function (measures up to 40 min. in 1/100 sec. increments) in addition to
the time display.
(4) The stopwatch function also records split times (the amount of time that
elapses from when the stopwatch is started until a certain point, while the
watch continues to record total time elapsed).
(5) When the battery life begins to run out, the second hand starts to move in
2-sec. intervals to warn that the battery is getting low. (Battery End Of Life
indicator)
SPECIFICATIONS
(1) Crystal oscillator frequency: 32,768 Hz (Hz = Oscillations per second)
(2) Wrist-worn accuracy: Mean monthly rate: ±20sec.
(at normal temperature <5°C ~ 35°C>)
(3) Operating temperature range: –5°C ~ +50°C
(4) Drive system: Step motor
(5) Display system:
[Time function]
Hour and minute hands with a small second hand that moves at
one-second intervals, and date.
[Stopwatch function]
Stopwatch 1/100 second hand turns a full circle in 0.1 seconds
Stopwatch 1/10 second hand turns a full circle in one second
Stopwatch second hand turns a full circle in 60 seconds
Stopwatch minute hand turns a full circle in 40 minutes
(6) Additional function: Second hand halt mechanism, reset switch,
accumulated elapsed time counter, split time function, battery end of life
indicator
(7) Battery: SR927W; 1 piece
(8) Battery life: Approx. 3 years if the stopwatch is used for less than 2 hours
a day.
*
The above specifications are subject to change without notice for improvement.

9
ENGLISH
NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

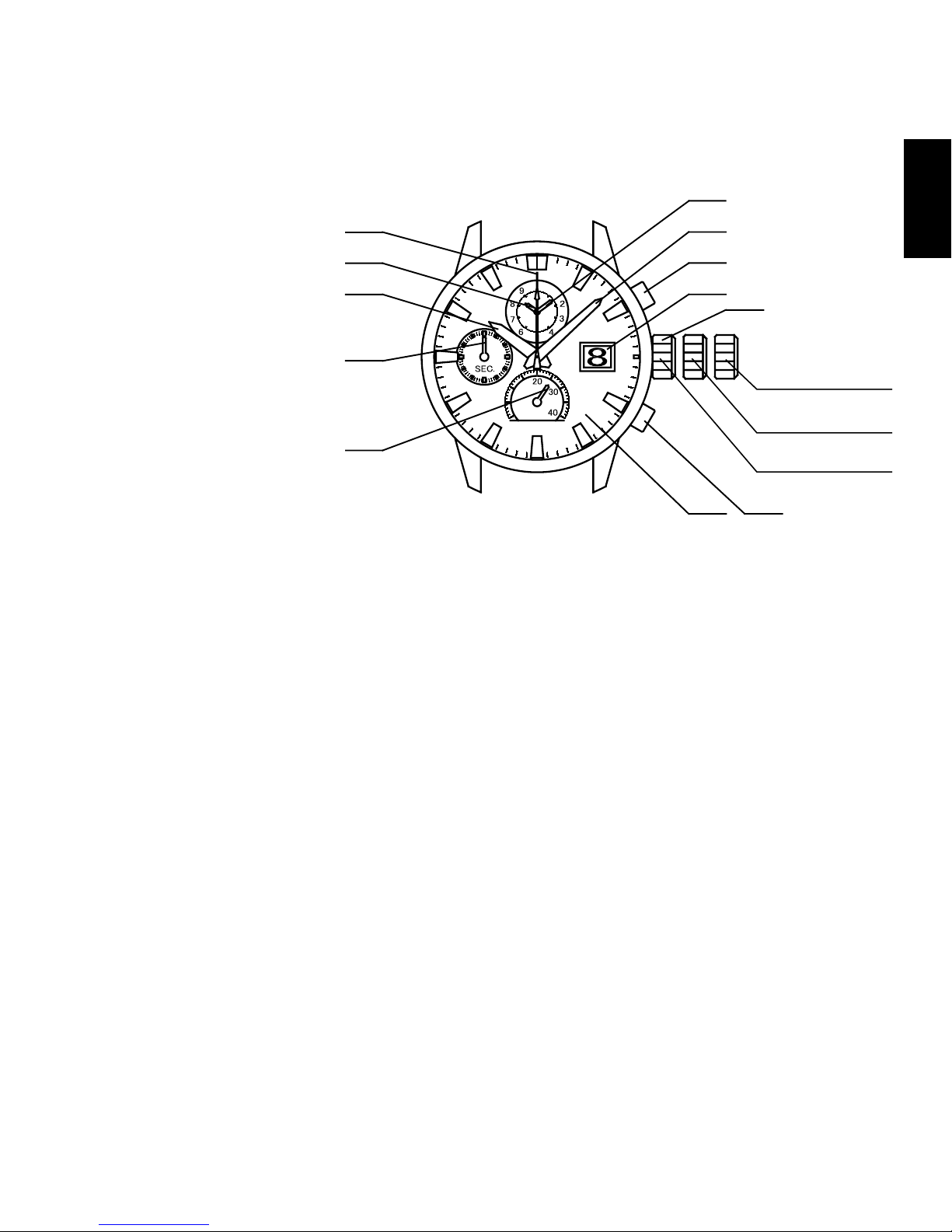

A: Hour hand
B: Minute hand
C: Small second hand
D: Stopwatch minute
hand
E: Stopwatch second
hand
F: Stopwatch 1/10
second hand
G: Stopwatch 1/100
second hand
H: Date indicator
I
: Button A
J
: Button B
K
: Crown
L
: Dial
* Some watches may have the crown and the date indicator in different
positions.
MODELS WITH SCREWED-DOWN CROWN
Depending on the model, you may not be able to pull the crown out without
unscrewing it (models with screwed-down crown).
Operate this type of watch as follows:
(1) Before setting the date and time, first turn the crown to the left to loosen
the screw lock.
(2) After setting the date and time, turn the crown to the right while pressing
in, until it stops turning to securely tighten the screw.
㪋㪇㪄㪤㪠㪥㪅
㪈
㪇㪇
㪈㪇
㪞
㪝
㪛
㪙
㪜
㪠
㪡
䇭㪢
㪣
㪘
㪚
㪟
Second click: Time
setting (second hand
stops)
First click: Date
setting
Normal position

10
ENGLISH
MODELS WITH A SCREWED-DOWN BUTTON RING
Depending on the product, some models may have a configuration that allows
the button ring (ring on the outer periphery) to be locked (fixed) into place by
being screwed down.
Use the following operating method for this type of watch.
(1) When wanting to use the buttons, first turn the button ring to the left, and
then loosen it until the screw stops.
* The buttons may not be able to be used if the button ring cannot be
loosened enough. Do not turn it more forcefully than necessary.
(2) After finishing using the buttons, turn the button ring to the right, and firmly
tighten it until the screw stops.
* Do not tighten it more forcefully than necessary.
SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND
POSITION (Hands for time display and stopwatch hands)
This watch is so designed
• time setting
• stopwatch four hands positions adjustment
are both made with the crown at the second click position. Once the crown
is pulled out to the second click, be sure to make the above adjustments at
the same time.

11
ENGLISH
A: Hour hand
B: Minute hand
C: Small second hand
D: Stopwatch minute hand
E: Stopwatch second hand
F: Stopwatch 1/10 second hand
G: Stopwatch 1/100 second hand
H: Button A
I
: Button B
J
: Crown
(1) Pull out the crown to the second click when the small second hand is at the
12 o’clock position.
The small second hand stops on the spot.
* If the stopwatch is measuring, the stopwatch hands are automatically
reset to “0” position.
(2) Turn the crown to set the hour and minute hands to the current time.
㪋㪇㪄㪤㪠㪥㪅
㪈
㪇㪇
㪈㪇
㩷㪟
㪝
㪛
㪡
㪠
㪜
䇭㪞
䇭㪘
䇭㪚
䇭㪙
It is recommended that the hands be set
to the time a few minutes ahead of the
current time, taking into consideration the
time required to adjust the stopwatch hand
position if necessary.

12
ENGLISH
* When setting the hour hand, check that AM/PM is correctly set. The watch
is so designed that the date changes around midnight.
* When setting the minute hand, first advance it 4 to 5 minutes ahead of the
desired time, and then, turn it back to the exact minute.
(3)
Reset the four stopwatch hands to “0” position.
Press button Afor 2 seconds. The stopwatch 1/10 and 1/100 second
hands turn.
Press button Band adjust both the stopwatch 1/10 and 1/100 second
hands to the “0” position.
If you continue to press button B, the 1/10 and 1/100 second hands will
move quickly.
* The stopwatch 1/10 and 1/100 second hands move together. They will
overlap at the “0” position.
Press Afor 2sec.
B

13
ENGLISH
(4) Press button Afor 2 seconds. The stopwatch second hand turns a full
circle.
Press button Bto reset the selected stopwatch second hand to “0”
position.
It moves quickly if button Bis kept pressed.
(5) Press button A for 2 seconds. The stopwatch minute hand turns a full circle.
Press button
B and adjust the stopwatch minute hand to the “0” position.
If you continue to press button
B , the minute hand will move quickly.
* The stopwatch minute hand will turn a full circle past the 40 minute scale
only when it is being adjusted to the “0” position. Although the minute hand
will pass through the section unmarked with scales, set the hand to the “0”
position. Although the minute hand will pass through the section unmarked
with scales, set the hand to the “0” position.
Press Afor 2sec.
B
B
Press Afor 2sec.

14
ENGLISH
(6) You can redo adjustments that have already been made by completing the
steps in the order given.
Press button Afor 2 seconds.
Adjust the stopwatch 1/10 and
1/100 second hands to the “0”
position.
Press button Afor 2 seconds.
Adjusting the stopwatch second
hand to “0” position
Press button Afor 2 seconds.
Adjusting the stopwatch minute
hand to “0” position
Press button Afor 2 seconds.
* Adjustments can be redone any number of times.
(7) After all the adjustments are completed,
push the crown back in to the normal
position in accordance with a time signal.
The stopwatch 1/10 and 1/100 second
hands turn a full circle to indicate that they
are ready for adjustment. Press button B
to adjust to the “0” position.
The stopwatch second hand turns a
full circle to indicate that it is ready for
adjustment. Press button Bto reset it to
“0” position.
The stopwatch minute hand turns a
full circle to indicate that it is ready for
adjustment. Press button Bto adjust to the
“0” position.

15
ENGLISH
HOW TO SET THE DATE
* Do not set the date during the period from 9 P.M. TO 1 A.M., as the date on
the watch switches over during this time.
Setting the date during this time period may cause the date to fail to change
even after the day switches over and may cause the watch to malfunction.
* When setting the date, move the hour hand to a time outside of this period
before proceeding.
(1) Pull out the crown to the first click.
* The crown on this watch can be pulled out
to either of two clicks.
(2) Turn the crown clockwise to set the date.
(3) Push the crown back in to the normal
position.
* About date correction at month’s end:
Date correction is necessary for months
with 30 days or less. In this case, set the
date to the [1st day] on the first day of the next month.
CAUTION
!
Turn clockwise
㪌
㪐
㪐

16
ENGLISH
HOW TO USE THE STOPWATCH
• The stopwatch measures up to 40 minutes in 1/100-second increments.
• The stopwatch will continue measuring time for up to 2 hours. Once 2
hours have passed, the stopwatch will automatically stop.
• The stopwatch time can be read using the stopwatch 1/10 second hand
and 1/100 second hand located at the 12 o’clock position, the stopwatch
second hand located in the center, and the stopwatch minute hand located
at the 6 o’clock position.
• The stopwatch has a split time function.
• The stopwatch minute hand (total of 40 minutes) uses a retrograde
mechanism. The hand returns to the one-minute position when 41 minutes
have elapsed, and the stopwatch will continue measuring the time. When
81 minutes have elapsed, the hand returns to the one-minute position
again, and automatically stops after 120 minutes elapse.
* The stopwatch 1/10 and 1/100 second hands move for the first 3 minutes
after the stopwatch is started. However, after 3 minutes elapse, the hands
will remain at the “0” position and measure the time when the stopwatch is
stopped or the split time function is used.
[How to read the stopwatch hands]
The time measured is indicated by the four stopwatch hands (minute, second,
1/10-second and 1/100-second hands).
<Note on adjusting the stopwatch hand position>
• If the stopwatch hands do not return to “0” position when the stopwatch
is reset, follow the procedure in “SETTING THE TIME AND
ADJUSTING THE STOPWATCH HAND POSITION” to reset them.
• In that case, be sure to adjust the hands for time display to the current
time.

17
ENGLISH
How to reset the stopwatch
• When the stopwatch hands are counting:
(1) Press button Ato stop the stopwatch.
(2) Press button Bto reset the stopwatch.
• When the stopwatch hands are stopped:
One of the following three stopwatch operations has
occurred. Reset the stopwatch accordingly.
[The stopwatch stops]
(1) Press button Bto reset the stopwatch.
[The stopwatch stops with the split time displayed (the stopwatch
continues measuring)]
(1) Press button B. The split time is released and the stopwatch hands
move quickly to indicate the measurement in progress.
(2) Press button Ato stop the stopwatch.
(3) Press button Bto reset the stopwatch.
[The stopwatch stops with the split time displayed (the stopwatch is
stopped)]
(1) Press button B. The stopwatch hands move quickly and stop.
(2) Press button Bto reset the stopwatch.
Standard measurement
Button A
START
Button A
STOP
Button B
RESET
Accumulated elapsed time measurement
Button A
START
Button A
STOP
Button A
RESTART
Button A
STOP
Button B
RESET
Restarting and stopping the stopwatch can be
repeated by pressing button A.
A
B

18
ENGLISH
Split (intermediate) time measurement
Button A
START
Button B
SPLIT
Button B
SPLIT RELEASE
Button A
STOP
Button B
RESET
* The stopwatch automatically stops when the split time measured reaches
2 hours. Split time measurement is canceled, and the hands will indicate
“40 minutes, 00 seconds, 00 milliseconds.” Reset the stopwatch before
measuring the time again.
Measurement of two competitors
Button A
START
Button B
FINISH TIME
OF FIRST
COMPETITOR
Button A
SECOND
COMPETITOR
FINISH
Button B
FINISH TIME
OF SECOND
COMPETITOR
Button B
RESET
<Testing the movement of the stopwatch hands>
• The four stopwatch hands can be tested.
• Each of the four stopwatch hands will quickly return to the reset position.
How to perform the test
(1) Reset the stopwatch.
 →Referto“■Howtoresetthestopwatch”.
(2) Press button Bfor 2 seconds.
* The test will take approximately 3 seconds. After it ends, the stopwatch will
be available for normal use.
* If a button is pressed during the test, the test will be canceled and the
stopwatch will reset.
Measurement and release of the split time can
be repeated by pressing button B.
The hands indicate the first person’s time while
the measurements are being taken.

19
ENGLISH

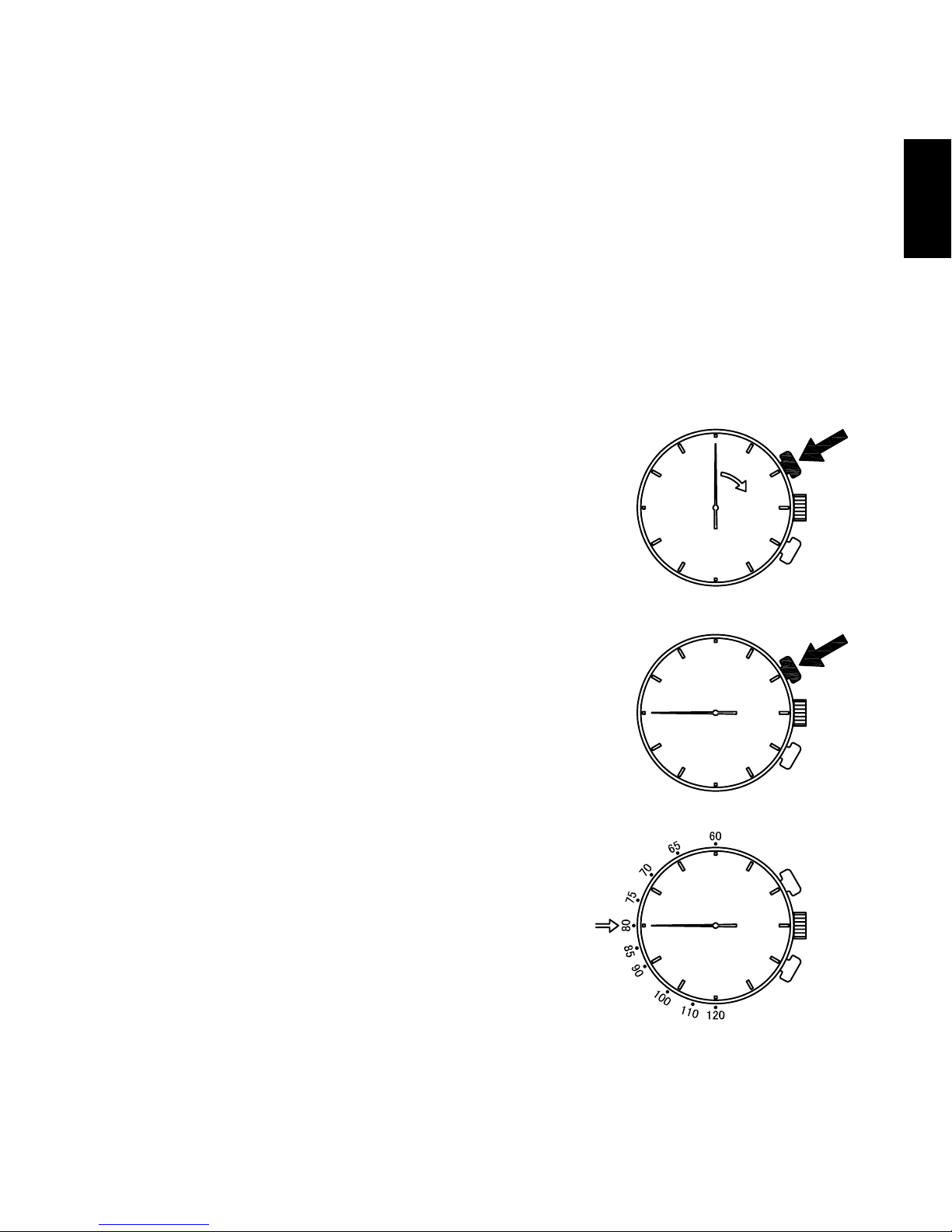

HOW TO USE THE TACHYMETER
Some models may come with a tachymeter scale printed around the bezel or
dial. Check your watch to see if it comes with a tachymeter scale, and follow
the steps listed below to use it, if it does have one.
A tachymeter is a function that enables users to determine average speed
based on a measurement of the amount of time it takes to travel a certain
distance (1 km). The tachymeter can also be used to determine the rate
of production per unit of time (per hour). (measuring range: maximum 60
seconds)
(1) Press button Aat the start point or when a
product begins to be made.
(2) Press button Aagain once 1 km have
been passed or the product is completed.
(3) Read the numeral on the tachymeter scale
at which the stopwatch second hand is
pointing.
(In this case, the hand is pointing at 80 on
the tachymeter scale, which would give
an average speed of 80 km/hr. or a rate
of production of 80 units/hr.)
* The measuring range for the tachymeter is
up to one minute.
Note that if the measuring range exceeds one minute, it may not be possible
to determine the average speed or rate of production per unit of time.
A
A

20
ENGLISH
◆HOW TO USE THE ROTATING INDICATOR BEZEL
Please notice that some models come with a rotating
indicator bezel, which should be used properly.
Turn the bezel by pointing the mark to the minute
hand.
While certain time goes by, you can measure the
elapsed time from the distance between minute hand
and figures on the rotating indicator bezel.
You can also set the mark as a desired time to
remind you how long time is still remain for an
appointment.
You cannot turn the bezel reversely since it comes
with a protection mechanism for preventing wrong operation by force or
shock. Figures on the bezel could also help you to read the current time easily.

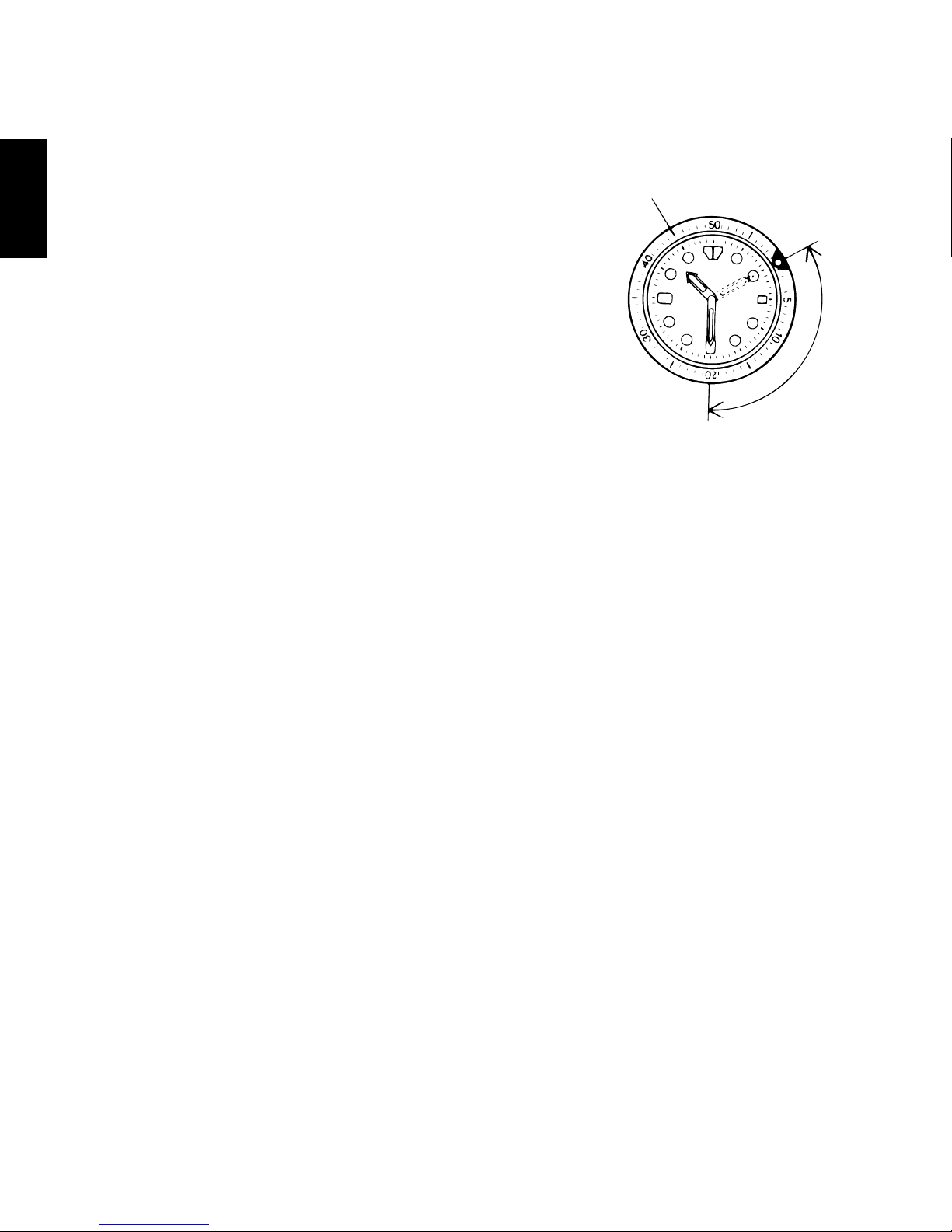

Rotating indicator bezel
T
i
m
e
e
l
a
p
s
e
d
The above shows
that 20 minutes have
elapsed from 10:10.
