MECHANICAL WATCH
AUTOMATIC & HAND WINDING MECHANISM
INSTRUCTION MANUAL
Thank you for choosing our product. To ensure prolonged use and optimum
performance, please read this instruction manual carefully and familiarize
your-self with the terms of the guarantee.
Please keep this Instruction Manual handy for future reference.
SAFETY PRECAUTIONS
Make absolutely sure to observe the demarcated contents indicated below to
prevent any possible physical danger and property damage to you as well as
other people concerned.
... A demarcation with this symbol represents the contents
assuming possibility for death or serious injury
when the product is used in any manner different from
given instructions.
... A demarcation with this symbol represents the contents
assuming possibility of causing human injury or
material damage only when a product is used in any
manner different from given instructions.
WARNING
!
CAUTION
!

2
ENGLISH
IN HANDLING THE WATCH
(1) Water-resistance
Conditions
of use
Type
Underwater
operation of
crown and
operation
of crown
with drops
of water
on it
Exposure
to small
amounts
of water
(face-
washing,
rain, etc.)
Water sports
(swimming,
etc.),
frequent
contact with
water (car-
washing,
etc.)
Skin diving
(air tanks
are not
used)
Scuba
diving
(air tanks
are used)
Mixed-gas
Diving
(using
helium
gas)
Non water resistant
Without
WATER
RESISTANT
(WATER
RESIST)
××××××
Water
resistant
watches
Water
resistant for
daily life
WATER
RESISTANT
(WATER
RESIST) ×××××
Reinforced
water resist-
ance for
daily life I
WATER
RESISTANT
(WATER
RESIST)
50m (5bar)
×  ×××
Reinforced
water resist-
ance for
daily life II
WATER
RESISTANT
(WATER
RESIST)
100m (10bar)
200m (20bar)
×× ×
Diver’s
watches
Diver’s
watch for Air
Diving
AIR DIVER’S
100m / 150m
200m ××
Diver’s
watch for
Mixed-gas
Diving
He-GAS
DIVER’S
200m / 300m /...
×
* It is recommended that you use the watch correctly following the above-mentioned scope of usage
after ascertaining water resistance precautions marked on the dial or caseback.

3
ENGLISH
CAUTION
!
1A watch with water resistance for daily life 30m (3 bar) can be used during
face-washing, etc. but cannot be used in an environment in which it will be
submerged in water.
2A watch with reinforced water resistance for daily life I 50m (5 bar) can be
used while swimming, etc. but cannot be used during any type of diving
including skin diving.
3A watch with reinforced water resistance for daily life II 100m or 200m (10
or 20 bar) can be used while skin diving, but cannot be used while scuba
diving using oxygen tanks or saturation diving using helium gas, etc.
4Keep the crown pushed in at all times (in the normal position) while using
the watch. If the crown is the screwed-down type, check that it is securely
screwed down.
5Do not operate the crown underwater, or while the watch is wet. Water
may enter the interior of the watch and defeat the water resistance.
6If your watch is non-water resistant, beware of splashes of water (during
face washing, rain, etc.) and sweat. If the watch becomes wet from water
or sweat, wipe the moisture off with a dry, soft cloth.
7Even with a water resistant watch for everyday use, avoid directing strong
jets of mains water onto the watch. Water pressure above the limit can
apply, which may defeat the water resistance.
8With a water resistant watch for everyday use, rinse sea water off the case
after exposure, then wipe it thoroughly to avoid corrosion and other effects.
9The interior of the watch contains some amount of moisture, which may
cause fogging on the inside of the glass when the outside air is cooler than
the internal temperature of the watch. If the fogging is temporary it causes
no harm inside the watch, but if prolonged, or if water enters the watch,
consult your place of purchase and do not leave the problem untreated.

4
ENGLISH
(2) Shock
1Be sure not to carry the watch when you engage in strenuous
sports, whereas playing such light sports as golf, etc., will not
adversely influence the watch.
2Avoid a violent shock such as dropping the watch on the
floor.
(3) Magnetism
1If the watch is left at a location with strong magnetism for an extended
period of time, the components may be magnetized, resulting in
malfunction. Be careful.
2The watch may temporarily speed up or slow down when exposed to
magnetism. Precision is restored when placed away from magnetism. In
such a case, reset the time.
(4) Vibration
The watch may lose precision if subjected to strong
vibrations such as from riding motorcycles, using
jackhammers, chain saws, etc.
(5) Temperature
In environments below and above normal temperatures (5°C-35°C), the
watch may malfunction and stop.
Do not use the watch at high temperatures, such as in a sauna. The watch
may heat and cause burns.
(6)Chemicals, Gases, etc.
Utmost caution must be exercised when coming into contact with gases,
mercury, chemicals (paint thinner, gasoline, various solvents, detergents
containing such components, adhesives, paint, drugs, perfumes,
cosmetics, etc.), and so forth. Such may cause discoloration of the
watchcase, watchband, and dial face. Discoloration, deformation, and
damage to various resin-based component parts may also occur.
CAUTION
!

5
ENGLISH
(7) About this product and accessory parts
CAUTION
!
Do not attempt to disassemble or modify the watch.
WARNING
!
Store the bracelet/strap pin and other small parts out of the reach of children.
If any small parts are swallowed, immediately contact a doctor.
(8) Allergic reactions
CAUTION
!
If you develop a skin rash or your skin becomes abnormally irritated due to
contact with the watch or strap, stop wearing the watch immediately and
consult a doctor.
(9) About “luminous light”
Some models have luminous light on the hands and dial.
The luminous light is a safe paint that stores sunlight and artificial light
without using any radioactive material, and emits that light in a dark
setting. As the paint discharges the stored light, it will become dimmer
over time. The amount of light emitted and the time that light is emitted
depends on various factors when the light is stored, such as the shape
of the glass, the thickness of the paint, surrounding brightness level, the
distance from the watch to the light source, and the light absorption level.
Please note that when not enough light energy is stored, the watch may
emit weak light or emit light for only a short time.
(10)Water resistant watchband
Some models employ leather and nylon bands on which a special
treatment to resist perspiration and water absorption have been applied.
Please understand that the water resisting effect of this watchband can be
lost depending on the period and conditions of use.

6
ENGLISH
HOW TO IDENTIFY THE CALIBER NUMBER
Check the caliber number by referring to the model number of your watch or
the case code on the watch’s case back.
1. Searching by 10-digit model number
Check the 10-digit model number on the guarantee supplied with your watch.
You can also see the number on the product tag put on the watch. Its second
and third digits indicate the caliber number of your watch.
Example: If the model number is “ o DJ02002B o ”, the caliber number is “DJ”.
2. Searching by the case code
See the case code on the case back of your watch.
The first two digits indicate the caliber number.
Case code
Example:
When the case code is “DJ02-C0”, the caliber number is “DJ”.
* The place of case code may vary and its letter size may be small and
difficult to see depending on the characteristics of watches.
* The pictures and illustrations on this manual may differ from the actual
appearance of your watch but the functions and operation procedures are
the same.

7
ENGLISH
FEATURES
(1) This model is an automatic winding mechanical watch (with a hand winding
mechanism).
(2) It comes with a second hand halt mechanism.
(3) Shock-proof bearings to protect the balance with hairspring from shocks.
(4) The time for other cities can be shown using the 24-hour hand. (Dual time
function) *DJ (40P) only
(5) The day of the week is shown using retrograde display. *DE (40A) only
SPECIFICATIONS
Caliber Number
of jewels
Power
reserve
Date
indicator
Day of the
week
24-hour
hand
World
time Remark1*
DA 40R 22 ○– – – – –
DE 40A 22 ○
Hand
indicating
type
Hand
indicating
type
– – 10:00 p.m.~4:00 a.m.
DJ 40P 22 ○ ○ –○– 9:00 p.m.~2:00 a.m.
DK 40S 24 ○– – – – –
DV 407 22 – ○– – – 10:00 p.m.~2:00 a.m.
EL 40N 22 ○ ○ – – – 10:00 p.m.~2:00 a.m.
JC 40H 24 ○
Hand
indicating
type
–○ ○ 8:00 p.m.~2:00 a.m.
(1) Vibrations: 21,600 vibrations/hour
(2) Daily accurancy : 25 sec. to -15 sec.
(3) Drive system : Mainspring Winding
(4) Running time: More than 40 hours
The stated daily accuracy is in the following conditions:
• After24hoursatroomtemperaturewiththemainspringwoundfullyandthe
dial facing up.
• Duetothecharacteristicsoftheautomaticwindingwatch,thetimemay
deviate from the stated “daily accuracy” depending on the following
conditions: amount of time the watch is worn each day, position of the
watch, movement of your arm, winding condition of the mainspring.

8
ENGLISH
Product specifications may change without notice, for improvement.
CAUTION
!
* Avoid setting the date during the time periods listed in “Remark1” above
since the calendar changes during this time. If the date is set during this
time period, the date may not change or the watch may malfunction. Be
sure to move the hour and minute hands away from this time period when
setting the date.
NAMES OF INDIVIDUAL COMPONENT PARTS
A: Hour hand G: 24 hours hand
B: Minute hand H: Crown
C: Second hand I: Click Button
D: Date hand / Date indicator J: Dial
E: Day of week indicator K: Rotating indicator ring
F: Power reserve hand L: Bezel (or outer indicator ring)
< JC(40H) > < DE(40A) >
A
B
C
D
E
F
H
J
A
B
C
D
E
F
H
J
F
J
K
L
H
A
D
C
B

9
ENGLISH
F
H
C
B
A
< DK(40S) >
F
H
C
B
A
F
A
C
B
D
G
< DJ(40P) >
H
J
F
A
C
B
D
G
H
J
< DA(40R) >
04
20
03
01
0
B
F
J
A
C
H
< EL(40N) >
04
20
03
01
0
B
F
J
D
A
C
H
* Positions of the crown, date indicator/
day of week indicator, second hand,
power reserve hand, and other
component parts may vary by model.
* The day of the week first displayed
may vary. *DE (40A) only
< DV(407) >
B
J
D
A
C
H

10
ENGLISH
AUTOMATIC WINDING AND HAND WINDING MECHANISM
(1) This is an automatic winding (hand winding) mechanical
watch.
(2) The mainspring is wound by natural movements of your
arm when wearing the watch on your wrist.
It is also wound by rotating the crown.
(3) If your watch stops, winding the mainspring by rotating the
crown or swing the watch back and forth ten or more times
to re-start the second hand. After it starts moving, set the
date and time.
(4) To wind the mainspring, ensure that the crown is in its normal position and
slowly turn it to the right (clockwise).
Turning the crown to the left (counterclockwise) will have no effect.
When the watch is in a stopped state, the mainspring can be wound
sufficiently by rotating the crown approximately 20 times. In order to the
crown will still rotate even when the mainspring is fully wound. (This is not
a fault). Avoid winding the watch more than necessary.
Since the crown will rotate even when winding is complete, wind the watch
using the scale on the power reserve indicator as a guide.
(5) This watch will run approximately 40 hours after it is fully wound. If it is
not wound enough, the watch may lose accuracy. In order to maintain the
watch’s accuracy, we recommend wearing the watch at least 8 hours a
day.
MODELS WITH SCREWED-DOWN CROWN
Depending on the model, you may not be able to pull the crown out without
unscrewing it (models with screwed-down crown).
Operate this type of watch as follows:
(1) Before setting the date and time (dual time), first turn the crown to the left
to loosen the screw lock.
(2) After setting the date and time (dual time), turn the crown to the right while
pressing in, until it stops turning to securely tighten the screw.

11
ENGLISH
POWER RESERVE INDICATOR
The power reserve indicator shows how
much the watch is wound, allowing you to
see how much longer the watch will run
at a glance. The time pointed to by the
power reserve hand is the remaining time.
*The remaining time shown is only an
approximation. The time shown may be
different from actual remaining time.
This model has an automatic-winding system which comes with a power
reserve indicator function. The mainspring will be automatically wound by your
natural arm movements while you wear it on your wrist. The power reserve
hand is pointing to the fully-wound position (40H). The amount the watch is
wound will change with the frequency of your arm movements and the length
of time you wear the watch, so the hand will not always point to the fully wound
position. If you remove the watch from your arm and do not wind manually, the
power reserve hand will move toward zero as time passes.
This model is equipped with a hand-winding mechanism. The power reserve
indicator moves toward the fully wound position (40H) when the mainspring
is wound using the crown.
Power reserve
hand

12
ENGLISH
HOW TO SET THE TIME [ DE(40A), DJ(40P), DV(407), EL(40N),
JC(40H)]
(1) Pull out the crown to the second
click when the second hand
reaches the 12 o’clock position.
(The second hand stops.)
(2) Turn the crown clockwise and
set the current time.
* When setting the time, first
bring the hand back slightly
later the actual time and then
move it forward to the actual
time.
* For the watch with a calendar,
make sure that you set either
a.m. or p.m. without fail. The
date changes at [twelve o’clock
midnight].
(3) Press the crown in to the normal
position.
Turn clockwise

13
ENGLISH
HOW TO SET THE TIME [ DA(40R), DK(40S)]
(1) Pull the crown out when the second
hand reaches the 12 o’clock position.
(The second hand stops.)
(2) Turn the crown clockwise and set the
current time.
* When setting the time, first bring the
hand back slightly later the actual
time and then move it forward to the
actual time.
* For the watch with a calendar, make
sure that you set either a.m. or p.m.
without fail. The date changes at
[twelve o’clock midnight].
(3) Press the crown in to the normal
position.
* The position of the second hand may vary by model.
Turn clockwise

14
ENGLISH
HOW TO SET THE DATE [ DV(407), EL(40N)]
(1) Pull the crown out to the first
click.
* The crown on this watch can
be pulled out to either of two
clicks.
(2) Turn the crown
counterclockwise, and set the
date to that for the current day.
(3) Push the crown in to return it to
its normal position (no clicks).
** Correcting the date at the end of the month
The date will have to be corrected for months that have 30 days, or those
that have less than 30 days. After the date switches over to the first day of
the succeeding month, set the date to the [First (1)].
Turn counter-
clockwise

15
ENGLISH
HOW TO SET THE DATE [ DJ(40P)]
(1) Pull the crown out to the first
click.
* The crown on this watch can
be pulled out to either of two
clicks.
(2) Turn the crown clockwise,
and set the date to that for the
current day.
(3) Push the crown in to return
it to its normal position (no
clicks).
** Correcting the date at the end of the month
The date will have to be corrected for months that have 30 days, or those
that have less than 30 days. After the date switches over to the first day of
the succeeding month, set the date to the [First (1)].
DJ(40P)ᣣઃߩวࠊߖᣇ
Turn clockwise

16
ENGLISH
HOW TO SET THE DATE [ DE(40A), JC(40H)]
(1) Pull the crown out to the first
click.
* The crown on this watch can be
pulled out to either of two clicks.
(2) Turn the crown counterclockwise,
and set the date to that for the
current day.
(3) Push the crown in to return it to
its normal position (no clicks).
* If next setting the day of the
week, first set the date without
pushing in the crown.
For procedures on how to do
this, refer to “HOW TO SET
THE DAY OF THE WEEK [DE
(40A)].” *DE (40A) only
** Correcting the date at the end of the month
The date will have to be corrected for months that have 30 days, or those
that have less than 30 days. After the date switches over to the first day of
the succeeding month, set the date to the [First (1)].
Turn counter-
clockwise

17
ENGLISH
HOW TO SET THE DAY OF THE WEEK [ DE(40A)]
* Movement of the day of the week hand
A feature of the retrograde display is that the hand moves instantaneously
when returning to the first day of the week in the display from the last day.
When setting the day of the week, slowly turn the crown to set it to the day
of the week.
(1) Pull the crown out to the first
click.
* The crown on this watch can
be pulled out to either of two
clicks.
(2) Turn the crown to the right, and
set the day of the week to that
for the current day.
(3) Push the crown in to return it to
its normal position (no clicks).
* The positions of the day of the week display and crown may differ
depending on the model.
In addition, the day of the week first displayed may differ from that shown.
Turn clockwise

18
ENGLISH
USING THE DUAL-TIME FUNCTION [ DJ(40P)]
* The Dual-Time Function is a function that allows two different times to be
displayed simultaneously.
Two different times can be displayed simultaneously with this model using
time display with the hour and second hands and using a 24-hour hand that
can be set separately. Only cities with time differences set in increments of
whole hours can be selected for the Dual-Time Function.
HOW TO SET THE 24-HOUR HAND
Before setting the 24-hour hand, first make sure that the time displayed is
set to the current time.
The hour/minute hands and 24-hour hand move in conjunction with each
other. Set the time before setting the 24-hour hand. (Refer to “HOW TO
SET THE TIME [DJ(40P)].”)
(1) Pull the crown out to the first click.
* The crown on this watch can be
pulled out to either of two clicks.
(2) Slowly turn the crown counter-
clockwise, and set the 24-hour hand
to a given time.
* The 24-hour hand will turn in the
clockwise direction in increments of
whole hours.
* Slowly turn the crown while
checking the movement of the 24-
hour hand in increments of whole
hours.
* While the 24-hour hand is being
set, other hands may also move
slightly. This is not a malfunction.
Turn counter-
clockwise

19
ENGLISH
(3) Push in the crown.
* The position of the crown may differ
depending on the model.
* Examples of uses of the Dual-Time
Function
Displaying the time for New York in
Dual-Time when the time in Japan is
5:00 p.m.
There is a difference of -14 hours between Japan and New York (Refer to
COMPARISON TABLE OF STANDARD TIMES), so the 24-hour hand
should be set to 3:00 a.m.
(Refer to HOW TO SET THE 24-HOUR HAND)
Refer to the COMPARISON TABLE OF STANDARD TIMES for time zone
differences.
24ᤨ㑆࡝ࡦࠣߩ૶޿ᣇ
╙ᤨ㑆Ꮺ(࠺ࡘࠕ࡞࠲ࠗࡓ)ߩ૶↪଀

20
ENGLISH

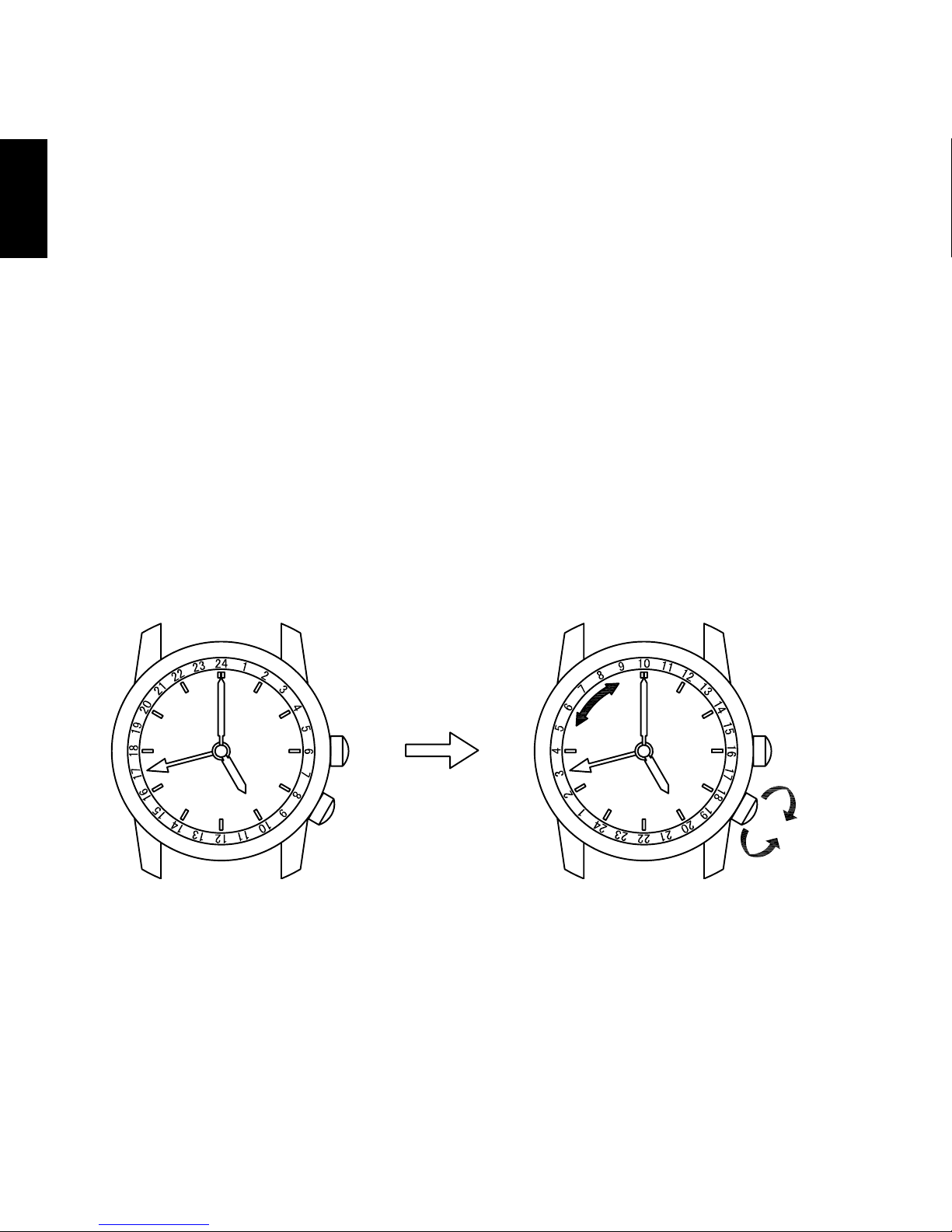

HOW TO USE THE 24-HOUR INDICATOR RING
(ROTATING BEZEL OR INTERNAL ROTATING RING)
Some models come with a 24-hour indicator ring (rotating bezel or internal
rotating ring). First, confirm that the watch you purchased comes with such
function, and make sure to use it correctly if it does.
Use the 24-hour indicator ring by reading the marking on the 24-hour indicator
ring at which the 24-hour hand is pointing.
The 24-hour hand was set in HOW TO SET THE 24-HOUR HAND.
However, it can also be set in the same way by rotation of the 24-hour
indicator ring (rotating bezel or internal rotating ring).
Ex.) Displaying the time for New York in Dual time when the time in Japan
is 5:00 p.m.
There is a difference of -14 hours between Japan and New York (Refer to
COMPARISON TABLE OF STANDARD TIMES), so the 24-hour hand
should be set to 3:00 a.m.
24ᤨ㑆࡝ࡦࠣߩ૶޿ᣇ
╙ᤨ㑆Ꮺ(࠺ࡘࠕ࡞࠲ࠗࡓ)ߩ૶↪଀
