Orient RA-KV0403S User manual

1
ENGLISH
ENGLISH
ANALOGUE QUARTZ WATCH
INSTRUCTION MANUAL
Thank you for choosing our product. To ensure prolonged use and optimum
performance, please read this instruction manual carefully and familiarize
your-self with the terms of the guarantee.
Please keep this Instruction Manual handy for future reference.
SAFETY PRECAUTIONS
Make absolutely sure to observe the demarcated contents indicated below to
prevent any possible physical danger and property damage to you as well as
other people concerned.
DANGER
!
...Ademarcationwiththissymbolrepresentsthecontents
assuming imminent danger for death or serious injury
when the product is used in any manner different from
given instructions.
WARNING
!
...Ademarcationwiththissymbolrepresentsthecontents
assuming possibility for death or serious injury
when the product is used in any manner different from
given instructions.
CAUTION
!
...Ademarcationwiththissymbolrepresentsthecontents
assuming possibility of causing human injury or
material damage only when a product is used in any
manner different from given instructions.

2
ENGLISH
IN HANDLING THE WATCH
(1) Water-resistance
Conditions
of use
Type
Underwater
operation of
crown and
operation
of crown
with drops
of water
on it
Exposure
to small
amounts of
water (face-
washing,
rain, etc.)
Water sports
(swimming,
etc.),
frequent
contact with
water (car-
washing,
etc.)
Skin diving
(air tanks
are not
used)
Scuba
diving
(air tanks
are used)
Mixed-gas
Diving
(using
helium
gas)
Non water resistant
Without
WATER
RESISTANT
(WATER
RESIST)
××××××
Water
resistant
watches
Water
resistant for
daily life
WATER
RESISTANT
(WATER
RESIST) ×××××
Reinforced
water
resistance
for daily
life I
WATER
RESISTANT
(WATER
RESIST)
50m (5bar)
×  ×××
Reinforced
water
resistance
for daily
life II
WATER
RESISTANT
(WATER
RESIST)
100m (10bar)
200m (20bar)
×× ×

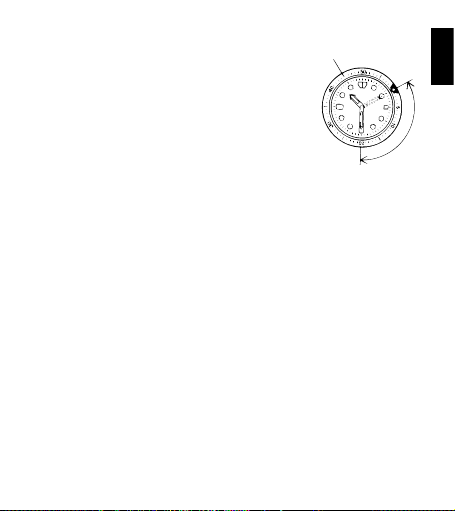

Diver’s
watches
Diver’s
watch for Air
Diving
AIR DIVER’S
100m / 150m
200m ××
Diver’s
watch for
Mixed-gas
Diving
He-GAS
DIVER’S
200m / 300m /...
×
* It is recommended that you use the watch correctly following the above-mentioned scope of usage
after ascertaining water resistance precautions marked on the dial or caseback.

3
ENGLISH
CAUTION
!
1 Awatchwithwaterresistancefordailylife30m(3bar)canbeused
during face-washing, etc. but cannot be used in an environment in which
it will be submerged in water.
2 AwatchwithreinforcedwaterresistancefordailylifeI50m(5bar)canbe
used while swimming, etc. but cannot be used during any type of diving
including skin diving.
3 AwatchwithreinforcedwaterresistancefordailylifeII100mor200m(10
or20bar)canbeusedwhileskindiving,butcannotbeusedwhilescuba
diving using oxygen tanks or saturation diving using helium gas, etc.
4 Keepthecrownpushedinatalltimes(inthenormalposition)whileusing
the watch. If the crown is the screwed-down type, check that it is securely
screwed down.
5Do not operate the crown underwater, or while the watch is wet. Water
may enter the interior of the watch and defeat the water resistance.
6 Ifyourwatchisnon-waterresistant,bewareofsplashesofwater(during
facewashing,rain,etc.)andsweat.Ifthewatchbecomeswetfromwater
or sweat, wipe the moisture off with a dry, soft cloth.
7Even with a water resistant watch for everyday use, avoid directing
strong jets of mains water onto the watch. Water pressure above the limit
can apply, which may defeat the water resistance.
8With a water resistant watch for everyday use, rinse sea water off the case
after exposure, then wipe it thoroughly to avoid corrosion and other effects.
9The interior of the watch contains some amount of moisture, which may
cause fogging on the inside of the glass when the outside air is cooler
than the internal temperature of the watch. If the fogging is temporary
it causes no harm inside the watch, but if prolonged, or if water enters
the watch, consult your place of purchase and do not leave the problem
untreated.

4
ENGLISH
(2) Handling the Battery
DANGER
!
1If a button battery or coin battery is ingested, it may cause chemical
burns or perforation of mucous membrane even in a short period of time,
and in the worst-case scenario, may result in death. Never leave button
batteries or coin batteries within the reach of infants or young children.
If a button battery or coin battery is ingested, or there is a possibility
that one was ingested, it must be removed at once. Please treat as an
emergency situation and contact a doctor immediately.
WARNING
!
2Do not remove the battery from the watch. Contact the place of purchase
of the watch or your nearest ORIENT authorized service center for
assistance when wanting to remove the battery.
3The battery used in this watch is not a rechargeable battery, so it cannot
be recharged and used again. Do not attempt to charge the battery as
doing so could cause it to overheat or explode.
4 Askinrashorothersymptommaydevelopifleakingbatteryfluidcomes
into contact with skin. Do not leave depleted batteries sitting around for
long periods of time.
(3) Replacing the Battery
CAUTION
!
1Depleted batteries that are left sitting in the watch for long periods of time
may begin to leak battery acid, which could lead to malfunction. Be sure
to replace depleted batteries as soon as possible.
2Replace the watch battery only with the specified battery type.
3Battery replacement requires special-purpose tools, techniques, etc.
Reversing the polarities when inserting the battery may cause the battery
to overheat or explode. Contact the place of purchase or your nearest
ORIENT authorized service center for assistance when wanting to
replace the battery.

5
ENGLISH
(4) Shock
1Be sure not to carry the watch when you engage in
strenuous sports, whereas playing such light sports as golf,
etc., will not adversely influence the watch.
2 Avoidaviolentshocksuchasdroppingthewatchonthe
floor.
(5) Magnetism
1If the watch is left at a location with strong magnetism for an extended
period of time, the components may be magnetized, resulting in
malfunction. Be careful.
2The watch may temporarily speed up or slow down when exposed to
magnetism. Precision is restored when placed away from magnetism. In
such a case, reset the time.
(6) Vibration
The watch may lose precision if subjected to strong
vibrations such as from riding motorcycles, using
jackhammers, chain saws, etc.
(7) Temperature
 Inenvironmentsbelowandabovenormaltemperatures(5°C-35°C),the
watch may malfunction and stop.
Do not use the watch at high temperatures, such as in a sauna. The
watch may heat and cause burns.
(8) Chemicals, Gases, etc.
Utmost caution must be exercised when coming into contact with gases,
mercury,chemicals(paintthinner,gasoline,varioussolvents,detergents
containing such components, adhesives, paint, drugs, perfumes,
cosmetics,etc.),andsoforth.Suchmaycausediscolorationofthe
watchcase, watchband, and dial face. Discoloration, deformation, and
damage to various resin-based component parts may also occur.
CAUTION
!

6
ENGLISH
(9) About accessory parts
Do not attempt to disassemble or modify the watch.
 Storethebracelet/strappinandothersmallpartsoutofthereachof
children.
If any small parts are swallowed, immediately contact a doctor.
(10)Allergic reactions
If you develop a skin rash or your skin becomes abnormally irritated due
to contact with the watch or strap, stop wearing the watch immediately
and consult a doctor.
(11) About “luminous light”
 Somemodelshaveluminouslightonthehandsanddial.
The luminous light is a safe paint that stores sunlight and artificial light
without using any radioactive material, and emits that light in a dark
setting.Asthepaintdischargesthestoredlight,itwillbecomedimmer
over time. The amount of light emitted and the time that light is emitted
depends on various factors when the light is stored, such as the shape
of the glass, the thickness of the paint, surrounding brightness level, the
distance from the watch to the light source, and the light absorption level.
Please note that when not enough light energy is stored, the watch may
emit weak light or emit light for only a short time.
(12)Water resistant watchband
 Somemodelsemployleatherandnylonbandsonwhichaspecial
treatment to resist perspiration and water absorption have been applied.
Please understand that the water resisting effect of this watchband can
be lost depending on the period and conditions of use.
WARNING
!
CAUTION
!
CAUTION
!

7
ENGLISH
HOW TO IDENTIFY THE CALIBER NUMBER
Check the caliber number by referring to the model number of your watch or
the case code on the watch’s case back.
1. Searching by 13-digit model number
Check the 13-digit model number on the guarantee supplied with your watch.
You can also see the number on the product tag put on the watch. Its fourth
and fifth digits indicate the caliber number of your watch.
Example:Ifthemodelnumberis“RF-QA0001S10A”,thecalibernumberis
“QA”.
2. Searching by 10-digit model number
Checkthe10-digitmodelnumberontheguaranteesuppliedwithyourwatch.
You can also see the number on the product tag put on the watch. Its second
and third digits indicate the caliber number of your watch.
Example: If the model number is “UN00001B”,thecalibernumberis“UN”.
3. Searching by the case code
SeethecasecodeonthecasebackofyourwatchlikeXXXX-XXXXor
XXXX-XX.
The first two or three digits indicate the caiber number.
Example A : Whenthecasecodeis“UN00-C0”,thecalibernumberis“UN”.
Example B : Whenthecasecodeis"VT32-UAA0",thecalibernumberis
"VT3**".
* The place of case code may vary and its letter size may be small and
difficult to see depending on the characteristics of watches.
* The pictures and illustrations on this manual may differ from the actual
appearance of your watch but the function and operation procedures are
the same.

8
ENGLISH
SPECIFICATIONS
(1)Quartzfrequency:32,768Hz(One-secondfrequency)
(2)Drivemethod:Stepmotor
<2-hands type>
Caliber Wrist-Worn
Accuracy
Operating
Temperature
Range
Reset
Switch Battery
Battery Life
(withnew
battery)
UA HM0 ±20sec -5°C–+50°C SR516SW
1piece
Approx.
3 years
<3-hands type>
Caliber
Wrist-Worn
Accuracy
Operating
Temperature
Range
AdditionalFunctions
Battery
Battery
Life
(withnew
battery)
Reset
Switch
Second
Hand
Control
Battery
End of Life
Indicator
QC Y121 ±20sec. -5°C–+50°C   —SR626SW
1piece
Approx.
3 years
UB HM5 ±20sec. -5°C–+50°C   —SR521SW
1piece
Approx.
2 years
<2-hands type with Date Indicator>
Caliber
Wrist-Worn
Accuracy
Operating
Temperature
Range
AdditionalFunctions
Battery
Battery Life
(withnew
battery)
Reset
Switch
Second
Hand
Control
Battery
End of Life
Indicator
Date
Forwarding
Device
GW JP6 ±20sec. -5°C–+50°C — — SR920SW
1piece
Approx.
3 years
<3-hands type with Date Indicator>
Caliber
Wrist-Worn
Accuracy
Operating
Temperature
Range
AdditionalFunctions
Battery
Battery Life
(withnew
battery)
Reset
Switch
Second
Hand
Control
Battery
End of Life
Indicator
Date
Forwarding
Device
QA VT821 ±20sec. -5°C–+50°C   —SR621SW
1piece
Approx.
3 years
QD VT321 ±20sec. -5°C–+50°C   —SR920SW
1piece
Approx.
3 years
SZ HE7 ±20sec. -5°C–+50°C   —SR621SW
1piece
Approx.
3 years
UN HT7 ±15sec. -10°C–+60°C     SR920SW
1piece
Approx.
5years

9
ENGLISH
<3-hands type with Date and Day of the Week Indicator>
Caliber
Wrist-
Worn
Accuracy
Operating
Temperature
Range
AdditionalFunctions
Battery
Battery
Life
(withnew
battery)
Reset
Switch
Second
Hand
Control
Battery
End of Life
Indicator
Date
Forwarding
Device
Day of
the week
Forwarding
Device
UG HS9 ±20sec. -5°C–+50°C      SR920SW
1piece
Approx.
5years
* Whenwornaroundthewristat5°Cto35°C
Product specifications may change without notice, for improvement.
 NAMES OF INDIVIDUAL COMPONENT PARTS
A: Hourhand
B: Minute hand
C: Secondhand
D: Crown
E: Dial
F: Date
G: Day of the week
<2 or 3-hands type>
* Somemodelsmaynothavesecondhands.
D
C
B
A
E

10
ENGLISH
<2 or 3-hands type with Date Indicator>
* Somemodelsmaynothavesecondhands.
㻭
㻮
㻲
㻤
㻯
㻜
㻱
D
D
C
B
A
E
F

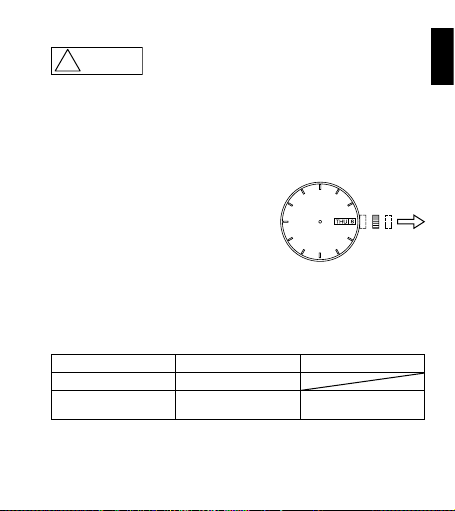

<3-hans type with Date and Day of the week Indicator>
D
B
A
E
F
G
C
* The position of the crown, date or day of the week indicator etc. may vary
on some models.
