Oriental motor CFK Series User manual

1
OPERATING MANUAL
5-Phase Stepping Motor Units
HP-4130-2
Table of Contents
1. Introduction .............................................. Page 2
2. Unit Components ..................................... Page 3
3. Installation ................................................ Page 4
4. Wiring ....................................................... Page 7
5. I/O Schematics ......................................... Page 10
6. Driver Output Current Control .................. Page 13
7. Troubleshooting........................................ Page 16
8. Specifications ........................................... Page 18
9. Dimensions .............................................. Page 20
Thank you for purchasing an Oriental Motor product.
This Operating Manual describes product handling procedures and safety precautions.
•Please read it thoroughly to ensure safe operation.
•Always keep the manual where it is readily available.
CFK Series
CFK543A, CFK544A, CFK545A, CFK564A, CFK566A and CFK569A
CFK543B, CFK544B, CFK545B, CFK564B, CFK566B and CFK569B

2
1. Introduction
The Oriental Motor (OM) CFK Series is a family of 5-Phase Stepping Motor Units which are
available in single and double shaft versions. This manual describes the installation and use of
the motors in the CFK Series, and instructs you in the precautions you should take when using
these devices.
There are two frame sizes : CFK54 □□ and CFK56 □□
Driver
Motor
Controller
DC Power
Supply
CFK Unit
Figure 1 System Block Diagram
All CFK units consist of a motor and an electronic driver. The separately purchased power
supply, and the digital Controller, complete the system (Figure 1).
A comprehensive Troubleshooting Table on page 16 and 17 lists the symptoms, check points, and
action steps related to problems you may encounter using this device. If you require further
assistance, contact your local sales office.
CFK Motor Product Number Codes
Motor Frame Size 4: 42 mm sq (1.65" sq)
6: 60 mm sq (2.36" sq)
C F K 5 6 9 A
5 Phase
Stepping
Motor Unit
CFK Series
5-Phase
A: Single Shaft
B: Double Shaft
Motor case Length

3
2. Unit Components
CFK Units include a matched motor and driver, connectors and operating manual.
PRECAUTIONS
Motor/Driver Combinations
Do not use a motor with any driver other than that listed in Table 1. Other combinations may
cause damage to a component and improper or unsafe operation of the motor, both of which
will void your OM warranty.
Maintaining Motor Integrity
Never disassemble the motor or loosen its assembly screws. These activities will cause
significant performance drop and void your OM warranty.
Heat Generation
Do not touch the motor or driver during operation as both components generate high
temperatures.
Do not allow the motor case to exceed 100℃. Motor temperature can be lowered by reducing
operating RUN current, STOP current at motor standstill, speed, and duty cycle.
Before touching the motor or the driver, turn the power off allowing ample time for the unit to cool
down.
Table 1 CFK Series
Unit Model Motor Model
Single Shaft
CFK543A
CFK544A
CFK545A
CFK564A
CFK566A
CFK569A
Double Shaft
CFK543B
CFK544B
CFK545B
CFK564B
CFK566B
CFK569B
Single Shaft
PK543-NA
PK544-NA
PK545-NA
PK564-NA
PK566-NA
PK569-NA
Double Shaft
PK543-NB
PK544-NB
PK545-NB
PK564-NB
PK566-NB
PK569-NB
Connector Housing
Contacts
Driver Model
DFC1507
DFC1514
1 piece
1 piece
1 piece
30 pieces
171822 - 5 (AMP)
171822 - 6 (AMP)
1-171822 - 2 (AMP)
170204 - 2 (AMP)

4
Installation areas for the motors and drivers should :
・Be free from water, dust, oil mist, salt or corrosive gas.
・Be free from excessive vibration or shock.
・Have good ventilation.
・Have ambient temperature for:
・Motor : between -10℃to +50℃, noncondensing.
・Driver : between 0℃to +40℃, noncondensing.
・Have at least 25 mm of open space between the driver and adjacent items.
Special considerations :
・Prevent contact between the driver and pieces of conductive material such as metal filings or
pins.
・Install motors on strong, heat-conducting metal plates such as steel or aluminum.
・If the temperature of the driver heat sink exceeds 85℃, force cool with a fan or attach
to a good heat conducting metal plate.
・Do not store or use in direct sunlight.
Electrical Noise
If the driver is located near significant sources of electrical noise such as high voltage lines, high
voltage machines or switched power units, insert noise filters in the source power line or connect
the driver to a separate circuit.
3. Installation

5
Mounting the Motor

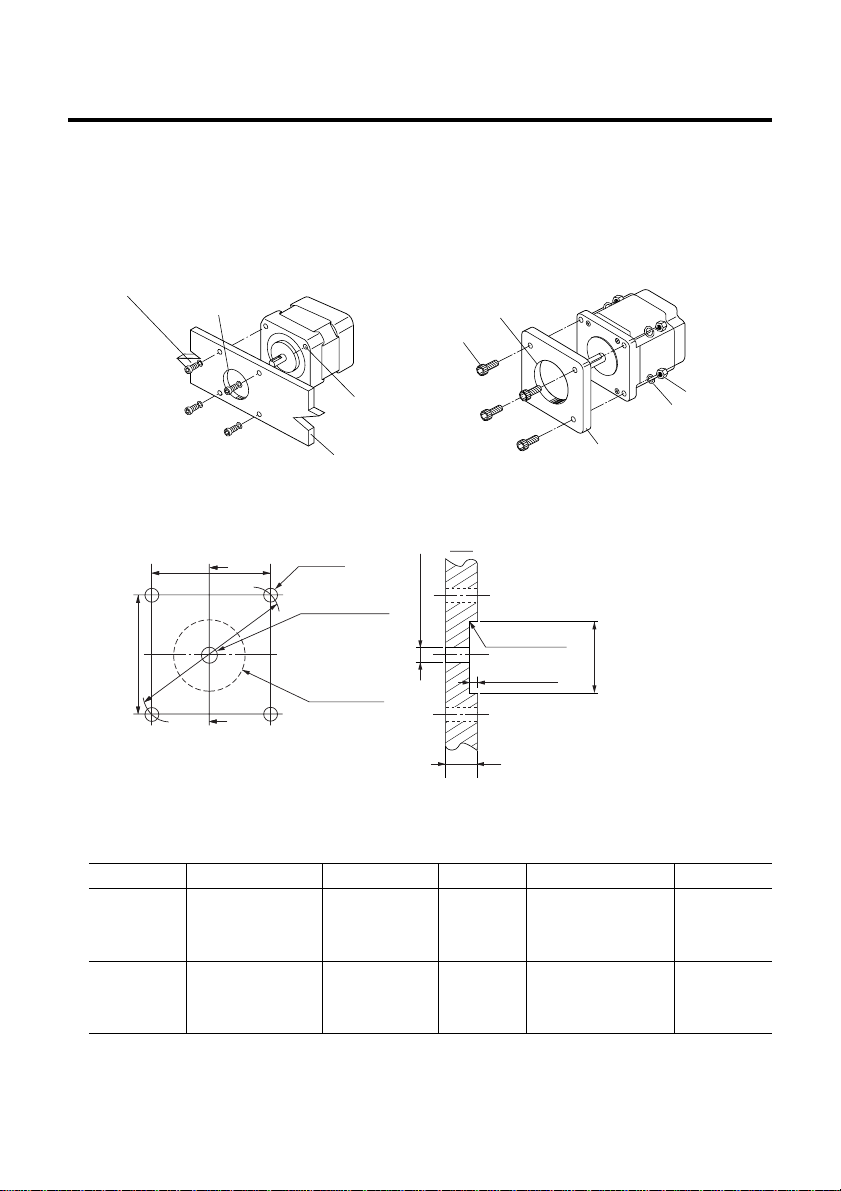

There are two motor frame sizes as seen in Figure 2 : CFK54 □A(B) and CFK56 □A(B).
Panel cutout requirements are shown in Figure 3 and corresponding dimensions and angles are
detailed in Table 2. Motors are supplied with single or double shafts.
CFK54 □A(B) CFK56 □A(B)
Figure 2 CFK Motors
Spot Facing or Through
Hole for Pilot
Hexagonal Socket
Screw
Mounting Plate
Spring Washer
Hexagonal Nut
Spot Facing or Through
Hole for Pilot
H
exagonal Socket
S
crew
4-M3P0.5
Mounting Pla
te
Figure 3 CFK Panel Cutout for Motor Mounting
X’
X4-φC
φ8.5(.334)min.
Spot facing or
though hole
φ8.5(.334)min.
X-X’
1.5(.06)min.
R0.3(.01)max.

φA
E
Shaft Hole
φA
B
φD
B
Units=mm (in)
Table 2 CFK Motor Mounting Dimensions - mm (in)
CFK543A(B)
CFK544A(B)
CFK545A(B)
CFK564A(B)
CFK566A(B)
CFK569A(B)
B
31 ±0.1
(1.22 ±0.004)
50 ±0.35
(1.97 ±0.014)
φC
3.5
(φ0.138)
4.5
(φ0.177)
φD
43.8 ±0.2
(φ1.724 ±0.079)
70.7 ±0.3
(φ2.873 ±0.012)
E
4 min.
(0.16 min.)
5 to 10
(0.2 to 0.39)
36H8
(φ1.417 ±0.0015)
0
φA
22H8
(φ0.866 ±0.0015)
0

6
Figure 5 Flat Mounting

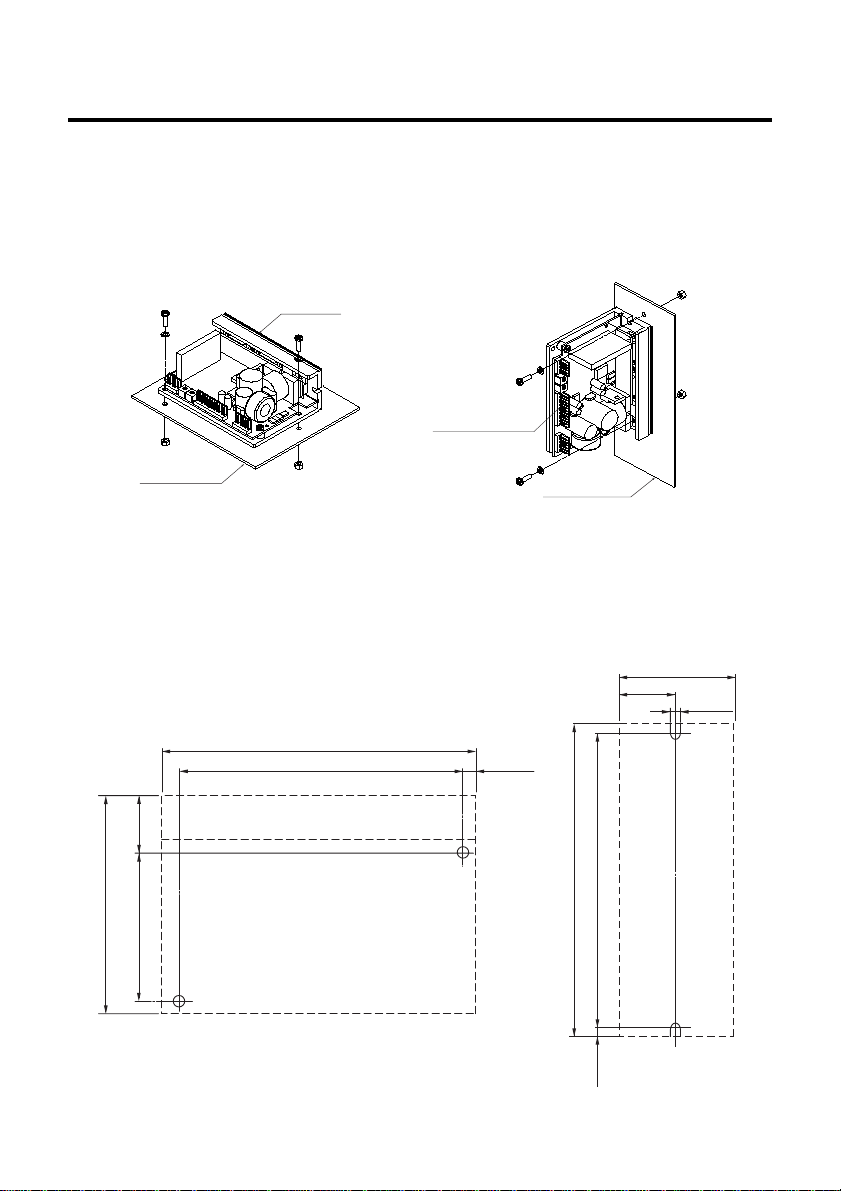

Mounting the Driver
Figure 4 shows the proper mounting of the driver for horizontal and vertical installation. When
mounted horizontally, the heat sink should face upward. A vertical mounting requires that the
terminal blocks face upward. For heat sink attachment, use M3-P 0.5 screws. The screw length
is 5 mm plus the thickness of the mounting plate.
Horizontal Installation
Figure 4 Driver Orientations
The driver can be attached to its mounting plate (or chassis) with screws through the driver
circuit board (Figure 5), or with screws through the heat sink (Figure 6).
Units= mm (in)
Figure 6 Upright Mounting
91 ±0.3 (3.58 ±.01 )
70 (2.76)
47
±0.3
(1.85
±.01
)18.5 (.73)
100 (3.94)
4.5 (.18)
36 (1.42)
100 (3.94)
93
±0.3
(3.66
±.01
)
3.5 (.14)
18 (.71) 3.5 (0.14)
Vertical Installation
Heat Sink
Mounting Plate
T
erminal Blocks
Mounting Plate

7
Wiring of the CFK motors consists of interconnecting the Driver to the Power Supply via CN1,
to the Controller via CN2, and to the Motor via CN3.

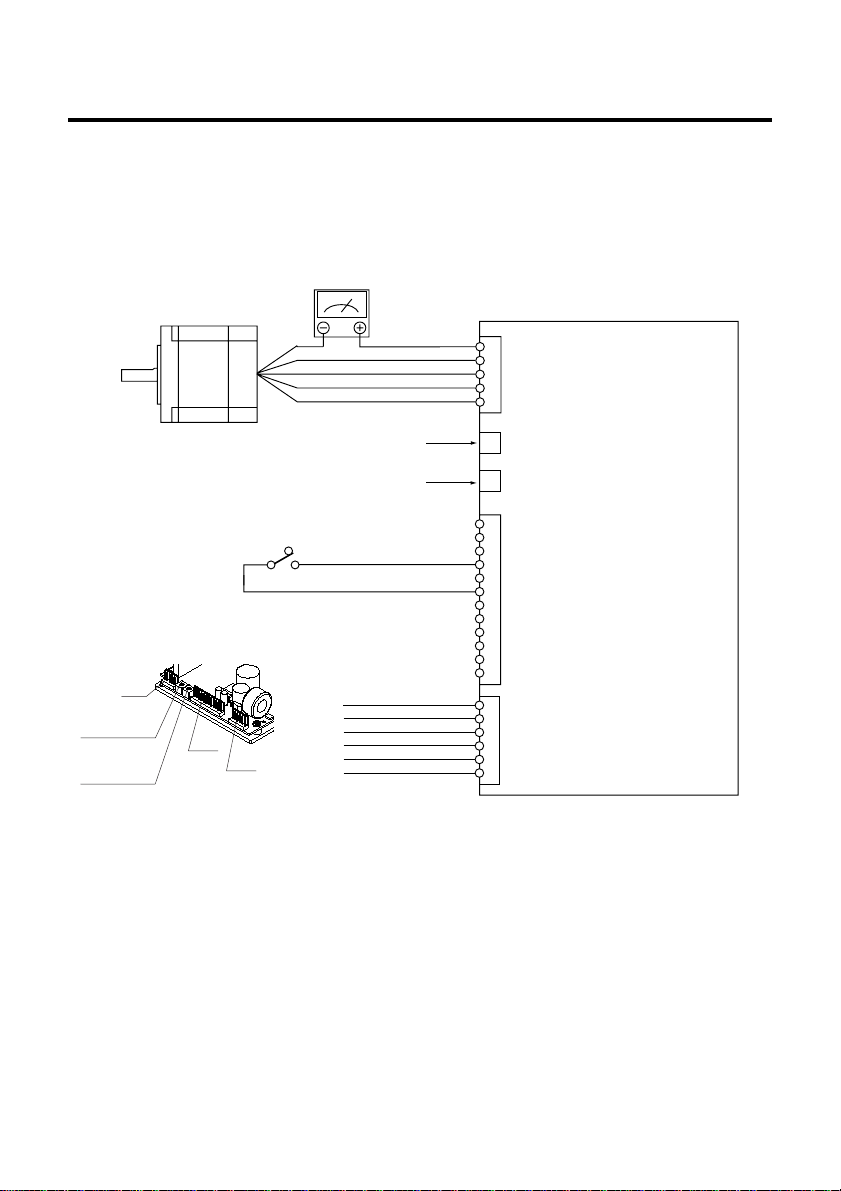

The Wiring diagram for all connectors is shown in Figure 7. The power and signal connections
are detailed in Table 3 on page 8 and Table 4 on page 9.
4. Wiring
Figure 7 Connections between Terminal Block, Motor, Power Supply, and Controller
CN3
DFC1507
DFC1514
101112 123456789
5-Phase Stepping Motor
Blue
Red
Orange
Green
Black
CN2
RUN
STOP
6 5 4 3 2 1
+24V
｛
Resolution
Selection Inputs
GND
｛
+5V
GND
CW Pulse
CCW Pulse
All Windings Off
Aoutomatic Current Down Off
Timing
GND
GND
D0
D1
D2
D3
GND
CN1
5 4 3 2 1
｛

8
・Keep signal lines as short as possible.
・Keep signal lines as far away as possible from power supply and motor lines.
・If noise generated on the motor lead wires causes interference with signal lines, shield the
motor
lead wires with conductive tape or wire mesh.
・Before turning on the power, always check the polarity of the power line which is arranged +24V,
+24V, GND, GND, +5V, GND from the left facing CN1.
・Make sure the housing and pin do not slip and get stuck when the connector is connected.
Wire Requirements for the CFKCFK
CFKCFK
CFK
Note
・Use twisted pair hookup wire of minimum diameter 24 AWG for all signal control lines, and
20 AWG for all power lines.
・ Strip no more than 5.5 mm of insulation from the end of the lead wires to minimize the possibility
of short circuits.
Table 3 Terminal CN1 Power Connections and Signal Descriptions
24V type GND, 5V type GND, and GND are used for signaI input and are all connected internally.
Connector
No.
CN1
Pin
No.
1
2
3
4
5
6
Signal
Description
+24 VDC
GND
+5V DC
GND
Function
Connect + and GND wires of
the +24 VDC power supply
Connect + and GND wires of
5 VDC stabilized power supply
Electrical Characteristics
24 VDC ±10%
DFC1507, 1.1 A max.
DFC1514, 1.5 A max.
Ripple Voltage, 5 Vp-p max.
5 VDC ±5%, 0.1 A min.

9
Function
Movement occurs with a rising
pulse if pulse is input when either
side is at L level, the motor may
not run normally.
Turn motor output current off at
L level and the motor rotate freely.
H level is when nothing is
connected, and the motor will run
normally.
At L level, the automatic current
down function is cancelled.
H level results when nothing is
connected. There is an
approximate 50% automatic
current down on output current
when the motor is stopped at
H level (no connection).
A signal is output whenever the
motor excitation sequence returns
to step 0 in synchronization with
the input pulse signal. e.g.,
·Every 10 pulses
when 0.72°/ STEP
·Every 100 pulses
when 0.072°/STEP
GND terminal used for signal
input
A 4-bit signal input allows a
16-step change in motor
resolution.
Points inputted in bits are active at
L level.
Please refer to Table 5 on page 12
for the number of divisions arising
from each bit combination.
GND terminal used for signal
input
Connector
No.
CN 2
Pin
No.
1
2
3
4
5
6
7
8
9
10
11
12
Signal Description
CW Pulse
CCW Pulse
All Windings Off
Automatic
Current Down Off
Timing
GND
GND
D0
D1
D2
D3
GND
Electrical
Characteristics
L: 0 to 0.6 VDC,
H: 4 to 5 VDC
Pulse width: 1 μsec min.,
Duty 50% max.
L: 0 to 0.6 VDC,
H: 4 to 5 VDC
L: 0 to 0.6 VDC,
H: 4 to 5 VDC
30 VDC max.
15 mA max.
Open-collector output
L: 0 to 0.6 VDC
H: 4 to 5 VDC
Resolution
Selection
Inputs
Table 4 Terminal CN2 Signal Connections and Descriptions

10
Note 1 :This will vary according to the inertial load, torque load, self-starting frequency and the
like.
Please do not input a signal into the all windings off input before the motor is stopped.
Note 2 :Do not input a pulse signal directly after the all windings off input signal has been switched
to H level, as this will affect the motor's starting characteristics. Usually a delay of
100msec. is sufficient.
Note 3 :If a pulse is input when either side of the CW pulse input or CCW pulse input is at L level,
the motor may not run normally.
5. I/O Schematics
1, 2
6, 7, 12 GND
3.3 kΩ
5 VDC
L: 0 to 0.6 VDC
H: 4 to 5 VDC
C-MOS Level
100Ω
100 pF
6, 7, 12 GND
10 kΩ
5 VDC
L: 0 to 0.6 VDC
H: 4 to 5 VDC
C-MOS Level
1 kΩ
1000 pF
3, 4, 8
9, 10, 11
5
6, 7, 12 GND
30 VDC max.
15 mA max.

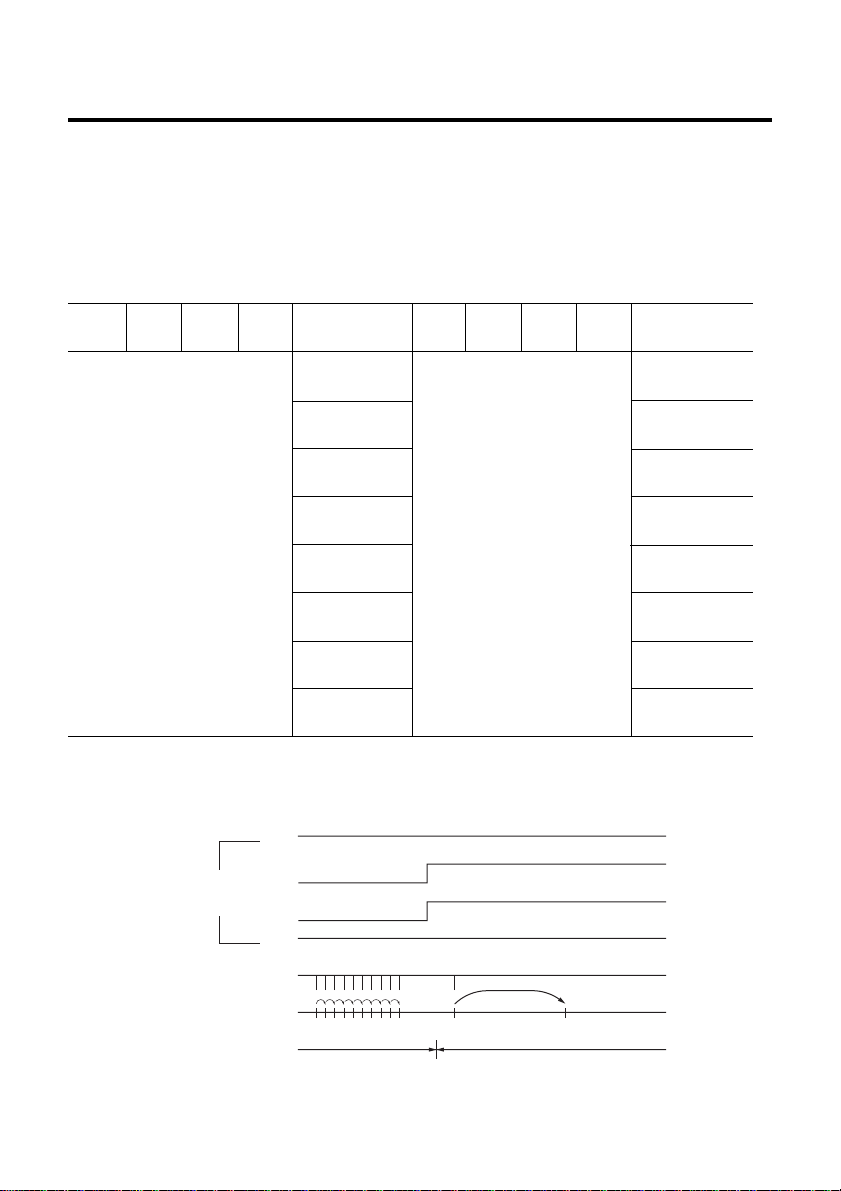

CW/CCW Pulse Input Excitation Timing Output
All Windings Off Input/
Automatic Current Down Off Input/
Resolution Selection Input
Figure 8 Input/Output Signal Circuits
Automatic Current Down
All Windings Off
Note 2
Note 3
130msec min.
 1 μ sec max.
CW
Motor
CCW
CW Pulse Input
All Windings Off Input
10 m sec max.
Note1
A
utomatic Current Down Off Input
Motor free
H
L
H
L
H
L
H
L
D0
D1
D2
D3
Resolution Selection
Inputs
CCW Pulse Input
Pulse Input
Prohibited
Step Angle 0.72 ゜ (Set at 1/1) Step Angle 0.072
゜ (Set at 1/10
)
Figure 9 Timing Chart

11
The stepping motor comes to rest after oscillating around its final rest position. Oscillation time
varies with the inertial load, friction load, self-starting frequency and motor type. Be sure that the
motor has come to a complete stop before inputting the All Windings Off Input signal. Activating
the All Windings Off Input prior to the completion of motor oscillation may make the motor lose its
resting position.
The All Windings Off Input signal affects the starting characteristics of the motor. After the All
Windings Off Input signal has been switched to HIGH, wait 100 msec. before inputting a pulse
signal.
All Windings Off Input

12
Resolution Selection
Motor resolution can be set to 16 values by varying the connections to the Resolution Selection
inputs D0 through D3. Therefore, the speed of the motor and the size of a step may be changed
by modifying the microstep resolution, without changing the input pulse frequency.
Do not change the resolution unless the pulse signal has stopped and the motor is stationary.
Table 5 Resolution Selection
H
L
H
L
H
L
H
L
D0
R
esolution Selection
Inputs
D1
D2
D3
CW Pulse
Motor
10 Pulses 1 Pulse
0.072°/STEP 0.72°/STEP
0.72°00.72°1.44°
Switching while in pulse input mode may cause the motor to slip position. Figure 10 illustrates
switching the step angle from 0.072°to 0.72°
D3 D2 D1 D0 Step Angle D3 D2 D1 D0 Step Angle
(Divisions/Step) (Divisions/Step)
H H H H 0.72°L HHH 0.0288°
(1) (25)
HHHL 0.36°LHHL 0.018°
(2) (40)
HHL H 0.288°LHLH 0.0144°
(2.5) (50)
HHL L 0.18°LHLL 0.009°
(4) (80)
HL HH 0.144°L L HH 0.0072°
(5) (100)
HL HL 0.09°LLHL
0.00576°
(8) (125)
HLLH 0.072°LLLH 0.0036°
(10) (200)
HLLL 0.036°LLLL
0.00288°
(20) (250)
Figure 10 Resolution Selection Inputs of a Step Angle Switched from 0.072°to 0.72°

13
The value measured by the ammeter represents the total current in two phases.
DFC1507 If the ammeter indicates 1.5 A, the motor current has been adjusted to 0.75 A/phase.
DFC1514 If the ammeter indicates 2.8 A, the motor current has been adjusted to 1.4 A/phase.
6. Driver Output Current Control
CFK54 □□{Driver : DFC1507} CFK56 □□{Driver : DFC1514}
RUN and STOP currents are adjusted before shipment so that matched motor/driver units are
ready for immediate use. However, the output current can be lowered to reduce heat generation
and vibration. To modify the currents, use the test circuit in Figure 11.
RUN Current Adjustment
Potentiometer
STOP Current Adjustment
Potentiometer
CN3
DFC1507
DFC1514
101112 123456789
5-Phase Stepping Motor
Blue
Red
Orange
Green
Black
CN2
Automatic Current Down Off
GND
RUN
STOP
6 5 4 3 2 1
+24V
｛
GND
｛
+5V
GND
CN1
5 4 3 2 1
SW1
OFF
ON
DC Ammeter
Figure 11 Wiring for Modifying the Driver RUN and STOP Currents
CN3
CN2
CN1
RUN Current
Adjustment
Potentiometer
STOP Current
Adjustment
Potentiometer

14
NOTE
Absolute maximum driver output currents are :
DFC1507 0.75 A/phase
DFC1514 1.4 A/phase
Adjusting the RUN Current
Your driver is delivered with the RUN current set to the rated operating current. To change this
value to reduce heat dissipation at high duty cycles, adjust the RUN potentiometer on the CFK
driver to the appropriate current value setting shown in Figure 12.
1. Turn on SW1 to disable the Automatic Current Down at standstill function.
2. Do not input any other signal (i.e., All Winding Off, Pulse, etc.).
3. Connect the motor to CN3 and insert an ammeter in the blue wire between terminal 1 and the
motor as shown in Figure 11.
4. Connect the power supplies, turn on the 5 VDC and 24 VDC, and adjust the RUN potentiometer
to the RUN current value of the appropriate graph in Figure 12.
DFC1507 DFC1514

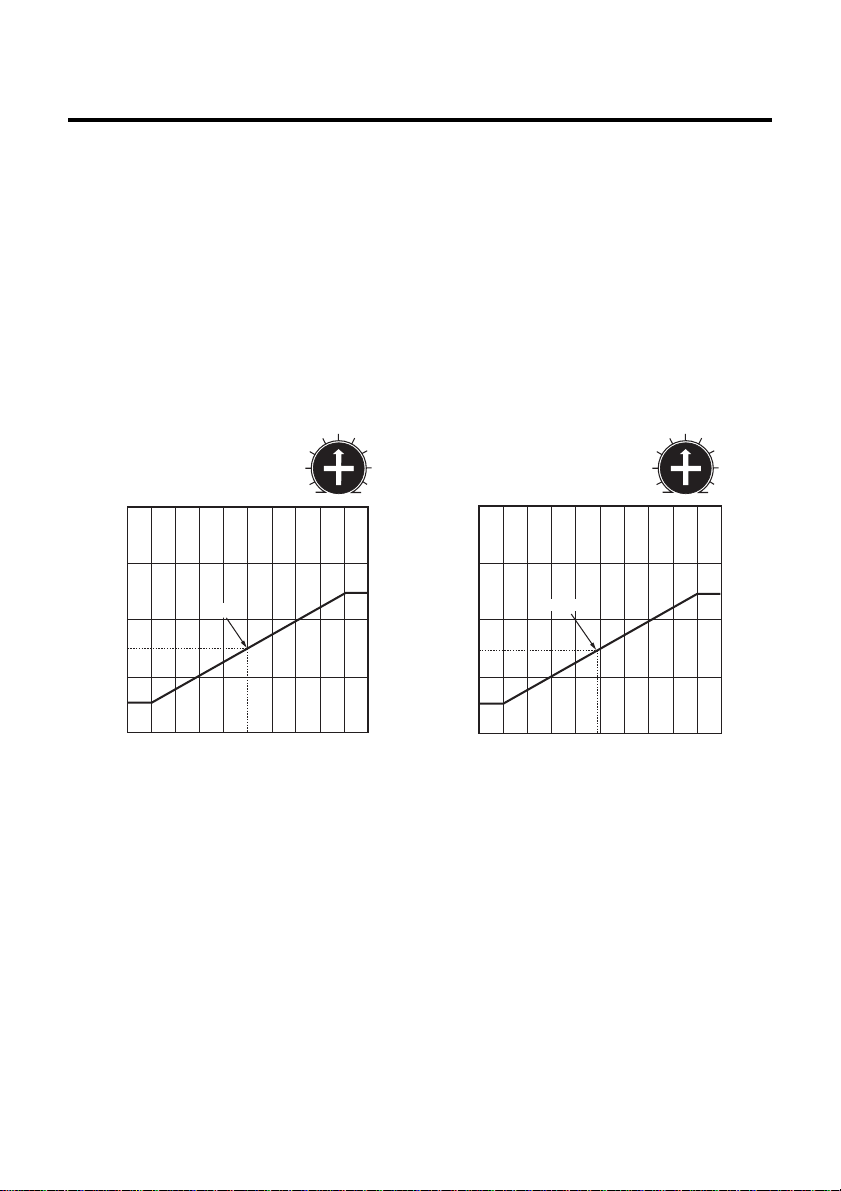

Figure 12 RUN Potentiometer Settings
When the RUN potentiometer is turned clockwise to its internal stop, the output current of the
driver will be 0.8 A/phase for the DFC1507 and 1.6 A/phase for the DFC1514.
1.0
0.75
0.5
0.25
01 234 5 67 8910
RUN potentiometer setting
RUN current [A/Phase]
0.75 A
2.0
1.5
1.0
0.5
01 234 5 67 8910
RUN potentiometer setting
RUN current [A/Phase]
1.4 A
9
10
8
7
6
5
4
3
2
10
9
10
8
7
6
5
4
3
2
10

15
Adjusting the STOP Current
The STOP current has been adjusted at the factory to 50% of the RUN current. To reduce the
STOP current to lower the heat dissipation during standstill, use the following procedure.
1. Connect the motor to CN3 and insert an ammeter in the blue wire between terminal 1 and the
motor, as shown in Figure 11 on page 13.
2. Turn off SW1 if it is in the circuit to enable the Automatic Current Down at standstill function.
3. Connect the power supplies, turn on the 5 VDC and 24 VDC and adjust the STOP potentiometer
to the desired STOP current value of the appropriate graph in Figure 13.
Figure 13 STOP Potentiometer Settings
1.0
0.75
0.5
0.25
01234 567 891
0
STOP potentiometer setting
STOP current [A/Phase]
0.375 A
2.0
1.5
1.0
0.5
01 234 5 67 8910
STOP potentiometer setting
STOP current [A/Phase]
0.7 A
9
10
8
7
6
5
4
3
2
109
10
8
7
6
5
4
3
2
10
DFC1507 DFC1514

16
7. Troubleshooting
If the stepping motor is not functioning properly, perform the following checks and action steps.
If the motor continues to malfunction, please contact your local Oriental Motor Sales Office.
Table 6 Troubleshooting Chart
Action Steps
Check that the power supply is properly
wired and connected to a power source.
When the connector is connected, check
that the housing has not slipped and become
stuck.
The motor will not energize when the All
Windings Off input signal is at the L level.
When the All Windings Off input signal is at
L level the motor ceases to be energized.
The motor has holding torque.
Check that motor and driver are properly
wired.
Check if the potentiometers have been turned
too far down. Return them to their factory
settings and recheck the motor operation.
Check that the housing have not slipped and
become stuck.
Check the connection polarity, voltage and
waveform of pulse signals. Check if the pulse
inputs on other sides is at the H level.
Retighten the shaft coupling screws or check
that the load is disengaged. The load may be
too large or the motor and load may not be
properly centered.
Verify that the motor's step angle conforms with
the step angle required by the device.
Check that your pulse generator setting for the
input pulse number are appropriate for the
designated motor movement.
Symptom
Motor is not receiving
power. The shaft is
easily rotated by hand.
Motor rotates in the
opposite direction.
Motor is running, but is
not functioning
properly.
Motor does not move
far enough.
Check Points
Power supply
No All Windings Off
input
Motor and Driver
Motor connection
RUN and STOP
potentiometers
Connector
connection
CW Pulse input
Load
Step angle
Pulse generator
setting

17
Table 6 Troubleshooting Chart, continued
Symptom
Motor loses
synchronization.
There is excessive
vibration.
Motor or driver is
excessively hot.
Motor > 100℃
Driver > 85℃
Automatic current down
function do not work.
Action Steps
Disable the input.
The rate may be set too high.
Lower the rate and check the results.
The time may be set too short.
Lengthen the time and check the results.
Check the motor movement independently
without operating any other apparatus which
could be a potential source of noise.
Reduce the motor RUN current.
If the vibration is reduced after a change in
the pulse rate, the problem might be in the
resonance of the motor.
Change the pulse rate or step angle.
Shorten the motor operating time or
lengthen its rest time.
Reduce the duty cycle.
Lower the current setting at 50% of the RUN
Current.
Adjust to the optimal value.
Current cannot be lowered when this
potentiometer is in MAX position.
Turn this potentiometer to the left after
referring to the appropriate graph in Figure 13
on page 15.
Be sure to return the pulse signal to the H level.
When the pulse signal is maintained at the
L level, the current cannot be lowered.
Check Points
No All Windings Off
input
Starting pulse
Acceleration/
deceleration time
External electrical
noise
Excessive motor
output torque
Pulse rate
Motor operating
time
STOP potentiometer
setting
STOP potentiometer
setting
Conclusion of pulse
signal

18
8. Specifications
Table 7 CFK Series CFK54 □□ Physical Characteristics/Operational Limits
Unit Model
Motor Model
Maximum Holding Nm
Torque* (kgcm)
Rotor Inertia kgm2
(gcm2)
Resistance per Phase Ω/phase
Step Angle
Insulation Resistance
Dielectric Strength
Insulation Class
Weight
Ambient Temperature
Driver Model
Voltage
Output Current
Excitation Mode
CW Pulse input
CCW Pulse input
Excitation Timing Output
Automatic Current Down Off Input
All Windings Off Input
Resolution Selection Input
Weight kg
Ambient Temperature
Single Shaft
Double Shaft
Single Shaft
Double Shaft
CFK543A
CFK543B
PK543-NA
PK543-NB
0.13
(1.3)
35 x10-7
(35)
2.2
CFK544A
CFK544B
PK544-NA
PK544-NB
0.18
(1.8)
54 x10-7
(54)
2.5
CFK545A
CFK545B
PK545-NA
PK545-NB
0.24
(2.4)
68 x10-7
(68)
2.8
0.72°
100MΩor more under normal ambient
temperature and humidity when the megger
reading between the windings and the frame is
500 VDC.
Under normal ambient temperature and
humidity, sufficient to withstand 0.5 kV at 50 Hz
applied between the windings and the frame for
one minute following a period of continuous
operation.
Class B 130℃
0.21 0.27 0.35
-10℃to +50℃
DFC1507
24VDC ±10%, 1.1A max. ; 5VDC ±5%, 0.1A max.
0.15 to 0.75 A/phase
Microstep
C-MOS input
Maximum response frequency is 500 kHz
L : 0 to 0.6 VDC, H : 4 to 5 VDC
Open collector output, 30 VDC, 15 mA maximum
C-MOS input
L : 0 to 0.6 VDC, H : 4 to 5 VDC
C-MOS input
L : 0 to 0.6 VDC, H : 4 to 5 VDC
C-MOS input
L : 0 to 0.6 VDC, H : 4 to 5 VDC
0.25
0℃to +40℃
Motor Unit
Driver Unit
Input/Output Signals
* Maximum Holding Torque is for operation at rated current and 5-phase excitation.

19
Unit Model
Motor Model
Maximum Holding Nm
Torque* (kgcm)
Rotor Inertia kgm2
(gcm2)
Resistance per Phase Ω/phase
Step Angle
Insulation Resistance
Dielectric Strength
Insulation Class
Weight
Ambient Temperature
Driver Model
Voltage
Output Current
Excitation Mode
CW Pulse input
CCW Pulse Input
Excitation Timing Output
Automatic Current Down Off Input
All Windings Off Input
Resolution Selection Input
Weight kg
Ambient Temperature
Single Shaft
Double Shaft
Single Shaft
Double Shaft
CFK564A
CFK564B
PK564-NA
PK564-NB
0.42
(4.2)
175 x10-7
(175)
0.7
CFK566A
CFK566B
PK566-NA
PK566-NB
0.83
(8.3)
280 x10-7
(280)
1.1
CFK569A
CFK569B
PK569-NA
PK569-NB
1.66
(16.6)
560 x10-7
(560)
1.7
0.72°
100MΩor more under normal ambient
temperature and humidity when the megger
reading between the windings and the frame is
500 VDC.
Under normal ambient temperature and
humidity, sufficient to withstand 1 kV at 50 Hz
applied between the windings and the frame for
one minute following a period of continuous
operation.
Class B 130℃
0.6 0.8 1.3
-10℃to +50℃
DFC1514
24VDC ±10%, 1.5A max. ; 5VDC ±5%, 0.1A max.
0.17 to 1.4 A/phase
Microstep
C-MOS input
Maximum response frequency is 500 kHz
L : 0 to 0.6 VDC, H : 4 to 5 VDC
Open collector output, 30 VDC, 15 mA maximum
C-MOS input
L : 0 to 0.6 VDC, H : 4 to 5 VDC
C-MOS input
L : 0 to 0.6 VDC, H : 4 to 5 VDC
C-MOS input
L : 0 to 0.6 VDC, H : 4 to 5 VDC
0.25
0℃to +40℃
Motor Unit
Driver Unit
Input/Output Signals
* Maximum Holding Torque is for operation at rated current and 5-phase excitation.
Table 8 CFK Series CFK56 □□ Physical Characteristics/Operational Limits

20

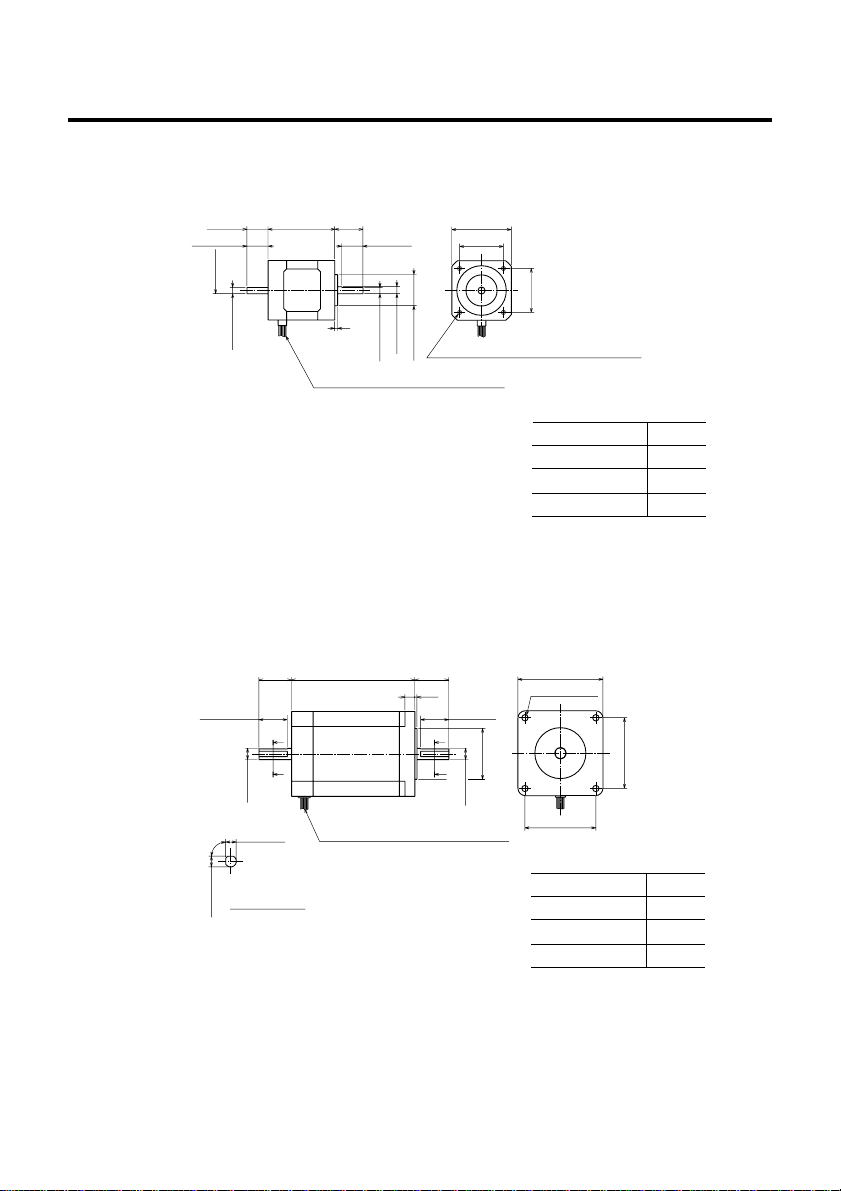

9. Dimensions
Units = mm
Figure 14 Standard Motor Type/PK54 □-N □Series
Units = mm
Figure 15 Standard Motor Type/PK56 □-N □Series
UL Style 3265, AWG26
4−M3 P0.5 4.5mm DEEP min.
2
4.5±0.15
□42±1
31±0.1
31±0.1
*15±0.25
15±1A
15±0.25
20±1
φ5
4.5±0.15
0 -0.012
φ5
0 -0.012
φ22
0 -0.033
5LEADS, 600mm LENGTH
A24
±1
23
±1
Shaft Cross
Section AA’
A
A’
UL Style 3266, AWG22
4 -φ4.5
5LEADS, 600mm LENGTH
7.5
±0.15
7.5
±0.15
90｡
71.5
20
±0.25
□60
±1
50
±0.35
50
±0.35
A
A’
20
±0.25
φ8
0 -0.015
φ8
0 -0.015
φ36
0 -0.039
Motor Model
PK564
PK566
PK569
A
46.5
57.5
87
Motor Model
PK543
PK544
PK545
A
33
39
47
Motor
* 15 ±0.25 indicates the length of milling on motor shaft.
