ORiNG IMG-4312D+-D4G User manual

* All specifications are subject to change without notice.
Designed for Rugged Excellence
V1.2 March 2020
Features
Compact size industrial M2M gateway for remote access,
data collection and end-devices control applications suitable
for multiple IoT Cloud Platform interfaces
Support LTE Cat. 4 with up to 150Mbps downlink and
50Mbps uplink data rates
Support dual mini SIM card slot
Support 2x 10/100Base-T(x) Ethernet ports
Support 1x RS-232/422/485 Serial port in DB9 connector
Support 1x DI and 1x DO
Support High Speed Wireless Connectivity: 802.11 b/g/n
WLAN Wi-Fi interface with up to 150Mbps bandwidth
Support ORing Open Gateway (protocol converter)
software feature for user-friendly IIoT deployment
Support ORing Cloud Wizard feature for easy and quick
step-by-step device provisioning
Support Modbus TCP/RTU industrial protocols
Support MQTT/MQTT Sparkplug B/CoAP/LWM2M Cloud
protocols
Support DHCP server and forwarding through PPTP function
Support VPN for secured network connection (OpenVPN,
PPTP, IPSec)
Support NAT (Network Address Translation)
Support Firewall features
Event warning by System logs, SNMP Trap, E-mail and SMS
Redundant multiple host devices:
5 host devices: Virtual COM, TCP Server, TCP Client mode,
UDP mode (4 IP Ranges)
Redundant 12~48VDC power input in terminal block
PoE power input available with 1kV isolation
Rugged IP-30 casing design and wide operating temperature
range for harsh environment operation
DIN Rail and Wall mounting types
Support OpenWRT SDK for project customization
IMG-4312D+-D4G
Industrial IoT LTE Gateway with IEEE 802.11 b/g/n
and 2x10/100Base-T(X), 1xRS-232/422/485 ports

* All specifications are subject to change without notice.
Designed for Rugged Excellence
V1.2 March 2020
Introduction
IMG-4312D+-D4G LTE cellular M2M Gateway is an innovative product for Cloud, Internet of Things and Industry 4.0
applications. It is a perfect choice for remote secured data collection from the factory floor (PLCs, machines, networking
devices) and environmental sensors (temperature, humidity, noise, pollution, vibration etc.) as well as for serving control
commands coming from Cloud Platforms for changing end-devices status.
Connectivity: IMG-4312D+-D4GGateway uses LTE module which supports 2G/3.5G/4G technologies. The user
has a possibility to choose between three different communication interfaces to connect his end-device: Fast Ethernet
ports, Serial port and Wireless Wi-Fi connectivity with 150Mbps link speed. With Modbus RTU and TCP protocols
the Gateway can easily communicate with any compatible device to poll and write all kind of data types.
IMG-4312D-D4Gcan also transfer data to 5 host PCs simultaneously for backup purposes. In addition the gateway
supports all common VPN protocols (OpenVPN, PPTP, IPSec) and can establish secured tunneling connection between
clients and servers.
Cloud Platforms connection: IMG-4312D+-D4Gsupports all common lightweight Cloud communication protocols:
MQTT (Message Queuing Telemetry Transport) including Sparkplug B version for payload and topic definition, CoAP
(Constrained Application Protocol) and LWM2M (Lightweight M2M). It is fully compatible with ORing PaaS Cloud but it
also makes the Gateway a universal and flexible solution for any existing Cloud Platform integration.
Thanks to ORing branded Open Gateway software feature it simplifies to maximum IoT
solution deployment. Connecting big variety of end-devices, very often with different
communication interfaces, to different Cloud Platforms has never been so easy. Open
Gateway protocol converter from a very simple and user-friendly web-based configuration
interface turns the gateway into a transparent man in the middle between Modbus field
devices and MQTT/CoAP/LWM2M servers. The user has a possibility to define and shape the
data format before it is sent to the Cloud for secured storing, analysis and Dashboard or HMI
SCADA visualization.
Application

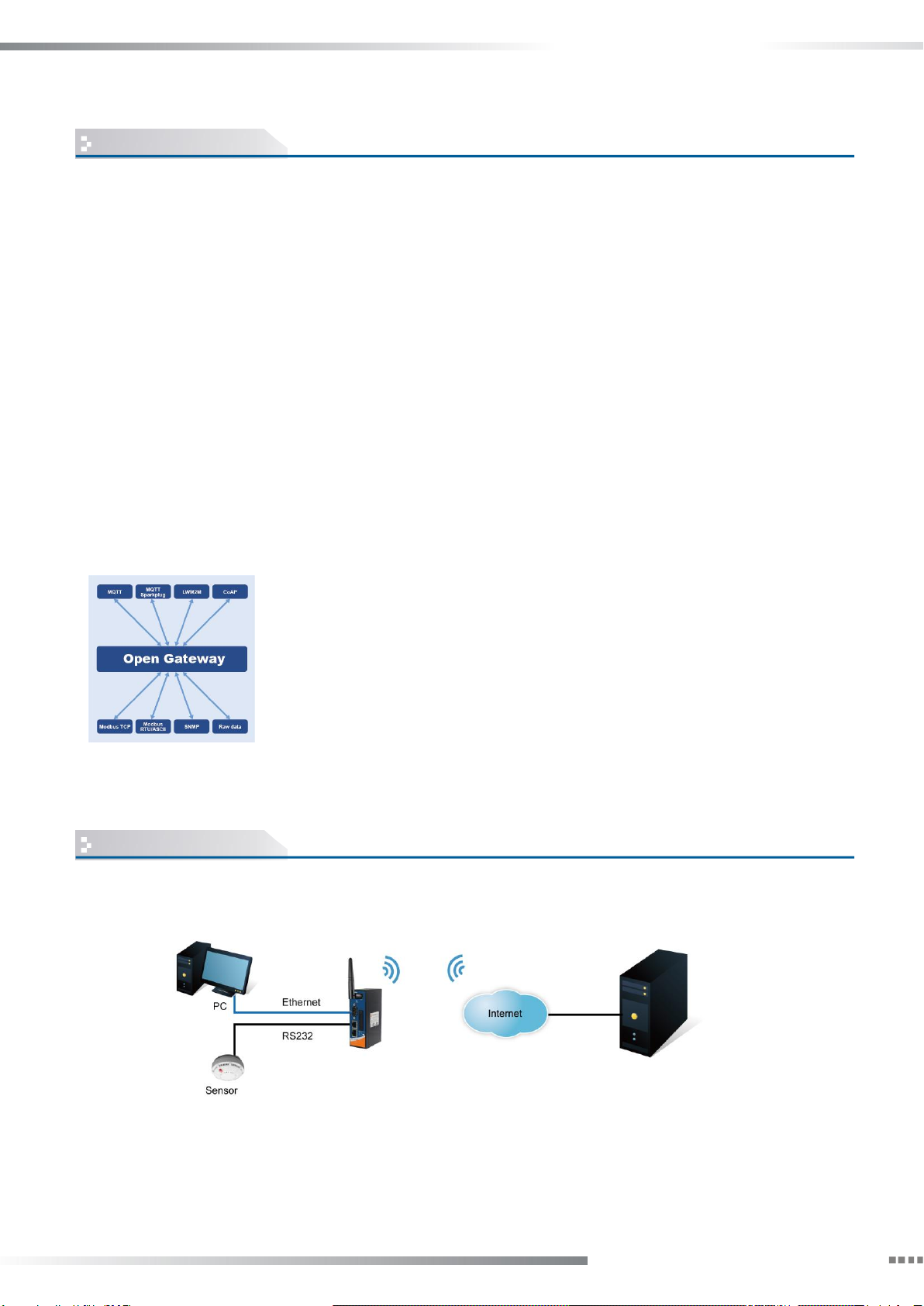

This is an example application of IMG-4312D+-D4Gconnected with the server and edge devices.
M2M Gateway Connection
Redundancy 5 host devices

* All specifications are subject to change without notice.
Designed for Rugged Excellence
V1.2 March 2020
IMG provide a variety of VPN security connections and supports server and client mode in VPN connection.
IoT Architecture
Above architecture picture shows typical application and use case scenario for ORing IoT system. IoT Gateways are
responsible for providing transparent connectivity between end-devices and South Bound interface of the Cloud
platform. Once the data reaches the Platform it can be stored securely and analyzed. Applications on the top of the
system provide HMI and Dashboards for data visualization, reporting, alarming, historian and device location.
VPN Connection
Redundancy 5 host devices

* All specifications are subject to change without notice.
Designed for Rugged Excellence
V1.2 March 2020
Pin Definition
Pin #
RS-232
RS-422
RS-485
( 4 wire )
RS-485
( 2 wire )
1
DCD
TX-
TX-
DATA -
2
RXD
TX+
TX+
DATA +
3
TXD
RX+
RX+
4
DTR
RX-
RX-
5
GND
GND
GND
6
DSR
7
RTS
8
CTS
9
RI
Dimension
DB9 connector

* All specifications are subject to change without notice.
Designed for Rugged Excellence
V1.2 March 2020
Specifications
ORing Device Server Model
IMG-4312D+-D4G
Physical Ports
10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX
2
PoE P.D Port
P.O.E.Present at ETH1
Power Device (IEEE 802.3af):
IEEE 802.3af compliant input interface
Over load & short circuit protection
Isolation Voltage: 1000 VDC min.
Isolation Resistance : 108ohms min
Sim card slot
2
DI/DO(Dry Contact)
DI x 1, DO x 1
(DI :Logic level 1: 5V~30V, Logic level 0: 0V~2V
DO :Maximum Voltage is 30V, Maximum Current is 20mA)
Cellular Interface
Antenna Connector
2 x SMA Female
Cellular Standard
GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA /LTE
Band Option
America (US grade)
LTE:
FDD:1900(B2)/1700(B4)/850(B5)/700(B12)/700(B13)/700(B14)/1700(B66)/600(B71) MHz
UMTS/HSDPA/HSUPA/HSPA+:
1900/1700/850 MHz
Europe (EU grade)
LTE:
FDD:2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz
TDD:TDD:2600(B38)/2300(B40)/2500(B41) MHz
UMTS/HSDPA/HSUPA/HSPA+:
2100(B1)/900(B8) MHz
GSM/GPRS/EDGE:
900/850 MHz
Taiwan (TW grade)
LTE:
FDD:2100(B1)/1900(B2)/1800(B3)/1700(B4)/850(B5)/2600(B7)/900(B8)/700(B28) MHz
TDD:2300(B40)
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+:
2100(B1)/1900(B2)/850(B5)/900(B8) MHz
GSM/GPRS/EDGE:
B2/B3/B5/B8
China (CN grade)
LTE:
FDD:2100(B1)/1800(B3)/900(B8) MHz
TDD:2600(B38)/1900(B39)/2300(B40)/2500(B41) MHz
TDSCDMA: B34/B39
WCDMA: 900/2100 MHz
CDMA 1x/EVDO: 800(BC0) MHz
GSM: 900/1800 MHz
Wifi Interface
Antenna Connector
1 x RP-SMA Female
Modulation
IEEE802.11b: CCK/DQPSK/DBPSK
IEEE802.11g: OFDM
IEEE802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Frequency Band
America / FCC:
2.412~2.462 GHz (11 channels )
Europe CE / ETSI:
2.412~2.472 GHz ( 13 channels )

* All specifications are subject to change without notice.
Designed for Rugged Excellence
V1.2 March 2020
Transmission Rate
802.11b: 1/2/5.5/11 Mbps
802.11g: 6/9/12/18/24/36/48/54 Mbps
802.11n(40MHz): UP to 150 Mbps
Transmit Power
802.11b: 19dBm ± 1.5dBm
802.11g: 17dBm ± 1.5dBm
802.11n(2.4G@20MHz): 16dBm ± 1.5dBm
802.11n(2.4G@40MHz): 14dBm ± 1.5dBm
Receiver Sensitivity
802.11b: -90dBm ± 2dBm@1Mbps
802.11g: -72dBm ± 2dBm@54Mbps
802.11n(2.4G@40MHz,MCS7): -68dBm ± 2dBm
Encryption Security
WEP: (64-bit ,128-bit key supported)
WPA/WPA2 :802.11i(WEP and AES encryption)
WPA-PSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption
Serial Ports
Connector
DB9 x 1
Operation Mode
RS-232/422/485
Serial Baud Rate
110 bps to 115.2 Kbps
Data Bits
7, 8
Parity
odd, even, none, mark, space
Stop Bits
1, 1.5, 2
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Flow Control
XON/XOFF, RTS/CTS, DTR/DSR
Network Protocol
Protocol
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, DDNS, PPPoE
LED indicators
Power indicator
3 x LEDs, PWR 1(2)(PoE) / Ready:
Green On: Power is on
10/100TX RJ45 port indicator
2 x LEDs, Green for port Link/Act at 100Mbps.
Serial TX / RX
Red: Serial port is receiving data
Green: Serial port is transmitting data
WIFI
1 x LED, Green: WIFI Link /ACT
WAN
1 x LED, Green On : Power is on and functioning Normal
Digital I/O
2 x LEDs, Green On: active
Power
Redundant Input power
Dual DC inputs. 12-48VDC on 4-pin terminal block
Power consumption (Typ.)
5.5W
Overload current protection
Present
Reverse polarity protection
Present on terminal block
Physical Characteristic
Enclosure
IP-30
Dimension (W x D x H)
45(W)x80.6(D)x95(H) mm (1.77 x 3.17 x 3.74 inch)
Weight (g)
395
Environmental
Storage Temperature
-40 to 85oC (-40 to 185oF)
Operating Temperature
-25 to 70oC (-13 to 158oF)
Operating Humidity
5% to 95% Non-condensing
Regulatory approvals
EMC
CE EMC (EN 55024, EN 55032), FCC Part 15 B
EMI
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B Class A
EMS
EN 55024, (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11(DIP))
Radio Frequency
EN 301 489-1/-17(2.4G), EN 300 328(2.4G), EN 301 511(2G), EN 301 908-1(3G/4G), FCC Par 15C(2.4G)

* All specifications are subject to change without notice.
Designed for Rugged Excellence
V1.2 March 2020
Safety
UL61010-1/-2-201, *ATEX, *C1D2
Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-31
Vibration
IEC 60068-2-6
MTBF
353,679 hrs
* Under Development
Warranty
5 years
Ordering Information
IMG-ABCD+-EE
Code
Definition
Wireless
Mode
Serial Port
Type
Serial Port Number
Ethernet Port
Number
Cellular
Interface
Option
1: 802.11 b/g
2: 802.11 a
3: 802.11 a/b/g
4: 802.11 b/g/n
5: 802.11 a/n
6: 802.11 a/b/g/n
- 1: RS-232 only
- 2: RS-422/485 only
- 3: RS-232/422/485
- 2: 2 port
- 2: 2 port
-3G: HSUPA
- 4G: LTE
Available
Model
Model Name
Description
IMG-4312D+-D4G_xx
Industrial IEEE 802.11 b/g/n 4G LTE Cellular Router with 2x10/100Base-T(X) 1x RS-232/422/485
Gateway, 1-port PoE P.D, EU/US/TW/CN band
Packing List
O
IMG-4312D+-D4G x 1
Wall-Mount Kit x 1
2.4G wifi antenna x 1
Din-Rail Kit x 1
LTE antenna x 2
Quick Installation Guide x 1
Optional Accessories
O
SDR/DRP Series DIN-Rail power supply
