Oster MGSTSL7500-449 User manual

MODEL/ MGSTSL7500-449
MODEL/
750W
MGSTSL7500-449
Instruction Manual

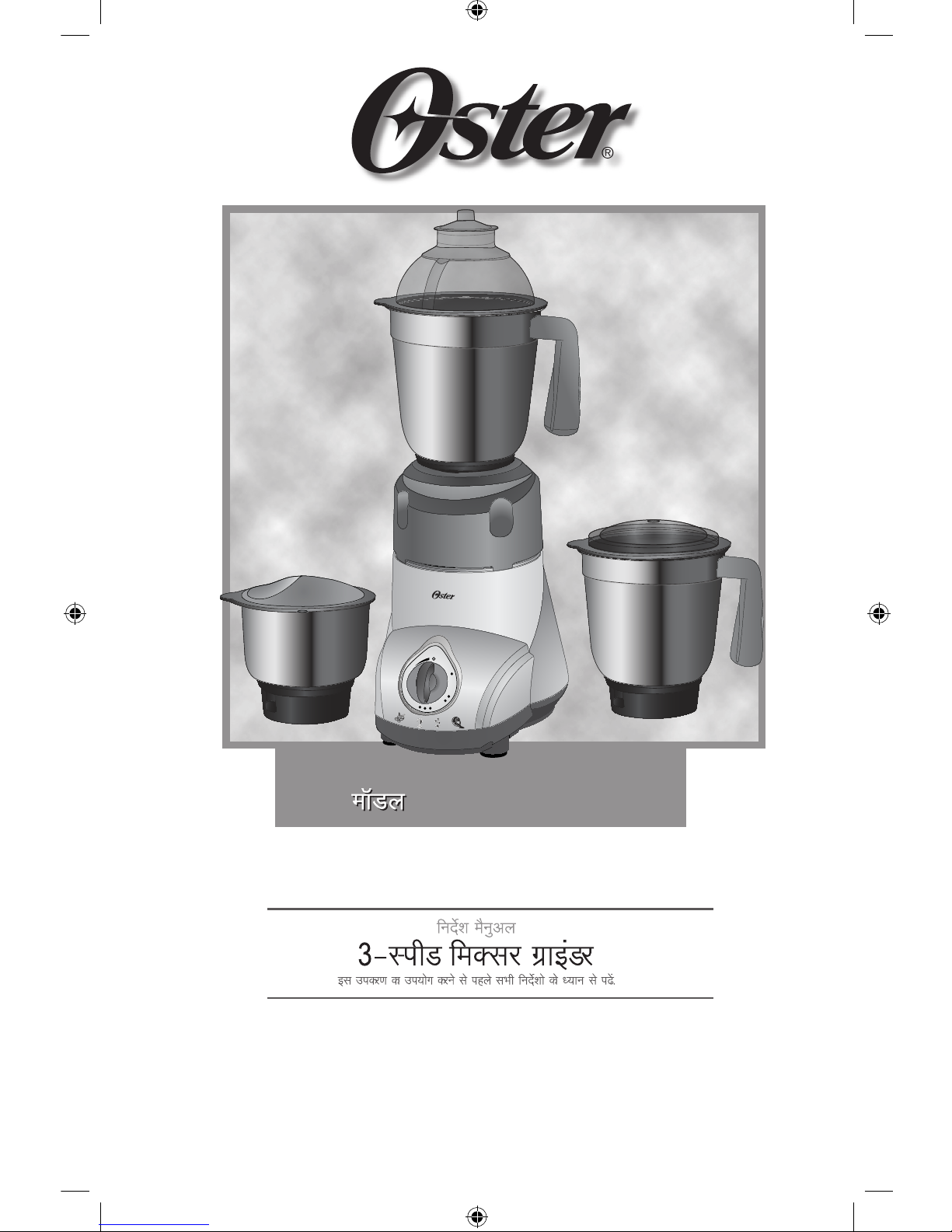

3-SPEED MIXER GRINDER
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
MGSTSL7500-449_13EHM1 Outline.indd 1 8/6/13 10:49 AM

1

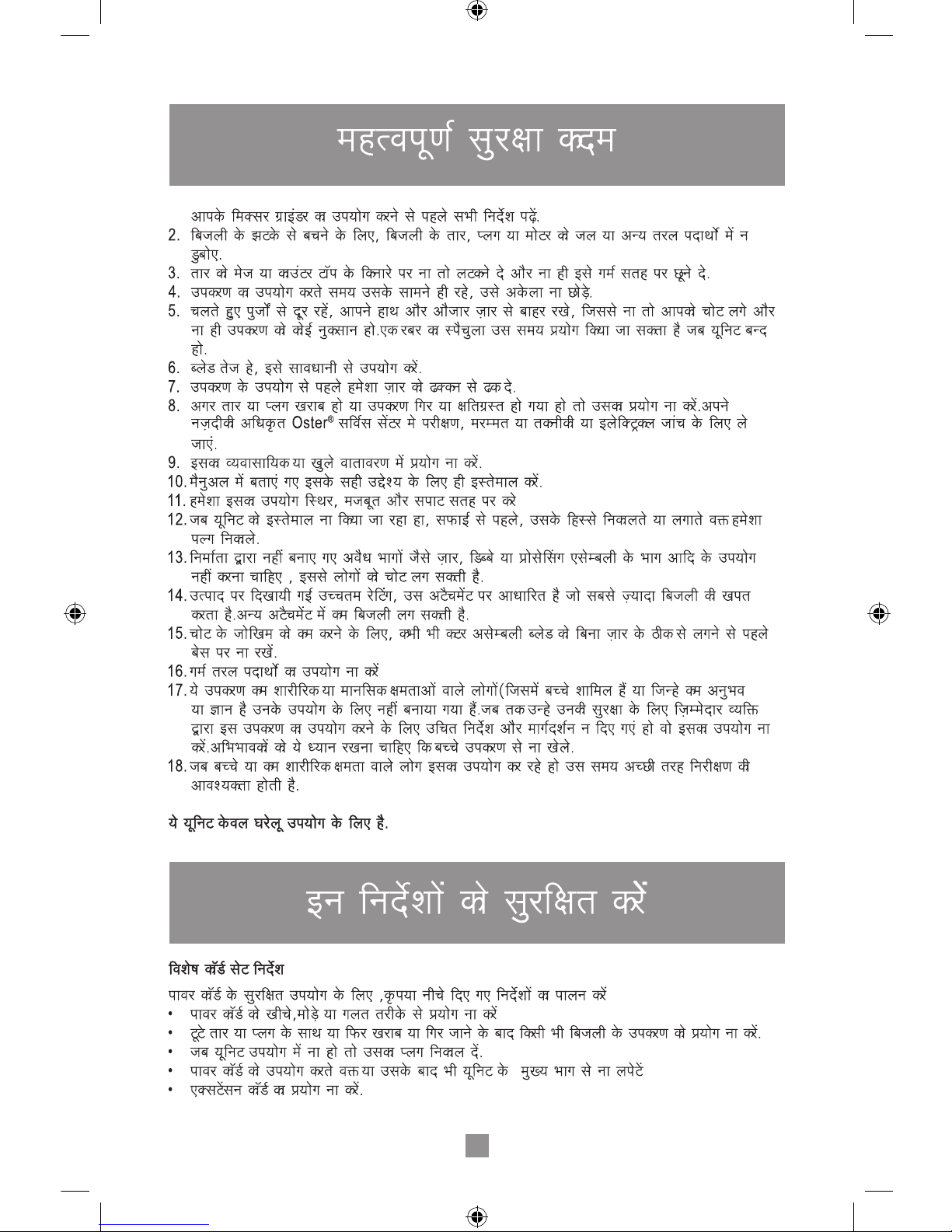

IMPORTANT SAFEGUARDS
1. READ ALL INSTRUCTIONS BEFORE USING YOUR MIXER GRINDER.
2. To protect against risk of electrical shock, DO NOT immerse the cord, plug or motor
base in water or any other liquids.
3. DO NOT let cord hang over edge of table or counter or touch hot surfaces.
4. Never leave appliance unattended when in use.
5. Avoid contact with moving parts. Keep hands and utensils out of jars while operating
unit to prevent personal injury or damage to the appliance. A rubber spatula may be
used only when the unit is not running.
6. The Blades are sharp. Handle with care.
7. Always put the Lid on the Jar you are using before operating the appliance.
8. DO NOT operate any appliance with a damaged cord or plug or after the appliance
malfunctions or is dropped or damaged in any manner. Return the unit to the
nearest Authorized OSTER®Service Center for examination, repair or electrical or
mechanical adjustment.
9. DO NOT use outdoors or for commercial purposes.
10. Use this appliance for its intended use as described in this manual.
11.Alwaysoperateonaatsurface.
12. Unplug the unit when it is not in use, before taking off or putting on parts and before
cleaning.
13. The use of attachments not made by the manufacturer, including canning or ordinary
jar and processing assembly parts is not recommended, and may cause injury to
persons.
14. The maximum rating marked on the product is based on the attachment that draws
the greatest load. Other attachments may draw less power.
15. To reduce the risk of injury, never place cutter-assembly blade on base without jar
properly attached.
16. DO NOT blend hot liquids.
17. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
18. Close supervision is necessary when any appliance is used by or near children, or
incapacitated individuals.
THIS UNIT IS FOR HOUSEHOLD USE ONLY.
SAVE THESE INSTRUCTIONS
SPECIAL CORD SET INSTRUCTIONS
Please follow the instructions below to ensure the safe use of the power cord.
• DO NOT pull, twist or otherwise abuse the power cord.
• DO NOT operate any electrical appliance with a damaged cord or plug or after the
appliance malfunctions or has been dropped or damaged in any manner.
• Unplugtheunitwhenitisnotinuseandbeforecleaning.
• DO NOT wrap the power cord around the main body of the appliance during or after use.
• DO NOT use extension cord.
MGSTSL7500-449_13EHM1 Outline.indd 1 8/6/13 10:49 AM

2
DESCRIPTION OF THE APPLIANCE
1. Lids
2. 1.60-Liter Stainless Steel Jar for ice crushing, blending and mixing
3. 1.40-Liter Stainless Steel Jar for wet grinding
4. 500-mL Stainless Steel Jar for dry grinding
5. 6-Point Star Shaped Ice Crushing Blade
6. Wet Grinding Blade
7. Dry Grinding Blade
8. Motor Housing
9. 3-Speed Dial with pulse function
10. Jar Locking Grooves
11. Fuse Reset Button (not shown)
12. Spatula/Tool to remove Blades from Large & Medium Jars
750W
1
2
3
4
9
10
10 11
5
67
8
1
1
12
MGSTSL7500-449_13EHM1 Outline.indd 2 8/6/13 10:49 AM

3
USAGE GUIDE CHART
Wet Grinding Rice 2 minutes
Wet Grinding Lentil paste 1 minute
Dry Grinding Turmeric powder 30-45 seconds
Blending Lassie 30-45 seconds
OPERATING INTRUCTIONS
USING THE 3 SPEEDS CONTINUOUSLY
You may select among one of the 3 speeds to perform the task according to your own
preference and to follow the instructions from your recipes. If you wish to use one of the
3 speeds continuously, simply turn the Dial clockwise to one of the 3 speeds and the unit
will start right away. Once you achieve the desired result, turn the Dial counterclockwise
to the off position “O”.
USING THE PULSE FUNCTION
For more controlled blending or mixing use the “Pulse” function. Turn Dial
counterclockwise to start using the pulse function. This function needs to be controlled
manually on and off until the desired results are achieved. Repeat cycle as desired.
TIPS
• Whenusingthedrygrindingjar,llthejaruptotheleveloftheblades.
• Whenusingthewetgrindingandblendingjars,lljarsupto2.5cmfromtopofjar.
• Whenusingtheblendingjarforicecrushing,place6icecubesorapproximately2
cups of ice at a time.
• Cutallrmfruitsandvegetablesintopiecesnolargerthan1.8cm(1/2inch)to2.5cm
(1 inch). Cut all kinds of cheeses into pieces no larger than 1.8 cm (1/2 inch).
CAUTION: Operate only with the lids in place.
MANUAL RESET BUTTON
If unit stalls, if blade jams or stops, turn the Dial to the off position “O”. Let it cool down for
a few minutes. Remove Jar from Base, turn Base upside down and push the Fuse Reset
Button. Make sure the blades can spin freely before using again.
TIP: If you have to use the manual reset button, try reducing the quantity of the materials
in the jar or adding some water.
MGSTSL7500-449_13EHM1 Outline.indd 3 8/6/13 10:49 AM

4
CARING FOR YOUR MIXER GRINDER
CLEANING
IMPORTANT: TURN THE DIAL TO THE OFF POSITION AND UNPLUG UNIT BEFORE
CLEANING BASE and DO NOT IMMERSE THE UNIT BASE IN WATER OR ANY
OTHER LIQUIDS. Use a damp, soft sponge with mild detergent to clean the outside of
the unit base.
All parts except for the motor base are dishwasher safe. You can also wash the parts in
warm, soapy water. Rinse well and dry.
To clean Jars and Blades you can separate them for easy and better cleaning and
washing, as follows:
REMOVING THE BLADES
Large and medium size jars:
Attach the socket wrench end of the spatula/tool to the blade nut and turn clockwise while
holding the plastic coupling located on the bottom of the jar. Once it is loose, carefully
remove the blade from the jar and wash all parts.
Small jar:
Usingpliersoraregularsocketwrenchthattsinthebladenut,attachthetooltothe
blade nut and turn clockwise while holding the plastic coupling located on the bottom of
the jar. Once it is loose, carefully remove the blade from the jar and wash the main blade
assembly.
NOTE: The blade assembly includes washers that may come lose during disassembly.
PLACING THE BLADES BACK IN THE JARS
Large and medium size jars:
Place blade back into the jar axis.
Attach the socket wrench end of the spatula/tool to the blade nut and turn
counterclockwise while holding the plastic coupling located on the bottom of the jar.
Small jar:
Place blade back into the jar axis.
NOTE: Ensure to place the all washers back in their place.
Usingpliersoraregularsocketwrenchthattsinthebladenut,attachthetooltothe
blade nut and turn counterclockwise while holding the plastic coupling located on the
bottom of the jar.
STORING YOUR MIXER GRINDER
After cleaning, if you have removed the blades make sure to reassemble them onto the
jars. Store appliance with Covers slightly open to prevent container odor.
MGSTSL7500-449_13EHM1 Outline.indd 4 8/6/13 10:49 AM

5

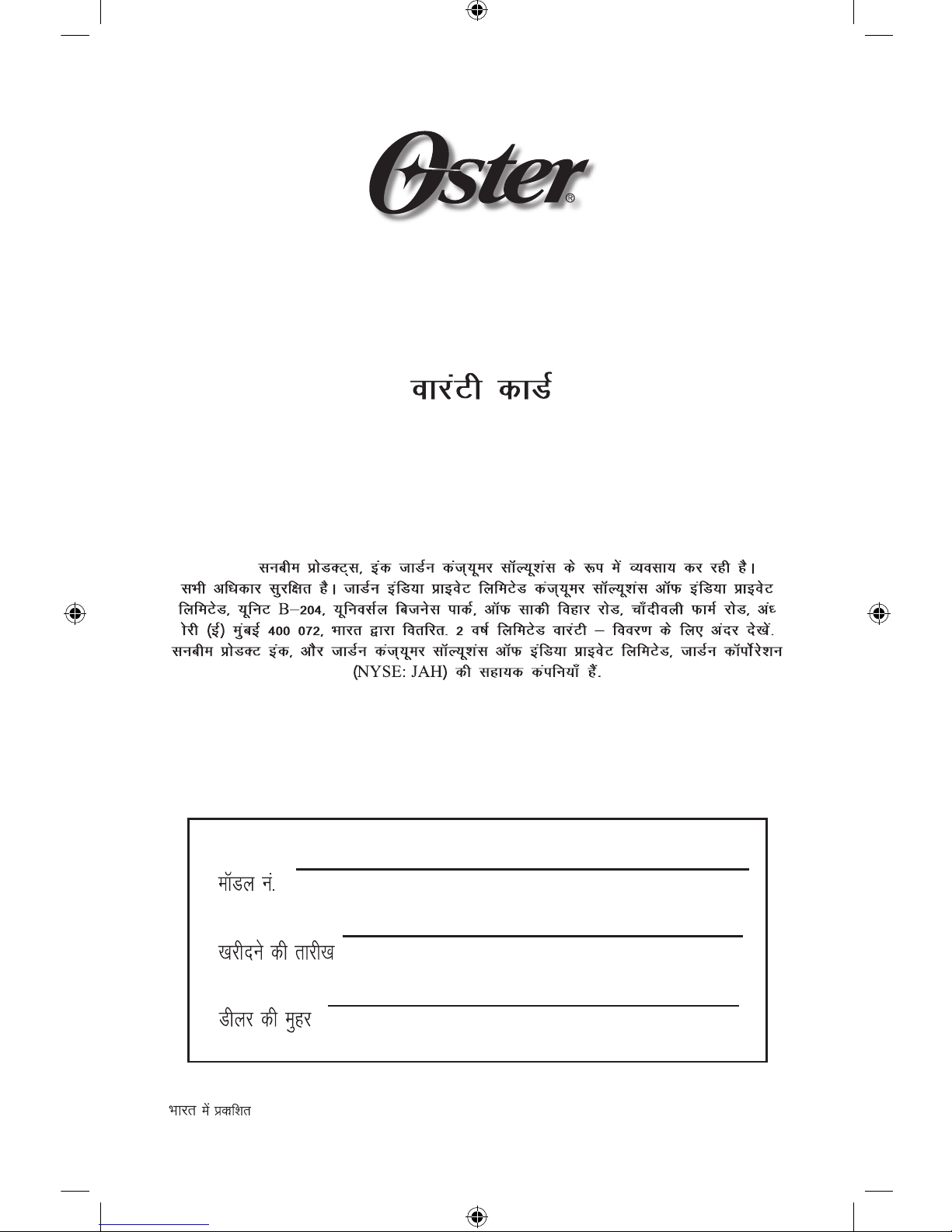

WARRANTY
Jarden Consumer Solutions of India Private Limited (hereinafter referred to as “JCS”) warrants
that, for a period of two (2) years from the date of purchase of this product as evidenced in
the cash memo (“Warranty Period”), this product will be free from defects in material and
workmanship (the “Warranty”). Please preserve the warranty card and the cash memo of the
product duly stamped and signed by the dealer, as this will be required for any claims under
this Warranty.
• TherightsandbenetsunderthisWarrantyareadditionaltoyourstatutoryrights,which
are not affected by this Warranty.
• DuringtheWarrantyPeriod,JCS,atitssolechoice,willeitherrepairorreplacethisproduct
or any component of the product found to be defective free of cost through (the dealer
from whom the product was purchased or through the service center listed in the card –
businesspeopletoconrm),providedthat:
- JCS is promptly informed of the defect;
- The product has not been altered in any way or subjected to misuse or repair by the
person other than a person authorized by JCS;
  - ThisWarranty,dulylled,stampedandsignedbythedealerismadeavailable.
• TheWarrantyprovidedhereinistowardstheoriginalpurchaserandisnottransferrableto
any third party.
• Anyrepairedorreplacedproductwillbewarrantedonthesetermsfortheremaining
portion of the Warranty in the country where the product was purchased.
• Liabilityforconsequentiallossordamageisneitheracceptednorisitimplied.
• ThisWarrantyisinlieuofallothersexpressedorimpliedanddoesnotcoverthefollowing:
a.If product was use in any manner other than the intended use.
b.If the product has not been used according to the instruction manual/user’s manual,
included with the product.
c.If the defects are caused by improper use or reckless use.
d.If the product was altered or repaired by anyone other than those authorized by JCS.
e.If installation of the product is not done as per the printed instructions provided along
with the product.
 f.Ifthedefectsarecausedbyre,ood,andotheractofgod.
g.If the defects are caused by use of incorrect current or voltage or faulty electric power
supply.
h.Normal wear and tear of parts and accessories resulting from regular use.
i. Damage resulting from transportation, accidents, mishandling or negligence on the part
of the consumer.
j. The following part/components:
- Broken glass or ceramic parts
- Light bulb
- Accessories
k.If the product is put to industrial or commercial use.
  • JCSwillnotberesponsibleforanydelayinservicingduetonon-availabilityofany
components or due to reasons beyond the control of JCS.
  • Anyfailureoftheproducttoperformanypurposeotherthantheintendedpurpose
shall not be considered as a default under this warranty.
  • Inanyevent,ifJCSbecomesliablefordamagesincurredinconnectionwiththese
presents, then the liability of JCS will be limited to the amount equal to the sale
invoice amount paid by you.
Waste electrical products should not be disposed off with household waste. Please recycle
where facilities exist.
MGSTSL7500-449_13EHM1 Outline.indd 5 8/6/13 10:49 AM

6

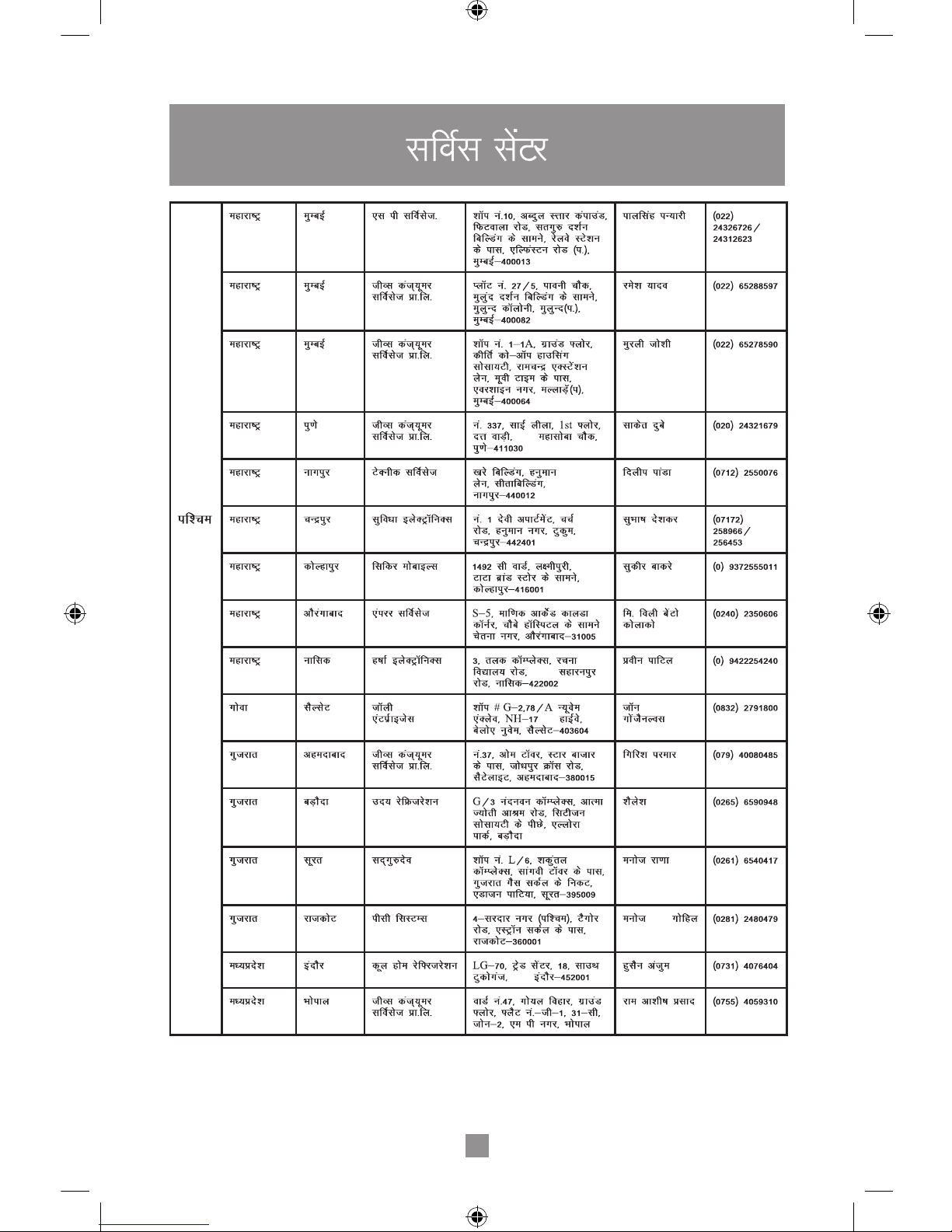

AUTHORIZED SERVICE CENTERS
Region State City Name Address Contact
Person
Contact
No.
East West Bengal Kolkata Jeeves
Consumer
Services Pvt
Ltd
356, Jodhpur Park,
Kolkata - 700068
Someswar
Basu
(033)
40012100
West Bengal Kolkata Southern
Service
6/19A, Prince Anwarshah
Road, Poddar Nagar,
Kolkata - 700068
Subrata
Manna
(033)
24729651 /
65488822
West Bengal Kolkata Baishanu
Service
Care
55D, Adaya Nath Saha
Road, Lake Town, Near
Jaya Cinema, Kolkata -
700048
Piyush
Nandan
(033)
40664210
West Bengal Howrah Time n
Service
37 & 38, Mohenath Lane,
Salkia, Howrah - 711106
Tapas
Hazra
(033)
65639720
West Bengal Hooghly DNP
Enterprises
52, Sahaganj Main Road,
PO. Sahaganj, Near Bandel
Station, Hooghly - 712104
Indrajit
Bag
(0)
9163668360
West Bengal Barrackpore Balaji
Enterprise
4/E/A Barasat Road,
Barrackpore, Dist. North
24 Parganas, Near 15 No.
Rail Gate, Barrackpore -
700122
Pradip Kr
Ghosh
(033)
25451224
West Bengal Siliguri S D
Electronics
Deys Lodge,138/69/57,
Nazrul Sarani, Ashrampara,
Siliguri - 734001
Arup Dey (0353)
2526028
West Bengal Asanol Yes Service Hutton Road, Near Mahal
Banquet Marriage Hall,
Asansol - 713301
Sarfaraz
Ahmed
(03228)
2280029
Assam Guwahati Multi Track
Services
G S Road, Ground Floor,
Bora Service Station,
Ulubari, Guwahati -
781007
Kallol
Dutta
(0361)
2457296
MGSTSL7500-449_13EHM1 Outline.indd 6 8/6/13 10:49 AM

7
AUTHORIZED SERVICE CENTERS
North
Delhi Delhi Jeeves Consumer
Services Pvt Ltd.
# E-10, Arya Samaj Road,
School Road, Uttam
Nagar, Delhi - 1100059
Md Khalid
Pervez
(011)
45785915
Delhi Delhi Jeeves Consumer
Services Pvt Ltd.
R-32, 2nd Floor, Vikas
Marg, Shakarpur, Opp.
Heera Sweets, Metro Pillar
# 46 , Delhi - 1100092
Manjeet Singh (011)
47754764
Delhi Delhi S T Services M-131, 1st Floor, Guru
Harkrishan Nagar,
Paschim Vihar, New Delhi
- 110041
Vipin Yadav (011)
32958438 /
45586987
Haryana Gurgaon Jeeves Consumer
Services Pvt Ltd.
4/18 A, 1st Floor, Laxmi
Garden, Behind Police
Chowki, Khandsa Road,
Gurgaon-122001
Karamvir
Fogaat
(0124)
4073434
Haryana Faridabad Jeeves Consumer
Services Pvt Ltd.
5H-49,1st Floor, NIT
Faridabad -121001
Manoj Kumar
Panwar
(0129)
4163003
Uttar
Pradesh
Noida Jeeves Consumer
Services Pvt Ltd.
1st Floor, Above Punjab
ATM, Sector-22, Chaura
More Main Road,
Near Oriental Bank of
Commerce, Opp.Rajkiya
Inter College, Noida, U.P
- 201301
Devender
Singh
(0120)
4162644
Uttar
Pradesh
Lucknow Swastik
Customer Care
A-1/3, SEC-H Aliganj,
Near Kendriya Bhawan,
Lucknow - 226020
Uma Shankar
Mishra
(0522)
3298003 /
4102581 /
4102582
Uttar
Pradesh
Kanpur Shubham
Electronics
192,Manohar Nagar Barra
-3 , Opp Deepshika Guest
House, Kanpur - 208027
Suman Gupta (0512)
2283394 /
2602029
Uttar
Pradesh
Agra Sai Electronics 25/113, Gandhi Nagar,
Agra - 282 003
Ajay Singhal /
Sunil
(0562)
3297005
Haryana Ambala Telecare Old Hospital Road, Bara
Thakur Dwara, Opp.
Polytechnic, Ambala City
- 134003
Devinder
Sharma
(0171)
25567369
Haryana Sonipat Saibaba
Enterprises
House No. 1510, Sector -
15, Sonipat - 131001
Pramod
Sharma
(0130)
6411206
Haryana Karnal Jeeves Consumer
Services Pvt Ltd.
Shop # 50, Ground Floor,
Mayapuri, Rajiv Gandhi
Marg/ Near Raj Palace,
Meeraghati Chowk, Karnal
- 132001
Neeraj
Sharma
(0184)
4022201
Punjab Mohali Jeeves Consumer
Services Pvt Ltd.
# SCF-4, Basement, The
High Land Society, NAV,
Baltana, Zirakhpur,
Mohali-140603
Shiv Dhanda (0176)
2652574
Punjab Ludhiana Jeeves Consumer
Services Pvt Ltd.
Shop # 18B, Dhyan Singh
Commercial Complex,
Opp. Bus Stand, Ludhiana
- 141001
Gurbeer Singh (0161)
2444002
Punjab Jallandhar Jeeves Consumer
Services Pvt Ltd.
EH-31, Laddowali Road,
Opposite Gurudwara,
Jalandhar - 144001
Ashok Kumar (0181)
2221707
Punjab Amritsar Keerat Electronics Naraingarh Bazar, Shaheed
Bhagat Singh Road,
Chheharta, Amritsar - 143 001
Sukhdeep
/ Mantreet
Singh
(0183)
2450095
Himachal Shimla Suvidha
Electronics
Mehta Niwas, Ground
Floor, Near Himfead
Building, B C S, New
Shimla - 171009
Rajesh Kumar (0)
9816457886
MGSTSL7500-449_13EHM1 Outline.indd 7 8/6/13 10:49 AM

8
AUTHORIZED SERVICE CENTERS
North
Himachal Mandi Kuldeep Electro
Care
Near FCI Godown,
Kehanwal Road, Ram
Nagar, Mandi - 175001
Kuldeep
Singh
(01905)
222140 /
329574
Rajasthan Jaipur Jeeves Consumer
Services Pvt Ltd.
A-79,Subash Nagar
Shopping Centre, Jaipur
- 302016
Vipendra
Singh
(0141)
4035102
West
Maharashtra Mumbai S P Services Shop No. 10, Abdul Sattar
Compound, Fitwala Road,
Opp. Satguru Darshan
Bldg., Near Railway
Station, Elphinston Road
(West), Mumbai - 400013
Palsingh
Panyari
(022)
24326726 /
24312623
Maharashtra Mumbai Jeeves Consumer
Services Pvt Ltd.
Plot No 27/5, Pawani
Chowk, Opp Mulund
Darshan Building, Mulund
Colony, Mulund (W),
Mumbai - 400082
Ramesh
Yadav
(022)
65288597
Maharashtra Mumbai Jeeves Consumer
Services Pvt Ltd.
Shop No.1-1A, Ground
floor, Kirti Co-Op Housing
Society, Ramachandra
Extn Lane, Near
Movie Time, Evershine
Nagar, Malad(W),
Mumbai-400064
Murali Joshi (022)
65278590
Maharashtra Pune Jeeves Consumer
Services Pvt Ltd.
No. 337, Sai Leela, 1st
Floor, Datt Wadi, Mhasoba
Chowk, Pune - 411030
Saket Dubey (020)
24321679
Maharashtra Nagpur Technic Services Khare Building, Hanuman
Lane, Sitabuildi, Nagpur
- 440 012
Dilip Panda (0712)
2550076
Maharashtra Chandrapur Suvidha
Electronics
No. 1, Devt Appartment,
Church Road, Hanuman
Nagartukum, Chandrapur
- 442401
Subash
Deashkar
(07172)
258966 /
256453
Maharashtra Kolhapur Sikir Mobiles 1492 C Ward, Laxmipuri,
Opp. TATA Brand Stores,
Kolhapur - 416001
Sukir Bakare (0)
9372555011
Maharashtra Aurangabad Emperor Services S-5,Manik Arcade Kalda
Corner, Opp Chowbey
Hospital, Chetna Nagar,
Aurangabad -31005
Mr. Willy
Bento Colaco
(0240)
2350606
Maharashtra Nashik Harsha
Electronics
3, Talak Complex,
Rachna Vidyalaya Road,
Sharanpur Roda, Nashik
- 422002
Pravin Patil (0)
9422254240
Goa Salcete Jolly Enterprises Shop # G-2, 78/A Nuvem
Enclave, Along NH-17
Highway, Belloy Nuvem,
Salcete - 403604
John
Gonzanalves
[phone]
Gujarat Ahmedabad Jeeves Consumer
Services Pvt Ltd.
No. 37, Om Tower,
Near Star Bazar, Jodhpur
Cross Road, Satellite,
Ahmedabad - 380015
Girish
Parmar
(079)
40080485
Gujarat Baroda Uday
Refrigeration
G/3 Nandanvan Comples,
Atma Jyoti Ashram Road,
Behind Citizen Society,
Ellora Park, Baroda
Shailesh (0265)
6590948
Gujarat Surat Sadgurudev Shop No. L/6, Shankutal
Complex, Beside Sangvi
Tower, Near Gujarat Gas
Circle, Adajan Patia, Surat
- 395009
Manoj Rana (0261)
6540417
MGSTSL7500-449_13EHM1 Outline.indd 8 8/6/13 10:49 AM

9
AUTHORIZED SERVICE CENTERS
West
Gujarat Rajkot PC Systems 4-Sardar Nagar
(West),Tagore Road,
Near Astron Circle,
Rajkot-360001
Manoj Gohil (0281)
2480479
Madhya
Pradesh
Indore Cool Home
Refrigeration
LG-70, Trade Centre, 18,
South Tukogunj, Indore-
452 001
Husain Anjum (0731)
4076404
Madhya
Pradesh
Bhopal Jeeves
Consumer
Services Pvt
Ltd.
Ward no 47, Goyal
Vihar, Ground floor, Flat
no-G-1, 31-C, Zone-2,
MP Nagar, Bhopal
Ram Ashish Prasad (0755)
4059310
South
Tamil Nadu Chennai Jeeves
Consumer
Services Pvt
Ltd.
New No.3,Old No.1-A,
Sripuram,2nd
Lane,Royapetah,
Chennai-600014
Dinesh Kumar 044-
42632371
Tamil Nadu Chennai G C Services Old No. 12, New No.
37, 1st Floor, Sattanna
Naichen Street, Nehru
Timber Market, Choolai,
Chennai - 600112
Naval R (044)
26690084 /
42822868
Tamil Nadu Coimbatore V K
Engineering
108-A/92, West
Ponnurangam Road,
Ground Floor (Near
Telephone Exchange),
R.S.Puram, Coimbatore
- 641002
Selvadurai (0422)
2541172
Pondicherry Pondicherry Bestronics 49, Saint Theresa Street,
Pondicherry - 605001
B Jayashankar (0)
9443728020
Andhra
Pradesh
Hyderabad Jeeves
Consumer
Services Pvt
Ltd.
Flat No. 205, Karan
Centre, Opp. IBP Petrol
Pump and Karan Hotel,
Park Lane, S.D.Road,
Near Paradise Circle,
Secunderabad - 500003
Kumararajan (040)
64591168
Andhra
Pradesh
Vijaywada Jeeves
Consumer
Services Pvt
Ltd.
Door No.25-10-
10A,G.S.Raju
Road,Gandhi Nagar,
Near Gymkhana Road,
Vijayawada - 520003
Rahamatullah Gouse
Khan
(0866)
6591168
Karnataka Bangalore Jeeves
Consumer
Services Pvt
Ltd.
No. 126, 1st Floor, 8th
Main J.P.Nagar, 3rd
Phase, Bangalore -
560078
Ramesh Kumar (080)
41209331
Karnataka Bangalore Jeeves
Consumer
Services Pvt
Ltd.
First Floor, Khan
Bldg, 7 & 8th Cross,
Jakkasandra Extension,
Bangalore - 560032
Surulivel (080)
25520424
Karnataka Mangalore Jeeves
Consumer
Services Pvt
Ltd.
1st Floor, Quadra
compound,
Bejai,kapikad, Kavoor
Road, Mangalore
-575004
Divakar Shetty (0824)
2213699
Karnataka Mysore Jeeves
Consumer
Services Pvt
Ltd.
No.1095, 1st Floor,
C&D Block, Lalithadri
Road, Kuvempunagar,
Mysore - 570023
Venkatesh.S.Kulkarni (0821)
4191094
MGSTSL7500-449_13EHM1 Outline.indd 9 8/6/13 10:49 AM

10
1.
MGSTSL7500-449_13EHM1 Outline.indd 10 8/6/13 10:49 AM

11
750W
1
2
3
4
9
10
10 11
5
67
8
1
1
12
MGSTSL7500-449_13EHM1 Outline.indd 11 8/6/13 10:49 AM

12
MGSTSL7500-449_13EHM1 Outline.indd 12 8/6/13 10:49 AM

13
MGSTSL7500-449_13EHM1 Outline.indd 13 8/6/13 10:49 AM

14
MGSTSL7500-449_13EHM1 Outline.indd 14 8/6/13 10:49 AM

15
MGSTSL7500-449_13EHM1 Outline.indd 15 8/6/13 10:49 AM

16
MGSTSL7500-449_13EHM1 Outline.indd 16 8/6/13 10:49 AM

17
MGSTSL7500-449_13EHM1 Outline.indd 17 8/6/13 10:49 AM

18
MGSTSL7500-449_13EHM1 Outline.indd 18 8/6/13 10:49 AM

Printed in India
Model No. :
Date of Purchase :
Dealer’s Stamp :
WARRANTY CARD
© 2013 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved.
Distributed by Jarden Consumer Solutions of India Private Limited, Unit B-204, Universal Business
Park, Off Saki Vihar Road, Chandivali Farm Road, Andheri (E) Mumbai 400 072, India. 2 Year
Limited Warranty - see inside for details. Sunbeam Products, Inc. and Jarden Consumer Solutions
of India Private Limited are subsidiaries of Jarden Corporation (NYSE: JAH).
1-800-102-6300
©2013
1-800-102-6300
www.oster.in
P.N.9100180000523
MGSTSL7500-449_13EHM1
GCDS-OST30969-LL
MGSTSL7500-449_13EHM1 Outline.indd 19 8/6/13 10:49 AM
