Pacific energy E Series User manual

WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
-- Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbour’s phone. Follow the gas
supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
-- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
140100-20 MIR-INSE 5055.631
IMPORTANT: THESE INSTRUCTIONS ARE TO REMAIN WITH THE HOMEOWNER
SERIES E
VENTED ROOM HEATER
FIREPLACE INSERT
INSTALLATION
AND
OPERATING
INSTRUCTIONS
fire-parts.com

2
Contents
Caution ...................................................................................................... 3
Safety.......................................................................................................... 3
Maintenance .............................................................................................. 3
Installation................................................................................................. 4
Clearances ................................................................................................. 5
Venting....................................................................................................... 6
Gas Supply ................................................................................................ 6
Burner Installation ................................................................................... 7
Vent Safety Shutoff System ..................................................................... 8
Draft Inspection ........................................................................................ 8
Log Set ....................................................................................................... 9
Glowing Embers ..................................................................................... 10
Levelling Legs ......................................................................................... 10
Glass Frame Installation ........................................................................ 10
Surround Assembly ................................................................................ 11
Lighting Instructions .............................................................................. 12
First Fire .................................................................................................. 13
Operation................................................................................................. 13
Primary Air Adjustment ........................................................................ 13
Louver Installation ................................................................................. 14
Optional Radiant Overlay ..................................................................... 14
Optional Blower ...................................................................................... 15
Replacement Parts .................................................................................. 17
Label ........................................................................................................ 19
fire-parts.com

3
Caution
FOR YOUR SAFETY - Do not install or operate your
Pacific Energy Mirage Gas Insert without first reading and
understanding this manual. Any installation or operational
deviation from the following instructions voids the Pacific
Energy Gas Stove Warranty and may prove hazardous.
This appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/
2 psig (3.5 kPa).
This appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the first time, the appliance will emit a
slight odor for a couple of hours. This is due to the curing of
paints, sealants and lubricants used in the manufacturing
process. This condition is temporary. Open doors and
windows to ventilate area. Smoke and fumes caused by the
curing process may cause discomfort to some individuals.
Safety
Due to high temperatures, this gas appliance should be
located out of traffic and away from furniture and dra-
peries.
Children and adults should be alerted to the hazards of
high surface temperature and should stay away to avoid
burns or clothing ignition.
Young children should be carefully supervised when they
are in the same room as the appliance.
Clothing or other flammable material should not be placed
on or near the appliance.
Any grill, panel or door removed for servicing the unit
must be replaced prior to operating. Failure to do so may
create a hazardous condition.
Installation and repair should be done by a qualified
service person. The appliance should be inspected before
use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. It is imperative
that control compartments, burners and circulating air
passageways of the appliance be kept clean.
It is Pacific Energy’s policy that no responsibility is assumed
by the Company or by any of its employees or representatives
for any damages caused by an inoperable, inadequate, or
unsafe condition which is the result, either directly or indi-
rectly, of any improper operation or installation procedures.
Maintenance
Caution: Turn off gas and electrical power supply and allow
ample time for unit to cool before servicing appliance. It is
recommended that this appliance and venting should be
inspected at least once a year by a qualified service person.
Do not use this heater if any part has been under water.
Immediately call a qualified service technician to inspect the
heater and to replace any part of the control system and any
gas control which has been under water.
Annual Inspection:
1) Clean louvers and air passage ways of excessive lint
buildup from carpeting, bedding material, etc. The flow of
combustion and ventilation air must not be obstructed.
2) Remove glass panel and log set. Inspect logs and burner
assembly for lint and soot buildup. If excessive buildup of
soot is present, have a qualified service person inspect and
adjust unit for proper combustion. Clean logs and burner with
a vacuum cleaner, paying close attention to burner ports.
3) Check the pilot system for proper operation (See Fig. #1).
4) Check that the chimney flue and its outlet are open and
free from blockage or debris.
5) Check glass panel gasket, replace if necessary.
Note: The appliance area must be kept clear and free from
combustible materials, gasoline and other flammable vapors
and liquids.
Periodically:
a) Viewing glass may be cleaned with glass cleaner.
b) Exterior porcelain enamel finish may be cleaned with soap
and water.
Note: Never use abrasives to clean this appliance.
Fig. # 1
fire-parts.com

4
Installation
Caution: A gas appliance must NOT be connected to a
chimney flue servicing a separate solid fuel burning appli-
ance.
This appliance MUST be properly connected to a venting
system. This heater is equipped with a vent safety shutoff
system designed to protect against improper venting of
combustion products.
WARNING: Operation of this heater when not connected to
a properly installed and maintained venting system or tam-
pering with the vent safety shutoff system can result in carbon
monoxide (CO) poisoning and possible death.
Note: This appliance has a draft hood built in, and when
installed according to these instructions, the draft hood is in
the same atmospheric pressure zone as the combustion air
inlet to the appliance. Adequate combustion and ventilation
air must be provided for safe and proper operation.
The Mirage Gas Insert installation and venting must
conform to the current CAN/CGA-B149 installation code
(in Canada) or the National Fuel Gas Code, ANSI Z223.1
-1988 (in the USA), and approved per local codes. Only
qualified (licensed or trained) personnel should install this
product.
Existing Fireplace
(Masonry or Factory Built)
In order to sufficiently accommodate the Mirage Gas Insert,
the minimum size of the fireplace should be 28 inches wide,
21 inches high and 13 inches deep (Fig. #2).
Fig. # 3
The fireplace and its chimney should be swept and inspected.
The existing fireplace damper (if present) should be locked
open or removed completely if opening is too small for a 4"
flue liner to pass through.
Optional Zero Clearance Kit
The Mirage Gas Insert may be framed in with the optional
Mirage Zero-Clearance Kit (Fig. #3). Refer to the installation
instructions that are supplied with the kit for framing dimen-
sions and precautions. This unit must not be installed with
zero clearance to combustible material without the use of the
kit.
Fig. # 2
fire-parts.com

5
Clearances
The Mirage Gas Insert is designed to be installed into a
masonry or a factory built zero clearance fireplace, or built in
with the optional Mirage Zero-Clearance Kit. The masonry
fireplace must be built according to the requirements of the
standards for chimneys, fireplaces, vents and solid fuel burn-
ing appliances, NFPA 211 (Latest Edition) or applicable
National, Provincial, State or local codes. The factory built
zero clearance fireplace and its chimney must be certified and
meet applicable National, Provincial, State or local codes.

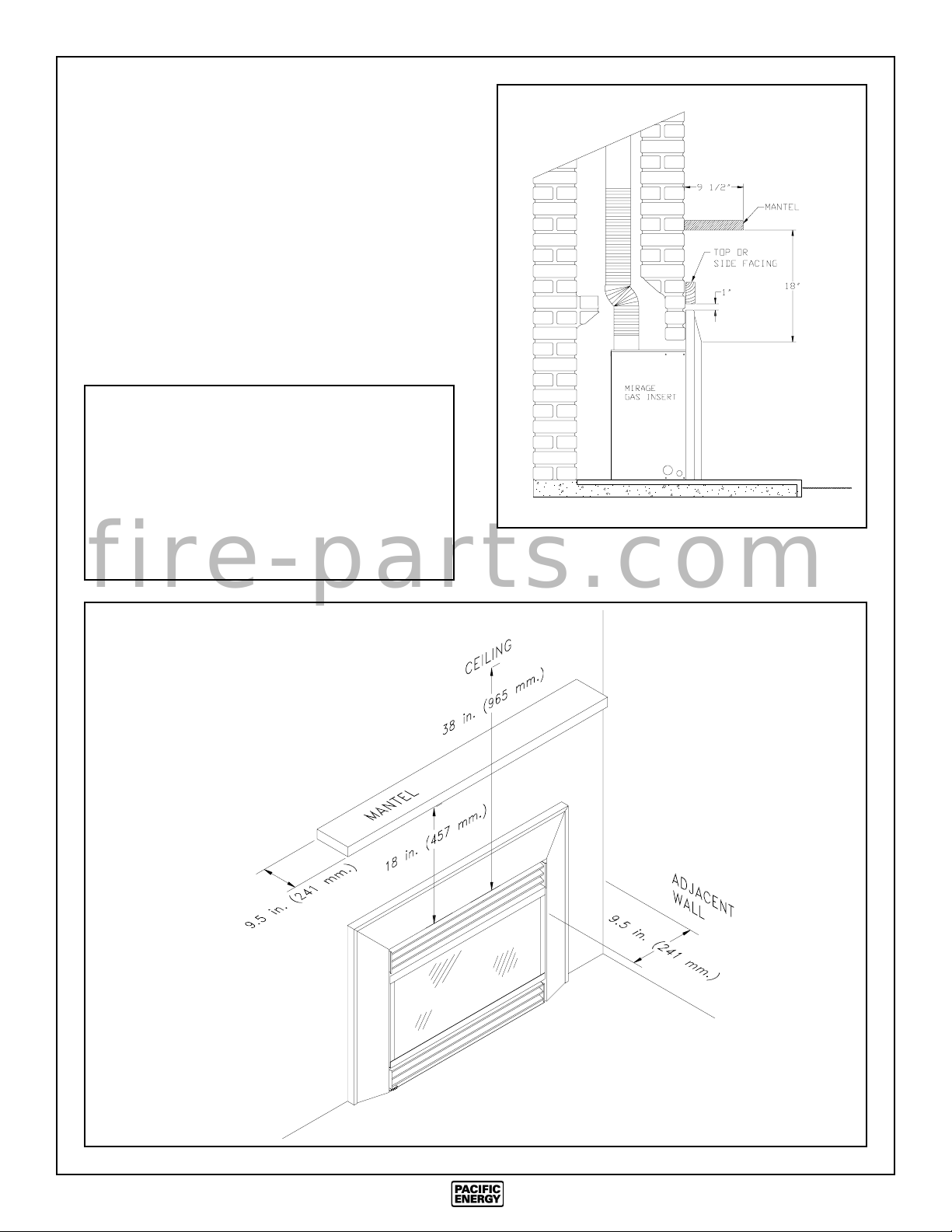

The minimum clearances from the appliance to combustible
surfaces are shown on Fig. #4 and #5. Adequate clearances
around air openings and combustion air supplies are required.
Fig. # 5
Fig. # 4
Minimum Clearances to Combustibles:
(installed as a fireplace insert)
Adjacent sidewall: 9.5 in. (241 mm)
Ceiling to appliance: 38 in. (965 mm)
Mantel to appliance: 18 in. (457 mm)
Maximum mantel extension: 9.5 in. (241 mm)
Facing Side and Top
to appliance surround: 1 in. (25 mm)
fire-parts.com

6
Venting
Caution: Use only a flue liner system approved by the
local gas authority and install in accordance with the
manufacturers instructions. Consult local and/or na-
tional building codes before altering fireplace.

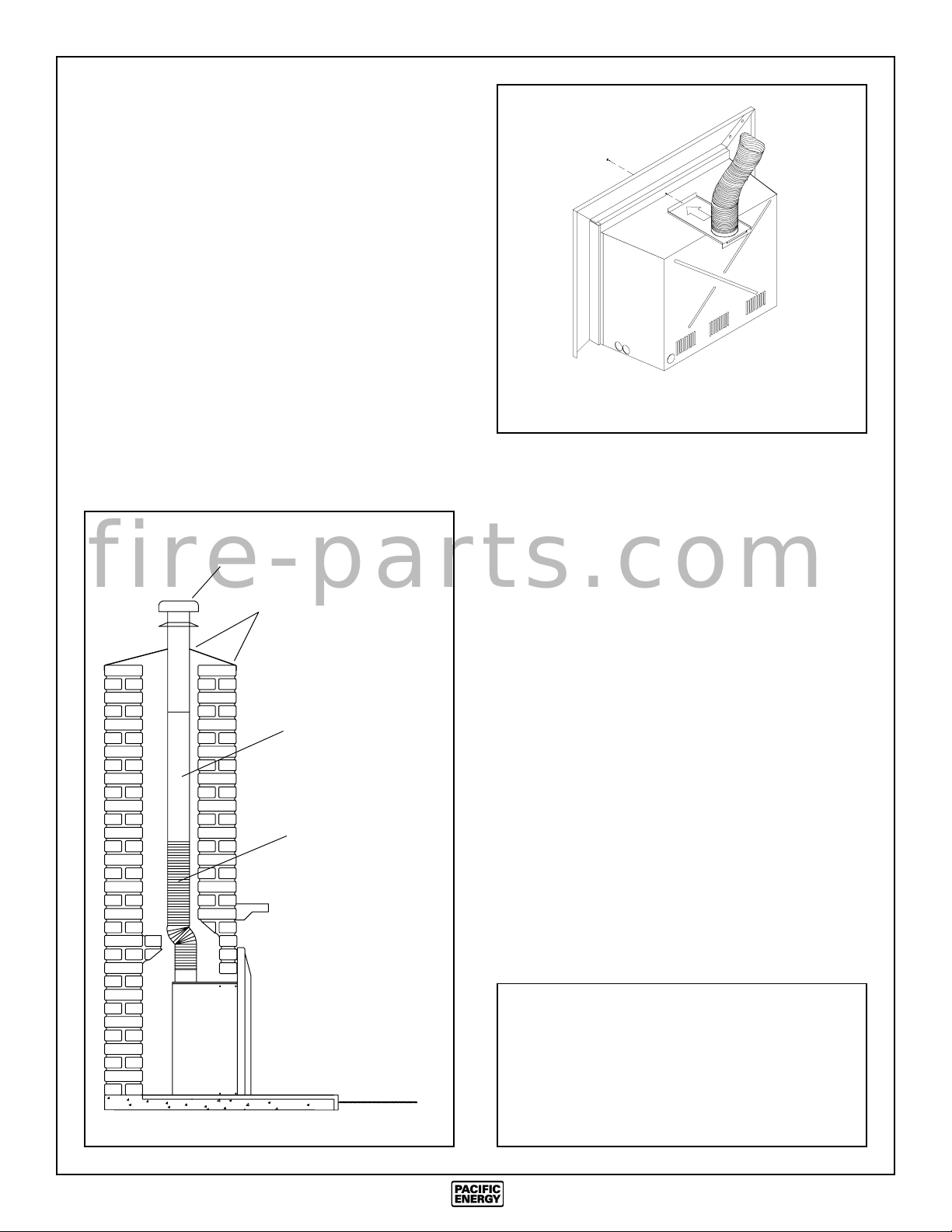

The chimney must be relined with a minimum 4" flue liner
(Fig. #6). A combination of 4" flex and rigid flue liner may
be used. (Consult local codes) The liner should extend from
the Mirage Gas Insert to the top of the chimney. At the top of
the chimney, the air space between the new liner and existing
chimney must be sealed to prevent water from entering. Place
a flashing that fits snugly around the 4" liner on top of the
chimney. Caulk the flashing in place to seal any gaps.
Remove the two screws located in front of the vent connector
plate. Attach the flex end of the flue liner to the collar on top
of the connector plate.
Fig. # 7
Position vent connector plate over top of unit as the insert is
pushed into the fireplace. Clip connector plate at the back of
the unit and attach to the front with screws provided (Fig. #7).
Leave the insert extending a couple of inches out of the
fireplace to allow for proper surround placement.
Gas Supply
Caution: The gas line should be installed by a qualified
service person in accordance with all building codes.
Consult local and/or national building codes before alter-
ing the fireplace.
An optional 24" long flexible connector (part #
GASC.GASCON) with a 3/8" N.P.T. Male inlet may be used
for easy gas connection. This connector may exit the gas
insert at the bottom left front or left rear (Fig. #8).
Proper gas line diameter must be used to assure proper
operation. A pressure test port (1/8 inch N.P.T. plugged
tapping) must be provided for checking gas pressure. This
port must be located immediately upstream of the gas supply
connection to the appliance.
Correct gas pressure requirement:
Natural Gas Propane
Min. Pressure 5.0" wc 11.5" wc
(For purpose of input adjustment)
Max. Pressure 10.5" wc 13.0" wc
Manifold Pressure 3.8" wc 11.0" wc
4" Flex Liner
Fig. # 6
Cap
4" Rigid Liner
Mirage
Gas
Insert
Seal Flashing
fire-parts.com

7

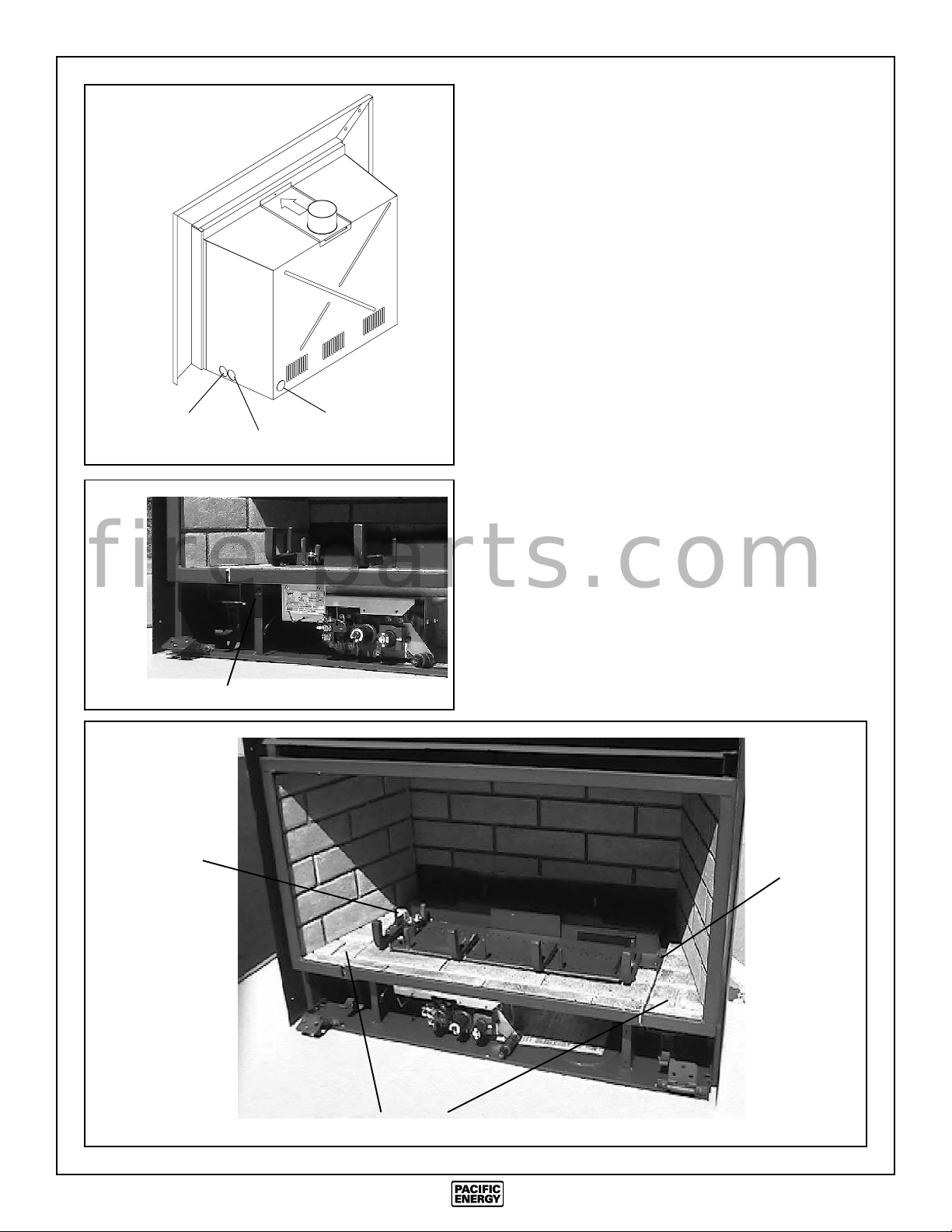

Fig. # 8 Burner Installation
If the glass frame assembly is installed, it must be removed to
install the burner into the firebox. The glass frame is held in
place by two over-center latches located under the firebox.
1) Fold down the bottom louver, if installed, to access the
over-center latches. Disengage the latches by pulling
each lever down and forward.
2) Grasp the sides of the frame and swing the bottom out to
clear. Lift up and forward to disengage from the top.
Place the glass frame assembly in a safe place to avoid
damage.
3) Remove the logs and set aside, taking care not to damage
them.
4) Remove the bottom left and right "brick-like" panel from
the burner box and install under the side panels inside the
firebox.
5) Remove burner assembly from the carton and inspect for
damage. Do not use if damaged.
7) Position the burner assembly inside the firebox so that the
side mounting holes are aligned. Fasten the burner in
place with the screws provided (Fig. #9 and #10).
8) Place the self-adhesive label into the blank box provided
on the rating label to designate the type of gas the appli-
ance is connected to.
A knockout is provided at the bottom right rear of the
appliance as an alternate inlet for a gas supply line. To use this
inlet, remove the knockout from the rear of the appliance.
Remove the plastic bushing installed in the side and reinstall
into the hole at the rear of the appliance.
Fig. # 10
Left and Right Bottom Panels
Pilot
Burner
Attachment
Point
Optional
Blower
Cord Exit
Rear Knockout
Gas Inlet
Fig. # 9
Burner Front Attachment Point
fire-parts.com

8
Fig. # 12
Draft Inspection
This appliance must be connected to a venting system with
adequate draft to ensure safe and proper operation.
To inspect vent operation:
A few minutes after the appliance is lit, insert a smoke stick
between the middle and top louver (Fig. #13). If the smoke
is drawn in, the venting system is operating properly. If the
smoke is not drawn into the opening, turn the unit off and
inspect the venting system for blockages or restrictions.

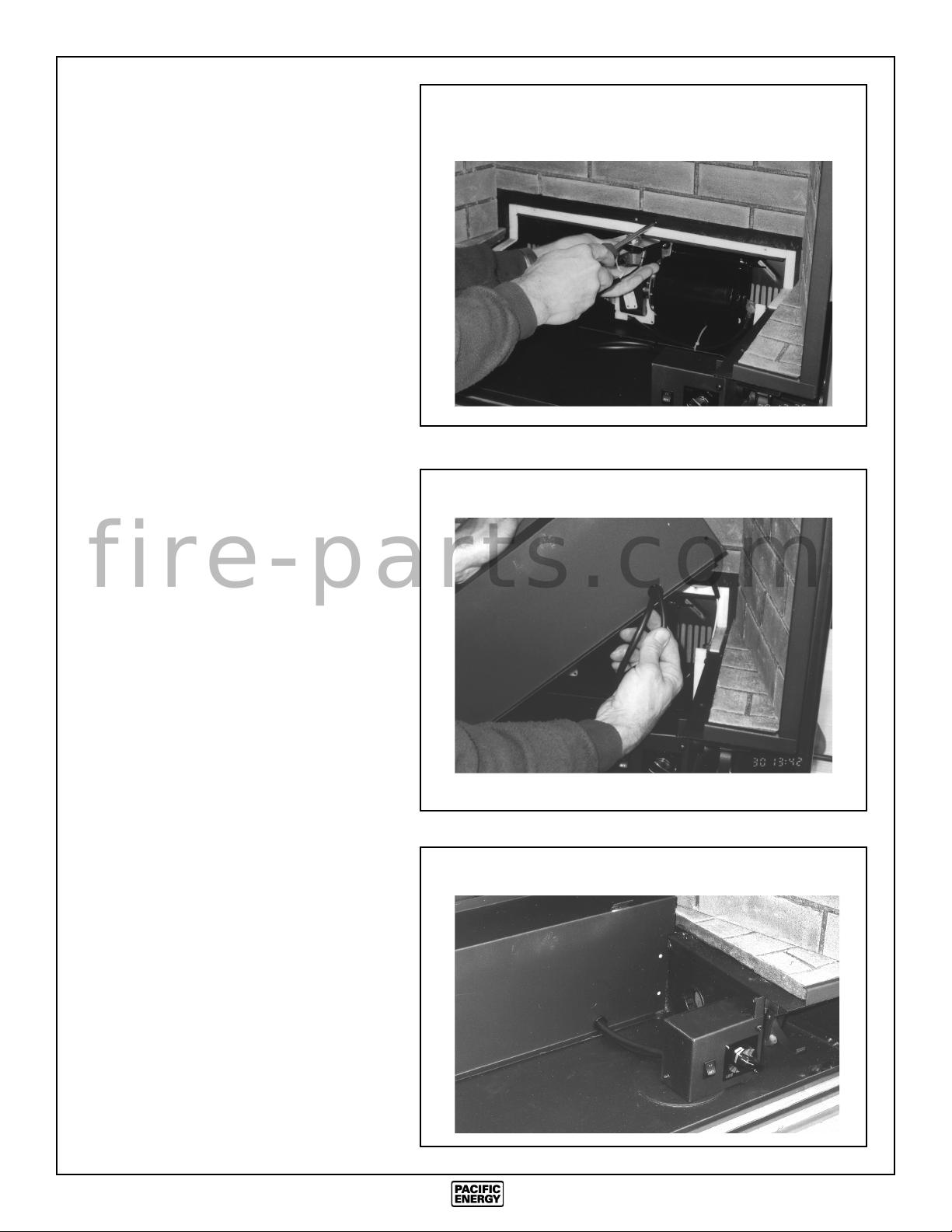

Vent Safety Shutoff System
Installation
This appliance is equipped with a vent safety shutoff system.
The switch assembly is shipped with the burner.
1) Unravel wire, feed through front grommeted hole located
on the firebox support and right hand casing side.
2) Remove the two screws located at the uppermost right
front corner of the appliance.
3) Position the spill switch over the two holes and fasten in
place with the two screws (Fig. #11).
Fig. # 11 Fig. # 13
Smoke Stick
Spill Switch
Rocker Switch
Gas Valve
Thermopile
fire-parts.com

9

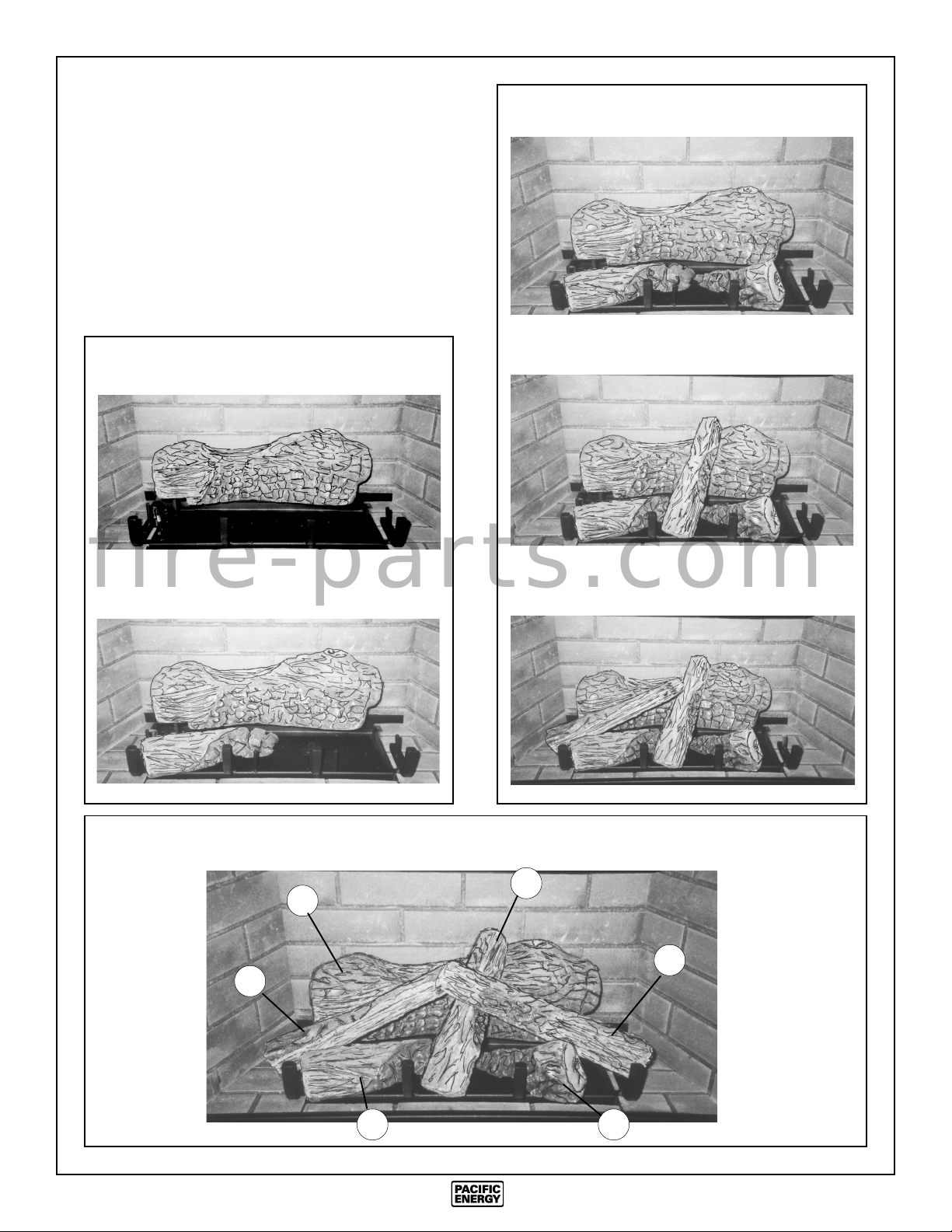

Log Set
Unpack and inspect log set. There should be a total of 6 logs.
Gas and vent connections should be made before installing
logs. All logs are numbered on the underside, for their order
of assembly.
Position the logs as indicated by pictures below. Notches on
the underside of logs 2 and 3 are intended to fit over the
andirons. Allow for space between rear log (log #1) and left
and right twigs (logs #5 and #6) for best results.
Note: Improper placement of logs may cause sooting on
internal parts and glass.
Step 6
Right Twig Placement (log #6)
Fig. # 14b
Step 3
Right Log Placement (log #3)
Step 4
Middle Twig Placement (log #4)
Step 5
Left Twig Placement (log #5)
Fig. # 14a
Step 1
Rear Log Placement (log #1)
Step 2
Left Log Placement (log #2)
5
4
6
3
1
2
Fig. # 14c
fire-parts.com

10
Glowing Embers
Note: Use only glowing embers supplied with the
appliance. Use of any other materials or incor-
rectly placed embers may cause an incorrect flame
pattern, sooting and/or delayed ignition.
Place 8 to 10 pieces randomly on the front burner
area as shown in figure #17. This will produce the
best results.
Levelling Legs
Levelling legs are provided with the appliance as a
convenient means for levelling the appliance when
it is installed on an irregular surface. The legs (3"
long threaded bolts) are supplied in a separate parts
bag inside the appliance. Nuts welded to the base,
near the back of the appliance locate the levelling
legs. Fan cover must be removed to expose weld
nuts (Fig. # 18). The legs thread into the nuts and
protrude out the bottom, raising the rear of the
appliance until it is level with the front.
Fig. # 15
Fig. # 16

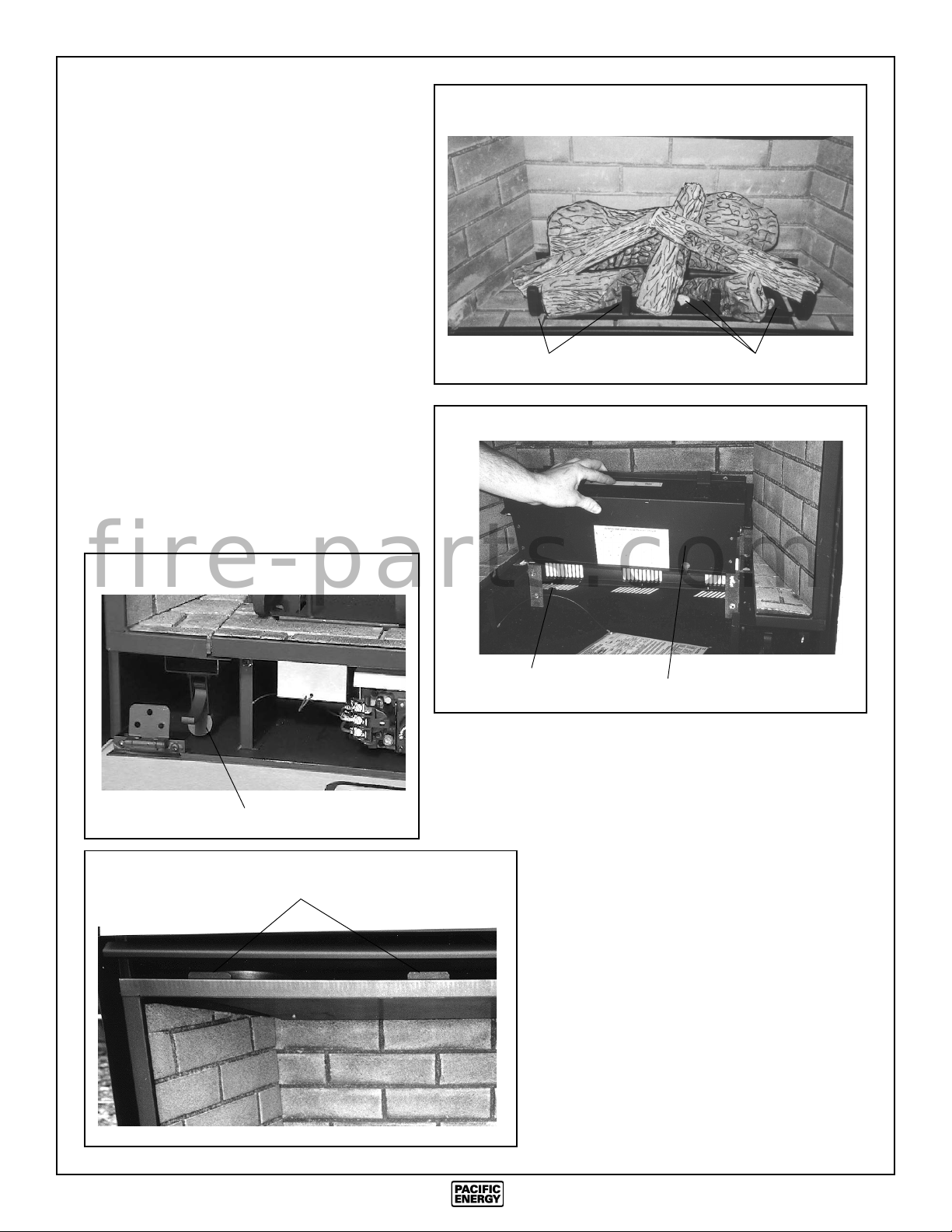

Glass Frame Installation
The glass frame assembly is designed for easy
installation and removal with positioning tabs on
top of the firebox and quick release latches located
under the firebox.
Installation:
1) Grasp the sides of the glass frame assembly and
hook over the frame tabs. Ensure that the tabs
on the top of the unit engage the corresponding
slots in the glass frame.
2) Swing the bottom into position and latch in
place with the over-center latches (Fig. #15).
Removal:
1) Fold down the bottom louver, if installed, to
access the over-center latches. Disengage the
latches by pulling each lever down and forward
(Fig. #15).
2) Grasp the sides of the frame and swing the
bottom out to clear. Lift up and then forward to
disengage from top (Fig. #16).
Fig. # 18
Fig. # 17
Embers
Frame Tabs
Latch
Fan Cover
Weld Nuts
Log Brackets
fire-parts.com

11

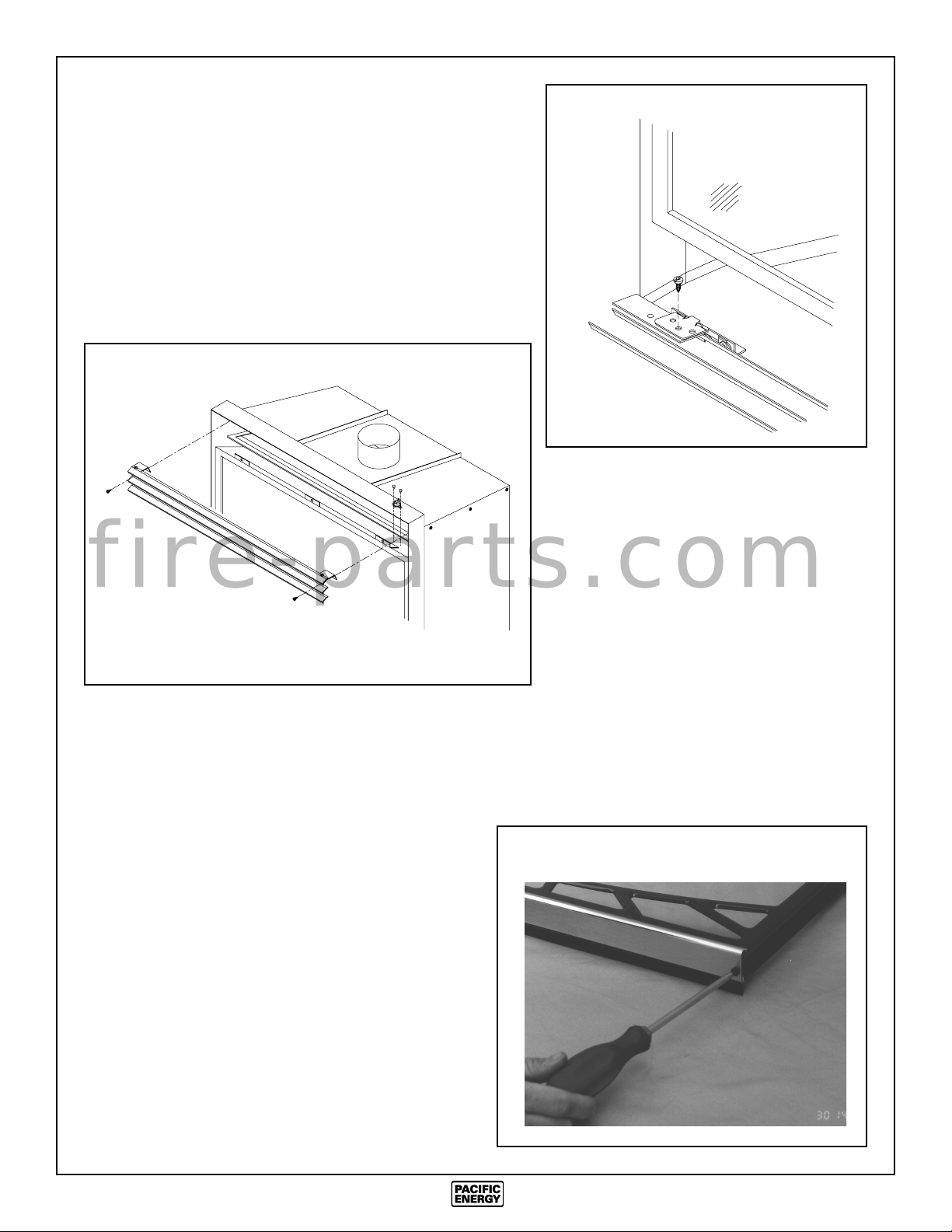

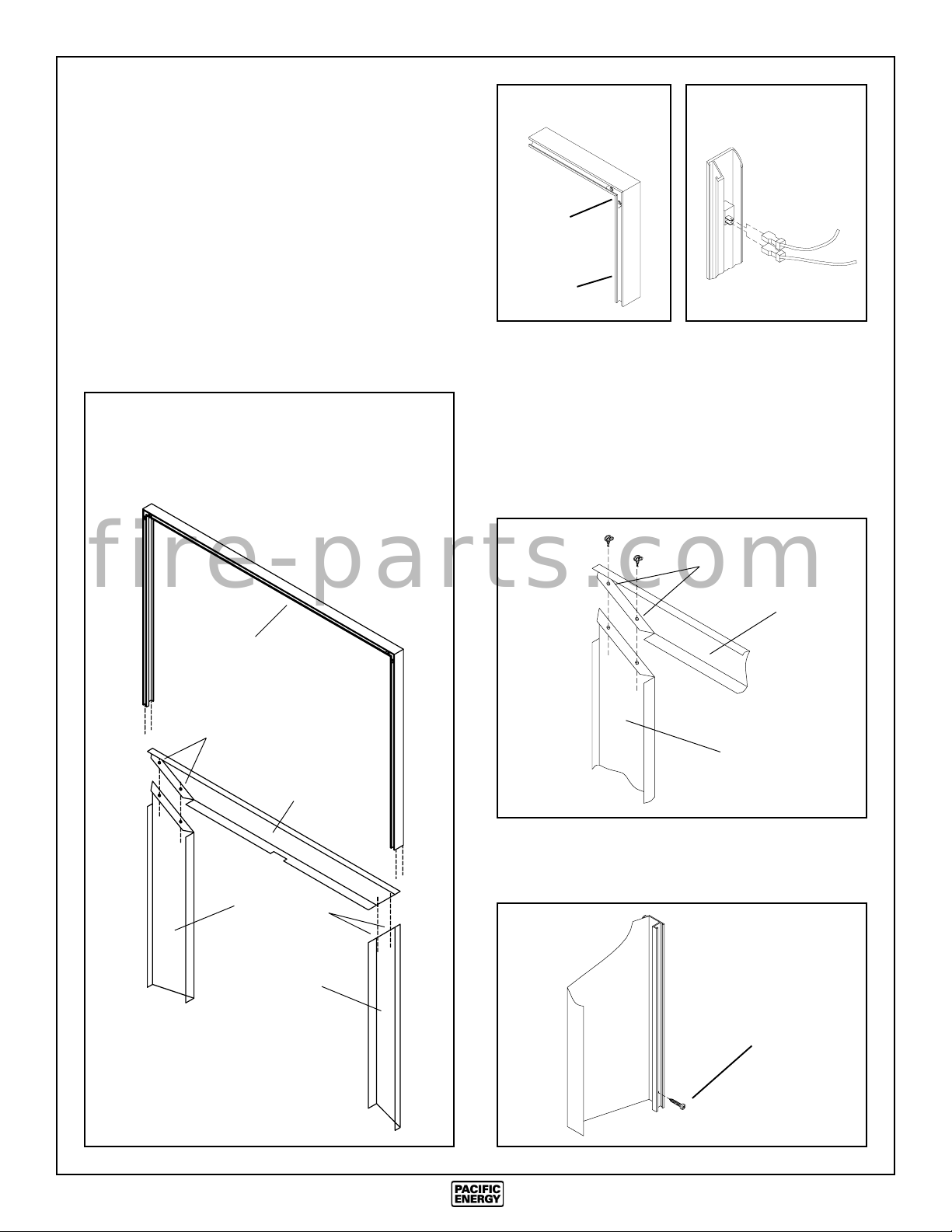

Surround Assembly
1) Lay Parts A, B, and C face down on a flat, non-marking
surface (Fig. #19). Fasten together with spring clips or
1/4" x 1/2" bolts through holes at points "D" (Fig. #22).
2) Lift the surround assembly to the upright position and
make sure the front face is even at the joint.
3) Assemble the three brass trim pieces using the enclosed
hardware. Slide Part F into the back corners of the brass
trim and tighten screws. Ensure the mitred corners fit
tightly and evenly (Fig. # 20).
4) Slide the assembled brass trim over the surround from the
top (Fig. # 19).
5) Tighten the retaining screws at the bottom of each brass
trim side (Fig. # 23).
Fig. # 23
Fig. # 21
Fig. # 20
Fig. # 22
Fig. # 19
Brass Trim
Retaining Screw
8) Push the entire appliance back until the surround is in
contact with the fireplace.
Part F
Brass Trim
D
Part A
D
Part C
Part B
Brass Trim
6) Connect the wire from the spill switch to the on/off rocker
switch in the brass trim (Fig.# 21).
7) Slide pre-assembled surround on to insert. Do not lift the
assembly by grasping the brass trim. The surround is
held in place by 2 screws just inside the casing near the top
and bottom. Push surround back until snug and even with
front face of insert. Fasten in place.
Part C
D
Part A
fire-parts.com

12
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1. Set wall thermostat to lowest setting, if applica-
ble.
2. Turn off all electric power to the appliance if
service is to be performed.
3. Push in gas control knob slightly and turn
clockwise to "Off". Do not force.
1. STOP! Read the safety information above on
this label.
2. Set wall thermostat to lowest setting, if applica-
ble.
3. Turn off all electric power to the appliance.
4. Open the bottom grill to access the controls.
5. Partially depress and turn gas control knob
clockwise past "Pilot" to "Off" position.
Note: Knob cannot be turned
from "Pilot" to "Off" unless
knob is pushed in slightly.
Do not force.
6. Allow sufficient length of
time (minimum 5 minutes)
for any gas in the combustion chamber to
escape. If you still smell gas, STOP! Follow "B"
in the safety information above on this label. If
you don't smell gas, go to the next step.
7. Turn gas control knob back to "Pilot" position.
8. Depress gas control knob fully and hold while
you ignite pilot with the push button igniter.
Once the pilot ignites, continue depressing knob
for approximately 5 seconds. If pilot does not
stay lit, repeat steps 6 through 8, allowing a
longer period before releasing gas control dial.
- If gas control knob does not pop up when
released, stop and immediately call your service
technician or gas supplier.
- If the pilot will not stay lit after several tries,
turn the gas control knob to "Off" and call your
service technician or gas supplier.
9. Turn gas control knob counter-clockwise to
"On" position.
10. Turn HI-LO burner control knob to desired
setting.
11. Close bottom grill and turn on the burner switch
12. Turn on all electric power to the appliance.
13. Set thermostat to desired setting, if applicable.
Note: Sufficient time must be allowed for air to
escape from lines if the unit is being lit for the
first time.
WARNING: If you do not follow these
instructions exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instruc-
tions exactly.
B. BEFORE LIGHTING smell all around the appliance
area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any appliance.
- Do not touch any electric switch; do not use any
phone in your building.
- Immediately call your gas supplier from a neigh-
bour's phone. Follow the gas supplier's instruc-
tions.
- If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in
or turn by hand, don't try to repair it, call a qualified
service technician. Force or attempted repair may
result in a fire or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service techni-
cian to inspect the appliance & to replace any part
of the control system & any gas control which has
been under water.
Lighting Instructions
GAS KNOB
fire-parts.com

13
First Fire
When lit for the first time, the appliance will emit a slight odor
for a couple of hours. This is due to the curing of paints,
sealants and lubricants used in the manufacturing process.
This condition is temporary. Open doors and windows to
ventilate area. Smoke and fumes caused by the curing process
may cause discomfort to some individuals.
Operation
The Mirage Gas Insert comes equipped with an "ON-OFF"
rocker switch. This switch is conveniently located near the
upper right hand corner of the surround.
Once a pilot light has been established, and the gas control
knob turned to the "ON" position, the burner may be turned
on or off simply with the switch. An optional wall thermostat
may be installed to operate the burner automatically.
Manual HI-LO Flame Adjustment: (Fig. # 24)
Primary Air Adjustment
This appliance is provided with primary air adjustment,
which affects flame heights and flame quality of the front and
back burners by controlling the air shutter opening. This
adjustment is preset at the factory for the best flame appear-
ance for most installations. However, adjustment is available
to compensate for varying field conditions, such as vent
system height or altitude, that may affect flame appearance
(Fig. # 25).
The adjustment rod is accessible immediately to the left of the
valve, behind the bottom louver, as shown in Fig. # 25 .
Pulling the rod forward closes the shutter and increases the
flame height of both front and rear burners.
Fig. #24
Manual
HI-LO
Control Knob
The HI-LO burner control knob can be rotated in both
directions, providing infinite control of gas flow rate to the
burner and therefore greater comfort control. The HI setting
provides a maximum gas input, and rotating the knob clock-
wise toward the LO setting will reduce the gas input to a
minimum setting.
Wall Thermostat (optional):
Set the wall thermostat to a comfortable temperature. Turn
the HI-LO burner control knob to a desired setting. As heat
is required, the Mirage Gas Insert will turn on or off automati-
cally, as needed.
Extended Shutdown:
To shutdown the appliance, including the pilot, partially
depress and turn gas control knob clockwise past “PILOT” to
the “OFF” position. DO NOT FORCE.
NOTE: The SIT control has an interlock device which does
not allow the pilot to be lit when the appliance is at operating
temperature. Let the appliance cool down (approx. 60 sec.)
before attempting to relight the pilot. DO NOT use force to
rotate the control knob.
Fig. #26
Adjustment Rod
Fig. #25
To Adjust: (See Fig. # 23)
1) Flip down bottom front louver.
2) Pull or push on adjustment rod to adjust the flame.
3) Close bottom front louver.
Caution: Proper air shutter setting is a must. The flame
should not impinge on the top of the firebox. It should
NEVER be set to create sooting on internal parts and glass.
Open air shutter gradually until sooting stops.
fire-parts.com

14
Louver Installation
Unpack and inspect all parts. A flathead or a #2 Robertson
screwdriver is required to install the louvers.
1) Fasten top louver to the top casing with the screws
provided (see Fig. #27).
2) Fasten bottom louver to the hinge brackets at the bottom
of the appliance (see Fig. #28).
Optional Radiant Overlay
The optional Radiant Overlay may be installed at any time.
Unpack and inspect all parts. Install Overlay as follows:
1) Remove the glass frame as outlined in "Glass Frame
Removal" section. Place face up on a flat, stable surface to
avoid damage.
2) Remove screws retaining front trim and set trim aside.
3) Position Radiant Overlay over top of frame.
4) Replace trim and screws (Fig. #29).
5) Reinstall complete assembly onto appliance. During
installation ensure that the tabs on the top of the unit engage
the corresponding slots in the glass frame.
Fig. #29
Fig. #28
Fig. #27
fire-parts.com

15
Optional Blower
Electrical Supply:
Circulating air blower electrical rating:
115V, 60 Hz, 80 watts. For your pro-
tection against shock hazard, use only a
properly grounded outlet that will ac-
cept a three-pronged plug. Do not cut
or remove the grounding prong.
Consult local codes or, in the absence
of local codes, with the current CSA
C22.1 Canadian Electrical Code and in
the USA with the National Electrical
Code, ANSI/NFPA 70 (latest edition).
Installation:
The blower kit must be installed before
the burner assembly is in place. Un-
pack and inspect blower kit.
1) Remove the six screws holding the
fan cover in place at the back of the
firebox.
2) Position the blower assembly over
the two studs located at the rear of
the appliance so that the fan motor is
facing towards the front (Fig. #31).
Do not fasten in place as no fasten-
ers are required.
Fig. # 32
Fig. # 30
L2 (black)
115 VOLTS
60 Hz
0.5 AMPERES
BLOWER
ROCKER
SWITCH
SPEED
CONTROL
SNAP DISC
SWITCH
Fig. # 31
3) With the speed control knob facing
the front of the unit secure the speed
control assembly with the two #8 x
1/2" sheet metal screws provided
(Fig. #32).
G (green)
L1 (white)
fire-parts.com

16
4) Run the power cord to the outside of the
appliance through the 1-1/2" grommet lo-
cated on the right side of the firebox support
and casing side.
5) Fasten the thermo-switch through the two
holes in the rear of the firebox with the two #8
- 1/2" sheet metal screws provided. Ensure
that the thermo switch will contact the fan
cover when replaced (Fig. #33).
Fig. # 35
Fig. # 33
Fig. # 34
7) Replace fan cover, burner and glass.
8) TO TEST: Place the speed control assembly
rocker switch to the ON position and the
variable speed control to the low, medium or
high position. The fan should now be pow-
ered and controlled only by the speed control.
*When the ON/OFF rocker switch is in the
OFF position, the fan will be actuated by the
thermo-switch.
6) Slide 1/2" grommet with wires into the key-
hole provided on the fan cover (Fig #34).
fire-parts.com

17
All parts may be ordered from your nearest Pacific Energy Gas Stove dealer. Contact Pacific Energy for the location of the dealer
nearest you.
When ordering surrounds and louvers, please specify the appropriate finish code. Codes are as follows:
Porcelain Finish Black ......................................... BK Paint Finish Metallic Black........... MB
Blue ............................................ BE
Green ........................................ GN Plated Finish Gold .......................... GD
Ivory .......................................... IY
Red ............................................ RD
Replacement Parts

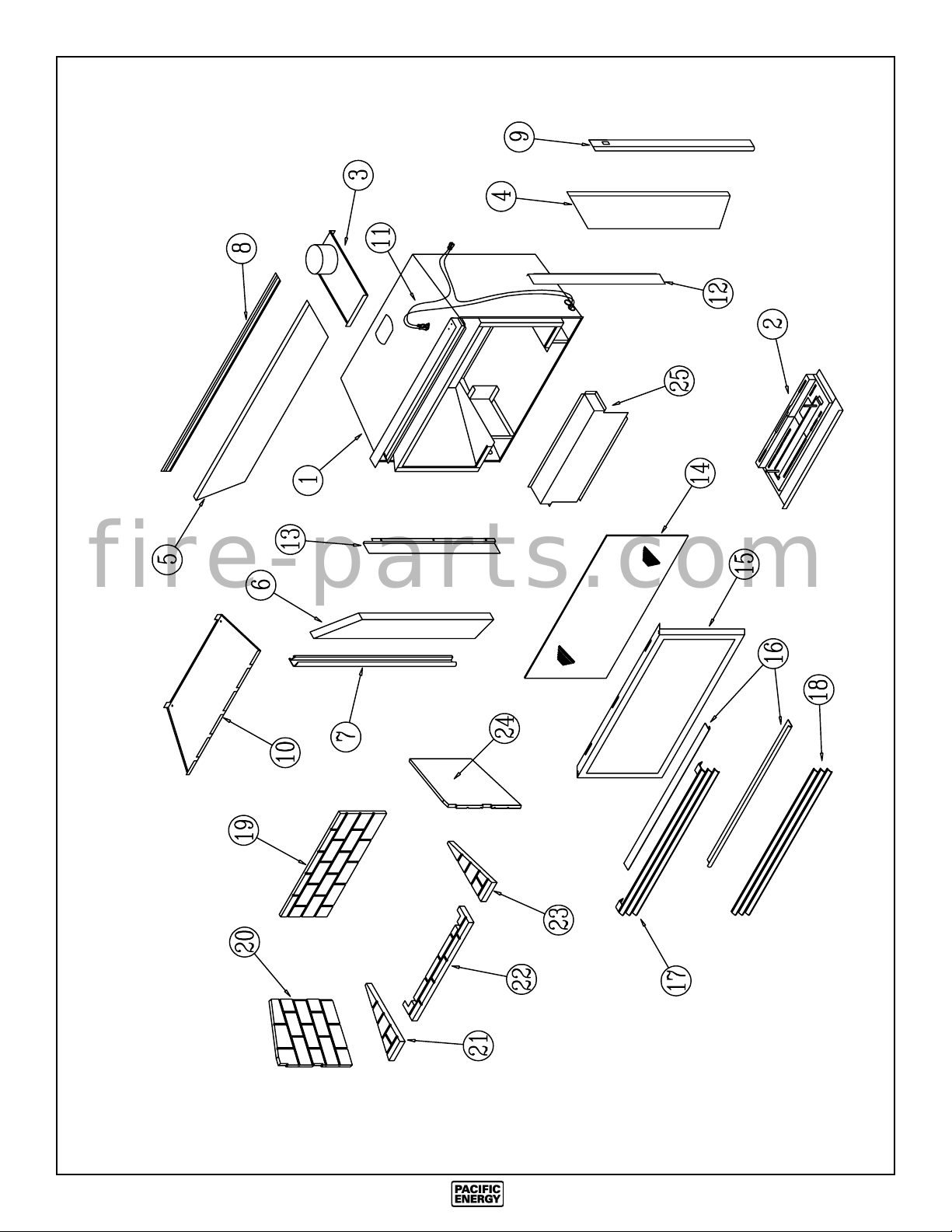

Fig. # 36
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO.
1 ........... MAIN BODY .................................. MNBB.1900
2 ........... BURNER ASSEMBLY ......... MNBB.NAT/PRO
3 ........... VENT CONNECTOR PLATE ........ MINB.1649
4 ........... SURROUND SIDE, RIGHT ....... MINC.1660_ _
5 ........... SURROUND TOP ...................... MINC.1659_ _
6 ........... SURROUND SIDE, LEFT ......... MINC.1658_ _
7 ........... SURROUND TRIM, LEFT ............. MINC.1664
8 ........... SURROUND TRIM, TOP ............. MINC.16641
9 ........... SURROUND TRIM, RIGHT ......... MINC.16642
10 ......... BAFFLE ........................................... MINB.1923
11 ......... SPILL SWITCH ............................. MINB.50621
12 ......... RIGHT SIDE EXTENSION ............ MINB.1904
13 ......... LEFT SIDE EXTENSION ............... MINB.1905
14 ......... GLASS PANEL ............................. MINC.50342
15 ......... GLASS FRAME .............................. MIND.1820
16 .........FRONT TRIM SET (2 pcs.) ............. MIND.1888
17 ......... LOUVER ASSEMBLY, TOP ..... MIND.1883_ _
18 .........LOUVER ASSEMBLY, BOT. ... MIND.1879_ _
19 .........BACK BRICK PANEL ......................... 5094.223
20 ......... LEFT BRICK PANEL ..........................5094.221
21 ......... LEFT FRONT BRICK PANEL ............ 5094.224
22 .........FRONT BRICK PANEL ....................... 5094.226
23 ......... RIGHT FRONT BRICK PANEL ......... 5094.225
24 ......... RIGHT BRICK PANEL ........................ 5094.222
25 .........FAN COVER ................................ MNBB.19245
.............LOG SET, COMPLETE (not shown) .5094.2061
.............LOG, REAR, #1 (not shown) ................ 5094.206
.............LOG, LEFT, #2 (not shown) ................. 5094.204
.............LOG, RIGHT, #3 (not shown) ..............5094.205
.............TWIG, MIDDLE, #4 (not shown) ......... 5094.202
.............TWIG, LEFT, #5 (not shown) ............... 5094.201
.............TWIG, RIGHT, #6 (not shown) ............ 5094.203
.............WINDOW GASKET KIT (not shown) ................
...................................................................... MINC.50671
-notes-
fire-parts.com

18
Fig. # 36
fire-parts.com

19
FOR USE WITH/ NATURAL GAS/ LP-GAS/
EN CASE D’EMPLOI AVEC: DU GAZ NATUREL DU GAZ LP
Minimum supply pressure / Pression minimum d’alimentation: 5.0 in/wc / 5.0 po/c.e. 11.5 in/wc / 11.5 po/c.e.
(For the purpose of input adjustment / dans le but de regler l’alimenation) (1.25 kPa) (2.86 kPa)
Manifold pressure / Pression de la tuyauterie: 3.8 in/wc / 3.8 po/c.e. 11.0 in/wc / 11.0 po/c.e.
(.95 kPa) (2.74 kPa)
Orifice Size / Diametre de l’injectuer: 3/32" (2.38 mm) 1.45 mm
Input BTU/hr (kW) / Puissance à l'entrée BTU/h (kW) : Max.: 27,000 (7.9) Max.: 25,000 (7.3)
Min.: 13,500 (4.0) Min.: 12,500 (3.7)
Output BTU/hr (kW) / Puissance fourmie BTU/h (kW)
- Fan On / Ventilateur ouvert 20,520 (6.0) 19,375 (5.7)
- Fan Off / Ventilateur position éteinte 19,116 (5.6) 18,500 (5.4)
Optional components: Blower Kit (MINB.BLOW) / Éléments facultatifs: Ventilateur (MINB.BLOW)
Blower electrical rating: 115v, 60hz, 0.5 A / Normes electriques du ventilateur: 115v, 60hz, 0.5 A
This appliance equipped for altitudes 0-4500 ft. (0-1370 m) / Cet unité est concu pour des altitudes variant entre 0- 4500
pieds (0-1370 m). Also certified for installation in a bedroom or a bedsitting room / Aussi certifié pour installation dans une
chambre à coucher ou une salle de séjour.
This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion
and ventilation air. Par mesure de securite, cet appareil doit etre installe de facon a assurer un approvisionnement
suffisant d’air de combustion et de ventilation.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with this appliance. For assistance or additional information, consult a
qualified installer, service agency or the gas supplier.
This appliance must be installed in accordance with local codes, if any; if not, follow the current CAN/CGA-B149 (Canada)
or ANSI Z223.1 (USA). Cet appareil diot etre installe conformement aux exigences des codes locaux. S’il n’existe aucun
code local, se conformer a la norme CAN/CGA-B149 en vigueur.
Left and Right side are determined when facing the front of the appliance.
Les cotes droit et gauche se determinent en se mettant devant l’appareil et en lui faisant face.
INSTALL IN SOLID FUEL BURNING FIREPLACE / N'INSTALLER QUE DANS UN FOYER NON COMBUSTIBLE
Use Optional Zero Clearance Kit (MINB.ZCKIT) for Zero Clearance Installation / Utilisez Nulle trousse du Dégagement pour
Nulle Installation du Dégagement à Optional (MINB.ZCKIT).
MINIMUM CLEARANCES TO COMBUSTIBLES / Fireplace Insert / Optional Zero Clearance Kit /
DEGAGEMENT DES MATIERES INFLAMMABLES Encart de la cheminée Nulle trousse du
Déblaiementfacultative
Adjacent Sidewall / Mur du côté adjacent : 9.5 in. / 9.5 po. (241 mm) 7.5 in. / 7.5 po. (191 mm)
Ceiling / Plafond : 38 in. / 38 po. (965 mm) 34 in. / 34 po. (864 mm)
Mantel to Appliance / Du manteau al’appareil : 18 in. / 18 po. (457 mm) 12 in. / 12 po. (305 mm)
Max. Mantel Extension / Extension max. dmanteau : 9.5 in. / 9.5 po. (241 mm) 9.5 in. / 9.5 po. (241 mm)
Facing Side and Top / : 1 in. / 1 po. (25 mm)
Floor / Sol -unprotected (in Canada) / sans protection (au Canada) : 1.5 in. / 1.5 po. (38 mm)
-unprotected (in U.S.A.) / sans protection (dans U.S.A.) : 5.5 in. / 5.5 po. (140 mm)
-protected with Wonder Board / protégé avec “Wonder Board” : 0 in. / 0 po. (0 mm)
Mantel Supports (Max. 3.5 in. Ext.) / Supports du manteau (Max. 3.5 po. Extension) : 3.5 in. / 3.5 po. (89 mm)
Vent Pipe / Déchargez le Tuyau : 1 in. / 1 po. (25 mm)
Top, Back and Side Standoffs / Sommet, Arrière et Côté Standoffs : 0 in. / 0 po. (0 mm)
140799 5050.521 1-MNBB
PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
PO Box 1060, Duncan, British Columbia, V9L 3Y2
MODEL / MODELE: MIRAGE - INSERT
SERIES / SERIE: E
ANS Z21.11.1-1991 Vented Heaters, CAN 1-2. 1 -M86
Gas-Fired Vented Room Heaters, CAN/CGA-2.17 -M91
Gas-Fired Appliances For Use At High Altitudes
REPORT NO.
476-1004
(APR. 94)
LISTED VENTED ROOM HEATER /
RADIATEUR VENTILE
VENTED CIRCULATOR OPTIONAL FAN /
CIRCULATEUR VENTILE VENTILATEUR OPTIONNELLES
CERTIFIED FOR CANADA AND U.S.A. / CERTIFIÉ POUR CANADA ET U.S.A.
WH
WH
DO NOT REMOVE OR
COVER THIS LABEL
MADE IN CANADA / FABRIQUE AU CANADA
Label
fire-parts.com

Printed in Canada
Pacific Energy Fireplace Products Ltd.
Box 1060, Duncan, BC V9L 3Y2
Phone: [phone]
Web site: http://www.pacificenergy.bc.ca
fire-parts.com
