Palram Harmony 6x8 User manual

Assembly Instructions
Multi Line 6'x8'
English_69717
255x193x203cm / 100 1/2"x76"x80"
www.palramapplications.com
Company information:
Palram Americas Inc.
9735 Commerce Parkway
Kutztown, PA, USA
Greenhouse Service Center:
Toll Free: [phone]
E-Mail: [email protected]

IMPORTANT
Please read these instructions carefully before you start to assemble this greenhouse.
Keep these instructions in a safe place for future reference.
a Customer Service
For assistance with assembly or for replacement parts – please log onto our website or call
our service line (number is on the title page).
www.palramapplications.com
Additional information can be found at our website: www.palramapplications.com
a Safety Advice
lIt is of utmost importance to assemble all of the parts according to the directions. Do not
skip any step.
lWe strongly recommend using work gloves during assembly.
lAlways wear shoes and safety goggles when working with extruded aluminium.
lIf using a step ladder or power tools ensure that you follow the manufacturer’s safety
advice.
lDo not touch overhead power cables with the aluminium profiles.
lDo not attempt to assemble the greenhouse in windy or wet conditions.
lDispose of all plastic bags safely keep them out of reach of small children.
lKeep children away from the assembly area.
lDo not lean against or push the greenhouse during construction.
lDo not position your greenhouse in an area exposed to excessive wind.
lDo not attempt to assemble this greenhouse if you are tired, have taken drugs or
alcohol or if you are prone to dizzy spell.
lHot items such as recently used grills, blowtorches etc. must not be stored in the
greenhouse. Ensure there are no hidden pipes or cables in the ground before
inserting the pegs.
lThis product is designed to use as greenhouse only.
a Care & Maintenance
When your greenhouse needs to be cleaned, use a mild detergent solution and rinse
with cold clean water. DO NOT use acetone, abrasive cleaners or other special detergents
to clean the clear panels.
a Tools & Equipment
lTape measure
lWork gloves
lPlastic or rubber mallet
lLubricant
lPhillips head screwdriver
lStep ladder
a Before Assembly
This is a multi-part assembly best achieved
by two people. Allow at least half a day for
assembly process.
Selecting a site - the greenhouse must be
assembeld, positioned and fixed on a flat
level surface.
Choose a sunny position away from
overhanging trees.
We are strongly recomend to fix your
greenhouse directly to a solid concrete
foundation. When doing that use the pre
drilled holes in the metal base supplied.
Take out all components parts of the
packages. Sort the parts and check against
the contents parts list.
During assembly parts should be laid out
close at hand. Keep all small parts (screws
etc.) in a bowl so they do not get lost.
4 Prefix of the parts reference in the
assembly instructions:
A- Aluminum profiles and parts
P5XX– Polycarbonate panels
P3XX– Plastic parts
M– Metal parts
4XX– Screws, nuts, disks, etc.
TXX - Tools
a During Assembly
Carry out the assembly steps in the order set
out in the instructions.
Step 1: Make sure the base is square by
measuring the diagonals and level by using
a spirit level.
Step 2: Part A162 is the front door threshold.
Fixing it determines the front side of the
greenhouse.
Step 3: The end of all profiles, indicated by
an arrow, is always upward.
Step 5,6,7,12,15: The oval hole in the
crossbars A256 should always be assembled
to the base of the greenhouse.
Step 19-20: Decide on the window’s
location before assembly. Window can be
installed in one of the indicated options.
Step 25: Panel glazing and sealing:
Do not assemble the next panel before the
previous one is fixed with its sealing strip.
Step 34: You may use Silicon
lubricant spray in order to help
you slide R303 into profile A173.
Step 44: Firmly connect the greenhouse
to a level final position immediately after
completion of the assembly.
lDrill bit
lLarge hammer
lScissors
lSpanner
lT001
EN

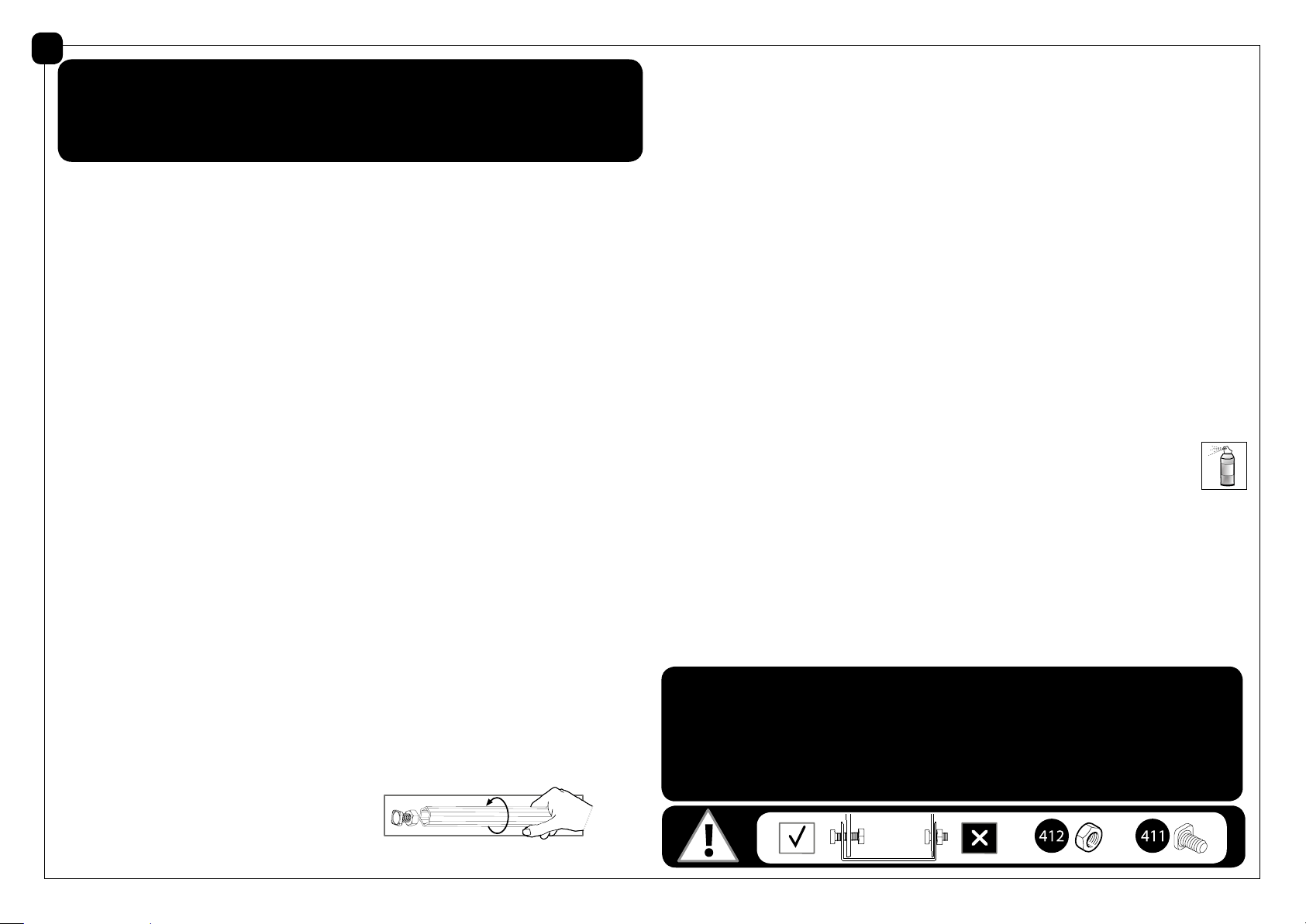

Screws 411 and nuts 412 are used thruoghout the assembly process.
lScrews 411 are to be assembled from the outside and nuts 412 from the
inside of the greenhouse.
lDo not fasten screws and nuts (411 & 412) more than 2-3 turns only.
Do not tighten them until completion of the panels’assembly, if not specified otherwise.

Contents
Item Inc./cm Qty.
M244 913/4 / 233 2
M243 913/4 / 233 2
Item Inc./cm Qty.
A136 961/2 / 245 2
A260 24
3
/ 4 / 63 1
A261 15
3
/ 4 / 40 1
A283 23
1
/ 4 / 59 5
P542 1
P541 1
A282 21
1
/ 2 / 55 2
A271 23 / 58.5 1
A211 24
1
/ 4 / 61.5 1
A174 24
1
/ 4 / 61.5 1
A182 24
1
/ 4 / 61.5 1
A192 24
1
/ 4 / 61.5 1
A151 23 / 58.5 1
Item Inc./cm Qty.
P540 14
P544 2
P545 2
P547 1
A141 971/2 / 245 1
P543 1
P546 1
443/4” x113.5 cm
P580 7
45” x 114.5 cm

Contents
A162 381/2 / 98 1
Item Inc./cm Qty.
A104 621/4 / 158.5 1
A102 441/4 / 112.5 12
A103 621/4 / 158.5 1
Item Inc./cm Qty. Item Inc./cm Qty.
A203 611/2 / 156 1
A204 611/2 / 156 1
A111 443/4 / 113.5 2
A112 443/4 / 113.5 2
A113 443/4 / 114 1
A114 443/4 / 114 1
A115 443/4 / 114 1
A116 443/4 / 114 1
A222 483/4 / 124 1
M285 723/4 / 185 1
A256 503/4 / 129 8
T001 73/4 / 20 1
A173 59 / 150 2

Contents
Item Inc./mm Qty. Item Inc./mm Qty. Item Inc./mm Qty. Item Inc./mm Qty.
R303 2
P304 2
423 M4 SL 2
P333 1
P399 2441 M6x1.77/M6x45 1
M307 4
A306 1
A323 2
P324 4
411 M6x0.39/M6x10 100
412 M6 100
421 M4x0.63/M4x16 4
422 M4 2
442 0.26/6.5 1
445 8x1/5/M8x7 4
447 M8x0.63/M8x16 4
4008 0.6x0.16/16x4.2 6
P328 (1 spare ) 27
T340 7
R360 2
T341 8
PR351 44 / 112 (2 spare ) 22
PR356 171/2 / 44.5 2
PR353 113/4 / 30 2
PA351 44 / 112 (2 spare ) 14
PA352 22 / 57 2
PA353 171/2 / 44.5 2
P361 113

01234
b
a
ba =
193cm / 76” 193cm / 76”
b
a
253cm/99
1/2
”
253cm/99
1/2
”

1
x2
x4
x2
x4 x4
M243
M244
M244
M243
M244 M243
M244
M243
M243
M243
447
447
M244
411 412
ab
x2

2
x1
x3
x3
A162
411
412
A162
Door
Tür
Porte
Puerta
EN
GR
FR
SP
411
412
A162
T001

3
x8
x8
x2
x2
A112
A111
A112
A111 A111
A112
A111
411
412
412
411
Door
Tür
Porte
Puerta
EN
GR
FR
SP
411412
!

4
x4
x2
A136
P324
P324
P324
A136

5
x8
x8
x4
x2
A256 411
412
A136
A136
A256
cc
ab+
ab+
ab+
ab+
c
c
c
A136
A136
A256
A256
A256
411412
!
b
A136
A256
a

6
x2
x2
x2
x1
M285
A256
M285
M285
A256
411
412
A256
A256 412
411
411412
!

7
x2
x2
A256
A256
411
412
411
412
a
a
a
411412
!

x1
x1
8
x2
x2
A104 411
412
A103
411412
!
A103
412
412
A104
A104
A103
a
b
c
411
c
b
a

x1
x1
9
x6
x6
A116
A115
A115
A115
A115
A116 411
412
a
b
b
a
A104
411412
!
A115
b

x2
10
x4 x4
A283 411 412
A283
411
411412
!
a
a
b
a
b
A283
A283
A283
A283
ab
A283

x1
11
x4 x4
A283 411 412
A283
412
A283
A283
411
411412
!

12
x1
x1
x1
x1
A256 411
A203
A203 412
411412
!
A256
Door
Tür
Porte
Puerta
EN
GR
FR
SP
A256
A203

13
x1
x4
x3
A283
411
412
A283
A283
A256
411412
!

14
x1
x2
x3
A613
411
412
412
411
A203
a
b
A113
A613
A613
411412
!
b
411
412
A613
a
