Panasonic ET-D3LEW60 User manual

Commercial Use
Model No. ET-D3LEW60
ET-D3LES20
ET-D3LET80
ET-D3LEW50
DPQX1279ZA
Projection Lens
Operating Instructions
Thank you for purchasing this Panasonic product.
■To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■Before using this product, be sure to read “Read this rst!” (Page 3).
■Please save this manual for future use.
ET-D3LEW60 ET-D3LES20
ET-D3LET80 ET-D3LEW50
Read before use
This document is intended for the various projection lenses that can be attached to
and used in conjunction with Panasonic projectors.
For Model No. and model names, refer to the product list (Page 4).
ENGLISH
日本語

2-ENGLISH
Read this rst! ......................................................................................3
Before Use.............................................................................................4
Attaching the Lens / Detaching the Lens...........................................5
Before replacing the projection lens........................................................ 5
Attaching the Lens...................................................................................5
Peripheral focus adjustment function ...................................................... 7
Lens calibration ....................................................................................... 8
Removing the Lens ............................................................................... 11
Projection relationships.....................................................................12

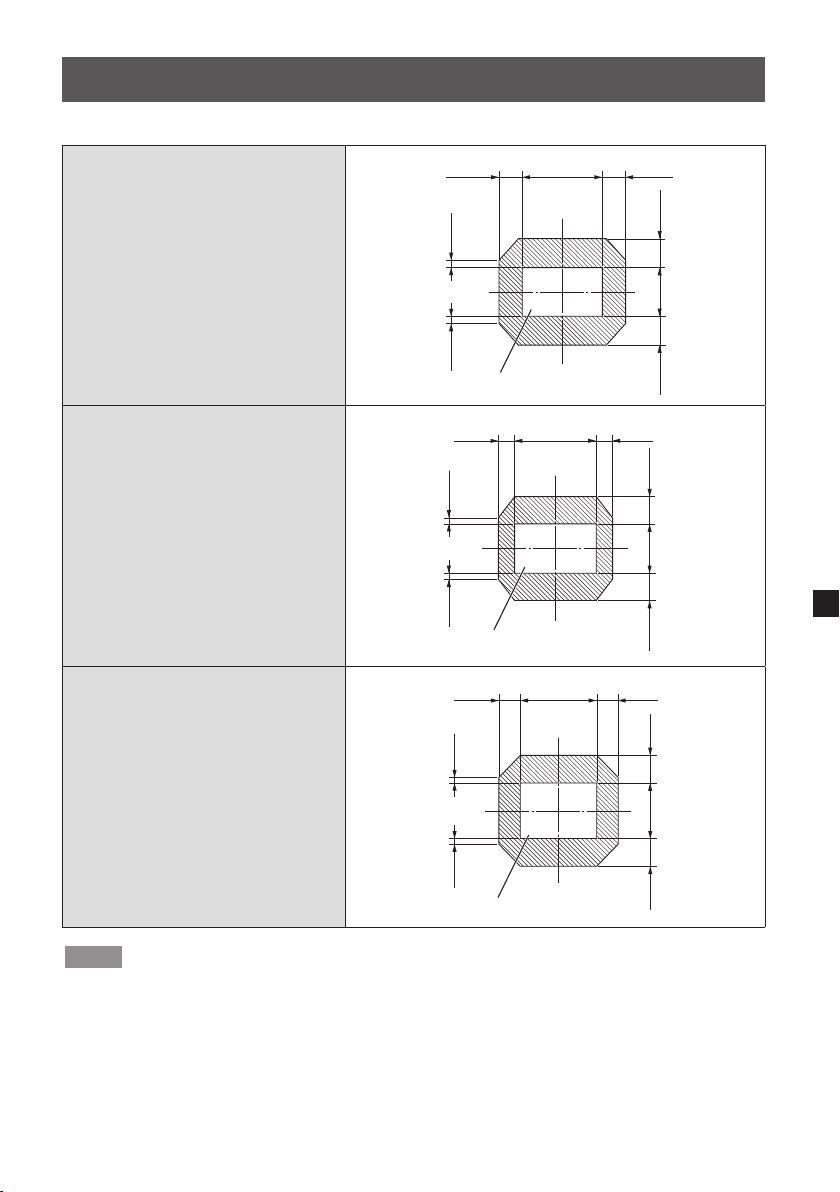

Lens shift ranges................................................................................14
Specications .....................................................................................16
Dimensions .........................................................................................16
Projected image size and Projection distance.......Appendix / Annexe / 付録 1
The "Appendix" can be found after the Japanese language section ( 日本語 ).
█ Contents

ENGLISH-3
Read this rst! Always follow these precautions
WARNING:
Do not look at or place your skin into the light emitted from the lens while the
projector is being used.
Doing so can cause burns or loss of sight.
zStrong light is emitted from the projector’s lens. Do not look at or place your hands
directly into this light.
zTurn off the power when moving away from the projection lens or projector.
Do not project an image with the lens cover attached.
zDoing so can cause re.
CAUTION:
Before replacing the projection lens, be sure to turn off the power and
disconnect the power plug from the wall outlet.
zUnexpected projection of light may cause injury to eyes.
zReplacing the projection lens without removing the power plug may result in electric
shock.
Do not stand in front of the lens while the projector is being used.
Doing so can cause damage and burns to clothing.
zStrong light is emitted from the projector’s lens.
Do not place objects in front of the lens while the projector is being used.
Doing so can cause re, damage to the object, or malfunction of the lens and
projector.
zStrong light is emitted from the projector’s lens.
Do not open the desiccant bag. Do not eat the contents.
Inadvertently ingesting desiccant could be harmful.
zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water
and seek medical attention.
zKeep desiccant out of the reach of children.

4-ENGLISH
■Product list
The product names and model numbers of the projection lenses covered by this manual
are as follows.
Product name Model number Description
Zoom lens ET-D3LEW60 / ET-D3LES20
ET-D3LET80
Projection lens equipped with an EEPROM*1
and stepping motor.
Fixed focus lens ET-D3LEW50 Projection lens equipped with an EEPROM*1.
*1 EEPROM: Electrically erasable programmable read-only memory
■Projectors supported by each projection lens
zET-D3LEW60 / ET-D3LES20 / ET-D3LET80
PT-RQ32K / PT-RZ31K / PT-RS30K / PT-RZ21K / PT-RS20K
zET-D3LEW50
PT-RQ32K / PT-RZ31K / PT-RS30K / PT-RZ21K / PT-RS20K / PT-RQ13K / PT-RZ12K /
PT-RS11K / PT-DZ21K2 / PT-DS20K2 / PT-DW17K2 / PT-DZ16K2 / PT-DZ13K / PT-DS12K /
PT-DW11K / PT-DZ10K
Note
zSome of the alphabet letters at the end of projector model numbers may be omitted in this
manual.
zModels other than the above may also be supported. Refer to the operating instructions for
your projector or the Panasonic website (https://panasonic.net/cns/projector/).
zIf the projector you are using is PT-RQ32K / PT-RZ31K / PT-RS30K / PT-RZ21K /
PT-RS20K, you may not be able to use the ET-D3LEW60 / ET-D3LES20 / ET-D3LET80 /
ET-D3LEW50 projection lens depending on main version of the rmware. If main version of
the rmware is the version number shown below, update to the latest rmware before use.
- PT-RQ32K / PT-RZ31K / PT-RS30K: Earlier than 3.00
- PT-RZ21K / PT-RS20K: Earlier than 2.00
For details on the update procedure, refer to the latest rmware information on the
Panasonic website (https://panasonic.net/cns/projector/pass/).
zThe main version of the rmware can be checked in the [STATUS] screen.
■Supplied Accessories
Make sure that the following has been provided.
Part name Appearance (quantity)
Lens cover
1 each
(The product is
delivered with a lens
cover attached.)
Before Use

ENGLISH-5
Before replacing the projection lens
Return the projection lens to the home position before replacing or removing it.
For details on how to return the lens to the home position, refer to the operating instructions
of the projector.
Attention
zMake sure that the projector power supply is switched off before attaching or detaching the
projection lens.
zAfter removing the projection lens, store it safely away from vibration or impacts.
z Do not touch the electrical contacts of the projection lens with your  ngers. Dust and dirt on
the contacts may cause contact malfunctions, while static electricity may damage the unit.
zDo not touch the surface of the lens with bare hands. Finger prints and dirt on the surface
of the lens will be magni ed by the lens and lower the quality of the projected image. Place
the supplied lens cover on the zoom lens when the projector is not in use.
zThe lens is made of glass. The lens could be damaged if brought into contact with or
rubbed against hard objects. Handle the lens carefully.
zUse a clean, soft and dry cloth to wipe away dust and dirt from the projection lens.
Do not use fl uffy cloths containing oil, water or dust for cleaning. The lens is easily
damaged, so do not apply excessive pressure when wiping it.
Attaching the Lens / Detaching the Lens
Attaching the Lens
Note
zIf the lens hole cover is already removed, start from step 3.
The illustrations in this procedure depict
attachment of the ET-D3LEW50 onto the
PT-RZ21K.
1) Loosen the lens hole cover
screw.
zUse a Phillips screwdriver to turn the
lens hole cover screw counterclock-
wise until it is in its loosened state.
ねじ
レンズホールカバー
Lens hole cover
Screw
2) Remove the lens hole cover.
z(i) While pressing the lens release
button, turn the lens hole cover
counterclockwise until its marker ()
aligns with the marker on the projec-
tor (to the left of "LOCK"). (ii) Then
remove the lens hole cover.
レンズリリースボタン
Lens release button

6-ENGLISH
Attaching the Lens / Detaching the Lens (continued)
3) (i) Insert the projection lens
while aligning its marker
(orange) with the marker on
the projector (to the left
of “LOCK”), and (ii) turn it
clockwise until it clicks into
place.
4) Use the lens drop prevention
screw supplied with the
projector to secure the
projection lens.
zUse a Phillips screwdriver to secure
the screw in hole A to the right of the
marker (orange) on the projection
lens.
目印（オレンジ色）
レンズ落下防止ねじ
ねじ穴 A
Marker (orange)
Screw
hole A
Lens drop prevention screw
Attention
zTurn the projection lens counterclockwise, and verify that it is secure.
zStore the removed lens hole cover safely for future use.
zAfter attaching the projection lens, turn on the projector and perform lens calibration.
(page 8)

ENGLISH-7
Attaching the Lens / Detaching the Lens (continued)
Peripheral focus adjustment function
When using the ET-D3LEW60 or ET-D3LEW50, the focus balance between the center of the
projected image and the peripheral areas differs depending on the size of the image.
The ET-D3LEW60 and ET-D3LEW50 are equipped with a function for adjusting the pe-
ripheral focus.
1) Operate the projector to align
the focus of the center of the
projected image.
2) Loosen the lock knob by
turning it counterclockwise.
Note
zThe screen sizes displayed on the lens are approximate guides.
3) Turn the peripheral focus
adjustment ring in the
directions of the arrows
to align the focus of the
peripheral areas of the image.
4) Tighten the lock knob by
turning it clockwise.
The illustrations in this procedure depict
attachment of the ET-D3LEW50 onto the
PT-RZ21K.
■Adjusting the focus
ロックつまみ
周辺フォーカス調整リング
Peripheral focus adjustment ring
Lock knob

8-ENGLISH
Lens calibration
Perform lens calibration after attaching the lens.
The lens calibration procedure differs depending on the projector you are using and the
main version of the rmware.
zPT-RQ32K / PT-RZ31K / PT-RS30K: Main version is 3.00 or later
Refer to "Case 1" (xpage 8).
zPT-RZ21K / PT-RS20K: Main version is 2.00 or later
Refer to "Case 1" (xpage 8).
zPT-RQ13K / PT-RZ12K / PT-RS11K / PT-DZ21K2 / PT-DS20K2 / PT-DW17K2 /
PT-DZ16K2 / PT-DZ13K / PT-DS12K / PT-DW11K / PT-DZ10K
Refer to "Case 2" (xpage 10). (Only ET-D3LEW50 is supported)
■Case 1
zPT-RQ32K / PT-RZ31K / PT-RS30K (main version of the rmware is 3.00 or later)
zPT-RZ21K / PT-RS20K (main version of the rmware is 2.00 or later)
1) Press the <MENU> button.
2) Use the ▲ and ▼ buttons to
select [PROJECTOR SETUP],
and press the <ENTER>
button.
zThe [PROJECTOR SETUP] screen
appears.
3) Use the ▲ and ▼ buttons to
select [LENS], and press the
<ENTER> button.
zThe [LENS] screen appears.
1/2
PROJECTOR SETUP
PROJECTOR ID ALL
PROJECTION METHOD
LENS
OPERATION SETTING NORMAL
LIGHT OUTPUT 100.0%
BRIGHTNESS CONTROL AUTO
STANDBY MODE NORMAL
NO SIGNAL SHUT-OFF DISABLE
NO SIGNAL LIGHTS-OUT DISABLE
INITIAL STARTUP LAST MEMORY
STARTUP INPUT SELECT LAST USED
DATE AND TIME
SUB MENU
MENU SELECT
ENTER
4) Use the ▲ and ▼ buttons to
select [LENS CALIBRATION],
and press the <ENTER>
button.
zThe [LENS CALIBRATION] screen
appears.
zWhen the ET-D3LEW50 is attached,
a conrmation screen appears when
the <ENTER> button is pressed. In
such cases, proceed to step 6.
SUB MENU
MENU SELECT
ENTER
LENS
LENS TYPE ET-D3LEW60
LENS INFORMATION SETTING
LENS MEMORY
LENS HOME POSITION
ACTIVE FOCUS OPTIMIZER
LENS CALIBRATION
Attaching the Lens / Detaching the Lens (continued)

ENGLISH-9

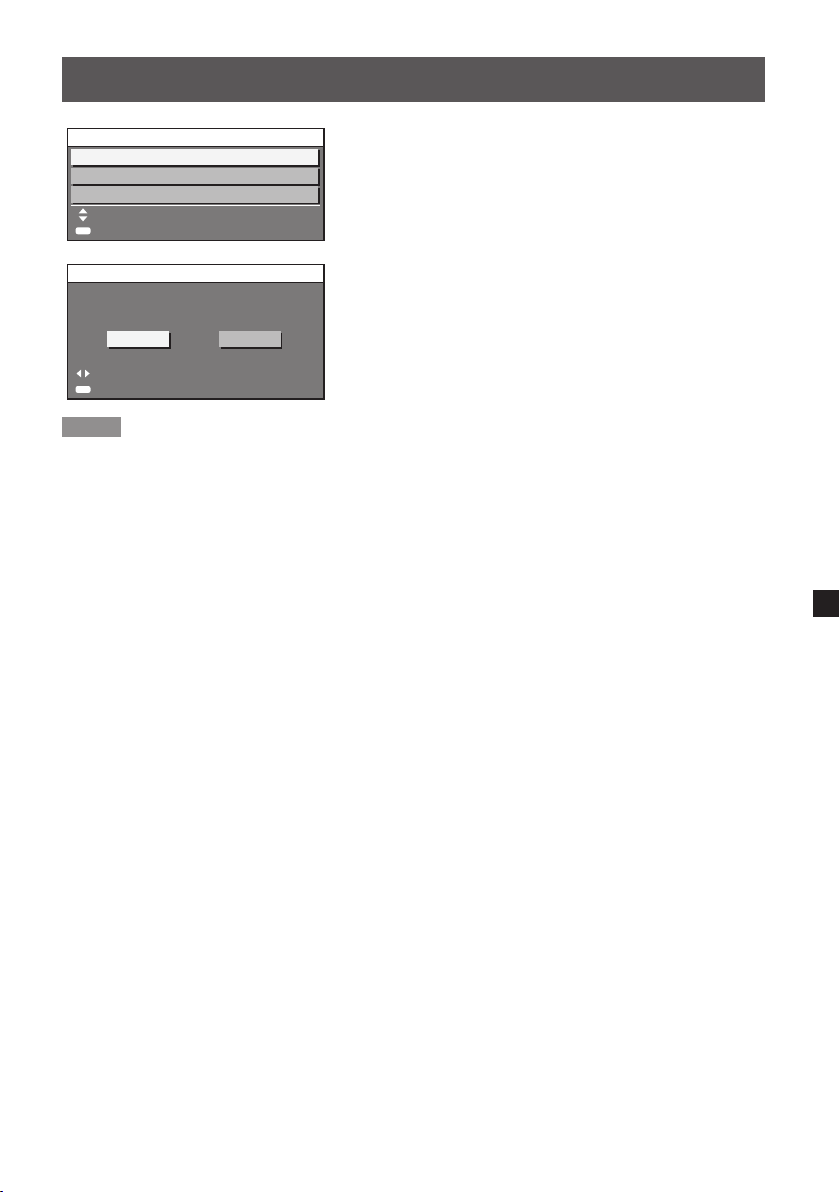

5) Use the ▲ and ▼ buttons to
select [SHIFT/FOCUS/ZOOM],
and press the <ENTER>
button.
zThe conrmation screen appears.
EXECUTE
MENU SELECT
ENTER
LENS CALIBRATION : ET-D3LEW60
SHIFT/FOCUS/ZOOM
SHIFT/FOCUS
ZOOM
6) Use the and buttons to
select [OK], and press the
<ENTER> button.
zLens calibration starts.
zThe projection lens moves to the
home position after adjustment range
calibration is complete.
LENS CALIBRATION : ET-D3LEW60
OK
Proceed LENS CALIBRATION,
and return to HOME POSITION.
EXECUTE
CHANGE
ENTER
CANCEL
Note
zIf lens calibration is not performed, the available zoom range will be narrowed.
Attaching the Lens / Detaching the Lens (continued)

10-ENGLISH
■Case 2
zPT-RQ13K / PT-RZ12K / PT-RS11K
zPT-DZ21K2 / PT-DS20K2 / PT-DW17K2 / PT-DZ16K2
zPT-DZ13K / PT-DS12K / PT-DW11K / PT-DZ10K
1) Press the <MENU> button.
2) Use the ▲ and ▼ buttons to
select [PROJECTOR SETUP],
and press the <ENTER>
button.
zThe [PROJECTOR SETUP] screen
appears.
MAIN MENU
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
3D SETTINGS
PROJECTOR SETUP
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
P IN P
ENTER
3) Use the ▲ and ▼ buttons to
select [LENS CALIBRATION].
4) Use the and buttons to
select [NORMAL], and press
the <ENTER> button.
zThe conrmation screen appears.
2/3
INITIAL STARTUP
DATE AND TIME
STARTUP INPUT SELECT
TIME ZONE OFF
RS-232C
REMOTE2 MODE
FUNCTION BUTTON
LENS CALIBRATION
LENS MEMORY
NORMAL
STATUS
AC VOLTAGE MONITOR OFF
SAVE ALL USER DATA
PROJECTOR SETUP
LAST USED
DEFAULT
LAST MEMORY
EXECUTE
CHANGEMENU SELECT
ENTER
5) Use the and buttons to
select [OK], and press the
<ENTER> button.
zLens calibration starts.
zThe projection lens moves to the
home position after adjustment range
calibration is complete.
EXECUTE
CHANGE
ENTER
LENS CALIBRATION
OK
Proceed LENS CALIBRATION,
and return to HOME POSITION.
CANCEL
Attaching the Lens / Detaching the Lens (continued)

ENGLISH-11
Attention
zStore the removed projection lens safely without subjecting it to vibration or impact.
zStore the removed lens drop prevention screw safely for future use.
The illustrations in this procedure depict
attachment of the ET-D3LEW50 onto the
PT-RZ21K.
1) Remove the lens drop
prevention screw.
zUse a Phillips screwdriver to remove
the screw in rst hole to the right of
the marker (orange) on the projection
lens.
2) (i) While pressing the lens release
button, (ii) turn the projection
lens counterclockwise, and (iii)
remove it.
zTurn the projection lens counterclock-
wise until its marker (orange) aligns
with the marker on the projector (
to the left of "LOCK").
zIf you intend to transport or store the
projector, proceed to step 3.
レンズリリースボタン
目印（オレンジ色）
レンズ落下防止ねじ
Lens drop prevention screw
Marker (orange)
Lens release button
Removing the Lens
3) Attach the lens hole cover
supplied with the projector.
z(i) Insert the lens hole cover while
aligning its marker () with the
marker on the projector (to the left
of "LOCK"), and (ii) turn it clockwise
until it clicks into place.
レンズホールカバー
Lens hole cover
4) Secure the lens hole cover.
zUse a Phillips screwdriver to tighten
the lens hole cover screw.
ねじ
Screw
Attaching the Lens / Detaching the Lens (continued)

12-ENGLISH
Projection relationships
The dimensional relationship between the screen and the projector is shown below.
■Dimensional relationship diagram
SD
L (LW/LT)
L1
L1
L (LW/LT)
SW SH
SH
SW
投写画面
スクリーン
スクリーン
Projected image
Screen
Screen
Note
zThis diagram assumes that the size and position of the projected image will be adjusted so
that the image lls the entire screen.
zThis illustration is not drawn to scale.
L (LW / LT)*1 Projection distance
L1 Lens protrusion dimension
SH Projected image height
SW Projected image width
SD Projected image size
*1 LW: Minimum projection distance when using a zoom lens.
LT: Maximum projection distance when using a zoom lens.
zL1 dimensions (approximate values) (Unit: m)
Projector model
Lens model
PT-RQ32K /
PT-RZ31K /
PT-RS30K
PT-RZ21K /
PT-RS20K
PT-RQ13K / PT-RZ12K / PT-RS11K /
PT-DZ21K2 / PT-DS20K2 / PT-DW17K2 /
PT-DZ16K2 / PT-DZ13K / PT-DS12K /
PT-DW11K / PT-DZ10K
ET-D3LEW60 0.182 0.212 -
ET-D3LES20 0.091 0.121 -
ET-D3LET80 0.224 0.254 -
ET-D3LEW50 0.173 0.203 0.203
Note
zThe illustrations of projectors in this manual are for informational purposes only and do not
represent a specic projector model. Congurations may vary with the model.
Attention
zTo prevent obstruction of the intake and exhaust vents, install the projector with a
clearance at least 500 mm (1 ft. 7 in.) from walls and objects.
If you are installing the projector in a sealed space, be sure to provide additional air
conditioning equipment and ventilation equipment. Insufcient ventilation will result in an
accumulation of heat and may activate the projector's protection circuit.
zAvoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).

ENGLISH-13
Projection relationships (continued)
■Dimensional relationship
For details on the projection distance (L), refer to “Projected image size and Projection
distance” and “Projection distance formulas” in the Appendix.

14-ENGLISH
After moving the lens to the home position according to “Lens calibration” on page 8, you
can use the position of the projected image at that position (i.e., the standard projection
position) as a basis, and use the lens shift adjustment function on the projector to adjust
the position of the projected image within the respective lens shift ranges.
Perform lens shift adjustment within the ranges shown in the following illustrations.
Moving the lens outside of the adjustment ranges may alter the focus.
z
ET-D3LEW60
PT-RQ32K
PT-RZ31K / PT-RZ21K
PT-RS30K / PT-RS20K
0.19H0.19H
0.24V0.24V
0.56V
0.56V
Projected image width H
Standard projection position
Projected image height V
Projected image height V
Standard projection position
0.15H0.15H
0.44V
0.44V
0.12V0.12V
Projected image width H
Standard projection position
0.2H0.2H
0.4V
0.4V
0.12V0.12V
Projected image width H
Projected image height V
Lens shift ranges

ENGLISH-15
Lens shift ranges (continued)
z
ET-D3LES20 / ET-D3LET80
PT-RQ32K
PT-RZ31K / PT-RZ21K
PT-RS30K / PT-RS20K
Note
zThe home position of the projector a point of origin position for the lens shift (i.e., vertical and
horizontal positions of the lens) based on the results of lens calibration. It is not the optical
center position of the screen.
zFor the ET-D3LEW50, use the standard projection position, and do not perform lens shift
adjustment.
0.29H0.29H
0.15V0.15V
0.59V
0.59V
Projected image width H
Projected image height V
Standard projection position
0.2H
0.2H
0.12V0.12V
0.55V
0.55V
Projected image width H
Projected image height V
Standard projection position
0.3H
0.3H
0.1V0.1V
0.5V
0.5V
Projected image width H
Projected image height V
Standard projection position

16-ENGLISH
Dimensions
Specications
(Unit: mm)
Model number Dimensions
ET-D3LEW60
ET-D3LES20
Ø 160 (6-5/16")
357 (16-1/16")
Ø 154 (6-1/16")
265 (10-7/16")
Check the specications of each projection lens, and use the appropriate lens for your
intended use.
Lens model ET-D3LEW60 ET-D3LES20 ET-D3LET80 ET-D3LEW50
Lens type Zoom lens Zoom lens Zoom lens Fixed focus lens
F value 2.5 2.5 2.5 to 2.7 2.5
Focal length (f) 19.6 to 23.5 mm 35.0 to 50.9 mm 154 to 289 mm 14.8 mm
Dimensions*1
Width 160 mm (6-5/16") 154 mm (6-1/16") 154 mm (6-1/16") 160 mm (6-5/16")
Height 160 mm (6-5/16") 154 mm (6-1/16") 154 mm (6-1/16") 160 mm (6-5/16")
Depth 357 mm
(16-1/16")
265 mm
(10-7/16")
404 mm
(15-29/32")
347 mm
(13-21/32")
Mass Approx. 8.7 kg
(19.2 lb.)
Approx. 5.2 kg
(11.5 lb.)
Approx. 8.5kg
(18.7 lb.)
Approx. 7.1kg
(15.7 lb.)
*1: Excluding protrusions.

ENGLISH-17
Dimensions(continued)
(Unit: mm)
Model number Dimensions
ET-D3LET80
ET-D3LEW50
Ø 154 (6-1/16")
404 (15-29/32")
347 (13-21/32")
Ø 160 (6-5/16")


SS0118AM0 -PS
Printed in Japan
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that
used electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
Information for users in the European Union
Importer’s name and address within the European Union
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Product Information (for Turkey only)
AEEE Yönetmeliğine Uygundur.
Eski Ekipman ve Bataryaların İşlenmesi.
Sadece geri dönüşüm sistemleri olan Avrupa Birliği ve ülkeleri için geçerlidir.
Ürünler, ambalaj ve/veya ekli belgeler üzerindeki bu semboller kullanılmış elektrik ve
elektronik ürünlerin genel ev atığı ile karıştırılmaması gerektiğini ifade eder.
Eski ürünlerin toplanması ve geri kazanılması için bu atıklar lütfen yasayla belirlenmiş olan
uygun toplama merkezlerine teslim ediniz.
Bu atıkların doğru işlenmesiyle, değerli kaynakların korunmasına ve insan sağlığı ve
çevreye olası negatif etkilerinin engellenmesine yardımcı olabilirsiniz.
Atıkların toplanması ve geri dönüşümü için detaylı bilgi için lütfen bağlı olduğunuz yerel
yönetimlerle iletişime geçiniz.
Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet
verebilir.
Panasonic System Communications Company of North America
5th Floor, Two Riverfront Plaza, Newark, NJ 07102-5490
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
Panasonic Corporation
Web Site : https://panasonic.net/cns/projector/
© Panasonic Corporation 2018
