Panasonic ET-DLE060C User manual

ENGLISH
Commercial Use
Model No. ET-DLE060C
DPQX1250ZB/X1
Zoom Lens
Operating Instructions
Thank you for purchasing this Panasonic product.
■To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■Before using this product, be sure to read “Read this rst!” (Page 3).
■Please save this manual for future use.

2-ENGLISH
Read this rst! ......................................................................................3
Before Use.............................................................................................4
Attaching the Lens / Detaching the Lens...........................................4
Before replacing the projection lens........................................................ 4
Attaching the Lens................................................................................... 5
Detaching the Lens ................................................................................. 6
Focus Adjustment.................................................................................... 7
Projection relationships.......................................................................8
Lens shift ranges................................................................................10
Specications .....................................................................................12
Dimensions .........................................................................................12
P rojected image size and Projection distance....... 附表 / Appendix 1
█ Contents

ENGLISH-3
Read this rst! Always follow these precautions
WARNING:
Do not look at or place your skin into the light emitted from the lens while the
projector is being used.
Doing so can cause burns or loss of sight.
zStrong light is emitted from the projector’s lens. Do not look at or place your hands
directly into this light.
zTurn off the power when moving away from the projection lens or projector.
Do not project an image with the lens cover attached.
zDoing so can cause re.
CAUTION:
Before replacing the projection lens, be sure to turn off the power and
disconnect the power plug from the wall outlet.
zUnexpected projection of light may cause injury to eyes.
zReplacing the projection lens without removing the power plug may result in electric
shock.
Do not stand in front of the lens while the projector is being used.
Doing so can cause damage and burns to clothing.
zStrong light is emitted from the projector’s lens.
Do not place objects in front of the lens while the projector is being used.
Doing so can cause re, damage to the object, or malfunction of the lens and
projector.
zStrong light is emitted from the projector’s lens.
Do not open the desiccant bag. Do not eat the contents.
Inadvertently ingesting desiccant could be harmful.
zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water
and seek medical attention.
zKeep desiccant out of the reach of children.

4-ENGLISH
■Supported projectors
PT-FRZ98C / PT-FRW93C / PT-FRX110C / PT-FRZ78C / PT-FRW73C / PT-FRZ67C /
PT-FRW62C / PT-FDZ97C / PT-FDW93C / PT-FDX110C / PT-FDZ88C / PT-FDW85C /
PT-FDX92C / PT-FD605CB / PT-FD601C
Note
zThis manual omits the alphabets at the end of projector model numbers.
zModels other than the above may also be supported. Refer to the operating instructions of
the projector you are using.
■Supplied Accessories
Make sure that the following has been provided.
Part name Appearance
Lens cover
1 each
(The product is
delivered with a lens
cover attached.)
Before replacing the projection lens
Return the projection lens to the home position before replacing or removing it.
For details on how to return the lens to the home position, refer to the operating
instructions of the projector.
Attention
zMake sure that the projector power supply is switched off before attaching or detaching the
projection lens.
zAfter removing the projection lens, store it safely away from vibration or impacts.
zDo not touch the electric contact points of the projection lens with your ngers. Dust and dirt
on the contacts may cause contact malfunctions, while static electricity may damage the unit.
zDo not touch the surface of the lens with bare hands. Finger prints and dirt on the surface
of the lens will be magnied by the lens and lower the quality of the projected image. Place
the supplied lens cover on the zoom lens when the projector is not in use.
zThe lens is made of glass. The lens could be damaged if brought into contact with or
rubbed against hard objects. Handle the lens carefully.
zUse a clean, soft and dry cloth to wipe away dust and dirt from the projection lens.
Do not use uffy cloths containing oil, water or dust for cleaning. The lens is easily
damaged, so do not apply excessive pressure when wiping it.
Attaching the Lens / Detaching the Lens
Before Use

ENGLISH-5
Attaching the Lens
Attention
zBefore attaching the Projection Lens, remove the lens hole cover (only lens options
models) and the two lens covers attached to the Projection Lens.
Attaching the Lens / Detaching the Lens (continued)
The illustrations in this procedure depict use
of the PT-FRZ98C series as an example.
1) (i) Turn the lens mount cover
counterclockwise, and (ii)
remove it.
Lens Mount Cover
(ii)(ii)
(i)
(i)
2) Pass the rear of the zoom lens
through the lens mount cover
until the lens mount cover is
at about the front of the zoom
lens.
3) (i) Align the positioning guide
on the zoom lens with the
guide groove on the projector,
and insert the zoom lens all
the way into the projector.
4) (ii) Turn the zoom lens
clockwise until it clicks into
place.
zTurn the zoom lens
counterclockwise, and check that it
is locked into place.
(i)(i)(i)(i)
Guide groove
Lens release button
Positioning guide

6-ENGLISH

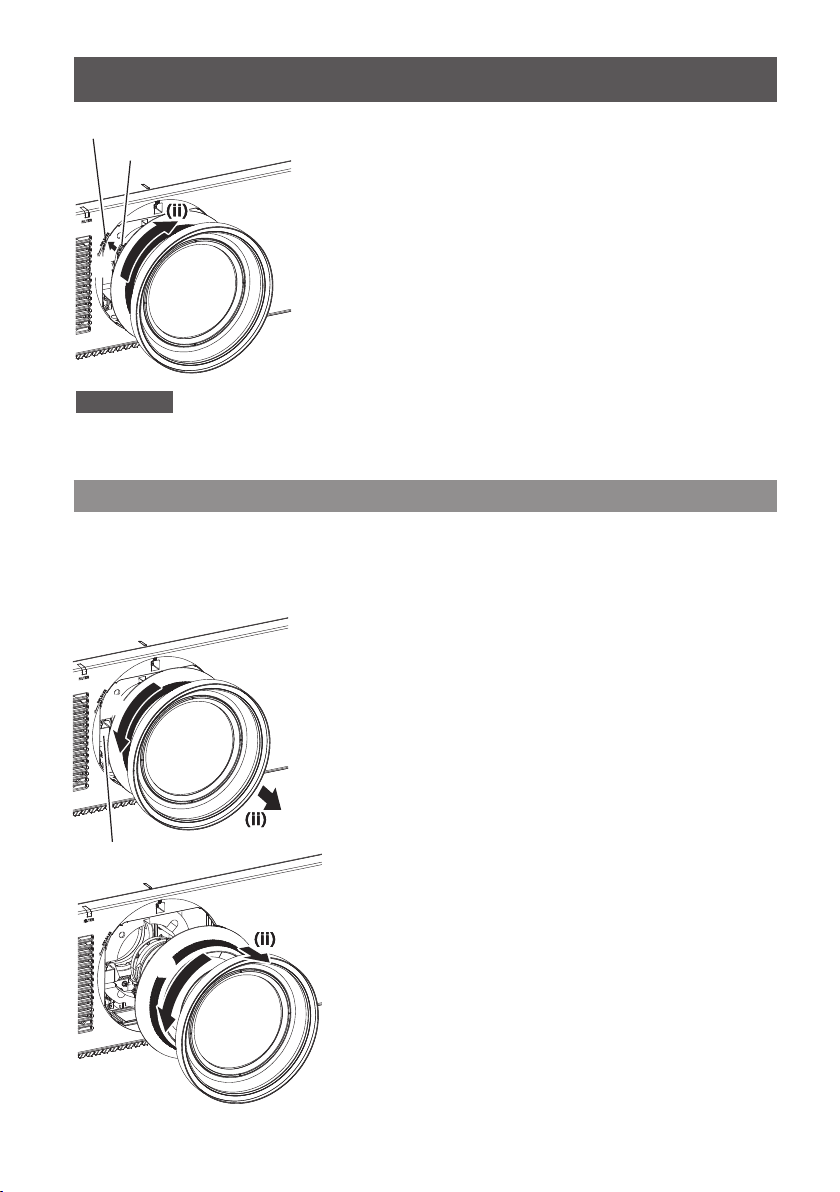

Attaching the Lens / Detaching the Lens (continued)
5) (i) Insert the tab on the lens
mount cover through the
slot on the projector, and (ii)
turn clockwise to secure lens
mount cover.
(i)(i)
Lens cover tab
Slot position
The illustrations in this procedure depict
use of the PT-FRZ98C series as an
example.
1) (i) Turn the lens mount cover
counterclockwise, and (ii)
remove it.
2) Press the lens release button.
zA click will be heard.
3) (i) Turn the zoom lens
counterclockwise, and (ii)
remove it.
(i)(i)
Lens release button
(i)(i)
Attention
zAfter attaching the projection lens, turn on the projector and perform lens calibration.
Detaching the Lens

ENGLISH-7

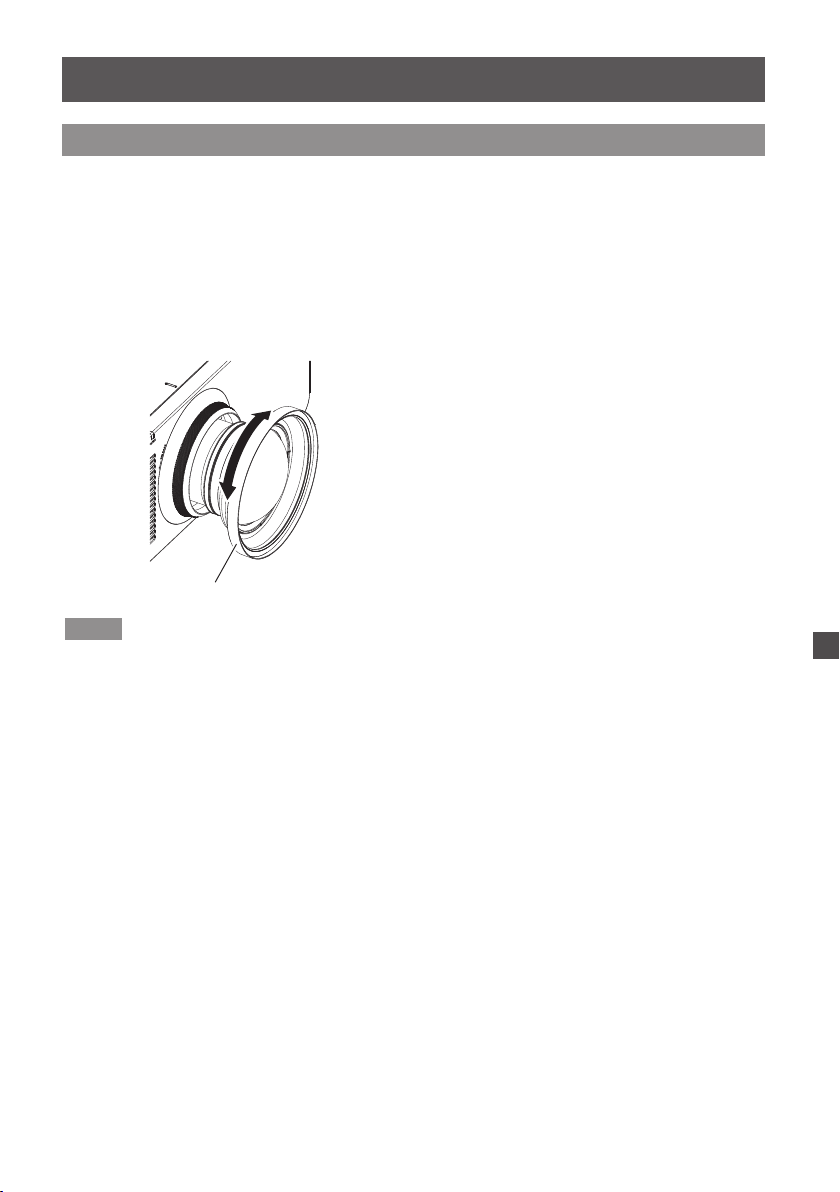

Focus Adjustment
The focus balance of the center of the projected image and that of the peripheral areas
differs depending on the size of the image.
This lens is equipped with a function for adjusting the peripheral focus balance.
■Adjusting the focus
Attaching the Lens / Detaching the Lens (continued)
The illustrations in this procedure depict
use of the PT-FRZ98C series as an
example.
1) Operate the projector to align
the focus of the center of the
image.
2) Manually turn the peripheral
focus adjustment ring as
shown on the left, and align
the focus of the peripheral
areas of the image.
Peripheral focus adjustment ring
Note
zThe projected image sizes and their indicators shown on the peripheral focus adjustment
ring are approximate guides.

8-ENGLISH
Projection relationships
The dimensional relationship between the screen and the projector is shown below.
■Dimensional relationship diagram
L1
L (LW/LT)
L (LW/LT)
SW SH
H
SH
SW
SD
L1
Projected image
Screen
Note
zThis diagram assumes that the size and position of the projected image will be adjusted so
that the image lls the entire screen.
zThis illustration is not drawn to scale.
L Projection distance
LW Minimum distance
LT Maximum distance
L1 Lens protrusion dimension
SH Projected image height
H Distance from the lens center to the lower edge of the projected image
SW Projected image width
SD Projected image size
(Unit: m)
Projector model Dimension for L1
(approximate value)
PT-FRZ98C / PT-FRW93C / PT-FRX110C / PT-FRZ78C /
PT-FRW73C / PT-FRZ67C / PT-FRW62C / PT-FDZ97C /
PT-FDW93C / PT-FDX110C
0.104
PT-FDZ88C / PT-FDW85C / PT-FDX92C / PT-FD605CB /
PT-FD601C 0.084
Note
zThe illustrations of projectors in this manual are for informational purposes only and do not
represent a specic projector model. Congurations may vary with the model.
zSome of the alphabet letters at the end of projector model numbers may be omitted in this
manual.

ENGLISH-9
Projection relationships (continued)
Attention
zTo prevent obstruction of the intake and exhaust vents, install the projector with a
clearance at least 500 mm (1 ft. 7 in.) from walls and objects.
If you are installing the projector in a sealed space, be sure to provide additional air
conditioning equipment and ventilation equipment. Insufcient ventilation will result in an
accumulation of heat and may activate the projector's protection circuit.
zAvoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).
■Dimensional relationship
For details on the projection distance (L), refer to “Projected image size and Projection
distance” and “Projection distance formulas” in the Appendix.
Note
zFor details on “Projected image size and Projection distance” for projector models other
than the following, refer to “Setting up” in the operating instructions of the projector.
zSome of the alphabet letters at the end of projector model numbers may be omitted in this
manual.
PT-FRZ98C / PT-FRW93C / PT-FRX110C / PT-FRZ78C / PT-FRW73C / PT-FRZ67C /
PT-FRW62C / PT-FDZ97C / PT-FDW93C / PT-FDX110C / PT-FDZ88C / PT-FDW85C /
PT-FDX92C / PT-FD605CB / PT-FD601C

10-ENGLISH
If you perform lens calibration after attaching the projection lens, the projection lens
moves to the home position after calibration is complete.
Using the position of the projected image at the home position (i.e., the standard projection
position) as a basis, you can use the lens shift adjustment function on the projector to
adjust the position of the projected image within the respective lens shift ranges.
Perform lens shift adjustment within the ranges shown in the following illustrations.
Moving the lens outside of the adjustment ranges may alter the focus. This occurs due
to limitations in lens movement that are intended to protect the optical components.
The following illustrations depict lens shift ranges for oor installations of the projector.
PT-FRZ98C / PT-FRZ78C /
PT-FRZ67C / PT-FDZ88C
0.10H
0.19H
0.40V0.16V
Standard projection position
Projected image height V
Projected image width H
PT-FRW93C / PT-FRW73C /
PT-FRW62C / PT-FDW85C
0.10H
0.49V0.16V
0.23H
Projected image width H
Standard projection position
Projected image height V
PT-FRX110C / PT-FDX92C /
PT-FD605CB / PT-FD601C
Projected image width H
0.19H
0.10H
0.30V0.13V
Standard projection position
Projected image height V
Lens shift ranges

ENGLISH-11
PT-FDZ97C
0.10H 0.10H
0.40V
Standard projection position
Projected image height V
Projected image width H
PT-FDW93C
0.10H 0.10H
0.49V
Projected image width H
Standard projection position
Projected image height V
PT-FDX110C
0.10H 0.10H
0.30V
Projected image width H
Standard projection position
Projected image height V
Note
zThe home position of the projector a point of origin position for the lens shift (i.e., vertical
and horizontal positions of the lens) based on the results of lens calibration. It is not the
optical center position of the screen.
zSome of the alphabet letters at the end of projector model numbers may be omitted in this
manual.
Lens shift ranges (continued)

12-ENGLISH
Dimensions
Specications
F value 1.85 - 2.32
Focal Length (f) 9.16 mm (3/8") - 12.1 mm (15/32")
Dimensions
Width 172 mm (6-25/32")
Height 172 mm (6-25/32")
Depth 225 mm (8-27/32")
Net Weight Approx. 1.3 kg (2.9 lb)
(Unit: mm)
225 (8-27/32")
φ172 (6-25/32")

ENGLISH-13
MEMO

:
:
https://panasonic.cn/
: :
©
4
日本福冈县福冈市博多区美野岛四丁目1番62号
2022
松下互联株式会社 2022版权所有 SS0318AM1042 -PS
Name and quantity of hazardous substances contained in the product
Parts Hazardous substances
Pb Hg Cd Cr (VI) PBB PBDE
Printed circuit boards ○○○○○○
Projection lens ×○○○○○
Other accessories ○○○○○○
This table is prepared in accordance with the provisions of SJ/T 11364.
○: The amount of hazardous substances included in all homogeneous materials for the relevant
part does not exceed the limit specied in GB/T 26572.
×: The amount of hazardous substances included in all homogeneous materials for the relevant
part exceeds the limit specied in GB/T 26572.
Printed in Japan

1
附表 / Appendix
附表 / Appendix
z当屏幕宽高比为 16:10 时
zWhen the screen aspect ratio is 16:10 （单位 / Unit : m）
PT-FRZ98C / PT-FRZ78C / PT-FRZ67C / PT-FDZ97C / PT-FDZ88C
投射率 / Throw ratio : [0.60 - 0.80:1]
SD SH SW LW LT
H
（适用于除 PT-FDZ97C 之外的型号）
(for models other than the PT-FDZ97C)
H
（适用于 PT-FDZ97C）
(for the PT-FDZ97C)
1.27 (50") 0.673 1.077 0.63 0.84 0.067 - 0.444 0.067 - 0.337
1.52 (60") 0.808 1.292 0.76 1.02 0.081 - 0.533 0.081 - 0.404
1.78 (70") 0.942 1.508 0.90 1.20 0.094 - 0.622 0.094 - 0.471
2.03 (80") 1.077 1.723 1.03 1.38 0.108 - 0.711 0.108 - 0.538
2.29 (90") 1.212 1.939 1.17 1.56 0.121 - 0.800 0.121 - 0.606
2.54 (100") 1.346 2.154 1.31 1.74 0.135 - 0.888 0.135 - 0.673
3.05 (120") 1.615 2.585 1.58 2.10 0.162 - 1.066 0.162 - 0.808
3.81 (150") 2.019 3.231 1.99 2.63 0.202 - 1.333 0.202 - 1.010
5.08 (200") 2.692 4.308 2.67 3.53 0.269 - 1.777 0.269 - 1.346
6.35 (250") 3.365 5.385 3.35 4.42 0.337 - 2.221 0.337 - 1.683
7.62 (300") 4.039 6.462 4.03 5.32 0.404 - 2.665 0.404 - 2.019
8.89 (350") 4.712 7.539 4.71 6.21 0.471 - 3.110 0.471 - 2.356
10.16 (400") 5.385 8.616 5.39 7.11 0.538 - 3.554 0.538 - 2.692
12.70 (500") 6.731 10.770 6.75 8.90 0.673 - 4.442 0.673 - 3.365
15.24 (600") 8.077 12.923 8.11 10.69 0.808 - 5.331 0.808 - 4.039
PT-FRW93C / PT-FRW73C / PT-FRW62C / PT-FDW93C / PT-FDW85C
投射率 / Throw ratio : [0.63 - 0.84:1]
SD SH SW LW LT
H
（适用于除 PT-FDW93C 之外的型号）
(for models other than the PT-FDW93C)
H
（适用于 PT-FDW93C）
(for the PT-FDW93C)
1.27 (50") 0.673 1.077 0.66 0.89 0.007 - 0.444 0.007 - 0.337
1.52 (60") 0.808 1.292 0.80 1.08 0.008 - 0.533 0.008 - 0.404
1.78 (70") 0.942 1.508 0.94 1.26 0.009 - 0.622 0.009 - 0.471
2.03 (80") 1.077 1.723 1.09 1.45 0.011 - 0.711 0.011 - 0.538
2.29 (90") 1.212 1.939 1.23 1.64 0.012 - 0.800 0.012 - 0.606
2.54 (100") 1.346 2.154 1.37 1.83 0.013 - 0.888 0.013 - 0.673
3.05 (120") 1.615 2.585 1.66 2.20 0.016 - 1.066 0.016 - 0.808
3.81 (150") 2.019 3.231 2.09 2.77 0.020 - 1.333 0.020 - 1.010
5.08 (200") 2.692 4.308 2.80 3.71 0.027 - 1.777 0.027 - 1.346
6.35 (250") 3.365 5.385 3.52 4.65 0.034 - 2.221 0.034 - 1.683
7.62 (300") 4.039 6.462 4.23 5.59 0.040 - 2.665 0.040 - 2.019
8.89 (350") 4.712 7.539 4.94 6.53 0.047 - 3.110 0.047 - 2.356
10.16 (400") 5.385 8.616 5.66 7.47 0.054 - 3.554 0.054 - 2.692
12.70 (500") 6.731 10.770 7.09 9.35 0.067 - 4.442 0.067 - 3.365
15.24 (600") 8.077 12.923 8.51 11.23 0.081 - 5.331 0.081 - 4.039

2附表 / Appendix
附表 / Appendix ( 续/ continued)
z当屏幕宽高比为 16:9 时
zWhen the screen aspect ratio is 16:9
（单位 / Unit : m）
PT-FRZ98C / PT-FRZ78C / PT-FRZ67C / PT-FDZ97C / PT-FDZ88C
投射率 / Throw ratio : [0.60 - 0.80:1]
SD SH SW LW LT
H
（适用于除 PT-FDZ97C 之外的型号）
(for models other than the PT-FDZ97C)
H
（适用于 PT-FDZ97C）
(for the PT-FDZ97C)
1.27 (50") 0.623 1.107 0.64 0.87 0.000 - 0.457 0.000 - 0.346
1.52 (60") 0.747 1.328 0.78 1.05 0.000 - 0.548 0.000 - 0.415
1.78 (70") 0.872 1.550 0.92 1.24 0.000 - 0.639 0.000 - 0.484
2.03 (80") 0.996 1.771 1.06 1.42 0.000 - 0.731 0.000 - 0.553
2.29 (90") 1.121 1.992 1.20 1.60 0.000 - 0.822 0.000 - 0.623
2.54 (100") 1.245 2.214 1.34 1.79 0.000 - 0.913 0.000 - 0.692
3.05 (120") 1.494 2.657 1.62 2.16 0.000 - 1.096 0.000 - 0.830
3.81 (150") 1.868 3.321 2.04 2.71 0.000 - 1.370 0.000 - 1.038
5.08 (200") 2.491 4.428 2.74 3.63 0.000 - 1.826 0.000 - 1.384
6.35 (250") 3.113 5.535 3.44 4.55 0.000 - 2.283 0.000 - 1.730
7.62 (300") 3.736 6.641 4.14 5.47 0.000 - 2.740 0.000 - 2.075
8.89 (350") 4.358 7.748 4.84 6.39 0.000 - 3.196 0.000 - 2.421
10.16 (400") 4.981 8.855 5.54 7.31 0.000 - 3.653 0.000 - 2.767
12.70 (500") 6.226 11.069 6.93 9.15 0.000 - 4.566 0.000 - 3.459
15.24 (600") 7.472 13.283 8.33 10.99 0.000 - 5.479 0.000 - 4.151
PT-FRW93C / PT-FRW73C / PT-FRW62C / PT-FDW93C / PT-FDW85C
投射率 / Throw ratio : [0.63 - 0.84:1]
SD SH SW LW LT
H
（适用于除 PT-FDW93C 之外的型号）
(for models other than the PT-FDW93C)
H
（适用于 PT-FDW93C）
(for the PT-FDW93C)
1.27 (50") 0.623 1.107 0.68 0.91 -0.056 - 0.457 -0.056 - 0.346
1.52 (60") 0.747 1.328 0.83 1.11 -0.067 - 0.548 -0.067 - 0.415
1.78 (70") 0.872 1.550 0.97 1.30 -0.078 - 0.639 -0.078 - 0.484
2.03 (80") 0.996 1.771 1.12 1.49 -0.090 - 0.731 -0.090 - 0.553
2.29 (90") 1.121 1.992 1.27 1.69 -0.101 - 0.822 -0.101 - 0.623
2.54 (100") 1.245 2.214 1.41 1.88 -0.112 - 0.913 -0.112 - 0.692
3.05 (120") 1.494 2.657 1.71 2.27 -0.134 - 1.096 -0.134 - 0.830
3.81 (150") 1.868 3.321 2.15 2.85 -0.168 - 1.370 -0.168 - 1.038
5.08 (200") 2.491 4.428 2.88 3.81 -0.224 - 1.826 -0.224 - 1.384
6.35 (250") 3.113 5.535 3.61 4.78 -0.280 - 2.283 -0.280 - 1.730
7.62 (300") 3.736 6.641 4.35 5.74 -0.336 - 2.740 -0.336 - 2.075
8.89 (350") 4.358 7.748 5.08 6.71 -0.392 - 3.196 -0.392 - 2.421
10.16 (400") 4.981 8.855 5.82 7.68 -0.448 - 3.653 -0.448 - 2.767
12.70 (500") 6.226 11.069 7.28 9.61 -0.560 - 4.566 -0.560 - 3.459
15.24 (600") 7.472 13.283 8.75 11.54 -0.672 - 5.479 -0.672 - 4.151

3
附表 / Appendix
附表 / Appendix ( 续/ continued)
z当屏幕宽高比为 16:9 时
zWhen the screen aspect ratio is 16:9
（单位 / Unit : m）
PT-FRX110C / PT-FDX110C / PT-FDX92C / PT-FD605CB / PT-FD601C
投射率 / Throw ratio : [0.62 - 0.83:1]
SD SH SW LW LT
H
（适用于除 PT-FDX110C 之外的型号）
(for models other than the PT-FDX110C)
H
（适用于 PT-FDX110C）
(for the PT-FDX110C)
1.27 (50") 0.623 1.107 0.67 0.90 -0.031 - 0.523 -0.031 - 0.415
1.52 (60") 0.747 1.328 0.81 1.09 -0.037 - 0.628 -0.037 - 0.498
1.78 (70") 0.872 1.550 0.96 1.28 -0.044 - 0.732 -0.044 - 0.581
2.03 (80") 0.996 1.771 1.10 1.47 -0.050 - 0.837 -0.050 - 0.664
2.29 (90") 1.121 1.992 1.25 1.66 -0.056 - 0.941 -0.056 - 0.747
2.54 (100") 1.245 2.214 1.39 1.85 -0.062 - 1.046 -0.062 - 0.830
3.05 (120") 1.494 2.657 1.68 2.24 -0.075 - 1.255 -0.075 - 0.996
3.81 (150") 1.868 3.321 2.12 2.81 -0.093 - 1.569 -0.093 - 1.245
5.08 (200") 2.491 4.428 2.84 3.76 -0.125 - 2.092 -0.125 - 1.660
6.35 (250") 3.113 5.535 3.57 4.71 -0.156 - 2.615 -0.156 - 2.075
7.62 (300") 3.736 6.641 4.29 5.67 -0.187 - 3.138 -0.187 - 2.491
8.89 (350") 4.358 7.748 5.01 6.62 -0.218 - 3.661 -0.218 - 2.906
10.16 (400") 4.981 8.855 5.74 7.57 -0.249 - 4.184 -0.249 - 3.321
12.70 (500") 6.226 11.069 7.19 9.48 -0.311 - 5.230 -0.311 - 4.151
15.24 (600") 7.472 13.283 8.64 11.39 -0.374 - 6.276 -0.374 - 4.981

4附表 / Appendix
z当屏幕宽高比为 4:3 时
zWhen the screen aspect ratio is 4:3
（单位 / Unit : m）
PT-FRZ98C / PT-FRZ78C / PT-FRZ67C / PT-FDZ97C / PT-FDZ88C
投射率 / Throw ratio : [0.72 - 0.97:1]
SD SH SW LW LT
H
（适用于除 PT-FDZ97C 之外的型号）
(for models other than the PT-FDZ97C)
H
（适用于 PT-FDZ97C）
(for the PT-FDZ97C)
1.27 (50") 0.762 1.016 0.71 0.96 0.076 - 0.503 0.076 - 0.381
1.52 (60") 0.914 1.219 0.87 1.16 0.091 - 0.604 0.091 - 0.457
1.78 (70") 1.067 1.422 1.02 1.37 0.107 - 0.704 0.107 - 0.533
2.03 (80") 1.219 1.626 1.18 1.57 0.122 - 0.805 0.122 - 0.610
2.29 (90") 1.372 1.829 1.33 1.77 0.137 - 0.905 0.137 - 0.686
2.54 (100") 1.524 2.032 1.48 1.97 0.152 - 1.006 0.152 - 0.762
3.05 (120") 1.829 2.438 1.79 2.38 0.183 - 1.207 0.183 - 0.914
3.81 (150") 2.286 3.048 2.25 2.99 0.229 - 1.509 0.229 - 1.143
5.08 (200") 3.048 4.064 3.02 4.00 0.305 - 2.012 0.305 - 1.524
6.35 (250") 3.810 5.080 3.79 5.01 0.381 - 2.515 0.381 - 1.905
7.62 (300") 4.572 6.096 4.56 6.03 0.457 - 3.018 0.457 - 2.286
8.89 (350") 5.334 7.112 5.33 7.04 0.533 - 3.520 0.533 - 2.667
10.16 (400") 6.096 8.128 6.10 8.05 0.610 - 4.023 0.610 - 3.048
12.70 (500") 7.620 10.160 7.64 10.08 0.762 - 5.029 0.762 - 3.810
15.24 (600") 9.144 12.192 9.18 12.11 0.914 - 6.035 0.914 - 4.572
PT-FRW93C / PT-FRW73C / PT-FRW62C / PT-FDW93C / PT-FDW85C
投射率 / Throw ratio : [0.76 - 1.01:1]
SD SH SW LW LT
H
（适用于除 PT-FDW93C 之外的型号）
(for models other than the PT-FDW93C)
H
（适用于 PT-FDW93C）
(for the PT-FDW93C)
1.27 (50") 0.762 1.016 0.75 1.01 0.008 - 0.503 0.008 - 0.381
1.52 (60") 0.914 1.219 0.91 1.22 0.009 - 0.604 0.009 - 0.457
1.78 (70") 1.067 1.422 1.08 1.44 0.011 - 0.704 0.011 - 0.533
2.03 (80") 1.219 1.626 1.24 1.65 0.012 - 0.805 0.012 - 0.610
2.29 (90") 1.372 1.829 1.40 1.86 0.014 - 0.905 0.014 - 0.686
2.54 (100") 1.524 2.032 1.56 2.07 0.015 - 1.006 0.015 - 0.762
3.05 (120") 1.829 2.438 1.88 2.50 0.018 - 1.207 0.018 - 0.914
3.81 (150") 2.286 3.048 2.37 3.14 0.023 - 1.509 0.023 - 1.143
5.08 (200") 3.048 4.064 3.18 4.20 0.030 - 2.012 0.030 - 1.524
6.35 (250") 3.810 5.080 3.98 5.26 0.038 - 2.515 0.038 - 1.905
7.62 (300") 4.572 6.096 4.79 6.33 0.046 - 3.018 0.046 - 2.286
8.89 (350") 5.334 7.112 5.60 7.39 0.053 - 3.520 0.053 - 2.667
10.16 (400") 6.096 8.128 6.41 8.45 0.061 - 4.023 0.061 - 3.048
12.70 (500") 7.620 10.160 8.02 10.58 0.076 - 5.029 0.076 - 3.810
15.24 (600") 9.144 12.192 9.64 12.70 0.091 - 6.035 0.091 - 4.572
附表 / Appendix ( 续/ continued)

5
附表 / Appendix
z当屏幕宽高比为 4:3 时
zWhen the screen aspect ratio is 4:3
（单位 / Unit : m）
PT-FRX110C / PT-FDX110C / PT-FDX92C / PT-FD605CB / PT-FD601C
投射率 / Throw ratio : [0.62 - 0.83:1]
SD SH SW LW LT
H
（适用于除 PT-FDX110C 之外的型号）
(for models other than the PT-FDX110C)
H
（适用于 PT-FDX110C）
(for the PT-FDX110C)
1.27 (50") 0.762 1.016 0.61 0.82 0.152 - 0.480 0.152 - 0.381
1.52 (60") 0.914 1.219 0.74 1.00 0.183 - 0.576 0.183 - 0.457
1.78 (70") 1.067 1.422 0.88 1.17 0.213 - 0.672 0.213 - 0.533
2.03 (80") 1.219 1.626 1.01 1.35 0.244 - 0.768 0.244 - 0.610
2.29 (90") 1.372 1.829 1.14 1.52 0.274 - 0.864 0.274 - 0.686
2.54 (100") 1.524 2.032 1.27 1.70 0.305 - 0.960 0.305 - 0.762
3.05 (120") 1.829 2.438 1.54 2.05 0.366 - 1.152 0.366 - 0.914
3.81 (150") 2.286 3.048 1.94 2.57 0.457 - 1.440 0.457 - 1.143
5.08 (200") 3.048 4.064 2.60 3.45 0.610 - 1.920 0.610 - 1.524
6.35 (250") 3.810 5.080 3.27 4.32 0.762 - 2.400 0.762 - 1.905
7.62 (300") 4.572 6.096 3.93 5.20 0.914 - 2.880 0.914 - 2.286
8.89 (350") 5.334 7.112 4.60 6.07 1.067 - 3.360 1.067 - 2.667
10.16 (400") 6.096 8.128 5.26 6.95 1.219 - 3.840 1.219 - 3.048
12.70 (500") 7.620 10.160 6.59 8.70 1.524 - 4.801 1.524 - 3.810
15.24 (600") 9.144 12.192 7.92 10.45 1.829 - 5.761 1.829 - 4.572
附表 / Appendix ( 续/ continued)

6附表 / Appendix
附表 / Appendix ( 续/ continued)
提示
z所列出的投影距离可能有 ±5 % 的误差。
此外，当使用 [KEYSTONE] 时，距离被校正为小于指定的屏幕尺寸。
z投射率基于投影期间使用的投影画面尺寸为 3.81 m (150") 时的值。
Note
zA ±5 % error in listed projection distances may occur.
In addition, when [KEYSTONE] is used, distance is corrected to become smaller than the specied screen size.
zThe throw ratio is based on the value during projection with the projected image size of 3.81 m (150").
未列在上表中的安装尺寸，请使用下面的公式进行计算。请检查投影画面尺寸 SD (m)，使用下面的公式确定投影
距离 (L)。
Setting-up dimensions which are not given in the above table can be calculated using the formulas below.
Check the projected image size SD (m) and use the following formula to determine projection distance (L).
