Panasonic PV-500 User manual

Before Reading This Manual
Thank you for purchasing the IMAGECHECKER PV500.
This manual describes information on the hardware such as how to install and wire and the software such as how
to set the functions. Read this User’s Manual carefully before use.
Safety Precautions
To ensure that you use this product correctly, read this User’s Manual thoroughly before use. Make sure that you
fully understand the product and information on safe.
WARNING
Critical situations that could lead to user’s death or serious injury are assumed by mishandling of the product:
•Do not use this product in areas with inflammable gas. It could lead to an explosion.
•Exposing this product to excessive heat or open flames could lead to damage to the lithium battery or other
electronic parts.
•Do not store a lens in the locations subject to direct sunlight. It could lead to smoke generation.
•Do not look at the sun through a lens. It could lead to blindness.
•Always take precautions to ensure the overall safety of your system, so that the whole system remains safe
in the event of failure of this product or other external factor.
CAUTION
Critical situations that could lead to user’s injury or only property damage are assumed by mishandling of the
product:
•Do not dismantle or remodel the product. It could lead to excessive exothermic heat or smoke generation.
•Do not touch the terminal while turning on electricity. It could lead to an electric shock.
•Do not allow foreign matters such as liquid, flammable materials, metals to go into the inside of the product.
It could lead to excessive exothermic heat or smoke generation.
•Do not bend the cables forcibly, place a heavy object on them or bring them close to a thermal appliance. It
could lead to an electric shock or smoke generation.
•To prevent excessive exothermic heat or smoke generation, use this product at the values less than the
maximum of the characteristics and performance that are assured in these specifications.
•Use the external devices to function the emergency stop and interlock circuit.
•Connect the wires or connectors securely. The loose connection could lead to excessive exothermic heat
or smoke generation.
•Do not undertake construction (such as connection and disconnection) while the power supply is on. It
could lead to an electric shock.

i
INDEX
Table of Contents
Precautions before Use ............................ iv
List of Menu Options.................................. v
1 Names and Descriptions................... 9
1.1 PV500 ........................................................................10
1.2 Camera......................................................................12
1.2.1 Camera Type and Precautions for Use................12
1.2.2 Quad-speed/ 2-Mega-pixel Digital Camera .........13
1.2.3 Ultra Compact Double Speed Digital Camera.....14
1.2.4 0.3-Mega Compact Gray Camera (ANPVC5030)15
1.2.5 Camera Cable ........................................................15
1.3 Keypad.......................................................................17
1.4 XGA Monitor..............................................................18
2 Installation and Wiring..................... 19
2.1 Basic System Configurations....................................20
2.2 PV500 Installation......................................................21
2.2.1 Mounting Arrangement..........................................21
2.2.2 Note on Mounting...................................................22
2.3 Mounting a Camera...................................................23
2.3.1 Selecting a Lens (View Range Table)..................23
2.3.2 Mounting a Camera ...............................................27
2.3.3 Note on Mounting...................................................28
2.4 XGA Monitor Installation............................................29
2.5 Connecting Cables....................................................30
2.5.1 Connecting Peripherals .........................................30
2.5.2 Connecting Power to XGA Monitor ......................31
2.5.3 Connecting Power to PV500.................................32
2.6 Supplying Power........................................................34
3 Basic Operation................................ 35
3.1 About Windows..........................................................36
3.1.1 Language Selecting Window (Ver.1.10 or later)..36
3.1.2 SETUP Menu and RUN Menu..............................37
3.2 Basic Key Operation..................................................40
3.2.1 Selecting Items and Inputting Values or
Characters..............................................................40
3.2.2 Selecting a Display Image (Image Menu)............42
3.2.3 Zooming In/out Image (Image Menu)...................46
3.2.4 Specifying Checker Area.......................................47
3.2.5 Copying the Screen Display (Print Screen) .........52
4 Setting Inspection Conditions ........53
4.1 Procedure for Setting Inspection...............................54
4.2 Selecting a Product Type No.....................................55
4.2.1 What Is a Product Type?....................................... 55
4.2.2 Selecting a Product Type...................................... 55
4.3 Setting Capturing Conditions of Camera..................58
4.3.1 Selecting a Camera Type (ENVIRONMENT)..... 59
4.3.2 Setting Individual Capturing Condition by Type .. 60
4.3.3 Selecting Capture Timing (Camera Trigger) ....... 61
4.3.4 Setting Capturing Condition for Each Camera.... 64
4.3.5 Error if Checker Area Outside Image................... 73
4.4 Inspecting Divided Type (Execution Mode)..............74
4.4.1 Selecting an Execution Mode............................... 74
4.4.2 Inspecting in “Execute All” Mode.......................... 75
4.4.3 Inspecting in “Automatic Switch” Mode................ 75
4.4.4 Inspecting in “User Defined” Mode....................... 78
4.5 Capturing an Image...................................................79
4.6 Image Preprocessing (Slice Level / Preprocess).....80
4.6.1 Binarizing an Image (Slice Level)......................... 80
4.6.2 Setting Preprocess ................................................ 81
4.7 Setting Inspection Area and Conditions (Checker)..89
4.7.1 Types and Overview of Checkers........................ 89
4.7.2 Creating a Checker................................................ 92
4.7.3 Moving Checkers in Group................................... 96
4.7.4 Line.......................................................................... 97
4.7.5 Binary Window.....................................................101
4.7.6 Gray Window........................................................104
4.7.7 Binary Edge..........................................................106
4.7.8 Gray Edge ............................................................110
4.7.9 Feature Extraction................................................115
4.7.10 Smart Matching....................................................121
4.7.11 Flaw Detection .....................................................136
4.7.12 Connector (Binary Window) and Connector
(Gray Window).....................................................146
4.7.13 Connector (Gray Edge).......................................151
4.7.14 Smart Edge (Circle).............................................165
4.7.15 Smart Edge (Line)................................................183
4.8 Adjusting Area Position (Position Adjustment).......198
4.8.1 What Is Position Adjustment?.............................198
4.8.2 Position Adjustment Type ...................................199
4.8.3 Setting a Position Adjustment.............................202
4.8.4 Applying Position Adjustment to Checkers........207
4.9 Adjusting Area Size (Area Size Adjustment)..........208
4.10 Geometry Calculation of Detected Data.................211
4.10.1 What is Geometry Calculation?..........................211
4.10.2 Setting a Geometry Calculation..........................212

ii
4.11 Calculation of Detected Data (Numerical Calculation)223
4.11.1 Setting a Calculation............................................223
4.11.2 Data That Can Be Used in Numerical Calculation228
4.11.3 Operators and Functions .................................... 235
4.12 Totally Judging Results of Checkers (Judgement) 238
4.12.1 Setting Judgement Conditions ........................... 238
4.12.2 Total Judgement.................................................. 246
4.12.3 Selecting an Image Output Condition................ 248
4.12.4 Selecting an Image Memory Save Condition.... 251
4.13 Character/Figure Drawing.......................................253
4.13.1 What is Character/Figure Drawing?................... 253
4.13.2 Creating Character/Figure Drawing ...................255
4.13.3 Setting the Drawing Position and Size of a
Drawing................................................................ 257
4.14 Checker List.............................................................267
4.15 Outputting Inspection Results to the External Device270
4.15.1 Outputting through Parallel I/O ...........................270
4.15.2 Outputting to COM.0/ Ethernet Port/ SD Memory
Card...................................................................... 276
4.16 Saving/ Outputting an Inspection Image ................280
4.16.1 About Image Memory..........................................280
4.16.2 Outputting Images into External Device ............282
4.16.3 Saving Images in the Image Memory of PV...... 286
4.16.4 Operation of Test Image Memory ......................287
4.17 Reading/saving Setting Data (Save/Read)............289
4.17.1 Saving Setting Data............................................. 289
4.17.2 Reading Setting Data.......................................... 290
4.17.3 Deleting Setting Data........................................... 291
4.18 Displaying Data on the Screen and Updating Settings
(Data R/W).............................................................292
4.18.1 Setting Data R/W................................................. 292
4.18.2 Data R/W in RUN Menu...................................... 295
4.18.3 Registerable Items...............................................297
4.19 Marker......................................................................310
5 Setting of Operation and RUN Menu313
5.1 Start /Stop RUN Mode ............................................314
5.2 Control in RUN Menu..............................................316
5.2.1 Control of “OPERATION” Menu......................... 316
5.2.2 Control of “TOOL” Menu..................................... 317
5.3 Setting Display in RUN Menu.................................319
5.3.1 Selecting a Preset Layout................................... 319
5.3.2 Arranging Layout .................................................320
5.3.3 Registering/copying/deleting a Layout............... 326
5.3.4 Switching a Layout...............................................328
6 Environment Settings (Changing
System Settings)............................ 329
6.1 Overview of ENVIRONMENT.................................330
6.2 System Settings.......................................................331
6.2.1 Setting Startup Status (Startup Setting) .............331
6.2.2 Selecting Operation when Switching to SETUP
Menu (Operation/Password)...............................332
6.2.3 Inspection Process and Output Timing..............335
6.2.4 Setting Default Variable (System Register)........337
6.3 Input/output...............................................................338
6.3.1 Changing Setting of I/O Terminals (Parallel I/O)339
6.3.2 Changing Communication Condition of COM.0
port (Serial)...........................................................339
6.4 Changing Color of Menu andWindow...................340
6.4.1 Changing Color of Letters and Background ......340
6.4.2 Changing Window Transparency (SETUP
Menu)....................................................................341
6.5 Initializing Environment Settings..............................342
7 Changing Configuration (TOOL).. 343
7.1 Overview of TOOL...................................................344
7.2 General Settings......................................................345
7.2.1 Specifying Data to Read at Startup....................345
7.2.2 Changing Network Setting...................................346
7.2.3 Adjusting Calendar Date......................................348
7.2.4 Switching Language.............................................348
7.2.5 Initializing General Settings.................................349
7.3 Information Display and Ejection of SD Memory Card350
7.3.1 Displaying Information of SD Memory Card......350
7.3.2 Preparing to Eject SD Memory Card (Eject SD
Card).....................................................................350
7.4 Setting Help..............................................................351
7.4.1 Adjustment of Focus and Aperture.....................351
7.4.2 Gray Data Analysis ..............................................352
7.4.3 Capture Delay Control.........................................353
7.4.4 I/O Test..................................................................354
7.4.5 Communication Test............................................355
7.5 Information Display and Updating of PV500..........356
7.5.1 Displaying PV Information...................................356
7.5.2 Version Upgrading of PV500 ..............................357
7.5.3 Customizing Splash Screen (Update)................358
8 Operation and Data Output through
I/O Terminals................................... 359
8.1 Main Items that can be Communicated through I/O
Interface..................................................................360
8.2 Specification of I/O Interface....................................361
8.2.1 I/O Connector.......................................................361

iii
INDEX
8.2.2 I/O Terminal Block................................................366
8.2.3 Main Function of Signals .....................................368
8.2.4 Cause of Turning On ERROR 0 Signal and
ERROR 1 Signal..................................................372
8.3 Timing Chart ............................................................378
8.3.1 Typical Operations in Inspections.......................378
8.3.2 Outputting All Results (Output = All)...................384
8.3.3 Type Switch (TYPE).............................................386
8.3.4 FLASH Output Timing..........................................387
9 Control with Communication Port389
9.1 Communication Port and Protocol..........................390
9.1.1 RS-232C Interface ...............................................390
9.1.2 Ethernet Interface.................................................392
9.1.3 Protocols ...............................................................395
9.2 Communication Command.....................................396
9.2.1 List of Commands ................................................396
9.2.2 Details of Commands ..........................................397
9.3 PLC Communication...............................................417
9.3.1 Overview and Communication Specifications ...417
9.3.2 Outputting Data in PLC Communication............420
9.3.3 Switching Types by PLC Communication..........426
10 PVWIN..............................................429
10.1 About PVWIN..........................................................430
10.2 Communication........................................................432
10.2.1 Upload and Download of Setting Data...............432
10.2.2 Reading the Latest Image of PV500 ..................433
10.2.3 Uploading Images in Storage Space in PV500.433
10.2.4 Downloading images into Test Image Memory of
PV500...................................................................434
11 Specifications and List of Product
Numbers..........................................435
11.1 General Specification ..............................................436
11.2 Product Numbers ....................................................440
11.3 Dimensions..............................................................444
Appendix................................................. 451
INDEX....................................................... 486
Record of Changes ................................ 490

iv
Precautions before Use
Installation Environment
Avoid installing and operating the PV500 in the following locations:
•Location with direct sunlight or environmental temperatures that exceed a range of the “operating
ambient temperature” for each product.
•Locations with a relative humidity exceeding a range of the “operating ambient humidity” for each
product or with a condensing due to a sharp temperature change.
•Locations with an atmosphere containing corrosive gases or flammable gases.
•Locations subject the main unit to direct vibration or impact.
•Locations with a lot of fine particles, iron filings or salt.
•Locations where the product can become wet with water, oil or chemicals.
•Locations with an atmosphere likely to contain organic solvents (such as benzene, paint thinner, and
alcohol) or strongly alkaline materials (such as ammonia and caustic soda).
•Locations where a load applies onto the unit.
•Locations near the devices that generate large switching surges, high-voltage wires and devices,
power-driven lines and devices, and transmitting devices, such as radios.
Static Electricity
•In dry environment, high voltages of static electricity might be generated. When you touch the product, you
should always discharge the accumulated static electricity through your body by touching a grounded
metal surface.
Cleaning
•Never use thinners or similar solvents, as they may dissolve the board and lead to colors to run.
Power Supply Unit and Power Sequence
•Use an insulated power supply with a built-in protection circuit. Applying an abnormal voltage might
damage the internal circuit. If you use a power supply unit without a protection circuit, supply power
through a protective device such as a fuse.
•Consider the power supply sequence so that the power supply unit for the PV500 can be turned off before
the one for the input/output is turned off.
If you turn the input/output power off before turning off PV500, the device will detect a change in the input
signal level and may malfunction.
Before Turning on the PV500
•Pay attentions to the followings when turning on the PV500 for the first time:
- Confirm no wiring waste or especially any conductive substance is on the printed circuit board.
- Confirm that the power wiring, input/output wiring and power supply voltage are correct.
- Confirm that the fixing and terminal screws are securely tightened.
General Cautions
•Use the keypad, camera, camera cables, monitor and a monitor cable of the product numbers specified by
Panasonic Industrial Devices SUNX Co., Ltd. A breakdown, damage or destruction by using any other
than the specified will not be covered by our guarantee.
•Do not change or set items that should not be as described in the manuals or the specifications.
Breakdown, damage or destruction resulting from changing or setting them will not be covered by our
guarantee.
•Do not perform a test of insulation resistance or withstand voltage between the power source or
input/output signals and the metallic part of connectors or camera cases.
•To avoid loss of data by accident, also save the setting data stored in PV500 into a PC or an external
storage media.

v
INDEX
List of Menu Options
Language selecting window (Displayed only at the first startup after delivery)
Language selecting
window
▶
p.36
┳
┃
Language
━
Japanese/ English/ German/ French /Spanish / Italian/
Simplified Chinese/ Korean/Traditional Chinese
┗
Do not show this window at the next start-up.
SETUP MENU
OPERATION
┳
To RUN Menu
┣
Start RUN Mode
▶p.314
┗
Stop RUN Mode
ENVIRONMENT
┳
System Settings
┳
Startup Setting
┳
Layout No.
▶
p.331
┃ ┃ ┗
Type No.
┃ ┣
Operation
┳
RUN Mode in SETUP Menu
▶
p.332
┃ ┃ ┣
When Switching to SETUP
…
┃ ┃ ┣
Inspection Process
┃ ┃ ┣
Output Results
┃ ┃ ┣
Image Output
┃ ┃ ┣
Parallel I/O Output Reset Condition
▶p.336
┃ ┃ ┣
Continuous Inspection
▶
p.336
┃ ┃ ┣
Template Setting
▶p.127
┃ ┃ ┣
Template Registration
┃ ┃ ┗
Smart Matching Performance
▶
p.135
┃ ┗
System Register
━
SYS: Register 0-7 Default
▶p.337
┃
┣
Input/Output
┳
Parallel I/O
┳
REND OFF Min. (ms)
┃ ┃ ┣
ACCEPT OFF Min. (ms)
┃ ┃ ┗
Set Signal ASSIGN0 - 5
▶
p.339
┃
┃
┃
┃
┣
┃
┃
┃
Parallel I/O
Output ┳
┃
┃
┃
Output Data/ Handshake/ Scan Count/
Judgement/ Numerical Calculation/ Bit
Width/ Data Bit/ Output Signal
Guarantee Time (ms)/ Timeout (ms)
▶
p.253
┃
┃
┣
┃
Serial
┗
Baud Rate (bps)/ Bit Length/ Stop Bit/
Parity Check/ Flow Control ▶
p.339
┃
┃
┣
┃
General Output
┳
┃
Destination
━
None/ Serial(COM.0)/
Ethernet/ SD Card
▶
p.277
┃
┃
┃
┃
┣
┃
Protocol
━
General Purpose Comm./ PLC
Communication
┃ ┃ ┣
Date and Time
┃ ┃ ┣
Scan Count
┃ ┃ ┣
Total Judgement
┃ ┃ ┣
Judgement
┃ ┃ ┣
Numerical Calculation
┃ ┃ ┣
BCC
┃ ┃ ┣
No. of Digits
┃ ┃ ┣
Decimal Digit
┃
┃
┃
┃
┣
┣
Unused Digit
PLC Type
▶
p.417
┃ ┃ ┗
PLC Communication Setting
▶
p.417
┃
┃
┃
┃
┃
┣
┃
┃
┃
┃
Image Output
━
Destination/ Output Conditions/
Interval/ Camera No.0- Output/ File
Header/ Additional Information 0-4/
Overwrite/ No. of Folders/ ERR Signal
ON at Output Error/ Forced Outage at
Output Error/
Time out
(s)
▶
p.280
┃ ┣
Image Memory
━
Saving Condition/ Overwrite
▶
p.286
┃ ┗
Print Screen
━
Destination
▶p.52

vi
┣
Camera
┳
Camera
━
Type of Camera No.0 - 3
▶
p.58
┃ ┗
FLASH Polarity
━
FLASH Polarity 0-3
▶
p.59
┣
Color
┳
Color Scheme
▶p.340
┃ ┗
Window Transparency (SETUP Menu)
▶
p.341
┣
Password
▶
p.334
┗
Initialize
▶
p.342
TYPE
┳
Select Type
▶
p.54
┣
Type Setting
┳
Execution Condition
┳
Execution Mode
┃ ┃
▶
p.74
┗
Number of Blocks
┃ ┗
Camera
┳
Common Setting
┃
▶p.58
┣
Camera Trigger
┃ ┣
Error if Checker Area outside Image
┃ ┣
Camera No. to Set
┃ ┣
Connected Camera
┃ ┣
Shutter Speed
▶
p.64
┃ ┣
Gain
▶p.64
┣
Offset
▶
p.65
┃ ┣
Capture Delay (ms)
┃ ┣
FLASH Signal Delay (ms)
┃ ┣
FLASH Span (ms)
┃ ┣
Partial Imaging
▶p.70
┃ ┗
Calibration
▶
p.71
┣
Marker Display
▶
p.310
┣
Data R/W
▶
p.292
┗
Initialize
▶
p.57
INSPECTION
┳
Position Adjustment
▶
p.198
┣
Area Size Adjustment
▶p.208
┣
Checker
┳
Line
▶
p.96
┃ ┣
Binary Window
▶p.101
┃ ┣
Gray Window
▶
p.104
┃ ┣
Binary Edge
▶
p.106
┃ ┣
Gray Edge
▶p.110
┃ ┣
Feature Extraction
▶
p.115
┃ ┣
Smart Matching
▶p.121
┃ ┣
Flaw Detection
▶
p.136
┃ ┣
Connector (Binary Window)
▶
146
┃ ┣
Connector (Gray Window)
▶
146
┃ ┣
Connector (Gray Edge)
▶
p.151
┃ ┣
Smart Edge (Circle)
▶
p.165
┃ ┗
Smart Edge (Line)
▶
p.183
┣
Geometry Calculation
▶
p.199
┣
Slice Level
▶p.80
┣
Preprocess
▶
p.80
┣
Numerical Calculation
▶
p.211
┣
Judgement
▶
p.238
┣
Char./Fig.Drawing
▶
p.235
┣
Checker List
▶p.253
┗
Group Move
▶
p.96
SAVE/READ
┳
Save Setting Data
▶
p.289
┣
Read Setting Data
▶
p.290
┣
Save Image Memory
▶
p.286
┗
Clear Image Memory
▶
p.318

vii
INDEX
TOOL
┳
PC Communication
▶
p.432
┣
General
┳
Startup Setting
▶p.345
┃ ┣
Network
▶
p.346
┃ ┣
Calendar
▶p.348
┃ ┣
Language
▶
p.348
┃ ┗
Initialize
▶
p.349
┣
SD Property
▶p.350
┣
Eject SD Card
▶
p.350
┣
Information
▶
p.356
┣
Setting Help
▶p.351
┗
Update
┳
Firmware
▶
p.357
┗
Splash Screen
▶
p.358
F1
┳
Select Camera
Image Menu
┣
Memory/Live
▶
p.43
┣
Preprocess
▶p.43
┣
┃
Pattern Display
━
Pattern Display / Scan Direction / Geometry Calculation /
Character/Figure Drawing / Calibration Scale ▶
p.309
┣
Scroll
▶p.46
┣
Magnification
▶
p.45
┣
Full Screen
▶p.47
┣
Save Image
▶
p.287
┣
Read Image
▶
p.287
┗
Window
Transparency
(SETUPMenu)
▶
p.271
RUN MENU
OPERATION
┳
Select Type
▶
p.316
┣
Reset Statistics
▶
p.316
┣
Start RUN Mode
▶
p.314
┣
Stop RUN Mode
┗
To SETUP Menu
VIEW
┳
Screen
▶
p.320
┣
Data R/W
▶p.295
┣
Window Transparency (RUN menu)
▶
p.323
┗
Window Sequence Order
▶
p.323
LAYOUT
━
Layout
▶
p.319
TOOL
┳
Eject SD
p.343
┣
Save Setting Data
┣
Save Image Memory
┣
Clear Image Memory
┗
Information
F1
Select
Window
┳
Screen 0-3
▶p.306
Select Camera
┣
Memory/Live
┣
Preprocess
┣
┃
┃
Pattern Display
━
Area / Scan Direction / Detect Position / Display
Condition / Geometry Calculation / Character/Figure
Drawing / Marker / Calibration Scale
┣
Scroll
┣
Magnification
┣
Full Screen
┣
Move Window
┣
Change Size
┣
Optimize Size
┗
Data R/W 0-3
▶
p.295
F2
━
Switch Layout
▶
p.328

9
Names and Descriptions
Chapter 1
INDEX
Chapter 1 Names and Descriptions

10
Names and Descriptions
Chapter 1
1.1 PV500
1
Operating LEDs
Displays the status of the following signals and communication ports.
POWER / READY / ERROR0 / ERROR1 / COM.0 / COM.1 / COM.2
2
Parallel I/O Connector
I/O interface, MIL connector type
3
Reset Switch
Reboots PV500.
4
COM0 Port
RS-232C Communication port.
Connects the cable of D-SUB 9 pin connector.
5
COM1 Port
Not available.
COM2 Port
Not available.
6
Parallel I/O Terminal Block
I/O interface, terminal block type
7
Power Input Terminal
Supplies 24V DC through the included power cable.
8
SD Memory Card Slot
Complies with SD memory card (SDHC) with up to 32 GB of memory.
During accessing to a SD memory card, the LED above the slot flashes.
9
USB Port
USB 2.0 supported. (Exclusive for PVWIN communication)
10
Keypad Connector
Connects a keypad (ANPVP03 / ANPVP10).
11
Ethernet Port
Connects an Ethernet cable. When connecting an Ethernet cable, either
one of two LEDs lights. The LED to light and the color varies depending
on baud rate.)
12
MONITOR
Analog RGB output terminal. Connects a monitor.
13
Camera 0 Connect Port
Connects a camera 0.
14
Camera 1 Connect Port
Connects a camera 1.
15
Camera 2 Connect Port
(Only for 4-camera type)
Connects a camera 2.
16
Camera 3 Connect Port
(Only for 4-camera type)
Connects a camera 3.
17
Battery Case
Attaches the battery retaining the following information.
See the next page and attach the battery before use.
- Built-in calendar
- Type No. and Layout No. when turning off the power
- Status of keypad operation

11
Names and Descriptions
Chapter 1
INDEX

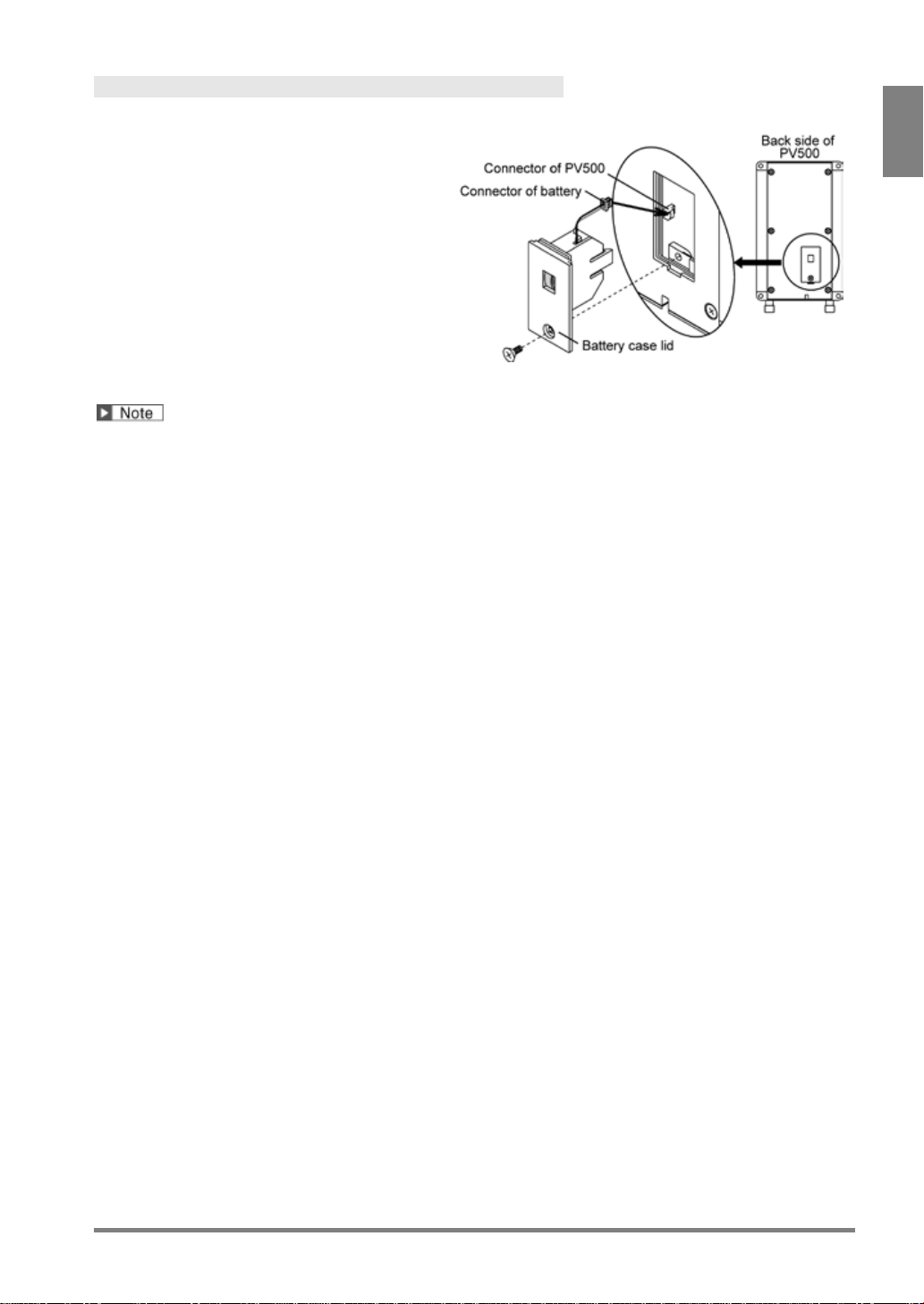

Connecting Backup Battery
1. Cut the power of PV500.
2. Open the lid on the back side.
Note that the battery is attached to the lid.
3. Connect the connector of the battery
with the connector of PV500.
4. Put the battery case lid back in place.
•Backup battery life is approximately 10 years at 25 °C of ambient temperature. If the battery is running
out, a message saying “Change Battery!” appears in the information display area. Replace with a new
one then. (Battery product No.: AFPX-BATT)
•To replace the battery, before the procedure described above, turn on the power of PV500 a minute or
more and replace it in two minutes after turning off the power.
•Even if the battery has run out, type data and environment data are not discarded. The data discarded
when the battery has run out is as follows.
- Built-in calendar
- Type No. and Layout No. when turning off the power
- Status of keypad operation

12
Names and Descriptions
Chapter 1
1.2 Camera
1.2.1 Camera Type and Precautions for Use
Camera Type
Choose to use them depending on your usage.
2-Mega-pixel Digital Camera
(ANPVC1210)
Quad-speed
Digital Camera
(ANPVC1040)
Ultra Compact
Double Speed
Digital Camera
(ANPVC1021)
*1
0.3-Mega Compact
Gray Camera
(ANPVC5030)
Number of Pixels 2 million pixels 300 thousand pixels
Image Transferring
Time
Approximately 34
ms
Approximately 9
ms
Approximately 17
ms
Approximately 11
ms
Dimension 29 x 29 x 58 mm 12 x 13 x 48 mm 22 x 22 x 37mm
CCD Size 1 /1.8 inch 1/3 inch
Pixel Size 4.4 x 4.4 µm 7.4 x 7.4 µm 6.0x6.0 µm
*1: This product was discontinued as of the end of August 2011.
Precautions for Use
•Use only the camera and the camera cable with the proper product numbers specified by Panasonic
Industrial Devices SUNX Co., Ltd.
•Do not bend the camera cables forcibly or apply load to the connector joints.
•Do not touch the CCD element or the lens surface of the camera. Attach the lens cap to keep off dust when
not in use.
•When inserting/removing the cable into/from the connector, be sure to hold it by its plug to prevent excess
force applying on the cable.
•Do not touch the terminals inside the connector of cameras and camera cables and take care not to allow
foreign objects to come into the connectors.
•A lens whose projection from the C-mount face is larger than 4.5 mm cannot be attached to 0.3-Mega
compact gray camera (ANPVC5030) structurally.

13
Names and Descriptions
Chapter 1
INDEX
1.2.2 Quad-speed/ 2-Mega-pixel Digital Camera
Product No.:
Quad-speed Digital Camera=ANPVC1040 /2-Mega-pixel Digital Camera=ANPVC1210
1
Lens
Attach a C-mount lens with adapter rings as necessary.
2
Lens fixture
C-mount
3
Mounting plate
Insulation type plate. The plate can be attached to four sides of the camera.
4
Cable connector
Connects a camera cable.
Connect the connector labeled the product number of the cable to a camera.
This manual describes the cameras as follow.
2-Mega-pixel Digital Camera = 2-Mega camera, Quad-speed Digital Camera = Quad-speed camera

14
Names and Descriptions
Chapter 1
1.2.3 Ultra Compact Double Speed Digital Camera
Product No.: ANPVC1021
This product was discontinued as of the end of August 2011.
Camera Head
1
Lens
Attach an exclusive lens for Ultra compact camera.
2
Lens fixture
Special mounting fixture.
3
Lens securing ring
A ring to secure the lens to the camera.
Use it to fix the lens at the close position to the edge of the camera.
4
Mounting plate
Insulation type plate.
5
Camera cable
Mounted directly to the camera. It cannot be removed.
6
CCU connector
Connects to Camera Control Unit (CCU).
Camera Control Unit (hereinafter called “CCU”)
7
Camera head connector
Connects the cable of the camera head.
8
Mounting plate
Insulation type plate.
9
Cable connector
Connects a camera cable.
Connect the connector labeled the product number of the cable to a
camera.
This manual describes the camera as follow.
•Ultra Compact Double Speed Digital Camera = Ultra compact camera

15
Names and Descriptions
Chapter 1
INDEX
1.2.4 0.3-Mega Compact Gray Camera
Product No.:ANPVC5030
1
Lens
Attach a C-mount lens with adapter rings as necessary.
2
C-mount adapter
C-mount
It becomes NF-mount when removing the C-mount adapter, and the C-mount
lens cannot be attached.
3
Mounting Plate
Insulation type plate. The plate can be attached to four sides of a camera.
(The positions to screw the plate differ between the lateral, bottom and top
sides.)
4
Cable connector
Connects a camera cable.
Connect the connector labeled the product number of the cable to a camera.
•This product is supported in Ver.2.40.
1.2.5 Camera Cable
Product No.: ANPVC81XX, ANPVC81XXR (XX=03, 05, 10)
Camera-side
PV500-side
1
Camera-side connector
Connects to a camera.
2
Product number label
The label indicates product number of the camera cable.
3
Ferrite core
Attach this whenever you use the product. (ZCAT2035-0930A produced by
TDK)
4
PV500-side connector
Connect the CAMERA connector of PV500.
•The camera cable has directionality. Be sure to connect the cable at the connector with a product
number sticker to the camera, and the connector with a ferrite core to the PV500.
•0.3-Mega Compact Gray Camera (ANPVC5030) cannot be used.

16
Names and Descriptions
Chapter 1
Product No.: ANPVC82XX (XX=03, 05, 10)
Applicable camera: 0.3-Mega Compact Gray Camera (ANPVC5030)
Camera-side PV500-side
1
Camera-side connector
Connects to a camera.
2
Product number label
The label indicates product number of the camera cable.
3
PV500-side connector
Connect the CAMERA connector of PV500.

17
Names and Descriptions
Chapter 1
INDEX
1.3 Keypad
Typical operations of the keypad are described below.
1
ENTER key
Cursor Operation
To select the menu, input letters and
move the start and end points of areas.
Determination Operation
To determine the settings or select menu.
2
TRIG Key
(TRIGGER)
To start an inspection or run a test.
3
CANCEL Key
To return to the previous window or operation while setting.
4
F1 Key
To display the image menu.
5
F2, F3 Key
Use these keys when key guide is displayed in the bottom of the window.
6
OPE/SET Switch
To switch windows between SETUP menu and RUN menu.
This is a snap type switch and the window switches every time you snap it.
7
FUNC Key
(FUNCTION)
To display pop-up menu.
Pressing the key two seconds or more captures the screen. (Print Screen)
8
SHIFT Key
Use when SHIFT sign is shown on the screen.
Mainly, to make the cursor move faster combining with cursor operation.
9
LOCK Switch
To lock or disable the 1 - 8 keys by setting in “LOCK” side.
The switch prevents undesired operation of the keys by mistake.
The operation from the keypad may be off on the PV500. Refer to page 334 for details.

18
Names and Descriptions
Chapter 1
1.4 XGAMonitor
Product No.: ANPVM11021
1
Mounting hole
for mounting bracket
Attach the included mounting brackets.
2
Adjustment volume
The following adjustments are available.
BRIGHT
Brightness
Adjusts the brightness.
(Brightness: approx. 20 to 100%)
V-POS.
Vertical Position
Adjusts the screen vertical position (in
16 lines).
H-POS.
Horizontal Position
Adjusts the screen horizontal position
(in 16 pixels).
PHASE
Phase
Adjusts the screen flickering.
CONT.
Contrast
Adjusts the contrast.
3
Mounting hole
VESA mount
4-M4 (depth: 7mm), 75 x 75 mm
4
RGB input connector
A connector for RGB signal input. To connect to the monitor with the VGA monitor
cable -ANMX8331X. (Connector: Mini D-sub, 15 pins, female)
R
Image signal: Red
G
Image signal: Green
B
Image signal: Blue
GND
Signal ground
HS
Horizontal synchronizing signal
VS
Vertical synchronizing signal
5
Power terminal
Acceptable input voltage: 24V DC
For the information of 15-inch monitor: ANPVM21522, refer to the instruction manual included with the product.
