Panasonic KX-TDE100 User manual

Product catalog
Effective Date October 2009 Version 1.2
Supersedes all Previous Price Lists
© Panasonic Corporation of North America, 2009
Panasonic communication systems
KX-tDe100/200 convergeD iP-PBX
systems, voice Processing systems anD
acD rePorting system

Units, Weights and Specifications subject to change. 2version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
KX-TDE CONVERGED IP PBX CONTROL UNITS
******IMPORTANT******
The KX-TDE100 and KX-TDE200 are certified dealer models. These models must be registered and may require activation keys. Only
dealers who have successfully completed the KX-TDE Technical Training course, have a valid KX-TDE certification number and meet the
yearly purchase requirements outlined in the Panasonic dealer agreement can activate these systems.
KX-TDE100 CONTROL UNIT
Contains:
1 Cabinet with 6 Free Slots
1 Main Processor Unit with:
1 SD Card (Power Supply Not Included; See page 3)
4 Virtual Extension Slots
4 Virtual CO Slots
2CH Simplified Voice Mail
Features (some features listed are optional)
• Multi-Cell Wireless
• VOIP Gateway with QSIG (Enhanced System Networking)
• VOIP Extensions
• PC-Based Programming
• DXDP (Digital Extra Device Port)
• Automatic Route Selection (ARS)
• Toll Restriction
• Caller ID (Name & Number)
• ISDN Primary Rate Interface (PRI) with QSIG and T1
• Networking with Centralized Voice Mail
• Voice Mail Integration
• Uniform Call Distribution (UCD)
• Direct Inward System Access (DISA)
• Refer to charts 2, 3 and 4 for system capacities
1 19.29 lbs. 85189-8
KX-TDE200 CONTROL UNIT
Contains:
1 Cabinet with 11 Free Slots
1 Main Processor Unit with:
1 SD Card (Power Supply Not Included; See page 3)
4 Virtual Extension Slots
4 Virtual CO Slots
2CH Simplified Voice Mail
Features (some features listed are optional)
• Multi-Cell Wireless
• VOIP Gateway with QSIG (Enhanced System Networking)
• VOIP Extensions
• PC-Based Programming
• Digital Extra Device Port DXDP
• Automatic Route Selection (ARS)
• Toll Restriction
• Caller ID (Name & Number)
• ISDN Primary Rate Interface (PRI) with QSIG and T1
• Networking with Centralized Voice Mail
• Voice Mail Integration
• Uniform Call Distribution (UCD)
• Direct Inward System Access (DISA)
• Refer to charts 2, 3 and 4 for system capacities
1 26.12 lbs. 85190-4
CONTROL UNIT MOUNTING HARDWARE
KX-A243X 19” BRACKET FOR THE KX-TDE100
For mounting the KX-TDE100 cabinet in a 19” rack.
1 2.46 lbs. 85111-9
KX-A242X 19” BRACKET FOR THE KX-TDE200
For mounting the KX-TDE200 cabinet in a 19” rack.
1 1.52 lbs. 85110-2
AUTHORIZED
DEALER MODEL
AUTHORIZED
DEALER MODEL

Units, Weights and Specifications subject to change. 3version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
SYSTEM POWER SUPPLIES
(1 REQUIRED PER CONTROL UNIT)
KX-TDA0103 L-TYPE POWER SUPPLY
Large plug in system power supply for use in the KX-TDE200 control
unit. To determine the correct size power supply for your application,
please refer to the Power Supply Sizing Chart #1.
1 7.58 lbs. 85020-4
KX-TDA0104 M-TYPE POWER SUPPLY
Medium plug in system power supply for use in the KX-TDE100 or
KX-TDE200 control units. To determine the correct size power supply
for your application, please refer to the Power Supply Sizing Chart #1.
1 6.92 lbs. 85021-1
KX-TDA0108 S-TYPE POWER SUPPLY
Small plug in system power supply for use in the KX-TDE100 control
unit. To determine the correct size power supply for your application,
please refer to the Power Supply Sizing Chart #1.
1 5.82 lbs. 85028-8
KX-TDE MPR CARD (FOR UPGRADING A TDA TO A TDE)
KX-TDE0101
AUTHORIZED
DEALER MODEL
KX-TDE MPR CARD
Required to upgrade a KX-TDA100 or KX-TDA200 to a KX-TDE100 or
KX-TDE200
1 .85 lbs. 85193-5
IPCMPR OPTIONS (REQUIRED FOR VIRTUAL EXTENSION PORTS)
KX-TDE0110
AUTHORIZED
DEALER MODEL
16-CHANNEL VOIP DSP CARD (DSP16)
16-channel digital signal processor card with one SHGW4 activation
key and one IPPTS activation key preinstalled. Compliant with ITU-T
G.729a and G.711 CODEC methods. To be mounted on the IPCMPR
card.
3 1.82 lbs. 85191-1
KX-TDE0111
AUTHORIZED
DEALER MODEL
64-CHANNEL VOIP DSP CARD (DSP64)
64-channel digital signal processor card with 16 SHGW4 activation
keys and 32 IPPTS activation keys preinstalled. Compliant with ITU-T
G.729a and G.711 CODEC methods. To be mounted on the IPCMPR
card.
3 1.81 lbs. 85192-8
ACTIVATION KEYS
KX-NCS4104
AUTHORIZED
DEALER MODEL
4-CHANNEL IP TRUNK ACTIVATION KEY (SHGW4)
Provides the activation key number and registration ID to download
the SHGW4 activation key. Activates up to 4 IP Trunks (CO lines) via a
V-IPGW16 card.
1 - -
KX-NCS4208
AUTHORIZED
DEALER MODEL
8-CHANNEL IP SOFTPHONE/IP PROPRIETARY TELEPHONE
ACTIVATION KEY (IPPTS8)
Provides the activation key number and registration ID to download the
IPPTS8 activation key. Allows the use of 8 IP-PTs/IP softphones via a
VIPEXT32 card.
1 - -
KX-NCS4508
AUTHORIZED
DEALER MODEL
8-CHANNEL IP PROPRIETARY TELEPHONE ACTIVATION KEY
(IPPT8)
Provides the activation key number and registration ID to download the
IPPT8 activation key. Allows the use of 8 IP-PTs via a VIPEXT32.
1 - -
KX-NCS4716
AUTHORIZED
DEALER MODEL
16-CHANNEL SIP EXTENSION ACTIVATION KEY (SPE16)
Provides the activation key number and registration ID to download
the SPE16 activation key. Allows the use of 16 SIP Extensions via a
VSIPEXT32 card.
1 - -
KX-NCS4910
AUTHORIZED
DEALER MODEL
ACTIVATION KEY FOR ENHANCED FEATURES (UCAV2)
Provides the activation key number and registration ID to download the
UCAV2 activation key. Upgrades software to use enhanced features.
1 - -

Units, Weights and Specifications subject to change. 4version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
STATION CARDS
KX-TDA0143 4-PORT CELL STATION INTERFACE CARD (CSIF4)
Required for multi-cell operation when using the KX-TDA0156 Cell
Station. Supports up to 4 KX-TDA0156 Cell Stations. 1 card requires
1 free slot.
3 1.06 lbs. 85119-5
KX-TDA0144 8-PORT CELL STATION INTERFACE CARD (CSIF8)
Required for multi-cell operation when using the KX-TDA0156 Cell
Station. Supports up to 8 KX-TDA0156 Cell Stations. 1 card requires
1 free slot.
3 3.81 lbs. 85024-2
KX-TDA0170 8-PORT DIGITAL HYBRID LINE CARD (DHLC8)
8 ports per card. Supports KX-T7600, KX-T7400 (DPT), KX-T7700 (APT)
series telephones. Single Line (SLT), DSS console, KX-T0158 and
KX-T0155 Cell Stations. 2 ports provide power failure transfer. 1 card
requires 1 free slot.
3 4.45 lbs. 85027-3
KX-TDA0171 8-PORT DIGITAL LINE CARD (DLC8)
8 ports per card. Supports KX-T7600 and KX-T7400 series telephone
(DPT), DSS console, KX-T0158, KX-T0155 and KX-T0151 Cell Stations.
1 card requires 1 free slot.
3 4.92 lbs. 85028-0
KX-TDA0172 16-PORT DIGITAL LINE CARD (DLC16)
16 ports per card. Support KX-T7600 and KX-T7400 series (DPT)
Telephones, DSS consoles, KX-T0158, KX-T0155 and KX-T0151 Cell
Station. 1 card requires 1 free slot.
3 4.32 lbs. 85029-7
KX-TDA0173 8-PORT SINGLE LINE CARD (SLC8)
8 ports per card. Supports single line telephones (SLT). 2 ports are
equipped with power failure transfer and 8 DTMF receivers. 1 card
requires 1 free slot.
3 4.10 lbs. 85030-3
KX-TDA0174 16-PORT SINGLE LINE CARD (SLC16)
16 ports per card. Supports single line telephones (SLT). 4 ports are
equipped with power failure transfer and 16 DTMF receivers. 1 card
requires 1 free slot.
3 4.38 lbs. 85031-0
KX-TDA0175 16-PORT SINGLE LINE CARD WITH MESSAGE WAITING (MSLC16)
16 ports per card. Supports Single Line Telephones with and without
Message waiting lights. 4 ports are equipped with power failure transfer.
Also equipped with 16 DTMF receivers. 1 card requires 1 free slot.
3 4.69 lbs. 85032-7
KX-TDA0177
16- PORT SLT CARD W/CID CIDSLT16
16 ports per card, supports single line telephones (SLT) with caller ID.
Includes 4 power failure circuits. One Card requires one free slot. This
card is useful in hotel applications where caller ID compatible single line
guest room telephones are used.
3 4.1 lbs. 852000
KX-TDA0470 16-CHANNEL IP EXTENSION CARD (IP-EXT16)
The KX-TDA0470 is required when using IP Telephones (KX-NT343,
KX-NT346, KX-NT321 and IP softphone). Each KX-TDA0470 card requires
one free slot and supports up to 16 IP extensions. A maximum of 4
cards can be installed in the KX-TDE100 and 8 can be installed in the
KX-TDE200.
1 1.10 lbs. 85128-7
CENTRAL OFFICE CARDS
KX-TDA0180 8-PORT LOOP START CO TRUNK CARD (LCOT8)
8 ports per card. 2 ports have power failure transfer. 1 card requires 1
free slot. 1 optional (KX-TDA0193) 8 port caller ID card can be mounted
to support caller ID.
3 4.14 lbs. 85033-4
KX-TDA0181 16-PORT LOOP START CO TRUNK CARD (LCOT16)
16 ports per card. 4 ports have power failure transfer. 1 card requires
1 free slot. Up to two optional (KX-TDA0193) 8 port caller ID cards can
be mounted to support caller ID.
3 4.25 lbs. 85034-1

Units, Weights and Specifications subject to change. 5version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
KX-TDA0187 T1 TRUNK CARD (T1)
24 ports per card. Channels assignable as LCO, GCO, DID, OPX or TIE
(E&M). ANI and DID Supported. External Channel Service Unit (CSU)
required. 1 card requires 1 free slot.
3 3.46 lbs. 85036-5
KX-TDA0290 ISDN PRIMARY RATE INTERFACE (PRI 23)
23 ports per card. 23 B channels + 1 D channel. External Channel
Service Unit (CSU) required. 1 card requires 1 free slot.
3 3.48 lbs. 85041-9
KX-TDA0484 4-CHANNEL IP GATEWAY CARD (IP-GW4)
Supports up to 4 IP connections for TDE system networking. H.323V.2,
ITU-T, G.711 G729a and G.723.1 compliant. LAN interface 10 base
T/100BASE T. 1 card requires 1 free slot.
1 1.79 lbs. 85120-1
KX-TDA0490 16-CHANNEL IP GATEWAY CARD (IP GW16)
Supports up to 16 IP connections for TDA system networking . H. 323V.2,
ITU-T, G711, G729a and G.723.1 compliant. 1 card requires 1 free slot.
1 1.20 lbs. 85129-4
RESOURCE AND FEATURE CARDS
KX-A258 BLANK SLOT COVER
Optional metal panel to cover unused free slots. One panel covers one
slot. 5 panels per package.
3 3.48 lbs. 85066-2
KX-TDA0161 4-PORT DOORPHONE CARD (DPH4)
Required to connect doorphones (KX-T30865, KX-T7765, KX-T7775
and video intercom systems VL-GM201A and VL-GM301A). Supports
up to 4 doorphones and door opener relays. Mounts on the
KX-TDA0190 (OPB3) card.
3 1.65 lbs. 85025-9
KX-TDA0164 4 EIO CARD (EIO4)
Mounts on the KX-TDA0190 Optional 3-Slot Base card
(OPB3). Contains 4 dry contact that allows you to control
external devices such as a door strike or an automatic garage
door-opener. You can also connect up to 4 external sensor devices.
3 .44 lbs. 85126-3
KX-TDA0166 16-PORT ECHO CANCELLATION CARD (ECHO16)
Provides echo cancellation for conference calls for up to 16 ports.
Mounts on the KX-TDA0190 (OPB3) card.
3 1.36 lbs. 85026-6
KX-TDA0190 OPTIONAL 3-SLOT BASE CARD (OPB3)
This card is equipped with 3 connectors to receive the following option
cards: 4 Channel Message Card (MSG4), 4-Port Doorphone Card
(DPH4), and the 16-Port Echo Cancellation Card (ECHO16), EIO Card
(EIO4), and 4 Channel Voice Message Card. Requires 1 slot. Mounts in
the optional card slot or a free slot.
3 3.46 lbs. 85037-2
KX-TDA0191 4-CHANNEL MESSAGE CARD (MSG4)
Provides 4 ports for outgoing messages for DISA, Queuing, Wake-Up
and internal hold melody. A maximum of 64 messages can be recorded
with a maximum total recording time of 8 minutes. Mounted on the
KX-TDA0190 (OPB3) card.
3 1.43 lbs. 85038-9
KX-TDA0168 SINGLE LINE EXTENSION CALLER CARD (SLT CID)
Mounts on the KX-TDA0173 8 Port Single Line Extension
Card (SLC8) only. Allows the system to pass caller ID
information to single line devices. Supports Bell/ETSI FSK only.
3 .33 lbs. 85127-0
KX-TDA0193 8-PORT CALLER ID CARD (CID8)
Required to receive Caller ID information from the CO. Each
KX-TDA0193 activates caller ID on 8 CO lines. Mounts on the
KX-TDA0180 and KX-TDA0181 Loop Start CO Cards.
3 1.47 lbs. 85039-6

Units, Weights and Specifications subject to change. 6version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
KX-TDA0194 4-CHANNEL VOICE MESSAGE CARD
Add simple Voice Mail to the system. Each user can be assigned a
Mail Box. Extension user can record a personal greeting message to
greet callers. The user can also play back and clear greeting messages
and the voice messages left by callers. A maximum of 2 cards can be
installed in the TDE100 or TDE200. Mounts on the KX-TDA0190 OPB3
Card. Requires V2.0 SW or higher.
3 1.31 lbs. 85205-5
OPTIONAL CTI SOFTWARE
PHONE ASSISTANT SOFTWARE KEY PACKAGES
KX-NCS1101 PHONE ASSISTANT PROFESSIONAL (1-KEY)
Includes 1 Phone Assistance Pro user key
3 1.4 lbs. 85222-2
KX-NCS1105 PHONE ASSISTANT PROFESSIONAL (5-KEY)
Includes 5 Phone Assistance Pro user keys
3 1.4 lbs. 85223-9
KX-NCS1110 PHONE ASSISTANT PROFESSIONAL (10-KEY)
Includes 10 Phone Assistance Pro user keys
3 4.6 lbs. 85224-6
KX-NCS1199 PHONE ASSISTANT PROFESSIONAL (128-KEY)
Includes 128 Phone Assistance Pro user keys
1 1.4 lbs. 85225-3
KX-NCS1201 PA STATUS 1 KEY PACK
Includes 1 Phone Assistance Status Pro user key
3 4.6 lbs. 85226-0
KX-NCS9101 PA IP SOFT PHONE 1 KEY PACK
Includes 1 IP Soft phone user key. This key is required to integrate the IP
softphone with PA pro. A PA Pro key is also required.
3 4.6 lbs. 85227-7
PC PHONE / IP SOFTPHONE / OUTLOOK TOOLBAR SOFTWARE
KX-TDA0350 PC PHONE / IP SOFTPHONE / OUTLOOK TOOLBAR
SOFTWARE KEY
Contains 5 Keys that can be used for PC Phone, IP Softphone or
Outlook Toolbar. PC Phone software provides the user with the ability
to use their PC to operate their telephones when connected to the
KX-T7601 USB Expansion Module. To activate PC phone requires one
key. The IP Softphone is software that allows you to use your PC as a
telephone when connected to LAN, WAN or VPN. For IP Softphone to
operate a KX-TDA/TDE/NCP must be connected to the same network.
To fully activate the IP Softphone requires 4 keys. To activate the
Outlook Toolbar requires one key and a connection to the optional
USB expansion module KX-T7601.
1 1.69 lbs 85943-3

Units, Weights and Specifications subject to change. 7version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
PC CONSOLE SOFTWARE
KX-TDA0300 PC CONSOLE AND MULTI-SITE PROGRAMMING SOFTWARE KEY
Contains 1 PC Console Key. PC Console software provides the user
with the ability to use a PC as a system console. The PC must be
connected to the KX-T7601 USB Expansion Module. Not for networking,
for single system installations only. One KX-TDA0300 supports one
Unified Programming and Maintenance Tool (2 to 10 sites). A second
KX-TDA0300 must be purchased to support from 11 to 100 sites.
1 1.69 lbs. 85943-3
OPTIONAL SYSTEM SOFTWARE
KX-TDES01
AUTHORIZED
DEALER MODEL
SD CARD FOR ENCRIPTION
Encripts the voice packets providing a secure IP voice communications
over the network using KX-NT300 series telephones. 1 required per
system.
1 1.58lbs. 85199-7
MULTI-CELL WIRELESS
KX-TDA0156
DECT
4-CHANNEL DECT CELL STATION (DCS)
4-channel cell station for use with multi-cell wireless feature in the
KX-TDE100 and KX-TDE200. The KX-TDA0156 connects via a cell
station interface card (KX-TDA0143 – 4 port or KX-TDA0144 – 8
port). Supports the KX-TD7685, KX-TD7695, and KX-TD7696 DECT
telephones only.
— — 52628-8
KX-T0155
DECT
2-CHANNEL DECT CELL STATION (DCS)
2 port cell station for use with multi-cell wireless feature in the
KX-TDE100 and KX-TDE200. The KX-T0155 connects directly to an
extension port to the DHLC and DLC cards in the KX-TDE100/200.
Supports the KX-TD7685, KX-TD7695, and KX-TD7696 DECT
telephones only.
3 4.09 lbs. 85229-1
KX-T0158
DECT
AUTHORIZED
DEALER MODEL
8-CHANNEL DECT CELL STATION (DCS)
8-channel cell station for use with multi-cell wireless feature in the
KX-TDE100 and KX-TDE200. The KX-T0158 connects directly to an
extension port to the DHLC and DLC cards in the KX-TDE100/200.
Supports the KX-TD7685, KX-TD7695, and KX-TD7696 DECT
telephones only.
3 4.3 lbs. 85204-8

Units, Weights and Specifications subject to change. 8version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
KX-TD7685
DECT
DECT MULTI CELL WIRELESS HANDSET
• Speaker phone with Auto Answer
• Ring, Melodies and Vibration mode
• Large Back lit LCD
• Navi-key operation
• PBX functionality support
• Headset jack
3 5.89 lbs. 85218-0
KX-TD7695
DECT
COMPACT D.E.C.T. MULTI CELL WIRELESS HANDSET
• Speaker phone with Auto Answer
• Ring, Melodies and Vibration mode
• Large Back lit LCD
• Navi-key operation
• PBX functionality support
• Headset jack
3 5.5 lbs. 85220-8
KX-TD7696
DECT
RUGGEDIZED DECT WIRELESS PHONE
• Blue, 6 line backlit LCD display
• Dust and splash (water) resistant (IP54)
• Illuminated keypad
• Multiple language display
• Speakerphone
• Programmable soft keys
• PBX functionality support
3 6.05 lbs. 52635-5
PSZZTD142CE SITE SURVEY CELL STATION BATTERY PACK
Used to power the KX-TDA0142 or the KX-T0141 Cell Station, for
site surveys. The Cell Station, along with a KX-TD7685, KX-TD7695,
or KX-TD7696 is used as a tool to assist the installer in determining
coverage and placement of the cell stations. Requires 1 PSZZ1TD0142
power supply adapter. Must be purchased from the Panasonic Parts
Center at: 800-833-9626.
N/A N/A N/A
PSZZ1TDA0142 BATTERY PACK CELL STATION CONNECTOR
Consists of a connector to connect the Cell Station battery pack to
Cell Station when doing site surveys. 1 required with the Cell Station
Battery Pack Must be purchased from the Panasonic Parts Center at:
800-833-9626.
N/A N/A N/A

Units, Weights and Specifications subject to change. 9version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
KX-NT300 SERIES IP TELEPHONES
KX-NT366
KX-NT366-B
4 X 12 BUTTON 6-LINE BACKLIT LCD DISPLAY IP TELEPHONE
• 4 x 12-Self labeling, Programmable Keys
• Digital Duplex Speakerphone
• 2 Ethernet Ports (100Base-T)
• Power Over Ethernet (PoE) or with KX-A239 AC Power Adaptor
• Blue tooth compatible with KX-NT307 Adaptor
KX-NT366-B BLACK VERSION
3 11.77 lbs. 85206-2
Black
85207-9
KX-NT346
KX-NT346-B
6-LINE BACK-LIT LCD DISPLAY IP TELEPHONE
• 24 Programmable Keys
• Digital Duplex Speakerphone
• 2 Ethernet Ports (100Base-T)
• Power Over Ethernet (PoE) or with KX-A239 AC Power Adaptor
• Blue tooth compatible with KX-NT307 Adaptor
KX-NT346-B BLACK VERSION
311.51 lbs. 85208-6
Black
85209-3
KX-NT343
KX-NT343-B
3-LINE BACK-LIT LCD DISPLAY IP TELEPHONE
• 24 Programmable Keys
• Digital Duplex Speakerphone
• 2 Ethernet Ports (100Base-T)
• Power Over Ethernet (PoE) or with KX-A239 AC Power Adaptor
• Blue tooth compatible with KX-NT307 Adaptor
KX-NT343-B BLACK VERSION
3 11.34 lbs. 85210-9
Black
85211-6
KX-NT321
KX-NT321-B
ADVANCED IP TELEPHONE - 8 BUTTON, 1-LINE LCD, 2ND LAN
PORT
• 8 Programmable Keys
• Digital Duplex Speakerphone
• 2 Ethernet Ports (100Base-T)
• Power Over Ethernet (PoE) or with KX-A239 AC Power Adaptor
• Dual PBX support
KX-NT321-B (BLACK VERSION)
3 4.80 lbs. 52352-2
Black
52369-9

Units, Weights and Specifications subject to change. 10 version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight

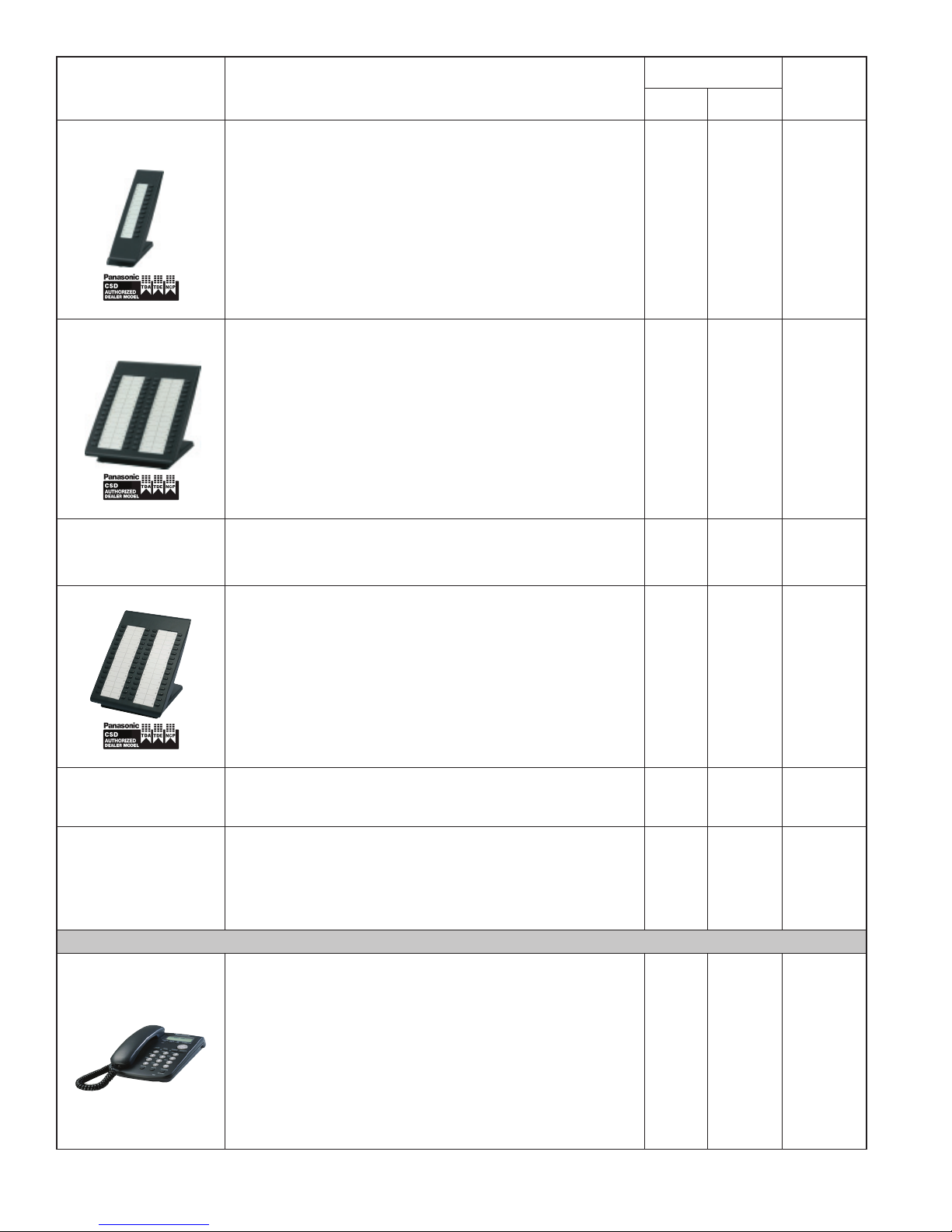

KX-NT303
KX-NT303-B
12-KEY ADD ON MODULE
• 12 programmable keys
• Compatible with the KX-NT346, KX-NT343, KX-DT343, and
KX-DT346 only.
KX-NT303-B BLACK VERSION
3 2.65 lbs. 85212-3
Black
85213-0
KX-NT305
KT-NT305-B
60-KEY ADD ON MODULE
• 60 programmable keys
• Compatible with the KX-NT346 and the KX-NT343 only
KX-NT305-B BLACK VERSION
3 6.36 lbs. 85214-7
Black
85215-4
KX-NT307 BLUETOOTH MODULE
•Required to make the KX-NT366, KX-NT346, KX-NT343, KX-DT343,
and KX-DT346 telephones Bluetooth compatible.
3 1.01 lbs. 85216-1
KX-DT390-B DSS CONSOLE
•60 Key DSS black console for use with the KX-DT300 series phones.
- - -
KX-DT301 USB MODULE
•USB module for use with the KX-DT300 series phones.
- - -
KX-A239 AC ADAPTOR FOR KX-NT300 SERIES TELEPHONES
• Includes one Adaptor for use with KX-NT300 Series telephones
3 1.67 lbs. 85217-8
SIP TELEPHONES
KX-HGT100-B SIP TELEPHONE WITH 2 LINE LCD AND 2ND LAN PORT
• 2 Line x 16 Character Monochrome LCD with
4-level Contrast
• 2 Ethernet Ports (10/100 Base-T) for PC and LAN
• Power 100V-240V AC (50Hz) Adaptor (Optional) or Power over
Ethernet (PoE)
— — 52482-2

Units, Weights and Specifications subject to change. 11 version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight

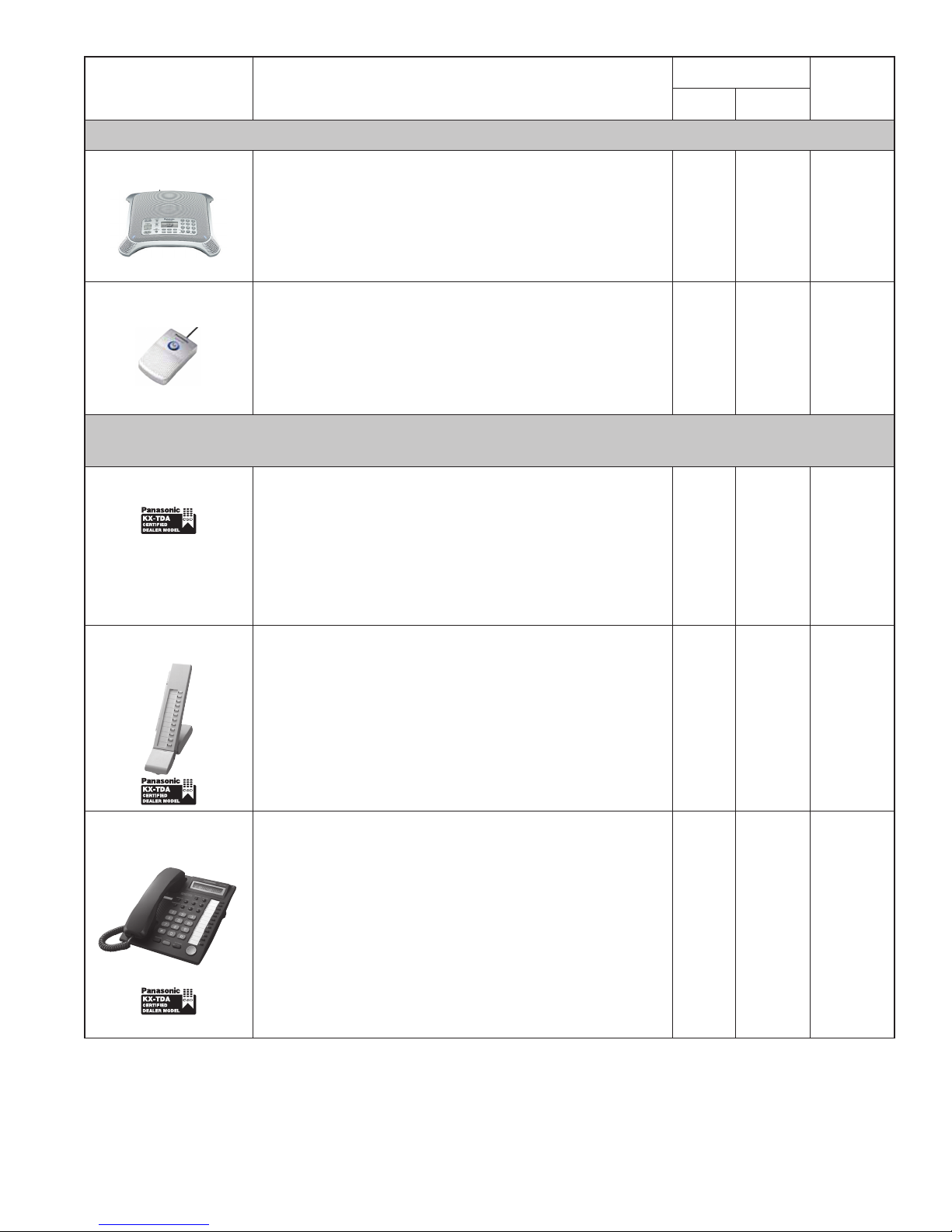

IP SPEAKERPHONES
KX-NT700 CONFERENCE SPEAKERPHONE WITH PoE AND SD CARD SLOT
FOR RECORDING
• PSTN,IP,TDE/NCP-SIP extension
• Cordless phone connectibility
— — 52376-6
KX-NT701 WIRED EXTERNAL MICROPHONE FOR USE WITH THE KX-NT700
CONFERENCE SPEAKERPHONE
• Power supply from main unit
• 3m cable length
• 2m microphone coverage
— — 52499-9
KX-T7600 SERIES DIGITAL SYSTEM TELEPHONES
(FOR USE WITH KX-TDA AND KX-TDE SYSTEMS ONLY)
KX-T7601
KX-T7601-B
USB EXPANSION MODULE
For connecting the KX-T7636 and KX-T7633 telephones to a PC.
Required for use with PC Phone, Outlook Toolbar KX-TDA350 and PC
console KX-TDA0300 software. Included with the module is a 6’ USB
cable and a CD containing a 90 day free trial KX-TDA350 PC Phone.
Max of one USB module per telephone.
KX-T7601-B: BLACK VERSION
5
5
3.52 lbs.
3.52 lbs.
85046-4
Black
85047-1
KX-T7603
KX-T7603-B
12 KEY ADD-ON MODULE
Attaches to the KX-T7636 and KX-T7633 telephones.
• Adds an additional 12 CO keys/feature keys.
• Only one can be added per telephone.
KX-T7603-B: BLACK VERSION
3
3
3.13 lbs.
3.13 lbs.
85048-8
Black
85049-5
KX-T7667
KX-T7667-B
Backlit LCD Display
DIGITAL 12 BUTTON SPEAKERPHONE WITH
1 LINE BACKLIT LCD DISPLAY
• 12 Programmable Buttons (CO/Personal/Feature)
• 10 fixed buttons for (Intercom, Conference, Program, Voice Mail,
Pause, Forward / Do Not Disturb, Flash/Recall, Auto Answer/Mute,
Auto Dial/Store and Redial)
• 3 large buttons for Hold transfer and speakerphone
• Navigation Key for Volume, Display Contrast and Function selection
• Headset Jack
• Wall Mountable
KX-T7667-B: BLACK VERSION
3
3
7.50 lbs.
10.1 lbs.
51713
White
51720

Units, Weights and Specifications subject to change. 12 version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight

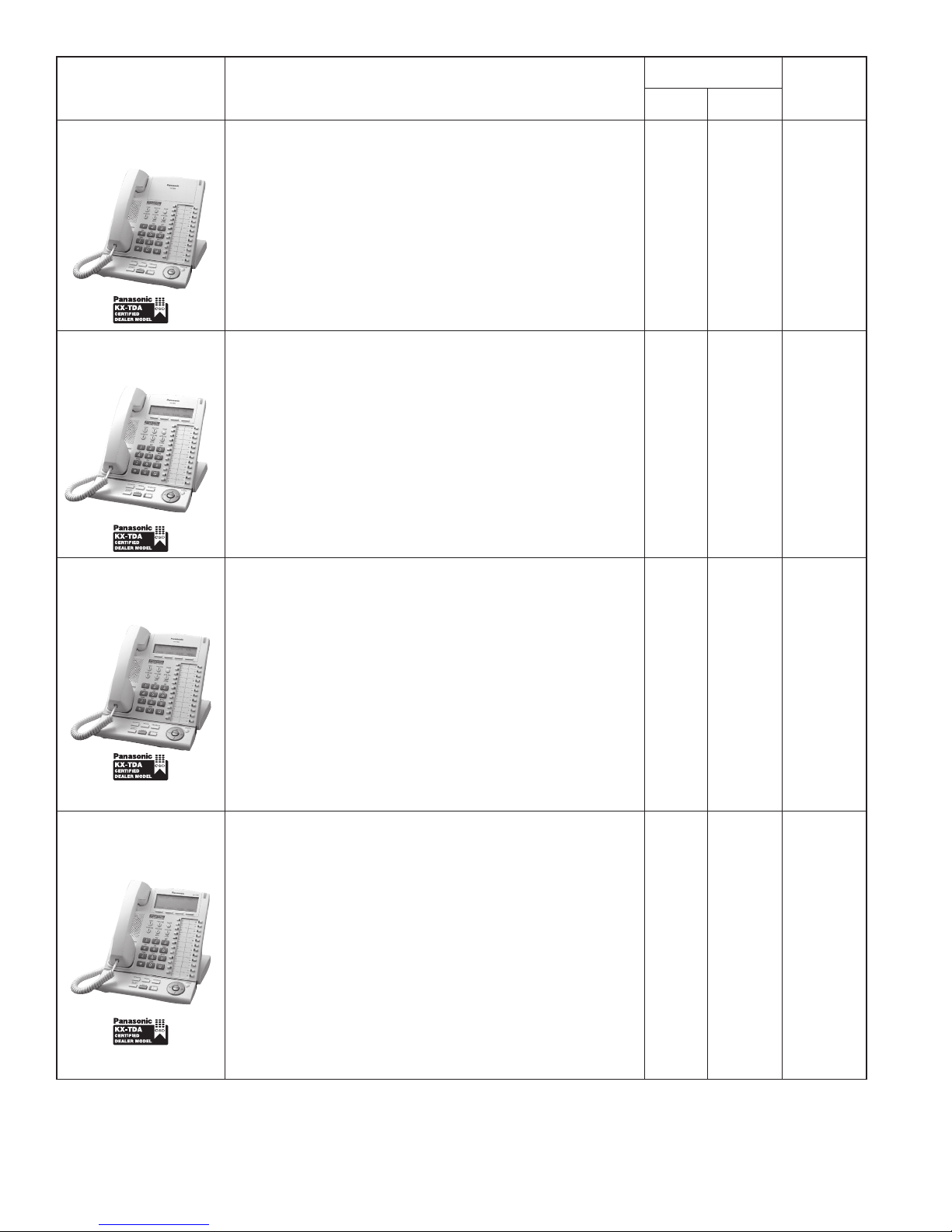

KX-T7625
KX-T7625-B
DIGITAL 24-BUTTON SPEAKERPHONE
• 24 programmable CO keys with dual color LEDs
• Volume key
• Hands-free Speakerphone
• Large message/ringing lamp (red/green)
• Headset jack
• XDP/DXDP Jack for adding another KX-T7600 DPITS or SLT extension
KX-T7625-B: BLACK VERSION
3
3
10.1 lbs.
10.1 lbs.
85050-1
Black
85051-8
KX-T7630
KX-T7630-B
DIGITAL 24-BUTTON SPEAKERPHONE WITH 3 LINE LCD DISPLAY
• 3-line x 24-character LCD
• 24 programmable CO keys with dual color LEDs
• Navigator key
• Hands-free Speakerphone
• Large message/ringing lamp(red/green)
• Headset jack
• XDP/DXDP Jack for adding another KX-T7600 DPITS or SLT extension
KX-T7630-B: BLACK VERSION
3
3
10.4 lbs.
10.4 lbs.
85052-5
Black
85053-2
KX-T7633
KX-T7633-B
Backlit LCD Display
DIGITAL 24-BUTTON SPEAKERPHONE WITH 3 LINE BACKLIT
LCD DISPLAY
• 3-line x 24-character back-light LCD Display
• 24 programmable CO keys with dual color LEDs
• Navigator key
• Hands-free speakerphone
• Large message/ringing lamp (red/green)
• Headset jack
• Compatible with optional 12-CO keys interface (KX-T7603).
• XDP/DXDP Jack for adding another KX-T7600 DPITS or SLT extension
• Compatible with KX-T7601 USB Module
KX-T7633-B: BLACK VERSION
3
3
10.4 lbs.
10.4 lbs.
85054-9
Black
85055-6
KX-T7636
KX-T7636-B
Backlit LCD Display
DIGITAL 24-BUTTON 6 LINE BACKLIT LCD SPEAKERPHONE
• 6-line x 24-character back-light LCD Display
• 24 programmable CO keys with dual color LEDs
• Navigator key
• Hands-free speakerphone
• Large message/ringing lamp (red/green)
• Headset jack
• Compatible with optional 12-CO keys interface (KX-T7603).
• XDP/DXDP Jack for adding another KX-T7600 DPITS or SLT extension
• Compatible with KX-T7601 USB Module
KX-T7636-B: BLACK VERSION
3
3
10.4 lbs.
10.4 lbs.
85056-3
Black
85057-0

Units, Weights and Specifications subject to change. 13 version 1.2
Model
Number Description
Per Master Carton UPC
Code
0-37988-
Units Weight
KX-T7640
KX-T7640-B
DIGITAL DSS CONSOLE (60-DSS)
• 60 Direct Station Selection (DSS)/Busy Lamp Field (BLF)
• Wall mountable
• Physically attach to Digital System Telephone by a screw
(A DSS Console requires 1 Digital System Telephone extension port)
• No restrictions for programmable Flex Keys
• For all T7600 series models
KX-T7640-B: BLACK VERSION
3
3
7.29 lbs.
7.29 lbs.
85058-7
Black
85059-0
KX-T7700 SERIES ANALOG PROPRIETARY SYSTEM TELEPHONES
KX-T7750
KX-T7750-B
24-BUTTON MONITOR TELEPHONE
• 24 Programmable Buttons
• 12 CO & 12 Personal/Feature, 10 fixed buttons for (Intercom,
Conference, Program, Voice Mail, Pause, Forward/Do Not Disturb,
Flash/Recall, Auto Answer/Mute, Auto Dial/Store and Redial)
• 3 large buttons for Hold, Transfer and Monitor • Volume Control for
Speaker, Ringer and Handset • Headset Jack • Wall Mountable
KX-T7750-B: BLACK VERSION
3
3
1.28 lbs.
1.28 lbs.
50136-0
Black
50143-0
KX-T7720
KX-T7720-B
24-BUTTON SPEAKERPHONE TELEPHONE
• 24 Programmable Buttons
• 12 CO & 12 Personal/Feature,10 fixed buttons for (Intercom,
Conference, Program, Voice Mail, Pause, Forward/Do Not Disturb,
Flash/Recall, Auto Answer/Mute, Auto Dial/Store and Redial)
• 3 large buttons for Hold, Transfer and Speakerphone, Volume Control
for Speaker, Ringer and Handset
• Headset Jack • Wall Mountable
KX-T7720-B: BLACK VERSION
3
3
2.46 lbs.
2.46 lbs.
50051-0
Black
50068-0
KX-T7731
KX-T7731-B
Backlit Dial Keypad
& LCD Display
24-BUTTON SPEAKERPHONE TELEPHONE WITH BACKLIT DIAL
KEYPAD AND 1 LINE BACKLIT LCD DISPLAY
• 24 Programmable Buttons (12 CO & 12 Personal/Feature)
• 10 Fixed Buttons for (Intercom, Conference, Program, Voice Mail,
Pause, Forward/Do Not Disturb, Flash/Recall, Auto Answer/Mute,
Auto Dial/Store and Redial) Plus 3 Large Buttons for Hold Transfer
and Speakerphone • Navigation Key for Volume, Display Contrast
and Function Selection, Headset Jack, Wall Mountable
KX-T7731-B: BLACK VERSION
3
3
2.56 lbs.
2.56 lbs.
85114-0
Black
85115-7
KX-T7740
KX-T7740-B
48-BUTTON DSS CONSOLE
• 32 DSS keys w /LED’S
• 16 Feature keys wo/LED’S
• Wall Mountable
KX-T7740-B: BLACK VERSION
3
3
1.28 lbs.
1.28 lbs.
50099-0
Black
50105-0

version 1.2
Units, Weights and Specifications subject to change. 14

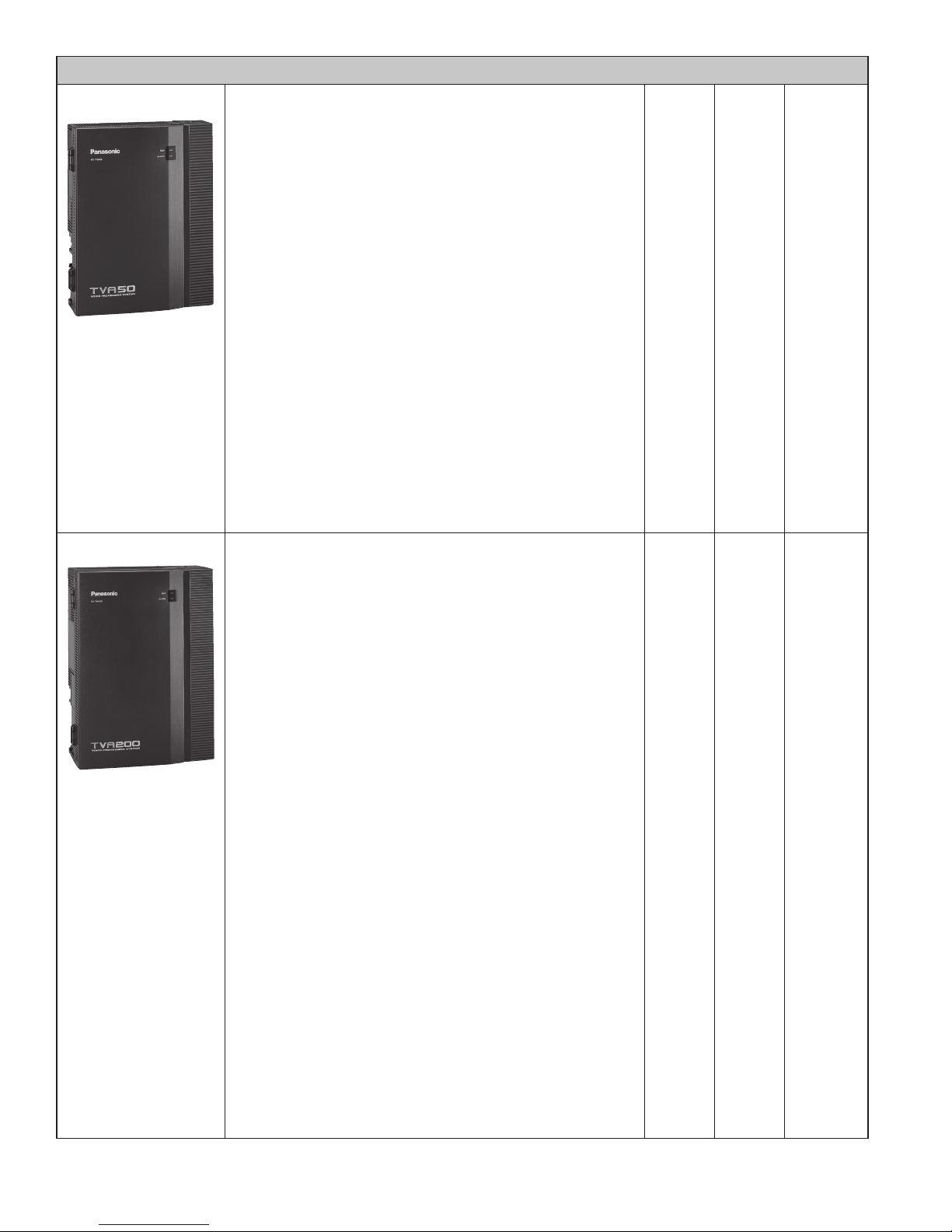

KX-TVA VOICE PROCESSING SYSTEM CONTROL UNITS
KX-TVA50 BASIC CABINET:
The KX-TVA50 is a Voice Processing System (VPS) that supports
both Voice Mail and Automated Attendant Service. The system can
be installed using DPITS, APITS and In-band Integration. The basic
cabinet is configured as follows:
• 2 ports expandable to 6 ports using either the KX-TVA502 or the
KX-TVA503 Cards
• 4 hours of storage expandable to 8 hours using the KX-TVA524
• 64 Mailboxes
• 1 USB port
Major Features
• Automated Attendant Service
• Email Integration
• Windows Based PC Programmable (On Site and Remote)
• Optional Remote Modem Card
• Proprietary Telephone Voice Mail Menu
• Live Call Screening
• Intercom Paging
• Interview Service
• Multi-lingual Voice Prompts
• Paging Notification with Call Back Number
• Variable playback volume/speed with pause
• Two-way record
• Personal Greeting For Caller ID
• Caller ID Call Routing and Name Announce
1 6.91 lbs. 85146-1
KX-TVA200 BASIC CABINET:
The KX-TVA200 is a Voice Processing System (VPS) that supports both
Voice Mail and Auto Attendant services. The system can be installed
using DPITS. Only the basic cabinet is initially configured as follows:
• 4 ports expandable to 24 ports using KX-TVA204 Cards
• 1000 hours of Storage
• 1024 Mailboxes
• USB and RS232 ports
Major Features
• Automated Attendant Service
• Email Integration
• Windows Based PC Programmable (On Site and Remote)
• Optional Remote Modem Card
• Proprietary Telephone Voice Mail Menu
• Live Call Screening
• Intercom Paging
• Interview Service
• Multi-lingual Voice Prompts
• Paging Notification with Call Back Number
• Variable playback volume/speed with pause
• Two-way record
• In-band Integration
• Personal Greeting For Caller ID
• Caller ID Call Routing and Name Announce
1 12.28 lbs. 85143-0

Units, Weights and Specifications subject to change. 15 version 1.2
KX-NCV200 ACD REPORT SERVER VOICE MAIL SYSTEM
KX-NCV200 BASIC CABINET:
The KX-NCV200 is an ACD Report Server with Voice Mail and Auto
Attendant. The basic cabinet is configured as follows:
• 4 ports expandable to 24 ports using KX-TVA204 Cards
• 1000 hours of Storage
• 1024 Mailboxes
• USB and R5232 Ports
Features
• ACD Monitoring and Reporting Software
• Email Integration
• Automated Attendant Service
• Windows Based PC Programmable (On Site and Remote)
• Optional Built-in Remote Modem Card
• Proprietary Telephone Voice Mail Menu
• Live Call Screening
• Intercom Paging
• Interview Service
• Multi-lingual Voice Prompts
• Paging Notification with Call Back Number
• Variable playback volume/speed with pause
• Two-way record
• In-band Integration
• Personal Greeting For Caller ID
• Caller ID Call Routing and Name Announce
1 8.59 lbs. 851881
KX-TVA50, KX-TVA200 & KX-NCV200 EXPANSION AND FEATURE CARDS
KX-TVA502 2 PORT DPT/APT/SLT INTERFACE CARD
For use with the KX-TVA50 only. Supports DPITS, APITS and In-band
integration. Expands the port capacity of the system by 2 ports. A
maximum of 2 cards can be installed in the KX-TVA50.
3 0.61 lbs. 85147-8
KX-TVA503 2 PORT DPT INTERFACE CARD
For use with the KX-TVA50 only. Supports DPITS integration only.
Expands the port capacity of the system by 2 ports. A maximum of 2
cards can be installed in the KX-TVA50.
3 0.61 lbs. 85148-5
KX-TVA524 4 HOUR MEMORY EXPANSION CARD
For use with the KX-TVA50 only. Expands the storage capacity of the
KX-TVA50 by 4 hours. Maximum of one card can be installed
per system.
3 0.28 lbs. 85149-2
KX-TVA594 LAN I/F CARD FOR USE WITH THE KX-TVA50 ONLY
Required to connect the KX-TVA50 to a wide or local area network
Provides messaging from the TVA system to a subscribers email.
3 0.33 lbs. 85150-8
KX-TVA204 4 PORT DPT INTERFACE CARD
For use with the KX-TVA200 only. Supports DPITS integration only.
Expands the port capacity of the system by 4 ports. A maximum of 5
cards can be installed in the KX-TVA200 or KX-NCV200.
3 0.75 lbs. 85144-7
KX-TVA296 REMOTE MODEM CARD
Modem card for use in the KX-TVA50, KX-TVA200, & KX-NCV200.
Required for remote programming and administration. Maximum of one
per system.
3 0.36 lbs. 85145-4
MOUNTING HARDWARE FOR KX-TVA AND KX-NCV CONTROL UNITS
KX-A249 19" RACKMOUNT BRACKET FOR THE KX-TVA50
For mounting the KX-TVA50 into a 19" rack.
3 2.10 lbs. 85160-7
KX-A244X 19" RACKMOUNT BRACKET FOR THE KX-TVA200 & KX-NCV200
For mounting the KX-TVA200 or the KX-NCV200 into a 19" rack.
3 3.85 lbs. 85112-6

Units, Weights and Specifications subject to change. 16 version 1.2
KX-TDE100 & KX-TDE200 POWER SUPPLY
It is necessary to select the proper power supply for the system in accordance with the type and number of extensions that are connected to
the system. There are 3 power supply options; S = Small, M = Medium and L = Large. To calculate the size of the power supply required for
your application, you must determine the type of telephone extensions you plan to use. Then using the telephone equipment power factor
“B” portion of the chart below, calculate the point value for each and add up all the points. Using the Power Supply Maximum Power Factor
“A” portion of the chart below, match up the points calculated with the correct power supply. The power supply value must be greater than
the total points calculated for the telephone equipment. (When in doubt use the larger power supply.)
A - Power Supply Maximum Power Factors
TDE100 TDE200
Power Supply Model KX-TDA0108 (S Type) KX-TDA0104 (M Type) KX-TDA0104 (M Type) KX-TDA0103 (L Type)
Maximum Power Factor 64 128 128 512
B - Telephone Equipment Power Factor
Telephone Equipment Point Value
For Each
T7600 Digital Series (KX-TDA Digital System Phones) 1
KX-T7400 & KX-T7200 Digital Series (KX-TD Digital System Phones) 4
KX-T7000, KX-T7300, KX-T7700 Series and DSS Consoles (KX-T & KX-TA Hybrid System Phones) 4
IP Telephones (KX-NT SERIES) 0
SIP Extensions 0
SLT* Cards
(Single Line Telephones)
SLC8 8
SLC16 16
MSLC16 16
DHLC8 8
Cell Station (KX-T0151, KX-T0155, & KX-TDA0152) 4
High density cell station (1 unit) 8
KX-TVA & KX-NCV Voice Mail Port Connection (2 ch) 1
* Calculation must be based on the number of cards, not the number of telephones.
CHART #1

Units, Weights and Specifications subject to change. 17 version 1.2
Maximum Optional Service Cards
The following number of cards can be installed in the Free Slots or Virtual Slots of the PBX.
Cards Installed in Free Slots or Virtual Slots
KX-TDE100 KX-TDE200
11
22
22
44
44
8
4
86
44
86
44
44
6
6
4
4
8
V-IPGW16
LCOT8
LCOT16
T1
PRI23
IP-GW4E
IP-GW16
V-IPEXT32
V-SIPEXT32
DHLC8
DLC8
DLC16
SLC8
SLC16
MSLC16
IP-EXT16
CSIF4
CSIF8
OPB3
IPCMPR
4
Total 6 Total 8
CO Line Card
Card Type Maximum Number
Virtual CO Line Card
Total 8
Physical CO Line Card Total 6
Virtual Extension Card
Physical Extension Card
When installing T1 and PRI23 cards, make sure that the number of these cards 2 + the number of the other cards (including
IP-GW4E cards) does not exceed 8.
One T1 or PRI23 card counts as 2 cards.
*1
*2
Extension Card
*2*1
Cards Mounted on Other Optional Service Cards
Card Type Maximum Number Mounted on
KX-TDE100 KX-TDE200
DSP16 1 1 IPCMPR CardDSP64
11TMR
draC 8CLS86DIC-TXE
444HPD
OPB3 Card
ECHO16 2*1
*1 Only 1 ECHO16 card can be mounted on each OPB3 card.
2*1
444GSM
444OIE
CHART #2

Units, Weights and Specifications subject to change. 18 version 1.2
Maximum CO Line and Extensions
The PBX supports the following number of CO lines and extensions.
002EDT-XK001EDT-XKepyT
821821eniL OC fo rebmuN latoT
821021)draC eniL OC lacisyhP( eniL OC
2323)draC eniL OC lautriV( eniL OC
652652noisnetxE fo rebmuN latoT
652061)draC noisnetxE lacisyhP( noisnetxE
Extension (Virtual Extension Card) 128 128
IP-PT and IP Softphone 4646
SIP Extension 128 128
Maximum Terminal Equipment
The following shows the number of each terminal equipment type supported by the PBX.
Terminal Equipment Type KX-TDE100 KX-TDE200
652652enohpeleT
82169TLS
652821TPD seires 0067T-XK
82123TPD rehtO
4642TPA
IP-PT 061061
IP-PT*1 (supported by IP-EXT16
card)
*1 KX-NT136 and KX-NT265
82169
IP-PT*2 (supported by IPCMPR
card)
*2 KX-NT300 series and KX-NT265 (software version 2.00 or later only)
4646
SIP Extension 821821
88elosnoc SSD
2323SC
821821SP
22)SPV( mets
yS gnissecorP ecioV
6161enohprooD
6161renepO rooD
6161rosneS lanretxE
6161yaleR lanretxE
CHART #3
CHART #4

Units, Weights and Specifications subject to change. 19 version 1.2
CHART #5
KX-TDE100/200 SYSTEM SPECIFICATIONS
Control Bus Original bus (16-bit 8 MHz 10 megabytes per second)
Communication Bus H.100 bus conformity (1024 time slots)
Switching Non-blocking
Certification No: TDE100/200 ACJMF03AKX-TDA100
Ringer Equivalence No: 0.3A
Facility Interface Code: 02LS2, 04DU9.BN/DN/1KN/1SN, METALLIC
Service Order Code: 9.0F, 6.0P
Power Input PSU-S 100 V AC to 130 V AC; 1.4 A/200 V AC to 240 V AC; 0.8 A;
50Hz/60 Hz
PSU-M 100 V AC to 130 V AC; 2.5 A/200 V AC to 240 V AC; 1.4 A;
50Hz/60 Hz
PSU-L 100 V AC to 130 V AC; 5.1 A/200 V AC to 240 V AC; 2.55 A;
50Hz/60 Hz
Maximum Power Failure Tolerance 300 ms
Memory Backup Duration 7 years
Dialing CO Line Dial Pulse (DP) 10 pps, 20 pps
Tone (DTMF) Dialing
Extension Dial Pulse (DP) 10 pps, 20 pps
Tone (DTMF) Dialing
Mode Conversion DP-DTMF, DTMF-DP
Ring Frequency 20 Hz/25 Hz (selectable)
Central Office Loop Limit 1600 Ω maximum
Operating
Environment
Temperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity 10 % to 90 % (non-condensing)
Conference Call CO Line From 10 × 3-party conference call to 4 × 8-party conference
call
Music on Hold (MOH) 2 ports (Level Control: -11 dB to +11 dB in 1 dB steps)
MOH1: External Music Source port
MOH2: Selectable Internal/External Music Source port
Paging Internal Level Control: -15 dB to +6 dB in 3 dB steps
External 2 ports (Volume Control: -15 dB to +15 dB in 1 dB steps)
Serial Interface Port RS-232C 1 (maximum 115.2 kbps)
RJ45 2
Extension Connection Cable SLT 1-pair wire (T, R)
DPT 1-pair wire (D1, D2) or
2-pair wire (T, R, D1, D2)
APT 2-pair wire (T, R, D1, D2)
PT-interface CS 1-pair wire (D1, D2)
DSS Console and Add-on
Key Module
1-pair wire (D1, D2)
Dimension KX-TDE100 (13-1/3 in × 15-3/5 in × 10-3/4 in)
KX-TDE200 (17-1/5 in × 16-3/5 in × 10-7/8 in)
Weight (when fully
mounted)
KX-TDE100 Under 26.4 lbs.
KX-TDE200 Under 35.2 lbs.

Units, Weights and Specifications subject to change. 20 version 1.2
CHART #6
KX-TVA VOICE PROCESSING SYSTEMS MAXIMUM CAPACITIES AND SPECIFICATIONS
KX-TVA50 KX-TVA200 & KX-NCV200
OPTIONAL CARD CAPACITIES
KX-TVA502 2-Port Hybrid Expansion Card 2
KX-TVA524 Memory Expansion Card 1
KX-TVA594 LAN Interface Card 1
KX-TVA296 Modem Card 1 1
KX-TVA204 4-Port Digital Expansion Card 6
INITIAL CONFIGURATION AND EXPANSION CAPABILITIES
No. of Ports Initial Configuration 2 4
Maximum 6 24
Recording Time Initial Configuration 4 hours 1000 hours
Maximum 8 hours 1000 hours
SPECIFICATIONS
Custom Services Up to 100
Number of Messages Unlimited up to Memory Storage
Length of Personal Greeting Message Up to 360s (programmable)
Message Retention Time 1 to 30 days, unlimited (programmable)
Maximum Message Length 1 to 60 minutes, unlimited (programmable)
Maximum Combined Length of Message per Mailbox 1 to 60 minutes, unlimited( programmable)
Number of Mailboxes 62 Subscriber+ 2 Manager 1022 Subscriber+ 2 Manager
Power Source 100 V AC to 240 V AC, 0.25 A,
50 Hz/60 Hz
100 V AC to 240 V AC, 1.5A,
50 Hz/60 Hz
DC Input 9 V, 0.75 A (6.75 W) 40 V, 1.38 A (55.2 W)
Dimensions (W _ H _ D) 9 7/8 (W) x 12 3/8 (H) x 2 7/8 (D) 10 7/8 (W) x 14 7/8 (H) x 4 5/8 (D)
Weight (without optional cards) No more than 4.41 lbs. No more than 9.7 lbs.
