AW-HE870
HD Convertible Camera
DEFINITION
HIGH
Operating Instructions
HD Convertible Camera
Model No. AW-HE870E
Before operating this product, please read the instructions carefully and save this manual for future use. 3TR006376BAA
Installation instructions provided

Note:

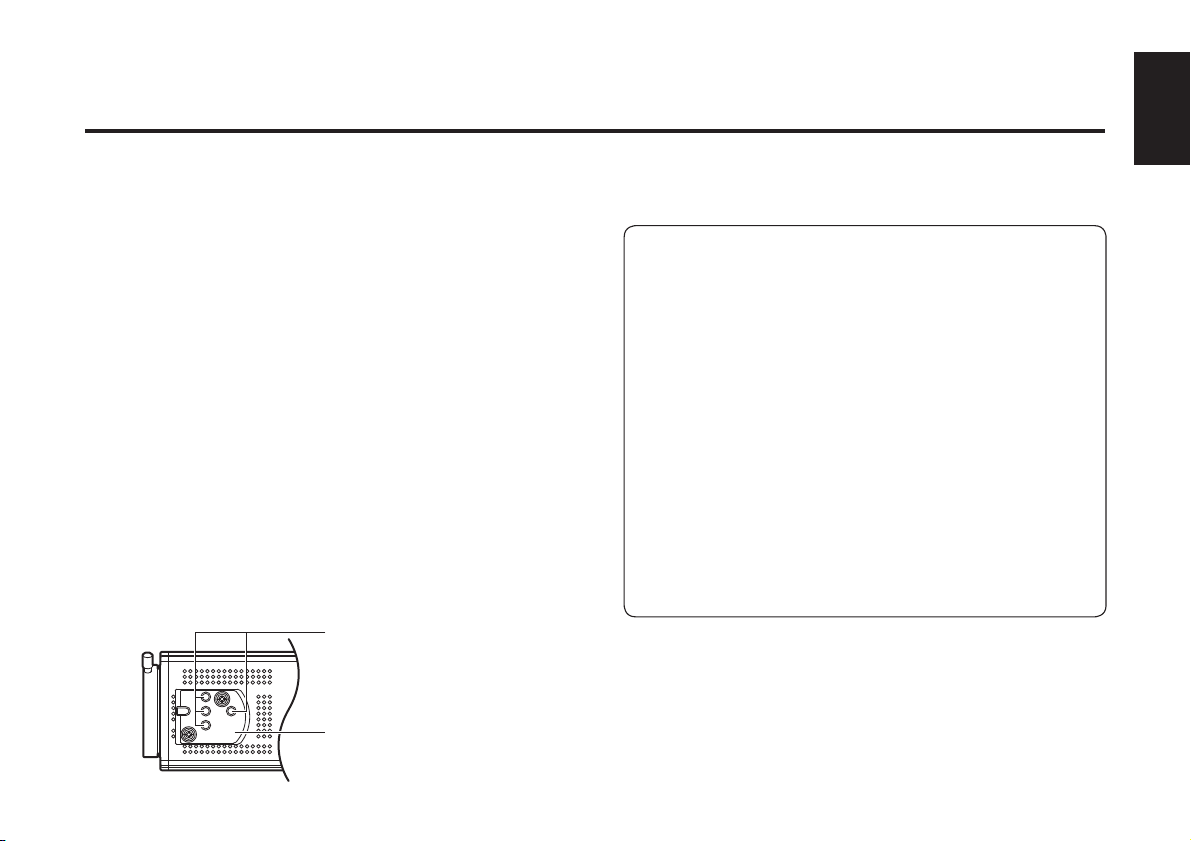

The rating plate (serial number plate) is on the
bottom of the unit.
indicates safety information.
Safety precautions
WARNING:
• TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
• THE APPARATUS SHALL NOT BE EXPOSED TO
DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE
APPARATUS.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
ENGLISH VERSION
wDO NOT REMOVE PANEL COVERS BY
UNSCREWING.
To reduce the risk of electric shock, do not remove
the covers. No user serviceable parts inside.
Refer servicing to qualified service personnel.
- 1 (E) -

- 2 (E) -
ENGLISH
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic
products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection points,
where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to
return your products to your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative
effects on human health and the environment which could otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

- 3 (E) -
Contents
Preface ............................................................................... 5
Standard accessories ...................................................... 5
Features ............................................................................. 6
Special notes on operation .............................................. 7
Precautions for use .......................................................... 8
Precautions for installation ........................................... 10
Major operating controls and their functions .............. 13
wFront view / Top view / Rear view / Bottom view ........ 13
Mounting ......................................................................... 17

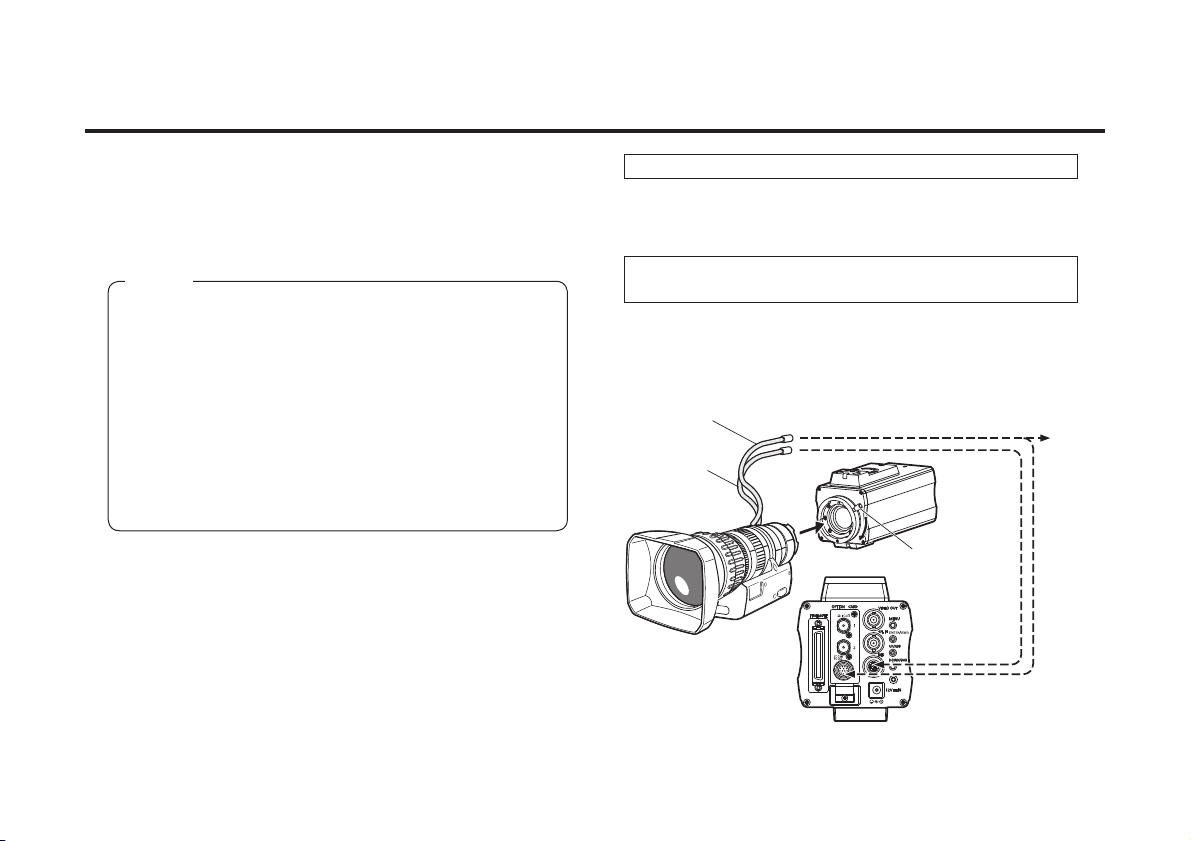

wLens mounting .......................................................... 17

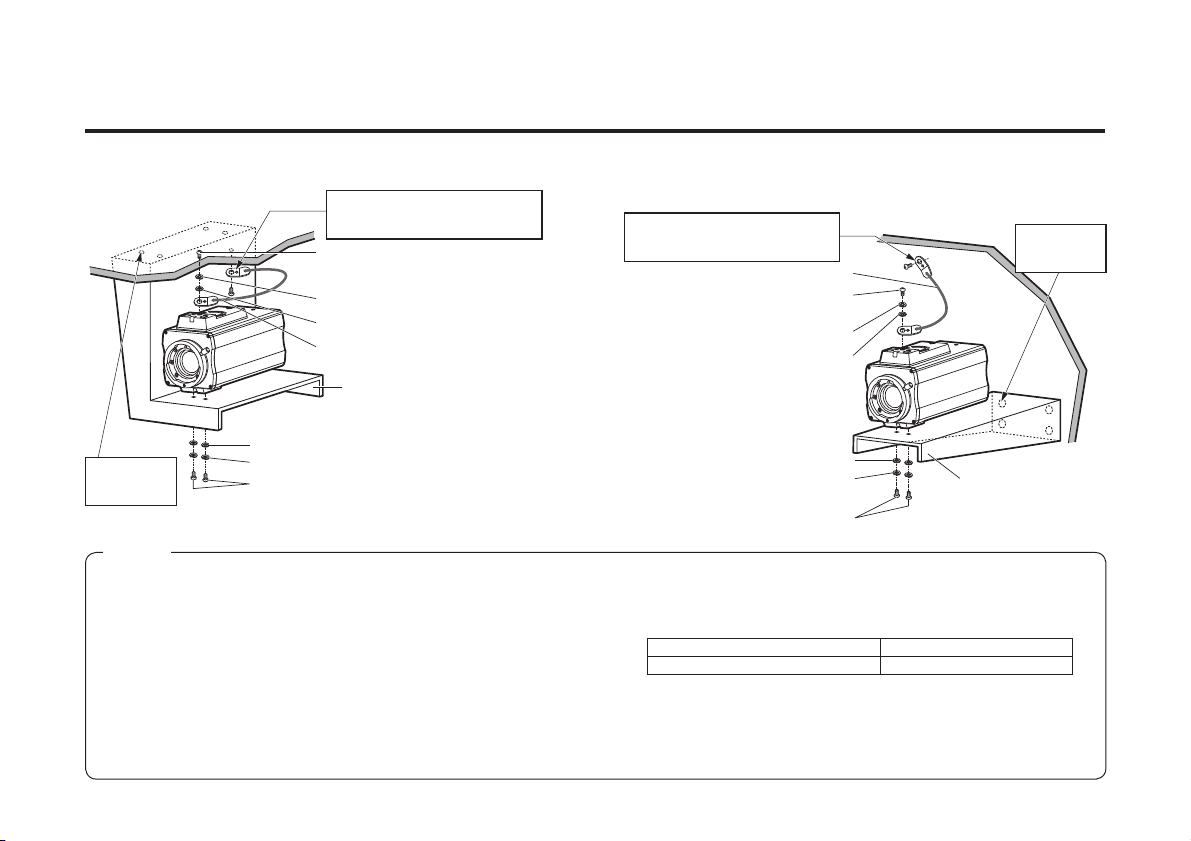

wMounting the camera onto a pan-tilt head, tripod,
camera mounting bracket, or other part ................... 18
System configuration (Connections) ............................ 22
wConnection of device with
a composite/component input connector ........ 22
wConnection of a remote operation panel ................... 23
wConnection with multiple cameras
(Supplying the external synchronizing signals) ........ 24
w
Connection of the Indoor Pan-tilt Head AW-PH360 ...... 25
w
Connection of the Indoor Pan-tilt Head AW-PH400 ...... 28
w
Connection of the Indoor Pan-tilt Head AW-PH405 ...... 31
w
Connection of the Outdoor Pan-tilt Head AW-PH650 .... 34
How to operate the system ............................................ 37
wControl exercised from the
Remote Operation Panel AW-CB400 ................... 37
wControl exercised from the
Multi-Function Controller AW-RP655 ................... 40
wControl exercised from the
Multi Hybrid Control Panel AW-RP555 ................. 44
Use mode setting ............................................................ 47
wUse Mode Setting ..................................................... 47
wSelecting ................................................................... 48
Operating procedure ...................................................... 49
Adjustment ...................................................................... 50
wFlange back adjustment ............................................ 50
wIris gain control in a lens ........................................... 50
wWhite balance adjustment ......................................... 51
wBlack balance adjustment ......................................... 53
wTotal pedestal level adjustment ................................. 54
wGenlock adjustment .................................................. 55

- 4 (E) -
ENGLISH
Menu item setting/changing .......................................... 58
wMenu item setting ...................................................... 58
Menu item setting/changing
(Halogen, Fluorescent, Outdoor Mode) ................... 60
wSub menu (Halogen, Fluorescent, Outdoor Mode) ... 60
wDescription of the setting screen ............................... 61
Menu item setting/changing (User Mode) .................... 68
wSub menu (User Mode) ............................................. 68
wDescription of the setting screen ............................... 71
Changing the settings .................................................... 84
wChanging the format settings .................................... 84
wChanging the component setting .............................. 85
wSetting the EBU matrix .............................................. 86
Setting to initial set (Factory presets) .......................... 87
wSetting to initial set .................................................... 87
wInitial settings of the setting items
(Factory preset values) ................................... 88
Troubleshooting .............................................................. 91
Appearance ..................................................................... 96
Specifications ................................................................. 97
Contents

- 5 (E) -
Preface
pThis is an HD/SD multi-format camera that adopts 14-bit analogue to digital conversion and digital video signal processing,
with a compact and lightweight 2/3˝ 3CCD system offering high reliability and availability of multiple functions.
pSetting and switching of the camera’s status and its various functions can be performed easily with the menu screen system.
pThe camera can be connected with peripheral devices, such as a remote control panel or a pan-tilt head, allowing for system
development according to the intended use.
pThe camera can be used for even more applications by inserting an option card.
pIn order to protect the environment when the HD convertible camera is to be discarded at the
end of its service life, ask a specialized contractor to dispose of it properly.
Note
Standard accessories
Operating Instructions .................... 1

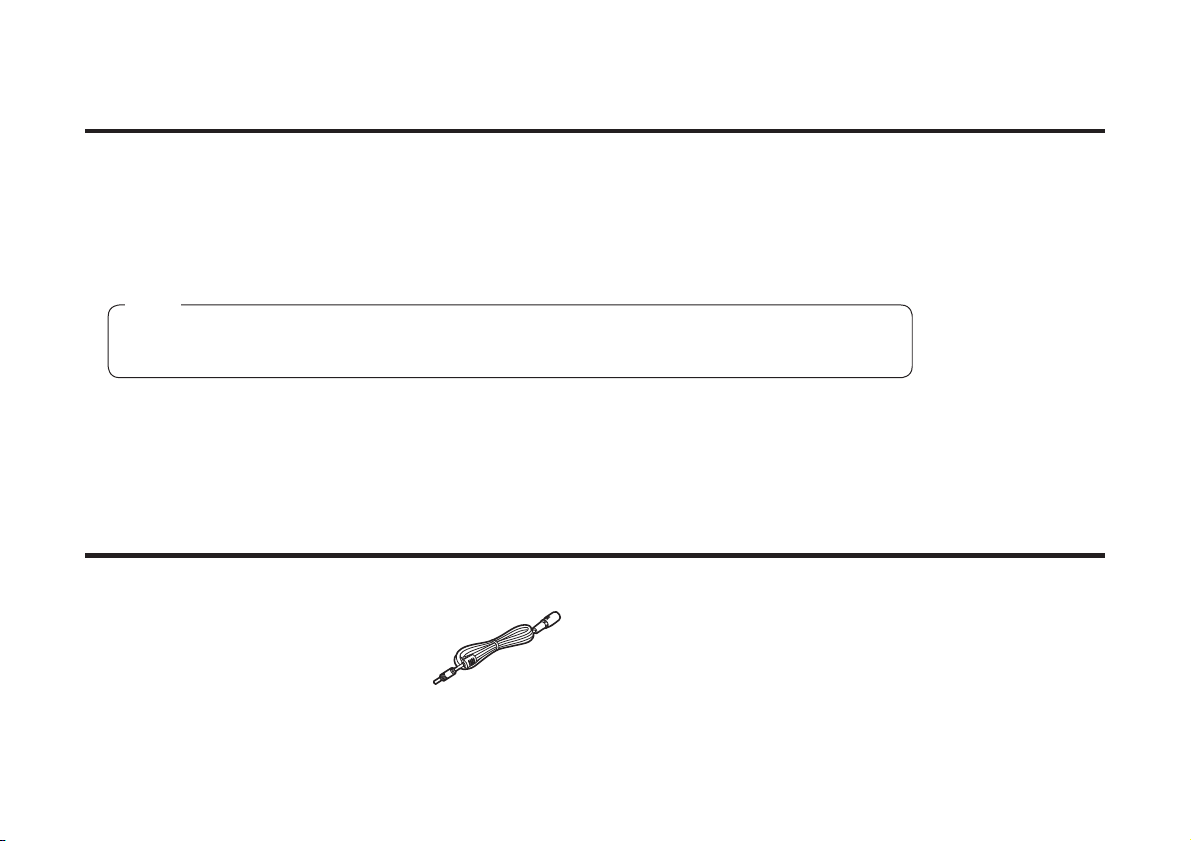

DC cable (3 m)................................... 1
Use this to supply the camera’s DC power.
(Refer to “DC 12 V input connector” on
page 16.)
Mounting screw for wire (Inch screw: 1/4-20UNC) ........ 1
Flat washer (Inch screw) .................................................. 1
Spring washer (Inch screw) ............................................. 1

- 6 (E) -
ENGLISH
Features
pThe camera features high reliability through
adoption of 14-bit analogue to digital
conversion and digital video signal processing.
pCompatible with multiple formats
• The format can be switched between 1080i, 720p, and
576i. The transition from an SD format system to an
HD format system can be performed smoothly.
• “Squeeze” or “Sidecut” can be selected with the SD
format.
pDown converter a standard feature
The SD (576i) composite signals can be output
continuously*1from the VIDEO OUT terminal, while
simultaneously outputting HD (1080i, 720p) signals.
pCompact but multifunctional, making a diverse
range of video productions possible
• Features automatic functions such as ATW, ELC, and
AGC.
• Features Chroma Detail, Dark Detail, and digital
Colour Matrix correction functions.
• Noise during imaging on computer screens is reduced
by the Synchro Scan function.
• An optimum condition can be selected to suit the
intended use from among four use modes (Halogen,
Fluorescent, Outdoor, and User).
• Supports the SDI card option*2(AW-HHD870).
• Adopts operating procedures that are the same as
those of our convertible cameras*3.
•
Our pan-tilt heads*4and control panels can be used*5.
*1: When using external synchronization, only the output
signal for the selected video output format (Format)
will be synchronized.
*2: Only the optional card (AW-HHD870) that supports
the AW-HE870 can be used. It is not possible to use
any other cards.
*3: Some operations may vary depending on function.
*4: Compatible models are AW-PH360, AW-PH400,
AW-PH405, and AW-PH650. Models AW-PH360 and
AW-PH400 are not able to output analogue HD video
signals.
*5: Compatible models are AW-RP555, AW-RP655 and
AW-CB400/AW-RP400. The software version may
need to be upgraded. Please contact your dealer.

- 7 (E) -
Special notes on operation
pTurn power off before connecting or disconnecting cables.
Connection or disconnection of any studio cable or other
cable to any unit of equipment must be performed while
power is off.
pWhile the camera is in automatic mode;
Shooting of bright objects in ELC operation mode may
result in a smeared picture unique to the CCD.
The ATW function under fluorescent illumination can
adversely change the white balance.
pThere is a cooling fan inside.
The cooling fan is a consumable part.
Replace it 3 to 5 years after installation as a general rule.
When the cooling fan malfunctions, the “Fan Error”
message is displayed when the power is turned ON.
When the “Fan Error” message is displayed, request
replacement of the cooling fan.
(Whenever fan replacement is necessary, be sure to ask
the store where you purchased the set.)
Fan Error

- 8 (E) -
ENGLISH
Precautions for use
DON’TS
pDo not attempt to disassemble the camera or other units.
In order to prevent electric shock, do not remove screws
or covers. There are no user-serviceable parts inside.
pDo not abuse the camera. Avoid striking, shaking, etc.
The camera contains sensitive components which could
be damaged by improper handling or storage.
pDo not let the lens remain uncapped when the camera is
not in use. If the lens is not installed, do not leave the lens
mount hole uncovered.
pDo not touch the surface of the lens or prism.
pDo not use strong of abrasive detergents when cleaning
the camera body.
pDo not aim the camera toward the sun, no matter whether
it is turned on or not.
pDo not expose the camera or other units to rain or
moisture, and do not try to operate the equipment in wet
conditions. Do not operate the camera if it becomes wet.
pDo not operate the camera or other units outdoors during
a lightning storm.
pDo not use the camera in an extreme environment where
high temperatures or high humidity exist.
pDo not leave the camera or other units turned on when
not in use.
Do not unnecessarily turn the camera power on and off
repeatedly.

- 9 (E) -
DOS
pRefer any servicing to qualified service personnel.
pHandle the camera with care.
pProtect the precision made lens by placing the lens cap
over when the camera is not in use. If the lens is not
installed, protect the surface of the prism by placing the
body cap into the lens mount hole.
pUse a mild blower or lens cleaning tissue designed for
coated lenses, to clean the surface of the lens or prism in
the event that it should become dirty.
pUse a dry cloth to clean the camera if it is dirty. In case
the dirt is hard to remove, use mild detergent and wipe
gently.
pUse caution when operating the camera in the vicinity
of spot lights or bright lights, as well as light reflecting
objects and surfaces.
pTake immediate action if ever the camera should become
wet. Turn the power off and have the unit checked by an
authorized service facility.
pFollow normal safety precautions to avoid personal injury.
pUse the camera in an environment where the
temperature is within –10 °C to +45 °C, and the relative
humidity is within 20 % to 90 %.
pAlways turn the power off when the camera is not going
to be used. Operate the camera only when there is
adequate ventilation.
Precautions for use

- 10 (E) -
ENGLISH
Precautions for installation
Concerning the installation location of the camera
Ensure that the installation location is strong enough to bear
a withdrawal strength of at least five times the total mass,
including the camera, lens and cables.
When installing by mounting to a pan-tilt head or mounting
bracket, ensure that the installation location is strong
enough to bear a withdrawal strength of at least five times
the total mass with this mass included.
The camera cannot be installed or used in the following
locations.
pOutdoor locations and locations where the camera may
be exposed to dripping, splashing or sprayed water
pLocations such as swimming pools where chemicals are
used
pLocations such as a kitchen where the high levels of
steam and oily vapors are present and locations with
flammable atmospheres or other unusual conditions
pLocations where radioactive rays, X-rays or strong radio
waves or magnetic fields are generated
pLocations where the temperature may be outside the
camera’s operating ambient temperature (–10 °C to
45 °C) range
pLocations near the air outlet of an air conditioner or near
a door where the camera will be exposed to incoming
outside air or other locations where the temperature is
subject to sudden change (since these locations may
cause the lens area to cloud over and/or condensation to
form)
pLocations that are subject to significant vibration, such as
on top of a car
pLocations with high levels of humidity or dust
When the camera is not going to be used, do not leave
it in place but be absolutely sure to remove it from its
mounting, and put it away.
Do not run the camera cable near the wiring of electric
lights.
This may result in noise interference.
Concerning electromagnetic interference
The camera’s images may become distorted or noise
interference may result if the camera is used near a
TV or radio transmission antenna or in strong electrical
or magnetic fields (such as one generated by motors,
transformers, etc.).
Using outdoors
The camera is designed to be used indoors.
When using outdoors, be absolutely sure to use the
AW-PH650 outdoor pan-tilt head.
The connection and installation should be done by
qualified service personnel or system installers.
Refer any servicing to qualified service personnel.

- 11 (E) -
Precautions for installation
Concerning the mounting screws and
drop-prevention wire
Attach the drop-prevention wire as a way to prevent the
camera from dropping.
pWhen the unit is to be mounted onto a Panasonic pan-tilt
head, use the mounting screws and drop-prevention wire
that are supplied with the pan-tilt head.
pWhen the unit is to be mounted onto a surface other than
a pan-tilt head, provide your own drop-prevention wire
and camera mounting bracket.
For details of the parts to be provided, refer to the next
page.
pAttach the drop-prevention wire to the camera mounting
screw hole (Inch screw).
Tightening the mounting screws
Tighten using the torque levels shown in the table below.
After tightening, check for play and unsteadiness.
Screws Clamping torque
Mounting screws (Inch screws) 2.0 N • m (20 kgf •cm)
The connection and installation should be done by
qualified service personnel or system installers.
Refer any servicing to qualified service personnel.
Mounting screw for wire (supplied)
(Inch screw: 1/4-20UNC)
Drop-prevention wire
Spring washer (supplied)
Mounting screws
(Inch screws: 1/4-20UNC)
Pan-tilt head or
camera mounting bracket
Flat washers
Spring washers
Flat washer (supplied)

- 12 (E) -
ENGLISH
Precautions for installation
Parts to be provided by the customer for installation
When the unit is to be mounted onto a Panasonic pan-tilt
head, use the mounting screws and drop-prevention wire
that are supplied with the pan-tilt head.
Provide the following parts when the unit is to be mounted
onto a surface other than a pan-tilt head.
Drop-prevention wire* (sold separately): 1
(*Be absolutely sure to use the drop-prevention wire.)
Drop-prevention wires in three different lengths (300 mm,
450 mm and 600 mm) are available as optional
accessories.
Use a wire in the length that will have no slack to suit the
installation location and installation method.
Consult your dealer when you purchase one of these
drop-prevention wires.
ø6.5
ø1.2
Wire length (300, 450, or 600 mm)
(Camera
side) ø6.5
11 mm
(Installation
side)
ø4.2 ø4.2
Wire length (mm) Parts number
300 3CN001064BAA
450 3CN001064BAB
600 3CN001064BAC
Mounting screws (Inch screws: 1/4-20UNC): 2
(For mounting the camera)
Determine the length of
these screws by factoring
in the thickness of the
camera mounting bracket.
Mounting screws (M6) for installation end wire
At the installation location, be absolutely sure to use
the anchor bolts, and ensure that the strength of the
installation surface is at least ten times the total mass of
all units installed.
Flat washers for use with 1/4˝ screws: 2
(For mounting the camera)
Spring washers for use with 1/4˝ screws: 2
(For mounting the camera)
Camera mounting bracket: 1
Use a bracket made of a material and having a shape
that is strong enough to support the total mass of all units
installed, including the camera and lens.
To determine the position of the holes used for mounting
the camera, refer to <Bottom view> on page 13, and
make holes with a diameter of 7 mm (to support
1/4-20UNC mounting screws).
The connection and installation should be done by
qualified service personnel or system installers.
Refer any servicing to qualified service personnel.
7 to 9 mm
Camera mounting
bracket

- 13 (E) -
Major operating controls and their functions
wFront view / Top view / Rear view / Bottom view












<Front view> <Top view>
<Bottom view>
32 mm
20 mm
10 mm
18 mm
<Rear view>
20 mm
32 mm Mounting screws (Inch screws)
1/4-20UNC, Depth: 10 mm
Mounting screws (Inch screws)
1/4-20UNC, Depth: 10 mm
17.5 mm

- 14 (E) -
ENGLISH
Lens mount
2/3˝ bayonet type lens or a microscope adapter can be
mounted.
Lens fixing ring knob
Mount the lens on the camera and rotate the lens fixing
ring knob clockwise in order to fix the lens securely.
Camera mounting screw holes
(Inch screws: 1/4-20UNC)
Use these screw holes to secure the screws when the
camera is to be installed on a wall or ceiling, or when a
pan-tilt head or tripod is to be used. Also, attach the drop-
prevention wire to these screw holes using the mounting
screw for the wire (inch screw: 1/4-20UNC).
Camera mounting adapter
Use this when mounting the camera onto an on-site
bracket, pan-tilt head, or tripod.
MENU switch [MENU]
A menu will appear on the monitor screen when MENU
switch is pressed for at least 3 seconds.
The menu screen is cleared when the switch is pressed
for at least 3 seconds while the menu is displayed.
When this switch is pressed while an item is being
changed on a sub menu screen, the set values will revert
back to those prior to making changes.
ENTER/AWB switch [ENTER/AWB]
If this switch is pressed on the main menu screen, a
sub menu screen with selection items appears, and
if it is pressed on the sub menu screen, the selection
items start flashing to indicate that their settings can be
changed.
Pressing this switch while the camera is in a status where
settings can be changed finalizes changes.
This switch finalizes the “O.K.” or “CANCEL” selection
when pressed in individual confirmation screens (see
pages 84 to 87 for details).
When the menu is not displayed or the camera is in
shooting mode, the automatic white balance control
(AWB) can be set with this switch.
Major operating controls and their functions

- 15 (E) -
Major operating controls and their functions
UP/ABB switch [UP/ABB]
The item just above can be selected by pressing this
switch while the menu is displayed.
When this switch is pressed while an item is able to be
changed on a sub menu screen, the value is adjusted
higher.
When the menu is not displayed or the camera is in
shooting mode, the automatic black balance control
(ABB) can be set with this switch.
DOWN/BAR switch [DOWN/BAR]
The item just below can be selected by pressing this
switch while the menu is on the screen.
When this switch is pressed while an item is able to be
changed on a sub menu screen, the value is adjusted
lower.
When the menu is not displayed, the colour bar and the
shooting conditions are indicated by pressing the switch
for about 2 seconds.
Video output connector [VIDEO OUT]
A composite video signal is provided at this connector.
(1 V [p-p], 75 jBNC connector)
Iris connector [IRIS]
Connect the IRIS cable of the motor drive lens (such
as the AW-LZ17MD9AG and AK-LZ20M85G) to this
connector.
I/F Remote connector [I/F REMOTE]
This connector is used to connect the remote operation
panel (AW-CB400) or pan-tilt head (such as the
AW-PH400).
If the AW-CB400 is to be connected to this connector, a
camera control cable (AW-CA50T8) is required.
Power indicator
Green LED lamp lights to indicate that the specified DC
power is supplied to the DC 12 V input connector .

- 16 (E) -
ENGLISH
DC 12 V input connector [12 V IN]
The model AW-PS505A AC adapter (optional accessory)
is connected here.
For the connection, use a DC cable with ø5.5 plug which
is supplied with AW-HE870.
1. Connect this to a DC 12 V class 2 power supply
only.
2. To prevent fire or shock, the UL listed wire VW-1,
style 1007 should be used as for the cable for DC
12 V input connector.
Cautions
pThe polarities of the DC 12 V input connector are
reversed on the unit from the polarities on existing
convertible cameras.
Be absolutely sure to use the DC cable provided
with the main unit.
Note
Cable clamp
Clamp the DC cable with ø5.5 plug connected to the DC
12 V input connector to prevent it from slipping out.
Be absolutely sure to secure the DC cable using the
cable clamp.
G/L input connector [G/L IN]
External synchronizing signals (BB) are to be supplied
to this connector when the camera is to be synchronized
with the external synchronizing signals.
Three-value synchronizing signals of the HD format are
not supported.
Optional card slot [OPTION CARD]
Slot for inserting an optional card. For details, refer to the
manual for optional cards.
pOnly the optional card (AW-HHD870) that supports
the unit can be used. It is not possible to use any
other cards.
Note
Major operating controls and their functions

- 17 (E) -
Mounting
wLens mounting
pUse the 2/3˝ bayonet type lens (such as the
AW-LZ17MD9AG and AK-LZ20M85G), available as an
optional accessory.
pUse the AW-LZ17MD9AG lens when using the
camera mounted on the pan-tilt head AW-PH360.
Lenses other than the AW-LZ17MD9AG cannot be
used. Do not mount the camera on the AW-PH360
when the AK-LZ20M85G is installed.
The balance cannot be secured.
pTighten the lens fixing ring knob securely to secure
the lens, and check that there is no unsteadiness in
the lens. Also check that there is no unsteadiness in
the hood.
Notes
pUse the lens extension cable AW-CA12T12A if your IRIS
cable is too short.
1. Rotate the lens fixing ring knob counterclockwise and
remove the lens mount cap.
2. Mount the lens on the camera and rotate the lens
fixing ring knob clockwise in order to fix the lens
securely.
3. Connect the IRIS cable to the IRIS connector on the
back panel of the camera.
When the pan-tilt head has been used
pConnect the remote cable of the lens to the LENS IF (1)
terminal on the pan-tilt head.
When the SDI card (AW-HHD870) is installed
without using the pan-tilt head
pConnect the remote cable of the lens to the
ZOOM/FOCUS terminal of the SDI card.
IRIS cable
Remote (for zoom/focus control) cable
(When the pan-tilt head is used, connect this
cable to the pan-tilt head)
To iris
connector
To lens I/F connector of pan-tilt head
Lens fixing
ring knob
To the ZOOM/FOCUS
terminal when the SDI
card is installed without
using the pan-tilt head
The connection and installation should be done by qualified service personnel
or system installers. Refer any servicing to qualified service personnel.

- 18 (E) -
ENGLISH
wMounting the camera onto a pan-tilt head, tripod, camera mounting
bracket, or other part
1. Use the camera mounting screw holes (Inch screws: 1/4-
20UNC) to mount onto a pan-tilt head, tripod, camera
mounting bracket, or other part.
2. Attach the drop-prevention wire using the mounting
screw for wire (Inch screw: 1/4-20UNC) to the camera
mounting screw holes on the camera’s top surface when
mounting the camera with its bottom surface, or on the
camera’s bottom surface when mounting the camera
with its top surface.
When the unit is to be mounted onto a Panasonic pan-tilt
head, use the mounting screws and drop-prevention wire
that are supplied with the pan-tilt head.
When the unit is to be mounted onto a tripod, camera
mounting bracket, or other part, refer to pages 11 to 12,
and provide your own drop-prevention wire, mounting
screws, and washers.
Camera mounting screw holes
(Inch screws: 1/4-20UNC),
Depth: 10 mm
Camera mounting adapter
Preventing the camera from falling or coming
off
pWhen attaching a camera to the pan/tilt head
(AW-PH360/AW-PH400/AW-PH405/AW-PH650),
follow the directions in the Operating Instructions to fix
the camera firmly in position.
In addition, link the camera to the pan/tilt head using
the drop-prevention wire and the mounting screws to
help ensure the camera does not fall.
pWhen attaching the camera on any mounting or other
pan/tilt head (AW-PH360/AW-PH400/AW-PH405/
AW-PH650), check that the mounting can safely
bear the total mass of the camera, lens, connection
cables, etc., fix the camera firmly in position using the
prescribed tool, and take appropriate measures to
prevent the camera from falling.
Mounting The connection and installation should be done by qualified service personnel
or system installers. Refer any servicing to qualified service personnel.

- 19 (E) -
pExample where the camera is mounted on a ceiling or wall
Spring washer (supplied)
Mounting screw for wire
(Inch screw: 1/4-20UNC) (supplied)
Drop-prevention wire (sold separately)
(Ceiling)
Mounting screws [*]
(Inch screws: 1/4-20UNC)
Camera mounting bracket [*]
Flat washers [*]
Spring washers [*]
Secure the end of the wire onto the
M6 anchor bolts by tightening nut or
secure it by tightening the M6 bolts.
[*]: Procured locally
Always mount
using the
anchor bolt.
Flat washer (supplied)
Notes
pWhen installing the mounting bracket or attaching one end of
the drop-prevention wire to the ceiling or a wall, be absolutely
sure to use the anchor bolts, and ensure that the withdrawal
strength of the installation surface is at least ten times the total
mass of all units installed, including the mounting bracket,
camera, lens, and cables.
pEnsure that the total mass, including the mounting bracket,
camera, lens and cables, does not exceed 8 kg.
pEnsure that a drop-prevention wire is installed in such a way
that the drop distance does not exceed 150 mm.
pTighten the mounting screws using the torque levels shown
in the table to the below, and then check for play and
unsteadiness.
Screws Clamping torque
Mounting screws (Inch screws) 2.0 N • m (20 kgf • cm)
pDo not use an impact driver as doing so may cause damage to
the screws.
Camera mounting
bracket [*]
Mounting screws [*]
(Inch screws: 1/4-20UNC)
(Wall)
Mounting screw for wire (supplied)
(Inch screw: 1/4-20UNC)
Spring washer (supplied)
Drop-prevention wire (sold separately)
Flat washers [*]
Spring washers [*]
Secure the end of the wire onto the
M6 anchor bolts by tightening nut or
secure it by tightening the M6 bolts.
[*]: Procured locally
Always mount
using the
anchor bolt.
Flat washer (supplied)
Mounting The connection and installation should be done by qualified service personnel
or system installers. Refer any servicing to qualified service personnel.
