1 Introduction
This document
1
describes the Alert Annunciation Units 1735 & 1736
(Larmlagringstablå).
For a detailed description of the AA function, see Planning and
Operating instructions for the system respectively.
The Alert annunciation units 1735 & 1736 shall run in SW mode
1735 –1587 and SW mode 1736 –1587 respectively.
See also chapter "General description", page 5.
This document is valid for the 1735 & 1736 software version 1.4.x.
The Alert annunciation units 1735 & 1736 can be used in the systems
EBL512, EBL128 and EBL512 G3.
In system EBL512 G3 the 1735 / 1736 a software version > 1.4.x. has
to be used.
1
Original file name: L:\User documents\EBL\Doc\Eng\MEW01295 (Rev
2).doc

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
4
2 Definitions / Explanations
Definitions / explanations / abbreviations / etc. frequently used or not
explained elsewhere in the document.
AA Alert Annunciation
AAU Alert Annunciation Unit
AA alarm Alert Annunciation alarm
AA function Alert Annunciation function
C.i.e. Control and indicating equipment (=control unit)
C.U. Control unit (=Control and indicating equipment)
SW Software
HW Hardware

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
5
3 General description
When the Alert Annunciation function shall be used in the systems
EBL512, EBL128 and EBL512 G3, one or more AA units are
required to present the AA alarms and for the related manoeuvres, i.e.
to acknowledge / reset the alarms.
The LED "L6" (Operation - Drift) is indicating if the "Alert
Annunciation" function is enabled or disabled
2
.
When the AA function is enabled ("L6" on) and a fire alarm in the
system, the LED "L3" (Fire brigade alerted –Räddningstjänsten
larmad) is indicating if it is an AA alarm or not.
Off = AA alarm. On = no AA alarm / Output "Fire brigade tx"
activated.
The LED "L4" (Acknowledged - Kvittering) is indicating if the AA
alarm has been acknowledged. See also chapter "Operation", page 29.
3.1 Alert Annunciation Unit 1735
Figure 1. The Alert Annunciation Unit (AAU) 1735 has a
Swedish front.
The Alert Annunciation Unit consists of a compact size enclosure
made of grey (RAL 7035) high impact ABS, with temperature
resistance up to 85° C. Fitted with a supplementary "O" ring gasket, it
will comply with IP65, in respect of dust and moisture. The unit has
no door, i.e. the front is accessed directly, when required. The push
buttons are disabled until they are supposed to be used, i.e. when an
AA alarm is activated. The unit shall be wall mounted. The unit is
intended for indoor use and in dry premises. Two compression glands
TET 7-10 (IP67) for cable inlets are attached.
2
The AA function is normally enabled (during daytime) / disabled (during
night-time) via a time channel.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
6
3.1.1 SW mode 1735 - 1587
The Alert Annunciation Unit 1735 has to run in SW mode 1735 –
1587. 1735 succeeds the existing Display unit with alert annunciation
2235SE (with Swedish designation texts) but not as a spare part, since
the 2235SE unit is connected to a COM loop.
In system EBL512, 1735 units running in SW mode 1735 –1587 have
to be connected to an Ext. FBP / DU interface board 1587 mounted
in the EBL512 c.i.e. EBL512 software version > 2.2 is required.
In system EBL128, 1735 units running in SW mode 1735 –1587 are
connected directly to the main board connector "J1" but an optional
RS485 transceiver component 4552 has to be plugged on the main
board.
In system EBL512 G3, 1735 units running in SW mode 1735 –1587
are connected directly to the main board connector "J4".
3.2 Alert Annunciation Unit 1736
Figure 2. The Alert Annunciation Unit (AAU) 1736. A neutral
front where the designation texts, by production, are made
separately and put into the transparent "text slot" for the LED
and push button respectively. (It also holds one extra LED &
two extra push buttons.)
The Alert Annunciation Unit consists of a compact size enclosure
made of grey (RAL 7035) high impact ABS, with temperature
resistance up to 85° C. Fitted with a supplementary "O" ring gasket, it
will comply with IP65, in respect of dust and moisture. The unit has
no door, i.e. the front is accessed directly, when required. The push
buttons are disabled until they are supposed to be used, i.e. when an
AA alarm is activated. The unit shall be wall mounted. The unit is
intended for indoor use and in dry premises. Two compression glands
TET 7-10 (IP67) for cable inlets are attached.
3.2.1 SW mode 1736 - 1587
The Alert Annunciation Unit 1736 has to run in SW mode 1736 –
1587. 1736 succeeds the existing Display unit with alert annunciation

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
7
2235cc (with designation texts in another language than Swedish) but
not as a spare part, since the 2235cc unit is connected to a COM loop.
In system EBL512, 1736 units running in SW mode 1736 –1587 have
to be connected to an Ext. FBP / DU interface board 1587 mounted
in the EBL512 c.i.e. EBL512 software version > 2.2 is required.
In system EBL128, 1736 units running in SW mode 1736 –1587 are
connected directly to the main board connector "J1" but an optional
RS485 transceiver component 4552 is required on the main board.
In system EBL512 G3, 1736 units running in SW mode 1735 –1587
are connected directly to the main board connector "J4".

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
8
4 Selective Fire alarm presentation
Normally all fire alarms will be presented in the c.i.e:s, ext. FBP:s and
Presentation units, etc. There are some possibilities to select which
alarms that shall be presented in each unit. It is also programmable, if
the fire alarm presentation shall be according to EN54, i.e. when only
one point in a zone is in alarm status it will be presented as a point
alarm (zone and address), else presented as a zone alarm.
4.1 Alert Annunciation Units 1735 & 1736
The alarm presentation in an AA unit will be like in the c.i.e. that the
AA unit is connected to, i.e. point alarm or zone alarm presentation.
See Operating Instructions, chapter "Fire alarm" for the system
respectively.
Via Win512 / Win128 / Win512 G3, it is possible to select which
alarms that shall be presented in the AA unit respectively. For
example, if there are many buildings in an installation, the AA unit in
one specific building shall only present alarms activated within this
building.
The following, so called operands are available (CU alternatives not
valid for EBL128):
1. Control unit (CU)
2. Consecutive control units (CU1, CU2)
3. Zone (zone)
4. Consecutive zones (zone1, zone2)
5. Zone –address (zone, addr)
6. Consecutive zone –addresses (zone1, addr1, zone2, addr2)
Explanations:
1. CU = Control unit number (c.i.e. no. 00-29)
2. CU1 = The first control unit number in the sequence. CU2 = The
last control unit number in the sequence.
3. zone = Zone number (001-999) In EBL128 (01-32).
4. zone1 = The first zone number in the sequence. zone2 = The last
zone number in the sequence.
5. zone, addr = Zone number and address within the zone (001, 01 –
999, 99)
6. zone1, addr1 = The first zone number and address in the sequence.
zone2, addr2 = The last zone number and address in the sequence.
Up to 50 operands can be used to make a, so called selector for an AA
unit. Here follows a selector example:
Control unit (00), Consecutive zones (100, 500), Zone –address
(900, 01) In this AA unit will only be presented alarms that origin
from the c.i.e. no. 00 or from zone 100 up to and including zone 500
or from the alarm point 900-01.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
9
Default for each AA unit is, in system EBL512 and EBL512 G3:
Control units (00, 29), i.e. all alarms from all c.i.e:s will be presented
in all AA units.
Default for each AA unit is, in system EBL128: Zones (01 - 32), i.e.
all alarms will be presented in all ext. FBPs.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
10
5 LED indicators, Push buttons, etc.
The functions of the LEDs, push buttons, display and buzzer are
described below.
5.1 Alert Annunciation Unit 1735 front

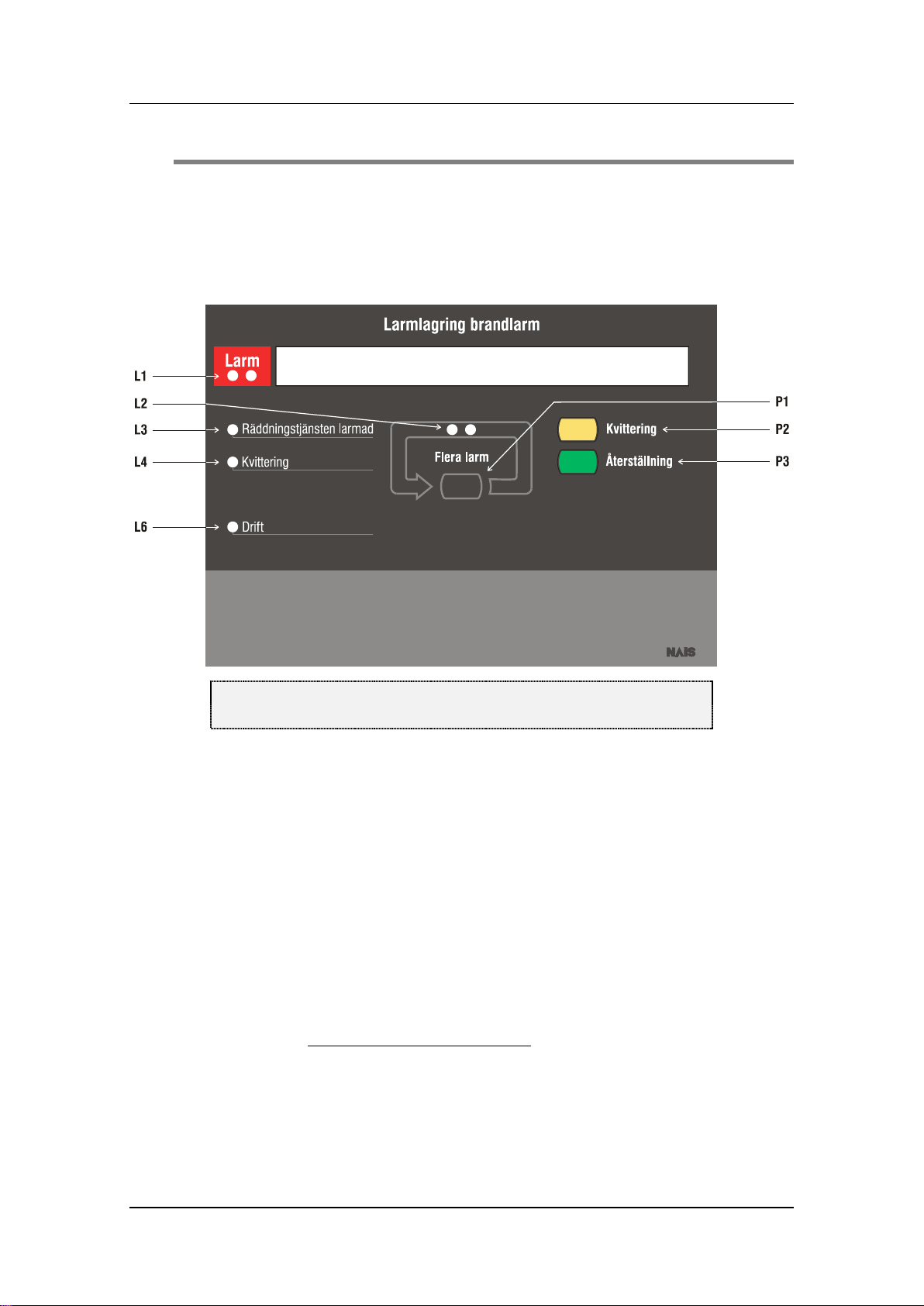

Figure 3. The Alert Annunciation Unit (AAU) 1735 front. The
designation texts are in Swedish. See also tables below.
The following is valid in quiescent (normal) condition:
LED "L6" (Operation) is turned on if the alert annunciation
function is enabled
3
, else turned off.
Buzzer is silent.
No text in the display and no back-light.
No button possible to use.
4
In the following tables, AA = Alert Annunciation.
3
The AA function is normally enabled (during daytime) / disabled (during
night-time) via a time channel.
4
Press simultaneously "P2" (Acknowledge) & "P3" (Reset) for a test of the
LEDs, the buzzer and the display (back-light and dots). NOTE! This must
be done only in quiescent condition.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
11
Table of LED indicators:
LED indicator
Colour
Indicating
L1
Alarm (Larm)
2 x Red
Blinking+
LED
"L6"
turned on
+ Buzzer
(interm.)
AA alarm (Acknowledge time starts.)
Blinking+
LED
"L3"
turned on
(no
buzzer).
Fire alarm (i.e. not an AA alarm).
Cont. (no
buzzer)
AA alarm(s) is/are acknowledged.
L2
Alarms queued
(Flera larm)
2 x Red
Blinking
More than one alarm. Use push button
"P1" (Alarms queued) to scroll.
L3
Fire brigade alerted
(Räddningstjänsten
larmad)
Red
Cont.
Output(s) for "Fire brigade tx" are
activated.5
L4
Acknowledge
(Kvittering)
Yellow
Cont.
All AA alarms have been acknowledged
by the push button "P2" (Acknowledge)
and new AA alarms will be
automatically acknowledged.
L5
-
-
-
-
L6
Operation (Drift)
Green
Cont.
The AA function is enabled.
Off
The AA function is not enabled.
NOTE! Regarding "L2", see also chapter "SW mode & Address
setting, page 16.
5
Indicating the same way as in the c.i.e. the AA unit is connected to, i.e. by
activated output(s) of the corresponding type or an activated input.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
12
Table of push buttons:
Push button
Colour
Operation / function
P1
Alarms queued
(Flera larm)
Black
Used, when LED "L2" (Alarms queued) is turned on,
to scroll through the queued alarms. (The first alarm
will automatically be shown again after 20 seconds,
if no button is used during that time.)
P2
Acknowledge
(Kvittering) 6
Yellow
Used to acknowledge an AA alarm. The unit's
buzzer will also be silenced. (Investigation time
starts.) Acknowledged AA alarm is indicated by
LED "L4" (Acknowledge).
P3
Reset
(Återställning) 6
Green
Used to reset all AA alarm(s). (Fire alarms, i.e. not
AA alarms, have to be reset in the c.i.e.). So called
"encapsulation" is not possible to do.
NOTE! Regarding "P1" and "P2", see chapter "SW mode & Address
setting, page 16 and regarding "P3", chapter "SW version", page 27.
Table of others:
Component
Indicating
Buzzer7
1 beep/5 s
AA alarm.
Cont. + All LEDs
turned off as well.
There is a CPU / memory fault in the unit.
Display
All or selected Fire alarms8/ AA alarms presented like in the
c.i.e. that the AA unit is connected to and an alarm text (if
programmed).
(NOTE! A fault message may be shown, indicating a
communication fault (i.e. no connection between the unit and
the c.i.e.).
NOTE! Regarding the Buzzer and the Display, see also chapter "SW
mode & Address setting, page 16.
6
Press simultaneously "P2" (Acknowledge) & "P3" (Reset) for a test of the
LEDs, the buzzer and the display (back-light and dots).
NOTE! This must be done only in quiescent condition.
7
The buzzer may be programmed as "disabled" (via Win512 / Win128 /
Win512 G3), i.e. it will never sound.
8
Also Heavy smoke / heat alarms.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
13
5.2 Alert Annunciation Unit 1736
The Alert Annunciation unit is also available with a neutral front. The
designation texts for the LEDs and push buttons have to be made
separately and put into a "text slot" for the LED / push button
respectively.
Figure 4. The Alert Annunciation Unit (AAU) 1736 neutral front.
The following is valid in quiescent (normal) condition:
LED "L6" is turned on if the alert annunciation function is
enabled
9
, else turned off.
Buzzer is silent.
No text in the display and no back-light.
No button possible to use.
10
9
The AA function is normally enabled (during daytime) / disabled (during
night-time) via a time channel.
10
Press "P5" (Test) for a test of the LEDs, the buzzer and the display (back-
light and dots). NOTE! This must be done only in quiescent condition.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
14
Table of LED indicators:
LED indicator
Colour
Indicating
L1
(Depending on
language, etc.
"Alarm")
2 x Red
Blinking+
LED
"L6"
turned on
+ Buzzer
(interm.)
AA alarm (Acknowledge time starts.)
Blinking+
LED
"L3"
turned on
(no
buzzer).
Fire alarm (i.e. not an AA alarm).
Cont. (no
buzzer)
AA alarm(s) is/are acknowledged.
L2
(Depending on
language, etc.
"Alarms queued")
2 x Red
Blinking
More than one alarm. Use push button
"P1" to scroll.
L3
(Depending on
language, etc.
"Fire brigade
alerted")
Red
Cont.
Output(s) for "Fire brigade tx" are
activated.11
L4
(Depending on
language, etc.
"Acknowledge")
Yellow
Cont.
All AA alarms have been acknowledged
by the push button "P2" and new AA
alarms will be automatically acknow-
ledged.
L5
(Depending on
language, etc.
"Extinguishing")
Red
Cont.
Output(s) for "Extinguishing" are
activated.11
L6
(Depending on
language, etc.
"Operation")
Green
Cont.
The AA function is enabled.
Off
The AA function is not enabled.
NOTE! Regarding "L2", see also chapter "SW mode & Address
setting, page 16.
11
Indicating the same way as in the c.i.e. the AA unit is connected to, i.e. by
activated output(s) of the corresponding type or an activated input for the
LED respectively.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
15
Table of push buttons:
Push button
Colour
Operation / function
P1
(Depending on
language, etc.
"Alarms queued")
Black
Used, when LED "L2" is turned on, to scroll
through the queued alarms. (The first alarm will
automatically be shown again after 20 seconds, if
no button is used during that time.)
P2
(Depending on
language, etc.
"Acknowledge")
Yellow
Used to acknowledge an AA alarm. The unit's
buzzer will also be silenced. (Investigation time
starts.) Acknowledged AA alarm is indicated by
LED "L4".
P3
(Depending on
language, etc.
"Silence alarm devices")
Red
Used to silence the alarm devices.
(Normal fire alarms & AA alarms.) 12
P4
(Depending on
language, etc.
"Reset")
Green
Used to reset all AA alarm(s). (Fire alarms, i.e.
not AA alarms, have to be reset in the c.i.e.). So
called "encapsulation" is not possible to do.
P5
(Depending on
language, etc.
("Test")13
White
Used for testing the LEDs, the buzzer and the
display (back-light and dots). NOTE! This must
be done only in quiescent condition.
NOTE! Regarding "P1" and "P2", see chapter "SW mode & Address
setting, page 16 and regarding "P3", chapter "SW version", page 27.
Table of others:
Component
Indicating
Buzzer14
1 beep/5 s
AA alarm.
Cont. + All LEDs
turned off as well.
There is a CPU / memory fault in the unit.
Display
All or selected Fire alarms / AA alarms presented like in the
c.i.e. that the AA unit is connected to and an alarm text (if
programmed). (NOTE! A fault message may be shown,
indicating a communication fault (i.e. no connection between
the unit and the c.i.e.).
NOTE! Regarding the Buzzer and the Display, see also chapter "SW
mode & Address setting, page 16.
12
If the "Silence alarm devices" button in the c.i.e. has been programmed to
"Disable alarm devices", "P3" will have the same function. "P3" cannot be
used until a fire or AA alarm is activated in the system.
13
Press "P5" (Test) for a test of the LEDs, the buzzer and the display (back-
light and dots). NOTE! This must be done only in quiescent condition.
14
The buzzer may be programmed as "disabled" (via Win512 / Win128 /
Win512 G3), i.e. it will never sound.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
16
6 SW mode & Address setting
Alert Annunciation Unit 1735 can run in SW mode 1735 - 1587 only.
It shall also have a unique address on the RS485 line connected to the
1587 board in the EBL512 c.i.e. See EBL512 Planning Instructions.
Alert Annunciation Unit 1736 can run in SW mode 1736 - 1587 only.
It shall also have a unique address on the RS485 line connected to the
1587 board in the EBL512 c.i.e. See EBL512 Planning Instructions.
The SW mode 1736 –1587 shall be used in system EBL128 and an
optional RS485 transceiver component 4552 is required on the main
board in the EBL128 c.i.e. It shall also have a unique address on the
RS485 line connected to the main board connector "J1". See EBL128
Planning Instructions.
The SW mode 1736 –1587 shall be used in system EBL512 G3. It
shall also have a unique address on the RS485 line connected to the
main board connector "J4". See EBL512 G3 Planning Instructions.
6.1 SW mode setting
A brand new AA unit has no SW mode. It is factory set to "Not
selected" (and is hereby not addressable). When it is powered it will
automatically be ready for the "SW mode setting".
As an alternative, an AA unit in operation
15
can be ready for the "SW
mode setting" via the jumper "J4" in the unit. See the following
chapter.
When the AA unit is ready for the "SW mode setting" this is indicated
by the LED "L2" (Alarms queued). The back-light is turned on and
the following information is shown in the display:
MODE SETTING! Change = Black
Type: xxxxxxxxxxxx Store = Yellow
XXXXXXXXXXXX can be changed to one of the following:
- 1735 –1587 (1735 only)
- 1736 - 1587 (1736 only)
- 1826 –1587 2nd Cab
- 1826 –1582 2nd Cab
- 1826/28 - 1587
- 1826/28 - 1582
- 1728 - 1587
- 1728 - 1582
- Not selected
Scroll to the wanted SW mode with the push button "P1" (black).
Store the selected SW mode with the push button "P2" (yellow) and
15
Or when a unit, not in operation but with the mode and address set before,
is powered.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
17
the unit will automatically be ready for the "Address setting ", see
below.
6.1.1 SW mode setting via jumper "J4"
An AA unit in operation15 will be ready for the "SW mode setting"
via the jumper "J4" in the unit. Activate "J4" momentarily.
16
When the AA unit is ready for the "SW mode setting" this is indicated
by the LED "L2" (Alarms queued). The back-light is turned on and
the following information is shown in the display:
MODE SETTING! Change = Black
Type: xxxxxxxxxxxx Store = Yellow
Continue in accordance with chapter "SW mode setting", page 16.
6.2 Address setting
After the SW mode setting, the AA unit is ready for the "address
setting".
As an alternative, an AA unit in operation
17
can be ready for the
"address setting" directly via a c.i.e. menu. See the following chapter.
When the AA unit is ready for the "address setting" this is indicated
by the LED "L2" (Alarms queued). The back-light is turned on and
the following information is shown in the display:
ADDRESS SETTING Change = Black
Address: XX Store = Yellow
XX can be changed to the following:
For an AA unit, the address can be set to 00-15.
18
(Default is "00".)
Scroll to the wanted address with the push button "P1" (black). Store
the selected address with the push button "P2" (yellow) and the unit
will automatically restart and enter its normal operation mode.
19
6.2.1 Address setting mode via the c.i.e.
A specific AA unit or all the AA units connected to the same line
(RS485) can, in normal operation, from the c.i.e. receive a command
and get ready for the "Address setting" directly. This is done via
16
If "J4" is not removed, the AA unit will not enter its normal operation
mode after the restart but start from the beginning again, ready for the SW
mode setting.
17
Or all the AA units connected to the same Ext. FBP / DU interface board
1587.
18
This is the max. no. of addresses. The max. no. of units connected to a
board is depending on the type of units and if ext. power supply is used.
19
If the unit has no SW mode, i.e. "Not selected", it will not enter its normal
operation mode after the restart but start from the beginning again, ready for
the SW mode setting.

Panasonic Electric Works Nordic AB
MEW01295 Rev: 2 Technical Description Alert Annunciation Units 1735 & 1736, ver. 1.4.x
18
menu H5/A9 (A7 in system EBL512 G3), see Operating instructions
for the system respectively.
6.3 Flow chart
On the following page is a flow chart, showing the SW mode setting,
Language setting
20
, Address setting, etc.
20
Language setting is not valid for the AA units 1735 & 1736.
