Panasonic KX-T336 User manual

Panasonic
KX-T336 SYSTEM
KX - A220
Printed in Japan ., PQQX6483YA Q069101053M

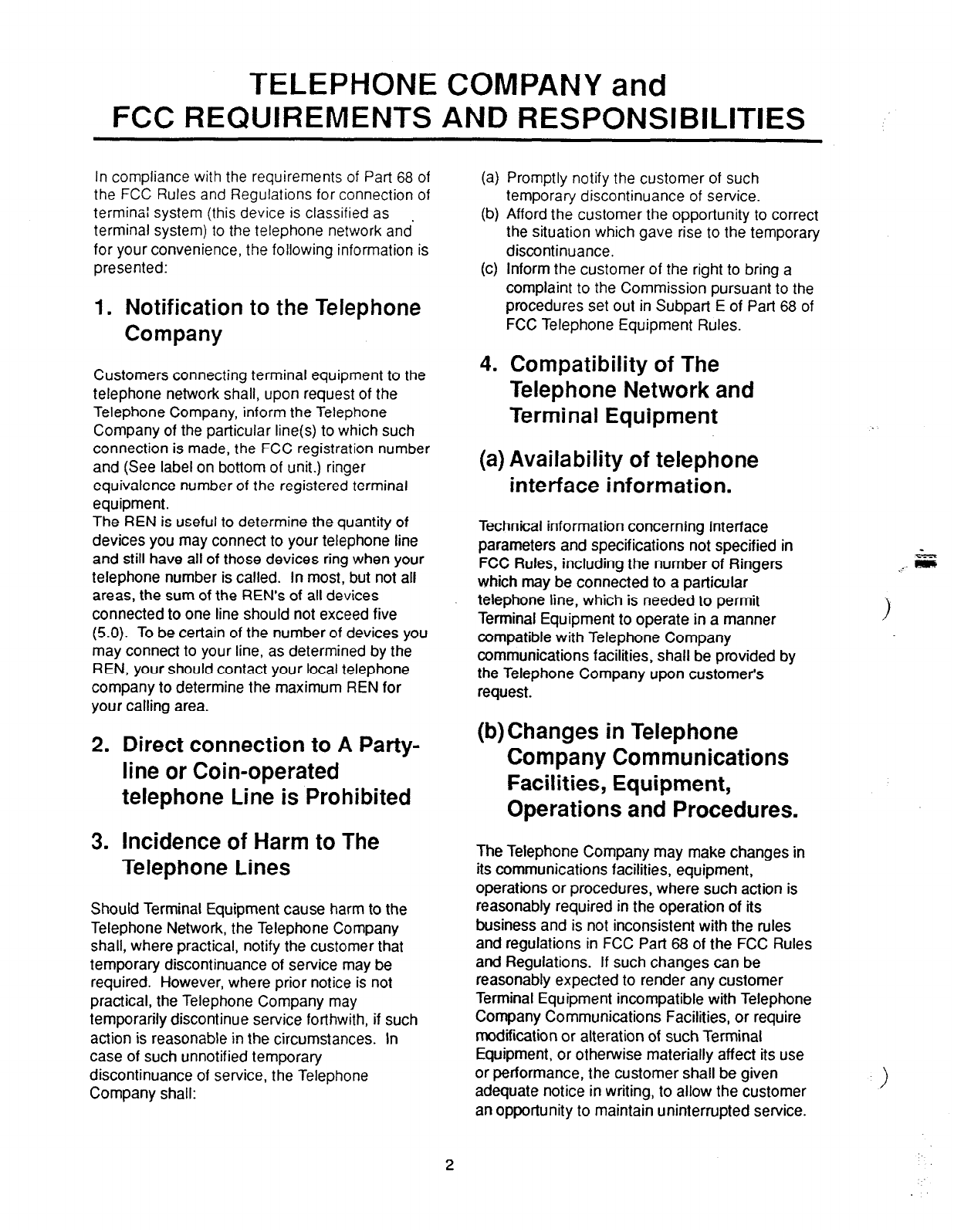

TELEPHONE COMPANY and
FCC REQUIREMENTS AND RESPONSIBILITIES
In compliance with the requirements of Part 68 of
the FCC Rules and Regulations for connection of
terminal system (this device is classified as
terminal system) to the telephone network and’
for your convenience, the following information is
presented:
1. Notification to the Telephone
Company
Customers connecting terminal equipment to the
telephone network shall, upon request of the
Telephone Company, inform the Telephone
Company of the particular line(s) to which such
connection is made, the FCC registration number
and (See label on bottom of unit.) ringer
equivalence number of the registered terminal
equipment.
The REN is useful to determine the quantity of
devices you may connect to your telephone line
and still have all of those devices ring when your
telephone number is called. In most, but not all
areas, the sum of the REN’s of all devices
connected to one line should not exceed five
(5.0). To be certain of the number of devices you
may connect to your line, as determined by the
REN, your should contact your local telephone
company to determine the maximum REN for
your calling area.
2. Direct connection to A Party-
line or Coin-operated
telephone Line is Prohibited
3. Incidence of Harm to The
Telephone Lines
Should Terminal Equipment cause harm to the
Telephone Network, the Telephone Company
shall, where practical, notify the customer that
temporary discontinuance of service may be
required. However, where prior notice is not
practical, the Telephone Company may
temporarily discontinue service forthwith, if such
action is reasonable in the circumstances. In
case of such unnotified temporary
discontinuance of service, the Telephone
Company shall:
(4
(b)
(cl
4.
Promptly notify the customer of such
temporary discontinuance of service.
Afford the customer the opportunity to correct
the situation which gave rise to the temporary
discontinuance.
Inform the customer of the right to bring a
complaint to the Commission pursuant to the
procedures set out in Subpart E of Part 68 of
FCC Telephone Equipment Rules.
Compatibility of The
Telephone Network and
Terminal Equipment
(a) Availability of telephone
interface information.
Technical information concerning interface
parameters and specifications not specified in
FCC Rules, including the number of Ringers
which may be connected to a particular
telephone line, which is needed to permit
Terminal Equipment to operate in a manner
compatible with Telephone Company
communications facilities, shall be provided by
the Telephone Company upon customer’s
request.
(b) Changes in Telephone
Company Communications
Facilities, Equipment,
Operations and Procedures.
The Telephone Company may make changes in
its communications facilities, equipment,
operations or procedures, where such action is
reasonably required in the operation of its
business and is not inconsistent with the rules
and regulations in FCC Part 68 of the FCC Rules
and Regulations. If such changes can be
reasonably expected to render any customer
Terminal Equipment incompatible with Telephone
Company Communications Facilities, or require
modification or alteration of such Terminal
Equipment, or otherwise materially affect its use
or performance, the customer shall be given
adequate notice in writing, to allow the customer
an opportunity to maintain uninterrupted service.

OTHERS
l Keep the unit away from heating appliances
and electrical noise generating devices such as
fluorescent lamps, motors and television.
These noise sources can interfere with the
performance of the EASA-PHONE.
l This unit should be kept free of dust, moisture,
high temperature and vibration, and should not
be exposed to direct sunlight.
l Never attempt to insert wires, pins, etc. into
the vents or other holes of this unit.
l If there is trouble, disconnect the unit from the
telephone line. Plug the telephone directly into
the telephone line. If the telephone operates
properly, do not reconnect the unit to the line
until the trouble has been repaired by an
authorized Panasonic Factory Service Center.
If the telephone does not operate properly,
chances are that the trouble is in the telephone
system, and not in the unit.
l Do not use benzine, thinner, or similar solvents.
Do not use abrasive powder to clean the
cabinet. Wipe it with a soft cloth.
NOTE: This equipment has been tested and
found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential
area is likely to cause harmful interference in
which case the user will be required to correct
the interference at his own expense.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.
3

IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment,
basic safety precautions should always
be followed to reduce the risk of fire,
electric shock and injury to persons,
including the following:
1 . Read and understand all instructions.
2.
3.
4.
5.
6.
i.
Follow all warnings and instructions marked
on the product.
Unplug this product from the wall outlet
before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for
cleaning.
Do not use this product near water, for
example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or
near a swimming pool.
Do not place this product on an unstable cart,
stand, or table. The product may fall,
causing serious damage to the product.
Slots and openings in the cabinet and the
back or bottom are provided for ventilation, to
protect it from overheating, these openings
must not be blocked or covered. The
openings should never be blocked by placing
the product on the bed, sofa, rug, or other
similar surface. This product should never be
placed near or over a radiator or heat
register. This product should not be placed in
a built-in installation unless proper ventilation
is provided.
This product should be operated only from
the type of power source indicated on the
marking label. If you are not sure of the type
of power supply to your home, consult your
dealer or local power company.
8. This product is equipped with a three wire
grounding type plug, a plug having a third
(grounding) pin. This plug will only fit into a
grounding type power outlet. This is a safety
feature. If you are unable to insert the plug
into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat
the safety purpose of the grounding type
plug.
9. Do not allow anything to rest on the power
cord. Do not locate this product where the
cord will be abused by persons walking on it.
10. Do not overload wall outlets and extension
cords as this can result in the risk of fire or
electric shock.
11. Never push objects of any kind into this
product through cabinet slots as they may
touch dangerous voltage points or short out
parts that could result in a risk of fire or
electric shock. Never spill liquid of any kind
on the product.
12. To reduce the risk of electric shock, do not
disassemble this product, but take it to a
qualified serviceman when some service or
repair work is required. Opening or removing
covers may expose you to dangerous
voltages or other risks. Incorrect reassembly
can cause electric shock when the appliance
is subsequently used.
4
:.-
‘.:,
:I .:

13. Unplug this product from the wall outlet and
refer servicing to qualified service personnel
under the following conditions:
14. Avoid using a telephone (other than a
cordless type) during an electrical storm.
There may be a remote risk of electric shock
from lightning.
A. When the power supply cord or plug is
damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or
water.
15. Do not use the telephone to report a gas leak
in the vicinity of the leak.
D. If the product does not operate normally
by following the operating instructions.
Adjust only those controls, that are
covered by the operating instructions
because improper adjustment of other
controls may result in damage and will
often require extensive work by a qualified
technician to restore the product to normal
operation.
E. If the product has been dropped or the
cabinet has been damaged.
F. If the product exhibits a distinct change in
performance.
Y
SAFETY INSTALLATION INSTRUCTIONS
When installing telephone wiring, basic
safety precautions should always be
followed to reduce the risk of fire, electric
shock and injury to persons, including
the following;
1. Never install telephone wiring during a
lightning storm.
2. Never install telephone jacks in wet locations
unless the jack is specifically designed for
wet locations.
3. Never touch uninsulated telephone wires or
terminals unless the telephone line has been
disconnected at the network interface.
4. Use caution when installing or modifying
telephone lines.
5

A. Overview
1.OOThe Structure of This Manual
introduction
This system reference manual provides general
technical information on Panasonic KX-T336
system.
This includes a description of the system, its
hardware and software, features and service,
environmental requirements.
This manual is intended to serve as an overall
technical reference for the system.
Organization
This manual is comprised of the following 19
sections.
Section 1 System Outline
This section describes the overall information of
the system and the constnxtion of this Service
Reference Manual.
Section 2 installation
This section describes how to install and start up
the system.
Section 3 System Features and Operation
This section describes the basic system features.
Section 4 Station Features and Operation
(PITS)
This section describes the basic features and
operations from the viewpoint of Proprietary
Integrated Telephone System (PITS) users.
The basic features and required operations for
DSS console are also described.
Section 5 Station Feature and Operation (SLT)
This section describes the basic features and
operations from the viewpoint of Single Line
Telephone (SLT) users.
Section 6 Station Feature and Operation (ATT)
This section describes the basic features and
operations from the viewpoint of the Attendant
Console (ATT) Operator.
Section 7 Preparation for Programming and
Operation (VT220 and Compatibles)
This section describes the basic usage and
available functions of VT220 and Compatibles.
Section 8 Preparation for Programming and
Operation (Dumb)
This section describes the basic usage and
command reference of Dumb terminal.
Section 9 System Programming (VT220 and
Compatibles)
This section provides information for the
programming of the system database using VT220
and Compatibles.
Section 10 System Programming (Dumb)
This section provides information for the
programming of the system database using Dumb
terminal.
Section 11 System Programming (PITS)
This section provides information for a certain
programming of the system database using PITS
telephone.
Section 12 Station Programming (PITS)
This section provides information for the
programming of various features specific to each
PITS telephone and DSS console using PITS
telephone.
Section 13 Station Programming (ATT)
This section provides information for the
programming and the back-up of the attendant
console database using the attendant console.
Section 14 Maintenance (VT220 and
Compatibles)
This section describes the information necessary
for monitoring, testing, and maintaining the system
using VT220 and Compatibles.
Section 15 Maintenance (Dumb)
This section describes the information necessary
for monitoring, testing, and maintaining the system
using Dumb terminal.
Section 16 Backup Utility-On-Site
This section provides the information for saving
and loading of the system programming data
(including attendant console database) at on-site.
Section 17 Backup Utility-Remote Location
This section provides the information for saving
and loading the system programing data (including
attendant console database) from a remote
location.
Section 18 Abbreviations
This section provides a list of abbreviations used
in this manual.
Section 19 index
1-A-l

3.00 System Description 4.00 Communications Needs
The system can consist of one, two, or three
shelves (Basic and Expansion l(2) and
Attendant Console. Each shelf contains its own
power supply.
Basic shelf is always required and it can be
equipped with up to 96 lines (including
Extensions and CO lines).
Building Block System
Useful to enlarge system’s ability by installing the
optional Expansion Shelf.
Up to two Expansion Shelves can be installed to
the system.
Each expansion shelf can be equipped with up to
120 lines (including Extensions and CO lines).
Flexible Ports
Up to 336 lines (including Extensions and CO
lines) can be connected with this system.
However Extensions (including DSS consoles)
must be 288 lines or less and CO lines must be
144 lines or less.
Up to two Attendant Consoles (option-with CRT
display) can be connected to the system if ATLC
card is equipped with this system.
Attendant Console can be used for call
processing and system programming in
interactive format.
Switched Loop Attendant Console Operation
makes the handling of incoming calls more
efficient than conventional system.
Starting up the System Administration and
Maintenance of this system can be done using
VT220 (VTlOO), Compatibles, Dumb terminal or
Attendant Console.
Not only Panasonic Proprietary Integrated
Telephones (PITS) but Single Line Telephones
(SLT) can be used as Extension Telephones in
this system.
To meet the user’s communications needs, lhis
system provides the following features.
Outgoing Call Features
Toll Restrictions allow the manager to restrict
extension users from making certain types of
calls.
Restriction is administered through outward
restriction, toll restriction, and ARS restriction.
Automatic Route Selection tARSI provides for
the routing of calls over the telecommunication
network based on preferred routes (normally the
least expensive route available at the time the
call is made) with capacity for multiple common
carriers.
.. !
Receiving Features
Q&ct inward Dialina (DID1allows outside parties
to reach specific inside parties or facilities by
direct dialing without attendant assistance.
Direct Inward Svstem Access (DlSAj allows the
outside parties to dial directly into this system
and access to certain system’s features and
facilities without attendant assistance.
After gaining access to the system, the outside
party can access certain system’s features by
dialing the appropriate feature number.
Uniform Call Distribution tUCDZallows incoming
calls to be distributed uniformly to a specific
group of extensions. Calls to a UCD group hunt
for an idle extension in a circular way, starting at
the extension following the last one called.
InterceDtRouting-No Answec allows calls that are
not answered within a specified time set period to
be redirected to an individual covering extension
and/or an attendant console.
Station Hunting provides automatic redirection of
incoming calls to pre-assigned extension of a
hunting group in a circular way or one way when
the called party is busy.
l-A-3

Holding Features Conversation Features
w allows an extension user to suspend a call.
This feature allows users to temporarily
disconnect from one conversation and either
make or answer another call. Music on-hold or
message may be provided to the held party if
available.
Conference allows up to 3 parties (maximum two
outside parties), including the originator, to join a
call.
Call Park allows a user to place a call on hold,
then pick up the call at any station in the system.
The user can page another party to pick up the
parked call or may move to another location and
then re-access the call.
Paging Features
&C&Q allows extension users to make
announcement through built-in speaker of
Proprietary Integrated Telephone (PITS) and/or
external Pager Equipments.
Other Features
Transferring Features
Jransfer allows a user to transfer any call to
another party.
This feature supports transfer of calls from the
called party to another party for completion of a
transaction.
IOIIMessage netall Recordina fa)
generates detailed call information on all CO
calls and sends this information to the printer.
SMDR also generates detailed data on Error Log
Records, System Programming Data and Traffic
Information.
I;all Forwarding allows users who are away from
their phones to receive calls at another phone.
This feature supports roving personnel and
shared office space or company staff.
Off Premise Fxtension (OPa allows Single Line
Telephones (SLT) installed off the premises can
be operated via a public or private network in
exactly the same way as extension on the
premise.
No. Item Maximum number
1 Tenant 2
2 Operator 2
3 Speed Dialing-System 200
4 Speed Dialing-StationISLT 10
5 One Touch Dialing-Station/PITS 23
6 Call Park Area 20
7 Programmable Absent Message 10
8 Trunk Group 16
9 Equal Access Group 4
10 OCC Access Group 4
11 Toll Restriction Level 16
12 Paging Group 8
13 ICM Group 8
14 Pickup Group 32
15 UCD Group 32
16 Class of Service 32
17 Primary DN (PDN) 3
18 Message Waiting 500
Account Code Fntrv allows a user to associate
calls with an account code for charge-back
purposes.
3
per system/
station
system
tenant
system
station
station
system
system
system
system
system
system
system
system
system
system
system
station
system
1-A-4

(Section 5)
Station Features and Operation
Single Line Telephone (SLT)
Contents
Page
A Outgoing Ca!l Features..........._......................
.................................................. 5-A-1
1.oo
2.00
3.00
4.00
5.00
6.00
7.00
8.00
Making Outside Calls............................................................................. 5-A-1
1.Ol Local Trunk Dial Access .............................................................. 5-A-l
1.02 Individual Trunk Group Dial Access ............................................ 5-A-2
1.03 Individual Virtual Trunk Group Dial Access ................................. 5-A-3
Automatic Dialing................................................................................... 5-A-4
2.01 Speed Dialing-Station.................................................................. 5-A-4
2.02 Speed Dialing-System................................................................. 5-A-6
2.03 Last Number Redial (LNR) .......................................................... 5-A-9
2.04 Pickup Dialing.............................................................................. 5-A-9
Making Internal Calls.. ........................................................................... 5-A-11
3.01 Inter Office Calling....................................................................... 5-A-11
Automatic Callback ................................................................................ 5-A-12
4.01 Automatic Callback-Trunk ........................................................... 5-A-l 2
4.02 Automatic Callback-Station ......................................................... 5-A-13
Executive Busy Override ....................................................................... 5-A-14
Do Not Disturb (DtiD) Override............................................................. 5-A-l 5
Walking COS (Class of Service)............................................................ 5-A-16
Operator Call ......................................................................................... 5,A-17
B Receiving Features.......................................................................................... 5-B-l
1.OO Call Pickup.............................................................................................
1.Ol Dial Call Pickup ...........................................................................
1.02 Directed Call Pickup....................................................................
1.03 Call Pickup Deny .........................................................................
2.00 Truiik Answer From Any %tion (TAFAS)-Day Service........
“:.
.......
z......
3.00 Executive Busy Override Deny..............................................................
4.00 Do Not Disturb (DND) ...........................................................................
5.00 Call Waiting............................................................................................
6.00 Uniform Call Distribution (UCD)-Log Out...............................................
C Holding Features.................
................_........._.................................................. 5-c-1
1.OO Hold ...................................................................................................... 5-c-1
2.00 Consultation Hold ..................................................................................
5-c-2
3.00 Call Hold Retrieve-Station .....................................................................
5-c-3
4.00 Call Park ...............................................................................................
5-c-4
4.01 Call Park-System ......................................................................... 5-c-4
4.02 Call Park-Station ......................................................................... 5-c-5
5-B-l
5-B-l
5-B-2
5-B-3
5-B-4
5-B-5
5-B-6
5-B-8
5-B-l 0
5-l

Page
D Transferring Features ...........................-.........................................................- 5-D-l
1.OO Call Transfer .......................................................................................... 5-D-l
1.Ol Unscreened Call Transfer to Station.. .......................................... 5-D-l
1.02 Screened Call Transfer to Station.. .............................................. 5-D-2
1.03 Unscreened Call Transfer to Remote .......................................... 5-D-3
1.04 Unscreened Call Transfer to Attendant Console ......................... 5-D-3-l
1.05 Unscreened Call Transfer to a UCD Group (with OGM) ............. 5-D-3-2
2.00 Call Forwarding (FWD) ......................................................................... 5-D-4
2.01 Call Forwarding-All Calls ............................................................. 5-D-4
2.02 Call Forwarding-Busy/Off -Hook ................................................... 5-D-7
2.03 Call Forwarding-No Answer ......................................................... 5-D-l 0
2.04 Call Forwarding-Busy/Off-Hook/No Answer.. .............................. 5-D-l 3
2.05 Call Forwarding to Trunk ............................................................. 5-D-l 6
4
E Conversation Features........_......._._...._....._....._..........____.._....___.........................
5-E-l
1.00 Conference ............................................................................................ 5-E-l
2.00 Doorphone.. ........................................................................................... STE-2
3.00 External Feature Access.................................. .:.................................... 5-E-3
F Paging Features......................................................................._....................... 5-F-l
1.00 Paging.................................................................................................... 5-F-l
1.01 Paging All Extensions.. ................................................................ 5-F-l
1.02 Group Paging .............................................................................. 5-F-3
1.03 i%ging External Pagers.. ...........y.........[....................................... 5-F-5
1.04 Paging All Extensions and External Pagers ............................... 5-F-7
2.00 Background Music (BGM) through External Pager................................ 5-F-8
G Other Features ..........__....________....._.........__._.._._..__.____.._..._..._........_..__....._.._.__.._
5-G-l
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
Night Service .........................................................................................
1.Ol Universal Night Answer (UNA) ....................................................
1.02 Flexible Night Service.. ................................................................
1.03 Switching of Day/Night Mode ......................................................
Account Code Entry...............................................................................
Timed Reminder ....................................................................................
Data Line Security .................................................................................
Absent Message Capability ..................................................................
Message Waiting ...................................................................................
Electronic Station Lock Out ...................................................................
Assigned Feature Clear .........................................................................
Remote Station Feature Control.. ..........................................................
5-G-l
5-G-l
5-G-2
5-G-3
5-G-5
5-G-7
5-G-9
5-G-l 0
5-G-l 2
5-G-14
5-G-15
5-G-l 6
5-2
(30393)
Nonstop servis TELEFONNÍ ÚSTŘEDNY
volejte dispečink tel. [phone]
PanaTEL®
je specialistou na telefonní ústředny,
komunikační systémy Panasonic
www.PanaTEL.cz

A. Outogoing Call Features
1.00 Making Outside Calls
1.Ol Local Trunk Dial Access
Description
Allows extension users to make outgoing CO calls
by automatic selection of an idle CO line.
Dialing the feature number for ARS/Local CO Line
Access” enables you to execute this function.
Operation 1. Lift the handset .
l You hear dial tone 1 or 3 or 4.
To activate this feature, set “System-Operation”,
Automatic Route Selection to “No.” If set to “Yes,
” ARS feature is activated instead of this feature.
Refer to Section 3-C-2.00 “Automatic Route
Selection (ARS)” for further information.
Programmfng
Reference
System Pfogrammng VT Dumb
“System-Operation(1n)“.
9-D-l .Ol 10-c-4.00
AutomaticRouteSelection
2. Dial the feature number for
“ARSRocal CO Line Access.”
l You hear dial tone 1.”
3. Dial the telephone number of the
outside party.
“System-LocalAccessGroup”. SD5.00 10-C-9.00
HuntSequence
“System-Numbering Pfan (2/g)“, SD6.02 lCG10.00
ARSlLocal CO Line Access
Conditions
An idle CO line available and hunting sequence is
determined by the system programming “System-
Local Access Group’, Hunt Sequence.
If an extension user hears busy tone, there is no
idle CO line available.
If an extension user hears reorder tone, the user
is restricted from accessing this feature.
Refer to Section 3-C-l .Ol “Toll Restriction for
Local Trunk Dial Access,” for further infomration.
If tenant service is activated, accessible trunk
group is limited to the trunk groups within the
same tenant.
,’
The dialing plan followed is that of the trunk group
in hunt sequence 01 in “System-Local Access
Group.”
5-A-l

1.02 Individual Trunk Group Dial
Access
Description Operation
Allows extension use-s to make outgoing CO
calls via an idle CO ii-? in the specified trunk
group by dialing the %ature number for “Trunk
Group 01-08 Access’ 3r “Trunk Group 09-l 6
Access.”
Programming
System Programmrg Reference
VT I Dumb
“System-Class of Serve (2/2)“,
Trunk Group Access
“System-Numbering F%n(2/g)‘,
Trunk Group Ol-OE Access
Trunk Group 09-l 6 Access
Conditions
Trunk groups to be specified are limited to the
ones assigned in “System-Class of Service”,
Trunk Group Access.
If an extension user ‘ears busy tone, all CO lines
in the specified trunk group are not available.
If an extension user bears reorder tone, the user
is restricted from accessing the specified trunk
group.
Refer to Section 3-C-t .03 ‘7011Restriction for
Individual Trunk Grocp Dial Access/Direct Trunk
j Access,” for further irformation.
1. Lift the handset.
l You hear dial tone 1 or 3 or 4.
2-l Specifying any one of trunk
groups 01 to 08
1) Dial the feature number for
“Trunk Group 01-08 Access.”
2) Dial the trunk group
specifying number : 1 to 8.
l Trunk group specifying number
matches trunk group number,
as follows:
Trunk Group Trunk Group
Specifying Number Number
1 01
2 02
3 03
4 04
5 05
6 06
7 07
a 08
2-2 Specifying any’dne of trunk
groups 09 to 16
1) Dial the feature number for
“Trunk Group 09-l 6 Access.”
2) Dial the trunk group
specifying number : 1 to 8.
l Trunk group specifying number
matches trunk group number,
as follows:
Specifying Number
i
Trunk Group
Number
09
10
11
12
13
14
15
16
3. Dial the telephone number of the
outside party.
5-A-2

1.03 individual Virtual Trunk Group
Dial Access
Description Operation
Allows extension users to make outgoing CO
calls using Special Carrier Facilities by simply
.dialing the feature number for “Trunk Group 17-
24 Access.”
Detailed data, such as access codes and
authorization codes, required to Special Carrier
Access must be programmed beforehand in
“Special Carrier Access” screen.
Trunk groups available for Special Carrier
Access is also defined in the same screen.
Special carriers available for each extension user
is defined in “System-Class of Service (2/2)”
Special Carrier Access.
It is programmable to restrict Special Carrier
Access on system-wide basis.
Refer to Section 1O-C-52.00“World Select 2-
EQU/OCC Access Assignmenr for further
information.
Programming
Reference
SystemProgramming VT DlJmb
“System-Class of Service (2/2)“, 9-O-4.0210-C-8.02
Special CarrierAccess
“System-Numbering Plan (2/g)“, 9-O-6.0210-6-10.00
Trunk Group 17-24 Access
‘Special Carrier Access-Equal 9-H-l.oO 1O-C-30.00
AccessIOCC Access’, 9-H-2.00 1O-C-31.OO
“World Select 2” - 1O-c-52.00
Conditions
None
1. Lift the handset.
l You hear dial tone 1 or 3 or 4.
2. Dial the feature number for
‘Trunk Group 17-24 Access.”
3. Dial the virtual trunk group
specifying number : 1to 8.
l Virtual trunk group number
matches virtual trunk group
specifying number and digit
modification table number
(Equal access table number 1
to 4, OCC access table number
1to 4 which should be
assigned beforehand), as
follows:
Virtual Trunk Virtual Trunk Digit Modification
Group Number iruouEeTpecifyin9 Table Number
17 1 Equal access I
18 2 table number 2
19 3 3
20 4 121 5 OCCaccess y
22 6 table number
+ 2
23 7 3
24 8 4
4. Dial the telephone number of the
outside party.
5-A-3
Nonstop servis TELEFONNÍ ÚSTŘEDNY
volejte dispečink tel. [phone]
PanaTEL®
je specialistou na telefonní ústředny,
komunikační systémy Panasonic
www.PanaTEL.cz

2.00 Automatic Dialing
2.01 Speed Dialing-Station
Description
Allows SLT teiepnone ;se:s to program frequently
dialed telephor?enumbers (both extension and
outside numbers) Inthe Speed Dialing code (0 to
9 : dedicated to each SLTtelephone user) by
dialing the feature numberfor “Speed Dialing-
Station Programming.’
To make a call using pre-assigned Speed Dialing
code, dial the feature number for “Speed Dialing-
Station” and appropriate Speed Dialing code (0 to
9).
\ .
\
a
Up to 10 codes can be registered for each SLT
telephone.
Programming
SystemProgramming Reference
VT
Dumb
“System-Numbering Plan (2/9)n, 9-D-6.02 10-C-10.00
Speed Dialing-Station
“System-Numbering Plan (7/g)“, 9-O-6.07 10-C-10.00
Speed Dialing-Station
Programming
Conditions
To register the outside number in a speed dialing
code, the feature numberfor selecting a CO line
must be registered as leading digits.
When calling an outside party automatically:
9 - 411 - 3209 .-- T.-
L
Feature numberfor “ARS/Locai CO Line
Access”
When calling an outside party by specifying the
trunk group:
811 -411 - 3209
--L Feature numberfor “Trunk Group 01-08
Access” or
Feature numberfor “Trunk Group 09-l 6
Access” or
Feature number for “Trunk Group 17-24
Access”
Each stored number can have up to 16 digits
including CO line access code.
Numbers from “0 to 9” and &*” can be registered.
Tostore “PAUSE,” dial y* *.”
When SLT is connected with HLC card, the SLT
can use One Touch Dialing and the special dials
such as secret dialing etc. which are stored for
PITS.
It is performed by connecting PITS with HLC card
temporarily and registering One Touch Dialing by
using the PITS.
Inthis case, One Touch Dialing codes stored o?i
PFl to PFlO on a PITS match speed dialing
codes by SLT (Single Line Telephone), as
follows:
PITS SLT
One Touch Dialing Speed Dialing-Station
PFl ....................................0
PF2....................................
1
PF3....................................
2
PF4....................................
3
PF5....................................
4
PF6....................................5
PF7...................................,6
PF8....................................7
PF9....................-...............
8
PFlO ..................................9
5-A-4

Operation
Stcri:g the telephone number
Executing Speed Dialing-Station
1. Lift the handset.
2. Dial the feature number for
“Speed Dialing-Station
Programming.”
1. Lift the handset.
2.
3. Dial the speed dialing code : 0 to
9.
4. Dial the telephone number that
you want to store.
5. Dial “#.”
l You hear confirmation tone 1 or
6. Replace the handset.
(Supplement)
When using a rotary telephone (pulse type), wait
until you hear confirmation tone in s&p 5 withoyt
dialing “#.”
Dial the feature number for
“Speed Dialing-Station.”
l No tone is heard.
Dial the speed dialing code: 0 to
9.
l Registered telephone number
is sent.
S-A-S
Nonstop servis TELEFONNÍ ÚSTŘEDNY
volejte dispečink tel. [phone]
PanaTEL®
je specialistou na telefonní ústředny,
komunikační systémy Panasonic
www.PanaTEL.cz

2.02 Speed Dialing-System
Description
System Speed Dialing allows any e&-s x user
to call outside parties by dialing me fe&re
number for “Speed Dialing-System” and a pre-
assigned 3-digit code (001 to 200) common to
any extension user in the system.
Up to 200 Speed Dialing Codes can be registered
to the system.
The speed dialing codes are registered in
“System-Speed Dialing-System” screen, and
specific toll restriction level for each speed diahng
code can be assigned in the same screen.
Refer to “Toll Restriction Plan for System Speed
Dialing” on next page for further information.
Programming
System Programming Reference
VT 1 Dumb
“System-Tenant”,SpeedDialing- 9-D-2.00 1O-C-5.00
SystemBoundary
“System-NumberingPlan(2/g)“, 9-D-6.02 10-6-10.00
II SpeedDialing-System
“System-SpeedDialing-System” 9-D-8.00 10-C-12.00
Conditions
If Tenant Service is employed, Speed Dialing
Codes can be split by two tenants. In this case,
one tenant cannot use the Speed Dialing Codes
which belong to another tenant.
Each stored number can have up to 32 digits
including CO line access code.
“O-9 ” YJC,”“#,” “PAUSE,” “FLASH,” “-” &d
“SECRET” can be registered.
Speed Dialing and manual dialing can be used in
combination. In this case, execute Speed Dialing
before manual dialing.
When you register a telephone number to a
System Speed Dialing Code, a feature number for
selecting a CO line must be stored as leading
digits.
The feature numbers for selecting a CO line are:
l ARS/Local CO Line Access
l Trunk Group 01-08 Access
l Trunk Group 09-l 6 Access
l Trunk Group 17-24 Access
When the mark “*” or “#” is stored in the feature
number for “Speed Dialing-System,” the rotary
telephone users can not use this feature.
Operation
Calling an outside party using System Speed
Dialing Code1. Lift the handset.
2.
3.
l You hear dial tone 1 or 3 or 4
Dial the feature number for
“Speed Dialing-System.”
l You hear no tone.
Dial the appropriate speed
dialing code : 001 to 200.
l The registered number is sent
to CO line automatically.
5-A-6

<Toll Restrictton Plan for System Speed Dialing>
‘be ;‘,s:?r” a.:- y.s+Lrz:“’ car; assign Toll
Ees:-: -f:-” i-e. 2
-..- of S:isrem S.oeed Dialing
t,re!e--26 tc 25 -'=iiSf- :n the tollowing) to each
code as :olio*s
System - Speed Dlalrng - System
_--_-----------------------------------
System Speed Dial No. =OOl
f.-------------------------‘---‘-”’--”
Toll Restriction Level of System
Speed Dialing (TRLSD)
TRLSD consists of 17 levels (YOO”and “01 to 16”)
TRLSD “00” receives a treatment different from
TRLSDs “01 to 16.”
. In TRLSD “01 to 16,” “01” is the highest level and
“16” is the lowest.
1. Toll Restriction Plan for System Speed Dialing
Code (TRLSD=OO)
When an outgoing CO call is made by dialing
a System Speed Dialing Code (TRLSD=OO),
extension users receive standard toll
restriction treatment.
If selected speed dialing code includes Local
Trunk Dial Access code as leading digits, a
call is checked against “Toll Restriction for
Local Trunk Dial Access.”
If selected speed dialing code includes
Individual Trunk Group Dial Access Code as
leading digits, a call is checked against “Toll
Restriction for Individual Trunk Group Dial
Access.”
For further information about System Toll
Restriction feature, refer to Section 3-C-l .OO
“Toll Restriction.”
2. Toll Restriction Plan for System Speed Dialing
Code (TRLSD=Ol to 16)
Code (TRLSD=Ol to 16j. the system
compares Toll Restriction Level of Extension
(TRLE) with TRLSD.
If TRLE is equal to or higher than TRLSD
(TRLEzTRLSD) a call is made, and if TRLE is
lower than TRLSD (TRLEcTRLSD), a call is
checked against System Toll Restriction
feature.
For further information about TRLE, refer to
Section 3-C-l .OO“Toll Restriction.”
<Example>
If an extension user (TRLE=6) makes an
outgoing CO call by selecting a System Speed
Dialing Code (TRLSD=7), in this case, TRLE of 6
is higher than TRLSD of 7 (TRLEsTRLSD), so a
call is made.
If an extension user (TRLE=6) makes an
outgoing CO call by selecting a System Speed
Dialing Code (TRLSD=4), in this case, TRLE of 6
is lower than TRLSD of 4 (TRLEcTRLSD), so a
call is checked against the System Toll ’
Restriction feature.
When an extension user makes an outgoing
CO call by dialing a System Speed Dialing
5-A-7

The following flowchart shows the simplified procedure of toll resIr!cticr, 5z-1 for
System Speed Dialing.
When an outgoing CO call is made by When an outgoing CO call is made by
dialing a System Speed Dialing Code dialing a System Speed Dialing Code
(TRLSD=Ol to 16)
(TRLSD=OO)
1 1
c Compares TRLSD with TRLE e Checks a call against System Toll
Restriction feature
TRLE<TRLSD
TRLEZTRLSD’
1
The call is made
(Transmit the registered
number to CO line)
not restricted restricted
l In this case, “Local Trunk Dial Access restriction” and “Individual Trunk Group Dial
Access restriction” assigned in Class of Service are disregarded.
5-A-8

2.03 Last Number Redial (LNR) 2.04 Pickup Dialing
Description
Automatically saves the last number d,ar& ‘rc-
an extension and allows the user to make FE
outgoing CO call again by simply dialing rhe
feature number for “Redial.”
Programming
Conditions
Up to 32 digits except the feature number for
selecting a CO line can be memorized as the last
dialed number.
u*,n“#,” “PAUSE.” or “SECRET” are counted as
one digit respectively.
The memorized telephone number is replaced
automatically by a new one every time you make
a new outgoing CO call and even one digit is
sent to a CO line. That is, dialing a feature
number for selecting a CO line only does not
renew the memorized number.
Operation
Executing LNR
1. Lift the handset.
l You hear dial tone 1 or 3 or 4. --- .-
2. Dial the feature number for
“Redial.”
Description
Pickuc Dialing allows SLTtelephone users to
Take calls automatically by simply lifting the
‘iandset.
Toprogram the desired number for this feature,
dial the feature number for “Pickup Dialing
Programming.”
Toactivate this feature, dial the feature number
for “Pickup Dialing Set.”
Tocancel this feature, dial the feature number for
“Pickup Dialing Cancel.”
This feature works only when an extension user
goes off-hook from on-hook status. Petiod from
off-hook to Pickup Dialing is assigned in
‘System-System Timer”, Pickup Dial Waiting.
Programming
Reference
System Programming VT
Dumb
“System-SystemTimer”, 9-D-3.00tO-C-6.00
PickupDialWaiting _
‘Syste-m:NumberingPlan(6/g)“, 9-D-6.061O-C-10.00
PickupDialingProgramming
PickupDialingSet
PickupDialingCancel ..
Conditions
It is available to override this feature temporarily
by dialing another telephone number before
“System-System Timer”, Pickup Dial Waiting
timer expires.
This feature does not function when a call is
arriving or the user has a call on Consultation
Hold.
UP to 32 digits can be stored as a telephone
number including “0 through 9,” and “*.-
To store “PAUSE,” use “* *.”
5-A-9

Operation
Storing the telephone number for Pickup Dialing
1.
2.
3.
i
4.
Lift the handset.
Dial the feature number for “Pickup
Dialing Programming.”
Dial the telephone number that
you want to store.
l You hear confirmation tone 1 or
2 then dial tone 1 or 3 or 4.
Replace the handset.
Setting or canceling Pickup Dialing
1. Lift the handset.
2-l Setting : Dial the feature number
for ‘Pickup Dialing Set.”
2-2 Canceling : Dial the feature
number for “Pickup
Dialing Cancel.”
- You hear confirmation tone 1 or
2 then dial tone 1or 3 or 4.
Executing Pickup Dialing
1. Lift the hands?:
l You hear dial tone 1 cr 3 or d
2. Wait until the
time preprogrammed
in “System-System Timer’, Pickup
Dial Waiting is over.
l The system sends the stored
telephone number automatically.
Canceling Pickup Dialing temporarily
1.
2.
Lift the handset.
l You hear dial tone 1 or 3 or 4.
Dial a telephone number before
the time preprogrammed in
“System-System Timer”, Pickup
Dial Waking is over.
l The system sends the dialed
telephone number.
3. Replace the handset.
S-A-10
