Panasonic TK-CB430 User manual

Operating Instructions Attached Installation Instructions
使用说明书 另附安装说明书
Water Purifier For Household Use
净水机 家庭用
Model No. TK-CB430
QPlease read these instructions carefully before using this product, and save this
manual for future use.
QPlease carefully read the “Safety Precautions” (P. EN3 – EN5) of this manual before
use.
QBe required to present the purchase receipt for your free warranty service, failing
which the company or its authorized service dealer reserves the right to decline any
warranty claim.
QPlease keep in mind that the manufacturer of the product will not be responsible for
any product malfunctioning or accidents resulting from the improper installation or
operation of the product.
Q请在使用本产品之前仔细阅读本说明书，并妥善保管以备日后使用。
Q使用前请仔细阅读「安全注意事项」（P. SC3 ～ SC5）。
Q必须出示购买单据才可享有免费保养服务，若无法出示，本公司或其授权服务代理商保留拒绝任何
保养及索赔的权利。
Q因错误安装或不正确使用，而造成产品故障或发生事故时，本公司概不负责。
Thank you for purchasing this Panasonic product.
感谢您购买Panasonic的产品。
English
中文（简体）

Safety Precautions ............................................................................................................EN3
Operating Precautions.........................................................................................................EN6
Names and functions of the parts........................................................................................EN7
Steps to Take Before Operation ..........................................................................................EN8
Installation 1 Check the setup and accessories of the Water Purifier ................................EN8
Installation 2 Check after installation..................................................................................EN9
Installation 3 Inspecting the Quick-connect valve ..............................................................EN9
Use of the Water Purifier ....................................................................................................EN10
Adjustment of water pressure.............................................................................................EN10
Maintenance....................................................................................................................... EN11
Replacing the Batteries ......................................................................................................EN12
Replacing the Cartridge......................................................................................................EN14
About Flushing....................................................................................................................EN20
When the water supply is cut off.........................................................................................EN21
When not using the product for a long period of time.........................................................EN21
Q&A....................................................................................................................................EN22
Troubleshooting..................................................................................................................EN23
Optional Accessories..........................................................................................................EN25
Specifications .....................................................................................................................EN26
Contents
EN2

Safety Precautions Please make sure to follow these instructions
In order to prevent accidents to people or damage to property, always follow the instructions below.
QThe following is an explanation of danger and damage caused due to incorrect usage
according to severity.
WARNING
Indicates serious injury or death.
CAUTION Indicates risk of injury or property damage.
Q The symbols are classified and explained as follows. (The following are examples of symbols.)
This symbol indicates prohibition. This symbol indicates requirements
that must be followed.
WARNING
Water supply
OUse only water (such as tap water) which has been approved for consumption.
(Failure to do so may cause health problems.)
●The Water Purifier cannot remove harmful substances other than those listed on P. EN26
or cannot sterilize water.
CAUTION
About batteries
ODo not dispose of batteries in fires, or short circuit or disassemble them.
(Doing so may cause burns or injury.)
OAlways adhere to the precautions shown on the battery.
ODo not use rechargeable battery instead of dry battery.
OCheck the ⊕and ⊖of the battery, and insert them correctly.
ORemove used up batteries as soon as possible.
OUse batteries that are within the specification’s recommended expiry date.
(Failure to do so may cause injury or accidents due to battery heat generation, explosion or
fluid leakage.)
Disassembly prohibited
ODo not disassemble, repair or remodel the unit.
(Doing so may cause of water leakage or malfunction.)
→PleasecontactadealerorsubordinateservicestationofPanasonicforinspectionor
maintenance.
English
EN3

Safety Precautions Please make sure to follow these instructions
CAUTION
About accessories
ODo not impose strong force or impact force to the Quick-
connect valve.
(Doing so may cause water leakage due to the loosing of the
piping connection part.)
ODo not block the main spout or bend, twist, flatten, pull
or clamp the PE tubes.
(Doing so may cause water to leak, prevent the output of
water or cause other malfunctioning.)
ODo not connect other devices (such as hoses) to the
end of the spout of the Special faucet for the Water
Purifier.
(Doing so may cause water leakage or other malfunctions
due to abnormal water pressure of the main unit.)
OThe main unit should be used with the Special faucet for Water Purifier and
installation accessories.
(Failure to do so may lead to water leakage.)
●Do not use the main unit and the Special faucet for Water Purifier without the installation
accessories.
●Do not reuse old tubes.
OContact a dealer or subordinate service station of Panasonic for the installation and
removal of the Water Purifier.
(Incomplete installation and removal may lead to water leakage.)
Quick-connect valve
PE tube
PE tube
Note for the user
OThis appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
(Risk of accident or injury.)
OChildren should be supervised to ensure that they do not play with the appliance.
(Risk of accident or injury.)
EN4

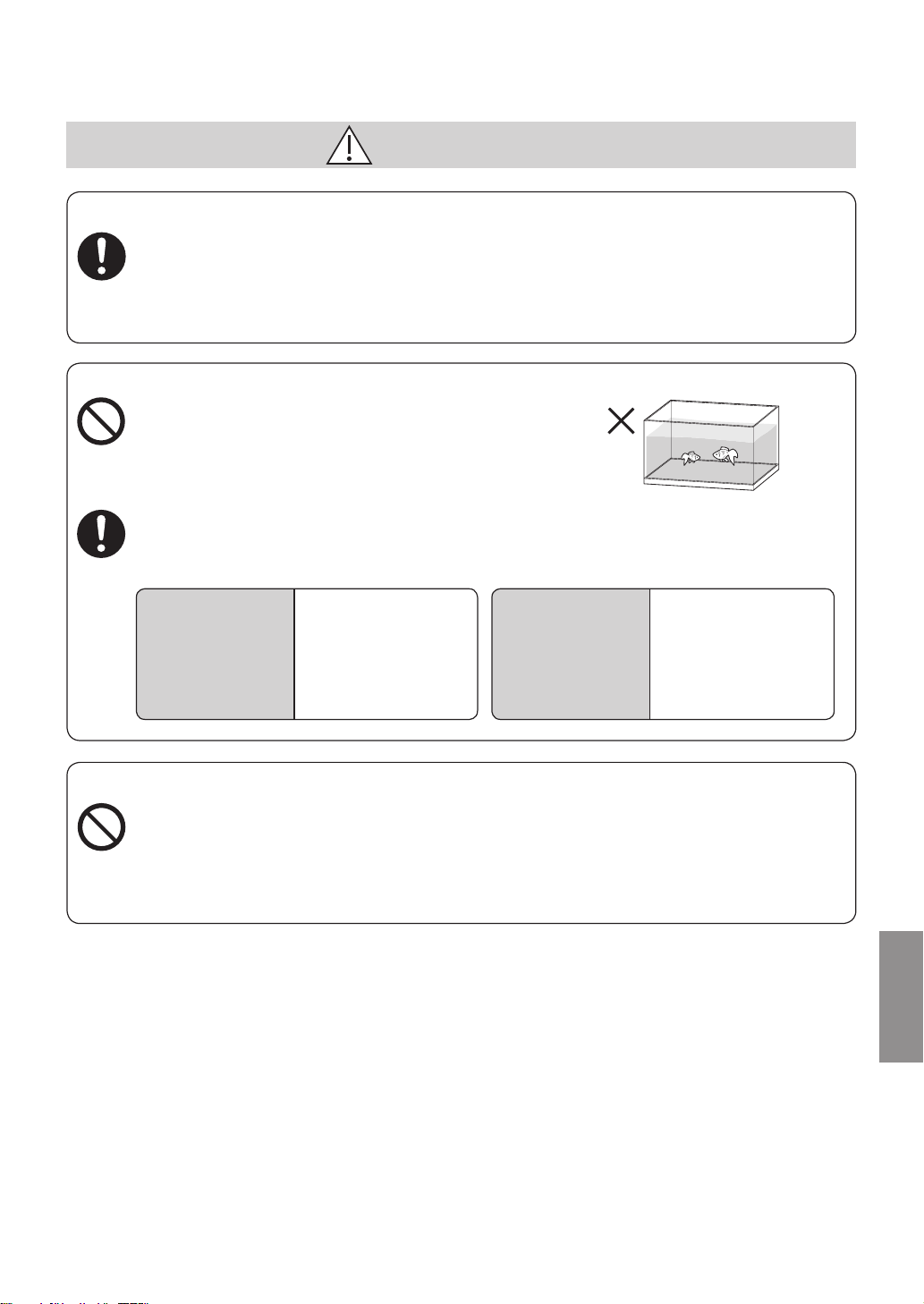

CAUTION
Storing purified water
OUse purified water immediately after it is produced. When storing it for future
consumption, pour into a clean sealed container, and consume it within 1 day if it is
kept at room temperature or within 2 days if it is kept in the refrigerator.
(For chlorine (disinfectant) contained within tap water is removed, which result in general
bacteria to increase more and cause health problems.)
Non-consumable purified water
ODo not use purified water for the care
of fish or other pets.
(The environment may change as a result,
and the fish, etc. may die.)
OIn order to avoid health problems, when starting to operate the Water Purifier, do not
use the accumulated water inside the main unit for drinking use. Fully flush the water
through and out, following the instructions below.
(Otherwise it may cause health problems.)
When starting use
every day
Use after about
3 liters water flows out
(about 2 minutes).
When the Water
Purifier has not
been used for 3 or
more days after
replacing the
cartridge
Use after letting water
drain for more than
10 minutes
Accidental ingestion
ODo not leave the supplied accessories within reach of infants or toddlers.
(Doing so may result in accessories being swallowed by mistake.)
●Consult a doctor immediately if you suspect that an accessory has been swallowed.
ODo not allow infants and children to play with packaging material.
(Doing so may cause suffocation.)
English
EN5

Operating Precautions
Water supply Usage
ODo not drink water in case of the following
conditions.
• Water which is very turbid, or containing a great
deal of red rust
(Doing so may cause health problems.)
• Well water
(Doing so may cause health problems.)
• Water that does not pass as drinking water
(Doing so may cause health problems.)
OThe Water Purifier usage temperature needs
to be between 5 and 38°C, and exceeding
38°C may damage sealing materials and
cause water leakage.
OTemperatures lower than 5°C may result in
freezing and ruptured piping, and cause
water leakage.
●When the main unit or piping part of the unit is
frozen, please close the water stop valve, and
contact a dealer or subordinate service station
of Panasonic for handling.
OThe cartridge must be installed in the correct
order to ensure full functionality. Make sure
the installation order is correct.
Cartridge installation order
(1.PPcartridge→2.UFcartridge→3.CBcartridge)
ODo not install the product upside down.
(Doing so may cause malfunction.)

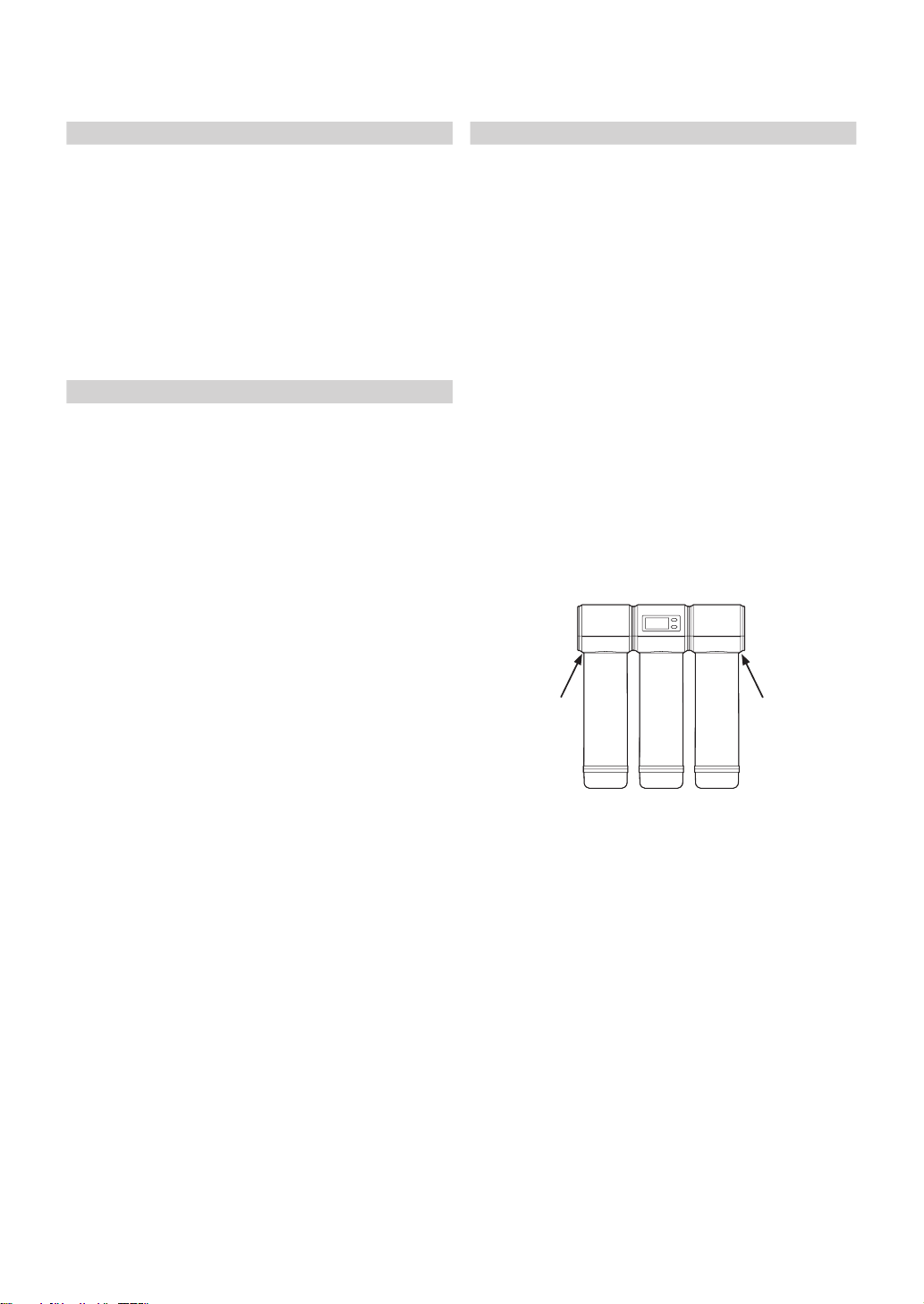

OWhen carrying the product, hold under both
edges of the main unit.
(The upper cover can come off easily, and may
fall off, causing damage.)
Hold here Hold here
Usage
ODo not hit the main unit or outlet pipe with
heavy items like chopping boards, or subject
them to strong impact.
(Doing so may cause malfunction.)
ODo not put cook pot or other objects with
high temperature close to the Special faucet
for Water Purifier.
(Doing so may lead to deformation or
malfunction.)
ODo not place the main unit or piping part in
freezing condition.
(Doing so may lead to damage, water leakage,
or malfunction.)
●The specification of this Water Purifier is not
applicable for cold region.
ODo not let the movable part or door of a
lifting cabinet touch the outlet pipe.
ODo not spray insecticide to the main unit, PE
tube or other parts of the Water Purifier.
(Doing so may cause malfunction.)
In case of accidental spray, please wipe with wet
cloth immediately.
OStop using immediately and remove the
batteries.
(Doing so may cause malfunction.)
<Examples of abnormality and malfunction>
• Abnormal sound during operation
• Abnormal heat or deformation of the Water
Purier
→Contactadealerorsubordinateservice
station of Panasonic for inspection or
maintenance.
ODo not splash water on the main unit or wash
the body.
(Doing so may cause malfunction.)
EN6

Names and functions of the parts
Overall figure
1.PP 2.UF 3.CB
Special faucet
for the Water
Purifier
Upper cover
(middle)
Main unit
PP Cartridge
(Melt-blown
polypropylene filter)
UF Cartridge
(Hollow fiber
ultrafiltration
membrane filter)
CB Cartridge
(Compressed activated
carbon filter)
Control panel
(included display)
Water stop lever
Control panel
Setup Button
OSelect the replaced
cartridge. (P. EN19)
Reset Button
OPress after replacing the
cartridges (P. EN19)
Set
Reset
1: PP cartridge life display 2: UF cartridge life display 3: CB cartridge life display
OThe cartridge life is shown in 5 levels. (P. EN15)
Battery display “ ”
OFlashes when the batteries require
replacing. (P. EN12)
Notice to replace “ ”
OFlashes that one remaining level of the
cartridges has dropped to 1.
Please replace the cartridge.
Water flow “ ”
OFlashes for 25 seconds when purified
water is flowing.
Flushing “ ”
OFlashes for approx. 10 minutes if either of
the following occurs. (P. EN20)
• Nowaterhasowedfor3days
• After replacing the cartridges
English
EN7

OIn case of any deficiency, please notify your dealer or subordinate service station of Panasonic.

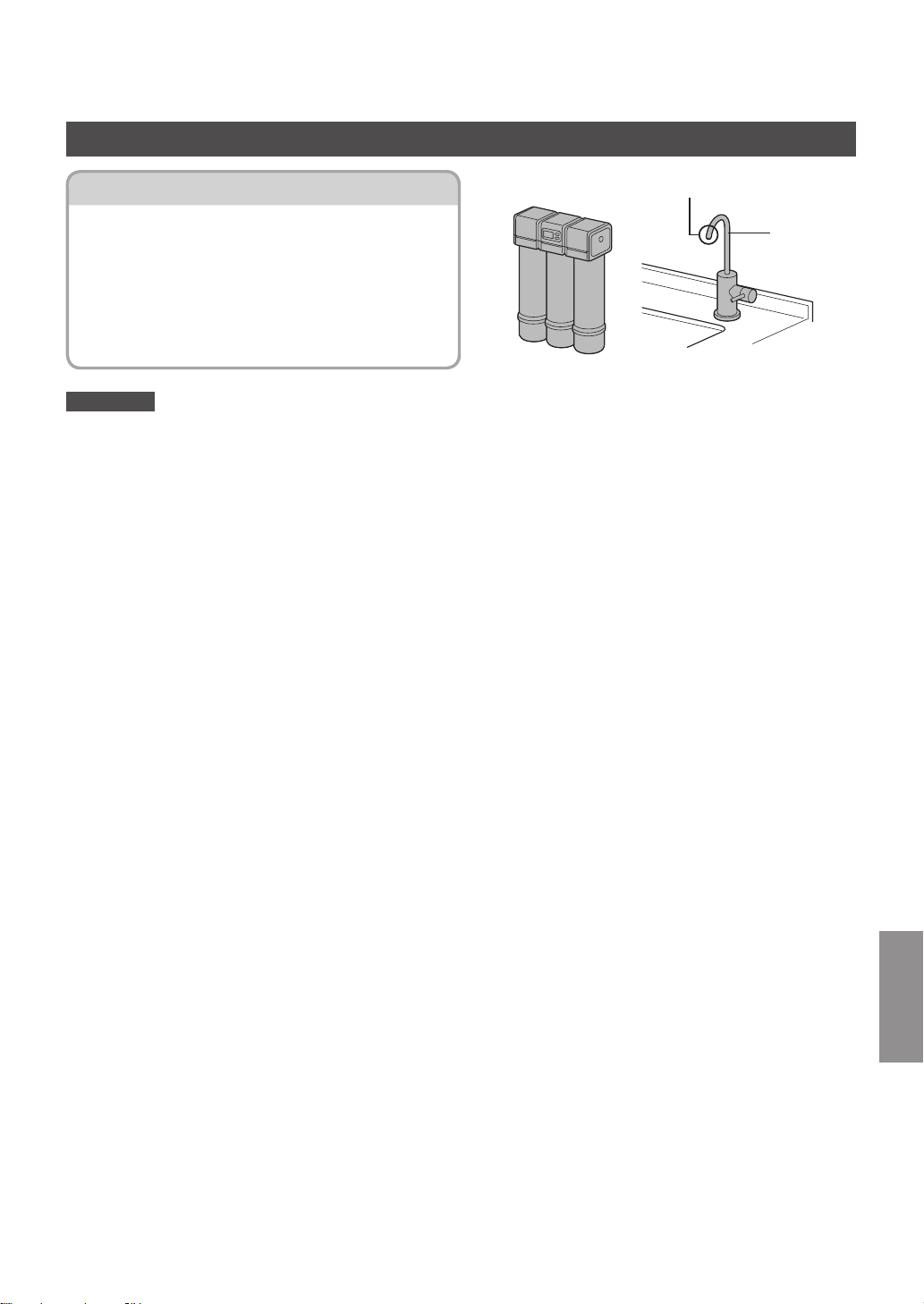

OThe main unit shall be installed under the sink and connected with the Special faucet for Water Purifier.
(Please check the position where the Quick-connect valve and main unit are set.)
Special faucet for
the Water Purifier
Main unit
PP Cartridge
UF Cartridge CB Cartridge
Quick-connect valve
Water stop valve on the
water supply side
(not included in accessories)
Installation instructions
OPlease check whether all the items in the final inspection confirmation table (P. EN27 in
installation instructions) have been ticked (finished).
Supplied Accessories
Installation 1
Check the setup and accessories of the
Water Purifier P. EN8
Installation 2
Check after installation
The air in the main unit is not
completely exhausted, please
drain the purified water for
10 minutes or longer.
P. EN9
Installation 3
Inspecting the Quick-connect valve P. EN9
Steps to Take Before Operation
Installation 1
Check the setup and accessories of the Water Purifier
EN8

To exhaust the air in the main unit,
the purified water shall be drained
for 10 minutes or longer.
To use the Water Purifier (P. EN10)
❶Lower the lever (water is discharged)
❷Raise the lever (water stops flowing)
OIf the air in the main unit is not completely exhausted, the water flow
will not be smooth.
OIf there are still bubbles remaining in the purified water or it has an unpleasant smell or taste even after
flushing for 10 minutes, please flush for an additional 10 minutes.
❶
❷
Installation 2
Check after installation
Installation 3
Inspecting the Quick-connect valve
❶Close the Quick-connect valve
(Raise the water stop lever)
OIf the water stops flowing from the outlet pipe, the Quick-connect valve is operating correctly.
❷Please open the Quick-connect valve to use.
(Lower the water stop lever)
OFor how to adjust Quick-connect valve, see “Adjustment of water pressure”
(P. EN10).
OIf other than above, the Quick-connect valve may have malfunctions, so
please contact a dealer or subordinate service station of panasonic.
Water stop lever
❷
❶
English
EN9

Use of the Water Purifier
1
How to turn on water
OLower the lever.
OIf the water is splashing, please raise the
water stop valve a little bit.
(For the water pressure is relatively high.)
(P. EN10)
OThe “ ” indicator turns off after
flashing for approx. 25 seconds.
1
2
2
How to turn off water
ORaise the lever.
Note
ORegularly check for water leakages in the Water Purifier piping.
OIf water is discharged when the batteries are flat, the water will be purified however water volume or
usage time used as the reference for replacing the cartridge will not be counted, and the cartridge life
will not be displayed correctly.
Please check the remaining level of the battery regularly. (See Replacing the Batteries on P. EN12)
Adjustment of water pressure
OWhen the water pressure is relatively high
Adjust by raising the water stop lever gradually.
OWhen the water pressure is relatively low
Adjust by lowering the water stop lever gradually.
EN10

Maintenance
Daily maintenance
The main unit and the Special faucet for Water Purifier
Dip a soft cloth in water and wring it out to wipe
the Water Purifier.
ORemove dirt on the Main spout using a cotton
swab, etc.
(If the water for cleaning use is splashed and
attached to the main spout, it may result in
dirt or daily microbes.)
ODo not use detergent, cleaning powder, diluting agent, volatile oil, ethyl alcohol or kerosene, etc. In
case of accidental use, please wipe with wet cloth right away to remove the detergent, etc. on the
surface.
(Detergent mixed into the water run through may lead to resin crack, electroplating damage,
electroplating or coating spalling, discoloration or deformation.)
ODetergent may lead to unsmooth outflow in the outlet pipe and result in malfunction.
ODo not use metal brush or other apparatus. (Doing so may lead to damage.)
OAvoid bringing the main unit into contact with water by spraying it with water or washing.
(Doing so may cause malfunction.)
OTighten the Locking nut if the Special faucet is loose or spinning. (Installation Instructions P. EN15)
(Doing so may cause of water leakage.)
Main spout
Outlet pipe
Important
English
EN11

O“ ” is flashing, please replace with the new batteries.
OPrepare 3 AAA alkaline batteries.
Use of batteries not specified will significantly shorten the usage time.
1
Remove the upper cover (middle).
❶ Push the fitting portions deep inside
the holes using a flared screwdriver.
(2 locations)
❷Open the upper cover (middle) slowly.
OThe wiring are behind upper cover
(middle) and there is a risk of
disconnection.
Upper cover (middle)
2
Remove the battery cover and replace
the batteries.
❶Slide in the direction of the arrow.
Battery cover
❶
❷Check ⊕and ⊖, and insert the
batteries all the way. (Beep will sound)
OCheck that there is no foreign object on
the battery ⊕and ⊖(terminals).
OThe display will light up for
approximately 25 seconds and then turn
off. Pressing the button after the display
turns off will make it light up again.
❷
❸Slide in the direction of the arrow until
it clicks.
OTake care not to pull the wiring. Battery cover
❸
Wiring
Replacing the Batteries
EN12

3

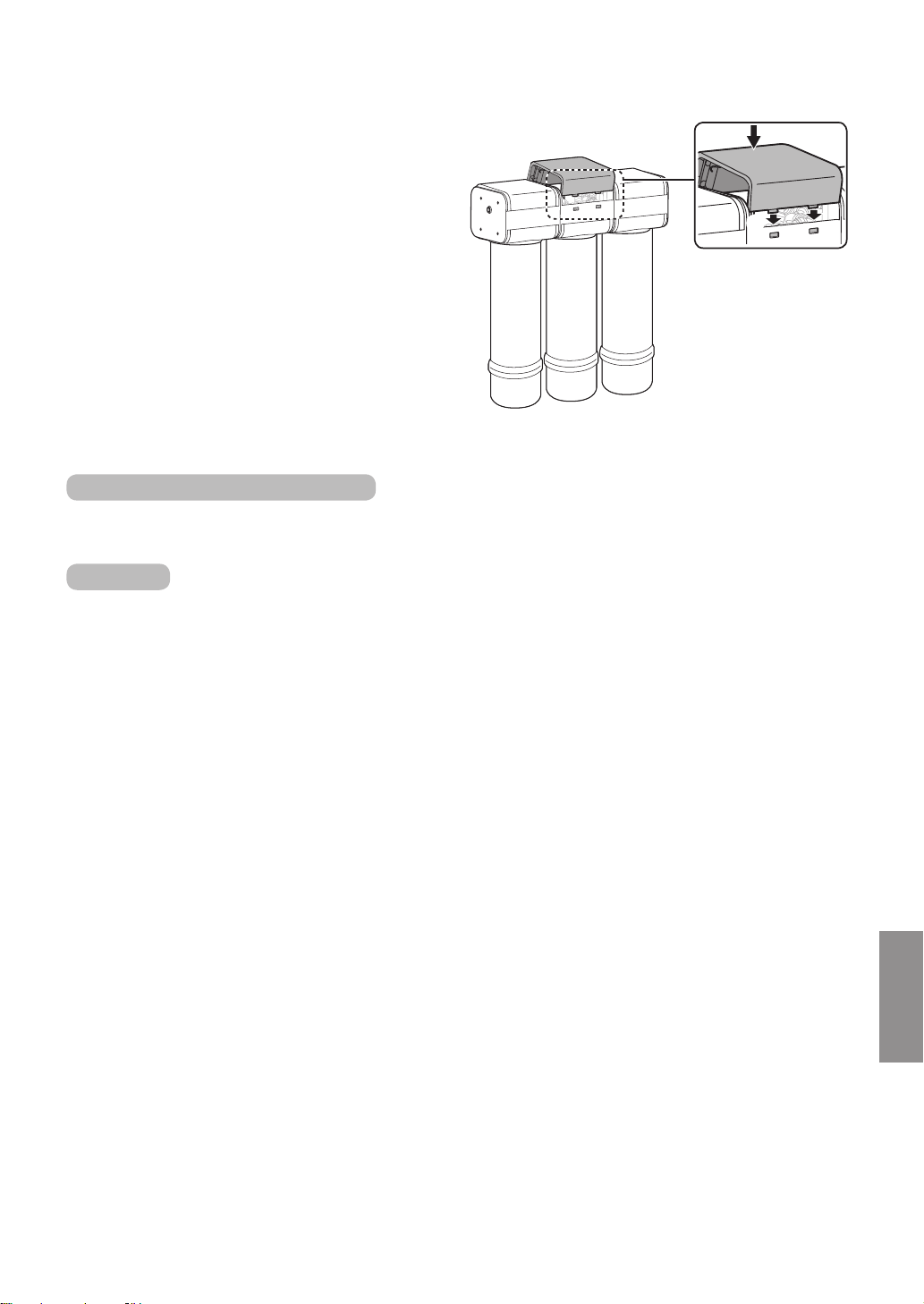

Install the upper cover (middle).
❶Insert the claw structure in two holes
from inside.
❷Press the front upper part of the upper
cover (middle). ❶
❷
Reference of battery usage time
OThree AAA Panasonic alkaline batteries would last for approximately 1 year.
(Battery usage time may differ depending on the usage environment)
Note
OWhen inserting batteries, wipe the main unit so that no water droplets get inside.
OAlways use 3 AAA alkaline batteries.
OPanasonic batteries are recommended.
English
EN13

When the cartridge life is to be expired or the purified water ability is reduced, please replace the
cartridge with a new one.
1.PP 2.UF 3.CB
Replacement PP cartridge
Model: TK-F4PP0-EX
(P. EN25)
Replacement UF cartridge
Model: TK-F4UF0-EX
(P. EN25)
Replacement CB cartridge
Model: TK-F4CB0-EX
(P. EN25)
Cartridge replacement standard
There are 3 conditions to be used as a guide for replacement. Replace the cartridges if even
one of the conditions is present.
“ ” is displayed
(water volume or usage time
has reached the cartridge life)
Sudden drop in water flow When there is unpleasant
smell or taste.
Please replace the cartridge
that is flashing.
Please replace the
UF cartridge.
Please replace the
CB cartridge.
OIf there is no improvement even after replacing the cartridge, please contact a dealer or subordinate
service station of Panasonic for inspection or maintenance.
Replacing the Cartridge
EN14

About the Cartridge Life Display
The cartridge level indicates the water volume or usage time.
<E.g. PP Cartridge>
Level 5...... 75 % ≦cartridge life ≦100 %
Level 4...... 50 % ≦cartridge life ＜75 %
Level 3...... 25 % ≦cartridge life ＜50 %
Level 2...... 5 % ≦cartridge life ＜25 %
Level 1...... “” flashes at 0 % ＜cartridge life ＜5 %.
Level 0...... “” flashes at cartridge life 0 %.
When the Cartridge Life level 2 is displayed
The replacement time is approaching.
Please prepare a new cartridge.
When the indicator of “Notice to replace” is flashing
Please replace.
OIf there is unpleasant smell or taste, replace the
cartridge even if the the indicator of
“ ” is not
flashing.
(The purified water ability is reduced.)
OWhen the level of cartridge life is displayed as 1
or less (cartridge life is less than 5 %) while
discharging purified water, the buzzer will sound
once every 6 seconds to remind users to replace
the cartridge.
Flash
Pi
English
EN15

ODo not discharge water with the cartridge removed.
(Or water will spill.)
ODispose of the used cartridge in accordance with the applicable ordinances in the area concerned.
(The material of the cartridge cover is PP. Refer to “Specifications” for the type of the filter materials
(P. EN26).)
OAlways perform steps 1 and 2, as they help to reduce water leakage when replacing the cartridges.
1
Drain the water from the product.
❶Raise the Water stop lever.
❶
Water stop lever
❷Lower the Special faucet for Water Purifier lever.
❷
2
Lay out a towel or similar object,
and then lower the Water
Purifier.
OMove any objects nearby, as there
is the risk of water leakage when
replacing the cartridges.
Replacing method
Replacing the Cartridge (continued)
EN16

3
Remove the cartridge.
Rotate the cartridge 90° to the left.
OTake care since water will drip from the
cartridge.
OCheckthatthe“●”onthemainunitand
the“●”ontheCartridgearealigned,
then remove the cartridge.
4
Remove the cap at the top of the
new cartridge.
Cap
5
Check the installation position of
the cartridges.
OCheck that the label name and colour
on the cartridges match the label name
and colour on the main unit side.
ビチハヶョヒハチヱヱ ピチハヤャ
1.PP 2.UF 3.CB
<Main unit side>
1.PP : pink label
2.UF : yellow label
3.CB
: blue label
<Cartridge side>
PP Cartridge : pink label
UF Cartridge : yellow label
CB Cartridge : blue label
English
EN17

6
Install the cartridge to the main unit.
❶ Align the “●” of the main unit with the “●” of
the cartridge, and insert the cartridge into the
main unit.
❷Rotate the cartridge 90° to the right, and align
the “▲” of the main unit with the “●” of the
cartridge.
❶
❷
7
Check that the cartridges have been
installed in the correct position.
OInstallation order of cartridge issuccessively as
follows:
From the front left side of the main unit,
1 PP cartridge - 2 UF cartridge - 3 CB cartridge
1 PP cartridge
2 UF cartridge 3 CB cartridge
8
Raise up the Water Purifier.
Replacing the Cartridge (continued)
Replacing method
EN18

9
Reset the cartridge life of the replaced
cartridges.
❶Press Set (for about 3 seconds).
Pi
OCartridge 1 is now selected (Cartridge 1 is flashing).
❷Press Set to select the replaced cartridge.
Pi
❸Press Reset (for about 3 seconds).
Pi
OThe selected cartridge flashes for 10 seconds, and then lights up.
10
Discharge purified water until the water is clear.
(Flush for 10 minutes or more)
O“ ” flashes for about 10 minutes.
(For battery saving, display turns off after about 25 seconds.)
10 minutes after, push Set to check that “ ” display
is off.
Note
ONew cartridges contains air inside.
By flushing the air is exhausted.
OIf discharging is not enough.
• Water drip from the main spaut after the lever is raised.
• Bubblesremaininthepuriedwater.
• Unpleasant smell or taste ramains.
OIf after flushing for 10 minutes the problems above are not improved, please flush for an
additional 10 minutes.
OWhile water is running through the unit, check that water is not leaking from the area where
the cartridge was installed.
OPurified water may contain some black powder (activated carbon).
The amount will decrease as more water flows, so continue checking the water condition for
a while.
Important
OIf the outflow has not been recovered after replacing the cartridge, please contact a dealer or
subordinate service station of Panasonic.
Set
Reset
Cartridge 1 flashes
❶, ❷
❸
English
EN19

The indicator of “ ” is displayed when flushing is required.
Lower the Water Purifier lever and flush water through it for 10 minutes or longer
Timing when the indicator of “flushing” is Displayed
Unit has not been used for 3 days After the cartridges have been replaced
Discharging purified water...
Flushing (10 minutes or longer)
O“ ” flashes for about 10 minutes.
(For battery saving, display turns off after about 25 seconds.)
10 minutes after, push
Set
to check that “ ” display is off.
OTo remove the air or unpleasant smell or taste from the inside of the
cartridge, flush the water for 10 minutes or longer.
If there is no improvement, flush for an additional 10 minutes.
ODo not drink the water used for flushing.
OThe Display turns off after 25 seconds. Press Set to turn it on.
Check that “ ” is turned off.
When “ ”flashingdisplay→Flushing.Donotstopthewater.
“ ”off→Flushingcomplete.Stopthewater.
About Flushing
EN20
