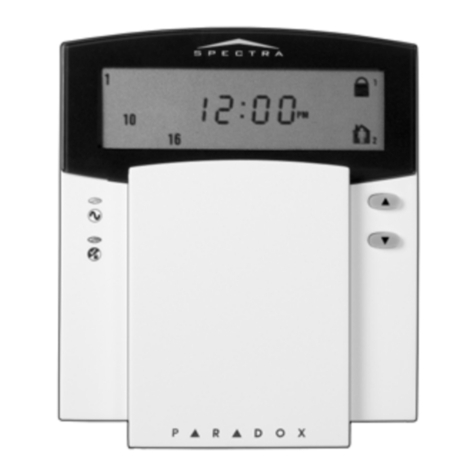

Paradox Spectra 1689 User manual

ON = AC power
OFF = Power failure
Green:
ON = Zones closed
OFF = Zone(s) open
FLASH = Exit Delay
User’s Quick
Reference Guide
AC LIGHT
STATUS LIGHT
ACCESS CODES
To Stay Arm
(Arms Area’s perimeter)
To Force Arm
(Arms Area without waiting for all
zones to close)
To Regular Arm
(Arms entire Area)
To Instant Arm
(Stay Arms Area, but if any armed zones are
breached, it will instantly cause an alarm)
To Disarm: enter your [ACCESS CODE]
To arm
when leaving:
To arm
when staying:
ARMING AND DISARMING
*If needed, press button(s)
corresponding to desired partition(s).
1689
PRINTED IN CANADA 02/00 1689EQ-00
Enter your [ACCESS CODE]*
+ Enter your [ACCESS CODE]*
+ Enter your [ACCESS CODE]*
for 3 secondsStay Arm + press
One-touch Button, ?if enabled:
One-touch Button, ?if enabled:
One-touch Button, ?if enabled:
1) Press
2) Enter your [MASTER CODE]
3) Enter three-digit section (see Table)
4) Enter new 4- or 6-digit [CODE]
1) Repeat steps 1 to 3
3) Press
Press
2) for each digit in the code
To program Access Codes:
To delete Access Codes:
Section: Codes:
[001] System Master Code
[002] Master Code 1
[003] Master Code 2
[004] to [047] User codes 004 to 047
[048] Duress or User code 048
Web site: www.paradox.ca
Security Company:
during the Exit Delay.
to exit
5) Press to exit
(for Stay & Instant Arming)
STAY1for Partition 1
STAY2for Partition 2
ON = Armed
STAY LIGHTS
(for Regular & Force Arming)
ARM1for Partition 1
ARM2for Partition 2
ON = Armed
FLASH = In alarm
ARM LIGHTS
STAY Lights
ARM Lights
Zone Display
The numbers represent
zones 1 to 16. When
illuminated, the zones
are open or breached.
AC Light
STATUS Light

Enter the two-digit zone number.
OR
To view the alarms that occurred last
armed period.
Press
ALARM MEMORY DISPLAY
The zones that were in alarm will
illuminate.
1)
2) Press
Bypassed zones remain unarmed
when the area is armed.
One-touch Button, ?if enabled:
Press
Press for Bypass Recall
1)
BYPASS PROGRAMMING
2) Enter [ACCESS CODE]Keypad beeps when the zone opens.
Press
1)
CHIME PROGRAMMING
To re-bypass the zones bypassed
during last armed period.
Enter the two-digit zone numbers
corresponding to the desired
zones.
for 3 seconds
3) Press
to exit
3)
If needed, press button(s) to
choose partition(s).
4) Press to exit
to exit
2)
In Step 3 of Bypass or Step 2 of Chime Programming, re-enter the zone
number to disable the feature.
FNC1 BUTTON
Your system may have one or more
home automation options. One of
these options may be triggered
directly from the keypad (i.e. reset
smoke detector, activate lights, etc).
Press for 3 seconds to activate:
When a trouble condition occurs, [ TRBL ]
symbol will flash and the number(s)
corresponding to the trouble(s) will
illuminate.
TROUBLE DISPLAY
2)
3) Press to exit
Press
1)
[8] Timer Loss
[9] Tamper/Zone Wiring Failure
[10] Telephone Line Monitoring Failure
[13] Wireless Module Supervision Loss
[16] Keypad Fault
Press
and enter time (HH:MM)
Press to view which zone(s)
Press to view which zone(s)
[12] Module Loss
[11] Fire Zone Trouble
[5] Bell Current Failure
[6] Auxiliary Current Failure
[7] Communication Failure
[3] Power Failure
[4] Bell/PGM2 Disconnected
[1] No or Low Battery
[2] Wireless Transmitter Battery Low
TROUBLE LIST
Press & hold a button for 3 seconds
without entering your Access Code.
The installer must enable each One-touch Button.
ONE-TOUCH BUTTONS
To Regular Arm:
To Stay Arm:
To Force Arm:
To Bypass:
Press & hold
Fast Exit:
When the system is already Stay
Armed, press and hold the button for
3 seconds to start the Exit Delay.
Press & hold:
: Stay Armed after Exit Delay
: Force Armed after Exit Delay
: Regular Armed after Exit Delay
Refer to Trouble List. If no
instructions are given, call
Security Company for repairs.
Press & hold
Press & hold
Press & hold
Made a mistake?
Press
To erase entry or revert to last step
