Parkside PAHE 20-Li A1 User manual

CORDLESS PRUNER PAHE 20-Li A1
AKKU-HOCHENTASTER
Originalbetriebsanleitung
IAN 339920_1910
WARNING!
Before use, read the
handbook and the
operating instructions.
Follow the safety
instructions.
CORDLESS PRUNER
Translation of the original instructions
АКУМУЛАТОРЕН ТРИОН
ЗАКЛОНИ
Превод на оригиналното ръководство за експлоатация
ΕΠΑΝΑΦΟΡΤΙΖΟΜΕΝΟ
ΤΗΛΕΣΚΟΠΙΚΟ ΑΛΥΣΟΠΡΙΟΝΟ
Μετάφραση των αυθεντικών οδηγιών λειτουργίας
AKU TESTERA ZA GRANE
Prevod originalnog uputstva za upotrebu

GB/CY Translation of the original instructions Page 1
RS Prevod originalnog uputstva za upotrebu Strana 21
BG Превод на оригиналното ръководство за експлоатация Cтраница 41
GR/CY Μετάφραση των αυθεντικών οδηγιών λειτουργίας Σελίδα 63
DE/AT / CH Originalbetriebsanleitung Seite 85
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device.
Pre čitanja rasklopite obe strane sa slikama te se upoznajte sa svim funkcijama uređaja.
Преди да прочетете отворете страницата с фигурите и след това се запознайте с всички функции
на уреда.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις λειτουργίες
της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.

A

B C

20V max.
18V

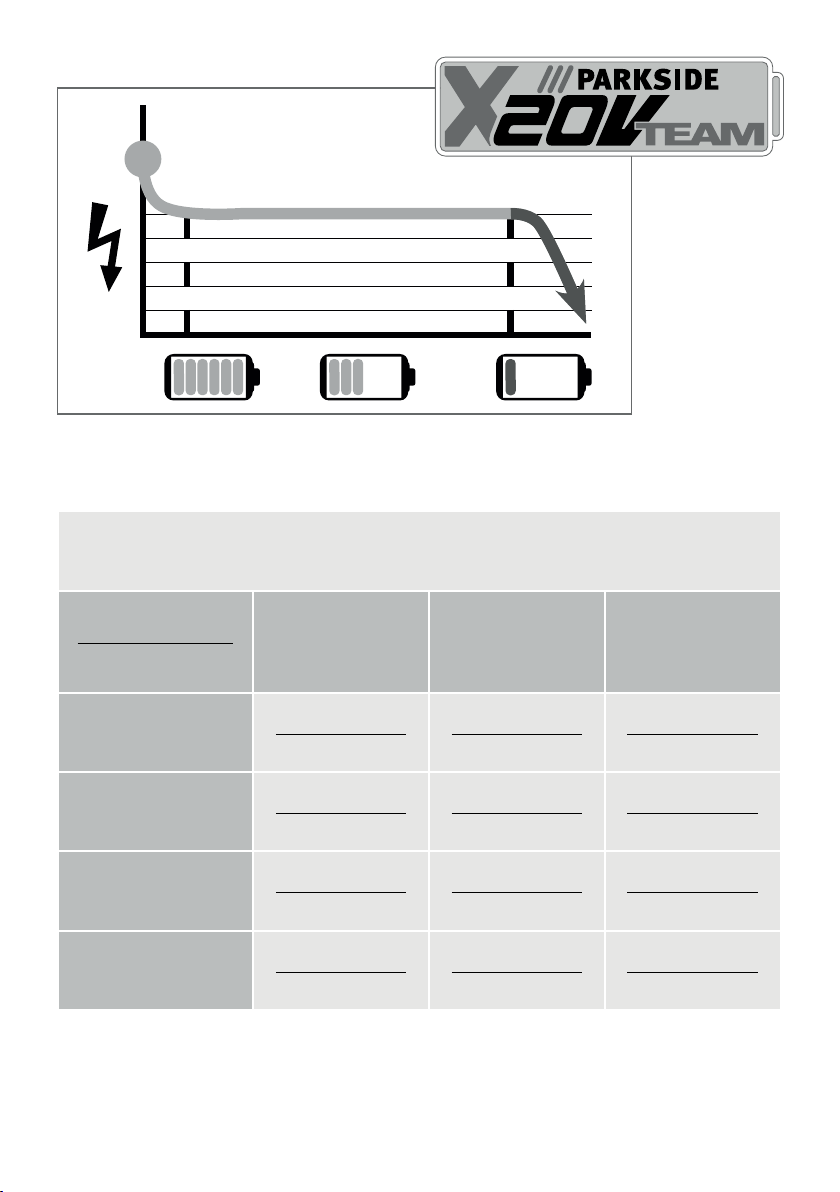

All Parkside tools and the chargers PLG 20 A1/PLG 20 A2/PLG 20 A3/PDSLG 20 A1 of the
X20V Team series are compatible with the PAP 20 A1/PAP 20 A2/PAP 20 A3 battery pack.
Charging times
Charging currents
2 Ah
Battery pack
PAP 20 A1
3 Ah
Battery pack
PAP 20 A2
4 Ah
Battery pack
PAP 20 A3
max. 2.4 A
Charger PLG 20 A1
60 min
2,4 A
90 min
2,4 A
120 min
2,4 A
max. 3.5 A
Charger PLG 20 A2
60 min
2,4 A
60 min
3,5 A
80 min
3,5 A
max. 4.5 A
Charger PLG 20 A3
45 min
3,5 A
45 min
4,5 A
60 min
4,5 A
max. 4.5 A
Charger PDSLG 20 A1
35 min
3,5 A
45 min
4,5 A
60 min
4,5 A

PAHE 20-Li A1 GB│CY │ 1 ■
Contents
Introduction .........................................................2
Intended use .................................................................... 2
Features ........................................................................ 2
Package contents................................................................. 3
Technical data ................................................................... 3
General power tool safety warnings .....................................5
1. Work area safety .............................................................. 5
2. Electrical safety ................................................................ 5
3. Personal safety ................................................................ 5
4. Power tool use and care ......................................................... 6
5. Use and handling of the cableless electrical power tool................................. 6
6. Service....................................................................... 6
Appliance-specific safety instructions for cordless pruners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Precautions against kickback........................................................ 8
Further safety instructions........................................................... 8
Safety guidelines for battery chargers................................................. 9
Original accessories/auxiliary equipment.............................................10
Before initial use.....................................................10
Charging the battery pack (seefig.A) ...............................................10
Attaching/disconnecting the battery pack to/from the device .............................10
Checking the battery charge level...................................................10
Fixing/attaching the shoulder strap..................................................10
Mounting the saw chain and blade..................................................11

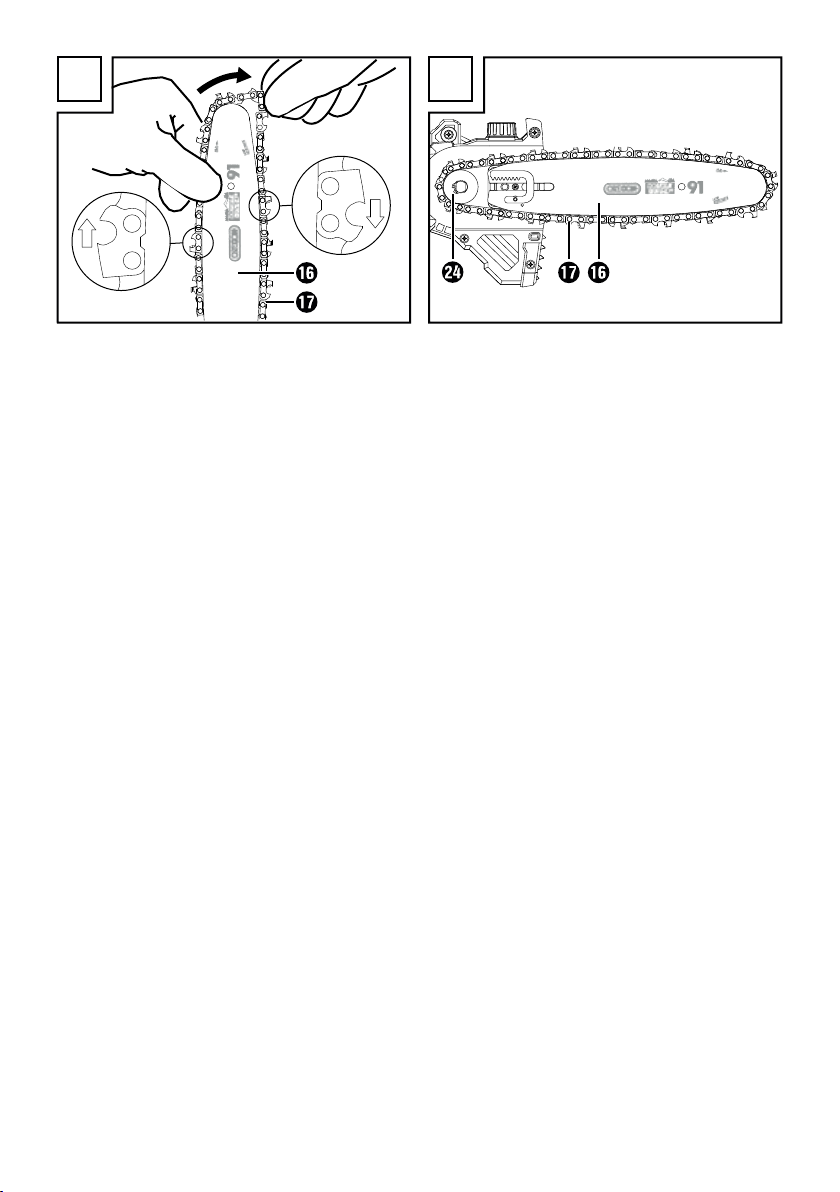

Tightening and checking the saw chain...............................................11
Lubricating the chain .............................................................11
Sharpening the saw chain .........................................................11
Initial use...........................................................12
Switching on and off .............................................................12
Checking the automatic oil system...................................................12
Adjusting the telescopic handle.....................................................12
Adjusting the cutting angle ........................................................12

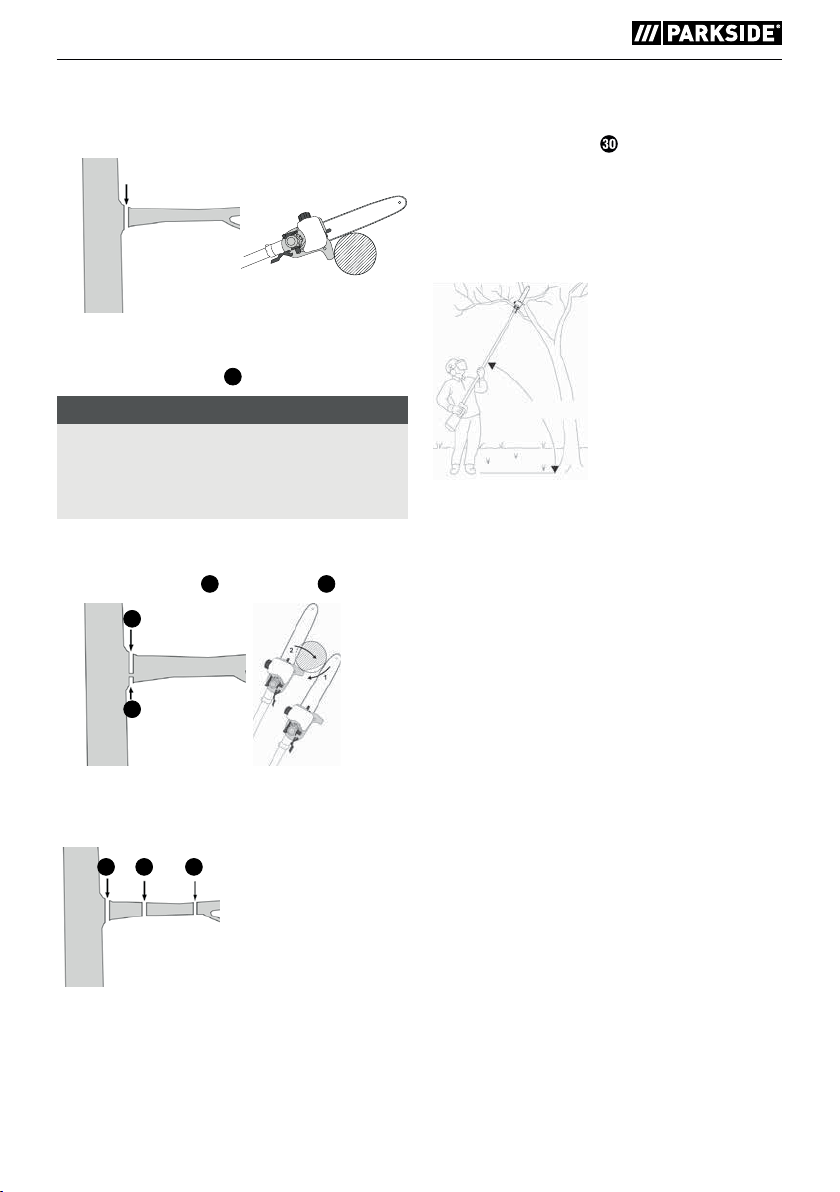

Sawing techniques...............................................................12
Working safely .................................................................13
Transport and storage ................................................14
Cleaning and maintenance ............................................14
Troubleshooting: Cordless pruner.......................................15
Maintenance intervals: Cordless pruner .................................15
Spare part orders ...............................................................15
Disposal............................................................16
Kompernass Handels GmbH warranty ..................................16
Service.............................................................17
Importer ...........................................................17
Translation of the original Conformity Declaration.........................18
Ordering a replacement battery........................................19
Telephone ordering ..............................................................19

PAHE 20-Li A1
■ 2 │ GB│CY
CORDLESS PRUNER
PAHE 20-Li A1
Introduction
Congratulations on the purchase of your new ap-
pliance. You have selected a high quality product.
The operating instructions are part of this product.
They contain important information on safety,
usage and disposal. Before using the product,
familiarise yourself with all handling and safety
instructions. Use the product only as described and
for the range of applications specified. Please also
pass these operating instructions on to any future
owner(s).
Intended use
This appliance is intended for trimming branches
in trees. It is not designed for extensive sawing
work, felling trees or cutting of materials such as
masonry, plastics or foods. Use this product only as
described and for the areas of applications speci-
fied. The appliance is not meant for commercial
use. The appliance is designed for use by adults.
This appliance is not intended for use by anyone
(including children) with reduced physical, sensory
or mental capabilities or lack of experience and/or
knowledge. The use of the appliance in rain or in
humid environments is prohibited. Avoid using the
pole pruner in an ambient temperature of less than
10°C. Any other usage of or modification to the
appliance is deemed to be improper and carries
a significant risk of accidents. The manufacturer
shall assume no liability for damage attributable
to misuse.

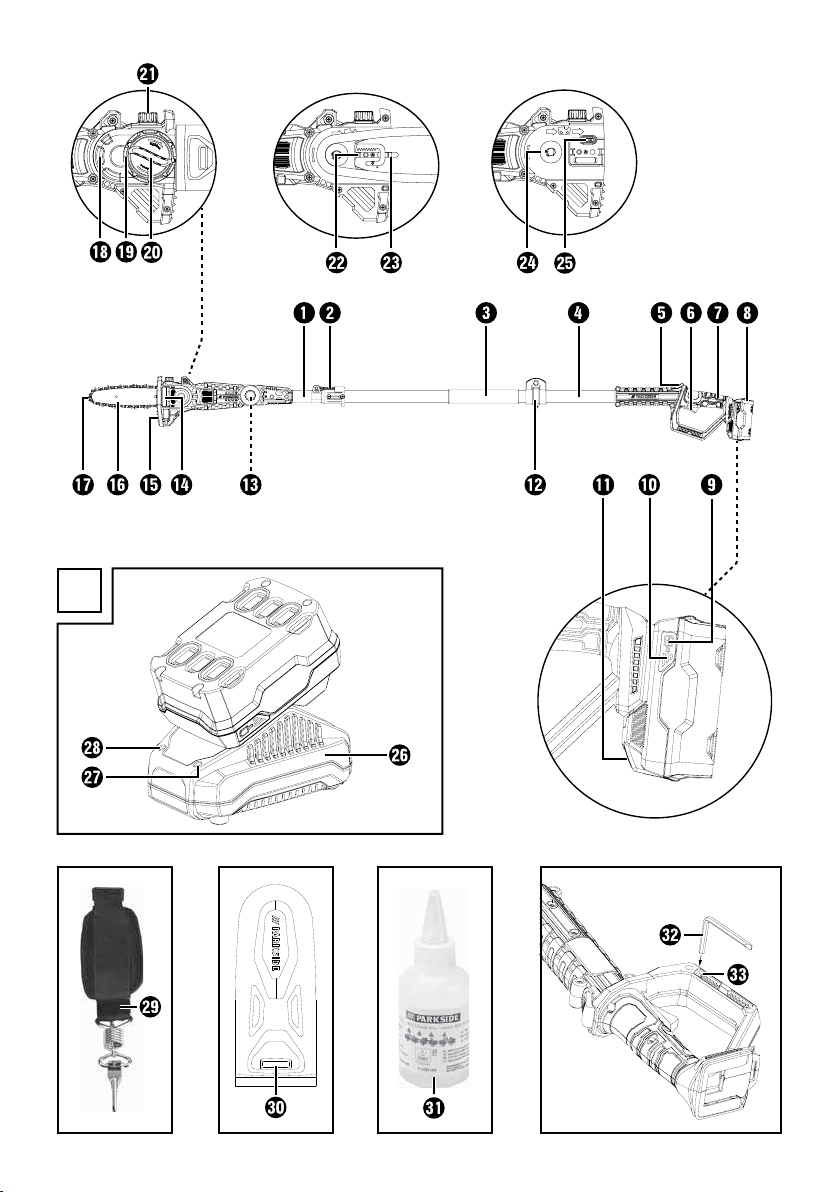

Features
Telescopic handle
Quick release for telescopic handle
Handle
Appliance shaft
Safety lock-out
ON/OFF switch
Rear handle
Battery pack*
Battery charge level button
Battery display LED
Release button for battery pack
Carrying lug
Release button for cutting angle
Viewing window for the oil level
Stop
Blade
Saw chain
Sprocket cover
Chainring
Mounting screw
Oil filler cap
Blade guide
Guide rail
Chain sprocket
Oil dispenser
High-speed charger*
Red charge control LED
Green charge control LED
Shoulder strap
Blade guard
Organic chain oil
Assembly tool
Mounting bracket for the assembly tool

PAHE 20-Li A1 GB│CY │ 3 ■
Package contents
1 cordless pruner PAHE 20-Li A1
1 shoulder strap
1 blade guard
1 Blade
1 saw chain
100 ml organic chain oil
1 assembly tool
1 operating instructions
Technical data
Cordless pruner PAHE 20-Li A1
Rated voltage 20 V (direct current)
Max. rotational speed 2500 min-1
No-load speed max. 5 m/s
Weight (without battery, cutting tool
and strap) approx. 2.6 kg
Oil tank volume 65 cm3
Cut length approx. 200 mm
Blade 8” Oregon 080NDEA318
Saw chain Oregon 91P033X
Use only the following battery to
operate the cordless tool PAP 20 A3*
Type LITHIUM ION
Rated voltage 20 V (direct current)
Capacity 4000 mAh/80 Wh
Cells 10
Use only the following high-speed
battery charger to charge the cordless tool
PLG20A2*
INPUT
Rated voltage 230–240 V ∼, 50Hz
(alternating current)
Power consumption 85 W
Fuse (internal) 3.15 A T3.15A
OUTPUT
Rated voltage 21.5 V (direct current)
Charging current 3.5 A
Charging time approx. 80 min
Protection class II/ (double shielded)
* BATTERY AND CHARGER NOT INCLUDED IN
DELIVERY
Noise and vibration data
Measured values for noise determined in accord-
ance with EN ISO 22868. The A-rated noise level
of the power tool is typically as follows:
Sound pressure level LpA = 88 dB (A)
Uncertainty KpA = 3 dB
Sound power level LWA = 106 dB (A)
Uncertainty KWA = 3 dB
Wear ear protection!
Vibration values (vector total of three directions)
determined in accordance with EN ISO 22867:
Vibration < 2.5 m/s2
Uncertainty K = 1.5 m/s2
WARNING!
► Depending on the use and the activities to
be performed, the sound pressure level must
be reduced to a level that does not adversely
affect the health of the operator. The sound
pressure level at the workplace may exceed
80 dB (A). In this case, sound insulation
measures are required for the operator (e.g.
wearing hearing protection).
► Also reduce the risk of vibration, e.g. the
risk of white-finger disease due to frequent
breaks in work where like rubbing their palms
together! Translated with www.DeepL.com/
Translator (free version)
NOTE
► The vibration level specified in these instruc-
tions has been measured according to a
standardized measurement procedure and
can be used for equipment comparison. The
vibration emission value given may also be
used for an initial assessment of exposure.

PAHE 20-Li A1
■ 4 │ GB│CY
WARNING!
► The vibration level varies in accordance with
the use of the power tool and may be higher
than the value specified in these instructions
in some cases. There is a risk of underestima-
tion of the vibration load if the power tool is
used regularly in this manner. Try to keep the
vibration loads as low as possible. Meas-
ures to reduce the vibration load are, e.g.
wearing gloves and limiting the working time.
In this case all states of operation must be
included (e.g. times when the power tool is
switched off and times where the power tool
is switched on but running without load).
Explanation of symbols on the appliance:
Read the operating instructions
and safety advice before initial
operation!
Wear protective gloves!
Wear safety shoes!
Wear ear protection!
Wear a hard hat!
Wear safety goggles!
Keep bystanders away from the
appliance!
Do not use chain saw one-handed!
Always use chain saw two-handed!
Beware of chain saw kickback
and avoid contact with bar tip!
Protect the appliance against
rain or moisture!
Keep at least 10 m away from
overhead lines and at least 15m
to other people.
Caution! Falling objects.
Especially when cutting above
head height.
Beware of thrown objects!
Caution! Risk of injury due to
running blades.
Sound power level LWA data
in dB.
Turn the device off and remove
the battery pack before per-
forming any maintenance work!!
15 min
OIL
A full tank will last for approx.
15minutes of continuous
operation.
Running direction of the chain!
Oil filler cap
MIN/MAX Minimum/maximum level
indicator of the oil tank.
Tighten!
Release!
VThe arrow direction marks the
selected position.
Press in the direction of the
arrow.

PAHE 20-Li A1 GB│CY │ 5 ■
General power tool
safety warnings
WARNING!
► Read all safety warnings and all instructions.
Failure to follow the safety instructions and
other instructions may result in electric shock,
fire and/or serious injury.
NOTE
► National regulations may restrict the use of
the appliance.
Save all safety instructions and other instruc-
tions for future reference.
The term “power tool” in the safety instructions
refers to your mains-operated (cable) power tools
or battery-operated (cableless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flam-
mable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cable. Never use the cable
for carrying, pulling or unplugging the power
tool. Keep cable away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cables increase the risk of electric shock.
e) When operating a power tool outdoors, use
an extension cable suitable for outdoor use.
Use of a cable suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are ill,
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear safety goggles. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off position before connecting to power
source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power
tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.

PAHE 20-Li A1
■ 6 │ GB│CY
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use
of dust collection systems can can reduce dust-
related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch is
defective. Any power tool that cannot be
controlled with the switch is dangerous and
must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children. Do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations other from those
intended could result in a hazardous situation.
5. Use and handling of the cableless
electrical power tool
a) Charge a rechargeable battery unit using
only the charger recommended by the manu-
facturer. Chargers are often designed for a
particular type of rechargeable battery. There
is a risk of fire if other types of rechargeable
battery are used.
b) Only the rechargeable battery units supplied
are to be used with the power tools. The use
of other rechargeable battery units may lead
to the danger of injury or fire.
c) When they are not being used, store re-
chargeable battery units away from paper
clips, coins, keys. nails, screws or other small
metal objects that could cause the contacts to
be bridged. Short-circuiting the contacts of a
rechargeable battery may result in burns or fire.
d) Fluid may leak out of rechargeable batteries
if they are misused. If this happens, avoid
contact with the fluid. If accidental contact oc-
curs, rinse the affected area with water. Seek
additional medical help if any of the fluid
gets into your eyes. Escaping battery fluid may
cause skin irritation or burns.
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable
batteries.
Protect the battery from heat, e.g.
also from continuous sunlight, fire,
water and humidity. There is a risk of
explosion.
6. Service
a) Have your power tool serviced by a qualified
repair person using only original replacement
parts. This will ensure that the safety of the
power tool is maintained.

PAHE 20-Li A1 GB│CY │ 7 ■
Appliance-specific safety instructions
for cordless pruners
■ Always wear a hard hat, hearing protection
and safety gloves. Also wear eye protection to
prevent splashes of oil or saw dust from falling
into your eyes. Wear a dust mask to protect
yourself from dust.
■ Never use the appliance while standing on a
ladder.
■ Do not lean too far forwards while using the
appliance. Ensure you are standing firmly and
keep your balance at all times. Use the supplied
carrying strap to spread the weight evenly on
the body.
■ Wear sturdy, non-slip boots.
■ Do not use the appliance in the rain.
■ Do not use the appliance near overhead power
lines. Maintain a minimum distance of 10 m to
overhead power lines.
■ Do not stand under the branches that you
want to cut off, to avoid injuries due to falling
branches. Be aware of branches that may spring
back, to avoid injuries. Work at an angle of
approximately 60°.
■ Be aware that the appliance can kick back.
■ Keep an eye not only on the branches being
cut, but also on falling material, to avoid trip-
ping.
■ After 30 minutes' work, take a break of at least
one hour.
■ Always wear protective gloves.
■ Cover the guide rail and the chain during
transport during transport and storage using the
cover.
■ Do not use the appliance in a potentially explo-
sive environment containing flammable liquids,
gases or dusts. The sparks generated by the
machine could ignite the vapours or gases.
■ The power outlet used must be suitable for the
plug. To avoid electrical shocks, never try to
modify the plug.
■ Never remove the plug from the power supply
by pulling on the power cable. Always pull the
power plug itself. Do not drag or carry the
appliance using the power cable. Keep power
cable away from heat, oil, sharp edges or
moving parts.
■ Remove the battery pack from the appliance
after completion of work or during cleaning
and maintenance.
■ Avoid unintentional starting of the appliance.
■ Appliances with defective switches must be re-
paired immediately to avoid damage or injuries.
■ Store the appliance outside of the reach of chil-
dren. Only those who are fully acquainted with
these operating instructions and the appliance
itself may operate the appliance.
■ Maintain power tools carefully. Check for mis-
alignment or binding of moving parts, breakage
of parts and any other condition that may affect
the power tool’s operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
■ Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
■ Therefore, have the appliance checked by quali-
fied specialists. Use only the replacement parts
recommended by the manufacturer.

PAHE 20-Li A1
■ 8 │ GB│CY
Precautions against kickback
CAUTION! KICKBACK!
► Be aware of the danger of kickback when
working with the appliance. There is a risk
of personal injury.
You can avoid kickbacks by being careful
and using the correct sawing technique.

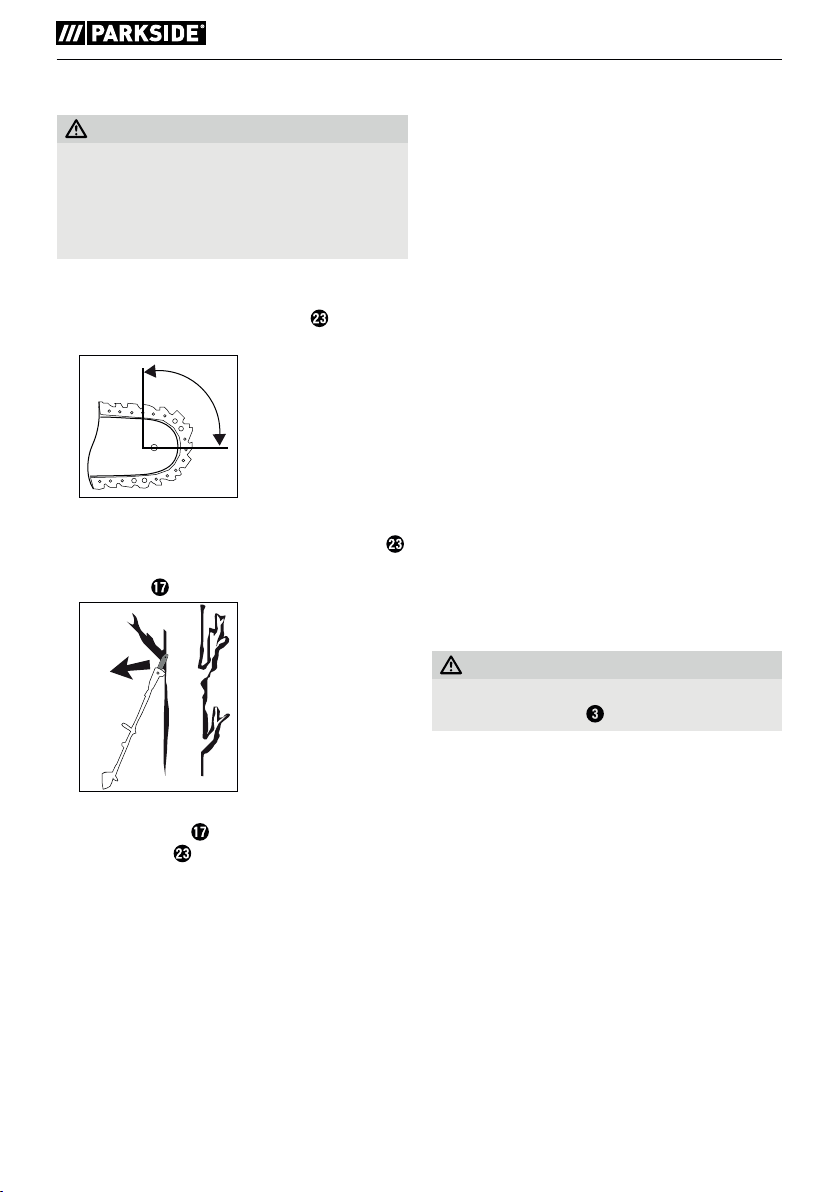

■ Contact with the tip of the rail can, in some
cases, lead to an unexpected rearwards
reaction resulting in the guide rail flying
upwards towards the operator (see Fig. 1).
Fig. 1
■ Kickbacks can occur if the tip of the guide rail
touches an object or if the wood bends and the
saw chain gets caught in the cut (see Fig. 2).
Fig. 2
■ If the saw chain jams in the upper edge of
the guide rail , the rail can kick back violently
towards the operator.
■ Any such reaction can lead to you losing
control over the saw and possibly injuring your-
self. Do not rely solely on the chainsaw's built-in
safety devices. As the user of a chainsaw,
you can take a number of measures to avoid
accidents and injury. A kickback is caused by
incorrect use or misuse of the power tool. It can
be avoided by taking proper precautions as
given below:
■Hold the saw firmly with both hands, with
your thumb and finger around the handles of
the chainsaw. Hold your body and arms in a
position in which you can withstand kickback
forces. If suitable measures are taken, the op-
erator can control the recoil forces. Never
let go of the chainsaw.
■Avoid an abnormal posture. This will prevent
inadvertent contact with the tip of the rail and
allows a better control of the chainsaw in unex-
pected situations.
■Always use the replacement rails and saw
chains specified by the manufacturer. Incor-
rect replacement rails and saw chains can lead
to a tearing of the saw chain and/or kickback.
■Follow the manufacturer's instructions for
sharpening and maintenance of the saw
chain. Setting the depth stop too low can
increase the risk of kickback.
■Do not saw with the tip of the blade.
This can lead to kickback.
■Ensure that there are no objects on the
ground that you can trip over.
Further safety instructions
CAUTION! RISK OF INJURY!
► To prevent injuries, never touch the appliance
above the handle while it is running!
■ During operation, no other person or animal
may be within a radius of 15 metres. The opera-
tor is responsible for third parties within the
warking area.
■ Keep the appliance, the cutting mechanism and
the blade guard in good condition to prevent
injury.
■ Before each use, check the appliance for worn,
loose or deformed parts. This ensures that the
safety of the appliance is maintained.
■ Children should be supervised to ensure that
they do not play with the appliance.
■ Do not use the appliance until you have famil-
iarised yourself with its use.

PAHE 20-Li A1 GB│CY │ 9 ■
■ Do not work with a damaged or incomplete
appliance or an appliance that has been modi-
fied without the consent of the manufacturer.
Never use the unit with defective protective
equipment. Do not use the appliance if it has a
defective on/off switch. Before use, check the
security state of the appliance, especially the
blade and the saw chain. If the appliance has
been dropped, check for significant damage or
defects.
■ Never start the appliance before the blade,
saw chain and sprocket covers have been fitted
correctly.
■ When starting and operating the appliance, en-
sure that it does not come into contact with the
ground, stones, wire or other foreign material.
Switch the appliance off before you put it down.
■ The device is designed for two-handed opera-
tion. Never work with one hand.
■ Hold the appliance only by the insulated han-
dles as the saw chain could come into contact
with hidden power lines. Contact between the
saw chain and a live wire may make exposed
metal parts of the power tool live and could
give the operator an electric shock.
■ Make sure that the appliance is switched off
when relocating the appliance and that you
cannot accidentally touch the on/off switch.
Carry the appliance with the saw chain and
blade facing backwards. Fit the blade guard
during transportation.
■ Attach the bumper spike firmly before every
cut and do not start until this has been done.
■ Be extremely careful when sawing small bushes
and branches. The thin branches and twigs can
catch in the saw and fly in your direction or
knock you off balance.
■ Do not cut any wood that is lying on the ground
and do not attempt to saw roots that are pro-
truding from the soil. Avoid immersing the saw
chain in the soil at all costs, as this could blunt
the saw chain.
■ When sawing a branch under tension, be
aware of the possibility of the branch flying
back once the tension is suddenly removed.
There is a risk of personal injury.
■ Do not use force to free the appliance if the
cutting tools get caught or jammed in branches.
Switch the appliance off immediately and do
not switch it on until the blockage has been
removed. There is a risk of personal injury!
■ We recommend attending a course on the use
and maintenance of pole pruners and also a
first aid course. After prolonged periods of non-
use, and for practice, you should always make
simple cuts in securely supported wood before
starting in order to re-familiarise yourself with
the appliance.
Safety guidelines for battery
chargers
■ This appliance may be used by
children aged 8 years and above
and by persons with limited physi-
cal, sensory or mental capabilities
or lack of experience and know-
ledge, provided that they are under
supervision or have been told how
to use the appliance safely and
are aware of the potential risks.
Children must not use the appliance
as a plaything. Cleaning and user
maintenance tasks may not be car-
ried out by children unless they are
supervised.
The charger is suitable for
indoor use only.
■ If the supply cord is damaged, it
must be replaced by the manufac-
turer, its service agent or similarly
qualifi ed persons in order to avoid
a hazard.

PAHE 20-Li A1
■ 10 │ GB│CY
RESIDUAL RISKS!
■ Even if you operate this power tool properly,
there will still be residual risks. The following
risks can occur in the context of the design
and construction of this power tool:
a) Cuts
b) Hearing damage, if no suitable hearing
protection is worn.
c) Damage to health caused by hand-
arm vibrations if the appliance is used for
extended periods or is not properly used and
maintained.
WARNING!
■ Do not operate the appliance with a dam-
aged cable, power cable or power plug. A
damaged power cable causes danger to life
by electric shock.
Original accessories/auxiliary
equipment
■Use only the additional equipment and acces-
sories detailed in the operating instructions.
The use of tools and accessories other than
those recommended in the operating instruc-
tions could lead to an increased risk of personal
injury for you.
Before initial use
Charging the battery pack
(seefig.A)
CAUTION!
► Always unplug the appliance before you re-
move the battery pack from or connect the
battery pack to the high-speed charger .
■ Never charge the battery pack when the
ambient temperature is below 10°C or above
40°C.
♦ Connect the battery pack to the high-speed
charger.
♦ Insert the power plug into the mains power
socket. The red control LED will light up.
♦ The green control LED indicates that the
charging process is complete and the battery
pack is ready for use.
CAUTION!
♦ If the red control LED flashes, this means
that the battery pack has overheated and
cannot be charged.
♦ If the red and green control LEDs
flash simultaneously, this means that the
battery pack is defective.
♦ Fit the battery pack back onto the appliance.
Attaching/disconnecting the battery
pack to/from the device
Attaching the battery pack
♦ Allow the battery pack to click onto the rear
handle of the appliance.
Removing the battery pack
♦ Press the release button and remove the
battery pack .
Checking the battery charge level
♦ Press the battery charge level button
to check the status of the battery. The status/
remaining charge will be shown on the battery
display LED as follows:
RED/ORANGE/GREEN = maximum charge/
performance
RED/ORANGE = medium charge/performance
RED = low charge – charge the battery
Fixing/attaching the shoulder strap
♦ Hook the shoulder strap into the carrying
lug .
♦ Adjust the length of the shoulder strap to
your size so that carrying lug is at hip height
when hooked in place.
♦ In addition, you can adjust the height of the
carrying lug on the appliance shaft by
loosening the screw.

PAHE 20-Li A1 GB│CY │ 11 ■
Mounting the saw chain and blade
WARNING!
► Wear protective gloves! There is a danger
of injury from the sharp cutting teeth!
► The sprocket cover together with the chain
tensioning ring and the fixing screw
are not pre-assembled on the appliance at
delivery.
► The turning of the blade is not intended by
the manufacturer.
► The chain travel direction on the
blade must be adhered to every assembly.
♦ Place the saw chain on the blade .
Ensure that the saw chain is running in
the correct direction (see Fig. B).
♦ Attach the blade with the labelling facing
upwards and guide the saw chain around
the chain sprocket .
The guide rail must be above the blade
guide (see Fig. C).
♦ Put the sprocket cover on.
♦ Tighten the fixing screw slightly.
♦ Now, tighten the saw chain (see section
Tightening and checking the saw chain).
♦ Tighten the fixing screw completely.
Tightening and checking the saw
chain
WARNING!
► Wear protective gloves! There is a danger of
injury from the sharp cutting teeth!
♦ Undo the fixing screw .
♦ Turn the chain tensioning ring in a clockwise
direction to increase the tension.
♦ The saw chain must lie against the underside
of the blade.
Check whether the saw chain can be drawn
over the blade by hand .
♦ Now tighten the fixing screw completely.
NOTE
► A new saw chain stretches and must be
tightened more regularly.
Lubricating the chain
♦ Remove the oil filler cap .
♦ Fill the oil tank with approx. 65ml of organic
chain oil .
WARNING!
► Never work without chain lubrication!
If the saw chain runs dry, the cutting
equipment may become irreparably dam-
aged within a short time. Always check chain
lubrication and oil level in the tank before
starting work.
NOTE
► Use only saw chain oil. Preferably biodegrad-
able. Do not use waste oil, motor oil, etc.
► While working, check whether the automatic
chain lubrication is working correctly. Check
the chain lubricator before and during work.
Sharpening the saw chain
NOTE
► You will find detailed information on
sharpening in the sharpening set, e.g. from
Oregon.
► Alternatively, you can use an electrical saw
chain sharpening device and follow the
instructions of the manufacturer.
► If you have any doubts about implementing the
work, the saw chain should be replaced.

PAHE 20-Li A1
■ 12 │ GB│CY
Initial use
NOTE
► Comply with regulations regarding noise
protection and local rules. Using the appli-
ance on certain days (e.g. on Sundays and
public holidays), during certain times (midday
period, night time) or in certain locations
(e.g. health resorts, clinics, etc.) may be
restricted or prohibited.
Switching on and off
Switching on
♦ Press the safety lock-out and keep it pressed
and then press the on/off switch .
♦ After the starting process, the safety lock-out
can be released.
Switching off
♦ Release the ON/OFF switch .
Checking the automatic oil system
Before starting work, check the window for the oil
level and the automatic oil system.
♦ Switch the appliance on and hold it over a
lightly coloured floor surface. The appliance
must not touch the ground.
♦ If there is an oil trace, the appliance is opera-
ting correctly.
♦ If there is no oil trace, clean the oil dispenser
or have the appliance repaired by our Customer
Service.
♦ To clean, wipe the residues from the oil dispenser
using a brush or cloth.
Adjusting the telescopic handle
The telescopic handle can be adjusted continu-
ously by means of the quick release .
♦ Activate the quick release and adjust
the length by pushing or pulling as required.
♦ Close the quick release again, thereby fixing
the desired working length of the telescopic
handle .
♦ If the screw of the quick release has loo-
sened, tighten it again with a hex key.
Adjusting the cutting angle
NOTE
► The cutting angle can be adjusted in 3 stages.
♦ Remove the battery pack from the appliance.
♦ Press the release button .
♦ Adjust the angle of the motor unit to the required
position.
♦ Let go of the release button and the motor
unit will click into place.
♦ Insert the battery pack back into the appliance.
Sawing techniques
WARNING!
► Pay attention to falling clippings.
► Be aware of the danger of branches flying
back.
NOTE
► Place the stop on the branch. This will help
you work more safely and quietly.
► Now you can begin with the sawing.

PAHE 20-Li A1 GB│CY │ 13 ■
Sawing off small branches
♦ Saw small branches (Ø 0–8 cm) from the top
down (see figure).
Sawing off larger branches
♦ When sawing larger branches (Ø 8–20 cm),
first make a relief cut A (see figure).
NOTE
► A relief cut must not be carried out with an
angle-adjusted saw head. There is a risk of
kick-back and the device becomes uncont-
rollable.
■ A relief cut also prevents peeling of the bark on
the main trunk.
♦ Saw from the top B to the bottom A .
Saw in sections
Long or thick branches should be shortened before
making the final cut (see figure).
cb a
Working safely
■ Keep the appliance, the cutting mechanism
and the blade guard in good condition to
prevent injury.
■ If the appliance has been dropped, check for
significant damage or defects.
■ Maintain the specified angle 60°±10° to
ensure safe working (see figure).
■ Do not use the appliance while standing on a
ladder or with unsteady footing.
■ Do not be tempted into making a poorly
considered cut. You could endanger yourself
and others.
■ Children should be supervised to ensure that
they do not play with the appliance.
■ Change your working position regularly.
Using the appliance for a long time can lead
to vibration-related circulation disorders of the
hands. You can extend the usage duration
by means of appropriate gloves or by taking
regular breaks. Note that any personal predis-
position to poor blood circulation, low external
temperatures or large prehensile forces can
reduce the usage period.
A
B
C AB
60°±10°

PAHE 20-Li A1
■ 14 │ GB│CY

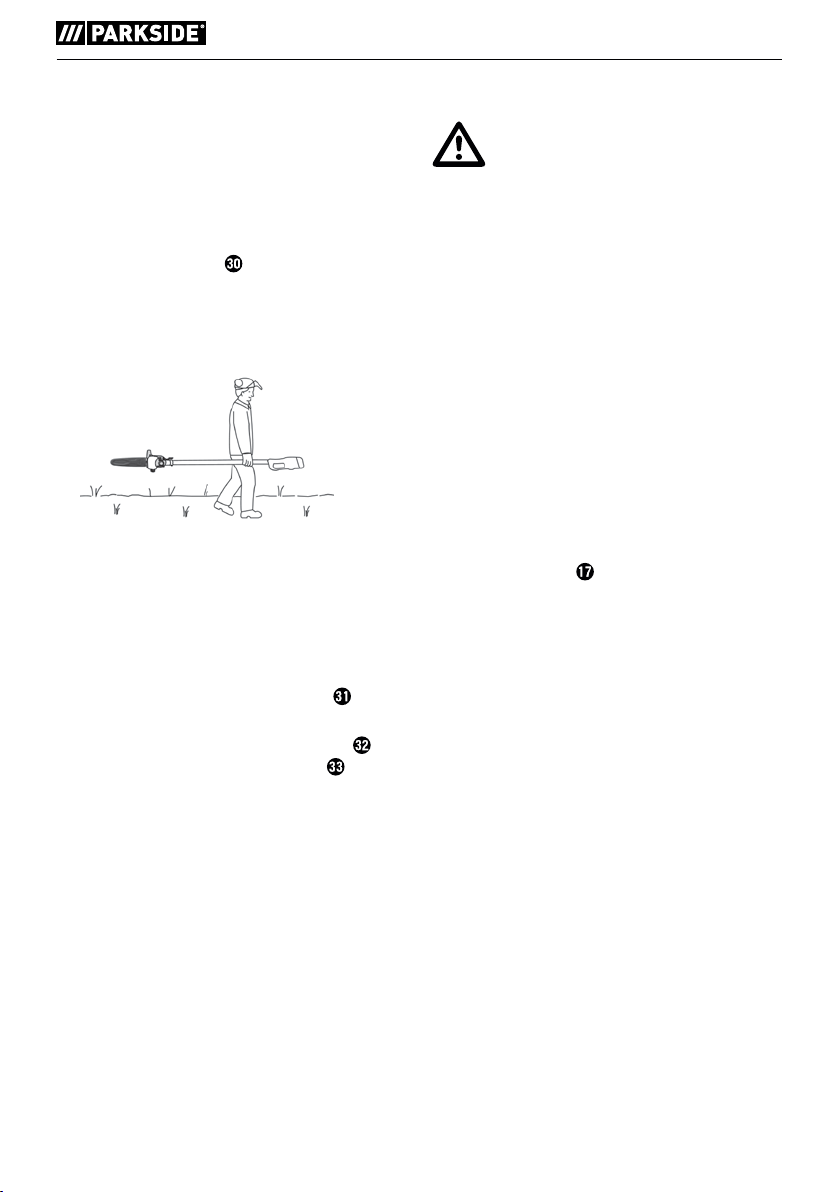

Transport and storage
■ For transport, allow the motor to cool down
and secure the machine from slipping before
transporting it in a vehicle. This ensures that
damage or injury is prevented. The pole pruner
should always be transported with the transport
protection device attached.
■ Use the blade guard for transporting the
appliance.
■ Ensure that the appliance cannot switch on
during transport (see figure).
■ Always clean the appliance thoroughly before
storing.
■ Store the appliance in a dry place and out of
the reach of children.
■ Store the appliance horizontally or secured
against falling.
■ Empty the oil tank. Organic chain oil can
become resinous.
■ For better retention of the mounting tool You
can use this in the mounting bracket .
Cleaning and maintenance
WARNING! RISK OF INJURY!
Always switch the appliance off and
remove the battery before carrying
out any work on the appliance.
■ Clean and service the appliance after each use
depending on the operating conditions. Failure
to clean the appliance may result in material
damage and malfunctions.
■ Never allow fluids to get into the device.
■ Use a soft, dry cloth to clean the housing.
Never use petrol, solvents or cleansers which
can damage plastic.
■ If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The optimum storage
climate is cool and dry.
■ The pole pruner must be cleaned of sawdust
at regular intervals. For this purpose, use a
compressed air blow gun, for example.
■ A new saw chain stretches and must be
tightened more regularly.

PAHE 20-Li A1 GB│CY │ 15 ■
Troubleshooting: Cordless pruner
Problem Possible cause Troubleshooting
Saw chain runs with
difficulty, chain comes off
or has extended
Chain tension insufficient Check chain tension
No progress Saw chain dry/overheating or
is sagging
Top up with oil or grind, replace or
tighten the saw chain
Maintenance intervals: Cordless pruner
The figures given here are based on normal operating conditions. In the event of more difficult conditions,
such as strong dust generation and longer daily working hours, the given intervals are to be reduced cor-
respondingly.
Appliance part Action Before
starting
work
Weekly In the
event of
faults
In the
event of
damage
As re-
quired
Lubricating the
chain
check
X
Saw chain check and note
sharpness X
check chain
tension X
sharpen X
Guide rail check (wear,
damage) X
clean XX
deburr X
replace XX
Chain sprocket check X
replace X
Spare part orders
Replacement parts can be ordered directly from the service centre. Please provide the following details
when making an order: machine type and item number.
NOTE
► Replacement parts not listed (such as batteries, switches) can be ordered via our service hotline.
