Parrot MKi9000 User manual

Quick start guide
Guide d’utilisation rapide
Guía de instalación rápida
Bedienungsanleitung
Guida all’uso
Gebruikershandleiding
Manual do utilizador
PARROT
MKi9000

www.parrot.com
Parrot MKi9000
Installation diagrams........................
English.............................................
Français...........................................
Español...........................................
Deutsch ..........................................
Italiano ............................................
Nederlands .....................................
Português........................................
General Information.........................
p.06
p.11
p.18
p.26
p.34
p.42
p.50
p.58
p.66

4

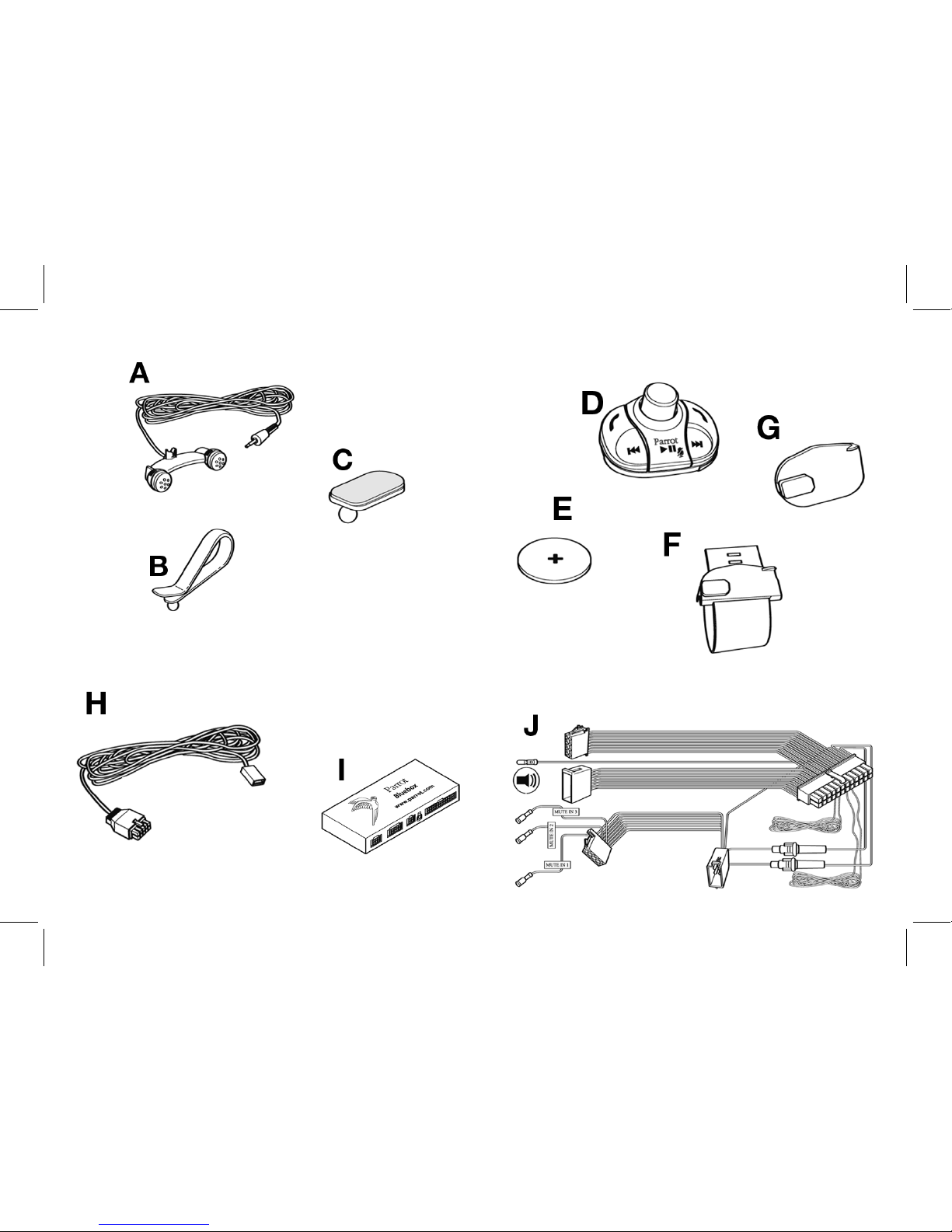

A
External double microphone
Double microphone Externe
Doble micrófono
Externes Doppelmikrofon
Doppio microfono esterno
Externe dubbele microfoon
Microfone duplo externo
B - C
Mouting kit - Microphone
Accessoires de montage - Microphone
Accesorios - Doble micrófono
Zubehörteil - Doppelmikrofon
Accessori - Microfono
Accessoires - Microfoon
Acessórios - Microfone
D
Remote control
Télécommande
Mando a distancia
Fernbedienung
Telecomando
Afstandsbediening
Telecomando
E
3V CR2032 battery.
Pile de type 3V CR2032
Pila - 3V CR2032
Batterie - 3V CR2032
Pila - CR2032.
Batterij - 3V CR2032.
Pilha - 3V CR2032
F–G
Mouting kit – Remote control
Accessoires de montage – Télécommande
Accesorios - Mando a distancia
Zubehörteil - Fernbedienung
Accessori - Telecomando
Accessoires - Afstandsbediening
Acessórios - Telecomando
H
USB cable
Câble USB
Cable USB
USB-Kabel
Cavo USB
USB-kabel
Cabo USB
I
Electronic box
Boitier électronique
Caja electrónica
Elektronikgehäuse
Centralina elettronica
Kast
Caixa electrónica
J
Audio / Power / Mute cable
Câble audio / Alimentation / Mute
Cable de atenuación con conectores ISO
Mute-Kabel mit ISO-Anschlüssen
Cavo Mute con connettori ISO
Mutekabel met ISO-connectoren
Cabo mute com conectores ISO
5

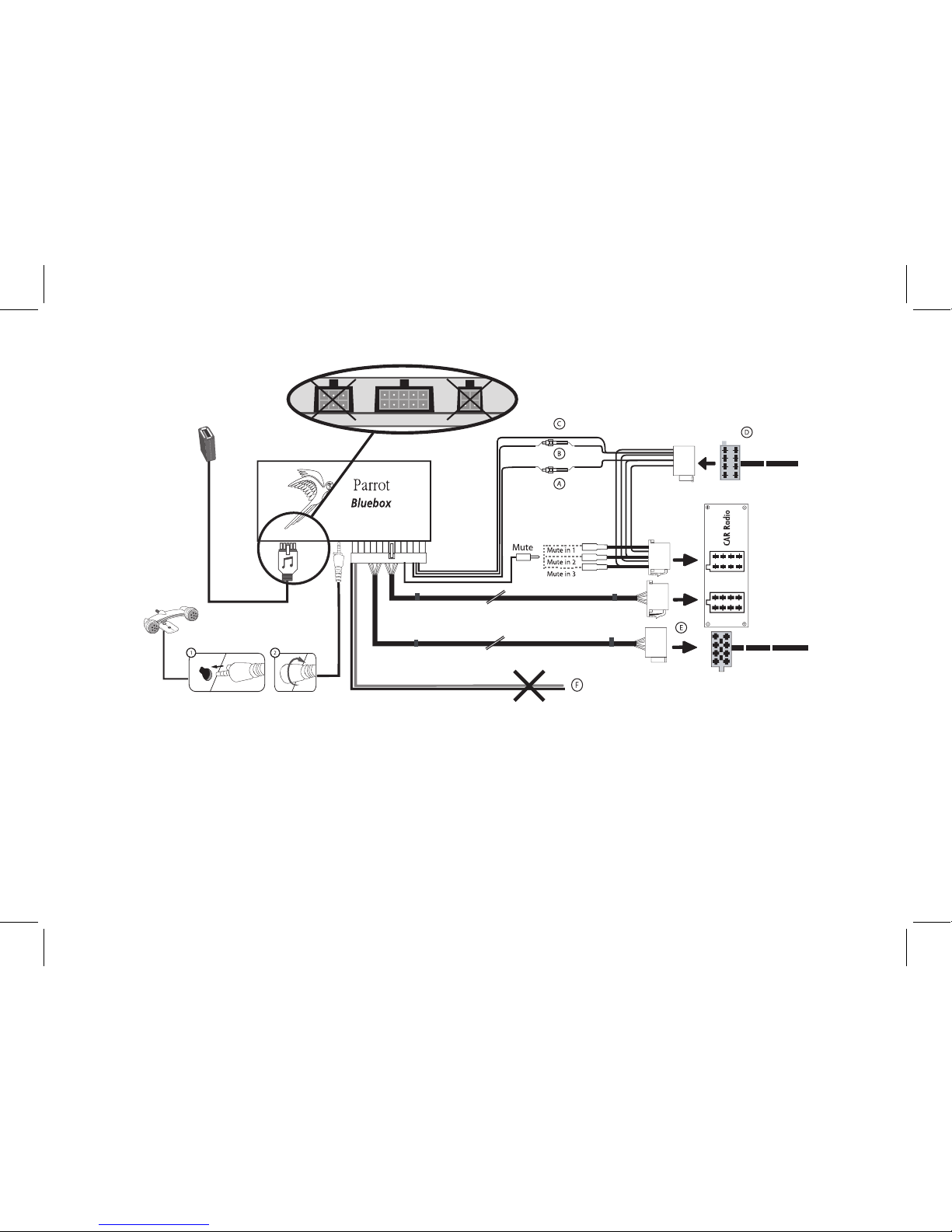

- Car stereo with an ISO connector
- Autoradio avec connecteur ISO
- Autorradio con conector ISO
- Autoradio mit ISO-Anschluss
- Autoradio con connettore ISO
- Autoradio met ISO-connector
- Auto-rádio com conector ISO
www.parrot.com
• A: 12V ignition (orange)
• B: 12V constant power supply (red)
• C: Ground
• D: Connection to the vehicle’s power supply
• E : Connection to the vehicle’s speakers
1. Rear right speaker (purple / purple-black)
2. Front right speaker (grey / grey-black)
3. Front left speaker (white / white-black)
4. Rear left speaker (green / green-black)
• F : This wiring is not used.
6

- Car stereo with Line In input
- Autoradio avec entrées Line In
- Autorradio con entradas Line In
- Autoradio mit Leitungseingang (Line In)
- Autoradio con ingresso Line In
- Autoradio met Line-In ingangen
- Auto-rádio com entradas Line In
- Autoradio con connettore ISO
- Autoradio met ISO-connector
- Auto-rádio com conector ISO
www.parrot.com
• A : 12V ignition (orange)
• B : 12V constant power supply (red)
• C : Ground
• D : Connection to the vehicle’s power supply
• E : Line-out 1
1 : Line 1 + : white
2 : Line 1 - : brown
• F : Line-out 2
1 : Line 2 + : red
2 : Line 2 -: black
• G : This wiring is not used
7

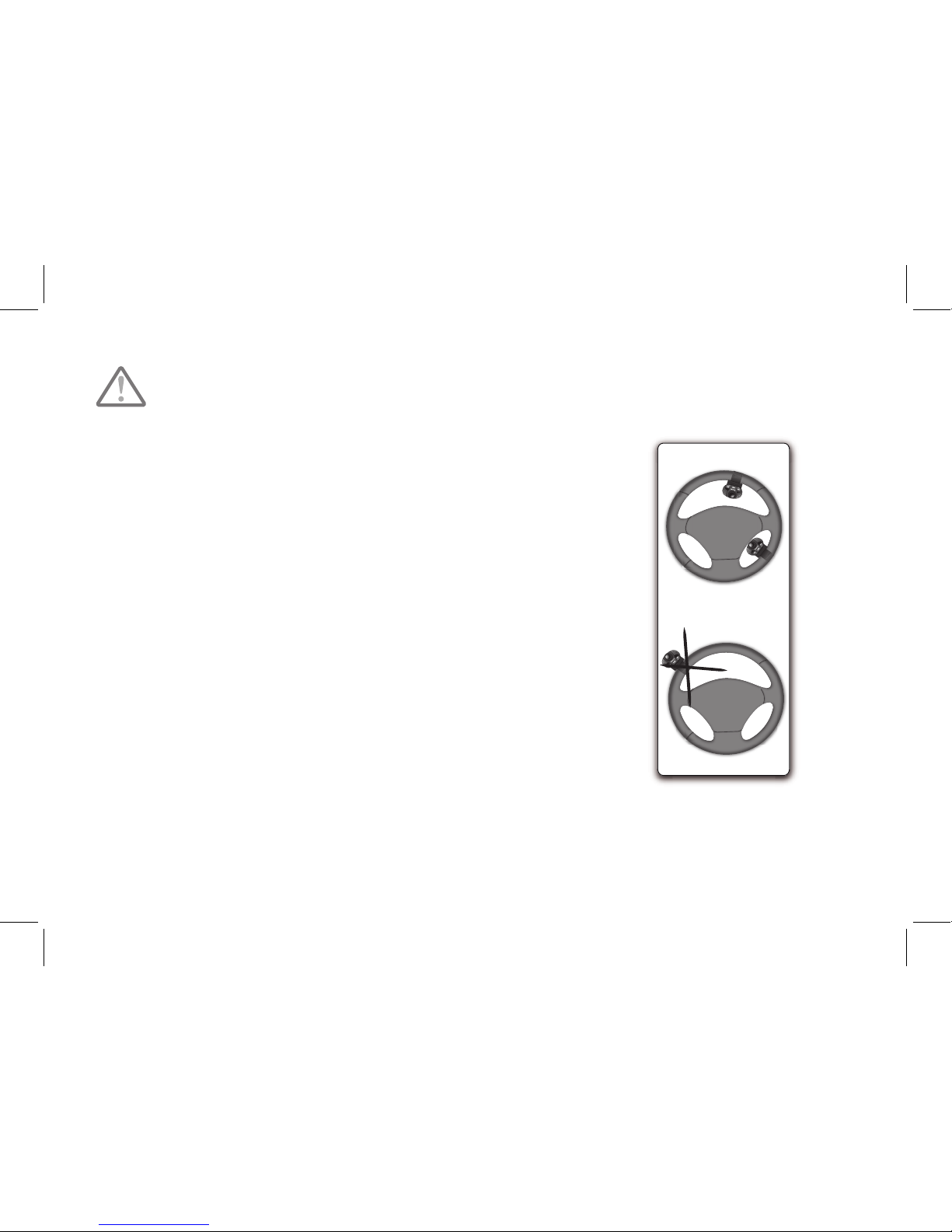

- Do not install the remote control on the outside of the steering wheel.
- N’installez pas la télécommande sur le côté extérieur du volant.
- No instale el mando en el lado exterior del volante.
- Anbringen der Fernbedienung am Armaturenbrett.
- Non installare il telecomando sul lato esterno del volante.
- Installeer de afstandsbediening niet op de buitenzijde van het stuur.
- Não instale o controlo remoto na parte exterior do volante.
8

- The remote control only works with a 3V CR2032 battery.
- L’autonomie de la télécommande est assurée par une pile de
type 3V CR2032 uniquement.
- La autonomía del mando a distancia se hace únicamente por
una pila de tipo 3V CR2032.
- Die Autonomie der Fernbedienung wird ausschließlich durch eine Batterie des Typs 3V CR2032
sichergestellt.
- L’autonomia del telecomando è garantita esclusivamente da una pila da 3 V CR2032.
- De autonomie van de afstandsbediening wordt uitsluitend verzorgd door een batterij type 3V CR2032.
- A autonomia do controlo remoto é garantida apenas por uma pilha do tipo 3V CR2032.
9

clic
10

http://www.parrot.com/uk/support
Complete user guide, tutorials, software updates...
English
Before you begin
About this
guide
In order to limit our paper consumption, and as part of our environmentally friendly and respon-
sible approach, Parrot prefers to put user documents online rather than print them out.
This simplified guide to the Parrot MKi9000 is there fore limited to providing you with the main
instructions that will make it easy for you to use the device. More information can be found on the Sup-
port & Downloads section of our website, www.parrot.com: the full manual, FAQs, tutorials, and more.
Download the latest update for free (and check the update procedure) on our website www.parrot.com,
in the Support & Downloads section. These updates will enable you to receive new features and
improve the product’s compatibility.
Software
updates
ISO adapter If your car stereo is not fitted with ISO connectors, you need to purchase an ISO adapter cable to
simplify the wiring procedure. Refer to the range of ISO adapters on our website.
Contents Installation.................................................
Getting started..........................................
Phone........................................................
Music.........................................................
In case of problem.....................................
p.12
p.14
p.15
p.16
p.17
11

Installation
We would advise our customers to have the Parrot
MKi9000 fitted by a professional.
The cables supplied with the kit feature ISO connectors and•
two pairs of line-out jacks. The line-out jacks can be used if
your audio system features this option (use of an amplifier).
Several set-ups are therefore possible depending on the
type of car stereo and your vehicle.
Prior to fixing the hands-free kit’s different components•
inside the car, connect the installation cables, con-
trol keypad and double microphone to the electronic
control unit.
The mute function is used to cut the sound of your car ste-•
reo to enable a phone call. The choice of the mute-in jack
depends on your car stereo’s configuration.
Car stereo with an ISO connector
Connect the male connectors of the hands-free kit to1.
the car stereo.
Join the vehicle’s audio and power supply cables to the2.
female connectors of the Parrot MKi9000.
On the installation cable, connect the free yellow wire to3.
one of the audio system’s corresponding mute-in jacks if
available (mute in 1, mute in 2 or mute in 3).
If your car stereo is not equipped with ISO connec-
tors, you will need to purchase an ISO adapter cable
to simplify the wiring procedure. Refer to the range of
ISO adapters on our website: www.parrot.com.
Car stereo with line-in jacks
Use this type of connection by wiring a line-out jack•
(brown & white wire or red & black wire) to your car
stereo’s line-in jack.
Using the two pairs of line-out jacks will enable you to take•
advantage of the streaming audio function in stereo over
your vehicle’s speakers.
On the installation cable, connect the free yellow wire to•
one of the audio system’s corresponding mute-in jacks if
available (mute in 1, mute in 2 or mute in 3).
Installing the kit’s power cable
Refer to your car stereo’s wiring diagram.
The red wire of the kit’s cable must correspond to the con-•
stant +12V supply, the orange wire to the ignition +12V and
the black wire to ground.
Check that the orange wire is not connected to the constant•
12

13
+12V supply, as you could run down the vehicle’s battery.
On some vehicles, the red and orange power supply wires•
may need to be reversed. This can easily be done by rever-
sing the two fuse holders on the Parrot MKi9000 installation
cable.
Many new vehicles do not have a 12 volt ignition supply.•
The 12 V ignition must then be taken elsewhere on the
vehicle such as the fusebox or cigar lighter. An additional
device generating an artificial ignition 12V signal may also
be necessary.
Installing the audio connectors
The music cable grommet system allows you to adjust the
cable length while reducing its wear.
Drill a 20 mm hole in your dashboard (glove compart-1.
ment or parcel tray).
Insert manually two flexible arms of the grommet system.2.
Use a flat screwdriver in order to insert the last two arms.3.
> You can now connect your music cable to the bluebox.
Installing the electronic box
Avoid installing the electronic box near heating or air-con-•
ditioning system, on a spot directly exposed to sunlight or
behind metal walls.
Make sure the electronic box stays fixed once it is installed•
and that it will not move while you are driving.
Do not reinstall the car stereo forcibly. If you are short of•
space behind the car stereo to install the electronic box,
consider installing it in the glove box.
Installing the remote control
If you want to place the remote control on the steering•
wheel, make sure it is securely attached, so it does not
move when you are driving. Do not install the remote con-
trol on the outside of the steering wheel and ensure it does
not get in the way when driving.
If you want to place the remote control on the dashboard,•
stick the double-sided tape located on the flat side of the
bracket to fix it against the dashboard. You can then insert
the remote onto the bracket.
Once you have stuck the support on the dashboard,
wait for approximately 2 hours to make sure the
adhesive tape adheres well.
Installing the microphone
Make sure the microphone is installed as close to the mouth•
of the user as possible. The ideal distance is 60 cm. The
best possible location for the microphone is near the rear-
view mirror.
The microphone needs to be pointed towards the user.•

Getting started
Associating the control unit with the remote control
If the remote control does not seem to be associated to the
electronic box while using the Parrot MKi9000:
After verifying the CR2032 battery is properly inserted in•
the remote unit, press and hold the Play and green buttons
then press the red button several times. This has to be done
during a 30 seconds period once the ignition is turned on.
> Within 1 to 2 seconds, you should then hear a voice mes-
sage saying “Remote control pairing successful”.
If you are unsuccessful on the first attempt, power off the•
unit until you see the “Goodbye” message, power it back
on, and repeat the process.
Selecting the language
While using the Parrot MKi9000 for the first time, use the jog•
wheel to browse through the available languages and press
the jog wheel to confirm your selection.
In case of a problem during language selection, hold down•
the red and green buttons for 2 seconds.
Navigating through the menus
Press the central jog wheel to access the menus. Browse
through the menus by turning the wheel and confirm with the
green button or by pressing the wheel. Press the red button or
wait a few seconds to exit the menu.
Pairing and connecting a phone
to the Parrot MKi9000
Prior to using your Parrot MKi9000 with your phone for1.
the very first time, you must initially pair both devices.
From your phone, search for Bluetooth®peripherals.
Select «MKi9000» in the list.2.
Enter «0000» on your phone when prompted.3.
> The Parrot MKi9000 says «Pairing successful» .
> The connection will then be automatic as soon as
you enter your vehicle.
Synchronising the phonebook
With some• Bluetooth phones, the phonebook is automati-
cally synchronized in the kit’s memory. Only the contacts
stored in the phone memory are synchronized.
If your phone doesn’t support automatic synchronization,•
you can also use the Object Push function of your phone to
send contacts from your mobile to the car kit via Bluetooth.
Press the jog wheel and select1. Settings > Receive
contacts.
Refer to your phones’ user guide for more information2.
about sending contacts via Object Push.
14

Phone
The availability of some functionality only depends on
your mobile phone. Refer to our website www.parrot.
com, in the Support > Compatibility section,
for further information.
Receiving a call
An incoming call is indicated by a ringtone. The name of the•
caller is announced if his number is recorded in the phone-
book of the phone connected to the MKi9000 .
If you want to answer the call, press the green button.-
Then press the red button to end the call.
If you want to refuse this call, press the red button.-
If the magic words are activated, you can use the voice•
recognition feature to pick up and reject a call:
The magic word «- Accept» allows you to accept an
incoming call.
The magic word «- Reject» allows you to reject an in-
coming call.
Magic words are activated by default. To deactivate /•
activate them:
Press the jog wheel and select1. Settings > Magic
words.
Press the jog wheel to activate/deactivate the2.
magic words.
Making a call
To make a call via voice recognition:•
Press the green button to launch the voice1.
recognition feature.
> The MKi9000 asks you the name of the contact you
want to call.
Say the name of the contact and the type of number2.
(«Work», «Cellphone»...) if there are several num-
bers associated to your contact.
> The call is automatically launched if the voice tag is
correctly understood.
> If it is not the case, a confirmation message is
asked by the kit. Confirm by saying “Yes” or “Call”.
At any time, press the red key to exit voice recognition
mode.
To make a call manually:•
Press the jog wheel to enter the main menu and select1.
Phonebook.
> You access the phonebook of the connected phone.
Select a letter and push the jog wheel.2.
Once the contact chosen:3.
Press the green key to call this contact;-
Use the jog wheel to choose between different num--
bers of the same contact.
15

Hold down the green key of the MKi9000 for two seconds•
to redial the last dialled number.
Using the MKi9000 while on a call
Use the jog wheel during a call to adjust the communication•
volume. The volume setting is saved for subsequent calls.
During a call, if you want to continue the conversation on•
your phone (private conversation), press the button of the
MKi9000.
During a call, the MKi9000 allows you to send DTMFs to•
manage your voice mail for example. To do so, press the
jog wheel to access the DTMF menu.
Music
Use the iPod, USB or Jack connectors to connect the•
Parrot MKi9000 to your iPod / USB stick / audio player.
You can also use the Parrot MKi9000 to listen to songs•
stored on your mobile phone / PDA / smartphone. Your
mobile phone must support the Bluetooth® A2DP profile.
To change the music source, press the jog wheel to•
access the source menu and select it in the following
order :
iPod- (or iPhone) ;
USB- (MP3 player / USB flash drive) ;
Audio Bluetooth- (audio player supporting A2DPprofile
connected via Bluetooth) ;
Line In- (analogue audio player).
While playing a song, press the red button to get to
main menu. While navigating through the menus, press
the Play button to get to the Now Playing screen.
There is no restriction in terms of capacity of USB stick. Only
MP3 (Mpeg 1 Layer3) or WMA formats are
supported.
16

In case of problem
Before you begin
Make sure you have the latest software update on your
Parrot MKi9000. Compare this number with the one on our
website, Downloads section.
Problems while using the phone function
Make sure your phone is compatible with the Parrot•
MKi9000. To do so, refer to the compatibility list of the
Parrot MKi9000 available on our website www.parrot.com,
in the Support & Downloads section.
If your phone is compatible with the Parrot MKi9000 and if•
you already have the latest software update:
Erase the memory of the Parrot MKi9000. To do1.
so, hold down btoh the red and green buttons for 3
seconds.
On your telephone, erase the Parrot system from the2.
list of Bluetooth peripherals (or reboot your iPhone).
Repeat the linking procedure for the 2 devices.3.
Problems while using the music function
Reboot your iPod / iPhone before connecting it to the•
Parrot MKi9000. To reboot your iPod / iPhone (this proce-
dure will not erase any of your data) :
iPod- : press Menu and the centre button
simultaneously until the iPod reboots.
iPhone- : Press the On/Off button and the Home button
simultaneously until the iPhone reboots. Do not touch
the screen when the message “Slide to shutdown”
appears.
Some problems may occur if the iPod / USB device is al-•
ready connected to the Parrot MKi9000 before you turn on
the ignition. Connect the iPod / USB device once the igni-
tion is turned on.
If your Parrot MKi9000 is connected to an iPhone and•
an USB flash drive, the iPhone has priority: you can only
browse through your iPhone content.
Make sure that your iPod is updated.•
For any other problem or for more information
Refer to the Parrot MKi9000 FAQ available on our website,•
in the FAQ section.
Consult the Parrot discussion & help forum on•
our website.
Contact our support team (phone numbers / mail address•
on the last but one page).
17

Français
http://www.parrot.com/fr/support
Notice complète, didacticiels, mises à jour...
Avant de commencer
Mise à jour Téléchargez gratuitement la dernière mise à jour de votre produit (et consultez la procédure de mise à
jour) sur notre site web www.parrot.com section Support et téléchargements. Ces mises à jour vous
permettront de bénéficier de nouvelles fonctionnalités et d’améliorer la compatibilité du produit.
A propos de
ce guide
Afin de limiter notre consommation de papier et dans le cadre de notre démarche aussi respons-
able et respectueuse que possible de l’environnement, Parrot privilégie la mise en ligne des docu-
ments utilisateurs plutôt que leur impression.
Ce guide simplifié du Parrot MKi9000 se limite donc à vous fournir les principales instructions qui vous
permettront d’utiliser facilement cet appareil. Vous trouverez plus d’informations sur la section Support et
téléchargement de notre site web www.parrot.com : notice complète, FAQ, didacticiels...
Installation..............................................................p.19
Première utilisation.................................................p.21
Téléphone...............................................................p.22
Musique..................................................................p.24
En cas de problème................................................p.24
Sommaire
Câble
adaptateur ISO
Si votre autoradio n’est pas équipé de connecteurs ISO, vous devez vous procurer un câble adaptateur
ISO afin de faciliter le montage. Consultez la section installation de notre site internet.
18

19
Installation
Avant de fixer les différents éléments du kit mains-libres•
dans l’habitacle, commencez par connecter les différents
câbles sur le boîtier électronique. Retirez auparavant les
connecteurs d’origine du système audio de votre véhicule.
Les câbles fournis sont équipés de connecteurs ISO ainsi•
que de deux sorties Line. Les sorties Line peuvent être
utilisées si votre système audio possède cette option.
Plusieurs montages sont donc possibles selon le type de
votre autoradio et de votre véhicule.
La fonction Mute permet d’interrompre le son de votre•
autoradio pour laisser place à la communication. Le
choix de l’entrée Mute dépend de la configuration de
votre autoradio.
Autoradio avec connecteur ISO
Branchez les connecteurs mâles du kit mains-libres à1.
l’autoradio.
Reliez les faisceaux audio et alimentation du véhicule2.
aux connecteurs femelles du Parrot MKi9000.
Sur le câble d’installation, reliez le fil jaune libre à l’une3.
des entrées mute correspondante du système audio s’il
en est équipé (mute in1, mute in2 ou mute in3).
Autoradio avec entrées Line In
Utilisez ce type de connexion en reliant une sortie « Line »•
(fils marron et blanc ou fils rouge et noir) sur l’entrée « Line
» de votre système audio.
L’utilisation des deux paires de sorties « Line » permet de•
bénéficier de la fonction Streaming Audio en stéréo sur les
haut-parleurs de votre véhicule.
Sur le câble d’installation, reliez le fil jaune libre à l’une•
des entrées mute correspondante du système au-
dio s’il en est équipé (mute in1, mute in2 ou mute in3).
Installation du câble d’alimentation du kit
Consultez le schéma électrique de votre autoradio.•
Le fil rouge du câble du kit doit correspondre au +12V per-•
manent, le fil orange au 12V après-contact et le fil noir à
la masse.
Vérifiez que votre fil orange n’est pas connecté au 12V•
permanent, vous risqueriez de décharger la batterie du
véhicule.
Nous vous recommandons de faire appel à un
professionnel pour l’installation du Parrot MKi9000.
Si votre autoradio n’est pas équipé de connecteurs
ISO, vous devez vous procurer un câble adaptateur
ISO afin de faciliter le montage. Consultez la gamme
d’adaptateur ISO sur notre site internet.

20
Sur certains véhicules, il est nécessaire d’inverser les fils•
rouge et orange d’alimentation. Cette opération s’effectue
simplement en inversant les deux portes fusibles situés sur
le câble d’installation du Parrot MKi9000.
Sur certains véhicules, il n’y a pas de +12V après contact•
sur les connecteurs du véhicule. Il est alors nécessaire de
brancher le fil d’alimentation orange sur la boite à fusible
ou sur une autre source d’alimentation après contact. Un
accessoire supplémentaire générant un 12V après contact
peut également être nécessaire.
Installation des connecteurs audio
Le système de fixation du câble musique vous permet
d’ajuster la longueur du câble tout en réduisant considéra-
blement son usure.
Percez un trou de 20 mm dans votre tableau de bord1.
(vide-poche ou boite à gant).
Insérez manuellement deux des quatre bras flexibles du2.
système de fixation.
Utilisez un tournevis plat pour insérer les deux derniers3.
bras.
Installation du boitier électronique
Evitez d’installer le boîtier près du chauffage ou de la cli-•
matisation, à un endroit exposé au soleil ou derrière des
parois métalliques.
Assurez-vous que le boitier reste immobile après son•
installation.
Une fois le boitier installé, ne forcez pas lors de la remise•
en place de l’autoradio. Si la place derrière l’autoradio est
insuffisante, envisagez le démontage de la boite à gants.
Installation de la télécommande
Si vous souhai• tez installer la télécommande sur le volant,
veillez à ce qu’elle soit fermement attachée afin qu’elle ne
bouge pas durant la conduite. Ne l’installez pas du côté
extérieur du volant afin de ne pas vous gêner lors de la
conduite. Consultez les schémas p.9.
Si vous utilisez le second support, utilisez l’adhésif double•
face situé au dos de celui-ci afin de le coller sur le tableau
de bord. Vous pouvez ensuite insérer la télécommande sur
ce support. Consultez les schémas p.10.
Patientez environ 2 heures après la fixation du support
adhésif et assurez-vous qu’il soit bien fixé à votre
tableau de bord.
Installation du double microphone
Assurez-vous que le microphone soit installé le plus près•
possible de la tête de l’utilisateur. La distance idéale est
de 60 cm. Installez de préférence le microphone près du
rétroviseur.
Orientez le microphone vers la bouche de l’utilisateur.•
