CLASS M / ML
CLASS-M / ML (W164)
Installation manual:
Parrot MKi + Parrot
CK3100 range
The brand name MERCEDES-BENZ CLASS-M and the MERCEDES logo are the property of MERCEDES.
This document is only valid for the vehicle model CLASS-M® year 2005 to 2011, excluding all other models in the same range and excluding
later modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Disassembly
30min
Kit installation
30min
Refitting
30min
Testing
15min
Total
1h45min
NO
ACC wire
NO
ISO
YES (with the reserve
of steering wheel
coding)
UNIKA
FRONT SPEAKER
TEL mode
ALL
MUSIC mode
Fitting time (estimated) / Main features
Tools
-TORX screwdriver
- Cutting pliers
- Crimping pliers
- Multimeter or pilot lamp
- Hose clamp
- Electrical tape
- Round male terminal
- Jumper
- Semi-rigid guide
Plastic pry tools
FACOM / BERNER
Updating
Accessories required
Kram ref.
Dealer ref.
CK range
86111
PC000033AA
MKi range
84099
PC000033AA
Photos not contractually binding
CK range MKi range
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
www.parrot.com/usa/support/downloads
“Quick Connect harness references available at
http://certified.parrot.com/faisceaux_US.php"

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Disassembly

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Disassembly 1 / 2

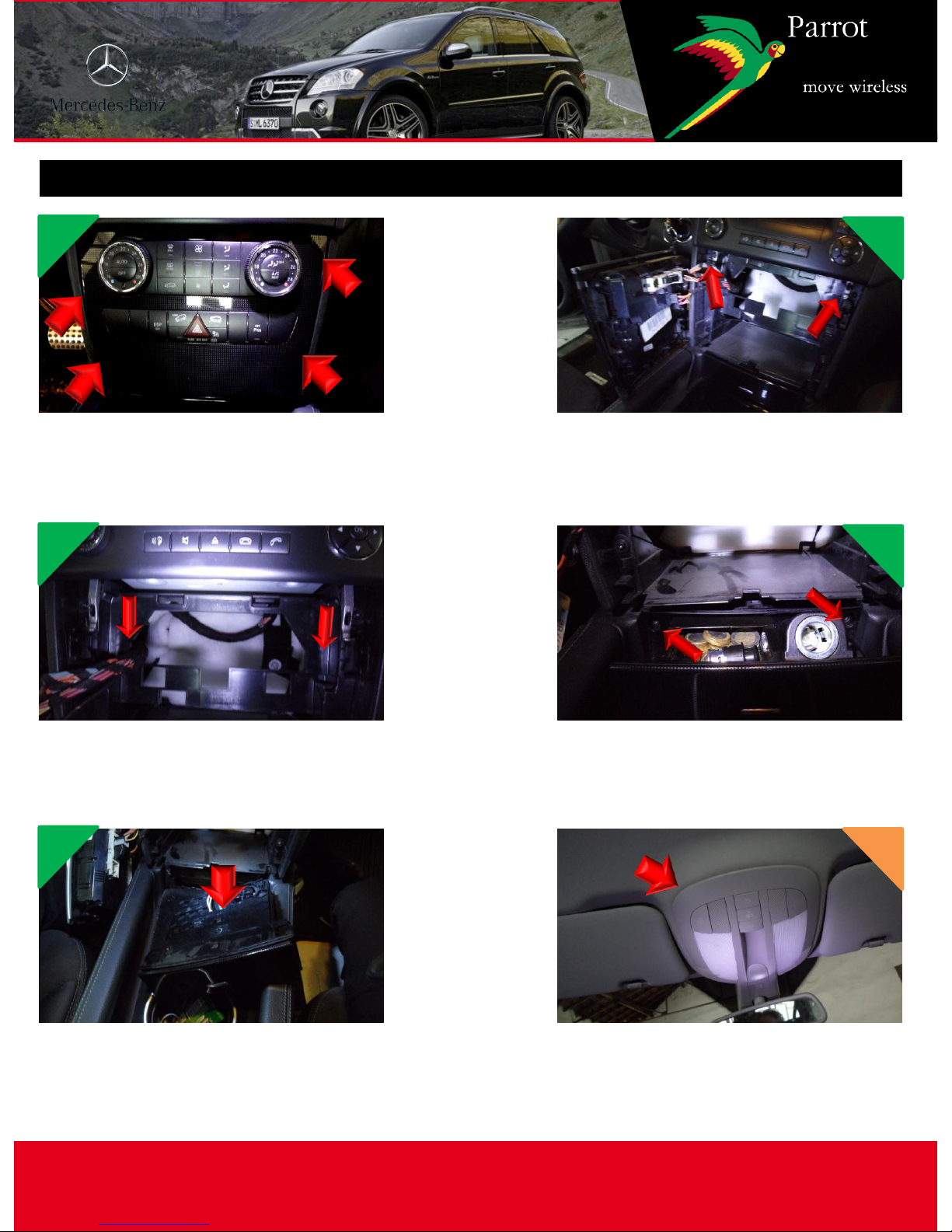

Using the plastic trim tools,
unclip the air conditioning cover. Unscrew screws 1 and 2 located
on the radio runners.
Slide the runners back and
remove and disconnect the radio. Open the ashtray and remove
screws 3 and 4.
1
3
2
4
5 6
Remove the ashtray unit without
disconnecting it.
Unclip the covers around the
rear view mirror and the rain
sensor.
1 2
3
4

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML

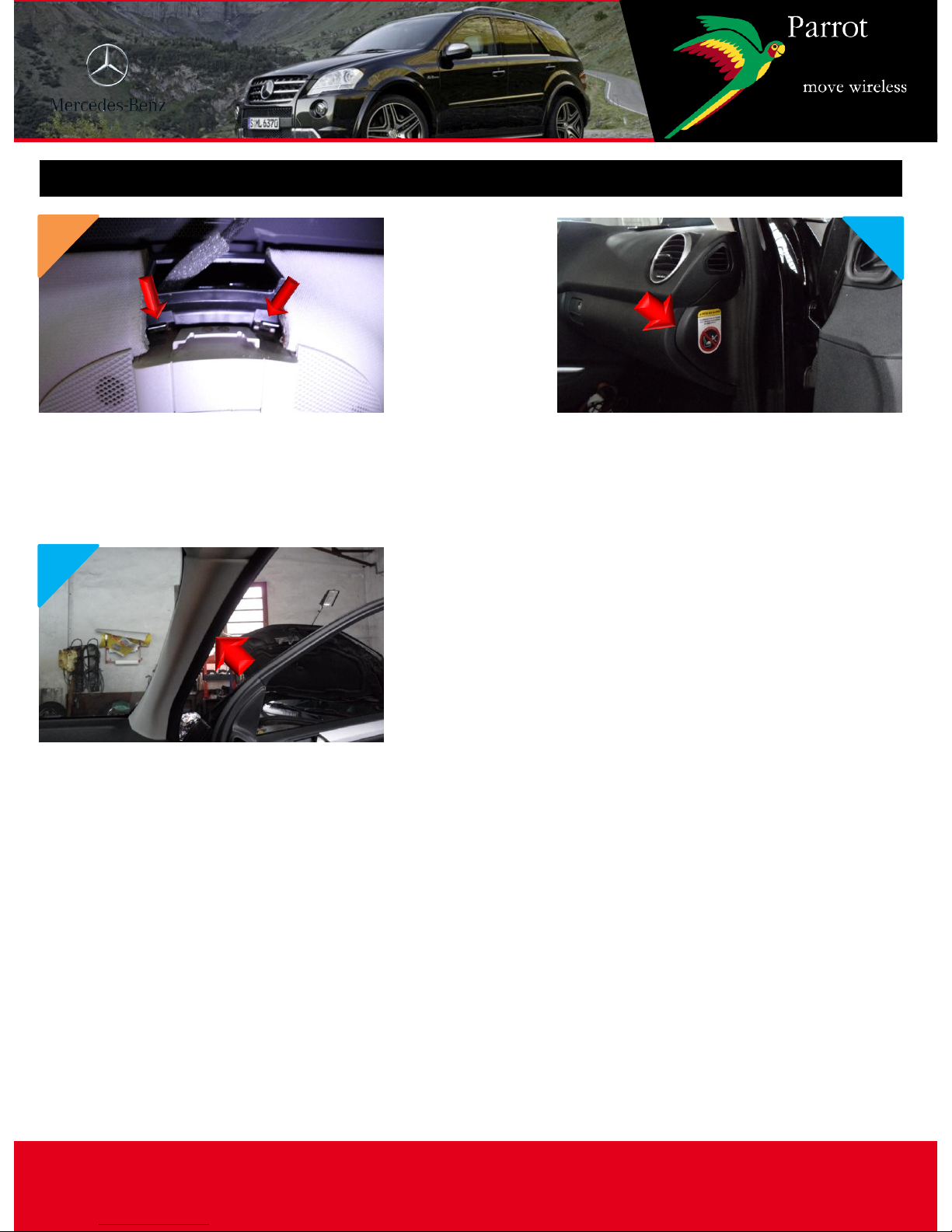

Disassembly 2 / 2
7 8
Unclip the cabin light by pushing
down on the metal lugs and
allow it to hang down without
disconnecting it.
Using the plastic trim tools,
unclip the passenger side of the
dashboard.
Then remove the passenger door
seal.
9

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Finding an ACC wire
Using a guide, pass an electric
wire from the cigarette lighter to
the underneath of the air
conditioning control housing
Make a pigtail connection (or use
the jumper) to the
BLACK/YELLOW wire.
Attach the electric wire and
insulate with electrical tape. (With
the Multimeter, check that the
+12V is properly controlled by the
key.)
1 2
10
9
For the Audio 5 car radio (also
applies to PC000033AA), swap
the fuses on the kit's original
connector. (i.e. the red and
orange wires) Cut the red wire
between the fuse holder and the
ISO connector, then connect to
the ACC wire.
3 4
For adaptor 84099, (Mki range
only) connect the ACC wire with
a male round terminal to the
blue wire at the front of the fuse
holder.
OR

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Glue the bracket (supplied) to the
rear view mirror arm, after
carefully cleaning the surface, then
refit the cabin light.

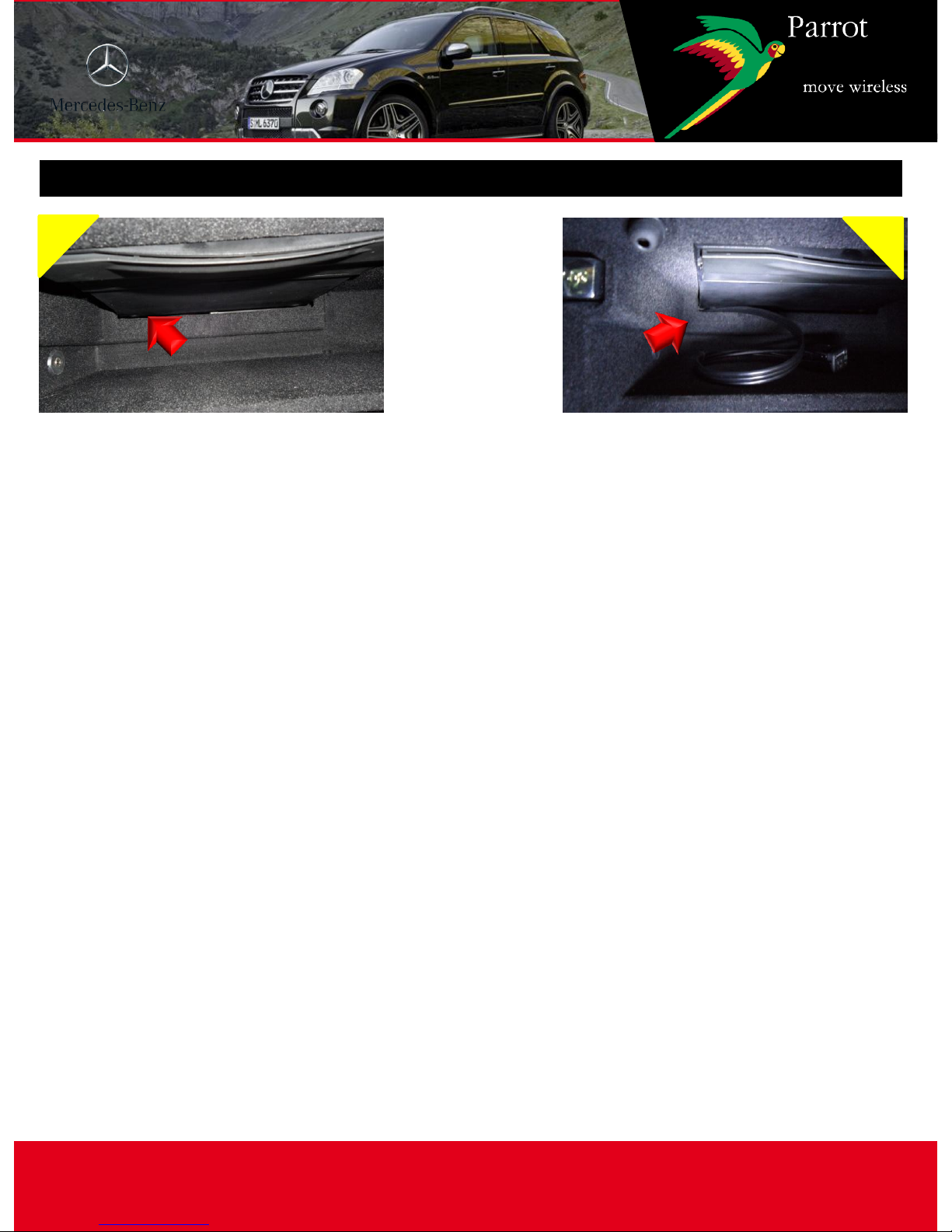

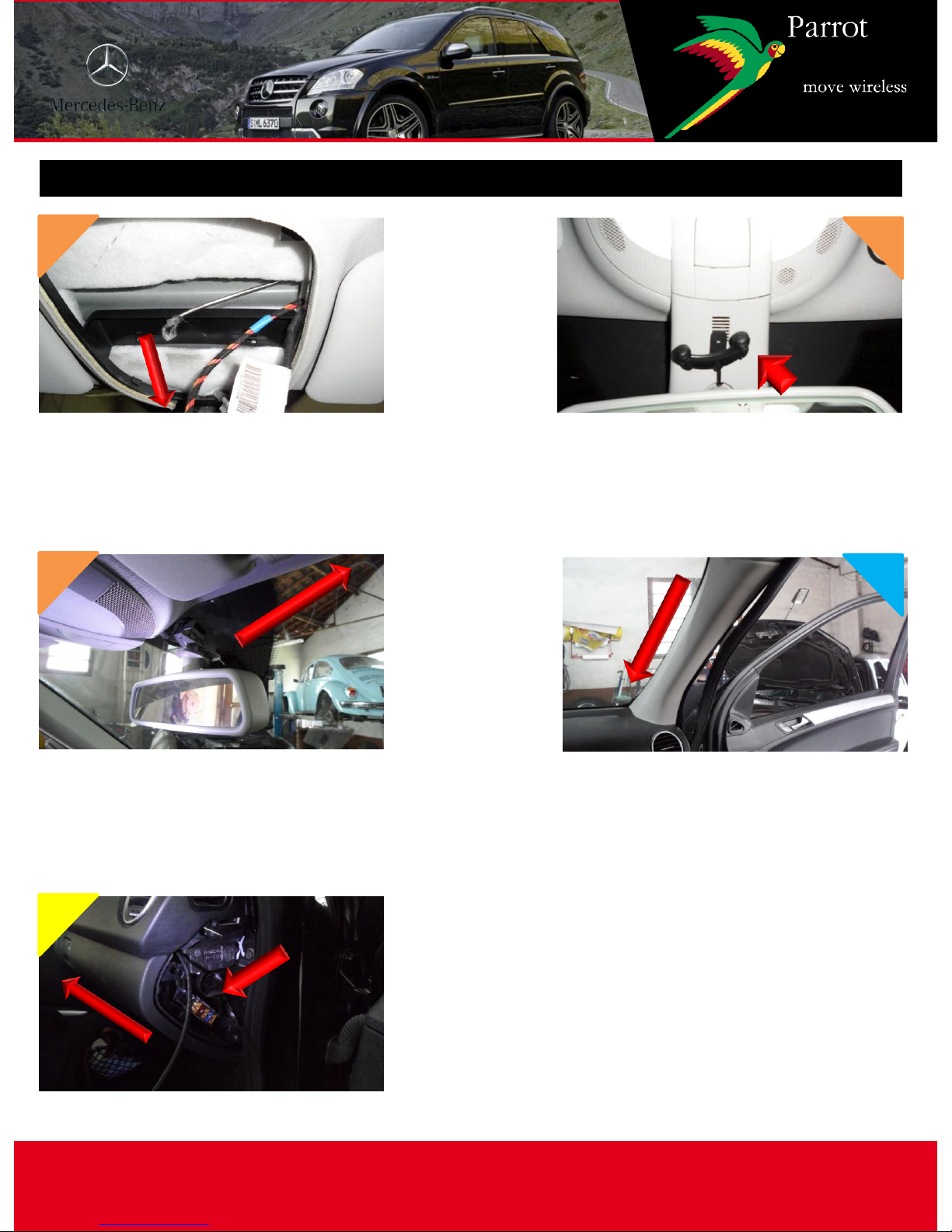

Microphone passage
Feed the cable under the
rearview mirror arm towards the
cabin light.
Using the plastic trim tools, run
the cable along the windscreen.
Slide the cable along the
passenger door pillar while
replacing the door seal.
1
3
2
4
5 Pass the cable through the
passenger side of the dashboard.
Then, using a guide feed it
between the airbag and the
glove box, then towards the car
stereo housing.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Feeding the accessory cable
Using a guide, feed the cable
towards the car stereo housing.
Remove it being careful to leave
enough length.
1 2

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Fitting the hands-free system 1 / 2
Connect the factory connector, invert the fuses.
(i.e. the RED and ORANGE wires) Then cut the
RED wire between the fuse holder and the ISO
connector and connect the ACC wire above.
1
For the adapter 84099, remove the terminals
from the blue wire in front of the fuse holder,
then mount a round female terminal on the ACC
wire and connect it to the blue wire.
2
Direct adaptor
cable
3
Connect all the
cables on the blue
box as shown on the
diagram on the right,
then test before
reassembling.
Then slide the
assembly behind the
air conditioning
control unit.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Fitting the hands-free system 2 / 2

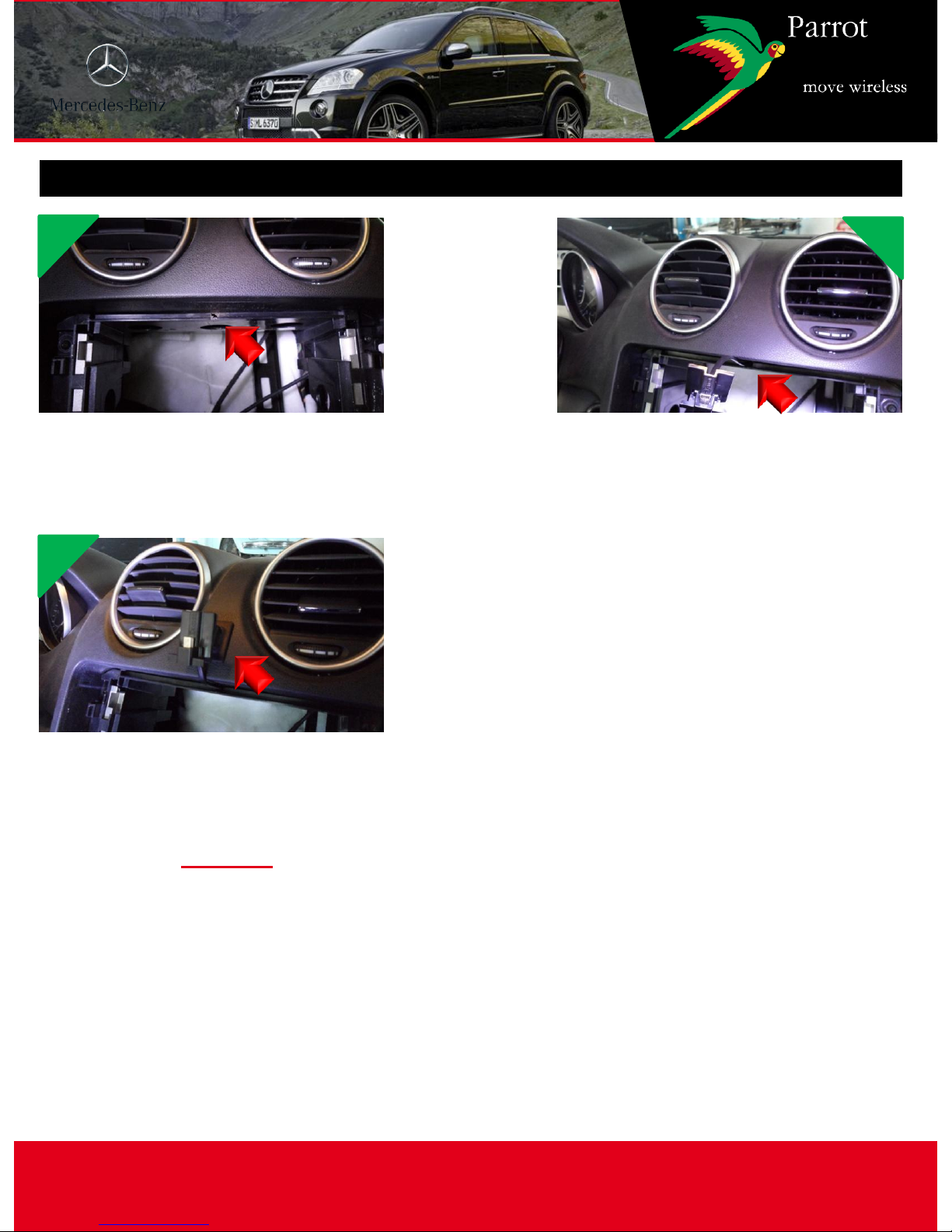

With a file or a drill, make a notch
on the top of the car stereo
frame.
Feed the cable from the screen.
Then glue the support (supplied)
to the surface after having
thoroughly cleaned it, between
the 2 vents. (Take care not to cut
the cable when refitting the car
stereo.)
4
6
5

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML

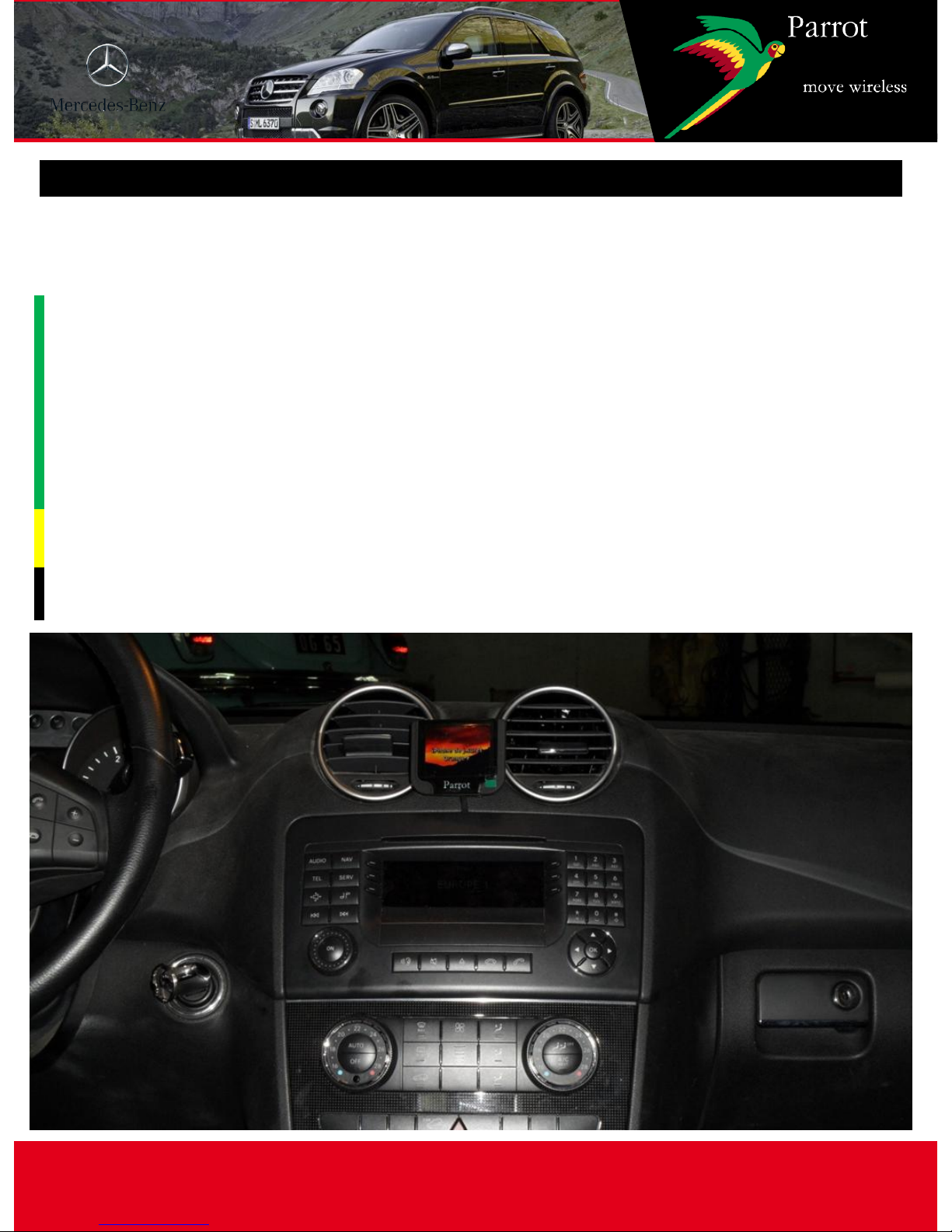

Testing
Before refitting the system, switch the kit on using the
ignition (or by starting the car.) By pushing the central knob
of the remote control, check:
1 - That the menu is displayed on the screen. (language or
iPod.)
2 - That the system can be muted. (Click in the blue box.)
3 - That there is no sound coming from the speakers.
4 - That the sound from the voice menu is coming out of the
front speakers.
5 - Then turn off the ignition, check that the kit switches off
and that the "goodbye" message appears on the screen. (If
this fails, reverse the fuses on the kit's wiring harness.)
6 - Pair a telephone with the kit to a call. (Check that both
the microphone and the kit are working.)

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
CLASS M / ML
Reassembly
Refit the system using the following procedure:
1 - Reconnect the radio (and the antennas) and slide it into its housing.
2 –Re-close the runners and replace the 2 screws (1 and 2) on the car stereo.
3 - Put the ashtray back in place and remove screws 3 and 4.
4 - Clip the air conditioning surround back on.
5 –Re-fit the right dashboard panel.
6 –Re-test to check that the system is working correctly.
