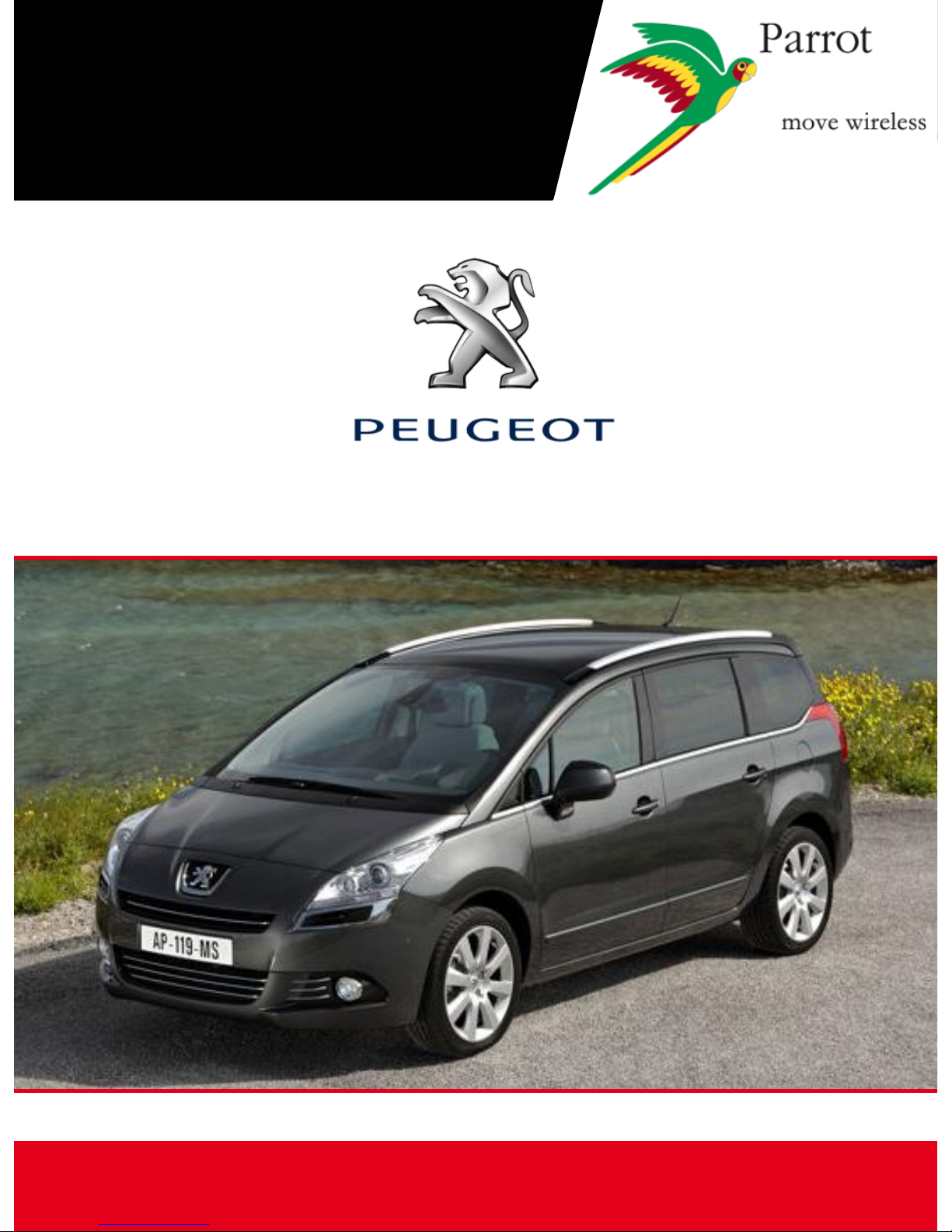

Installation manual:
Parrot MKi + Parrot
CK3100 range
The brand name PEUGEOT 5008 and the PEUGEOT logo are the property of AUTOMOBILES PEUGEOT.
This document is only valid for the vehicle model 5008® year 2009 to 2011, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008

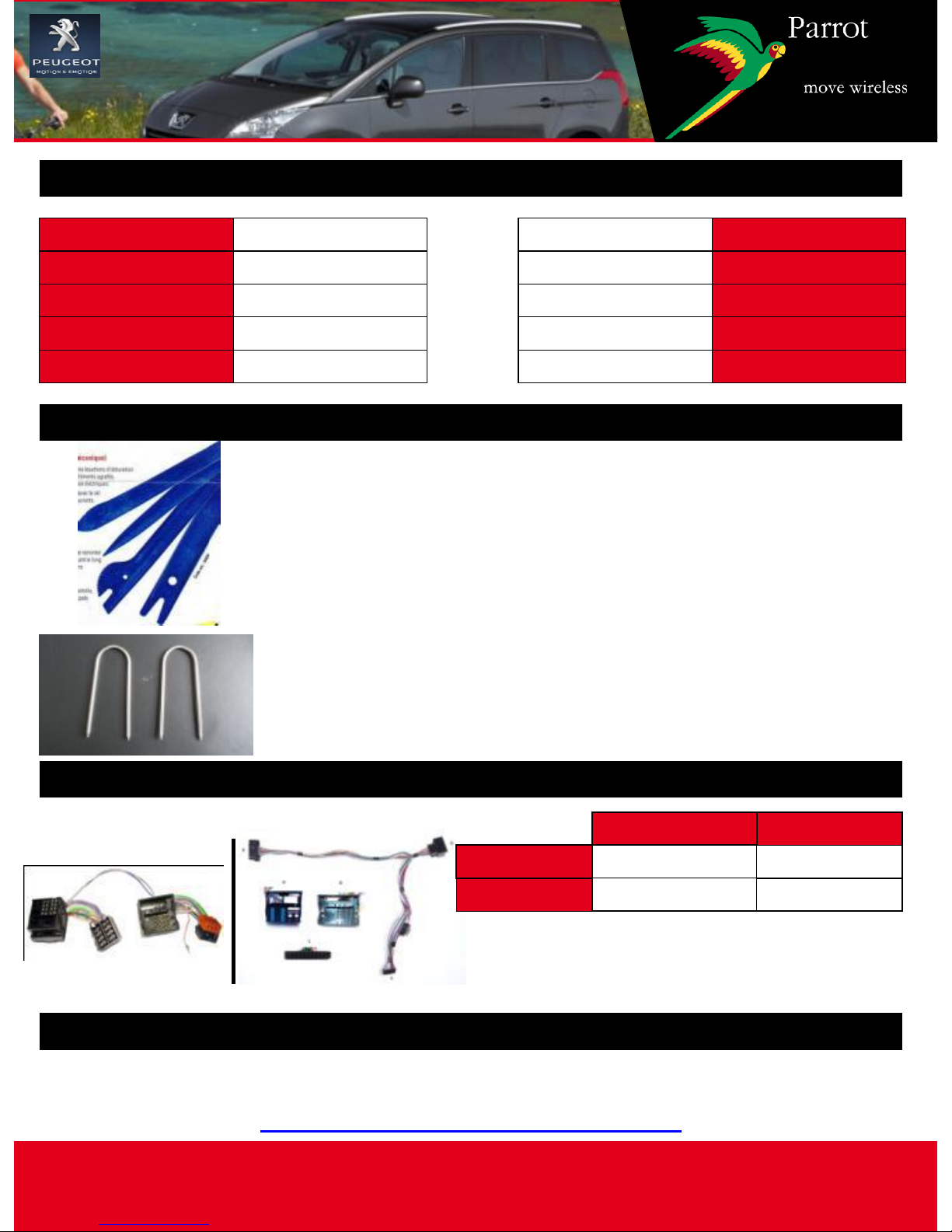

Accessories required
Disassembly
20min
Kit installation
30min
Refitting
20min
Testing
15min
Total
1h25min
NO
ACC wire
NO
ISO
N/A
UNIKA
FRONT SPEAKER
TEL mode
ALL
MUSIC mode
Fitting time (estimated) / Main features
Tools
- Multimeter or Test lamp
- Hose clamp
- Electrical tape
"Please contact your Wholesaler to purchase
accessories."
Kram ref.
Dealer ref.
CK range
86 165
9706AP
MKi range
84744
9706AT
Photos not contractually binding
CK range MKi range
Updating
Plastic trim removal tools
FACOM / BERNER
FACOM Sleeve
DX-25 (n°4 spanners)
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
www.parrot.com/usa/support/downloads

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Disassembly

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Disassembly 1 / 2
Insert the removal tools into the
slots on each side of the radio.
Unclip, pull and lift the radio making
sure you properly disconnect the
connector and the antenna.
Using the plastic trim tools, unclip
the display and the air vent. Then remove them without
disconnecting them.
1
3
2
4
5 6
Using the plastic trim tools,
unclip the clip located on the left
of the dashboard.
Release the fuse box cover.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Disassembly 2 / 2
Remove the door seal on the
driver’s side.
Using the plastic trim tools, release
the cabin light without disconnecting
it.
7 8

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Using a jumper or a pigtail
connection connect a wire to the
YELLOW wire on the top left.
(Opposite the connector.)
Finding an ACC wire
On the DIAG socket, unclip the
left-hand side, then push the
socket to the back and bring it out
through the top.
Insulate with electrical tape.
Push the connector back and
clip it into its housing.
Pass the wire from underneath
the steering wheel towards the
radio housing.
1
3
2
4
5 5b
For adapter 86165/9706AP (CK range): Cut
the orange wire between the fuse holder,
cut the ISO connector (supplied) and
connect the ACC wire.
For adaptor 84744/9706AT (MKi range):
disconnect the blue wire in front of the
fuse, then connect the ACC wire.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008

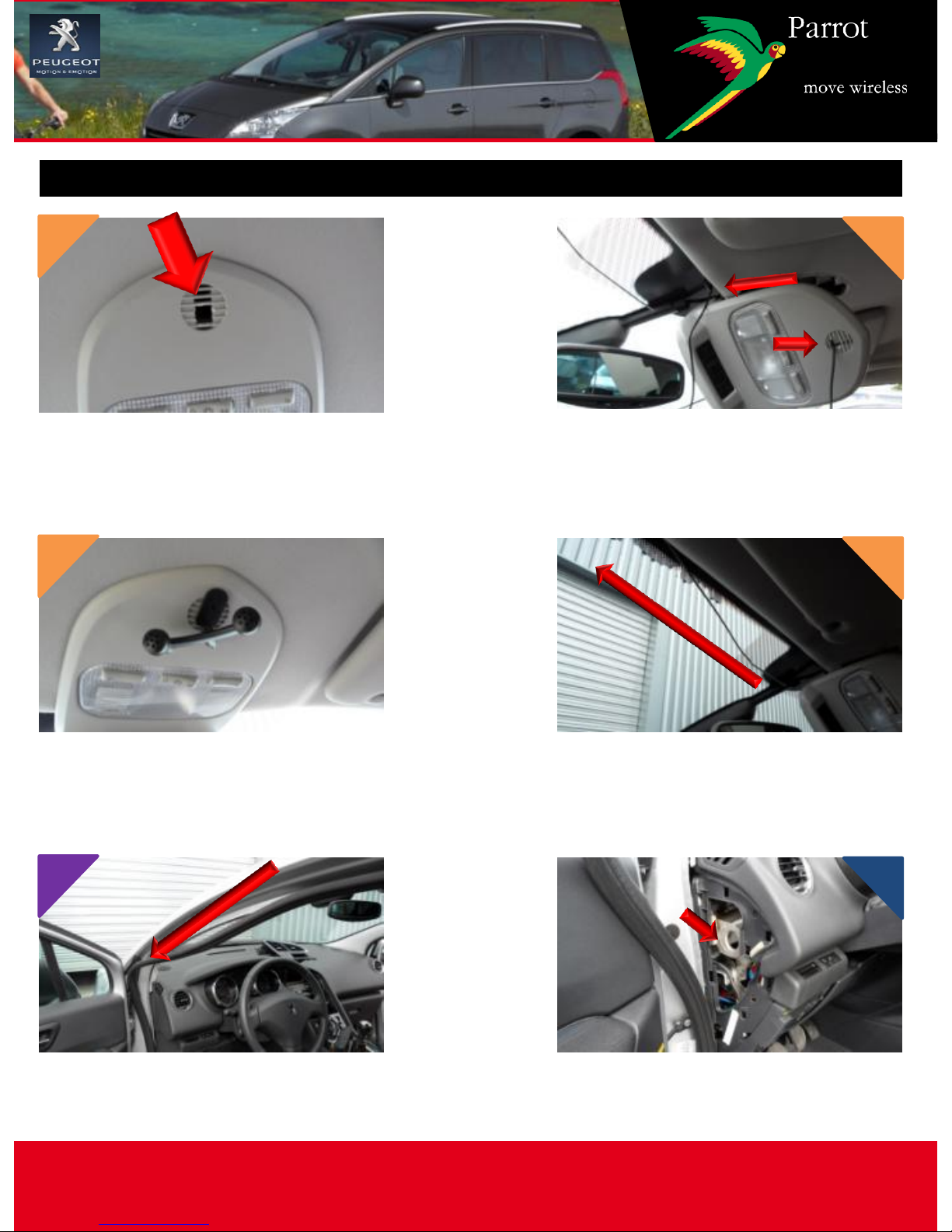

Microphone feeding 1 / 2
Run the microphone cable inside and
towards the windscreen.
Make a hole in the cabin light
vanes.
Stick the bracket (supplied) to the
windscreen after thoroughly cleaning
the surface.
Using the plastic trim tools, run the
cable under the headliner and into
the windscreen post
on the driver's side.
1
3
2
4
5 6
Run the cable replacing the seal
on the driver's side door.
Pass the cable into the dashboard
on the left side.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Microphone feeding 2 / 2
Run the cable under the
dashboard into the glove box
housing and towards the radio,
attaching it with wire ties.
7

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Feeding the accessory cable
Pass a guide from the glove box
towards the radio housing.
Pass the cable through the hole at
the bottom inside the glove box.
1 2
Mount the supplied cover on the
cable.
Then bring it out leaving
sufficient length.
3 4

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Fitting the hands-free system 1 / 2
Connect the adaptor to the original connector.
Connect all of the wires to the blue box as
shown in the diagram below. Test before
refitting, then slide the assembly behind the
screen after refitting the radio.
1
ISO
adapter

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008

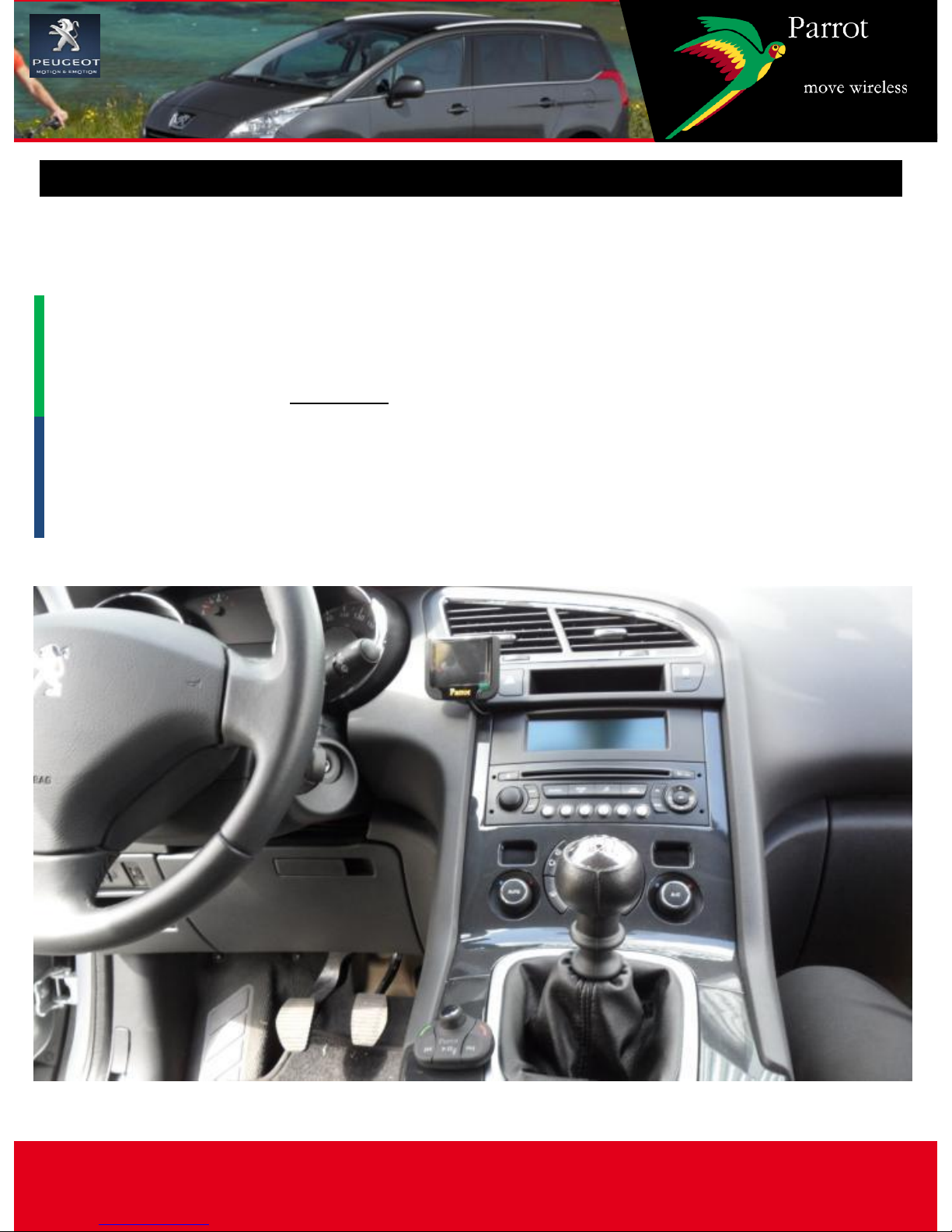

Fitting the hands-free system 2 / 2
Run the bracket cable between
the screen and the air vents. Stick the bracket supplied to the
left of the WARNING button after
having cleaned the surface. Then
re-fit the screen and the air vents.
(BE CAREFUL not to cut the cable)
2 3
!

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Testing
Before refitting the system, switch the kit on using the
ignition (or by starting the car). By pushing the central knob
of the remote control, check:
1 - That the menu is displayed on the screen. (Language or
iPod.)
2 - That the system can be muted. (Click in the blue box.)
3 - That there is no sound coming from the speakers.
4 - That the sound from the voice menu is coming out of the
front speakers.
5 - Then turn off the ignition, check that the kit switches off
and that the "goodbye" message appears on the screen. (If
this fails, reverse the fuses on the kit's wiring harness.)
6 - Pair a telephone with the kit to make a call. (Check that
both the microphone and the kit are working.)

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
5008
Reassembly
Refit the system using the following procedure:
1 - Reconnect the adaptor and the antenna and refit the radio. (Put the blue box
with the cables on top.)
2 –Re-fit the screen. (Be CAREFUL not to cut the cable.)
3 - Clip the fuse box cover back on. (Push firmly.)
4 –Re-fit the panel on the left-hand side of the dashboard.
