PDi PD196-244R12 User manual

Document Number: PD196-244R12 PD295-002 Set Top Box Interface Module Page 1 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Document Number: PD196-244R12
PD295-002
Set Top Box
Interface Module

Better Solutions Are Within Reach®
MODEL NUMBER:
PD295-002
Document Number:
PD196-244R12
Set Top Box Interface Module Instruction Manual
Page 2 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Table of Contents
CAUTIONS AND WARNINGS ................................................................................................................................................ 3
IMPORTANT SAFETY INSTRUCTIONS ................................................................................................................................ 4
Introduction.............................................................................................................................................................................. 5
Compatibility............................................................................................................................................................................ 5
Mounting and Powering the Interface Module ........................................................................................................................ 6
Connections ............................................................................................................................................................................ 7
Wall Mounted Televisions ................................................................................................................................................... 7
Wall Mounted TV –Data, Power, and IR Emitter Cable Installation............................................................................... 7
Wall Mounted TV - RF Cable Installation ........................................................................................................................ 8
Arm Mounted Televisions.................................................................................................................................................... 9
Arm Mounted TV –Data, Power, and IR Emitter Cable Installation ............................................................................... 9
Arm Mounted TV - RF Cable Installation ...................................................................................................................... 10
TV Setup –Most PDi TVs (P14W, P16TV, P19TV, E-Series).............................................................................................. 13
TV Setup –A-Series ............................................................................................................................................................. 14
TV Setup –medTAB ............................................................................................................................................................. 14
Verifying and Troubleshooting Connections ......................................................................................................................... 14
Interface Module Setup Menus ............................................................................................................................................. 15
Accessing Interface Module Setup Menus on most PDi TVs ........................................................................................... 15
Accessing Interface Module Setup Menus on medTAB-C................................................................................................ 15
Menus 1 ~ 5 ...................................................................................................................................................................... 16
Menu 6 .............................................................................................................................................................................. 17
Programming the Interface Module....................................................................................................................................... 18
Programming the IR Code Set .......................................................................................................................................... 18
Keypad Programming (Mapping) Instructions................................................................................................................... 19
Programming for Off-Air Non-Satellite Channels Using Off-Air RF Pass-Thru................................................................. 19
An Example for Off-Air RF Pass-Thru........................................................................................................................... 20
Programming the STB Signal Input Type ......................................................................................................................... 20
Restoring Factory Default Settings ....................................................................................................................................... 21
Operation............................................................................................................................................................................... 21
Cable/Satellite TV Operation............................................................................................................................................. 21
Off-Air TV Operation (Optional)......................................................................................................................................... 21
Troubleshooting .................................................................................................................................................................... 22
Appendix A - Control Device (TV) Key Reference ................................................................................................................ 24
Appendix B - STB Command Reference .............................................................................................................................. 25
Appendix C - Factory Defaults .............................................................................................................................................. 27
Limited Warranty ................................................................................................................................................................... 29

Document Number: PD196-244R12 PD295-002 Set Top Box Interface Module Page 3 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

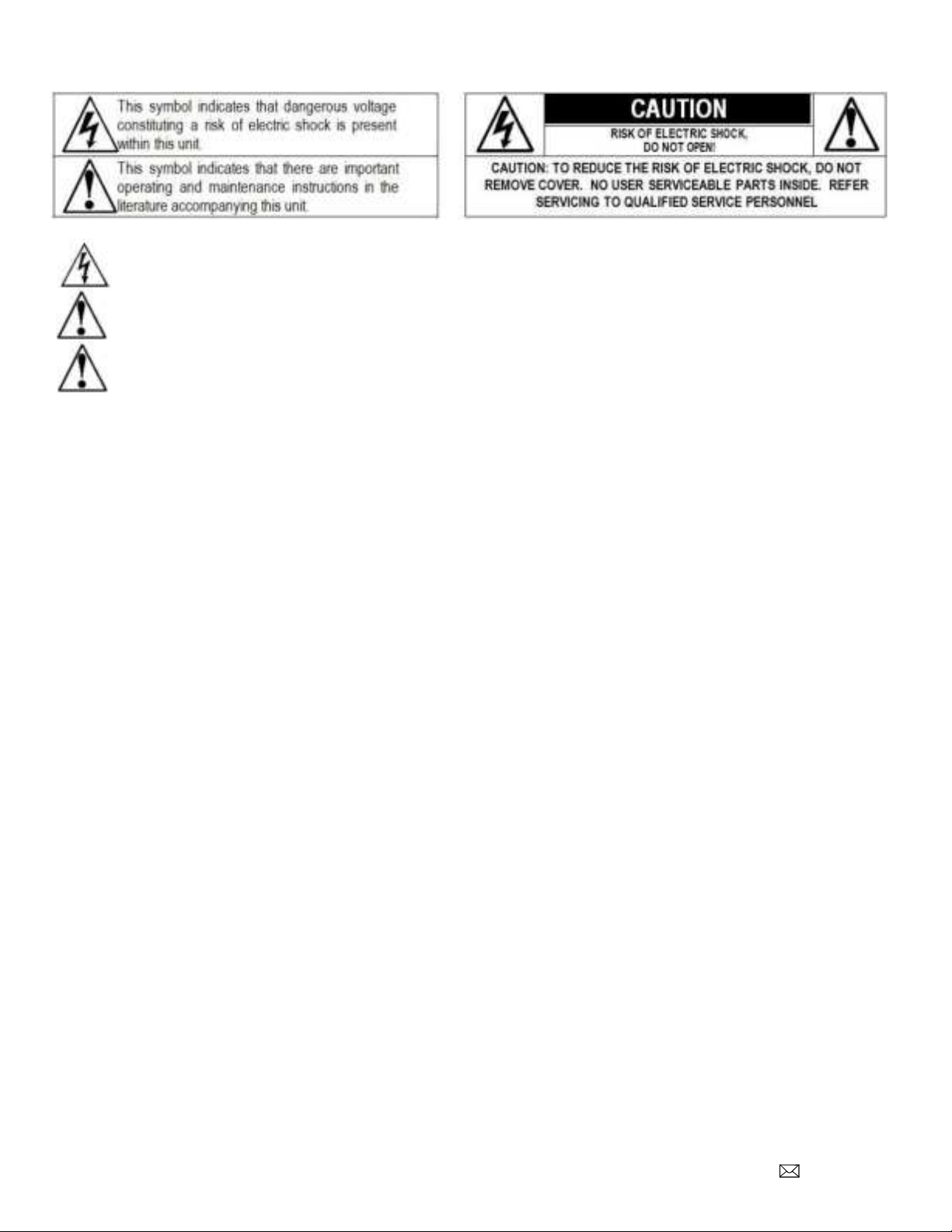

CAUTIONS AND WARNINGS
WARNING: To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or
moisture.
WARNING: To prevent injury, this apparatus must
be securely attached to the equipment rack in
accordance with the installation instructions.
WARNING: Do not install this equipment in a
confined space such as a bookcase or similar unit.
Modifications
Any changes or modifications made to this device that are not
expressly approved by PDi may void the user’s authority to
operate the equipment.
Cables
Connections to this device must be made with shielded cables with
metallic RFI/EMI connector hoods to maintain compliance with
FCC Rules and Regulations.
Safety Instructions
To avoid any malfunctions of the unit and associated components
and unwanted electric shock or fire accidents, please observe the
following:
•Review the manual for your STB unit for safety
instructions
•Review the manual for your PDI TV for safety instructions
•Review the manual for the rack unit.
Placement
Avoid placing the unit in surroundings with:
•High temperature (over 40 C) or high humidity (over
90%).
•Direct sunlight or heat sources, like radiators or ovens.
•Excessive dust.
•Electrostatic effect.
•Vibration, impact, or tilted surface.
Wet Areas
•Avoid rain and moisture.
•DO NOT set containers with liquid, such as vases, on top of
the unit.
•Avoid placing the unit in areas where there is dripping
and/or splashing.
•Avoid placing unit near standing water.
Oxygen Environment
•DO NOT use in an oxygen tent or an oxygen chamber.
Such use may cause a fire hazard.
SERVICING
User Servicing
If your product is not operating correctly or exhibits a marked
change in performance and you are unable to restore normal
operation by following the detailed procedure in its operating
instructions, do not attempt to service it yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service
Unplug this product and refer servicing to qualified service
personnel under the following conditions:
•If liquid has been spilled, or objects have fallen into the
product.
•If the product has been exposed to rain or water.
•If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician
to restore the product to its normal operation.
•If the product has been dropped or damaged in any way.
•When the product exhibits a distinct change in
performance which indicates a need for service.
Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or
other hazards.
Safety Check
Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the
product is in safe operating conditions.
Cleaning & Disinfecting
•Unplug before cleaning.
•Use a soft cloth to clean.
•Do not use harsh chemicals such as solvents.
COPYRIGHT, DISCLAIMER, TRADEMARKS
Copyright
PDi Communication Systems, Inc. claims proprietary right to the
material disclosed in this manual. This manual is issued in
confidence for installation and operational information only and
may not be used to manufacture anything shown herein. Copyright
by PDi Communication System, Inc. All rights reserved.
Disclaimer
The author and publisher have used their best efforts in preparing
this manual. PDi Communication Systems, Inc. makes no
representation or warranties with respect to the accuracy or
completeness of the contents of this manual and specifically
disclaim any implied warranties of merchantability or fitness for any
particular purpose and shall in no event be liable for any loss of
profit or any other damages, including but not limited to special,
incidental, consequential or other damages for the use of this
manual. The information contained herein is believed accurate, but
is not warranted, and is subject to change without notice or
obligation.
Trademarks
All brand names and product names used in this manual are
trademarks, registered trademarks, or trade names of their
respective holders. PDi and Better Solutions Are Within Reach are
registered trademarks of PDi Communication Systems, Inc.

Document Number: PD196-244R12 PD295-002 Page 4 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. This appliance should be mounted in an equipment
rack as recommended by the manufacturer.
16. Care should be taken so that objects do not fall and
liquids are not spilled into the enclosure through
openings.
17. If an outside antenna or cable system is connected
to the video product, be sure the antenna or cable
system is grounding so as to provide some protection
against voltage surges and built-up static charges.
Section 810 of the National Electrical Code, ANSI/NFPA
70, provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure A.
NOTE: This reminder is provided to call the CATV
system installer’s attention to article 820-40 of the NEC
that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.

Document Number: PD196-244R12 PD295-002 Page 5 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Introduction
Traditionally a facility pays for dozens or hundreds of cable/satellite channels but only has a small number of set top
boxes, each locked on a single channel, and combined onto the cable plant. When a patient wants to view a channel that
isn’t on the cable plant, the nurse must go to the head end and change one of the receivers or tell the patient the channel
is not available. To provide the full channel package to each patient, the set top box may be placed next to each TV in the
patient area. Unfortunately, when the IR remote is used by one patient to change channels, any TV nearby will also
change.
The PDi Interface Module is designed to improve the patient experience interacting with a TV at a facility in which the
channels come from a cable/satellite set top box. It allows direct access to all set top box functions via PDi TV keypad, IR
remote, Pillow speaker and PDI-Qube™table radio. It gives patients access to every channel the facility is paying for and
allows patients to easily switch between cable/satellite, in-house DVD and rooftop antenna channels. The interface
module can pay for itself by eliminating modulators, splitters and combiners in most environments. It removes the need to
modulate signals for distribution (by using one coax or HDMI cable from each set top box to an associated TV). It offers
customizable key mapping and works in retrofit installations (in which each set top box is already modulated to a different
channel and combined onto the cable plant). Best of all it’s made in America!
Compatibility
The PDi interface module forms a communication bridge between a PDi TV and a set top box. Therefore, it has been
designed to be compatible with as many models of TV’s and set top boxes as possible. All PDi TV’s larger than 10” built
since 2008 are compatible. For earlier model PDi TV’s look for a CCI port on the unit or contact PDi to verify.
As of this print, the following set top boxes have been tested to work with the PDi interface module. Contact PDi for
compatibility with other models.
Provider
Set Top Box Model
PDi Interface Module
Min Firmware Version
Cablevision
Scientific Atlanta Explorer 4250HD
V3.00
Charter/Spectrum
Motorola DCH6200
V3.03
Charter/Spectrum
Motorola DCT2224
V3.03
Comcast/Xfiniti
Pace DC50X
V2.06
Comcast/Xfiniti
Pace PXD01ANI
V4.02
Comcast/Xfiniti
Comcast PR150B
V3.00
Comcast/Xfiniti
Comcast RNG110
V3.00
COX
COX 3250HD
(Scientific Atlanta Explorer 3250HD)
V3.00
COX
COX DTA250HD
V4.00
Dish
Dish ViP211k
V3.00
Dish
Dish ViP222k
V3.00
Haivision
Haivision Stingray
V3.05
Haivision
Haivision Mantaray
V3.07
Time Warner Cable/Spectrum
Cisco DTA 271HD
V3.00
Time Warner Cable/Spectrum
Cisco 8742 HDC
V3.00
Time Warner Cable/Spectrum
Spectrum101-T
V3.00
Verizon
V3.03

Document Number: PD196-244R12 PD295-002 Page 6 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

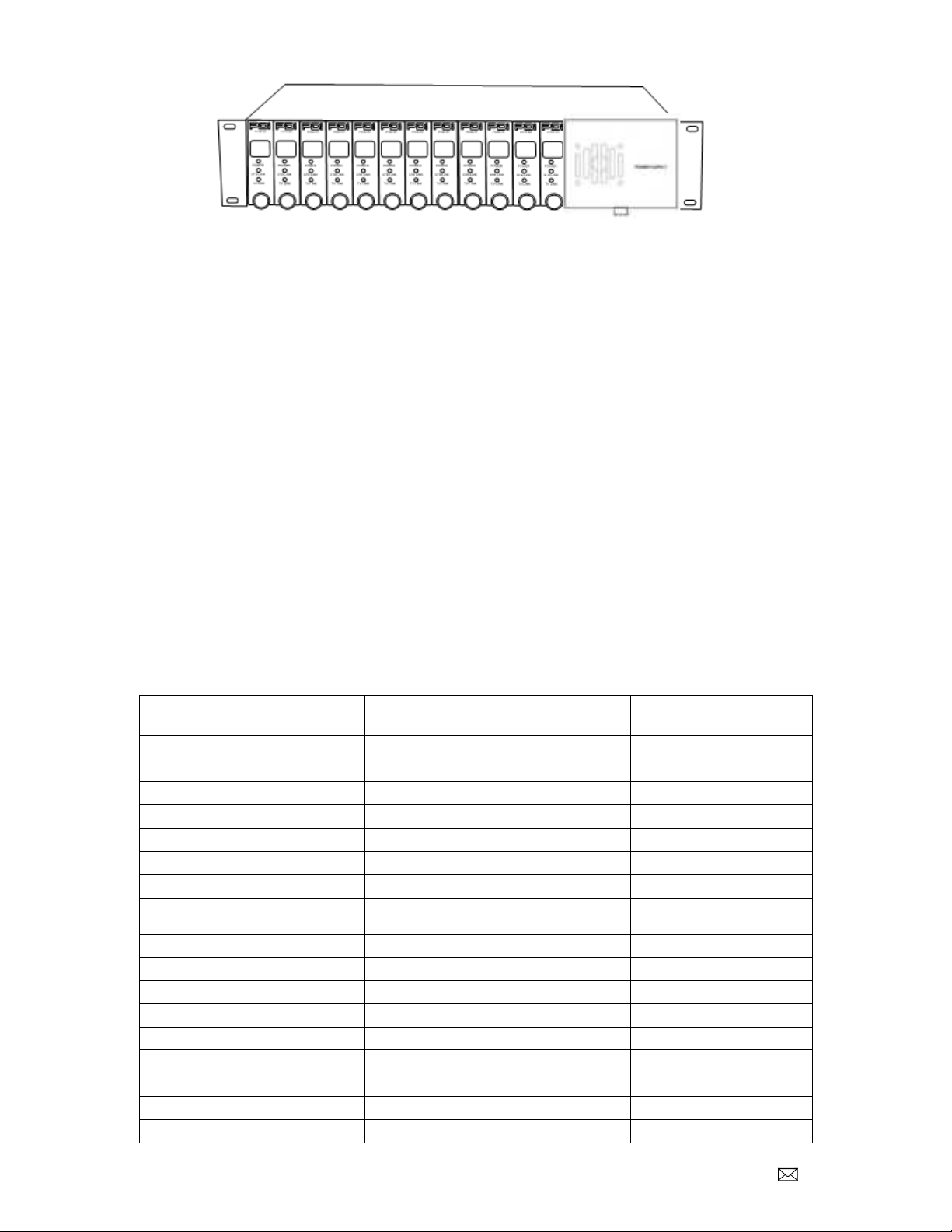

Mounting and Powering the Interface Module
The PDi interface module is designed to slide into an industry standard mini-mod chassis and is powered by the chassis’
power supply. Standard mini-mod rack mount chassis with power supply are suitable for the interface module. These
include, but are not limited to:
ATX / Pico Digital MPC-12
Blonder Tongue MIRC-12V with MIPS-12C
Drake®RMM-12 with PSM121
Holland HMR with HMPS
When it is more desirable to have the set top box and interface module located near the TV, the module may be used in a
stand-alone configuration without the need for a mini-mod chassis. In this case the PDi PD106-747 power adapter (not
included) should be used to power the interface module. Since the interface module uses very little energy, it has no
special ventilation requirements.

Document Number: PD196-244R12 PD295-002 Page 7 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Connections
The PD295-002 interface module must be connected to the corresponding TV via standard CAT5 cable. The CAT5 data
cable should not exceed 300 feet in length. The module must be powered via the rack mounted chassis or a standalone
power adapter. The supplied IR Emitter cable must also be connected to the module and adhered to the IR window of the
corresponding set top box. CAT5 and power cables are not provided with the Satellite Interface.
PD295-002 is for use with CCI Port only, Not MTI port
Wall Mounted Televisions
Wall Mounted TV –Data, Power, and IR Emitter Cable Installation
1. Connect one end of the CAT5 cable to the TV’s CCI port. The CCI port is located on the back of the TV with the other
connectors. Be careful not to connect to the MTI port which is usually next to the CCI port.
2. Connect the other end of the CAT5 cable to the RJ45 port on the PD295-002 interface module.
3. Connect the included IR Emitter cable to the PD295-002 interface module.
4. Remove adhesive backer from IR Emitter and secure it to the IR receiver window of the STB.
5. For chassis mounted interface module, connect chassis power cable to PD295-002. For standalone mounting,
connect power cord PD106-747 to PD295-002.
Wall TV with Standalone Interface Module

Document Number: PD196-244R12 PD295-002 Page 8 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Wall TV with Chassis Mounted Interface Module
Wall Mounted TV - RF Cable Installation
The RF Output Signal cable from each set top box (STB) must also be routed to each remotely located television. Please
refer to the STB installation instructions for details.

Document Number: PD196-244R12 PD295-002 Page 9 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Arm Mounted Televisions
The PD295-002 interface module is also compatible with several of the PDi Arm Mounted televisions that incorporate a
CCI Port. Models such as the PDI-P14 and PDI-P19TV can be used successfully with the interface module when ordered
with the CCI option. The PDI-P10LCD series arm mounted TV can NOT be used with the PD295-002 interface module as
it does not have a CCI Port.
NOTE: Each TV and its Support Arm must be pre-wired with a CAT5 CCI data cable. Please contact PDi
Communication Systems or your PDi distributor for assistance should your TV and/or Arm lack this cable.
Arm Mounted TV –Data, Power, and IR Emitter Cable Installation
The CAT5 data cable used to connect the remotely located TV to the interface module should not exceed 300 feet in
length. CAT5 and power cables are not provided with the interface module.
1. Connect one end of the CAT5 cable to the Data Cable from the Arm/TV. The in-room Data Connection is typically wall
mounted as illustrated below.
2. Connect the other end of the CAT5 cable to the RJ45 port on the PD295-002 interface module.
3. Connect the IR Emitter cable to the interface module.
4. Remove adhesive backer from IR Emitter and secure it to the IR receiver window of the STB.
5. For chassis mounted interface module, connect chassis power cable to PD295-002. For standalone mounting,
connect power cord PD106-747 to PD295-002.
Arm TV with Standalone Interface Module
STB

Document Number: PD196-244R12 PD295-002 Page 10 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Arm TV with Chassis Mount Interface Module
Arm Mounted TV - RF Cable Installation
Unlike AC powered wall mounted TV’s, PDi arm mounted television models receive their RF signal and TV power
combined together along a connecting coax cable from an external power source. Special consideration must be used in
handling the low voltage AC power found on the RF signal coax cable.
Two types of external power supplies are used with arm mounted televisions: individual style and central style. The
individual power supply mounts near the TV injecting power from a nearby AC outlet onto the incoming coaxial cable. The
central supply injects power onto 10 separate coax cables simultaneously and mounts in a wiring closet as far as 150 feet
away from the TV’s. Connection of the RF signal coax cable for each style of power supply is detailed below.

Document Number: PD196-244R12 PD295-002 Page 11 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Individual Style Power Supply - RF Cable Installation
Signal connections for an arm mounted TV powered from an individual power supply requires a single coax cable no
longer than 300 feet, connected at the set top box’s “Output to TV” connection.
Some set top boxes also allow for the connection of an external Antenna or other signal source via an “OFF-AIR IN”
connection. Please consult your set top box installation instructions for details.
NOTE: The drawing below is representative of the typical set top box. Your box may vary in appearance.
Central Style PDI -772HE Power Supply - RF Cable Installation
Low voltage AC TV power is present on each central power supply TV coax cable. A PDi Power Passer (part number
PD167-003) is required to route the AC power on the coax cable around any externally connected device such as the
Satellite Box. A Power Passer is required for each TV/STB connection. For new installations, the use of a PDI-772HE-
IND instead of PDI-772-HE will eliminate the need for the power passers.
NOTE: The PD167-003 Power Passer is an optional device NOT supplied with the interface module and is
only required for centrally powered arm mounted televisions. Please contact PDi or your PDi distributor to order
this device.
1. Remove power from the TV at the central
power supply.
2. Connect a coaxial cable from the STB
“OUT TO TV” to the Power Passer’s “RF
IN FROM EXTERNAL DEVICE”.
3. Locate the coaxial cable from the central
power supply. Connect this cable to
“FROM POWER SUPPLY”.
4. Connect the coaxial cable from the TV to
“COMBINED SIGNAL TO TV.” The TV
coax should be limited to 150’ to
accommodate the central power supply
coax length limitations.
5. Connect an Optional Secondary RF signal
coaxial cable from the Power Passer’s
“RF OUT TO EXTERNAL DEVICE” to the
set top box “OFF-AIR IN”. This connection
is only necessary if you wish to view TV
signals that are already present on your
system in addition to set top box signals.

Document Number: PD196-244R12 PD295-002 Page 12 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Central Style PDI-772HE-IND Power Supply - RF Cable Installation
Low voltage AC TV power is present on each central power supply TV RF out port. Each RF In port is designed to be
connected to a separate RF source with minimal loss and high isolation.
1. Remove power from the TV at the central power supply.
2. Connect a coaxial cable from the set top box “OUT TO TV” to one of the 10 “RF IN” ports on the PDI-772HE-IND.
3. Connect the coaxial cable from the TV to “RF OUT”. The TV coax should be limited to 150’ to accommodate the
central power supply coax length limitations.
4. Connect an Optional Secondary RF signal coaxial cable to the set top box “OFF-AIR IN”. This connection is only
necessary if you wish to view TV signals that are already present on your system in addition to set top box signals.
Signal strength entering the set top box should be +3dBmV to +10dBmV.

Document Number: PD196-244R12 PD295-002 Page 13 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
TV Setup –Most PDi TVs (P14W, P16TV, P19TV, E-Series)
To establish communication to interface module the CCI port on the TV must be active and you must have a PDi
programming remote PD108-420 (not included). Follow the steps below:
1. Press SETUP to enter the TV’s setup menu.
2. From the setup menu select “Features”.
3. If the “Standby Power” setting shows in this menu, change it
to “Normal”. Some TV’s do not have this setting so this step
can be ignored. Other TV’s may operate the interface module
on any “Standby Power” setting. This can be determined by
trying it or contacting PDi.
4. From the initial setup menu, select “Channels”.
5. Change the “Pro:idiom” option to “MTI Port” or “Data Port”.
Some TV’s do not have this setting. In that case, this step can
be ignored.
6. From the initial setup menu, select “Sources”. Set each item
as detailed below.
The TV Source Setup must properly reflect the actual
connections to the TV. Incorrect settings will result in loss of
programming or the addition of blank signal sources. In most
installations, both cable/satellite and off-air programming is
delivered over RF so the “TV Tuner” must be enabled. If the
cable/satellite channels are delivered over an alternate
method such as HDMI, then that source must be enabled. All
unused sources should be disabled.

Document Number: PD196-244R12 PD295-002 Page 14 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
TV Setup –A-Series
To establish communication to interface module the CCI port on the TV must be active and you must have a PDi
programming remote PD108-420 (not included).
1. From the TV, open the TV Setup Menu by pressing SETUP on the programming remote.
2. Select “Sources”and then select “Source Enable”. Set each item as detailed below.
The TV Source Setup must properly reflect the actual
connections to the TV. Incorrect settings will result in loss of
programming or the addition of blank signal sources. In most
installations, both cable/satellite and off-air programming is
delivered over RF so the “TV” must be enabled. If the
cable/satellite channels are delivered over an alternate
method such as HDMI, then that source must be enabled. All
unused sources should be disabled.
TV Setup –medTAB
medTAB14C, medTAB19C, and medTAB16C are compatible with PDi interface modules. To establish communication to
interface module the CCI port on the TV must be active. Setup on the medTAB14C and medTAB16C can be completed
with a PDi programming remote PD108-420 (not included). medTAB19C setup is completed through onscreen
touchscreen controls.
1. From the TV app, open the TV Settings Menu, by pressing SETUP on the programming remote or by pressing
Settings on the touchscreen TV controls. Enter password (“45066” is factory default).
2. Select “Advanced Option”.
3. Select “Features” then select “Input Sources”. Set each item as detailed below.
The TV Source Setup must properly reflect the actual connections to the TV. Incorrect settings will result in loss
of programming or the addition of blank signal sources. In most installations, both cable/satellite and off-air
programming is delivered over RF so the “TV” must be enabled. If the cable/satellite channels are delivered over
an alternate method such as HDMI, then that source must be enabled. All unused sources should be disabled.
Verifying and Troubleshooting Connections
The following steps verify the data connections between the STB and TV. These instructions assume
you have followed the previous connection and TV setup sections of this manual.
1. Power the TV.
2. Power the set top box.
3. Power the interface module.
4. Examine the front mounted status lights on the PD295-002 interface module. It contains a Power
status light, a set top box (STB) status light and a TV status light.
a. Each light will turn green when properly connected.
b. A dark (Off) status light indicates a problem.
c. Blinking indicates data transfer.
d. All 3 lights lit indicates all connections are working properly.
NOTE: While the link lights indicate a working connection, they do not confirm the audio/video (RF or
HDMI) from the STB is connected to the correct TV. Please review the “Troubleshooting” section for additional help.

Document Number: PD196-244R12 PD295-002 Page 15 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
POWER
STB LINK
TV LINK
SUGGESTIONS
OFF
OFF
OFF
1. Verify interface module is powered.
ON
OFF
ON
1. Verify IR Emitter cable is properly connected to the interface module.
ON
ON
OFF
1. Verify TV is powered.
2. Verify connections to interface module, TV wall plate, and TV CCI port.
3. Make certain data cable is connected to the TV’s CCI port, not MTI or Ethernet
port.
4. Verify TV standby power is set to “normal” and “Pro:Idiom” is set to “MTI Port”.
ON
OFF
OFF
1. Verify IR Emitter and CCI connections.
ON
ON
ON
1. All connections are proper.
Interface Module Setup Menus
The interface module is configurable from Setup menus accessed by the TV programming remote or onscreen
touchscreen controls. The following instructions assume you have connected the TV, interface module, STB, and the
various components according to the previous instructions contained in this manual.
Accessing Interface Module Setup Menus on most PDi TVs
1. Make certain the STB and interface module are powered. See the instructions that came with the STB for more
details.
NOTE: Some set top boxes (STBs) require several minutes following application of initial power to effectively
respond to commands. Please allow enough time for the STB to properly initialize.
2. Stand in front of the TV and press the SETUP button on the PD108-420 programming remote
3. When the TV Setup menu appears on the TV’s screen, press SETUP a second time to display the interface module
setup menu.
4. Press the “CH▲” or “CH▼” on the remote to highlight the desired option. To advance to the next page, press “CH▼”
when the bottom item on the list is highlighted.
5. Press “VOL►” or “VOL◄” on the remote to cycle through a menu item’s setting options.
6. When finished, press SETUP to exit the “interface module setup”menu and save changes.
Accessing Interface Module Setup Menus on medTAB-C
1. Make certain the STB and interface module are powered. See the instructions that came with the STB for more
details.
NOTE: Some set top boxes (STBs) require several minutes following application of initial power to effectively
respond to commands. Please allow enough time for the STB to properly initialize.
2. From the TV app, open the TV Settings Menu, by pressing SETUP on the programming remote or by pressing
Settings on the touchscreen TV controls. Enter password (“45066” is the factory default).
3. Select Advanced Option then press SETUP on the programming remote OR tap anywhere on the screen to open the
STB interface module setup menu.
4. Press the “CH▲” or “CH▼” on the programming remote OR use the touchscreen navigation arrows ▲▼to highlight
the desired option. To advance to the next page, press “CH▼” or ▼when the bottom item on the list is highlighted.
5. Press “VOL►” or “VOL◄” on the programming remote OR use the touchscreen navigation arrows ►◄to cycle
through a menu item’s setting options.
6. When finished, press SETUP on the programming remote OR press Settings on the touchscreen controls to exit the
“interface module setup” menu and save changes. NOTE: FAILURE TO EXIT the interface module setup menu
by following this step 6 could result in patient access to interface module setup menus.

Document Number: PD196-244R12 PD295-002 Page 16 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Menus 1 ~ 5
Menus 1, 2, 3, 4 and 5 provide the mapping content of a control device’s keypad buttons. The factory default settings are
shown in the menus pictured here in this manual. A complete listing of STB functions is provided in appendix A.
The left menu column “- TV KEY -” contains a listing of common control buttons found on pillow speakers, remotes, and
television keypads.
The right menu column “- STB COMMAND-” contains default settings that work well with most STB’s. Adjustment can only
be made to items in the right column.
NOTE: A STB menu item that is blank does not provide any STB control functionality,
and will operate the standard TV function.
INTERFACE MODULE SETUP 2/6
-TV KEY- -STB COMMAND -
0 Digit 0
1 Digit 1
2 Digit 2
3 Digit 3
4 Digit 4
5 Digit 5
6 Digit 6
7 Digit 7
8 Digit 8
9 Digit 9
Dash (-) Info
Exit: SETUP/OK Cancel: POWER
INTERFACE MODULE SETUP 3/6
-TV KEY- -STB COMMAND -
Up Arrow Up Arrow
Dn Arrow Down Arrow
Lt Arrow Left Arrow
Rt Arrow Right Arrow
Menu Guide
Home
Guide Guide
Info Info
Recall/Star ( * ) Prev Channel
Exit: Exit
Back (Nav) Back
Exit: SETUP/OK Cancel: POWER
INTERFACE MODULE SETUP 4/6
-TV KEY- -STB COMMAND -
Play Play
Pause Pause
Stop Stop
Eject Record
Rewind Rewind
Fast Forward FFWD
Last Track Replay
Next Track Advance
Exit: SETUP/OK Cancel: POWER
INTERFACE MODULE SETUP 5/6
-TV KEY- -STB COMMAND -
TV/FM Exit
TV/AV/Input
Ch List Guide
DVD Menu Guide
RED
GREEN
YELLOW
BLUE
Exit: SETUP/OK Cancel: POWER
INTERFACE MODULE SETUP 1/6
-TV KEY- -STB COMMAND-
CH Up CH+
CH Dn CH-
Vol Up
Vol Dn
Last/Prev Ch Prev Channel
OK / Sel / Enter Select
CC
ARC/Ratio Down Arrow
Mute
Sleep Up Arrow
SAP/MTS
Exit: SETUP/OK Cancel: POWER

Document Number: PD196-244R12 PD295-002 Page 17 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Menu 6
Menu 6 provides STB configuration settings and firmware information.
MENU ITEM
EXPLANATION
TV Input for STB
Sets the TV’s signal type input to correspond to the STB’s signal output. The majority of
STB’s utilize modulated RF as the signal type and is the type shown in this instruction
manual. TUNER is the default setting. Additional settings are available for STB’s with
different output signal types.
TV Chan for STB
When the STB Signal Input is set to “Tuner”, this sets the channel the TV tunes to view
the STB’s signal. This setting should match the STB’s “CH” switch setting (which is
usually 3 or 4) or the modulator channel number.
STB Model
Model number of set top box. Must match actual unit for proper operation.
NOTE: Changing the STB Model does not change the previous STB Key selections. If
the STB Model is changed, the STB Key selections should be reviewed to determine if
they are the desired mappings for the installation.
Restore Defaults for
STB
Press vol►to restore all interface settings, for the selected STB model, to factory
defaults.
NOTE: Each STB model has a unique set of Factory Defaults. Selecting “Restore
Factory Defaults” changes the parameters to the Factory Defaults for the selected STB
model and does not change the “STB Model” selection.
The default settings for each supported STB are detailed below in “Appendix B – STB
Functions and Default Mapping Reference”
Flash Intface Pwr
LED
This provides a diagnostic tool to help determine if the TV is connected to the expected
Satellite Interface and STB. If “Flash Intface Pwr LED” is turned on, the “POWER” LED
on the Satellite Interface module controlled by this TV will flash rapidly. The STB
controlled by this interface will also turn on and off continuously.
NOTE: This is not a stored parameter. It is automatically set to “OFF” by cycling power to
the interface module.
Power Save
If “Power Save” is turned ON, the STB will be automatically powered off when the TV is
turned off
Interface F/W Ver
PDi set top box Interface firmware version
TV CCI Ver
CCI communication protocol version reported by TV
IR Cable
Connection status of IR Emitter cable to the interface module.
INTERFACE MODULE SETUP 6/6
TV Input For STB Tuner
TV Chan For STB 003
STB Model DC50X
Restore Defaults for STB >
Flash Intface Pwr LED Off
Power Save
On
DIAGNOSTICS
IR Interface F/W Ver V4.02
TV CCI Ver V5.2
IR Cable Connected
Exit: SETUP/OK Cancel: POWER

Document Number: PD196-244R12 PD295-002 Page 18 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Programming the Interface Module
Programming the IR Code Set
The Interface Module sends infrared (IR) codes that mimic the set top box’s remote control. Therefore the interface must
know which set top box is being controlled to send the proper codes.
1. Enter the Interface Module Setup Menu (See “Understanding Interface Module Setup Menus”earlier in this
manual).
2. Select menu Interface Module SETUP 6/6”.
3. Set “STB Model” to match the actual model of the STB.
4. Perform a factory reset (See Restoring Factory Default Settings later in this manual).
Provider
Set Top Box Model
On Screen “STB
Model” Setting
Cablevision
Scientific Atlanta Explorer 4250HD
SciAtl/Cisco
Charter/Spectrum
Motorola DCH6200
Moto/Arris
Charter/Spectrum
Motorola DCT2224
Moto/Arris
Comcast/Xfiniti
Pace DC50X
Cmcst X1
Comcast/Xfiniti
Pace PXD01ANI
Cmcst X1
Comcast/Xfiniti
Comcast PR150B
Cmcst Legacy
Comcast/Xfiniti
Comcast RNG110
Cmcst Legacy
COX
COX 3250HD
(Scientific Atlanta Explorer 3250HD)
SciAtl/Cisco
COX
COX DTA250HD
Cox DTA250HD
Dish
Dish ViP211k
Dish
Dish
Dish ViP222k
Dish
Haivision
Haivision Stingray
Hai Stingray
Haivision
Haivision Mantaray
Hai Mantaray
Time Warner Cable/Spectrum
Cisco DTA 271HD
SciAtl/Cisco
Time Warner Cable/Spectrum
Cisco 8742 HDC
SciAtl/Cisco
Time Warner Cable/Spectrum
Spectrum101-T
SciAtl/Cisco
Verizon
Moto/Arris

Document Number: PD196-244R12 PD295-002 Page 19 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

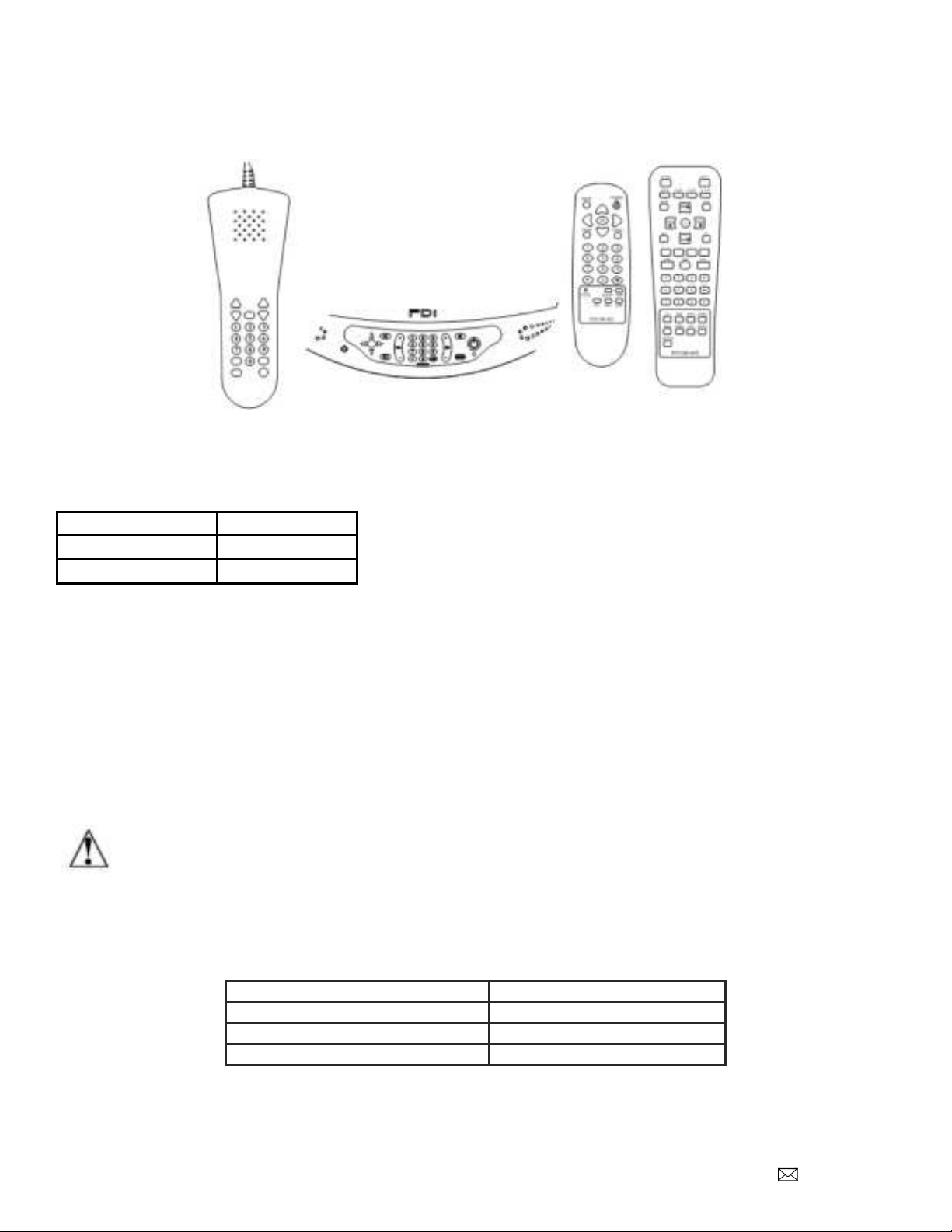

Keypad Programming (Mapping) Instructions
The set top box (STB) can be controlled remotely by any of the following that incorporate a keypad: PDi-Qube™, Pillow
Speaker, TV’s Keypad (Arm Mounted TV’s), or Handheld Remote Control. In other words, any control device that
incorporates a keypad capable of controlling the TV can also control the set top box.
Keypad Programming or Mapping involves assigning key functions to the corresponding set top box (STB) functions. It is
common practice to designate a control button to activate the STB’s Channel “Guide” feature. This feature allows for
quicker selection of satellite channels. Some common control buttons used for “Guide” are listed below. Your installation
may vary depending upon the control device’s availability of these particular buttons.
Control Button
STB Function
Menu
Guide
(-)
Guide
1. Enter the Interface Module Setup Menu (See “Understanding Interface Module Setup Menus”earlier in this
manual).
2. Select menu pages 1 through 5.
3. For each “TV Key” on the left column, set the matching “STB COMMAND” on the right column to the desired STB
function.
Programming for Off-Air Non-Satellite Channels Using Off-Air RF Pass-Thru
The set top box (STB) can be remotely turned off, which allows any signal connected to the “OFF-AIR” input of the STB to
be active and then viewed downstream by the TV. The Off-Air signal could be a DVD player for an in-house movie
channel, an externally connected antenna for local over-the-air channels, or cable TV channels. See pages 7 or 8 for
details regarding connection of an Off-Air signal.
NOTE: Off-Air signals are optional and may not be available at the facility. Some set top boxes do not have off
air pass through. In either case this instruction section may be skipped.
To view an Off-Air signal, the patient must turn Off the STB. A control key must be assigned to perform this function. The
control key should NOT be the TV’s POWER button as it is used to power the TV On and Off. Instead, another key must
be selected. Below are some suggestions for STB “Power” keys that might be utilized on some common control devices.
CONTROL DEVICE
SUGGESTED CONTROL KEY
Pillow Speaker
ALT, MENU, TV/AV
TV Keypad
MENU, OK, AV
Remote
TV/AV, ( - )

Document Number: PD196-244R12 PD295-002 Page 20 of 29
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
An Example for Off-Air RF Pass-Thru
A facility has an outside antenna that contains several local TV channels that they wish to provide to their patients for
viewing in addition to Satellite TV channels.
The facility is equipped with the PDI-P15X arm mounted television powered remotely from a central style power supply.
The Off-Air antenna signal is connected to the input of the central power supply and the STB is connected using the
Optional Secondary RF Coax cable as shown on pages 8 and 9.
For this configuration, the yellow (Menu) button on the TV’s keypad is chosen to Power the STB on and off by changing
the mapping of the TV “Menu” key to “Power”.
Now, Exit the Interface Module SETUP menu by pressing the SETUP button on the programming remote.
Pressing the “MENU” button on the TV’s keypad should power the STB on and off with each key press. The only
remaining setup involves programming the TV for the Off-Air channels while the STB is off. The TV’s channel
programming is not required to include the STB’s channel as well. For example, if the STB is set for channel 3 output, the
same channel could be omitted from the TV’s channel table, if no local channel 3 is available. Please see the
programming instructions specific to the model PDi TV being used.
Programming the STB Signal Input Type
The Interface Module must be programmed so that it knows
which TV source input needs the keys to be mapped to the
STB. When any other signal source is selected, all keys will
operate normally.
1. Enter the Interface Module Setup Menu (see
“Understanding Interface Module Setup Menus”
earlier in this manual)
2. Select menu “Interface Module SETUP 6/6”.
3. Set “STB Signal Input” to match the connection to the
STB. This is usually Tuner, but may be “HDMI” or
“Component” for high definition STB’s.
4. If “STB Signal Input” is “Tuner” then set the “STB Channel” to match
the STB’s modulated RF output. The illustration depicts the channel as
number 3 in this example.
5. Exit setup. Verify the STB signal is now displayed on the television.
STB INTERFACE SETUP 3/6
-TV KEY- -STB COMMAND-
Up Arrow Up Arrow
Dn Arrow Down Arrow
Lt Arrow Left Arrow
Rt Arrow Right Arrow
Menu Power
Home
Guide Guide
Info Info
Recall/Star ( * ) Prev Channel
Exit: Exit
Back (Nav) Back
Exit: SETUP/OK Cancel: POWER
INTERFACE MODULE SETUP 6/6
TV Input For STB Tuner
TV Chan For STB 003
STB Model DC50X
Restore Defaults for STB >
Flash Intface Pwr LED Off
Power Save On
DIAGNOSTICS
IR Interface F/W Ver V4.02
TV CCI Ver V4.6
IR Cable Connected
Exit: SETUP/OK Cancel: POWER
