peerless-AV PDW T XL Guide

1 of 7ISSUED: 2013-07-02 SHEET #: 125-9459-1 2013-07-02
Installation and Assembly:
Model: PDW T XL
Manufactured by Peerless-AV
Max. Load Capacity:
225 lbs (102 kg)
Display Range:
65”-80” (165-203 cm)
Landscape/Portrait Tiltable X-Large Wall Mount for 65”-80” Flat Panel Displays

2 of 7ISSUED: 2013-07-02 SHEET #: 125-9459-1 2013-07-02
Table of Contents
Parts List.................................................................................................................................................................................3
Installation to Wood Stud Wall................................................................................................................................................4
Installation to Solid Concrete or Cinder Block Wall ................................................................................................................5
Attaching Adapter Brackets to Display ...................................................................................................................................6
Securing Display to Mount......................................................................................................................................................6
Tilt Adjustment ........................................................................................................................................................................7
• Do not begin to install your product until you have read and understood the instructions and warnings contained in
this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers
please call customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum Load Capacity (See page one).
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of
an "edge to edge" stud nder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed to be installed on the following wall construction only;
WALL CONSTRUCTION HARDWARE REQUIRED
• Wood Stud Included
•Wood Beam Included
•Solid Concrete Included
•Cinder Block Included
• Metal Stud Contact Qualied Professional
• Brick Contact Qualied Professional
• Other or unsure? Contact Qualied Professional
WARNING
• stud nder ("edge to edge" stud nder is recommended)
• phillips screwdriver
• drill
• 5/16" (8 mm) bit for concrete and cinder block wall
• 5/32" (4 mm) bit for wood stud wall
• level
Tools Needed for Assembly
• hammer
• 3/8” socket
• phillips screw driver
• Pencil
• Measuring tape
• ratchet

3 of 7ISSUED: 2013-07-02 SHEET #: 125-9459-1 2013-07-02
Parts (Before beginning, make sure you have all parts shown below).
C (1)
wall plate
Parts List
Part Description Quantity Part Number
Aleft tilt bracket 1 201-1474
Bright tilt bracket 1 201-1476
Cwall plate 1 201-1944
D4 mm allen wrench 1 560-1727
E#14 x 2.5" wood screw 4 5S1-015-C03
F8 mm concrete anchor 4 590-0320
GM5 x 12 mm socket pin screw 4 520-1064
HM5 x 25 mm socket pin screw 4 520-1122
IM6 x 12 mm socket pin screw 4 520-1050
JM6 x 25 mm socket pin screw 4 520-1211
KM8 x 12 mm socket pin screw 4 520-1724
LM8 x 25mm socket pin screw 4 520-1101
Mspacer 4 540-1059
NM4/M5/M6 multi washer 4 580-1398
B (1)
right adapter bracket
A (1)
left adapter bracket
F (4)
8mm concrete anchor
E (4)
#14 x 2-1/2" wood screw
D (1)
allen wrench
M5/M4/M6 washer
N (4)
M8 x 12 mm
K (4)
M8 x 25 mm
L (4)
spacer
M (4)
G (4)
M5 x 12 mm
H (4)
M5 x 25 mm
I (4)
M6 x 12 mm
J (4)
M6 x 25 mm

4 of 7ISSUED: 2013-07-02 SHEET #: 125-9459-1 2013-07-02
Installation to Wood Stud Wall
Use a stud nder to locate the edges of the stud. Use of an edge-to-edge stud nder is highly recommended.
Based on their edges, draw a vertical line down the stud center. Place wall plate (C) on wall as a template. Level
plate, and mark the center of the four mounting holes. Make sure that the mounting holes are on the stud center
line. Drill four 5/32" (4 mm) dia. holes 2-1/2" (64 mm) deep. Make sure that the wall plate (C) is level and secure
it using four #14 x 2.5" wood screws (E) as shown below.
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that wall plate is rmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud nder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations.
WARNING
1
E
C

5 of 7ISSUED: 2013-07-02 SHEET #: 125-9459-1 2013-07-02

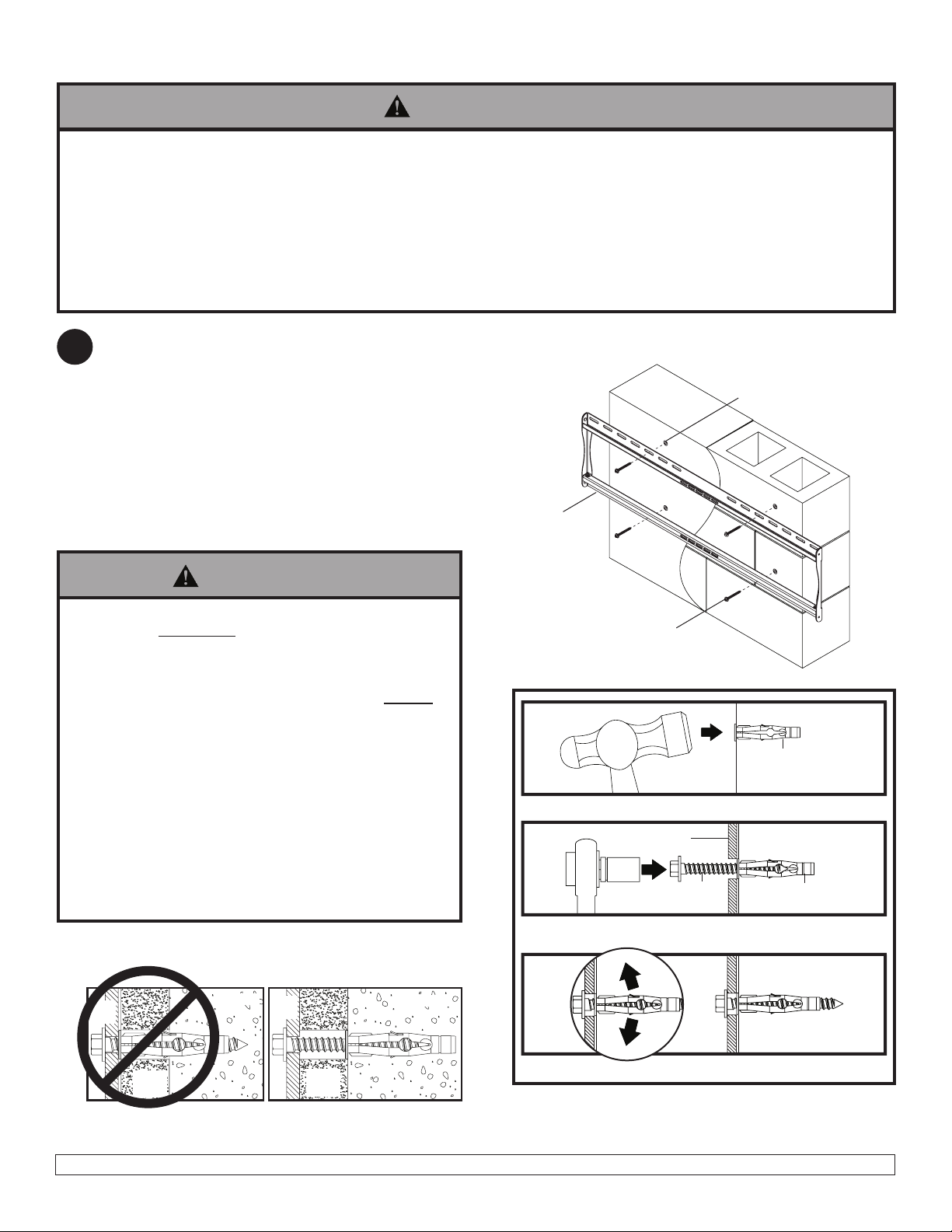

Installation to Solid Concrete or Cinder Block Wall
• When installing wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete
thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" (25 mm) minimum from the side of the block. Cinder block must meet ASTM C-90
specications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a ham-
mer drill to avoid breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the wall will safely support four times the combined load of the equipment and all attached hardware
and components.
WARNING
1
CUTAWAY VIEW
INCORRECT CORRECT
wall
plate
wall
plate
plaster/
drywall
plaster/
drywall
concrete concrete
1
3
2
F
Drill holes and insert anchors (F).
Place plate (A) over anchors (F) and secure with screws (E).
Tighten all fasteners.
C
F
E
concrete
surface
Make sure that wall plate (C) is level, use it as a
template to mark four mounting holes. Drill four
5/16" (8 mm) dia. holes to a minimum depth of 2.5"
(64 mm). Insert anchors (F) in holes ush with wall
as shown. Place wall plate (C) over anchors and
secure with four #14 x 2.5" screws (E). Level, then
tighten all fasteners.
• Tighten screws so that wall plate is rmly attached,
but do not overtighten. Overtightening can damage
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Always attach concrete expansion anchors directly
to load-bearing concrete.
• Never attach concrete expansion anchors to
concrete covered with plaster, drywall, or other
nishing material. If mounting to concrete surfaces
covered with a nishing surface is unavoidable,
the nishing surface must be counter bored as
shown below. Be sure concrete anchors do not
pull away from concrete when tightening screws. If
plaster/drywall is thicker than 5/8" (16 mm), custom
fasteners must be supplied by installer.
WARNING
C
E
F

6 of 7ISSUED: 2013-07-02 SHEET #: 125-9459-1 2013-07-02
Center adapter brackets vertically on the back of the display. Secure adapter brackets (A and B) to display using
appropriate hardware combination as shown below for specic display application.
2
Attaching Adapter Brackets to Display
Back of Display
Use of spacers is OPTIONAL
H
N
M
G
N
J
N
M
I
N
L
M
K
X
X
BA
A
B
Hook display assembly onto wall plate (C). Position display in desired location and tighten security screw.
3
Securing Display to Mount
Tighten.

7 of 7ISSUED: 2013-07-02 SHEET #: 125-9459-1 2013-07-02
Tighten.
Pre-set tilt positions of
-5°, 0°, 5°, 10° or 15°.
Tighten
It may be necessary to reposition the ratchet
handle without tightening the assembly
-5°, +15°
Display angle can be adjusted by loosening the ratcher handle and phillips screws. Set display at desired angle and
and secure all hardware.
Note: It is not necessary to completely remove hardware from
assembly to adjust the tilt.
4
Tilt Adjustment
