PEERLESS HP450 User manual

Universal Desktop Swivel Mount
For 32" to 52" (81 to 132 cm) flat panel TVs
with VESA®mounting hole patterns
The HP450 Flat Panel Desktop Swivel Mount offers a secure, functional and sleek mounting
solution for use with a variety of at panel TVs in hospitality applications. This mounting solution
features a unique adapter plate that works with a variety of VESA®compliant mounting hole
patterns and comes with security screws to deter tampering and theft. A swivel range from 0°
to 360° makes it a versatile desktop mount for any room conguration. Completing this mount
is an internal cable management system and a decorative base that delivers a stylish, clean
and clutter-free installation.
OPTIMUM VIEWING ANGLE
Offers up to 360º of swivel for
exible TV positioning, with
swivel stops available at 40°,
60°, 120°, 180°, 210° and 240°
CLEAN
APPLICATION
Internal cable
management
delivers a clean,
clutter-free
side prole
ADJUSTABLE HEIGHTS
Easy vertical adjustment
to accommodate various
height requirements

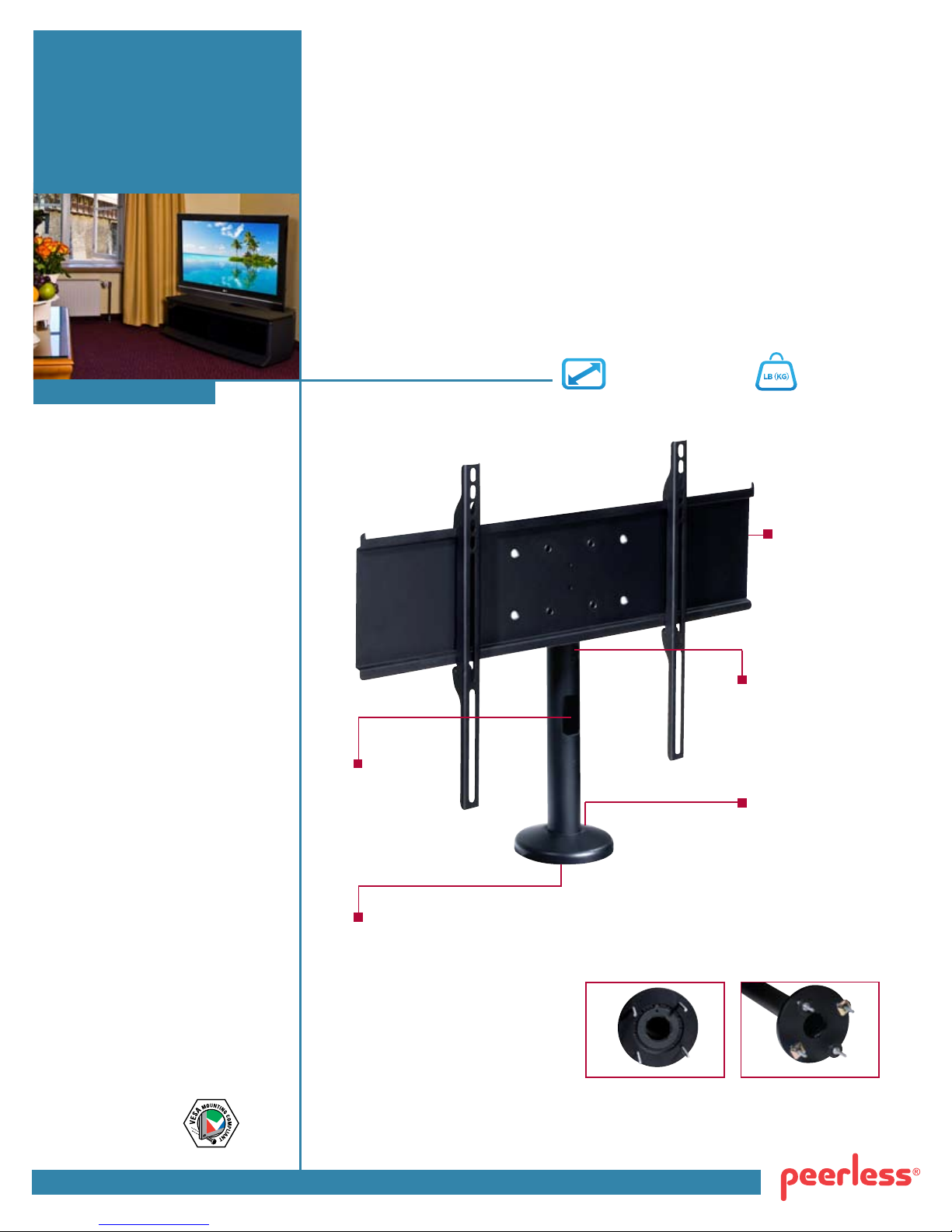

TV size: 32"-52" (81-132 cm) Max load: 150 lb (68 kg)
HP450(-S, -GB)
Built-in swivel up to 360º
allows for optimum
viewing angle
Free standing base bolts
down for safety and
security
 Adjustable height allows
for greater exibility
 Cable management
internally through the
mount and down through
the mounting surface
Decorative base is
aesthetically pleasing
and hides desktop
mounting hardware
Built in universal and
VESA®adapter plate
Increased depth adapter
plate allows for the jack
pack protrusion on the
backside of the TV
Security screws prevent
tampering and theft
CLICK: www.peerlessmounts.com CALL: 800.865.2112 FAX: [phone]
FEATURES
SLOPE NUTS AND SECURITY SCREWS
Prevent tampering or theft with unique
sloped nuts at the base and security
screws on the adapter plate
slope nuts security
(shown without
desktop surface)
swivel stops
UNIVERSAL TV
ADAPTER PLATE
Accomodates a
variety TV mounting
hole patterns

PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN
PACKAGE
HP450(-S, -GB)
CARTON 1:
10.75" x 4.50" x 21.00"
(273 x 114 x 533 mm)
CARTON 2:
8.75" x 4.75" x 32.50"
(222 x 121 x 826 mm)
CARTON 1:
14 lb (6.35 kg)
CARTON 2:
14 lb (6.35 kg)
TOTAL: 28 lb (12.7 kg)
HP450:
HP450-S:
HP450-GB:
735029252252
735029252276
735029253051
Support tube, base
backer plate, desktop
swivel base, universal
adapter plate,
fastener packet
1
Package Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
HP450(-S, -GB) 30.75" x 26.5" x 6"
(781 x 673 x 152 mm) 24.4 lb (11.07 kg) 150 lb (68 kg)
Scratch
resistant
fused
epoxy
HP450:
HP450-S:
HP450-GB:
Black
Silver
Gloss black
Product Specifications
Model Numbers WARRANTY: Limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The Universal Flat Panel Desktop Swivel Mount shall be a Peerless model HP450, HP450-S or HP450-GB and shall be located where indicated on the
plans. It shall be constructed of heavy gauge steel. The nish shall be scratch resistant black or silver fused epoxy. Assembly and installation
shall be done according to instructions provided by the manufacturer.
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2009 Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc. 3215 W. North Avenue Melrose Park, IL 60160 [phone] [phone] Fax: [phone] www.peerlessmounts.com
All dimensions = inch (mm)
HP450(-S, -GB) Universal Desktop Swivel Mount for 32" to 52" (81 to 132 cm) at panel TVs with VESA®mounting hole patterns
