PEERLESS PLA 60 and assembly Guide

3215 W. North Ave. • Melrose Park, IL 60160 • [phone] or [phone] • Fax: [phone] • www.peerlessmounts.com
ISSUED: 05-02-06 SHEET #: 202-9112-3 12-05-06
Models: PLA 60, PLA 60-S,
PLAV 60, PLAV 60-S
Installation and Assembly - Articulating Swivel Arm for
37" - 60" Plasma Screens
Maximum UL Load Capacity:175 lb (79 kg)
This product is UL Listed. It must be
installed by a qualified professional
installer.
R

2 of 9 ISSUED: 05-02-06 SHEET #: 202-9112-2 06-21-06
Read instruction sheet before you start installation and assembly.
Installations:
To Wood Stud Walls ...................................................................................................... page 4
To Concrete Walls .......................................................................................................... page 5
IMPORTANT! Turn to the appropriate page for your wall installation.
• DonotbegintoinstallyourPeerless product until you haveread and understood the instructionsand warnings
containedin this Installation Sheet. Ifyou have any questions regardingany of the instructionsorwarnings, please
callPeerless customercareat 1-800-729-0307.
• Thisproduct should only beinstalled by aqualified professional.
• Makesurethat the supporting surface will safelysupport the combined load of theequipmentand all attached hard-
wareand components.
• Neverexceed the Maximum ULLoad Capacity of 175lb (79 kg).
• Do not attach directly to a metal stud wall. Use of a triple stud WSP wall plate is required for attachment to metal
studs (contact customer care). Metal stud installation is not UL evaluated.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an
"edgeto edge" stud finderis highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tightenscrews and nutsfirmly, but donot overtighten. Overtightening candamage the items,greatly reducing their
holdingpower.
WARNING
Tools Needed for Assembly
•studfinder("edge to edge" stud finder isrecommended)
•drill
•7/32" drill bit for wood studs
•5/16" masonry drill bit for concrete
•7/16"socket wrench with extension (recommended)
•level
•phillipsscrewdriver
Accessories
•External Wall Plate (WSP716, WSP716-S, WSP724, WSP724-S)
(MetalStudnot evaluated by UL)
WALLCONSTRUCTION ADDITIONAL HARDWARE REQUIRED
Wood Stud, Wood Beam none
Concrete none
Metal stud WSP716, WSP716-S, WSP724, or WSP724-S
Other or unsure? Contact Customer Care
IMPORTANT! Certain types of walls require additional mounting hardware...

3 of 9 ISSUED: 05-02-06 SHEET #: 202-9112-3 12-05-06
P
D
Before you start make sure all parts
listed are included with your product.
Parts List
K
M
S
CA
E
F
H
B
J
N
R
L
Q
Some parts may appear slightly different than illustrated.
G
O
PLA 60 PLA60-S PLAV 60 PLAV 60-S
DESCRIPTION QTY. PART# PART# PART# PART#
Awallplate 1 201-1040 201-4040 201-1040 201-4040
Btilt-roll assembly 1 201-1093 201-4093 201-1048 201-4048
Carmassembly 1 201-1072 201-4072 201-1049 201-4049
Dwallsupport arm axle 1 201-1041 201-1041 201-1041 201-1041
Evinyltrim 3 600-1012 600-1012 600-1012 600-1012
FM10 x 1.5 x 15 mm screw bolt 8 520-9262 520-9262 520-9262 520-9262
G.505 x .75 x .062" nylon washer 1 540-1074 540-1074 540-1074 540-1074
Htilt adjustment knob 1 560-0108 560-0108 560-0108 560-0108
Icarriage bolt 3/8"-16 x 3.25" 1 520-1315 520-1315 520-1315 520-1315
J1.525 x 2 x .062" delrin washer 2 540-1070 540-1070 540-1070 540-1070
K#8-32 x .375" socket head cap screw 1 520-1210 520-1210 520-1210 520-1210
Lplastic finishing cap 8 590-1123 590-1123 590-1123 590-1123
Mholdingpin 1 580-1166 580-1166 580-1166 580-1166
Nretainerplug 1 590-1007 590-1007 590-1007 590-1007
O5/16 x 3" wood screw 8 520-1243 520-1243 520-1243 520-1243
P.250 x 1 x .068" washer 8 540-1063 540-1063 540-1063 540-1063
Q9/64"allenwrench 1 560-9728 560-9728 560-9728 560-9728
Rcablemanagementclips 4 590-1166 590-1166 590-1166 590-1166
Scable tie 4 590-1168 590-1168 590-1168 590-1168
T36"polyestermeshsleeve 1 600-1015 600-1015 600-1015 600-1015
U6 mm allen wrench 1 560-9716 560-9716 560-9716 560-9716
V10mmallen wrench 1 n/a n/a 560-9727 560-9727
Wanchor 8 590-1025 590-1025 590-1025 590-1025
T
VU
I
W

4 of 9 ISSUED: 05-02-06 SHEET #: 202-9112-2 06-21-06
• Installermust verify that thesupporting surface will safelysupport the combined loadof the equipment andall attached
hardwareandcomponents.
• Tightenwood screws so thatwall plate isfirmlyattached, but donot overtighten. Overtightening candamage the
screws,greatly reducingtheirholding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Do not attach directly to a metal stud wall. Use of a triple stud WSP wall plate is required for attachment to metal
studs (contact customer care). Metal stud installation is not UL evaluated.
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highlyrecommended.
• Hardwareprovided is forattachment of mountthrough standard thickness drywallor plaster intowood studs. Installers
areresponsible toprovide hardware forother typesof mounting situations.
• Neverexceed the Maximum ULLoad Capacity of 175lb (79 kg).
1
WARNING

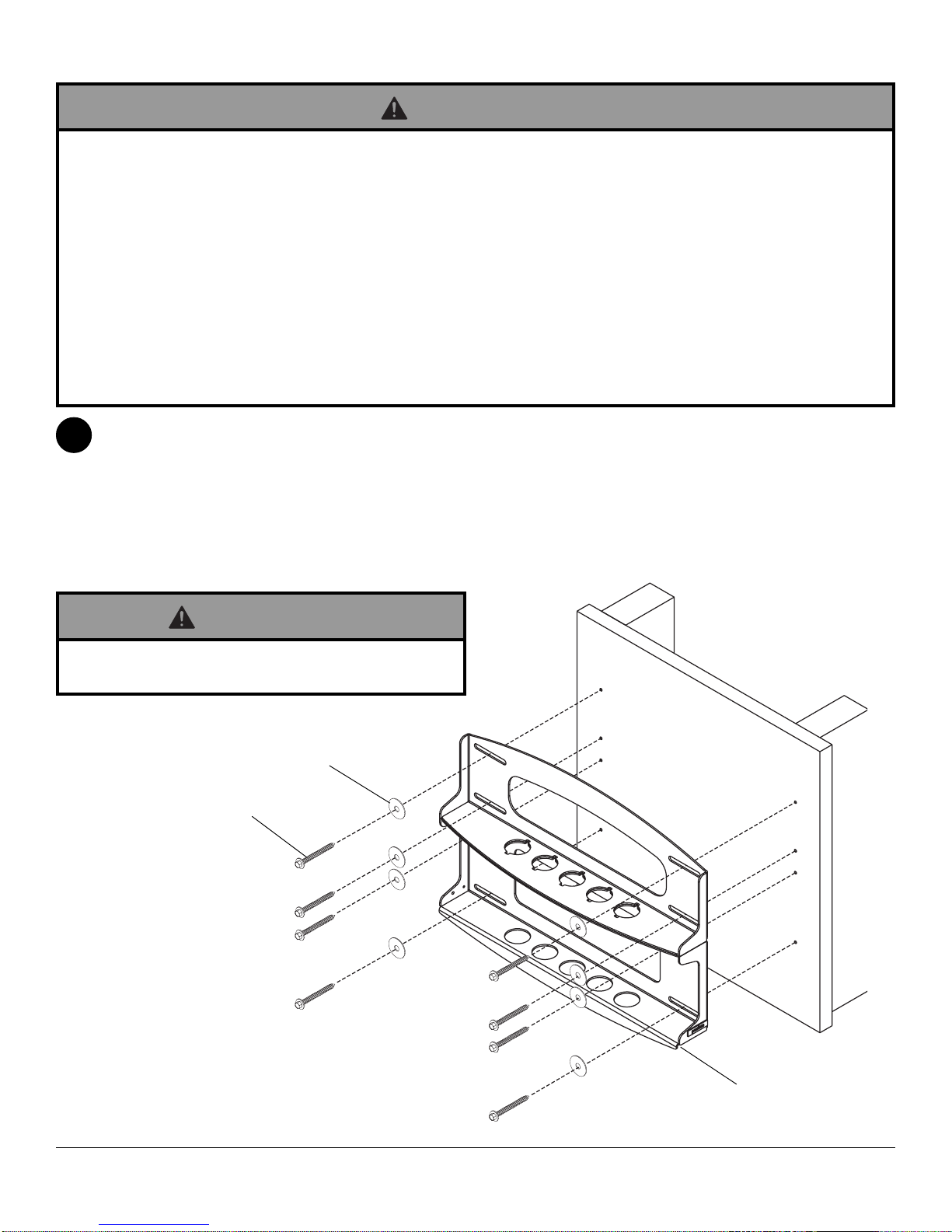

Installation to Wood Stud Wall
Wall plate (A) can be mounted to two studs that are 16" apart. Use a stud finder to locate the edges of the
studs. Use of an edge-to-edge stud finder is highly recommended. Based on their edges, draw a vertical line
down each stud’s center. Place wall plate on wall as a template. The top mounting slots should be located .36"
above the desired screen center for PLA60 and PLA60-S and .43" below the desired screen center for PLAV 60
and PLAV 60-S. Level plate, and mark the center of the eight mounting holes. Make sure that the mounting
holes are on the stud centerlines. Drill eight 7/32" dia. holes 3" deep. Make sure that the wall plate is level,
secure it using eight 5/16x 3"wood screws (O) and washers (P).
Skip to step 2 on page 6.
A
O
P
• Never mount this product to metal studs without the
requiredaccessory.
WARNING

5 of 9 ISSUED: 05-02-06 SHEET #: 202-9112-3 12-05-06
IMPORTANT!Concretemustbe2000psidensity
minimum.
Use wall plate (A), making sure that it is level, as a
template to mark holes. The top mounting slots should
be located .36" above the desired screen center for PLA
60 and PLA 60-S and .43" below the desired screen
center for PLAV 60 and PLAV 60-S. Use the masonry bit
to drill 5/16" (8 mm) dia. holes to a minimum depth of 3"
(76 mm). Insert anchors in holes flush with wall as shown
(right).Placewall plate(A)overanchors (W)and secure
with 5/16 x 3" wood screws (O) and washers (P).
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardwareandcomponents.
• Neverexceed the Maximum ULLoad Capacity of 175lb (79 kg).
• Never mount this product to metal studs.
WARNING
• Always attach concrete expansion anchors directly to
load-bearingconcrete.
• Neverattach concrete expansionanchors toconcrete
coveredwith plaster,drywall, orotherfinishing mate-
rial.If mounting toconcrete surfaces covered witha
finishingsurface isunavoidable, thefinishing surface
mustbe counterbored asshown below. If plaster/
drywall is thicker than 5/8", custom fasteners must be
suppliedby installer (Notevaluated by UL).
WARNING
• Tighten wood screws so that wall plate is firmly
attached,but donot overtighten.Overtightening can
damagescrews, greatlyreducing their holdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
1
Installation to Concrete Wall
A
OP
W
concrete
surface
1
3
2
Drill hole(s) and insert anchor(s) (W)
mounting
plate
Place plate over anchor(s) (W) and secure with screw(s)(O)
Tighten all fasteners
W
W
CUTAWAYVIEW
INCORRECT CORRECT
mounting
plate
plaster/
drywall
concrete mounting
plate concrete
plaster/
drywall

6 of 9 ISSUED: 05-02-06 SHEET #: 202-9112-2 06-21-06
Snap four cable management clips(R)into top or bottom of arm assembly(C)as shown.Cable ties (S) are used
withclips for cordmanagement.
Slide one mesh sleeve (T) over each cable. Use cable ties (S) to tighten mesh sleeves to cables.
R
S
C
3
T
3-1
KD
N
J
D
M
J
C
DETAIL 3
A
Note: There are five mounting positions. The
center position is shown (right). Slidewasher (J)
over wall support arm axle (D). Next, insert plastic
cap (N) into axle. Then, insert holding pin (M) into
axle. See detail 1.
Note: Fit of axle (D) into wall plate (A) and arm
assembly (C) will be tight. Gently tap into place
with a hammer if necessary.
2
2-1
Insert socket cap screw (K) into hole at bottom of
wall support arm axle (D) as shown in detail 3.
Tightenscrew using 9/64"allen wrench (Q).
Place arm assembly (C) with washer (J) into wall
plate (A). Insert axle assembly shown in detail 1
throughwall plate (A),armassembly (C),and
washer (J). Lock axle in place by aligning holding
pin (M) with notches shown in detail 2.
2-2
DETAIL 1
NOTCH
DETAIL 2
• If you are uncertain that product is properly installed, call customer care.
WARNING

7 of 9 ISSUED: 05-02-06 SHEET #: 202-9112-3 12-05-06
B
I
F
GENERIC
ADAPTERBRACKET
Insert and tape carriage bolt (I) into top hole of pitch-roll assembly (B).Attach tilt-roll assembly to adapter
bracket with four M10 socket screws (F). Tighten screws using 6 mm allen wrench (U).
Note: Adapter bracket (not UL evaluated, sold separately) will vary in size and style.
Note: Refer to adapter bracket instruction sheet for attachment of adapter bracket to plasma before proceeding
with step 5. If your adapter bracket has an aluminum race attached to it, remove before proceeding and discard race. It is
not used with this product.
• Donotovertightenscrews!Overtightening mayhinder
rolloption.
CAUTION
4
5
Attach two pieces of vinyl trim (E) to wall plate (A). Next, attach one piece of vinyl trim to bottom of swivel box on arm
assembly(C).
4-1 Insertone finishing cap (L) intoeach unused hole of wallplate (A).
LA
E
SWIVELBOX
C

8 of 9 ISSUED: 05-02-06 SHEET #: 202-9112-2 06-21-06
Insert two M10 screws (F) into swivel box on arm assembly (C) as shown. Leave approx. 1/4" of exposed
thread.
.25"
F
• Use an assistant or mechanical lifting equipment to safely lift and position the plasmaTV.
WARNING
• After tilt is adjusted, all fasteners must be tightened.
Failure to do so will result in damage to the mount.
CAUTION
6
6-1
6-2
fig 6.1 fig 6.2
SWIVELBOX
Hook tilt-roll assembly (B) onto M10 screws (F).
Insert carriage bolt (I) into slot of swivel box as
shown in figure 6.1. Install nylon washer (G) and tilt
adjustmentknob (H).
Install remaining two M10 screws (F) as shown in
figure6.2. HANDTIGHTEN all fourM10 screwsto
allowfor tiltadjustment. Remove tapefrom carriage
bolt (I). For tilt adjustment, push back on the top of
plasma to relieve pressure on knob.Adjust tilt to
desired position and tighten tilt adjustment knob (H),
then securely tighten all four M10 screws (F) using 6
mmallen wrench (U).
I
BF
H
G
SWIVELBOX
H
F
I
C

9 of 9 ISSUED: 05-02-06 SHEET #: 202-9112-3 12-05-06

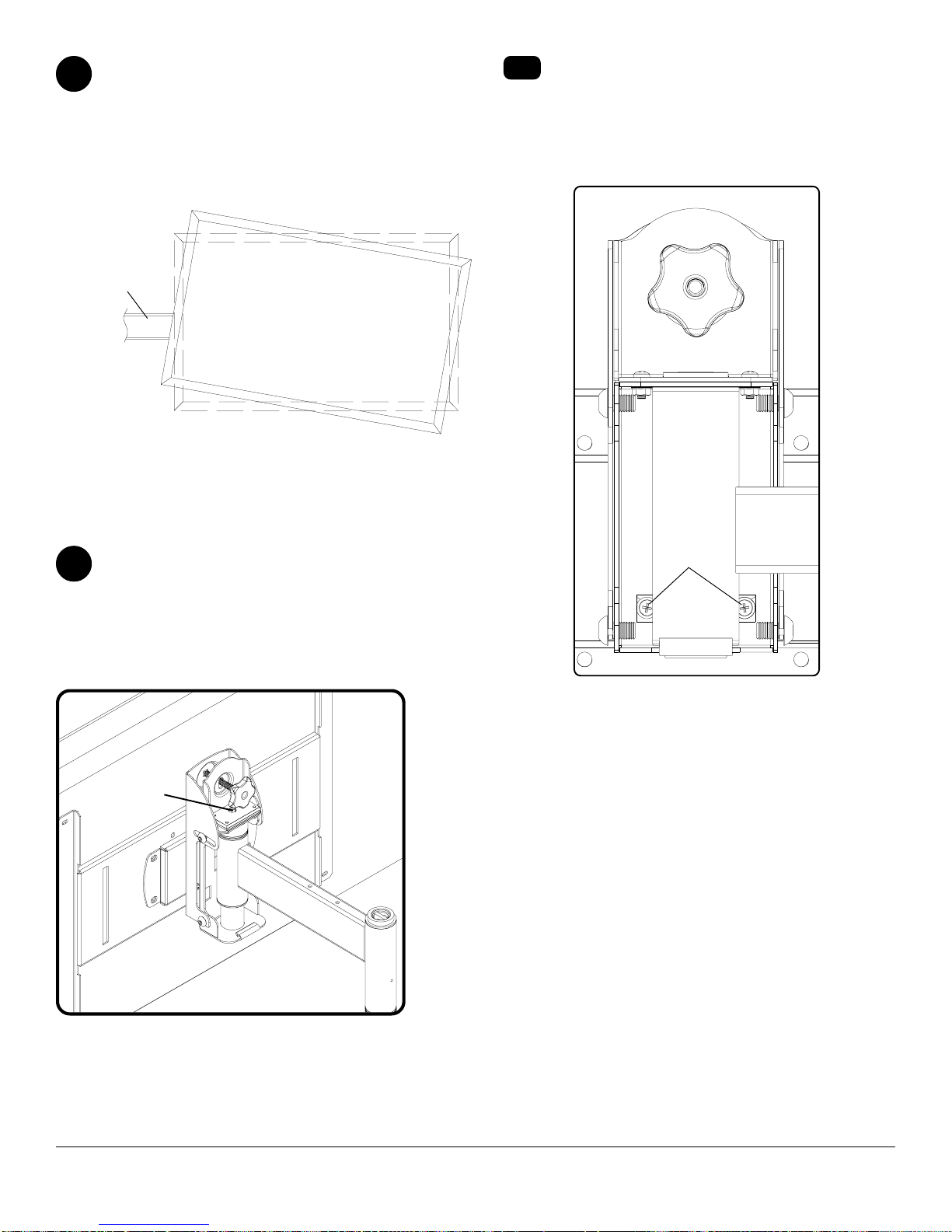

FOR PLAV 60 ONLY:
77-1
ARTICULATINGARM
PLASMA
8
Depending on the specific size & weight of the plasma,
articulatingswing arm maybe angled atdifferent
positions, causing plasma to appear to lean sideways
atdifferent articulating positions.Tilt-roll assembly (B)
allows plasma to be manually adjusted, so plasma can
be horizontal at all positions.To adjust, gently rotate
plasma by hand to desired position.
SOCKET
SCREW
Position of screen may be adjusted vertically up to
.79" in each direction by doing the following:
• To lower screen, turn socket screw shown in figure
8.1 clockwise with 10 mm allen wrench (V).
• Toraisescreen, turn socket screwshown in figure
8.1 counterclockwise with 10 mm allen wrench (V).
fig 8.1
If it is too difficult to adjust roll of plasma, loosen
screws shown in figure 7.1 using a phillips screw-
driver.
IMPORTANT! Do notloosenor tighten screws
morethan 1/8 turn.
ROLL
ADJUSTMENT
SCREWS
fig 7.1
©2006PeerlessIndustries,Inc. All rightsreserved.
Peerlessis aregistered trademarkof PeerlessIndustries, Inc.
Allother brand andproduct namesaretrademarks orregistered trademarks oftheir respectiveowners.
