Pentair Fleck 6700XTR User manual

Page 3
Job Specication Sheet
NOTE: Some options may not be available depending on valve model or other options chosen.
Circle and/or Fill in the Appropriate Data for Future Reference.
System Type: Meter Immediate / Time Clock Delayed / Volume Override Delayed
Volume Override Immediate / Meter Delayed Weekly Reserve
Meter Delayed Variable Reserve / Meter Delayed Fixed Reserve
Valve Type: 56XT/6700 Proprietary C
Regenerant Flow: Down Flow / Up Flow / Downow Double Backwash / Up Flow Back Wash
Back Wash Filter / Up Flow Variable Flow
Display Format: U.S. or Metric (French Degrees, German Degrees, or PPM)
Unit Capacity: _____________ Grains/French Degrees/German Degrees/PPM
Water Hardness: _____________ Grains/French Degrees/German Degrees/PPM
Capacity Safety Factor: Zero or ______ %
Volume Override: _________ (Gallons or M3)
Regeneration Day Override: Off or Every ______ Days
Regeneration Time: Delayed _________ AM/PM or ______Immediate
Regeneration Cycle Step #1: _ _ : _ _ : _ _
Regeneration Cycle Step #2: _ _ : _ _ : _ _
Regeneration Cycle Step #3: _ _ : _ _ : _ _
Regeneration Cycle Step #4: _ _ : _ _ : _ _
Regeneration Cycle Step #5: _ _ : _ _ : _ _
Media Volume: _________ (CuFt or Liter)
Salt Dosage: _________ (lbs/CuFt or grams/Liter)
BLFC Size: _________ gpm
Auxiliary Relay: Enabled or Disabled
Auxiliary Relay Start 1: _ : _ _ : _ _
Auxiliary Relay End 1: _ : _ _ : _ _
Auxiliary Relay Start 2: _ : _ _ : _ _
Auxiliary Relay End 2: _ : _ _ : _ _
Chemical Pump: Enabled or Disabled
CPO Aux Relay Volume: _________ (Gallons or M3)
CPO Aux Relay: _ _ : _ _ : _ _
Flow Meter Size: .75” Paddle .75” Turbine
Generic Flow Meter: Maximum Flow Rate: Add _ _ Gallons every _ _ Pulses

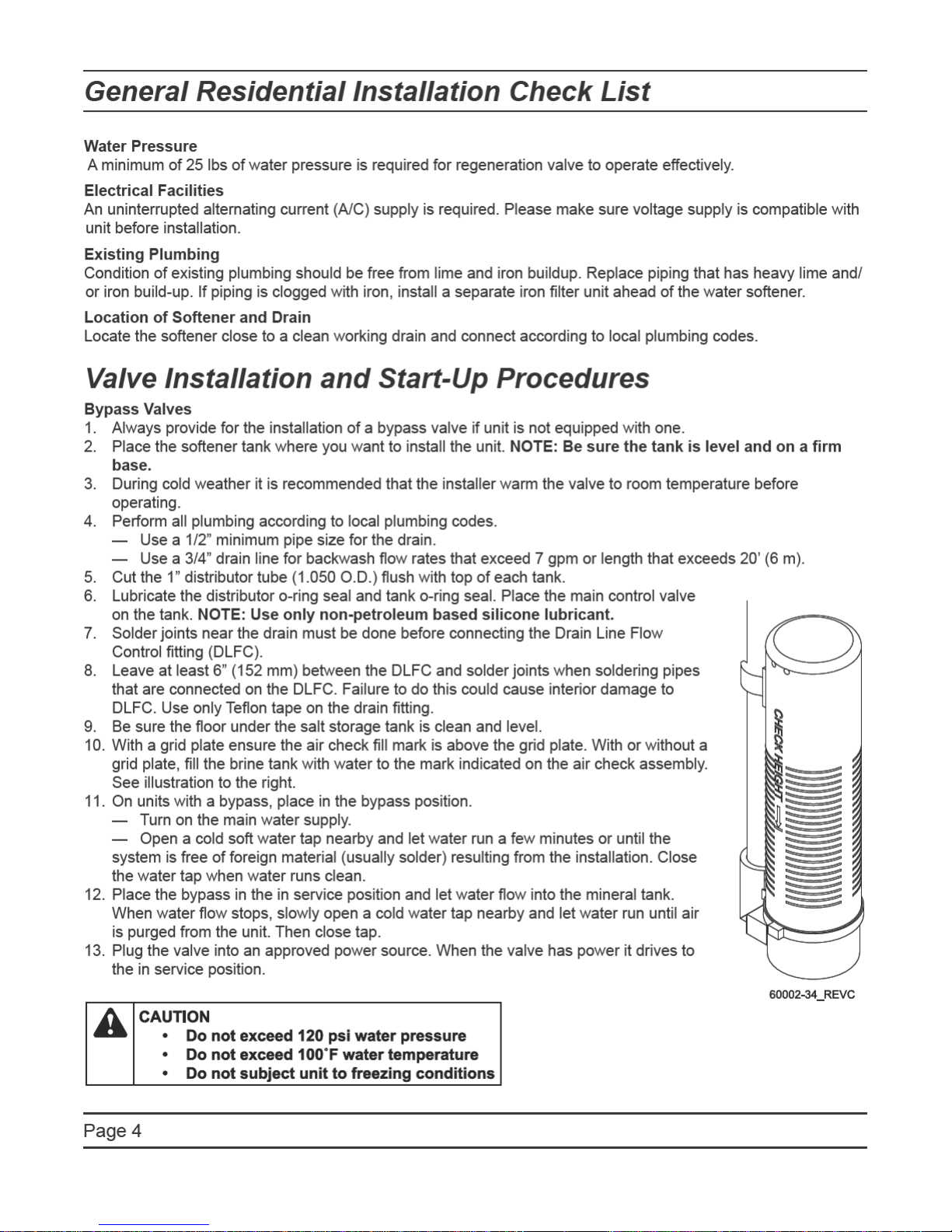

Page 5
Timer Operation
Valve State:
CHG (Change of State)
CHG will be displayed when the lower drive changes from one state to another in dual piston valves.
INI (Initializing)
INI will display on the screen for 30 to 5 seconds when initializing after a power failure reset or programming.
RGQ (Regeneration Queued)
RGQ indicates that the reserve has been entered in a delayed system and regeneration has been queued.
When in the main screen, press the Shift button to toggle service (SRV) with RGQ.
Service (SRV)
SRV will display when the unit is in service.
LED Status Lights:
Blue LED:
Illuminates while the unit is in service and no errors exist. The unit will always be in service unless a
regeneration trigger has occurred (green LED light will be displayed).
Green LED:
Illuminates when the unit is in Regeneration mode, unless an error condition exists.
Red LED:
Illuminates when there is an error.
Flow Indicator:
A rotating line (appearing as a rotating star shape) will display on the screen when ow is going through the
the meter.

Page 6
Timer Operation
Regeneration:
• A time initiated control valve regenerates when the number of programmed days has been reached
• A ow initiated control valve regenerates when the volume count is zero or is below reserve
capacity
System Type Regeneration Trigger
Time Clock Delayed A) Day override parameter is reached and B) the time of day
matches the regeneration day override time
Meter Immediate Regenerates as soon as the volume remaining has been
depleted
Meter Delayed Fixed Reserve A) Volume remaining has been depleted to the xed reserve
volume and B) the regeneration time has been reached
Meter Delayed Variable Reserve A) Volume remaining has been depleted to the variable
reserve volume and B) the regeneration time has been
reached
Meter Delayed Weekly Reserve A) Volume remaining has been depleted to the weekly
variable reserve volume and B) the regeneration time has
been reached
Volume Override Immediate As soon as the programmed volume remaining has been
depleted from the tank
Volume Override Delayed As soon as soon as the programmed volume remaining has
been depleted from the tank and the regeneration time has
been reached
Setting the Time of Day
Press and hold the Up or Down button for 2 seconds.
Press the Shift button to select the digit you want to modify.
Press the Up or Down buttons to adjust the value.
Press the Extra Cycle button to return to the normal display screen, or after a 5 second timeout.
NOTE: The “D” button (Diagnostic) can be pressed to exit without saving.
Manually Initiating a Regeneration
When timer is in service, press the Extra Cycle button for 5 seconds on the main screen.
The timer advances to Regeneration Cycle Step #1, and begins programmed time count down.
Press the Extra Cycle button once to advance valve to Regeneration Cycle Step #2 (if active).
Press the Extra Cycle button once to advance valve to Regeneration Cycle Step #3 (if active).
Press the Extra Cycle button once to advance valve to Regeneration Cycle Step # (if active).
Press the Extra Cycle button once to advance valve to Regeneration Cycle Step #5 (if active).
Press the Extra Cycle button once more to advance the valve back to in service.
NOTE: A manually initiated or queued regeneration can be cleared by pressing the Extra Cycle button for less
than 5 seconds. A system queued regeneration cannot be manually cleared. If regeneration occurs for any reason
prior to the delayed regeneration time, the manual regeneration request shall be cleared. Pressing the Extra Cycle
button while in regeneration will cause the upper drive to advance to the next step immediately.
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.
7.

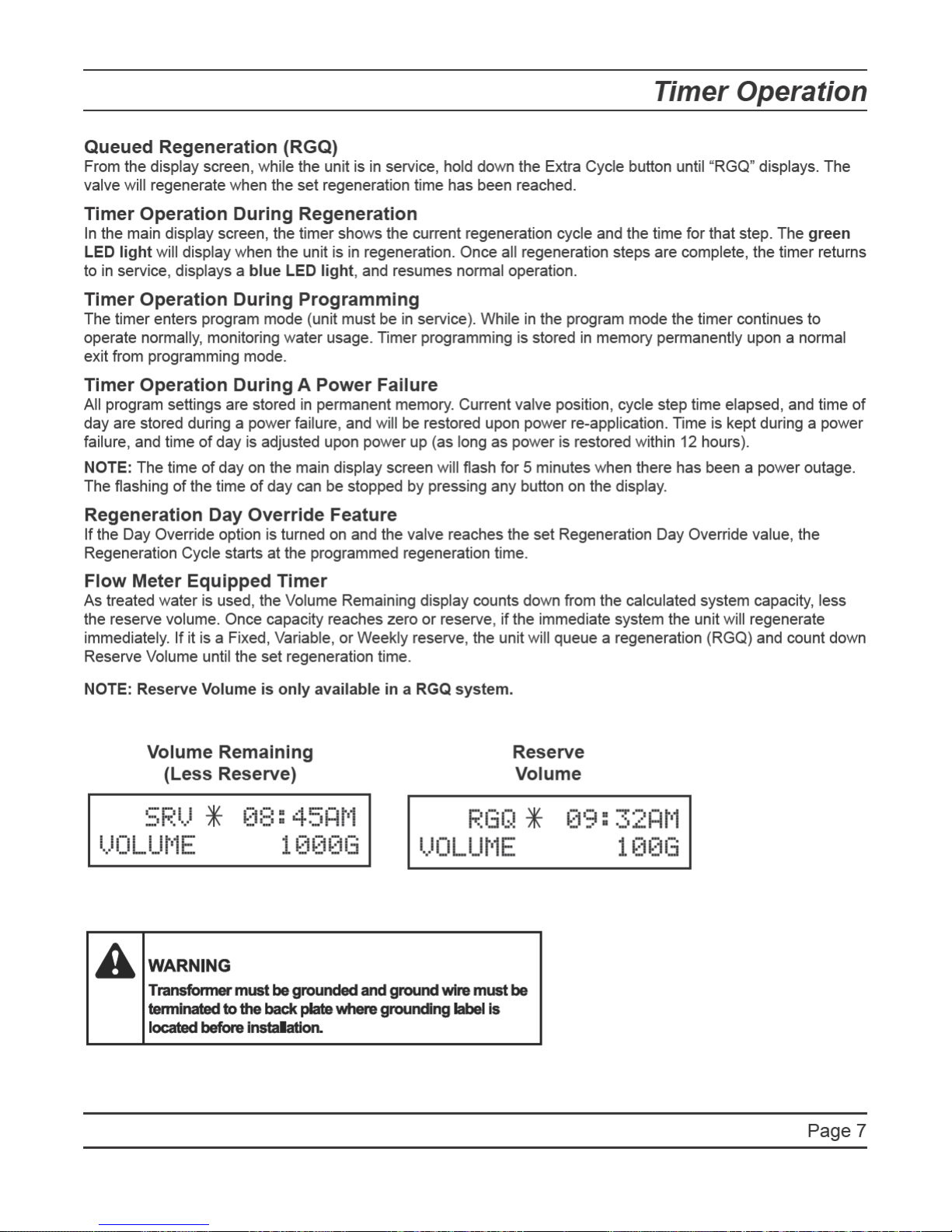

Page 12
Master Programming Mode
CAUTION: Before entering Master Programming, please contact your local professional water dealer.
When the Master Programming Mode is entered, parameters can be set to make the timer function as needed.
NOTE: Depending on current option settings, some displays cannot be viewed or set.
Entering Master Programming Mode:
1. Press and hold the Shift and Up buttons for 5 seconds.
OR
2. Set the time of day display to 12:01 PM or 12:01HR (See the User Programming section to
learn how to do this). Then go to the main display screen, press the Up and Down buttons at the
same time for 5 seconds.
Exiting Master Programming Mode:
1. Press the Extra Cycle button once per display until all are viewed. Master Programming Mode is
exited and the normal display screen appears.
2. To exit the Master Programming Mode without saving, press the Diagnostic button.
NOTE: If no keypad activity is made for 5 minutes while in the Master Programming Mode, or if
there is a power failure, no changes will be made, and the unit will go back to the main display
screen.
Resets:
Soft Reset: Press and hold the Up and Down buttons for 25 seconds until 12:00PM (or 12:00HR)
appears. This resets all parameters except for the ow meter totalizer volume.
Master Reset: Hold the Extra Cycle button while powering up the unit. This resets all of the
parameters in the unit. Check and verify the choices selected in Master Programming Mode.

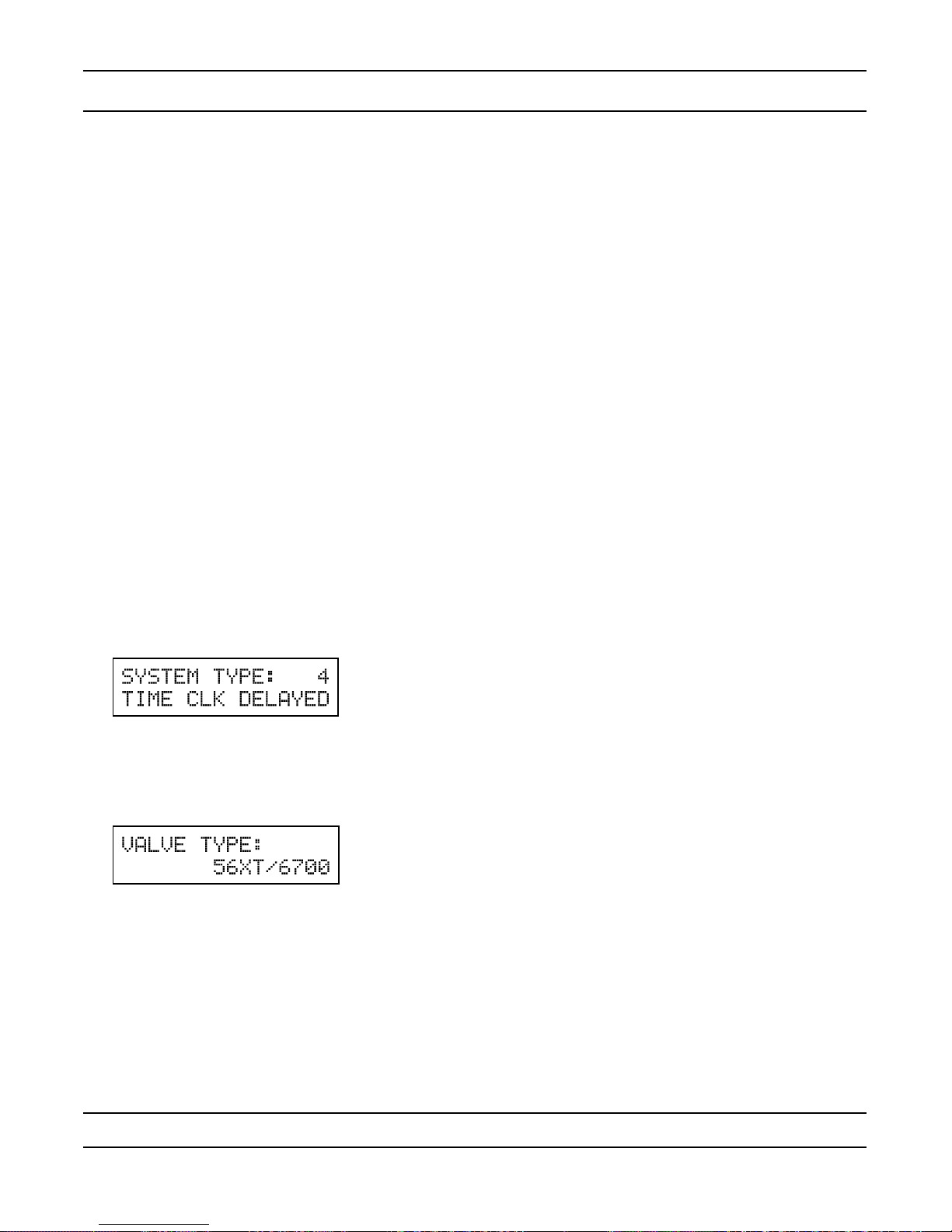

System Type
This program step selects the system type.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Valve Type
This program step selects the valve type.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
1.
2.

Page 13
Master Programming Mode
CAUTION: Before entering Master Programming, please contact your local professional water dealer.

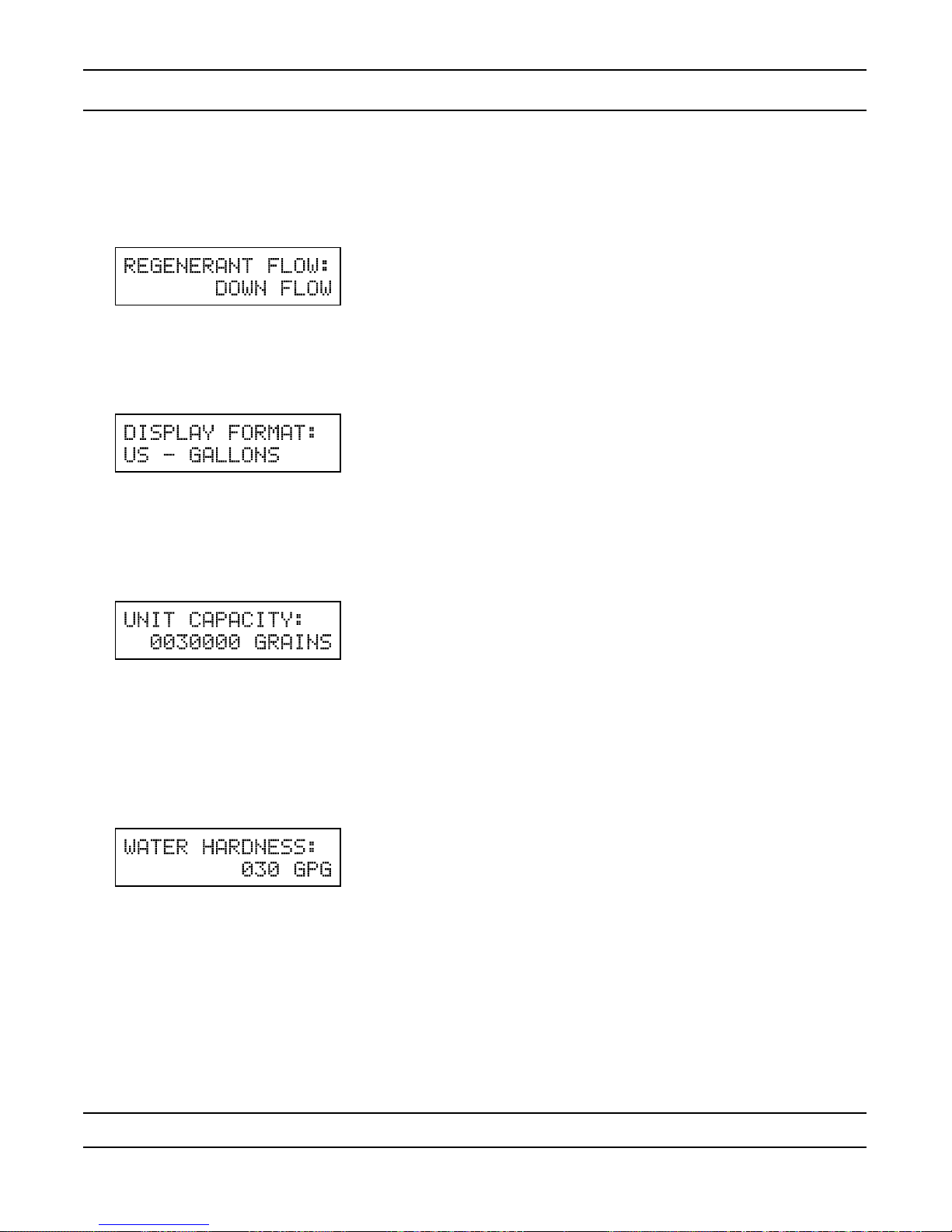

Regenerant Flow
This program step selects how the regenerant ows through the tank (must match cam). The selections
available will vary depending on the previously chosen valve model.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Display Format
This program step selects the display format.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Unit Capacity
This program step selects the timer’s total capacity of hardness that can be removed.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Feed Water (Hardness)
This program step is used to set the feed water hardness. The system will automatically calculate volume
remaining based on the unit capacity, capacity safety factor (reserve systems only), and feed water hardness
entered.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
3.
4.
5.
6.

Page 1
Master Programming Mode
CAUTION: Before entering Master Programming, please contact your local professional water dealer.

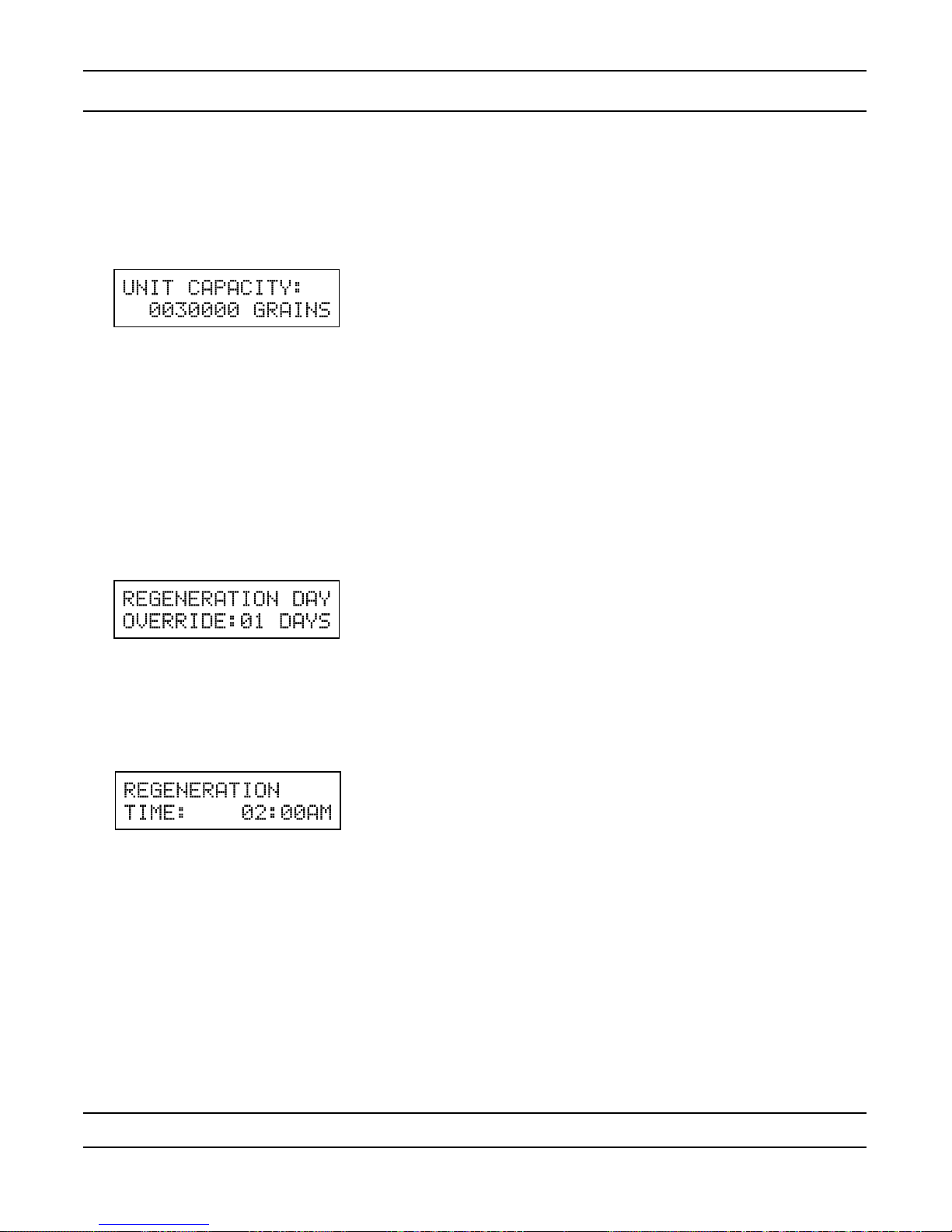

Capacity Safety Factor
This program step is used to set the reserve capacity of the unit. This is a percentage by which the unit’s
capacity is reduced.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Volume Override
This program step is used to set the volume override of the unit.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Regeneration Day Override
This program step sets the maximum amount of time (in days) the unit can be in service without a
regeneration.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Regeneration Time
This program step sets the time of day for the regeneration to occur in delayed systems.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
7.
8.
9.
10.

Page 15
Regeneration Cycle Step Programming
This program step programs the Regeneration Cycle step times 1 through 5. Please refer to the chart below
for regenerant ow default cycle steps and times.
Media Volume
This program step sets the volume of the media in the resin tank.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Salt Dosage
This program step sets the salt dosage in the unit.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Brine Line Flow Control Size
This program step allows the selection of the desired brine line ow control size in the unit (must match
physical brine line ow control).
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Auxiliary Relay Output
The next two displays are part of a series of settings used to program the optional relay output. The rst
setting turns the output on/off during regeneration only. The second turns the output on during service only,
every time a set volume of water used has accumulated.
NOTE: When auxiliary outputs are in the OFF (default) setting, press the Up or Down buttons to set
11.
12.
13.
14.
15.
Master Programming Mode
Regenerant Flow Cycle 1 Time Cycle 2 Time Cycle 3 Time Cycle 4 Time Cycle 5 Time
Down Flow Back Wash 10
Minutes
Brine
& Slow
Rinse
1 Hour Rapid
Rinse
10
Minutes Brine Tank Fill 12 Minutes N/A N/A
Back Wash Filter Back Wash 15
Minutes Draw 0Settling Rinse
10
Minutes Rell 0N/A N/A
UF Back Wash Backwash 10
Minutes
Brine
& Slow
Rinse
1 Hour Rapid
Rinse
10
Minutes Brine Tank Fill 12 Minutes N/A N/A
Down Flow Double
Backwash Back Wash 10
Minutes
Brine
& Slow
Rinse
1 Hour Back
Wash
10
Minutes Rapid Rinse 10 Minutes Brine Tank Fill 12 Minutes
Up Flow Brine Rinse 60 Back
Wash 10 Rapid Rinse
10
Minutes Brine Tank Fill 12 Minutes N/A N/A
Upow Variable Fill Brine Rinse Variable Pause 60
minutes
Brine
Rinse
60
Minutes Back Wash 12 Minutes Rapid Rise 10 Minutes
CAUTION: Before entering Master Programming, please contact your local professional water dealer.

Page 16
the rst setting. Then press the Extra Cycle button to advance to the second setting.
a. Timed Auxiliary Relay Output Window (Start & End Time Setting)
This option setting consists of two displays. The rst display sets the turn-on time of the output, referenced
to the start of the rst regeneration cycle. The second display sets the output turn-off time, referenced again
to the start of the rst regeneration cycle. An OFF setting cancels this setting. All settings are in minutes and
output timing is synchronized with regeneration cycle timing.
Start Time: Any time during regeneration.
End Time: At start time, and anytime during the regeneration cycle.
b. Chemical Pump Auxiliary Relay Output Window
This option setting consists of two displays. The rst display sets the volume of water ow at which the output
turns on. The second display sets the on time (in seconds) of the output.
— Activate output after volume set is reached.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Flow Meter Size
This program step sets the size of the ow meter.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Maximum Flow Rate
This program step sets maximum ow rate of the generic ow meter.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
Pulses per Gallon/Liter
This program step sets the pulses per gallon/liter for generic ow meters.
— Press the Shift button to select the digit you want to modify.
— Press the Up or Down buttons to adjust this value.
— Press the Extra Cycle button.
End of Master Programming Mode
16.
17.
18.
19.
CAUTION: Before entering Master Programming, please contact your local professional water dealer.

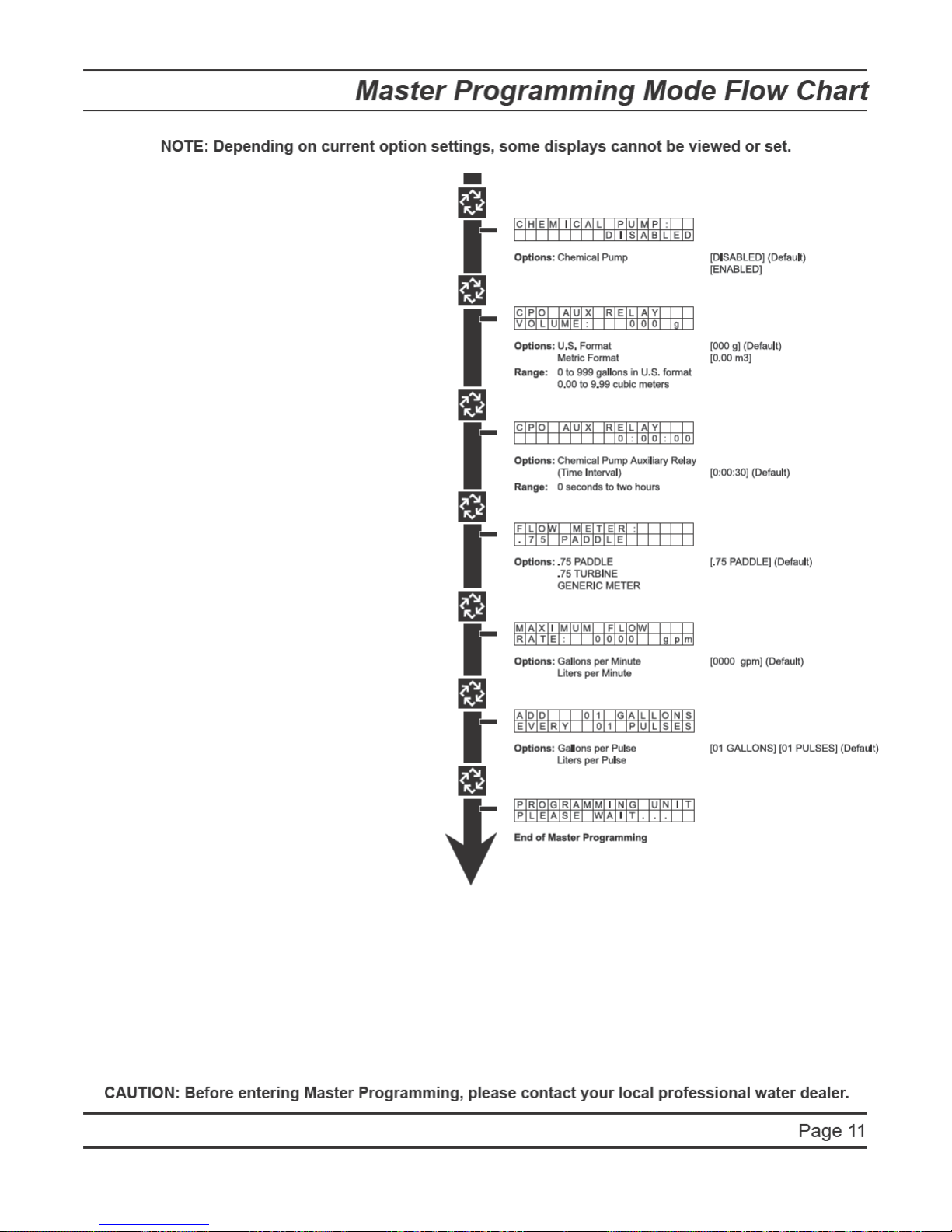

Master Programming Mode

Page 1
Diagnostic Programming Mode
NOTE: Depending on current option settings, some displays cannot be viewed.
Overview Diagnostic Mode
The current Diagnostic Programming Mode screen will display until either the Extra Cycle button is pressed
through for each screen, or the Diagnostic button is pressed. In the event of regeneration occurring while in the
Diagnostic Programming Mode, the regeneration step and time remaining will be displayed. When regeneration
completes, the display will return to the normal time of day display screen.
Entering and Exiting Diagnostic Mode
Press and release the “D” button to enter the Diagnostic Programming Mode. Pressing the Extra Cycle button will
move to the next diagnostic screen. Press the Extra Cycle button once per display until all are viewed. Pressing
the Diagnostic button while in Diagnostic Mode will cause the unit to leave the Diagnostic Mode and return to the
normal time of day display screen.
Current Flow Rate
This program step displays the calculated ow rate for the timer. The below ow rates are the maximum ow
rate the timer will read for each meter.
.75” Paddle: 15 gpm (0.06 m3/m) .75” Turbine: 15 gpm (0.06 m3/m)
— Press the Extra Cycle button.
Peak Flow Rate
This program step displays the peak ow rate since the last regeneration.
— Press the Extra Cycle button.
Totalizer
This program step displays the total volume of treated water that passes through the meter.
— Reset to zero by holding the Up and Down buttons for ve seconds while in the totalizer screen.
— Press the Extra Cycle button.
Hours Between Last Two Regenerations
This program step displays the time between the last two regenerations saved.
— Press the Extra Cycle button.
Hours Since Last Regeneration
This program step displays the hours since the last regeneration.
— Press the Extra Cycle button.
Volume Remaining
This program step displays the volume remaining. The timer will regenerate if the volume remaining is set to
zero. The maximum ranges are the same as the maximum volume calculated on the main screen.
— Press the Extra Cycle button.
Reserve Capacity
This program step displays the reserve capacity, ensuring soft water is available at all times.
— Press the Extra Cycle button.
Previous Day’s Water Usage
This program step displays the previous day’s water usage.
— Press the Extra Cycle button.
Software Version
This program step displays the timer’s software program version number.
— Press the Extra Cycle button to exit.
NOTE: Diagnostic Programming Mode will stop if the system goes into a regeneration.
1.
2.
3.
4.
5.
6.
7.
8.
9.

Page 20
6700 Powerhead Assembly
61501-6700_REVC
