Pepperl+Fuchs 2-D LiDAR R2000 Series Reference guide

2-D LiDAR Sensor
R2000 Measuring
Sensors
Brief Instructions

With regard to the supply of products, the current issue of the following docu-
ment is applicable: The General Terms of Delivery for Products and Services
of the lectrical Industry, published by the Central Association of the lectrical
Industry (Zentralverband lektrotechnik und lektroindustrie (ZV I) e.V.) in its
most recent version as well as the supplementary clause: " xpanded reserva-
tion of proprietorship"
Worldwide
Pepperl+Fuchs Group
Lilienthalstr. 200
68307 Mannheim
Germany
Phone: [phone] - 0
-mail: [email protected]uchs.com
North American eadquarters
Pepperl+Fuchs Inc.
1600 nterprise Parkway
Twinsburg, Ohio 44087
USA
Phone: [phone]
-mail: [email protected]perl-fuchs.com
Asia eadquarters
Pepperl+Fuchs Pte. Ltd.
P+F Building
18 Ayer Rajah Crescent
Singapore 139942
Phone: [phone]
-mail: [e-mail]
https://www.pepperl-fuchs.com

70167983 2023-06
3
2-D LiDAR Sensor
Contents
1 Introduction ..............................................................................4
1.1 Purpose of These Brief Instructions.................................. 4
1.2 Product documentation on the internet ............................ 4
1.3 Intended Use........................................................................ 4
2 Safety ........................................................................................5
2.1 Laser Class 1 ....................................................................... 5
3 Product Description.................................................................6
3.1 Indicators and Operating Elements................................... 6
3.2 Interfaces and Connections ............................................... 6
3.3 Scope of Delivery ................................................................ 8
3.4 Accessories ......................................................................... 8
3.5 Further Information ............................................................. 9
4 Installation ..............................................................................10
4.1 Mounting ............................................................................ 10
4.2 Device Connection ............................................................ 11
5 Commissioning ......................................................................13
5.1 Ethernet Configuration ..................................................... 13
0.1

70167983 2023-06
4
2-D LiDAR Sensor
Introduction
1 Introduction
1.1 Purpose of These Brief Instructions
These brief instructions contains basic instructions for operating the device. How-
ever, the manual takes priority over the brief instructions.
1.2 Product documentation on the internet
You can view all the relevant documentation and additional information on your
product at http://www.pepperl-fuchs.com. Simply enter the product name or
model number in the Product/Key word search box and click Search.
Select your product from the list of search results. Click on the information you
require in the product information list, e.g., Technical documents.
A list of all available documents is displayed.
1.3 Intended Use
The R2000 2-D LiDAR sensor is a 360° measuring instrument with an all-round
display. It is used on automated transport systems or other movable machinery in
intralogistics. It is also used on stationary equipment in the area of factory and
building automation.
The device is only approved for appropriate and intended use.
Ignoring these instructions will void any warranty and absolve the manufacturer
from any liability.
Table 1.1 2-D LiDAR Sensor

70167983 2023-06
5
2-D LiDAR Sensor
Safety
2 Safety
2.1 Laser Class 1
Class 1 Laser Product
This sensor is certified according to laser protection class 1.
Warning!
Class 1 laser light
The laser light can be an irritant, especially in a dark environment. Do not point
lasers at people!
Maintenance and repairs should only be carried out by authorized service person-
nel!
Install the device so that the warning is clearly visible and readable.
Caution: Use of controls, adjustments, or performance of procedures other than
those specified herein may result in harmful laser beam exposure.
Table 2.1 2-D LiDAR Sensor

70167983 2023-06
6
2-D LiDAR Sensor
Product Description
3 Product Description
3.1 Indicators and Operating Elements
Figure 3.1 Indicators and Controls
3.2 Interfaces and Connections
The following connections are found on all devices:
Power Supply
There is a 4-pin M12 plug on the rear of the housing for connecting the power sup-
ply. The following diagram shows the pinout:
Figure 3.2 Power supply connection layout
No. Description Color
1 Operating indicator Green
2 Fault indicator Red
3 "Next" menu button
4 "Return" menu button
5 "Q2" signal indicator Yellow
6 "Q1" signal indicator Yellow
7 Laser beam outlet
8 thernet activity indicator Yellow
9 thernet link indicator Green
Table 3.1 Indicators and operating elements
2
6
1
4
3
5
7
9
8
124 V power supply
2I/Q2
1
3
4
2
Table 3.1 2-D LiDAR Sensor

70167983 2023-06
7
2-D LiDAR Sensor
Product Description
MultiPort
There is an 8-pin M12 plug on the rear of the housing for service purposes.
All pins with "DNC (Do not connect)" must not be connected!
Interface:
There is a 4-pin M12 socket on the rear of the housing for connecting the thernet
interface. The following diagram shows the pinout:
Figure 3.3 thernet connection layout
The connector housing is located on the shield.
3Ground (GND)
4I/Q1
1DNC (Do not connect)
2DNC (Do not connect)
3DNC (Do not connect)
4DNC (Do not connect)
5DNC (Do not connect)
6I/Q2
7I/Q1
8DNC (Do not connect)
1TD+
2RD+
3TD-
4RD-
1
4
6
7
8
53
2
1
3
42

70167983 2023-06
8
2-D LiDAR Sensor
Product Description
3.3 Scope of Delivery
The scope of delivery includes:
•R2000
•Quick start guide
•Protective cover
•3 x socket cap screws, M5 x 10
•3 x washers, size 5
3.4 Accessories
The following products are available as accessories.
Note
Installation Instructions for North America
If a connection is made to the M12 multi-pin connector, the product shall be used
with a UL-listed cable/connector (CYJV) assembly rated minimum 30 VDC,
minimum 1.0 A, in the final installation for power supply.
Name Description
V1SD-G-2M-PUR-
ABG-V45-G
Patch cable, M12 to RJ45, length 2 m
V1SD-G-5M-PUR-
ABG-V45-G
Patch cable, M12 to RJ45, length 5 m
V1SD-G-ABG-PG9 Single-ended male cordset, M12 D-coded, 4-pin for bus
cable
V1-G-2M-PUR Single-ended female cordset, straight, M12, 4-pin, PUR
cable
V1-W-2M-PUR Single-ended female cordset, angled, M12, 4-pin, PUR
cable
MH-R2000 Mounting bracket, quick-release and adjustment device
Note
Installation note for North America
If a connection is made with the M12 multi-pin connector, in the final installation of
the power supply the product must be used with a UL-listed cable/connector
assembly (CYJV) that is designed for at least 30 VDC and at least 1.0 A.
Name Description
V1-G-BK-2M-PUR-U Single-ended female cordset, straight, M12, 4-pin, PUR
cable, length 2 m, "UL recognized"
V1-G-BK-5M-PUR-U Single-ended female cordset, straight, M12, 4-pin, PUR
cable, length 5 m, "UL recognized"
V1-G-BK-10M-PUR-U Single-ended female cordset, straight, M12, 4-pin, PUR
cable, length 10 m, "UL recognized"

70167983 2023-06
9
2-D LiDAR Sensor
Product Description
To parameterize the R2000 conveniently via a software interface, you will need the
corresponding device type manager (DTM) in addition to the FDT framework pro-
gram (PACTware 4.x or above). PACTware and the DTM are available at www.pep-
perl-fuchs.com.
3.5 Further Information
Further product information and technical data are available at www.pepperl-
fuchs.com.

70167983 2023-06
10
2-D LiDAR Sensor
Installation
4 Installation
4.1 Mounting
Mounting the 2-D LiDAR Sensor
Only mount the sensor in locations that fulfill the following safety-relevant require-
ments: no aggressive environments, no direct sunlight, no excessive fluctuations
in temperature and humidity.
1. In addition, note the following when selecting a mounting location:
•The sensor must not be obstructed visually, e.g., behind a cover.
•The sensor should be installed so it is protected from rain.
2. Mount the device on the underside using the supplied socket head screws with
washers.
Caution!
Aggressive environments may damage the sensor lens or cause it to malfunction
Using the device in aggressive environments may damage the sensor lens and
lead to impaired sensor function.
Never use the device in aggressive environments.
Caution!
Condensation may cause property damage and malfunction
Strong fluctuations in ambient temperature and humidity may damage the sensor
lens and lead to impaired sensor function.
Avoid excessive fluctuations in temperature and humidity to prevent condensa-
tion.
Caution!
xcessive sunlight may result in property damage or malfunction
Continuous exposure to direct sunlight may damage the sensor lens and lead to
impaired sensor function. Taking measurements in direct sunlight may lead to
erroneous measurement results.
Protect the device from continuous exposure to direct sunlight.
Do not point the device's sensor at the sun.
Caution!
The wrong screw-in depth may result in property damage
If you screw the screws deeper than 8 mm into the base, the device will
be mechanically destroyed.
When mounting, make sure that the screw-in depth on the base is
5 mm ... 8 mm.
Table 4.1 2-D LiDAR Sensor

70167983 2023-06
11
2-D LiDAR Sensor
Installation

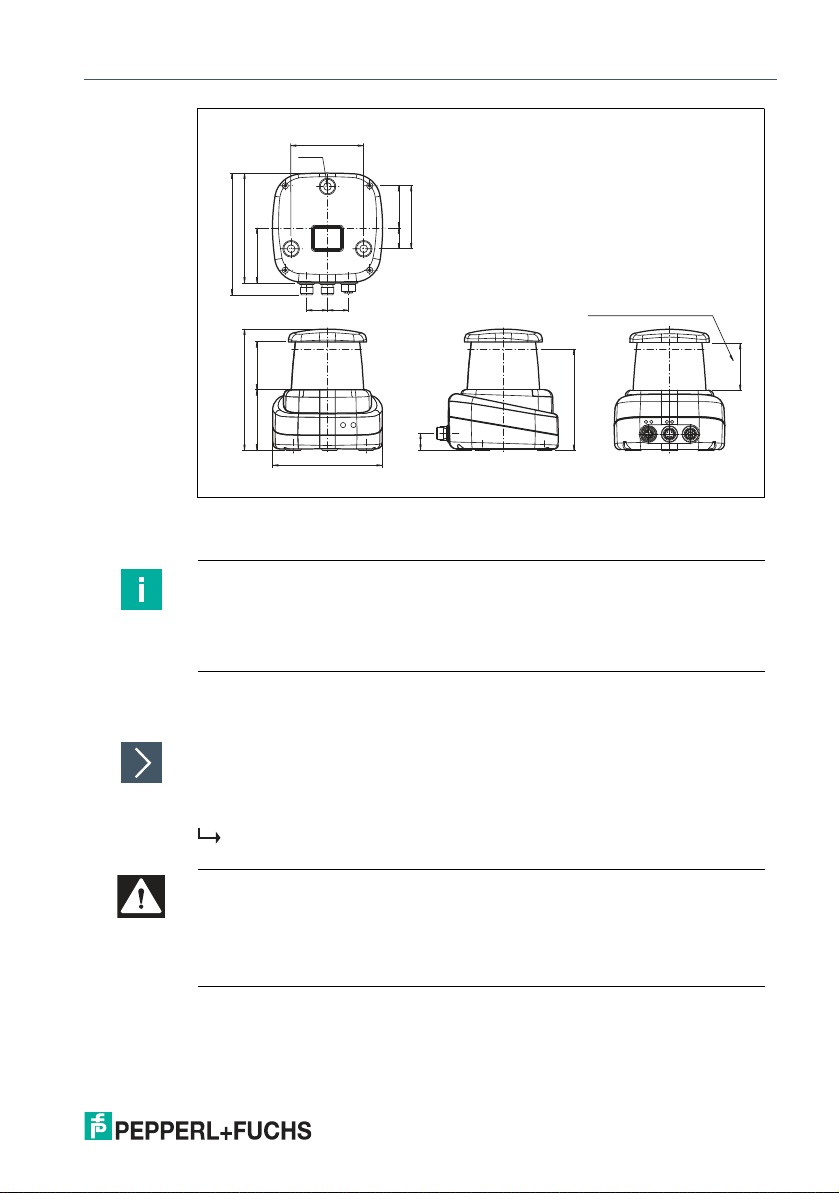

Figure 4.1 Dimensional drawing of R2000 2-D LiDAR sensor
3. Check that the sensor is securely seated.
4.2 Device Connection
Electrical connection in accordance with IP65
1. Put protective covers on unused M12 connectors.
The IP65 degree of protection is achieved. The protective covers can be
ordered as accessories; see chapter 3.4.
The device conforms to protection class III. This means the power supplied to the
device must be a safety extra-low protective voltage (P LV).
70
(40)20
60
20
53
106
117.5
4658
116.5
106
16
97.1
3 x M5
20
45
Emitting and receiving area
Complies with 21 CFR
1040.10 and 1040.11 except
for deviations pursuant to
LaserNoti ceNo. 50,
dated June 24, 2007
CLASS 1
LASER PRODUCT
IEC6 0825-1: 2007 certified.
Note
Keep the emitting/receiving area clear
When mounting, make sure the emitting area and the receiving area are kept
clear. Covering the emitting/receiving area reduces the performance of the 2-D
LiDAR sensor.
Danger!
Danger to life from electric shock
Absent or insufficient insulation can result in electric shock.
Only connect supplies that provide protection against electric shock (e. g. S LV
or P LV).

70167983 2023-06
12
2-D LiDAR Sensor
Installation
The power supply of the device uses a direct current of 10 V DC ... 30 V DC. Due
to the integrated motor, a higher startup current is required than with normal oper-
ation. We recommend the use of power supplies with 1 A (for 24 V) or with 2 A (for
12 V).
The maximum cable length is 30 m.
The pin assignment is as follows:
Figure 4.2 R2000 pin assignment
PowerMultiportEthernet
4
1
2
3
TD+
TD-
RD-
Shield
4
1
2
3
24 V DC
0 V DC
RD+ I/Q2
I/Q1
4
1
2
3
DNC
DNC
DNC
DNC
7
5
6I/Q2
DNC
I/Q1
8DNC
DNC = Do not connect
1
3
4
2
1
3
42
1
4
6
7
8
53
2

70167983 2023-06
13
2-D LiDAR Sensor
Commissioning
5 Commissioning
The sensor has been tested and calibrated before delivery. It can be put into oper-
ation immediately.
Commissioning the LiDAR sensor
1. Connect the device to the appropriate power supply.
The initialization phase lasts approx. 15 seconds. This phase is shown by cir-
cles moving down the all-round display.
2. After the initialization phase, the Pepperl+Fuchs logo will appear on the all-round
display.
The device is now ready for operation.
5.1 Ethernet Configuration
The sensor has 3 different addressing options that can be used as required. The
setting is configured using the menu interface on the sensor itself.
Auto IP
In the Auto IP setting, the sensor independently assigns a "link-local" IP address
in the 169.254.0.0/16 range. During this process, the system ensures that the
selected address is not already being used by another device.
Danger!
Danger to life from electric shock
Absent or insufficient insulation can result in electric shock.
Only connect supplies that provide protection against electric shock
(e. g. S LV or P LV).
Tip
Factoring in a warm-up phase
To achieve the best measurement accuracy, allow the device to warm up for at
least 30 minutes after switching on.
Note
Point-to-point connection
The sensor does not meet the requirement of the modern cybersecurity directives
and therefore is an unsafe component in the network structure.
We recommend establishing an isolated point-to-point connection between
sensor and the higher-level control.
Table 5.1 2-D LiDAR Sensor

70167983 2023-06
14
2-D LiDAR Sensor
Commissioning
Configuring a Connection via Auto IP
The sensor is set to Auto IP by default. The Auto IP setting is the best way to con-
nect directly to a PC.
1. If the network configuration of the sensor no longer matches the factory setting:
1. Under Ethernet Setup > Address Mode, set the sensor to "Auto IP."
2. Restart the sensor to apply the configuration.
3. To connect the sensor to the PC, set the PC to Dynamic Host Configuration
Protocol (DHCP).
4. Adjust the properties of the PC network card accordingly. To do this, select the
TCP/IP protocol in the network card properties.
5. In the Internet protocol properties, select Obtain an IP address automatically.
6. Click OK to confirm.
After approx. 30 seconds, Microsoft® Windows® assigns an auto IP for the
PC.
D CP
Connecting via DHCP requires the availability of a DHCP server, such as a router,
on the local network; see Auto IP, PC network card settings.
If this requirement is fulfilled, you can set the sensor to DHCP.

70167983 2023-06
15
2-D LiDAR Sensor
Commissioning
Configuring a Connection via D CP
1. Under Ethernet Setup > Address Mode, set the sensor to "DHCP."
2. Restart the sensor to apply the configuration.
Manual IP
You can also address the sensor via an IP address set manually. You can set the
PC network card and the sensor to an IP address of your choice.
Configuring a Connection via a Manual IP Address
1. Configure the sensor:
1. Under Ethernet Setup > Address Mode, set the sensor to "Manual."
2. nter the required address under Ethernet Setup > IP Address.
3. Restart the sensor to apply the configuration.
4. To connect the sensor to the PC, enter the required IP address in the menu for the
PC network card. Select the TCP/IP protocol in the PC network card properties.
5. Select "Use the following IP address" and enter the required IP address and
subnet mask.
Note
The IP address of the sensor is set to 10.0.10.9 and the subnet mask to 255.0.0.0
by default.

70167983 2023-06
16
2-D LiDAR Sensor
Commissioning
6. Click OK to confirm.
Note
Device restart
You must restart the sensor after changing the thernet configuration.

70167983 2023-06
17
2-D LiDAR Sensor
Commissioning

Pepperl+Fuchs Quality
Download our latest policy here:
www.pepperl-fuchs.com/quality
www.pepperl-fuchs.com
© Pepperl+Fuchs · Subject to modifications
70167983 / DOCT-6122C
