VDM18-100/32/105/122
VDM18-300/32/105/122

Copyright (Deutsch)
Die Wiedergabe bzw. der Nachdruck dieses Dokuments, sowie die entsprechende Speicherung in Datenbanken
und Abrufsystemen bzw. die Veröffentlichung, in jeglicher Form, auch auszugsweise, oder die Nachahmung der
Abbildungen, Zeichnungen und Gestaltung ist nur auf Grundlage einer vorherigen, in schriftlicher Form vorliegenden
Genehmigung seitens Pepperl+Fuchs GmbH zulässig.
Für Druckfehler und Irrtümer, die bei der Erstellung der Montageanleitung unterlaufen sind, ist jede Haftung ausge-
schlossen. Liefermöglichkeiten und technische Änderungen vorbehalten.
Erstveröffentlichung September 2005.
Copyright (English)
No part of this document may be reproduced, published or stored in information retrieval systems or data bases in
any manner whatsoever, nor may illustrations, drawings and the layout be copied without prior written permission
from Pepperl+Fuchs GmbH.
We accept no responsibility for printing errors and mistakes which occurred in drafting this manual. Subject to delive-
ry and technical alterations.
First publication September 2005
Copyright (Français)
Toute reproduction de ce document, ainsi que son enregistrement dans une base ou système de données ou sa
publication, sous quelque forme que ce soit, même par extraits, ainsi que la contrefaçon des dessins et de la mise en
page ne sont pas permises sans l’autorisation explicite et écrite de Pepperl+Fuchs GmbH.
Nous déclinons toute responsabilité concernant les fautes éventuelles d’impression et autres erreurs qui
auraient pu intervenir lors du montage de cette brochure. Sous réserve de modifications techniques et de disponibili-
té pour livraison.
Première publication Septembre 2005
Inhalt / Content / Contenu
Deutsch ...................................................................................................................3
English...................................................................................................................10
Français.................................................................................................................17

Date of issue: 12/20/2007 Part No. 197473
Mounting and
operating instructions
10
1 Signs and Symbols
2 Safety information
Warning
This symbol signals passages in the manual which must be observed at all times. Non-compliance can
cause injuries or material damage.
Warning Laser
This symbol appears in front of warning passages concerning the danger of laser beams.
Information
This symbol signals passages with useful information.
It is essential that this manual is read, thoroughly understood and observed before setting the
VDM18 sensor into operation.
The VDM18 sensor may only be connected, mounted and adjusted by qualified personnel.
Interventions and alterations to the device are not permissible!
The VDM18 sensor is not a safety component as described by EU machine directives.
The VDM18 sensor complies with laser protection class 2 according to DIN EN 60825/1, status
2001. The technical requirements comply with EN 60947-5-2, 2000 edition.
Never look into the path of the laser. Do not suppress the reflex to close the eyelids.
Gazing into the beam path for longer periods can damage the retina of the eye.
When mounting the sensor, ensure if possible that the beam path is sealed off at the end.
The laser must not be directed at people (head height).
When aligning VDM18, ensure that there are no reflections on reflective surfaces.
Should the safety label on the VDM18 sensor be partly covered due to its installation position,
other safety labels are to be positioned on visible parts of the sensor. When applying the new
safety label, make sure that you cannot look into the laser beam whilst reading it.

Date of issue: 12/20/2007 Part No. 197473
Mounting and
operating instructions
11
3 Appropriate use
The VDM18 sensor is not authorised for use in protecting human safety on machines and during
technical applications.
The VDM18 is an optical sensor and measures distances without contact. (triangulationsprinciple)
4 Mounting

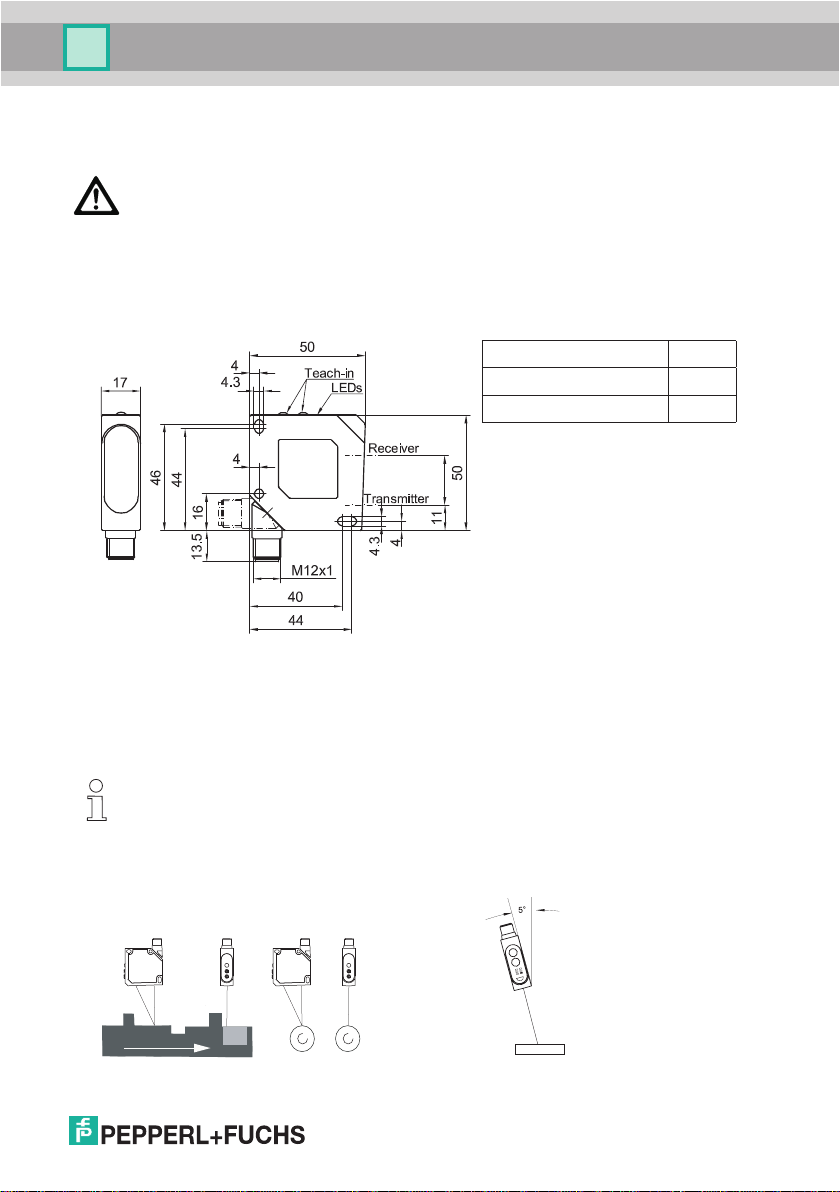

4.1 Dimensional drawing Type X(mm)
VDM18-100/32/105/122 18,4
VDM18-300/32/105/122 21,5
Illustr. 1
X
Sensor alignment
Position VDM18 so that the distance from the object is within the operating range of the sensor. Screw the VDM18
sensor to the mounting bracket, e.g. type OMH-VDM18 (not included in delivery) or a suitable device. Only use the
holes provided in the housing (see dimensioned drawing) for this purpose.
If steps, moving or striped objects are to be detected, the front panel of the sensor should be mounted at a right
angle to the direction of movement or stripes (Illustr. 2 + 3).
With very reflective objects, the sensor must be mounted at an angle of approx. 5° (Illustr. 4).
To optimise measurements, the VDM18 sensor is to be given constructive protection from vibra-
tions.
The VDM18 sensor is now mounted.

Z Z
 
Illustr. 2 Linear movement Illustr. 3 Rotating movement Illustr. 4 Reflective object

Date of issue: 12/20/2007 Part No. 197473
Mounting and
operating instructions
12
5 Electrical installation
Turn the sensor connector plug according to the installation position (Illustr. 1) so that the connection cable can be
freely connected without being bent.
Insert the socket of the connection cable into the VDM18 connector and screw tight.
For example, secure the connection cable from sliding with a cable tie.
Connect VDM18 as shown in figure 5.
Connection Use
1 + UB = supply voltage
2 QA = analogue output (4...20 mA)
3 - UB = supply voltage
4 Q= switching output
5 IN = control input
Laser-Disable*
Button lock
Free running
when HIGH (+UB)
when LOW (-UB)
when open
* Laser-Disable:
A measurement is only made if the input is connected to –UB (buttons are locked) or is open.
The laser is switched off when +UB is applied to the input. The switching output and the analogue output retain their
last status.
Switch on the operating voltage (note the permissible operating voltage).
The sensor is ready to operate after a delay (≤300 ms). LED BA (green) must light.
For maximum precision, please allow for a heating period (approx. 5 minutes).
Illustr. 5 Connection diagram
Analogue
3
2
1
4
5
+UB
0 V
IN
Q

Date of issue: 12/20/2007 Part No. 197473
Mounting and
operating instructions
13
Illustr. 6
6 Operation and Setting
6.1 Possible Settings and Operating Modes
The VDM18 is ready to operate after applying the operating voltage.
However, the following settings can be made if necessary:
· Set the switching point or switching window
· Scale the analogue output
· Set the operating mode (Speed Mode / Averaging Mode )
· Set the switching type (light/dark)
· Reset the sensor to the factory state
· Laser off and measured value hold (via electrical connection)
· Lock buttons „S“ and „T“ (via electrical connection)
6.2 Factory State:
· Switching output:
Switching output is active when the object is in the operating range and reliably detected.
Switching type = light on
· Analogue output (4...20 mA): 4 mA = end of operating range, 20 mA = beginning of operating range
· Operating mode = speed mode (shortest response time)
· Operation = free running (normal mode)

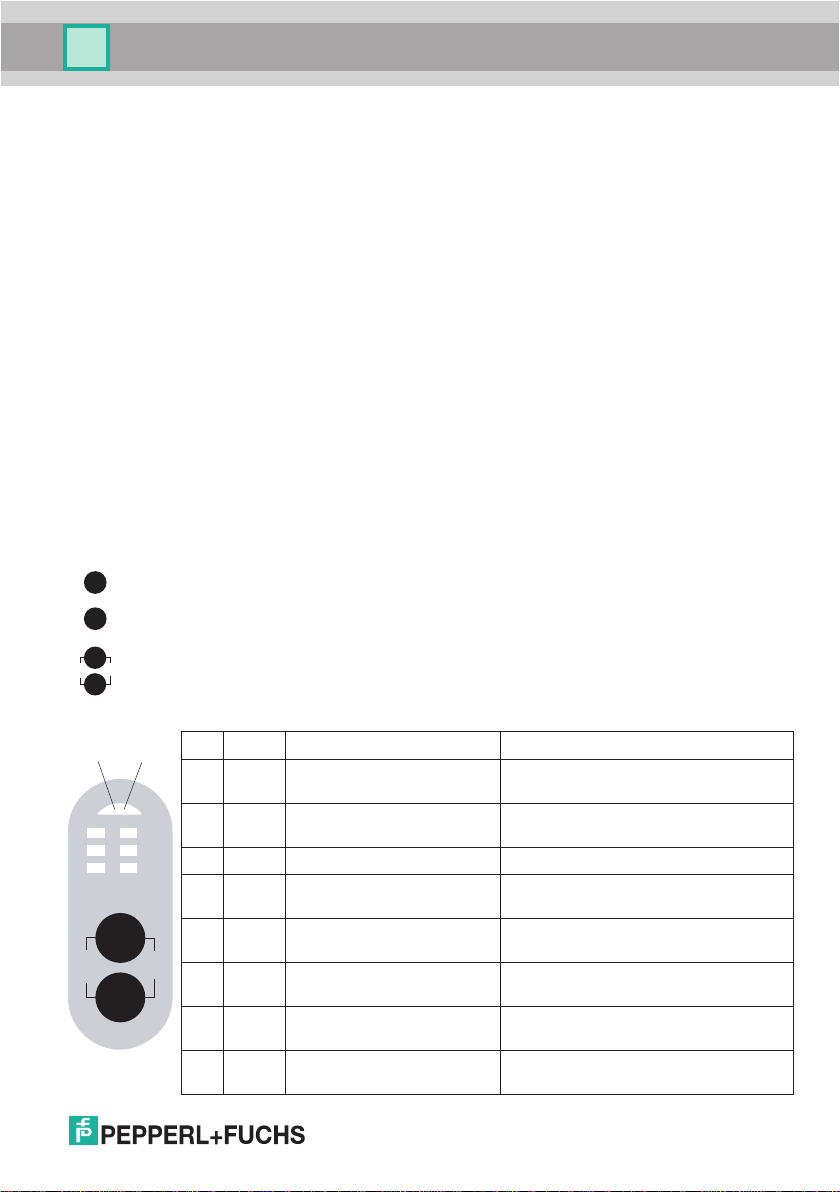

6.3 Indicators and Setting Elements
The VDM18 is set with the buttons S and T.
S
Set button: Change or confirm setting or teach in switching point.
T
Toggle
button: Select setting, jumps one setting forward.
S
T
Conf
Exit
Conf
and
Exit
Pressing both buttons simultaneously causes:
3 s Conf => activate set mode
1x press Exit => data are saved and the setting mode exited
The LEDs indicate the selected settings.
LED Colour Use Description
BA Green Operating indicator On: ready for operation (Run mode)
Flashing: Set mode is active
ZA Red Status indicator
(only active in the Set mode) Lights: selected setting is active
Q Yellow Indicates status of output Q Lights: switching output active
QA Yellow Indicates status of output QA Lights: object is within the set 0% and
100 % range
Av Green Signals operating mode
(speed/averaging) Lights: operation set with averaging
OK Green Stability indicator (good target) Lights: object safely detected and in the
operating range
Nc Green Signals switching type light/dark
switching for output Q Lights: switching type dark on set
FS Green Factory Setting
(only active in Set mode) Lights: factory setting selected
S
T
Q
AV
NC
QA
OK
FS
tixE
fnoC
BA ZA

Date of issue: 12/20/2007 Part No. 197473
Mounting and
operating instructions
14
No. LED Description Factory setting
1Q
AV
NC
QA
OK
FS

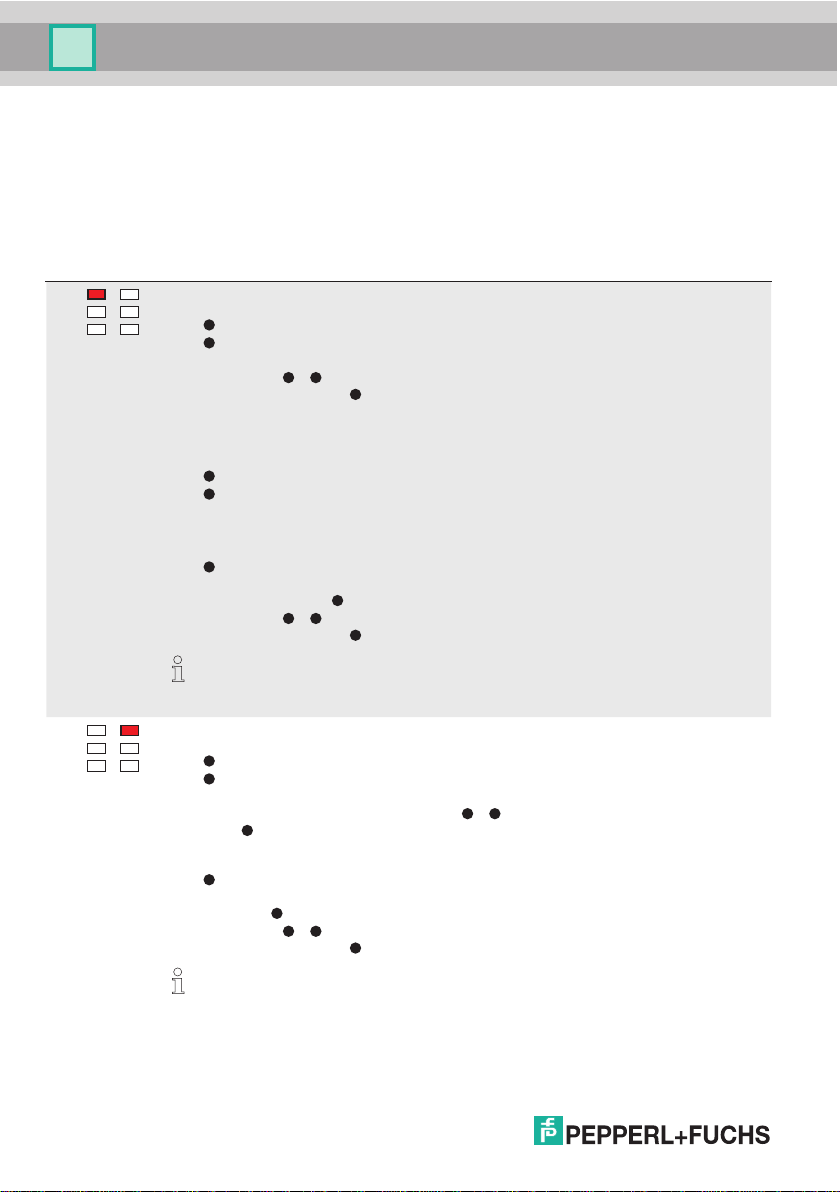

Set switching point for switching output Q:
Position the object at the desired switching point. The „OK“ LED must light.
Press
T
until the „Q“ LED lights.
Press
S
once. If the object is detectable and in the operating range, the „ZA“
LED (red) flashes with 1 Hz.
Exit the Set menu (
T
+
S
) or
go to the next setting with the
T
button.
Set the switching window for switching output Q:
Position the object at the desired first switching window limit. The „OK“ LED
must light.
Press
T
until the „Q“ LED lights.
Press
S
once. If the object is detectable and in the operating range, the „ZA“
LED (red) flashes with 1 Hz.
Position the object at the desired second switching window limit. The „OK“
LED must light.
Press
S
once. The distance is saved as the second switching window limit if
the object is detectable and in the operating range. The „ZA“ LED lights for
confirmation for as long as
S
is pressed.
Exit the Set menu (
T
+
S
) or
go to the next setting with the
T
button.
If the object was not moved after teaching the first switching window limit,
a minimum switching window (1% of the operating range) is laid around
the teach point.
Switching window
over the whole
operating range,
i.e. switching
output is active
when the object
is in the operating
range and reliably
detected.
2Q
AV
NC
QA
OK
FS
Scaling of the analogue output QA
Position the object at the desired 0% point (4mA). The „OK“ LED must light.
Press
T
until the „QA“ LED lights.
Press
S
once. If the object is detectable and in the operating range, the di-
stance is saved as the 0% point (4mA). The „ZA“ LED (red) flashes with 1 Hz.
If no 100% point is to be set, exit the Set menu (
T
+
S
) or go to the next
setting with
T
.
If a 100% point is to be set, place the object at the desired distance.
The „OK“ LED must light.
Press
S
once. If the object is detectable and in the operating range, the di-
stance is saved as the 100% point (20mA). The „ZA“ LED lights for confirmati-
on for as long as
S
is pressed.
Exit the Set menu (
T
+
S
) or
go to the next setting with the
T
button.
If the distance between the 0% point is less than 5% of the operating
range, the analogue output is automatically scaled to 5% of the max.
operating range. The middle of the range is placed between the set 0%
and 100% points.
Maximum
operating range
6.4 Make settings
6.4.1 Activating the Set Mode (conf):
Press the buttons „S“ and „T“ simultaneously for 3 s (or longer) until the LED BA (green) flashes
(LED flashes when time lock open and Set mode activated).
6.4.2 Setting the Sensor

Date of issue: 12/20/2007 Part No. 197473
Mounting and
operating instructions
15
No. LED Description Factory setting
3Q
AV
NC
QA
OK
FS

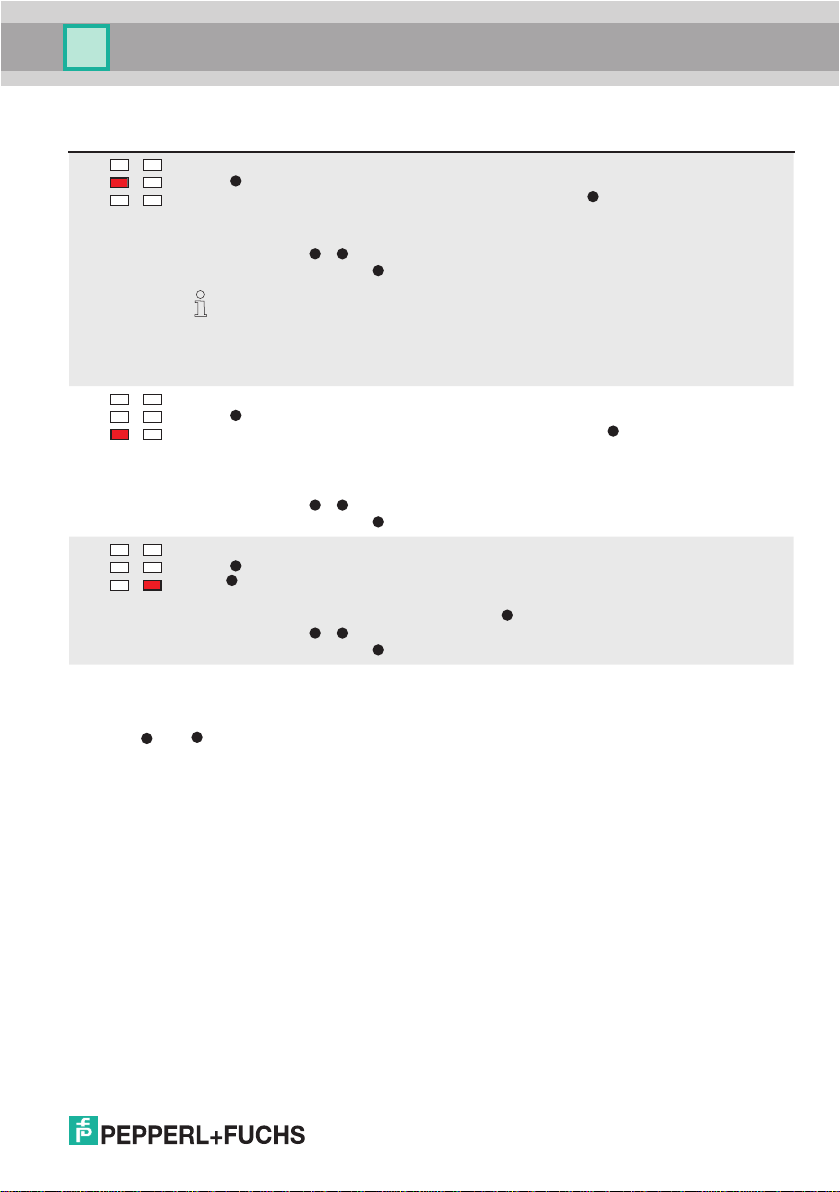

Switch operating mode (speed mode / averaging mode)
Press
T
until the „Av“ LED lights up.
The operating mode (speed / averaging) is changed by pressing
S
repeatedly.
Look at the „ZA“ LED (red). „ZA“ lights = averaging mode is active.
„ZA“ does not light = speed mode is active.
Exit the Set menu (
T
+
S
) or
go to the next setting with the
T
button.
Averaging Mode: for detecting rough surfaces. The arithmetic (floating)
average of 100 measured values is taken. This smoothes the measuring
result.
Speed Mode: for shortest response time and max. switching frequency
without averaging.
speed mode
4Q
AV
NC
QA
OK
FS
Light/dark switching
Press
T
until the „Nc“ LED lights.
The switching function (light/dark switching) is changed by pressing
S
repea-
tedly.
Look at the „ZA“ LED (red):„ZA“ lights = switching type dark on is active.
„ZA“ does not light = switching type light on is active.
Exit the Set menu (
T
+
S
) or
go to the next setting with the
T
button..
light on
5Q
AV
NC
QA
OK
FS
Activate Factory Setting
Press
T
until the „FS“ LED lights.
Press
S
once.
The sensor is reset to the factory state.
The „ZA“ LED lights for confirmation for as long as
S
is pressed.
Exit the Set mode (
T
+
S
) or
go to the next setting with the
T
button.
6.4.3 Deactivating the Set Mode (Exit):
First press
T
, then
S
. All settings are then saved. The sensor is in the Run mode after releasing the buttons. The
operating indicator „BA“ (green) lights steadily

Date of issue: 12/20/2007 Part No. 197473
Mounting and
operating instructions
16
Optical data (typ.)
Operating range VDM18-100 30 ... 100 mm
Measuring range VDM18-100 70 mm
Operating range VDM18-300 80 ... 300 mm
Measuring range VDM18-300 220 mm
Resolution*1< 0.1% of measuring range
Light used Pulsed laser light, red 650 nm, MTBF>50,000h *2
Size of light spot VDM18-100 1.5 mm x 3 mm at 30 mm / 1.5 mm x 3.25 mm at 100 mm
Size of light spot VDM18-300 1.5 mm x 3.5 mm at 80 mm / 2 mm x 4.5 mm at 300 mm
Ambient light Constant light 5000 lux as per EN 60947-5-2
Laser protection class 2 (EN 60825/1)
Electrical data (typ.),
Operating voltage UB18-30 V DC *3
Power consumption (no load) ≤40 mA at 24 V DC
Signal output Q (PNP, light/dark ON switchable)
Output current Q ≤100 mA
Switching frequency Q ≤1 kHz (speed mode) / ≤10 Hz (averaging mode)
Response time Q, QA0.4 ms (speed mode) / 40 ms (averaging mode)
Maximum capacitive load Q < 100 nF
Analogue output QA4-20 mA*4
Control input IN Laser-Disable*
Button lock
Free running
when HIGH (+UB)
when LOW (-UB)
when open
Linearity < 0.25% of measuring range
Temperature drift < 0.02% / °C =
Protective circuits Reverse battery protection, short-circuit protection
VDE protection class *5
Stand-by delay ≤300 ms
Mechanical data
Housing material ABS, shock-resistant
Front screen PMMA
Protection IP 67*6
Ambient temperature range -10 to +60 °C
Storage temperature range -20 to +80 °C
Connection M12 connector, 5-pin
Weight approx. 43 g
*1 smallest, measurable difference
*2 at ambient temperature : +40 °C
*3 limit values
*4 recommended burden < 500 Ohm (apparent ohmic resistance )
*5 rating 50V DC
*6 with attached connector

Subject to modifications
Copyright PEPPERL+FUCHS • Printed in Germany
www.pepperl-fuchs.com
Worldwide Headquarters
Pepperl+Fuchs GmbH
68307 Mannheim · Germany
Tel. [phone]
E-mail: [email protected]
USA Headquarters
Pepperl+Fuchs Inc.
Twinsburg, Ohio 44087 · USA
Tel. [phone]
E-mail: [email protected]
Asia Pacific Headquarters
Pepperl+Fuchs Pte Ltd.
Company Registration No. 199003130E
Singapore 139942
Tel. [phone]
E-mail: [email protected]
FACTORY AUTOMATION –
SENSING YOUR NEEDS
DOCT-1118A 197473
12/2007
