Pfeiffer Vacuum Tele TC cable 110 User manual

Translation of the original instructions
Operating Instructions
EN
PT 0309 BEN/B (1104)
Tele TC cable 110

2
Table of contents
Table of contents
1 About this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Validity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Proper use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 Improper use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.1 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.1 Preparatory work. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.2 Connection to the turbopump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.3 Connection to the electronic drive unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.1 Installing an air cooling unit to the electronic drive unit . . . . . . . . . . . . . . . 6
6 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3
About this manual
1 About this manual
1.1 Validity
This installation manual describes the functioning of the designated product and
provides the most important information for the safe installation and use of the
unit. The description follows applicable EU guidelines. Up-to-date operating in-
structions can also be downloaded from www.pfeiffer-vacuum.net.
2Safety
2.1 Safety precautions
• Do not loosen any plug connection during operations.
• Keep leads and cables well away from hot surfaces (> 70 °C).
• The unit has been accredited with protection class IP 54. When installing into
ambient conditions, which afford other protection classes, the necessary mea-
sures must be taken.
2.2 Proper use
The Tele TC cable 110 serves to the connection between the turbopump HiPace and
the respective electronic drive unit TC 110 for separate operation.
2.3 Improper use
Improper use will cause all claims for liability and warranties to be forfeited. Im-
proper use is deemed to be all use for purposes deviating from those mentioned
above, especially:
• Connection to pumps or units which are not suitable for this purpose according
to their operating instructions.
• Connection to units which have exposed voltage-carrying parts.
NOTE
CE conformity
The manufacturer's declaration of conformity becomes invalid if the operator modifies
the original product or installs additional components.
Following installation into a plant and before commissioning, the operator must
check the entire system for compliance with the valid EU directives and reassess it
accordingly.
Installation location weather protected (indoors)
Protection category IP 54
Protection class III
Temperature • +5 °C to +30 °C, max. drive power = 150 W
• +5 °C to +35 °C, max. drive power = 125 W
• +5 °C to +35 °C, max. drive power = 150 W (only with air
cooling unit for the electronic drive unit)
Relative humidity 5-85 %, non dewing
Atmospheric pressure 75 kPa - 106 kPa
Installation altitude 2000 m max.
Degree of pollution 2
Overvoltage category II

4
Product description
3 Product description
To correctly identify the product when communicating with Pfeiffer Vacuum, al-
ways have the information from the rating plate available.
3.1 Scope of delivery
• Tele TC cable 110, length and cable departure according to the ordering
• Allen head screws M3x25 (4x)
• Hexagon screws M4x6 (2x)
• Seal ring
• Operating instructions

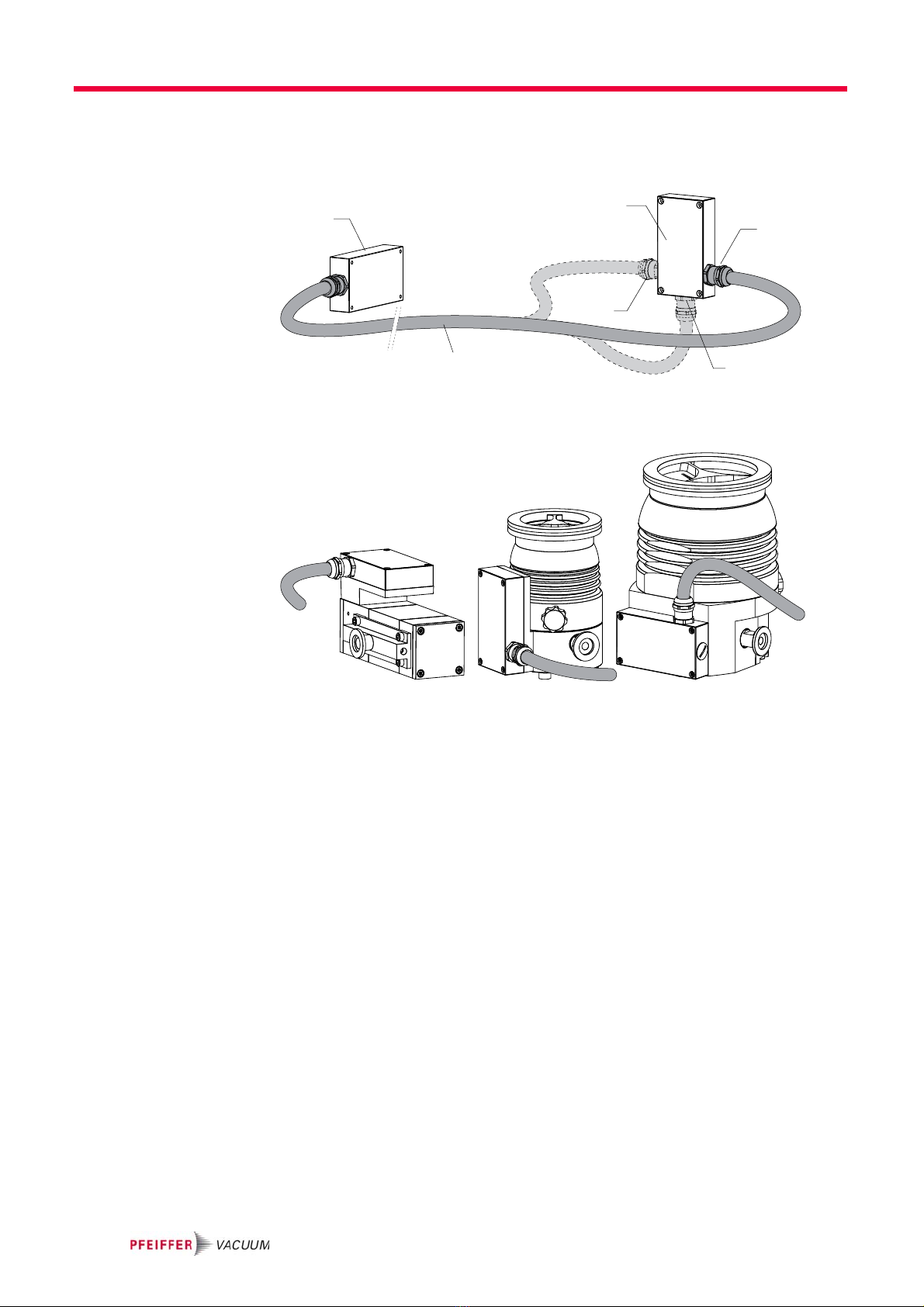

Fig. 1: Overview of Tele TC cable 110, connectivity
A-C Configuration cable departure (C=standard)
901 Connecting cable (various lengths on request)
902 Adapter, TC side
903 Adapter, pump side
Fig. 2: Tele TC cable 110 connection with standard cable departure on HiPace pumps
902
901
903
C
A
B

5
Installation
4 Installation
4.1 Preparatory work
Turn off the vacuum pump, vent to atmospheric pressure and allow to cool, if
necessary.
Remove the vacuum pump from the system, if necessary.
Dismount the electronic drive unit of the turbopump according to the operating
instructions of the pump.
Only separate the pump and the electronic drive unit from each other after dis-
connecting the supply voltage and the complete standstill of the pump.
Do not exercise any mechanical load on the electronic drive unit.
Preserve the fixing screws of the electronic drive unit.
4.2 Connection to the turbopump
Insert seal ring 916 (enclosure) into the groove on the inner side of the pump-
sided adapter.
Attach and fix the pump-sided adapter of the Tele TC cable to the connection of
the pump lower part.
4.3 Connection to the electronic drive unit
CAUTION
Damages to the pump and drive
Even after the mains power is switched off, the subsequently running pump delivers
electric power to the electronic drive unit. There is a danger of electric body contact by
premature separating the pump from the electronic drive unit.
Never separate the electronic drive unit from the pump when the mains power is
connected or the rotor is running.

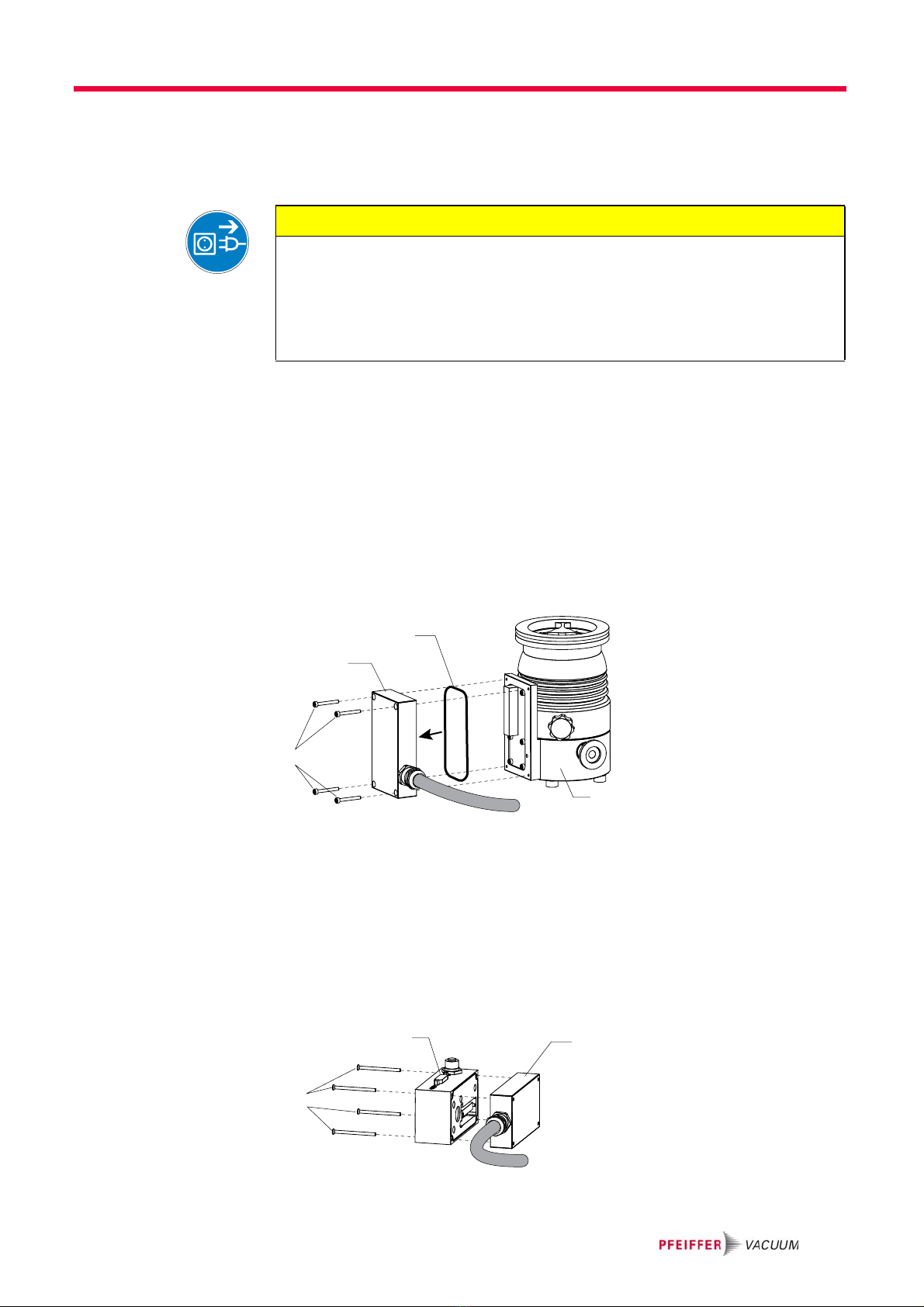

Fig. 3: Tele TC connection to the turbopump
215 Pump lower part
903 Adapter, pump side
915 Allen head screw (enclosure)
916 Seal ring (enclosure)
215
903
915
916
Fig. 4: Tele TC connection to the electronic drive unit
9 Electronic drive unit TC 326 Allen head screw (TC) 902 Adapter, TC side
326
9902

6
Accessories
Fix the electronic drive unit to the TC-sided adapter of the Tele TC cable using
the allen head screws 326.
Use free boreholes (M4) of the TC-sided adapter for fixation on external con-
structions (refer to "Dimensions").
5 Accessories
When using a Tele TC cable, the connectivity of accessory is nearly the same as for
the standard configuration of a turbopump and its electronic drive unit. Exceptions
are:
Install connecting cables between the accessories on the pump side and the
electronic drive unit.
– Order connecting cables in similar lengths of the Tele TC cable separately.
5.1 Installing an air cooling unit to the electronic drive unit
The electronic drive unit must be cooled additionally, when the respective ambient
temperatures are attained.
Fix the air cooling unit to the lateral boreholes of the TC-sided adapter, using the
hexagon screws 918 (enclosure).
Plug in and fix the accessory’s control lead to a free connection port on the con-
necting cable or adapter of the electronic drive unit.
Make the settings and control via the interfaces of the electronic drive unit.
NOTE
Installation and operation of accessories
Pfeiffer Vacuum pumps can be equipped with a series of adapted accessories. The in-
stallation, operation and maintenance of connected devices are described in detail in
the operating instructions of the individual components.
For information on order numbers of components, see "Accessories".
Use original accessory parts only.
Designation Order number
Air cooling for HiPace 80 with TC 110 PM Z01 300
Fig. 5: Mounting an air cooling unit to the electronic drive unit
902 Adapter, TC side 918 Hexagon screw 950 Air cooling unit
918
902
950
NOTE
Air cooling units on turbopump and electronic drive unit
Where the respective ambient temperatures are attained, Pfeiffer Vacuum recom-
mends the additional use of an air cooling unit for the turbopump with connection to the
TC.
Connect the air cooling unit using connecting cables or adapters of the accessories
programme.

7
Dimensions
6 Dimensions

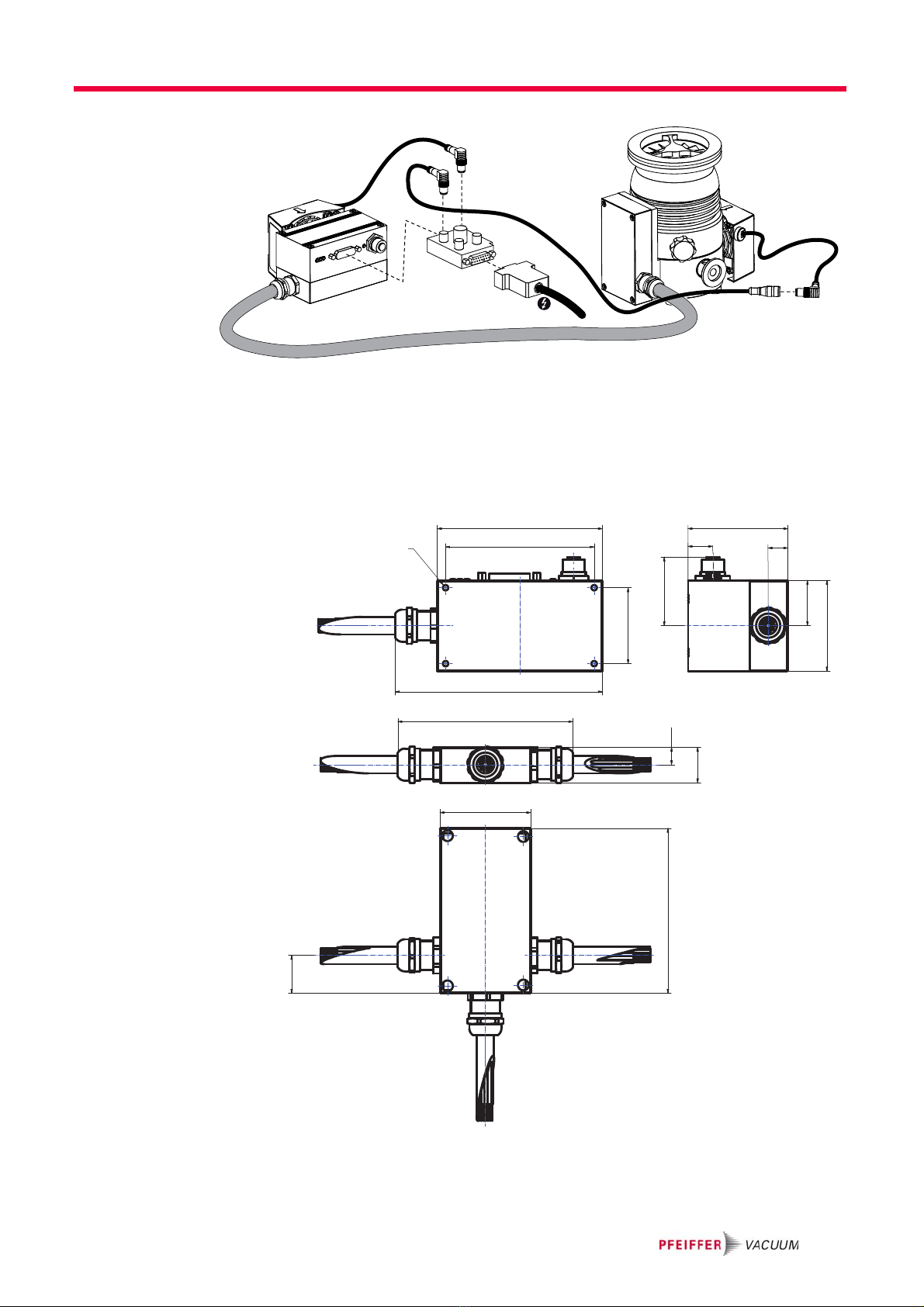

Fig. 6: Connection example of Pfeiffer Vacuum accessories to a turbopump with Tele TC cable
110
Fig. 7: Tele TC cable 110
106
55
A
B
C
12
90
M4 - 8/9deep
100
125.5
46
55
27.5
41.6
60.5
14.96
100
23
21.5
10.5
