ColorGraze Powercore
10º x 60º (narrow) beam angle
Linear, color-changing LED surface light for wall washing and grazing
ColorGraze™ Powercore is a linear fixture
optimized for surface grazing, wall-wash lighting,
and efficient signage illumination. Superior beam
quality offers uniform beam saturation.A compact,
low-profile design combined with flexible mounting
options allows for discreet placement within wide-
ranging architectural details. Intelligent, controllable
fixtures are available in standard full-color
configurations. Build-to-order configurations with
additional beam angles and custom channels of
white or color LEDs are also available to support
special applications.
• Tailorlightoutputtospecicapplications—
Available in three lengths, with standard
10º x 60º or 30º x 60º beam angle options.
1 ft (305 mm) light addressing segments within
eachxtureallownecontrolofcolor-changing
effects and pre-programmed light shows.
• High-performanceilluminationandbeam
quality—Superiorbeamqualityforstriation-
free saturation as close as 6 in (152 mm) from
fixture placement. Delivering up to 271 lumens
of color-changing light projection per foot,
ColorGraze Powercore accommodates end-to-
end or incremental installation without visible
light scalloping between fixtures.
• IntegratedPowercoretechnology—Efciently
and accurately processes power directly from
line voltage, eliminating the need for low-
voltage,externalpowersupplies.ThePhilips
Data Enabler merges line voltage with control
data over a single standard cable, simplifying
installation and lowering total system cost
.
• Versatileinstallationoptions—Constanttorque
locking hinges offer simple and consistent
positioncontrolfromvariousangles.The
low-prolealuminumhousinga
ccommodates
placement within most architectural niches.
• RenownedLEDquality—LEDsprovide50,000
hours of use at 70% lumen maintenance.
Optibin®technology delivers the truest
possible color quality and consistency.Active
thermal management ensures consistent li fetime
operation in high-temperature environments.
• Digitalcontrolcompatibility—ColorGraze
Powercore works with the complete range
of Philips Ethernet and DMX controllers,
including Light System Manager, iPlayer
®
3,
andVideoSystemManagerPro,aswellaswith
third-party DMX512 controllers.
• Customcongurationsforspecialapplications
—Standardcongurationsusethreechannels
ofLEDs(Red,Green,andBlue)forafullrange
of16.7millionRGBcolors.Youcancreate
customcongurationsbyexchangingtheLEDs
in any channel.Available LEDs include eight
color temperatures ranging from warm 2700 K
tocool6500K,RoyalBlue,Blue,Green,Amber,
andRed.Additionalbeamangles(9°x9°,10°
x30°,and90°x60°)arealsoavailable.Seethe
ColorGraze Powercore Ordering Information
specicationsheetforcompletedetails.
For detailed product information, please refer to
ColorGraze Powercore Product Guide at
www.colorkinetics.com/ls/rgb/colorgraze/
2.1 in
(53 mm)
24 in (609 mm) / 36 in (914 mm) / 48 in (1219 mm)
17.4 in (442 mm) / 29.4 in (747 mm) / 41.4 in (1052 mm)
2.8 in
(71 mm)
2.7 in
(69 mm)
3.3 in
(84 mm)
2.36 in
(60 mm)
.38 in
(9.5 mm)
1.38 in
(35 mm)
.88 in
(22 mm)
.38 in
(9.5 mm)
.813 in
(21 mm)
1.75 in
(44 mm)
2.25 in
(57 mm) 1.94 in
(49 mm) 1.4 in
(39 mm)
.28 in (7.2 mm) x4
Substrate
3.16 in
(80 mm)
1.38 in
(35 mm)
.88 in
(22 mm)
.38 in
(9.5 mm) 2.36 in
(60 mm)
.22 in (5.5 mm) x6
Fixture

Copyright © 2008 – 2009 Philips Solid-State Lighting Solutions, Inc. All rights reserved.
Chromacore, Chromasic, CK, the CK logo, Color Kinetics, the Color Kinetics logo, ColorBlast,
ColorBlaze, ColorBurst, ColorGraze, ColorPlay, ColorReach, DIMand, EssentialWhite, eW, iColor,
iColor Cove, IntelliWhite, iW, iPlayer, Light Without Limits, Optibin, and Powercore are either
registered trademarks or trademarks of Philips Solid-State Lighting Solutions, Inc. in the United
States and/or other countries. All other brand or product names are trademarks or registered
trademarks of their respective owners. Due to continuous improvements and innovations,
specifications may change without notice.
DAS-000010-01R0507-09

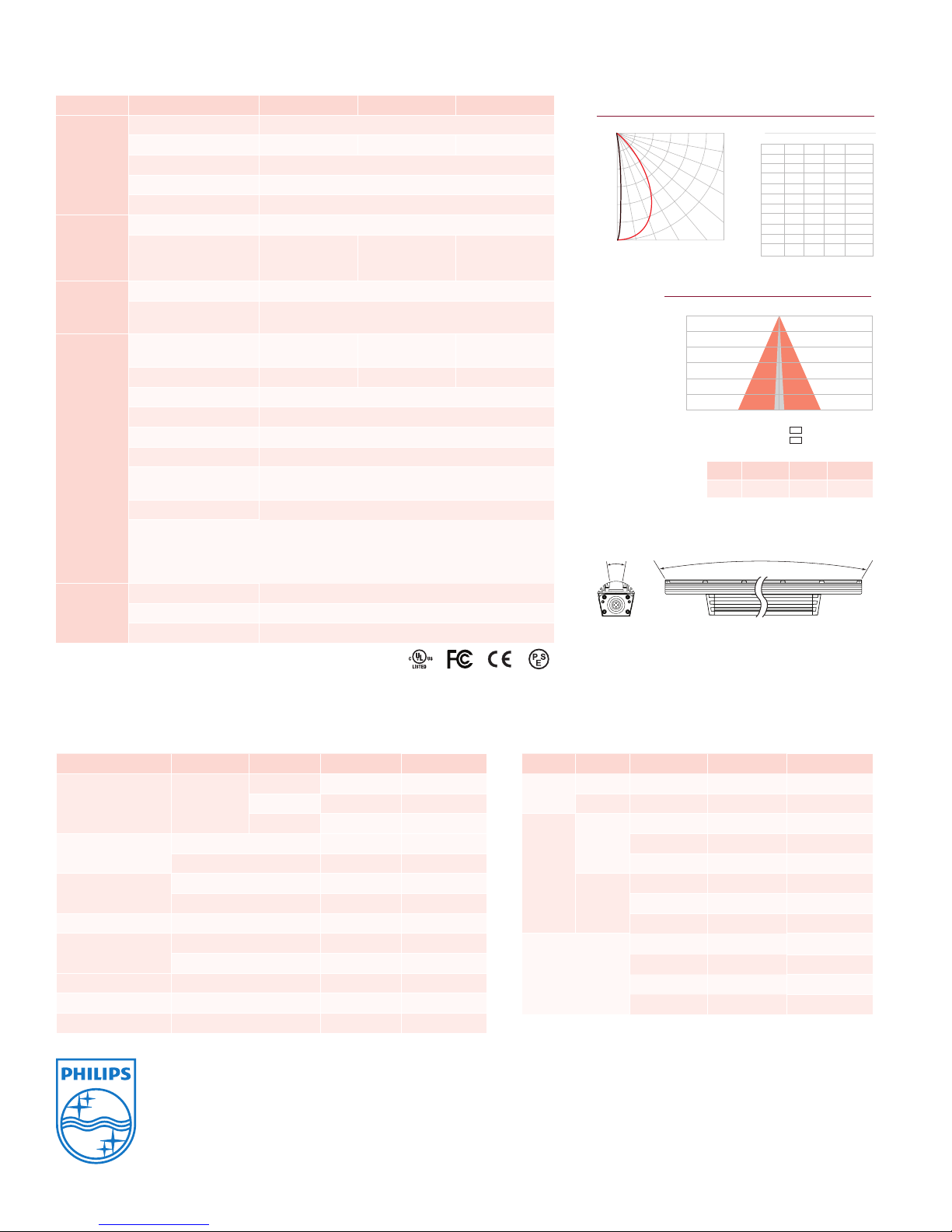

Specications
Due to continuous improvements and innovations, specifications may change without notice.
Photometrics
ColorGraze Powercore 2ft, 10º x 60º (narrow)
‡ L70 = 70% maintenance of lumen output. (When light output drops below 70% of initial output.)
*Thesefigures,providedasaguideline,areaccurateforthisconfigurationonly.Changingtheconfiguration
can affect the fixture run lengths.
†LumenmeasurementcomplieswithIESLM-79-08.
Item Specication 2 ft (610 mm) 3ft(914mm) 4ft(1219mm)
Output
Beam Angle 10°x60°
Lumens† 543 815 1086
ColorRange 16.7millionadditiveRGBcolors;continuouslyvariableintensity
Mixing Distance 6 in (152 mm) to uniform beam saturation
Lumen Maintenance‡ 50,000 hours L70@50°C 80,000hoursL70 @25°C
Electrical
InputVoltage 100–240VAC,auto-switching,50/60Hz
Power Consumption
35 W maximum
at full output,
steady state
52.5 W maximum
at full output,
steady state
70 W maximum
at full output,
steady state
Control
Interface Data Enabler (DMX or Ethernet)
Control System Philips full range of controllers, including Light System Manager
and iPlayer 3, or third-party DMX controllers
Physical
Dimensions
(Height x Width x Depth)
2.7x24x2.8in
(69x610x71mm)
2.7x36x2.8in
(69x914x71mm)
2.7x48x2.8in
(69x1219x71mm)
Weight 4.9lb (2.2 kg) 8.1lb (3.6 kg) 10.8lb (4.9kg)
Housing Extruded anodized aluminum
Lens Clearpolycarbonatewithholographiclmdiffuser
Fixture Connectors Integral male / female waterproof connectors
Mounting Multi-positional, constant torque, locking hinges
Temperature -40° – 122°F (-40° – 50°C)Operating
-4° – 122°F (-20°– 50°C)Startup
Humidity 0–95%,non-condensing
FixtureRunLengths*
40@110VAC
43@120VAC
55@220VAC
55@240VAC
Conguration:
2 ft (610 mm) xtures installed end-to-end,
20 A circuit, standard 50 ft (15.2 m)
Leader Cable
Certication
and Safety
Certication UL / cUL, FCC Class A, CE, PSE
LED Class Class 2 LED product
Environment Dry / Damp / Wet Location, IP66
10° 60°
Cd: 0
294
588
882
1176
1470
1764
VA : 0º 10º 20º 30º 40º
90º
80º
70º
60º
50º
�- 0º H �- 90º H
Candela Table
022.5 44 6 7.5 90
0
5
15
25
35
45
55
65
75
85
90
1759 1759 1759 1759 1759
834 899 1116 1503 1748
115 128 197 645 1636
51 59 85 205 1345
30 34 50 95 853
14 17 31 60 337
5 7 17 37 89
2 3 8 18 32
1 1 2 7 11
1 1 1 1 1
0 0 0 0 0
Polar Candela Distribution
Center Beam fc Beam Width
4 ft
8 ft
12 ft
16 ft
20 ft
24 ft
110 fc
27 fc
12 fc
7 fc
4 fc
3 fc
8 in
1.4 ft
2 ft
2.7 ft
3.4 ft
4.1 ft
5.5 ft
11 ft
16.5 ft
22 ft
27.5 ft
33 ft
��V e rt. Spread: 9.7º
��Horiz. Spread: 69.0º
Illuminance at Distance
LED Lumens Watts Efficacy
RGB 543 35 15.5
42ft(12.8m)
1 fc maximum distance
For lux multiply fc by 10.7
Philips Color Kinetics
3 Burlington Woods Drive
Burlington, Massachusetts 01803 USA
Tel [phone]
Tel [phone]
Fax [phone]
www.colorkinetics.com
For detailed product information, please refer to
ColorGraze Powercore Product Guide at
www.colorkinetics.com/ls/rgb/colorgraze/
Fixtures, Data Enablers, and Controllers
Use Item Number when ordering in North America.
Item Type Size Item Number Philips 12NC
ColorGraze
Powercore 10°x60°
2 ft 123-000030-00 910503700308
3 ft 123-000030-01 910503700309
4ft 123-000030-02 910503700310
Data Enabler DMX 106-000003-04 910403326801
Ethernet 106-000003-05 910503700064
VideoSystemManager
Pro
Ethernet,DVIInterface 103-000022-00 910503700325
Ethernet, Composite Interface 103-000022-01 910503700455
Light System Manager Ethernet 103-000015-00 910503700221
iPlayer 3 DMX, N.America Power Cord 103-000019-00 910403327101
DMX, Europe Power Cord 103-000019-01 910503700392
ColorDial DMX 103-000014-00 910403326901
Synchronizer DMX 103-000001-00 —
Multi Synchronizer DMX 103-000002-00 —
Item Type Size Item Number Philips 12NC
Leader
Cable
UL / cUL 50 ft (15.2 m) 108-000042-00 108-000042-00
CE / PSE 50 ft (15.2 m) 108-000042-01 910503700323
Jumper
Cable
UL / cUL
End-to-End 108-000039-00 910503700314
1 ft (305 mm) 108-000039-01 910503700315
5 ft (1.5 m) 108-000039-02 910503700316
CE / PSE
End-to-End 108-000040-00 910503700317
1 ft (305 mm) 108-000040-01 910503700318
5 ft (1.5 m) 108-000040-02 910503700319
Glare
Shield
1 ft (305 mm) 120-000081-00 910503700745
2 ft (610 mm) 120-000081-01 910503700746
3ft(914mm) 120-000081-02 910503700747
4ft(1.2m) 120-000081-03 910503700748
Accessories
