Philips iPlayer 3 User manual

iPlayer 3
Author, congure, and control dynamic LED light shows for DMX
lighting networks

iPlayer 3 Product Guide2
iPlayer 3
Author, congure, and control dynamic LED light shows for DMX
lighting networks
Design, Store, and
Play Light Shows
iPlayer 3 factory preset
li ght shows get you
started.
Enhance your s hows
using ColorPlay 3 visual
effects and timeline
editing features.
Set up fixture groups
to enable simultaneous
playback of multiple
effects at the same time.
Link together a sequence
of shows within a single
ColorPlay 3 project to
create a sophisticated
presentation.
• Easy to use — With factory preset shows,
custom show-authoring capabilities, an intuitive
LCD interface, removable SD card storage,
and onboard light addressing features, iPlayer 3
enables you to spend more time on the creative
aspects of lighting design and less time on setup.
• Packaged with ColorPlay 3 light show authoring
software — ColorPlay 3 gives you the exibility
to create and manage light shows using fully
customizable effects, multi-track editing, timeline
layering, and transition styles.
• Designed for use with the optional Controller
Keypad — Controller Keypad is a wall-mounted
user interface providing instant pushbutton
playback of up to eight light shows.
• Supports the optional AuxBox expansion device
— AuxBox automatically triggers up to eight
iPlayer 3 light shows using any remote triggering
device with a dry-contact closure. Via the
AuxBox, you can trigger light shows by motion
sensors, 3rd party control or sensor systems, and
more.
• Control two DMX universes — iPlayer 3 has two
DMX output ports, each controlling a universe of
512 DMX channels.
• Automate show playback — Set alarms to
automatically trigger show playback based on
a specic date, day of the week, weekdays,
weekends, or an astronomical event, such as
sunrise or sunset.
iPlayer 3 controller is a compact yet powerful show storage and playback device capable of delivering light
shows to installations with up to 340 unique light addresses. Packaged with ColorPlay 3 light show authoring
software, iPlayer 3 is designed to add new levels of sophistication and flexibility to your lighting installations
while eliminating the need for expensive lighting boards and technical programming expertise.

iPlayer 3 Product Guide 3
ColorPlay 3 Light Show Authoring Software
What’s in a ColorPlay 3 Light Show
A light show is a set of digital instructions orchestrating how and when your
installation produces visual effect. Whether your light show is as simple as one
fixture displaying a single color, or as complex as dozens of fixtures each with a
unique effect or layers of effects, the goals are the same: to create mood, interest,
and impact.

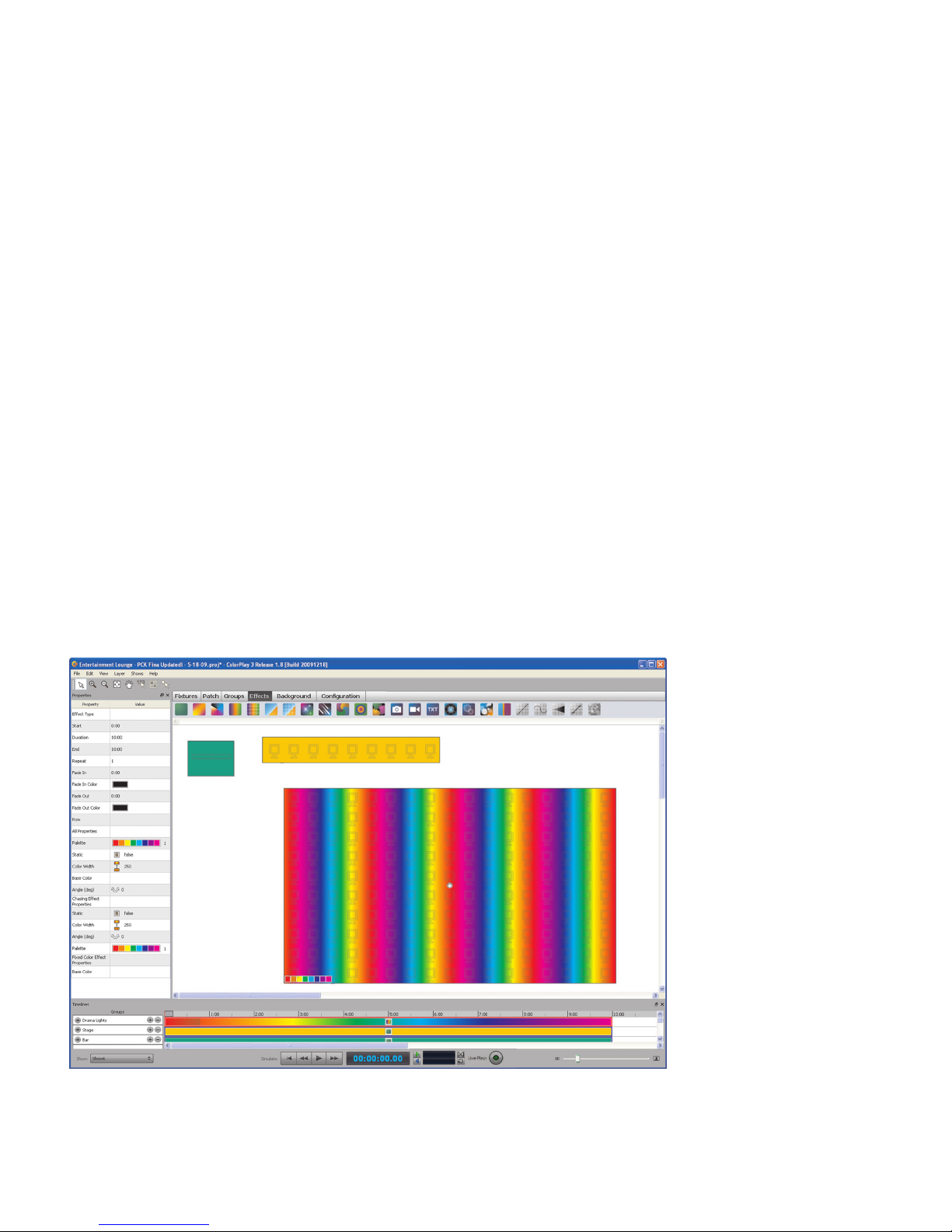

ColorPlay 3 provides 24 customizable effects, including the following:
ColorPlay 3 offers multiple techniques for editing the appearance and behavior of an
effect — you can adjust basic size and shape settings, create unique color palettes,
specify transitions, and more. ColorPlay 3 provides you with the flexibility to design
light shows based on your creative vision.

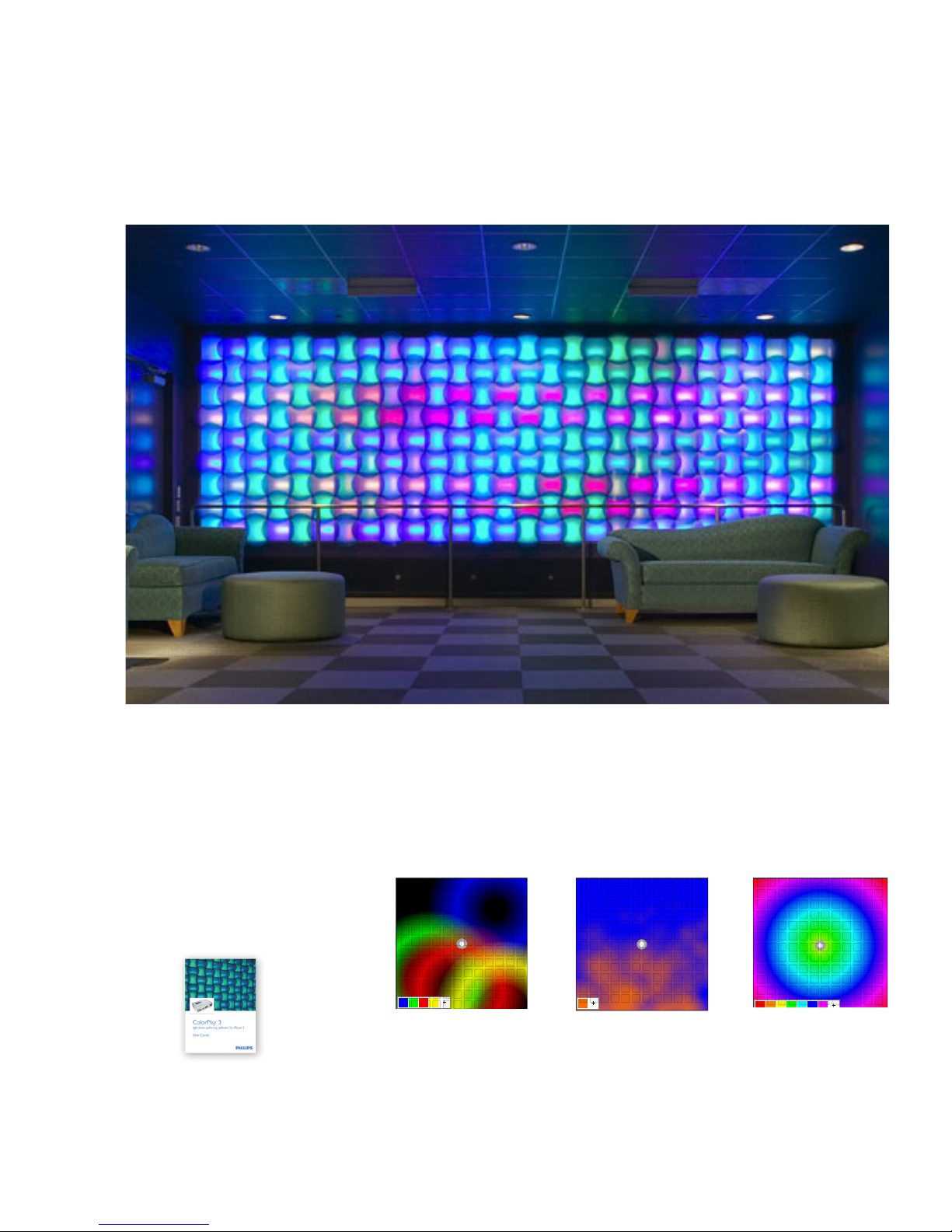

Smith Campus Center, Pomona College
How better to reinvigorate a dark and uninviting space than with dynamic color-changing light. Philips LED lighting proved just that
as part of a major renovation of Pomona College’s Smith Campus Center, intended to be the social hub for students.
Ripple Particle Burst
EFor complete instructions on how to design
unique light shows, refer to the ColorPlay 3 User
Guide, available at www.philipscolorkinetics.com/
ls/controllers/iPlayer3
Photography: Benny Chan fotoworks

iPlayer 3 Product Guide4

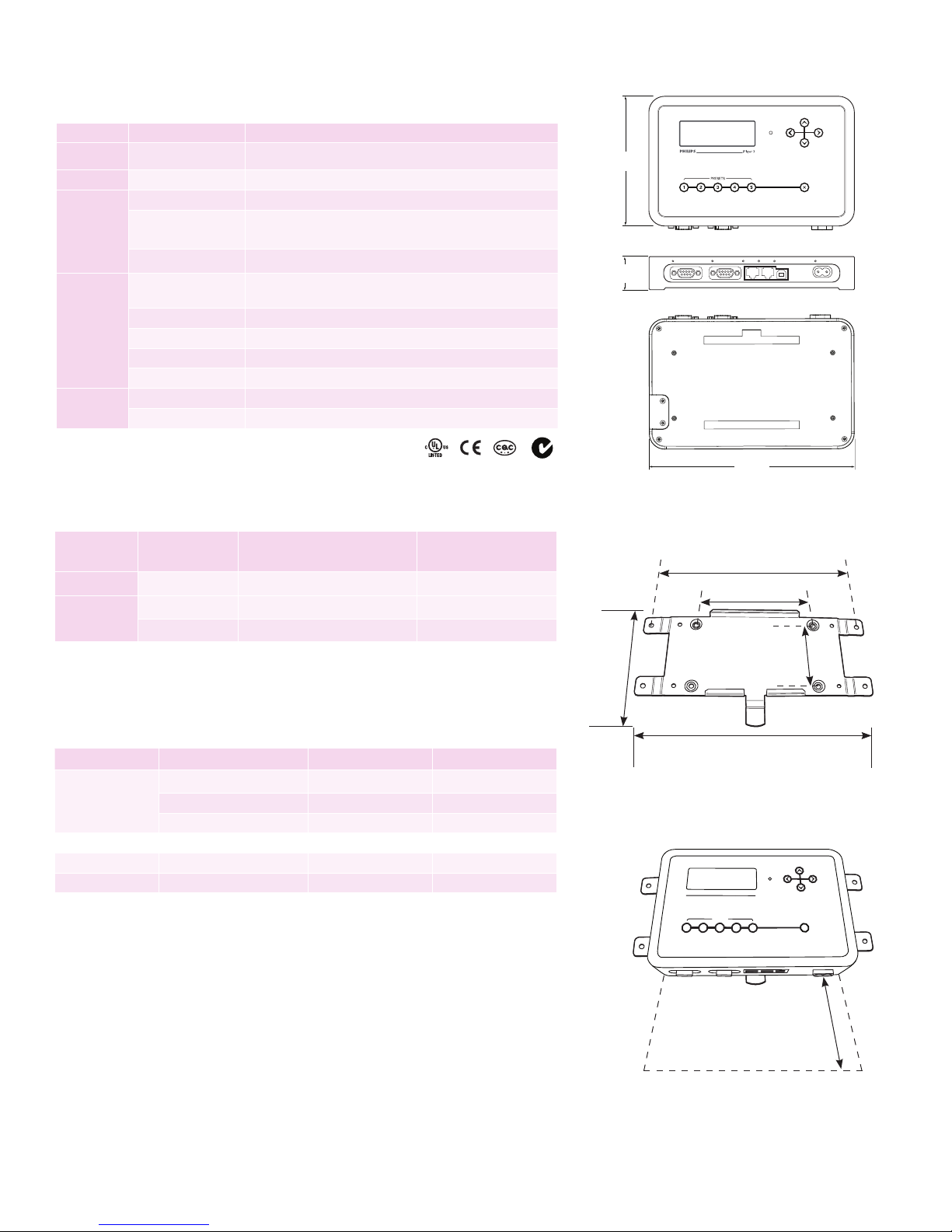

Specications
Due to continuous improvements and innovations, specifications may change without notice.
Software Requirements
iPlayer 3 and Accessories
PRESETS
123
4
x
5
iPLAYER3
6.0 in
(152 mm)
Cable Clearance
4.7 in
(120 mm)
9.4 in
(238 mm)
4.8 in
(123 mm)
8.7 in
(222 mm)
2.6 in
(67 mm)
SERIAL 1 SERIAL 2DMX 1 USB POWERDMX 2
5.4 in
(137 mm)
8.2 in
(209 mm)
1.3 in
(33 mm)
Use Item Number when ordering in North America.
System
Requirements Specication PC Mac
Software Operating System Windows 2000 / XP / Vista Mac OS 10.5 or greater
Memory 512 MB RAM 512 MB RAM
Disk space 60 MB free disk space 60 MB free disk space
Item Type Item Number Philips 12NC
iPlayer 3
North America Power Cord 103-000019-00 910403327101
Europe Power Cord 103-000019-01 910503700392
China (CCC) Power Cord 103-000019-02 910503700738
Controller Keypad DB-9 Serial 103-000020-00 910503700223
AuxBox DB-9 Serial 103-000021-01 910503702433
Item Specication Details
Capability Capacity 2 universes of 512 DMX addresses each
Electrical Input Voltage 100 – 240 VAC, 50 / 60 Hz, 5 W
Control
Computer Interface USB 2.0
External / Auxiliary
Interface
Two DMX512 RJ45 ports
Two RS-232 9-pin serial ports
Data Storage Removable Secure Digital Card drive
Physical
Dimensions
(Width x Depth x Height) 8.2 x 5.4 x 1.3 in (209 x 137 x 33 mm)
Weight 1.2 lb (0.54 kg)
Housing Polycarbonate
Operating Temperature 14° – 104°F (-10°– 40° C)
Humidity 0 – 95%, non-condensing
Certication
and Safety
Certication UL / cUL, FCC Class B, CE, CQC, C-Tick
Environment Dry Location, IP20

iPlayer 3 Product Guide 5
iPLAYER3
PRESETS
45
X
3
2

POWER
USB
INPUTS
SERIALPORT
24VDC
+ / -
STATUS
2
34
56
78
AUXBOX
ColorPlay 3
Software
iPlayer 3
Controller
Controller Keypad
AuxBox
OFF
DMX Control 2
to fixtures
ColorBlast Powercore fixtures
DMX Control 1
to fixtures
Data Enabler Pro
Fixture
Cable
Line voltage

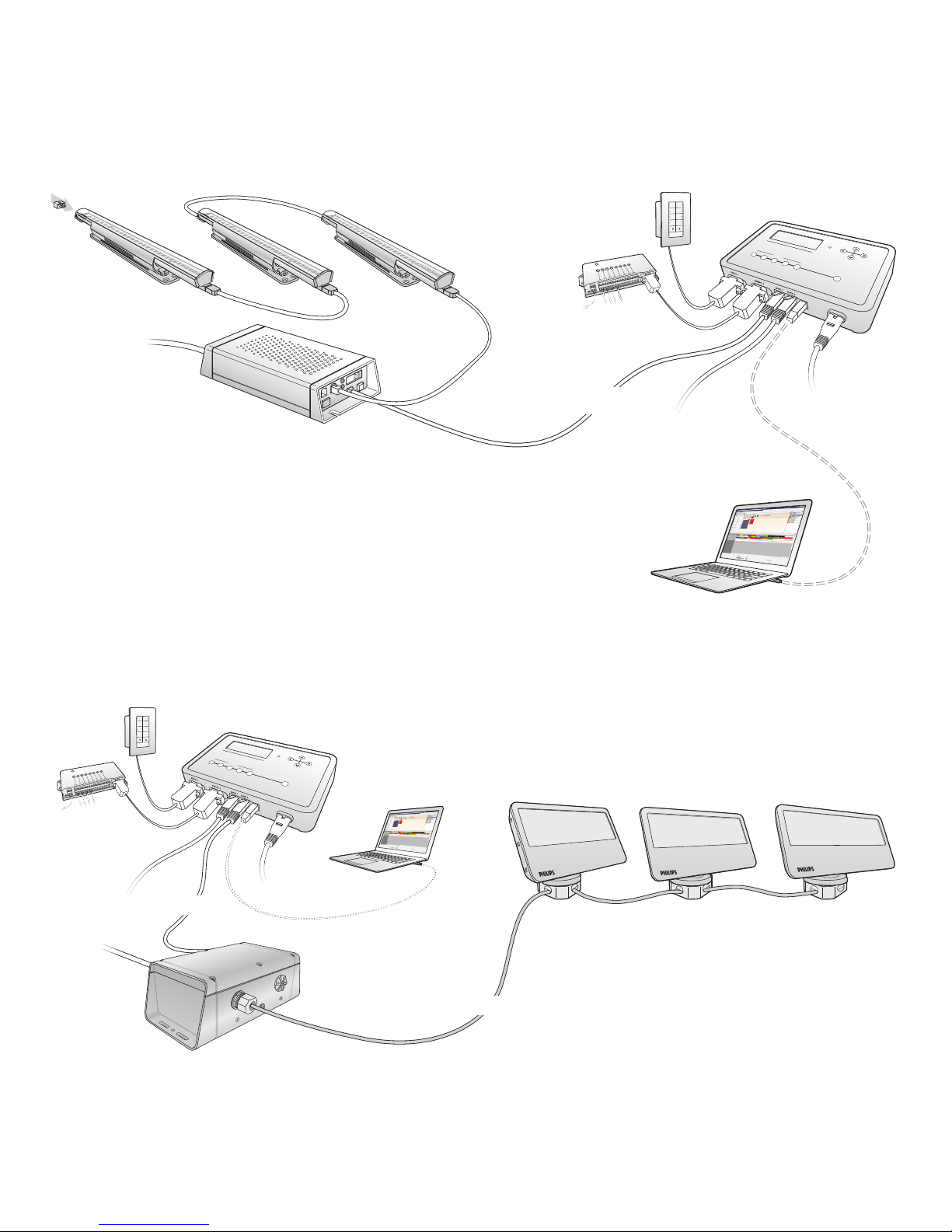

Typical Installation Conguration Examples
The following installation scenarios depict two typical lighting installations,
each controlled via iPlayer 3.
iPLAYER 3
PRESETS
45
X
3
2
?
POWER
USB
INPUTS
SERIALPORT
24
VDC
+ / -
STATUS
2
?34
56
78
AUXBOX
iPlayer 3
Controller
Controller Keypad
AuxBox
OFF
DMX 2
Control to Lights
DMX 1
Control to Lights
Power / Data Supply
Line voltage
iColor Cove QLX fixtures
ColorPlay 3
Software
iColor Cove QLX Installation
In this scenario, iPlayer 3 controls an
installation designed for indirect lighting.
The power / data supply sends data from the
iPlayer 3 and supplies power to
the fixtures.
ColorBlast Powercore Installation
In this scenario, iPlayer 3 controls an installation
set up for direct lighting. The Data Enabler Pro
sends combines data from the iPlayer 3 and power
from a line voltage source.
EFor detailed wiring diagrams, visit
www.philipscolorkinetics.com/wiring/
ls_prod.html/

iPlayer 3 Product Guide6
Prepare for the Installation
Owner / User Responsibilities
It is the responsibility of the contractor, installer, purchaser, owner, and user to
install, maintain, and operate the iPlayer 3 controller in such a manner as to comply
with all applicable codes, state and local laws, ordinances, and regulations. Consult
with an appropriate electrical inspector to ensure compliance.
Create a Lighting Design Plan and Mapping Grid
• Create a lighting design plan that species the appropriate location of each
Data Enabler Pro or power / data supply in relation to the xtures, and xtures
in relation to each other.
• On an architectural diagram or other diagram that shows the physical layout of
the installation, identify the locations of all switches, controllers, power / data
supplies, leader and jumper cables, and xtures.
• Select a convenient but unobtrusive location for mounting the iPlayer 3 that will
be accessible to a computer via USB connection. If also installing external show
selection switches such as Controller Keypad or AuxBox, mount the iPlayer 3 in
a location accessible to the maximum serial cable length of 50 ft (15.2 m).
• Verify that the iPlayer 3 mounting location meets environmental specications for
operating temperature range and maximum relative humidity (see page 4).
• Each Philips xture comes pre-programmed with a unique serial number. As
you unpack the xtures, record the serial numbers in a mapping grid (typically a
spreadsheet or list) for easy referencing and addressing. You can address xtures
using an addressing tool, such as iPlayer 3 itself, or in conjunction with a software
tool, such as QuickPlay Pro.
• Assign each xture to a position in the lighting design plan.
Start the Installation
1. Install all data enablers or power supplies and xtures, including any interfaces
with controllers. If your installation calls for jumper cables to add space between
xtures, make sure they are available.
2. If necessary, ad dress your xtures using an addressing tool, such as QuickPlay Pro.
3. Ensure that all additional parts, including mounting hardware and tools,
are available.
ERefer to the iPlayer 3 Installation
Instructions for specic warning and caution
statements.
EController Keypad and AuxBox are
packaged with a standard 20 ft (6.1 m)
serial cable. Custom serial cable lengths up
to 50 ft (15.2 m) are supported.
EYou can download QuickPlay Pro from
www.philipscolorkinetics.com/support/
addressing/

iPlayer 3 Product Guide 7
Install iPlayer 3
1. Conrm all components received
Take a moment to confirm you have received these iPlayer 3 components:
• iPlayer 3
• Mounting bracket
• Mounting bracket screws
• Power cord (North American or European)
• USB 2.0 cable
• RJ-45 DMX512 data cable
• Installation Instructions
• Quick Start Guide
2. Install mounting bracket
Choose a method for mounting bracket installation: quick-release or secure.
Quick-release mounting method
a) With the release tab pointing downward, screw the mounting bracket onto a
surface using the innermost screw holes. The outer mounting tabs will not be used
and may be snapped off, if desired.
b) Slide iPlayer 3 onto the mounting bracket until it clicks securely into place.
Secure mounting method
a) Slide iPlayer 3 onto the mounting bracket until it clicks securely into place. Using
the supplied machine screws, secure the mounting bracket to iPlayer 3.
b) Using the outermost screw holes, install the mounting bracket and iPlayer 3
assembly onto a surface. Secure with screws suitable for mounting substrate.
3. Attach power cable
4. Install ColorPlay 3 software
Windows Installation
a) Download the ColorPlay 3 Software from
http://www.philpscolorkinetics.com/support/iplayer3/.
b) Double-click Install ColorPlay 3.exe,
c) The Welcome to the ColorPlay 3 Setup Wizard window appears. Click Next
to begin the installation. After reading the license agreement, select I Agree to
consent to the terms of the license agreement, then click Next to continue.
d) When the Select Installation Folder window appears, accept the default location,
or click Browse to select a folder. Click Next to continue.
e) At the Conrm Selection window, click Next to start installation.
f) The Installation Complete window appears. Click Close to exit the wizard.
Mac OS Installation
a) Download the ColorPlay 3 Software from
http://www.philpscolorkinetics.com/support/iplayer3/. The ColorPlay 3
folder icon ppears on your desktop.
b) Drag the ColorPlay 3 application icon from the Mac folder to the Applications
folder on your computer.
iPLAYER3
PHILIPS
PRESETS
2
1
3
4
5
x
POWER
USB
DMX 2
DMX 1
SERIAL 2
SERIAL 1
PRESETS
123
4
x
5
iPLAYER3
Quick-release method
Secure method
Snap-off tabs

iPlayer 3 Product Guide8
5. Connect computer with USB cable
If using Windows, you must install ColorPlay 3 prior to connecting iPlayer 3 to your
PC. iPlayer 3 installs the device drivers required for USB connectivity.
6. Attach external show selection devices, as required
Connect a Controller Keypad
a) Unplug the power cord from the iPlayer 3.
b) Connect the cable end with the 4-pin leads into the back of the
Controller Keypad.
c) Connect the cable end with the DB9 cable connector to serial port 1 or 2
on the iPlayer 3.
d) As needed, set the Range switch position on the back of the keypad. By default,
switch position 0 (zero) sets the keypad to trigger shows 1 – 8.
e) Reconnect the power cord to the iPlayer 3.
Connect an AuxBox
a) Unplug the power cord from the iPlayer 3.
b) Connect the female end of the serial cable to the AuxBox serial port.
c) Connect the male end with of the serial cable to serial port 1 or 2 on iPlayer 3.
d) As needed, set the Range switch position on the front of the AuxBox. By default,
switch position 0 (zero) sets the AuxBox to trigger shows 1 – 8.
e) Connect each external triggering device’s two-wire cable to a terminal pair on
the AuxBox.
f) Connect the 24 VDC power cable to the 24 VDC terminals on the AuxBox,
then plug it in.
h) Reconnect the power cord to the iPlayer 3.
7. Connect Lighting Systems with RJ-45 Cable
Each DMX output port controls 512 DMX addresses:
• DMX port 1 controls light universe 1 (DMX addresses 1 – 512). Use DMX port 1
for single-universe installations.
• DMX port 2 controls light universe 2 (DMX addresses 1 – 512).
8. Firmware Update
The iPlayer 3 firmware image is periodically updated to improve system performance
and functionality. If your iPlayer 3 is not running the most recent firmware version, it
is recommended that you update to maximize system performance. The most recent
firmware version can be downloaded from www.colorkinetics.com/support/iPlayer
33/.
1. Launch Conguration Mode by pressing on the iPlayer 3 faceplate.
2. Access the Info menu, then select Version. The screen should display the
rmware version in the form v01.00xx b00001
3. If the “xx” value is a lower number than the most recent image on the website,
follow the update procedure in the iPlayer 3 User Guide.
iPLAYER 3
PRESETS
45
X
3
2

POWER
USB
INPUTS
SERIALPORT
24VDC
+ / -
STATUS
2
34
56
78
AUXBOX
Input from
AuxBox
Input from
Controller
Keypad
OFF
iPLAYER 3
PRESETS
45
X
3
2

POWER
USB
DMX 1
Control to Lights
DMX 2
Control to Lights
iPLAYER 3
PRESETS
45
X
3
2

POWER
USB
DMX 1
Control to Lights
DMX 2
Control to Lights

iPlayer 3 Product Guide 9
Light Show Playback
Out-of-the-box, the iPlayer 3 comes programmed with pre-configured light shows.
When you start up the iPlayer 3, it automatically plays the default Color Wash show
assigned to preset button .
• To play additional shows, press – .
• To adjust the overall brightness level of your show, press and .
• Press to pause playback and turn all fixtures OFF.

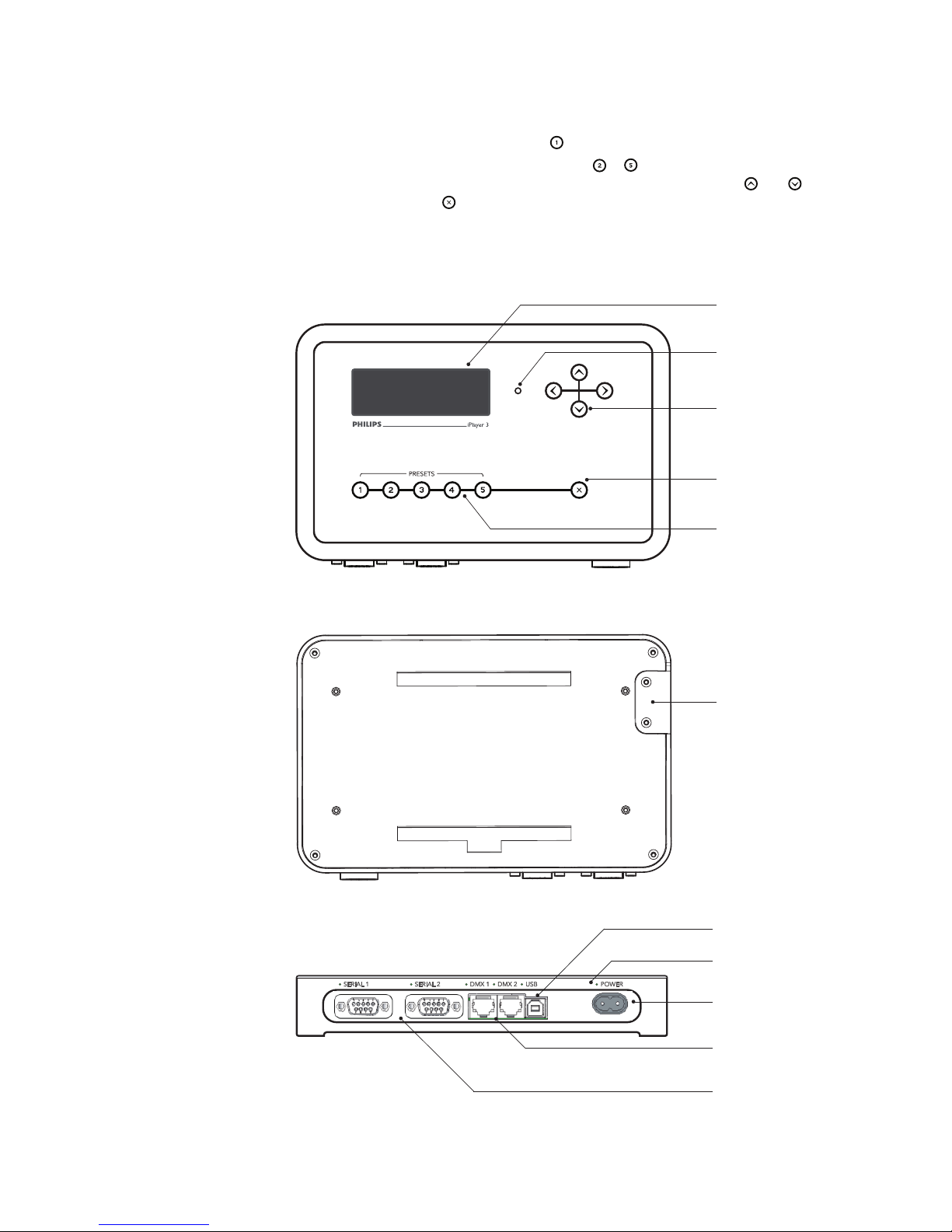

iPlayer 3 Hardware Features
09:21:48 15-Dec-09
Config Mode
show type? <
downloaded show
Current mode and information
Displays the color appearing on li ght
address 1 (DMX output port 1)
Adjust brightness level
Change mode
Navigate menus
Pause / Lights Off
Lights On / Resume
Cancel menu action
Select a trigger for show playback
Access panel for SD memory card
and configuration DIP switches
Power inlet
DMX output port 1
DMX output port 2
Serial port 1
Serial port 2
Activity LEDs
USB 2.0 port

iPlayer 3 Product Guide10
Conguration Menus
You can change the following options via Configuration mode:
Triggers Menu
Triggers enable you to assign shows to the Preset buttons on the iPlayer 3,
the keypad buttons on the Controller Keypad, or the contact switches connected
to an AuxBox. Triggers also specify playback behaviors such as repeat or jump to
another show.
Alarms Menu
Alarms enable you to automate show playback by specific time, date, day of the week
or astronomical event.
Setup Menu
The setup menu provides access to port configuration, clock setup, LCD setup,
and more.
Info Menu
The info menu displays the device firmware version, memory usage, and more.
At any time during playback, press to launch Configuration mode and open the
Main Menu. From the Main Menu, press and to scroll through menu options
and to access a submenu. To save your changes, continue pressing until you reach
the Save Changes menu item, then press a final time to save. Press at any time
to cancel the menu action and return to playback mode.
Example: Changing the Pre-congured Show Assigned to Preset Button 2
1. Launch Conguration mode, access the Triggers submenu, and then select menu
option 2.
2. Access the Show Type submenu, then select Canned Effect to open the pre-
congured show types.
3. Access the Effect Type submenu, then pick Cross Fade, which produces a smooth
transition from one solid color to another.
4. Navigate through the effect-specic submenus, specifying properties for start
color, end color, hold time duration, fade time duration, and offset (angle).
5. At the Test Ef fect submenu, preview your show, then press to continue.
6. Select show Transition type Snap (no transition).
7. Press to save your changes.
09:23:03 15-DEC-09
Config mode
Trigger number? <
1
09:23:22 15-DEC-09
Config mode
Alarm days? <
Specific month/day
09:23:39 15-DEC-09
Config mode
Setup menu <
Set date & time
09:23:52 15-DEC-09
Config mode
memory usage <
232k/246760k

iPlayer 3 Product Guide 11
ColorPlay 3 Effects
Fixed Color — Displays a single solid color
simultaneously on all xtures in a group.
Cross Fade — Creates a smooth transition
from one solid color to a second solid color
on all xtures simultaneously.
Color Wash — Creates a smooth transition
through a series of solid colors on all xtures
simultaneously.
Chasing — Creates bars of repeated color
moving or “chasing” each other in one
direction across a grid of xtures or nodes.
Chasing Node — Displays bands of color
that appear to move or “chase” each other
in sequence. Colors appear to chase each
other from xture to xture or node to
node.
Sweep — Displays a progressive transition
of one or more foreground colors across a
solid background color in a sweeping motion
across a grid of nodes or xtures.
Sweep Node — Displays a progressive
transition of one or more foreground colors
across a solid background color. Foreground
colors transition from xture to xture or
node to node.
Sparkle — Flashes one or more foreground
colors at random intervals over a solid-color
background, producing a sparkling effect.
Streak — One or more narrow bands of
color move across a solid background,
following the group’s currently selected node
pattern.
Spiral — Produces arcs of color originating
from a central point and moving across a grid
of nodes in a clockwise or counterclockwise
direction.
Burst — Produces concentric rings of color
moving either towards the edge of a group
or towards a dened focal point.
Random Color — Produces a sequence
of two or more randomly generated solid
colors simultaneously on all xtures in a
group.
Image Fade — Produces a visual sequence
in which one image fades gradually into a
second image.
Video — Sisplays moving images from a
digital video sequence.
Text — Scrolls a text message across a solid
background color, from right to left.
Strobe — Produces solid pulses of a
foreground color over a background color.
When the pulses are short in duration,
produces an intermittent ashing effect that
emulates a strobe light.
Ripple — Displays rings of color moving over
a solid background color.
Particle — Produces animated circular
shapes of varying sizes over a solid
background color. This effect simulates a
particle system such as clouds, re, or rain.
Colored Bars — Randomly displays bars
of varying widths and colors over a solid
background.
Constant Modifier — Applies a constant
change to the hue, saturation, and/or
brightness of all visible effects underneath it
in a group.
Wave Modifier — Uses different wave
patterns to vary the appearance of effects
over time. You can vary the hue, saturation,
or brightness of all effects underneath it in
a group.
Fade In Fade Out Modifier — Gradually
fades in or fades out the saturation or
brightness of all effects underneath it
in a group. The effect can also gradually
transition all colors through a range of hues.
RGB Range Modifier — Sets limits on the
red, green, and/or blue channels of all effects
underneath it in a group.
Perlin Noise Modifier — Overlays a random,
smooth-owing pattern of noise over all
effects underneath it in a group.

Creating a Light Show with ColorPlay 3
1. Map Fixtures
Each ColorPlay 3 show begins as a virtual map of light fixtures. To start designing
your show, you must plot, or map, fixtures on a grid. The map represents your
installation and enables ColorPlay 3 to send instructions to the iPlayer 3 operating
your lights.
2. Arrange Groups
Next, you must arrange the mapped fixtures into groups. Groups coordinate
the show, enabling you to rapidly select and move multiple fixtures, change node
ordering to match your installation, and assign effects across multiple fixtures
simultaneously.
3. Create Effects
After arranging groups, you can begin assigning effects. Each effect possesses editable
properties, including color palettes, start time, timeline duration, and more. Note
that effects are applied to groups; to assign an effect to a fixture, that fixture must be
part of a group. Note also that you can assign more than one effect to each group.
4. Simulate and Test Your Light Show
Next, you simulate and refine your show with the timeline editor. The timeline
editor contains multiple tracks, or rows, which enable you to quickly adjust effect
properties, modify effect transitions, and manage multiple effects applied to the same
group. The timeline editor contains the playback controls used for previewing your
show on-screen or running your show live on installation fixtures.
5. Download Shows to the iPlayer 3 and Create Triggers
The final step in creating a ColorPlay 3 project has two stages: first you download
your show files to an iPlayer 3 and then you configure your show playback
instructions by creating triggers.
DAS-000020-00 R04 12 Aug 2015
Philips Color Kinetics
3 Burlington Woods Drive
Burlington, Massachusetts 01803 USA
Tel [phone]
Tel [phone]
Fax [phone]
www.philipscolorkinetics.com
Copyright © 2015 Philips Solid-State Lighting Solutions, Inc. All rights reserved.
Chromacore, Chromasic, CK, the CK logo, Color Kinetics, the Color Kinetics
logo, ColorBlast, ColorBlaze, ColorBurst, ColorGraze, ColorPlay, ColorReach,
iW Reach, eW Reach, DIMand, EssentialWhite, eW, iColor, iColor Cove,
IntelliWhite, iW, iPlayer, Optibin, and Powercore are either registered trademarks
or trademarks of Philips Solid-State Lighting Solutions, Inc. in the United States
and / or other countries. All other brand or product names are trademarks
or registered trademarks of their respective owners. Due to continuous
improvements and innovations, specifications may change without notice.
