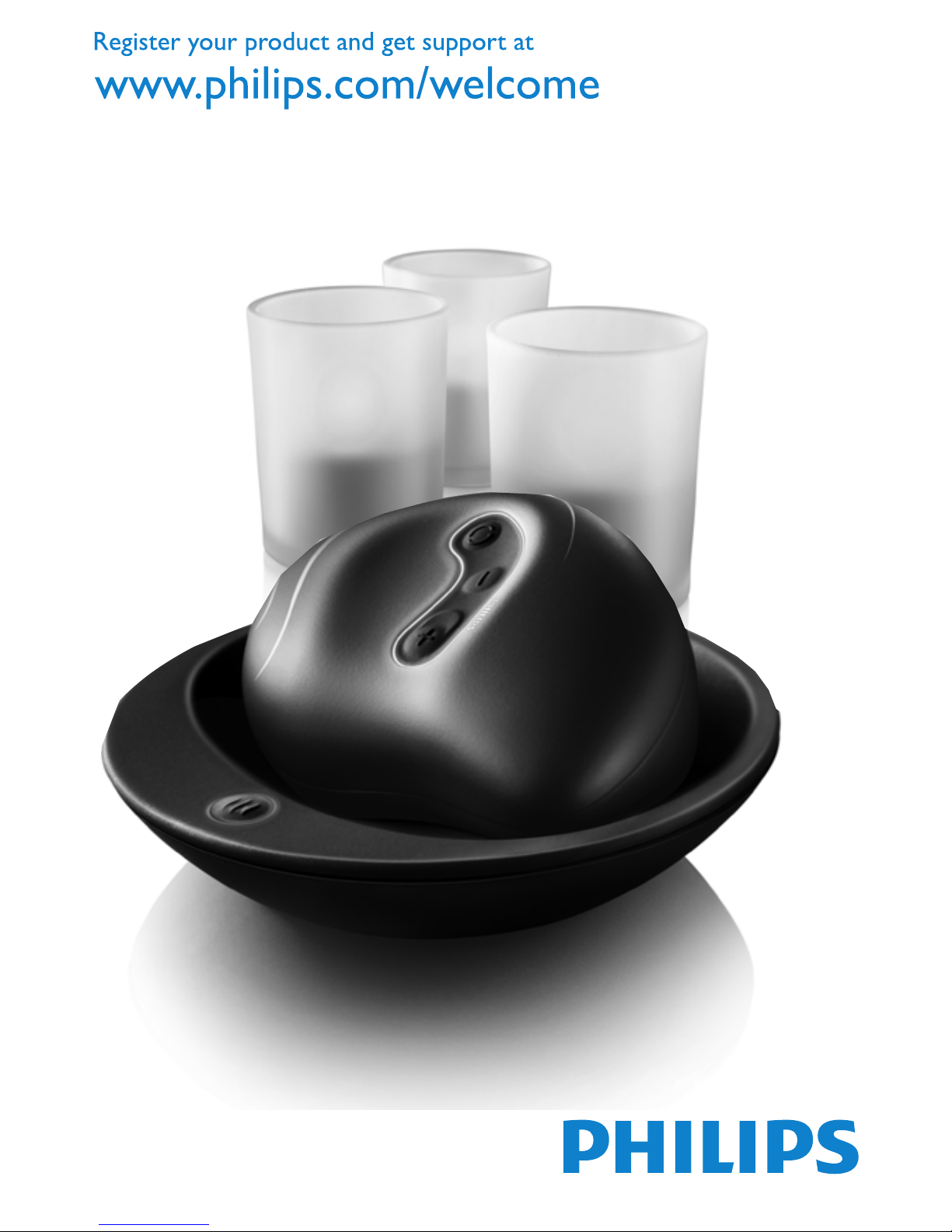

Philips Candlelight Set HF8430 User manual

HF8430

2

3
J
K
L
M
N
1

4

HF8430
ENGLISH 6
DEUTSCH 18
ESPAÑOL 32
NEDERLANDS 45
PORTUGUÊS 59

6
Introduction
Congratulations on your purchase and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.
Philips is dedicated to producing high-quality products that add value to
your life.We bring you candlelights and an intimate massager to seduce
each other.
General description (Fig. 1)
AMassager
BMode selection button
CLight ring
DDecrease button
EIncrease button
FCharger of massager
GPre-warming button with light ring
HAdapter of massager
ISmall plug
JCandles
KCharger of candlelight set
LCharging light/button
MAdapter of candlelight set
NSmall plug
Important
Read this user manual carefully before you use the appliances and save it
for future reference.
Danger
Keep the adapters and the charger of the candlelight set dry.
Any time body uids are exchanged, there is a risk of spreading
sexually transmitted diseases and infections. To reduce the risk of
infection, put a condom around the intimate massager when it is
contact with intimate areas. Change the condom when you move the
massager to another body part.
-
-
ENGLISH

The massager is intended for external use only. Do not use it for
penetration.
Warning
Never immerse the candles and the charger of the massager in water
or any other liquid, nor rinse them under the tap.
Check if the voltage indicated on the adapters corresponds to the
local mains voltage before you connect the chargers.
Regularly check the massager, the chargers, the adapters and the
candles for possible damage. If any of these items is damaged in any
way, stop using it and consult our website www.philips.com/
intimatemassager.
The adapters contain a transformer. Do not cut off the adapters to
replace them with other plugs, as this causes a hazardous situation.
These appliances are not intended for use by persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliances by a person responsible for their
safety.
Children should be supervised to ensure that they do not play with
the appliances.
Switch off the massager immediately and do not use it again if it
produces an abnormal sound. Consult our website www.philips.com/
intimatemassager.
Caution
Consult your doctor before you use the massager in the following
cases:
1 During pregnancy or shortly after delivery
2 If you have irritated skin or a skin disease
3 If you have other health problems
If use of the massager causes an allergic reaction, stop using it and
consult your doctor.
Do not use the massager on the eyes or arteries.
This massager is not intended as a medical appliance.
If you want to use the massager in combination with a lubricant or
massage oil, only use a water-based or silicon-based type. Do not use
-
-
-
-
-
-
-
-
-
-
-
-
-
ENGLISH 7

scented and/or alcohol-based lubricants or massage oils, as they may
cause damage.
Always clean the massager after use to reduce the risk of infections
(see chapter ‘Cleaning’).
Do not expose the massager and its charger to direct sunlight or UV
light (for example from a tanning appliance) for a long time.
Be careful not to drop the massager.
Only use each charger in combination with the appropriate adapter
supplied. Do not connect any other adapters to the chargers.
Always place the massager and the candles on the appropriate
charger. Do not place anything else on the chargers.
Do not expose the candlelight set to extreme heat.
Handle the candles with care, because the outside is made of glass.
Do not attempt to repair the appliances yourself. In case of any repair
or attempted repair by a service centre not authorised by Philips, the
guarantee becomes invalid. Consult our website www.philips.com/
intimatemassager for further instructions.
Compliance
These Philips appliances comply with all standards regarding
electromagnetic elds (EMF). If handled properly and according to the
instructions in this user manual, the appliances are safe to use based on
scientic evidence available today.
Charging
Massager
The massager and its charger become warm during charging.
Never cover the charger with anything (e.g. a towel or clothing) during
use.
Note:The massager is not charged when you unpack it. Charge the massager
before rst use.
For a single session, charge the massager for at least 10 hours.
For a full charge, charge the massager for 24 hours.When fully charged,
the massager has an operating time of up to 1 hour.
-
-
-
-
-
-
-
-
ENGLISH8

The actual operating time may vary over time, depending on the selected
vibration mode and speed.
Charge the massager when the light ring starts ashing slowly to indicate
that the battery is almost empty.
1 Insert the small plug into the charger and put the adapter in the
wall socket.
2 Placethemassageronthecharger.Itonlytsproperlyonthe
charger with the buttons facing up. (Fig. 2)
The massager switches off automatically when you place it on the charger.
Note: Make sure the pre-warming function is switched off when you charge
the appliance (see chapter ‘Preparing for use’).
Note:The charger does not work when the massager is placed incorrectly.
Duringchargingthelightringashes.
Note: When you charge the massager for the rst time or after a long period
of disuse, it may take a few minutes before the light ring starts ashing. This
is normal
Note: The appliance may produce a smell the rst few times you charge it.
This is normal.
When the battery is fully charged, the light ring goes out.
Candlelight set
Charge the candlelight set for 12 hours.
When the candles are fully charged, they have an operating time of
approx. 24 hours.
1 Insert the small plug into the charger and put the adapter in the
wall socket.
The charging light on the charger goes on (Fig. 3).
2 Put one or more candles on the charger (Fig. 4).
When the candles are fully charged, the charging light on the
charger goes out and the charging process stops.
,
,
,
,
ENGLISH 9

Note:The candles may go on when you put them on the charger. If they do,
remove the candles from the charger and tilt them to switch them off.Then
put the candles back onto the charger.
Note: For safety reasons, a built-in timer stops the charging process after 12
hours, when the batteries are fully charged. If you have one or more
uncharged candles left and want to charge them right away, press the button
on the charger to start another charging cycle.When you do this, the
charging light goes on again.
Preparing for use
Massager
Cleaning
Thoroughlycleanthemassagerbeforerstuse,aftereveryuseand
when you use it on another body area, to reduce the risk of
infection (see chapter ‘Cleaning’).
Pre-warming the massager
The charger has a pre-warming button that you can use to pre-warm the
bottom of the massager to a comfortable temperature (approx. 40°C).
Never warm the massager in an oven or microwave.
1 Placethemassagerinohecharger.Itonlytsproperlyonthe
charger with the buttons facing up.
2 Press the pre-warming button (Fig. 5).
Thepre-warminglightringstartsashingtoindicatethatthe
massager is warming up.
Afterapprox.5minutes,thepre-warminglightringstopsashing
and lights up continuously to indicate that the massager has
reached a comfortable temperature.
After 30 minutes, the pre-warming function automatically switches
off, but you can also switch it off by pressing the pre-warming
button again.
,
,
,
ENGLISH10

Using the appliance
Massager
1 Press any button to switch on the massager (Fig. 6).
The light ring goes on.
The massager starts operating in the default mode (mode 1) and at
moderate vibration speed.
Tip:We advise you to start in the default mode.You can gradually increase
the vibration speed once you are familiar with the options.
Note: If you feel uncomfortable during use, you can adjust the vibration
speed. See step 3.
2 Press the mode selection button to adjust the vibration to your
own preference (Fig. 7).
The appliance has 5 vibration modes (A to E) that activate up to 3
vibration spots placed in the tip (1), the top (2) and the bottom (3)
of the massager (Fig. 8).
ATip motor runs, vibration is focused on one point
BTip and bottom motors run in turn
CTop and bottom motors run in turn
DTip and top motors run in turn
EAll motors run in turn
3 Press the increase or decrease button one or more times to adjust
the vibration speed of the massager to your own
preference. (Fig. 9)
The appliance has 5 speed levels.
4 Youcanholdthemassagerindifferentways.Experimenttondthe
most comfortable way to use the massager.
Tip: For suggestions, consult the welcome booklet.
Tip:You can also use the massager in combination with a water-based or
silicon-based lubricant or massage oil. Do not use scented and/or alcohol-
based lubricants or massage oils, as they may cause damage.
,
,
-
ENGLISH 11

5 To switch off the massager, press and hold the mode selection
button or the decrease button.
Travel lock
It is possible to lock the massager, for example if you are going to travel.
The travel lock prevents the massager from being switched on by
accident.
1 Switch off the massager.
2 Simultaneously press the increase button and the mode selection
button to activate the travel lock. (Fig. 10)
Thelightringashesoncetoindicatethatthemassagerislocked.
3 To deactivate the travel lock, press the increase button and the
mode selection button simultaneously again.
Thelightringashesoncetoindicatethatthemassageris
unlocked.
Note:When you place the massager on the plugged-in charger, the travel lock
is automatically deactivated.
Candlelight set
1 Tilt the candles to switch them on (Fig. 11).
You can switch off the candles in the same way.
Cleaning
Massager
Thoroughlycleanthemassagerbeforerstuse,aftereveryuseand
when you use it on another body area, to reduce the risk of infection.
Do not use aggressive or abrasive cleaning agents, chemical substances
or alcohol-based disinfectants to prevent damage to the massager.
Do not clean the massager with materials or tools that could cause
damage, e.g. metal or sharp kitchen utensils or scouring pads.
The massager and charger are not dishwasher-proof.
1 Switch off the massager and unplug the charger.
,
,
ENGLISH12

2 Clean the massager with a moist cloth soaked in lukewarm water
with mild anti-bacterial soap and rinse it under the tap. Dry the
massager properly after cleaning it.
Tip: Use a non-alcohol-based disinfectant to reduce the risk of infections.
Do not immerse the massager in water for more than one hour.
3 Clean the charger with a moist cloth and dry it properly.
Never immerse the charger in water or any other liquid, nor rinse it
under the tap.
Candlelight set
1 Switch off the candles and unplug the charger.
2 Clean the adapter and the charger with a dry cloth.
Keep the adapter and the charger dry.
3 Clean the outside of the candles with a moist cloth.
Do not use any cleaning agents to clean the candles. Do not clean the
candles in the dishwasher.
Handle the candles with care because the outside of the is made
of glass.
Storage
Massager
Always clean the massager after use.
1 Switch off the massager and unplug the charger.
2 Put the massager on the charger and store it in a safe, dry place
away from sunlight.
Candlelight set
1 Unplug the charger.
2 Place the candles on the charger.
ENGLISH 13

3 Store the charger with the candles on it in a safe, dry place away
from sunlight.
Replacement
If you need to replace an item of the massager or of the candlelight set,
consult our website www.philips.com/intimatemassager.
Note:The rechargeable batteries of the massager and the candles cannot be
replaced.
Environment
Do not throw away the appliances with the normal household waste
at the end of their life, but hand them in at an ofcial collection point
for recycling. By doing this, you help to preserve the
environment (Fig. 12).
The built-in rechargeable batteries of the massager and the candles
contain substances that may pollute the environment.Always remove
the batteries before you discard and hand in the appliances at an
ofcial collection point. Dispose of the batteries at an ofcial
collection point for batteries. If you have trouble removing the
batteries, you can also take the massager and the candles to a Philips
service centre.The staff of this centre will remove the batteries for
you and will dispose of them in an environmentally safe way. Consult
our website www.philips.com/intimatemassager for further
instructions (Fig. 13).
Removing the rechargeable batteries (optional)
If you choose to remove the rechargeable batteries of the massager and
the candles yourself before you hand them in at an ofcial collection
point, follow the instructions below.
Massager
Do not use sharp tools, such as knives or screwdrivers, to open the
massager.
1 Let the massager operate until it stops.
-
-
ENGLISH14

2 Put the massager in the battery-removal bag supplied.
3 Put the battery-removal bag with the massager in it in the freezer
for at least 24 hours.
4 Take the bag from the freezer. Immediately put the bag on the
ground and stamp on it with your foot to break the massager.
Caution: Only do this while wearing solid shoes.Attempting this with
bare feet could cause injuries.
Note: If the above treatment has not broken the massager, repeat steps 3
and 4.
5 Open the bag and take out the massager parts.
6 Unscrew the printed circuit board from the rechargeable battery
withaat-headscrewdriver.
Candles
1 Use a screwdriver to pry loose the battery housing inside the
candle.
2 Remove the battery housing from the candle.
3 Insert a screwdriver into the connection groove between the base
and the cover of the battery housing. Press down the screwdriver
to detach the cover from the base (Fig. 14).
4 Lift the battery out of the base.
Guarantee & service
If you need service or information or if you have a problem, consult our
website www.philips.com/intimatemassager, or contact the Philips
Consumer Care Centre in your country (you nd its phone number in
the worldwide guarantee leaet).
ENGLISH 15

Troubleshooting
This chapter summarises the most common problems you could
encounter with the appliances. If you are unable to solve the problem
with the information below, consult our website wwww.philips.com/
intimatemassager.
Problem Possible cause Solution
The massager
does not work. The rechargeable battery is empty. Charge the rechargeable battery (see chapter
‘Charging’).
The charger is still
charging. It takes 24 hours to charge the massager fully.When fully
charged, the massager has an
operating time of up to 1 hour.
For a single session, charge the
massager for at least 10 hours
(see chapter ‘Charging’).
The travel lock is
activated. Deactivate the travel lock (see chapter ‘Using the appliance’).
The massager
suddenly
switches off.
The rechargeable
battery is empty. Charge the massager (see chapter ‘Charging’).
You have pressed
the mode
selection button
or the decrease
button for some
time and thus
switched off the
massager.
Press any button to switch on
the massager again.
ENGLISH16

Problem Possible cause Solution
The charger of
the
massager does
not work.
The charger is
not plugged in. Insert the small plug into the charger and put the adapter in
the wall socket.
The pre-warming
function is
activated.
Press the pre-warming button
to switch off the pre-warming
function.
You have not
placed the
massager on the
charger properly.
Place the massager properly
on the charger (see chapter
‘Charging’).
The massager
and its
charger become
warm during
charging.
This is normal. No further action required.
The charger of
the candlelight
set does not
work.
The charger is
not plugged in. Insert the small plug into the charger and put the adapter in
the wall socket.
The candles of
the candlelight
set do not work.
The batteries of
the candles are
empty.
Place the candles on the
plugged-in charger and charge
them for 12 hours.
The candles of
the candlelight
set go on when I
put them on the
charger.
You did not
switch off the
candles when
their batteries
were empty.
Remove the candles from the
charger and tilt them to switch
them off.Then put the candles
back onto the charger.
ENGLISH 17

18
Einführung
Herzlichen Glückwunsch zu Ihrem Kauf und willkommen bei Philips! Um
den Support von Philips optimal nutzen zu können, registrieren Sie Ihr
Produkt bitte unter www.philips.com/welcome.
Philips hat es sich zur Aufgabe gemacht, hochwertige Produkte zu
entwickeln, die Ihr Leben bereichern. Wir bieten Ihnen Kerzenlicht und ein
Massagegerät zur gegenseitigen Verführung.
Allgemeine Beschreibung (Abb. 1)
AMassagegerät
BModuswahltaste
CLeuchtring
DNiedriger-Taste
E Höher-Taste
FLadegerät des Massagegeräts
G Vorwärmtaste mit Leuchtring
HAdapter des Massagegeräts
I Gerätestecker
JKerzen
KLadegerät des Kerzen-Sets
LLadeanzeige/-taste
MAdapter des Kerzen-Sets
N Gerätestecker
Wichtig
Lesen Sie diese Bedienungsanleitung vor dem Gebrauch der Geräte
aufmerksam durch und bewahren Sie sie für eine spätere Verwendung auf.
Gefahr
Achten Sie darauf, dass Adapter und Ladegerät des Kerzen-Sets nicht
nass werden.
Bei jedem Austausch von Körperüssigkeiten besteht das Risiko einer
Übertragung von Geschlechtskrankheiten und Infektionen. Um das
Infektionsrisiko zu verringern, streifen Sie ein Kondom über das Intim-
Massagegerät, bevor Sie es im Intimbereich einsetzen.Wechseln Sie
-
-
DEUTSCH

das Kondom, wenn Sie das Massagegerät an einem anderen
Körperteil verwenden.
Das Massagegerät ist nur zur äußerlichen Anwendung bestimmt.
Führen Sie es nicht in Körperöffnungen ein.
Warnhinweis
Tauchen Sie die Kerzen und das Ladegerät des Massageräts keinesfalls
in Wasser oder andere Flüssigkeiten. Spülen Sie sie auch nicht unter
ießendem Wasser ab.
Überprüfen Sie vor dem ersten Gebrauch der Ladegeräte, ob die
Spannungsangaben auf den Adaptern mit der örtlichen Netzspannung
übereinstimmen.
Überprüfen Sie das Massagegerät, die Ladegeräte,Adapter und
Kerzen auf eventuelle Schäden. Falls eines dieser Geräte in
irgendeiner Weise beschädigt ist, verwenden Sie es nicht, und
besuchen Sie unsere Website unter www.philips.com/
intimatemassager.
Die Adapter enthalten jeweils einen Transformator. Ersetzen Sie die
Adapter keinesfalls durch andere Stecker, da dies den Benutzer
gefährden würde.
Diese Geräte sind für Benutzer mit eingeschränkten physischen,
sensorischen oder psychischen Fähigkeiten bzw. ohne jegliche
Erfahrung oder Vorwissen nur dann geeignet, wenn eine angemessene
Aufsicht oder ausführliche Anleitung zur Benutzung der Geräte durch
eine verantwortliche Person sichergestellt ist.
Achten Sie darauf, dass Kinder nicht mit den Geräten spielen.
Schalten Sie das Massagegerät bei Auftreten eines ungewöhnlichen
Geräusches sofort aus, und verwenden Sie es nicht mehr. Besuchen
Sie unsere Website www.philips.com/intimatemassager.
Achtung
Konsultieren Sie Ihren Arzt, bevor Sie das Massagegerät in den
folgenden Fällen verwenden:
1 Während einer Schwangerschaft oder kurz nach der Entbindung
2 Bei Hautirritationen oder Hauterkrankungen
3 Bei anderen gesundheitlichen Problemen
-
-
-
-
-
-
-
-
-
DEUTSCH 19

Wenn bei der Verwendung des Massagegeräts eine allergische
Reaktion auftritt, benutzen Sie das Gerät nicht mehr, und konsultieren
Sie Ihren Arzt.
Verwenden Sie das Massagegerät nicht in der Nähe der Augen oder
auf Blutgefäßen.
Dieses Massagegerät ist kein medizinisches Gerät.
Wenn Sie das Massagegerät in Verbindung mit Gleitgel oder
Massageöl benutzen möchten, verwenden Sie nur Mittel auf Wasser-
oder Silikonbasis. Verwenden Sie keine parfümierten und
alkoholhaltigen Gleitgele oder Massageöle, da diese das Gerät
beschädigen können.
Reinigen Sie das Massagegerät nach jedem Gebrauch, um das
Infektionsrisiko zu verringern (siehe Kapitel “Reinigung”).
Legen Sie Massagegerät und Ladegerät nicht über einen längeren
Zeitraum direktem Sonnen- oder UV-Licht (z. B. von einem
Bräunungsgerät) aus.
Lassen Sie das Massagegerät nicht fallen.
Verwenden Sie jedes Ladegerät nur mit dem entsprechenden
mitgelieferten Adapter. Schließen Sie keine anderen Adapter an die
Ladegeräte an.
Stellen Sie das Massagegerät und die Kerzen stets auf den
entsprechenden Adapter. Legen Sie nichts anderes auf die Adapter.
Setzen Sie das Kerzen-Set keiner extremen Hitze aus.
Gehen Sie vorsichtig mit den Kerzen um, da die Außenseite aus Glas
besteht.
Versuchen Sie nicht, das Gerät selbst zu reparieren. Bei Reparaturen
oder Reparaturversuchen durch nicht von Philips autorisierte
Werkstätten erlischt die Garantie. Weitere Informationen nden Sie
auf unserer Website unter www.philips.com/intimatemassager.
Normerfüllung
Diese Philips Geräte erfüllen sämtliche Normen bezüglich
elektromagnetischer Felder (EMF). Nach aktuellen wissenschaftlichen
Erkenntnissen sind die Geräte sicher im Gebrauch, sofern sie
ordnungsgemäß und entsprechend den Anweisungen in dieser
Bedienungsanleitung gehandhabt werden.
-
-
-
-
-
-
-
-
-
-
-
-
DEUTSCH20
