Phonak Audeo B90-R User manual

User Guide
(B90/B70/B50)
Phonak AudéoTM B-R

2 3
Your hearing aid & charger details
Hearing aid model Earpieces
cAudéo B90-R cDome
cAudéo B70-R cSlimTip
c  Audéo B50-RccShell
Charging accessories
cCharger Case RIC incl. power supply
cPower Pack
cMini Charger RIC incl. power supply
If no box is checked and you do not know the
model of your hearing aid or charging accessories,
please ask your hearing care professional.
Audéo B-R contains a built-in and non-removable
rechargeable lithium-ion battery.
Please also read safety information regarding
handling rechargeable hearing aids (chapter 17).
Please ensure to charge and use the hearing aid
within operating temperature range: 0° to +40°
Celsius (33° to 104° Fahrenheit)
Wireless hearing aid
Phonak Audéo B90-R
Phonak Audéo B70-R
Phonak Audéo B50-R
Non wireless charging accessories
Phonak Charger Case RIC
Phonak Power Pack
Phonak Mini Charger RIC
2016
2016
2016
2016
2016
2016
This user guide is valid for:

5
Contents
Your hearing aid and charger
1. Quick guide
2. Parts of the hearing aid & charger
Using the charger
3. Preparing the charger
4. Charging the hearing aids
Using the hearing aid
5. Left & right hearing aid markings
6. Push button
7. On/O
8. Putting on the hearing aid
9. Removing the hearing aid
Further information
10. Operating conditions
11. Care and maintenance
12. Exchanging the earwax protection
13. Wireless accessories
14. Service and warranty
15. Compliance information
16. Information and description of symbols
17. Troubleshooting
18. Important safety information
6
8
12
14
20
21
22
23
24
25
26
28
33
34
36
42
46
50
Your hearing aids and chargers have been developed by
Phonak – the world leader in hearing solutions based in
Zurich, Switzerland.
These premium products are the result of decades of
research and expertise and are designed to keep you
connected to the beauty of sound! We thank you for
making such a great choice and wish you many years of
listening pleasure.
Please read the user guide carefully to make sure that you
understand and get the best out of your hearing aids. For
more information about features and benets, simply
contact your hearing care professional.
Phonak - life is on
www.phonak.com
4

6 7

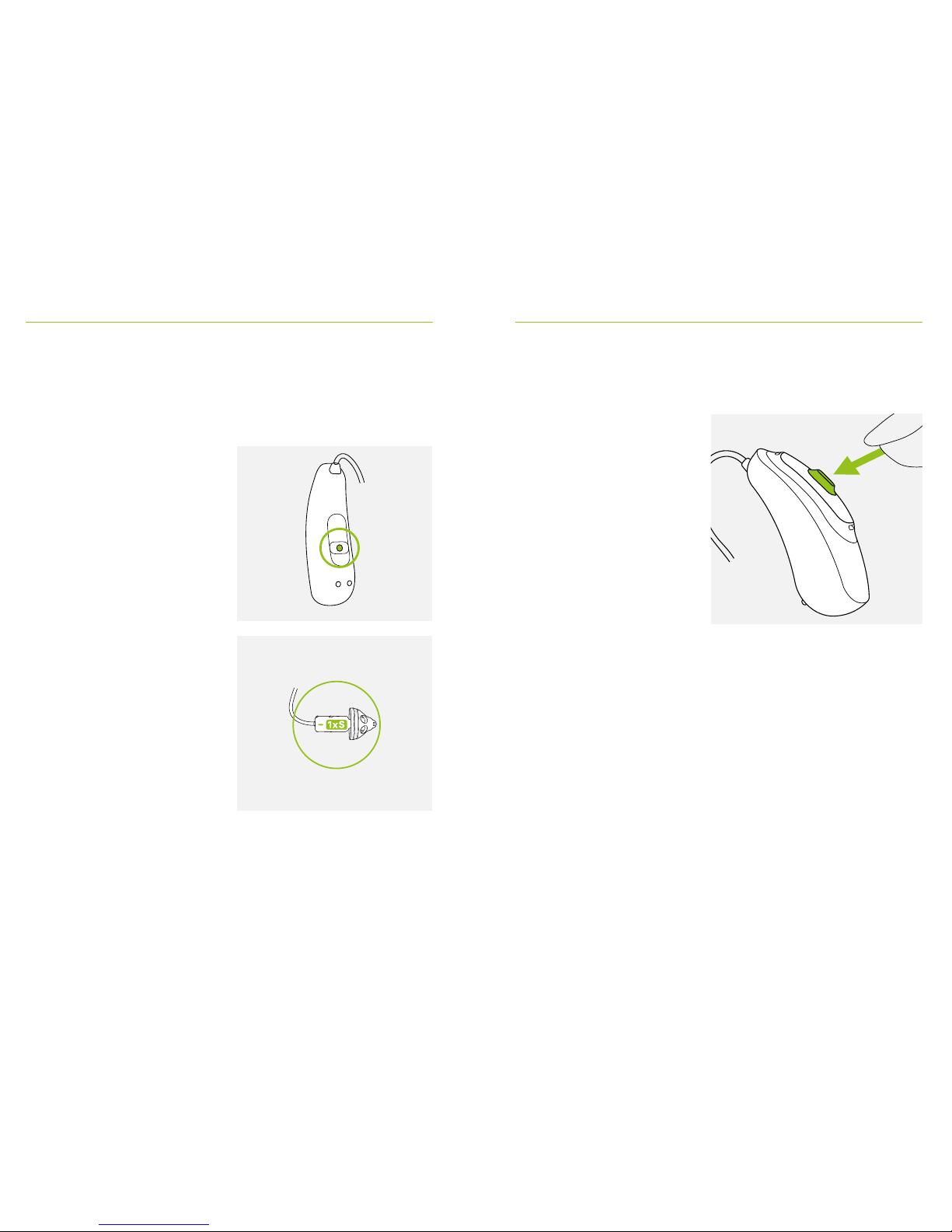

On/O
Push button with indicator light
The push button has two functions:
A short push can have various
functions. The function for your
hearing aid is indicated in your
individual instructions.
A long push (3 seconds) is used to
switch the hearing aid on/o.
Firmly press the button using the tip
of your nger for 3 seconds until the
indicator light blinks.
On: One short blink
O: Two short blinks
1. Quick guide
Left & right hearing aid markings
Charging your hearing aids
Blue marking for
left hearing aid.
Red marking for
right hearing aid.
After placing your
hearing aid in the
charger, the
indicator light will
slowly blink until
the hearing aid is
fully charged. When
fully charged the
indicator light will
be constantly on,
i.e. solid green light.
Before using Audéo B-R for the rst time, it is
recommended to charge it for 3 hours.

8 9
Space for earpieces
Cleaning tool
Space for drying
capsule (cover open)
Drying capsule
(optional)
Hearing aid charging inserts with left/right indicators
Space for drying capsule
(cover closed)
Charger Case RIC
2. Parts of the hearing aid & charger
The following pictures show the hearing aid model and
charger accessories described in this user guide. You can
identify your personal models by:
• Checking “Your hearing aid & charger details” on
page 3.
• Or comparing your hearing aid and charger with the
following shown models.
Charging contacts
Anchor (optional)
Speaker
(without earpiece attached)
Push button with built-in green indicator light
Audéo B-R
Tube
Possible earpieces
for dierent models
cShellSlimTipDome

10 11
Mini Charger RIC
Hearing aid charging inserts
with left/right indicators
micro-USB connection
to external power supply
Indicator light for power
Charger Case RIC with optional Power Pack
Charger Case RIC
Indicator light for power
micro-USB connection
to external power supply
micro-USB connection to external power supply
Power Pack
Indicator light for battery status
and external power
Battery check button
Power Pack lock and release

12 13
3. Preparing the charger

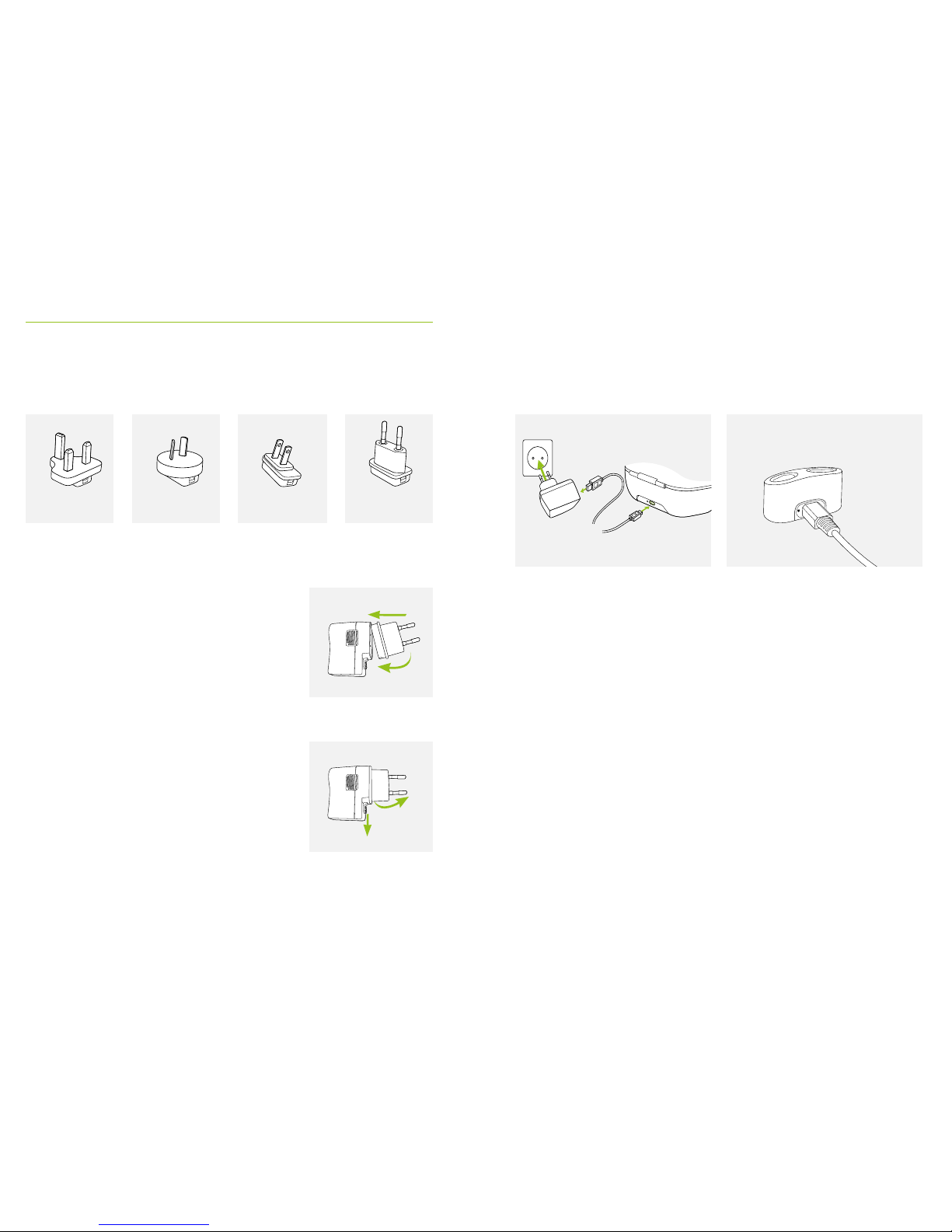

Select the adapter that corresponds to your country.
a) Insert the top round end of the
adapter into the round corner of
the power supply.
b)Click the bottom end of the adapter
in to lock into place.
c) To remove, pull back the tab on the
power supply.
d)Pull the adapter upwards to remove
it.
3.1 Setting up the power supply
UK AUS US EU
a
b
cd
a) Plug the larger end of the charging cable into the power
supply.
b)Plug the smaller end into the micro-USB port on the
charger.
c) Plug the power supply into a power outlet.
d)The indicator light is green when the charger
is connected to the power supply.
3.2 Connecting the power supply
a
b
d
c

14 15
4.1 Using the Charger Case RIC or Mini Charger RIC
1
Please refer to chapter 3 for how to set up the charger.

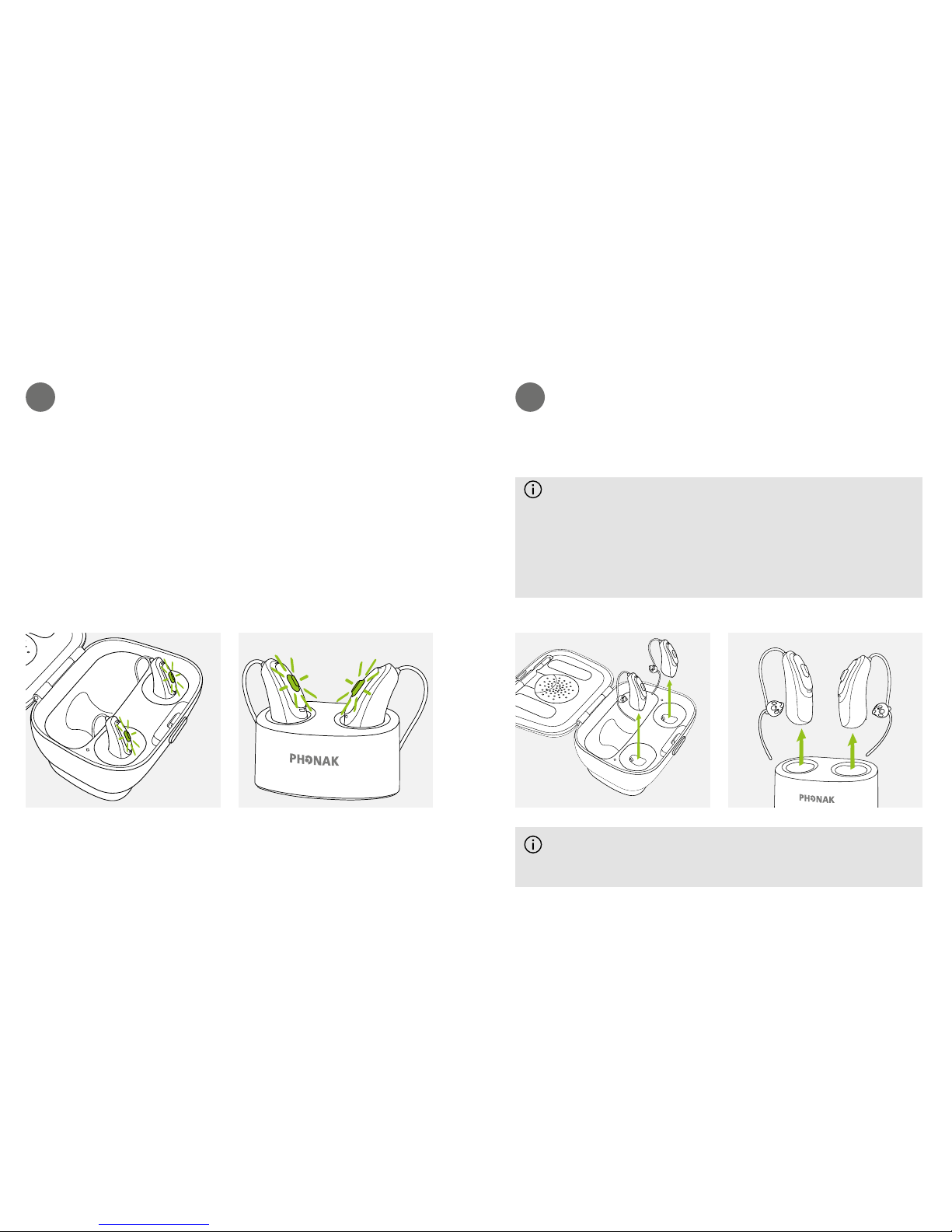

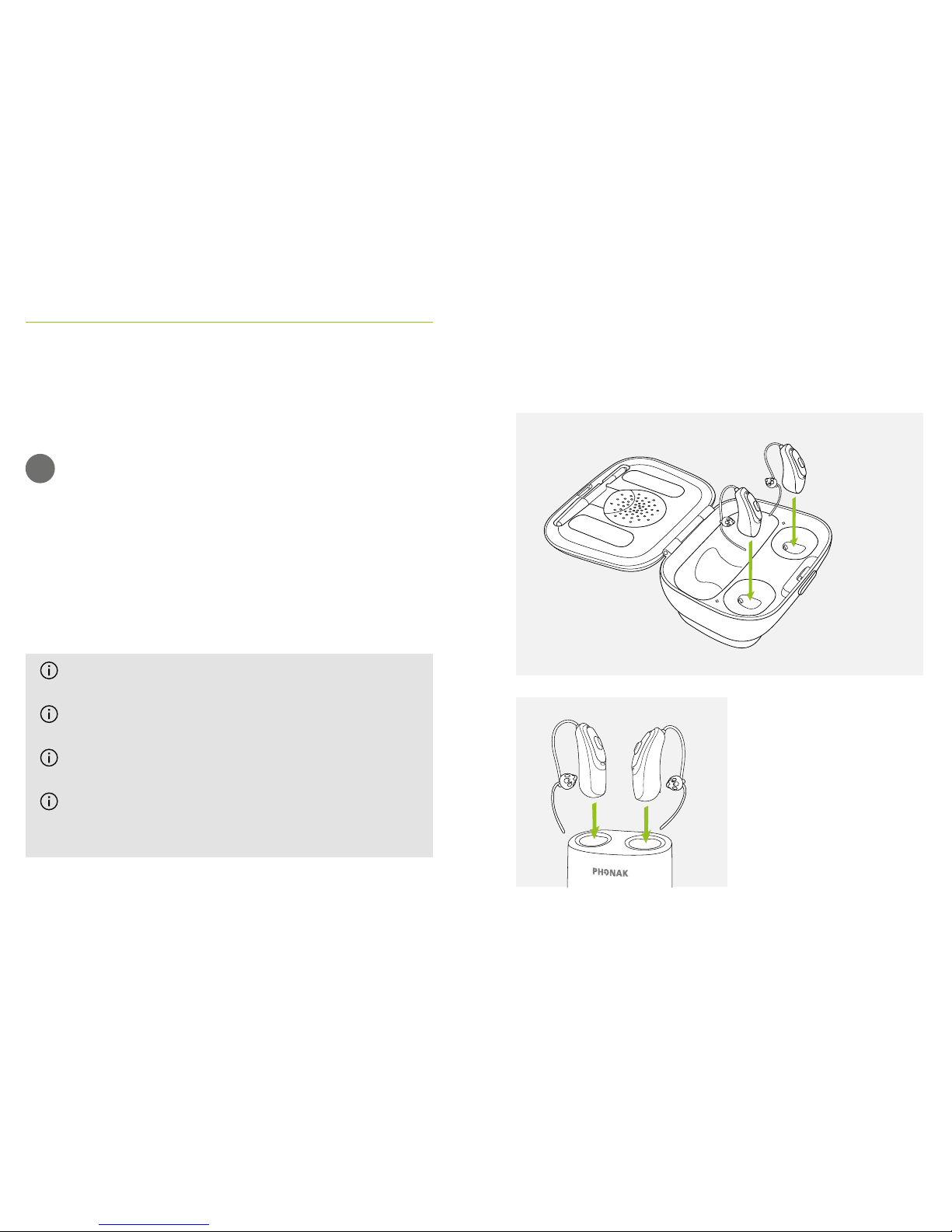

Insert the hearing aid into the charging inserts.
Make sure the left and right hearing aid markings match
the left (blue)/right (red) indicators next to the charging
inserts. The hearing aids will automatically switch o
when inserted into the charger.
Audéo B-R contains a built-in and non-removable
rechargeable lithium-ion battery.
Before using Audéo B-R for the rst time, it is
recommended to charge it for 3 hours.
The hearing aid must be dry before charging,
see chapter 11.
Please ensure to charge and use the hearing aid
within operating temperature range: 0° to +40°
Celsius (32° to 104° Fahrenheit).
4. Charging the hearing aids

16 17
23
The indicator light will slowly blink until the hearing aid
is fully charged. When fully charged the indicator light
will remain on, i.e. solid green light.
The charging process will automatically stop when the
batteries are fully charged, so the hearing aids can be
safely left in the charger. It can take up to 3 hours to
charge the hearing aids. The Charger Case RIC cover can
be closed while charging.
Do not hold the tubes for removing the hearing aids
from the charger as this can damage the tube.
Remove the hearing aids from the charging inserts and
switch them on, refer to chapter 7.
Audéo B-R charging times
100% charge: 3 h
80% charge: 90 min
50% charge: 60 min
30% charge: 30 min

18 19
3
The fully charged Power Pack oers 7 charging cycles for
a pair of hearing aids. To check the remaining battery
capacity of the Power Pack, press the battery check push
button (indicator lights will be o otherwise, to preserve
battery).
Power Pack lock and release
Indicator light battery
status:
•0%-29%
•• 30%-59%
••• 60%-100%
micro-USB connection to external power source
Battery check push button
4.2 Using the optional Power Pack
Note: The Power Pack is only compatible with the Charger Case RIC.
1
Attach the Power Pack to the
Charger Case RIC and lock it.
2
Plug in the micro-USB and connect to an external power
supply. The Power Pack and hearing aids will be charged at
the same time. While connected to an external power
supply, the Power Pack indicator light will show the
current battery charge status.
Before using Power Pack for the rst time, it is
recommended to charge it for 3 hours.
The Power Pack contains a built-in and non-
removable rechargeable lithium-polymer battery.
Please ensure to charge the Power Pack within
operating temperature range: 0° to +40° Celsius
(32° to 104° Fahrenheit)

20 21
6. Push button
The push button on your
hearing aid can have
various functions or is
not active. This depends
on the programming of
the hearing aid, which is
indicated in your
individual “Hearing aid
instructions”. Please ask
your hearing care
professional for a
printout.
The push button has two functions:
Short push
Long push (3 seconds)
The push button is used to switch the hearing aid on and
o. Refer to next chapter.
5. Left & right hearing aid markings
There is a red or blue marking on the back of the hearing
aid and on the speaker. This will tell you if it is a left or a
right hearing aid.
Blue marking
for left hearing aid.
Red marking
for right hearing aid.

22 23
8. Putting on the hearing aid
1
2
3
Place the hearing aid behind
your ear.
Insert the earpiece into your
ear canal.
If there is an anchor attached
to the earpiece, tuck it into
the bowl of your ear to secure
your hearing aid.
One short blink =
hearing aid turns on
Two short blinks =
hearing aid turns o
7. On/O
To switch the hearing aid on or o, rmly press the
button using the tip of your nger for 3 seconds until the
indicator light blinks.
When you switch on the hearing aid you may hear a
start-up melody.

24 25
9. Removing the hearing aid
1

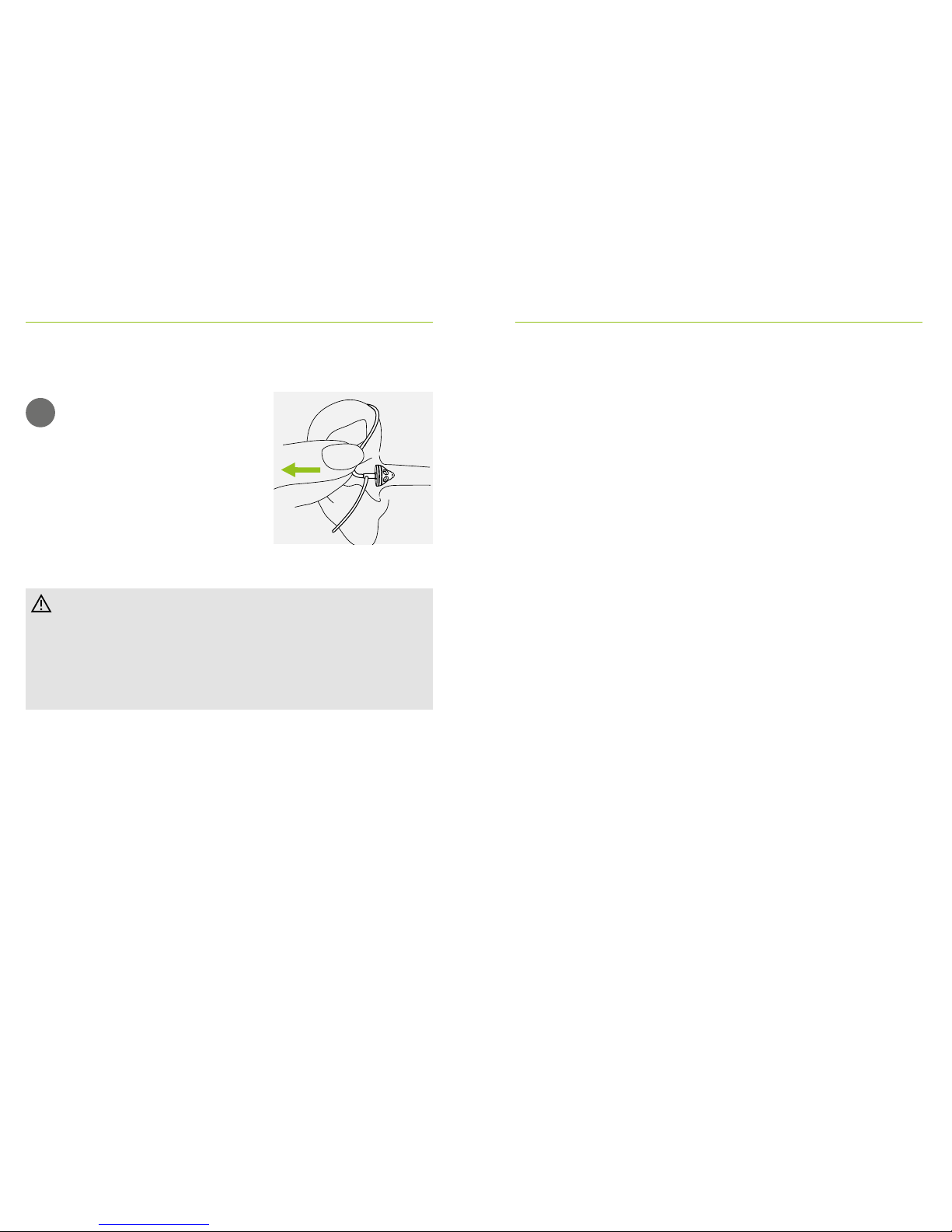

Pull on the bend of the tube
and remove the hearing aid
from behind the ear.
In very rare cases, your earpiece can remain in your
ear canal when removing the hearing aid from the
ear. In the unlikely case that the earpiece does get
stuck in your ear canal, it is strongly recommended
to see a medical specialist for safe removal.
10. Operating conditions
The product is designed such that it functions without
problems or restrictions if used as intended, unless
otherwise noted in these user guides.
Please ensure to charge the hearing aid and Power Pack
within operating temperature range: 0° to +40° Celsius
(32° to 104° Fahrenheit ) and atmospheric pressure range:
800 hPA to 1500 hPA.
Audéo B-R are classied IP68 (depth of 1 meter for
60 minutes) and designed to be used in all daily life
situations. Therefore you do not have to worry about
getting the hearing aids exposed to a rain shower or
sweat. However, Audéo B-R is not intended to be used in
water activities that includes chlorinated water, soap, salt
water or other liquids with a chemical content.
Humidity during operation for the Charger Case RIC, Mini
Charger RIC and Power Pack: : 0% to 85% (non
condensing).

26 27
11. Care and maintenance
Diligent and routine care of your hearing aid and chargers
contribute to outstanding performance and a long service
life.
Please use the following specications as a guideline.
Further information regarding product safety, see
chapter 18.2.
General information
Before using hair spray or applying cosmetics, you should
remove your hearing aid from your ear, because these
products may damage it.
Your hearing aids are resistant to water, sweat and dust
under the following conditions:
• After exposure to water, sweat or dust, the hearing aid
is cleaned and dried.
• The hearing aid is used and maintained as described in
this user guide.
Always make sure that the hearing aids and
charger are dry and clean before charging.
Daily
Hearing aid: Inspect the earpiece for earwax and
moisture deposits. Clean the surfaces with a lint-free
cloth or use the small brush provided in the Charger Case
RIC. Never use cleaning agents such as household
detergents, soap, etc. for cleaning your hearing aid. It is
not recommended to rinse with water. If you need to
clean your hearing aid intensively, ask your hearing care
professional for advice and information on lters or
drying capsules.
Chargers: Make sure that charger inserts are clean.
Never use cleaning agents such as household detergents,
soap, etc. for cleaning your charger.
Weekly
Hearing aid: Clean the earpiece with a soft, damp cloth
or with a special cleaning cloth for hearing aids. For more
in-depth maintenance instructions or for more than basic
cleaning, please see your hearing care professional. Clean
the charging contacts on the hearing aid with a soft,
damp cloth.
Chargers: Remove dust or dirt from the charger inserts.

28 29
12. Exchanging the earwax protection
Your hearing aid is equipped with an earwax protection to
protect the speaker from earwax damage.
Please check the earwax protector regularly and exchange
it if it looks dirty or if the hearing aid volume or sound
quality is reduced. The earwax protection should be
replaced every four to eight weeks.
1
Remove the earpiece from the
speaker by holding the speaker
in one hand and the earpiece in
the other.
12.1 Removing the earpiece from the speaker
2
Gently pull on the earpiece
to remove.
3
Clean the speaker with a
lint-free cloth.

30 31

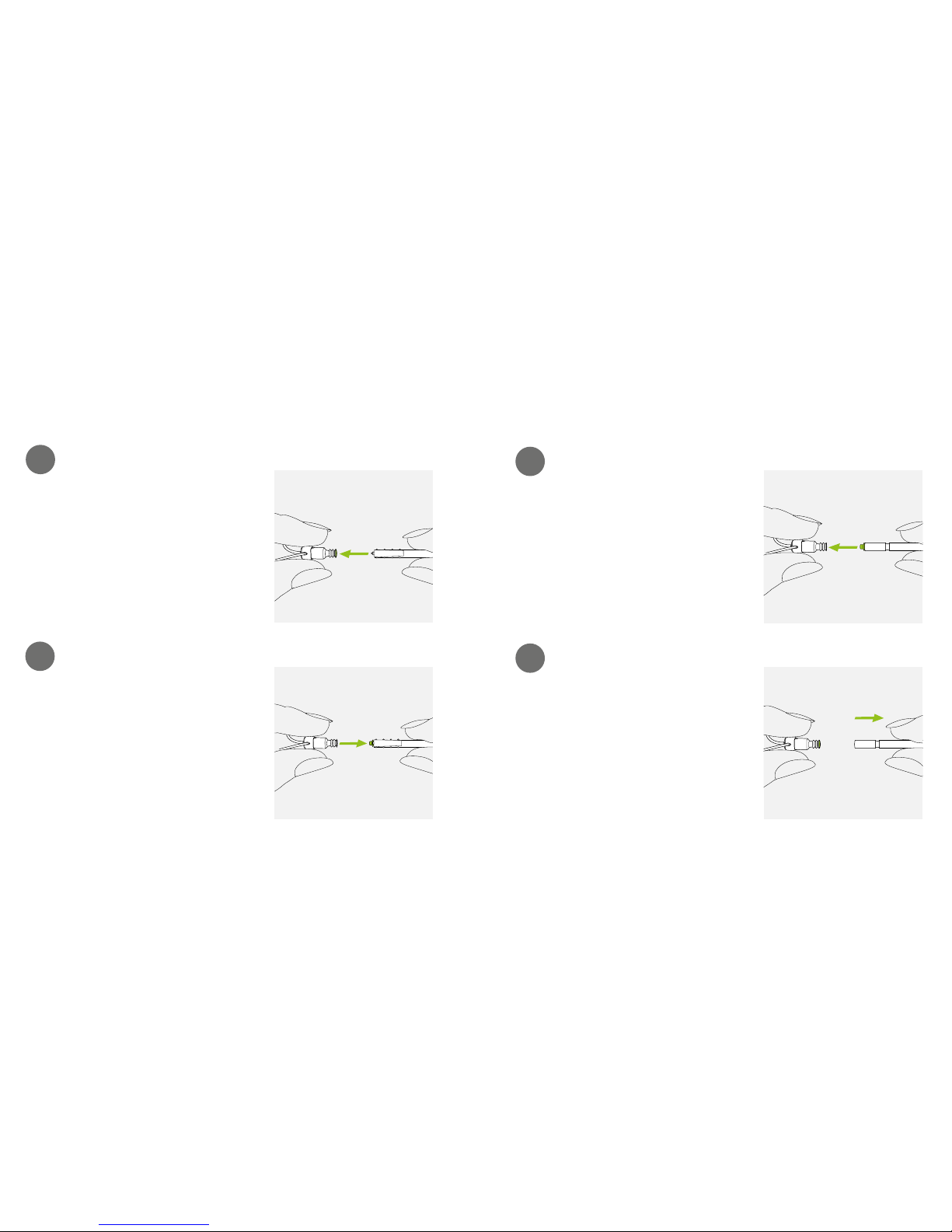

1
Insert the removal side of the
exchange tool into the used
earwax protector. The shaft of
the holder should touch the rim
of the earwax protector.
12.2 Exchanging the earwax protection
2
Carefully pull and remove the
earwax protector straight out of
the speaker. Please do not twist
the earwax protector when
removing.
3
To insert the new earwax
protector, gently push the
insertion side of the exchange
tool straight into the hole of the
speaker until the outer ring is
perfectly aligned.
4
Pull the tool straight out.
The new earwax protector will
remain in place. Now attach
your earpiece to the speaker.

32 33

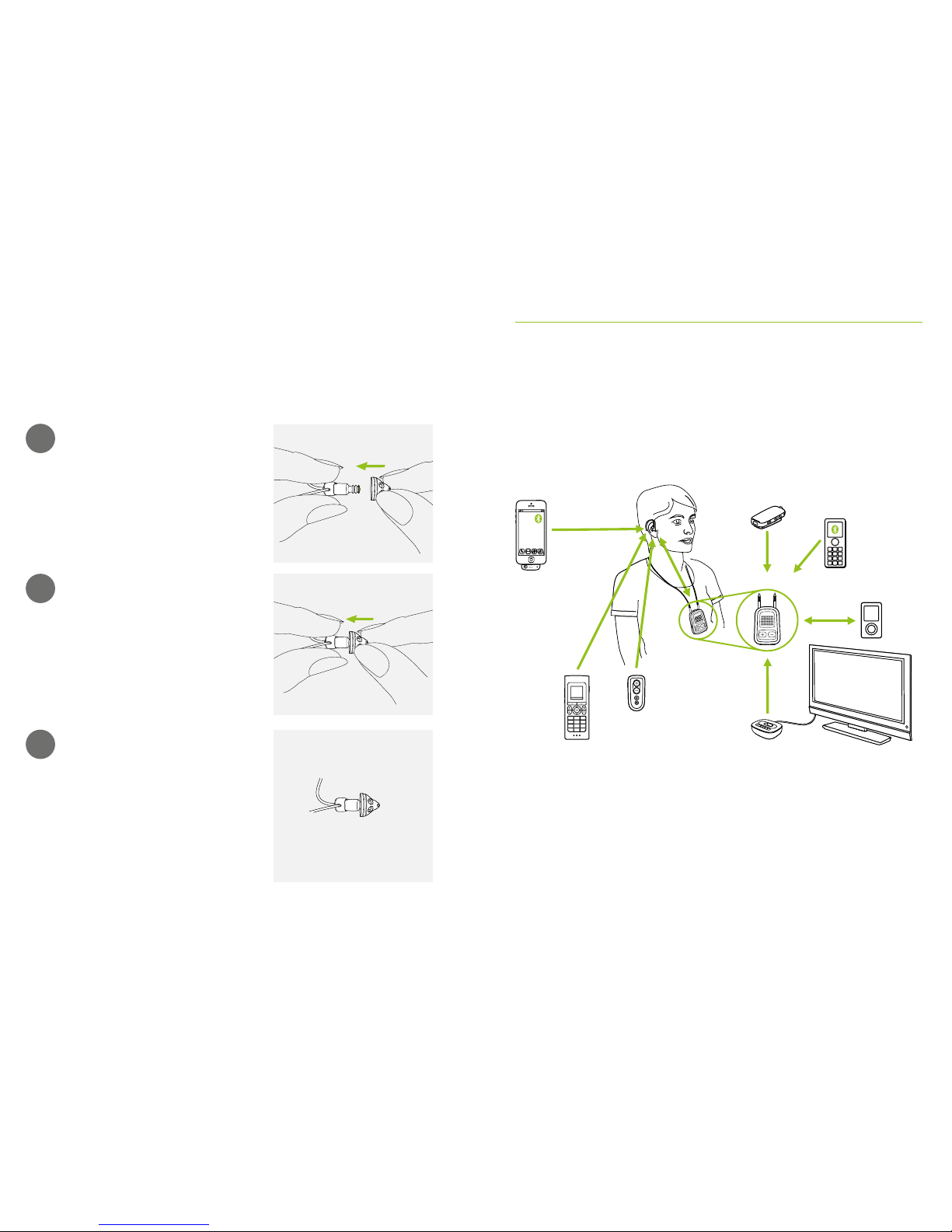

1
Hold the speaker in one hand
and the earpiece in the other.
12.3 Attaching the earpiece to the speaker
2
Slide the earpiece over the
speaker sound outlet.
3
The speaker and the earpiece
should t perfectly together.
13. Wireless accessories
A range of Phonak wireless accessories are available for
you to use with your hearing aid.
* The Phonak ComPilot II with neckloop or ComPilot Air II with clip to attach to clothing. They
also have basic remote control functionalities. For advanced control they can be used with the
Phonak RemoteControl App.
** Audio sources (e.g. MP3 Player, computer, laptop, tablet) can be connected to the streaming
device via Bluetooth or audio cable.
*** Clipped onto the speaker’s clothing for better understanding over distance.
Cell phone
Phonak streaming device*
Phonak EasyCall II
with cell phone
Phonak RemoteMic***
MP3 Player/
Audio source**
Phonak TVLink II connected to TV
Phonak PilotOne II
remote control
Phonak DECT phone II

34 35
14. Service and warranty
Local warranty
Please ask the hearing care professional where you
purchased your hearing aids and chargers about the
terms of the local warranty.
International warranty
Phonak oers a one year limited international
warranty, valid from the date of purchase. This
limited warranty covers manufacturing and material
defects in the hearing aid and chargers respectively,
but not accessories such as tubes, earpieces, external
receivers. The warranty only comes into force if a
proof of purchase is shown.
The international warranty does not aect any legal
rights that you might have under applicable national
legislation governing sale of consumer goods.
Warranty limitation
This warranty does not cover damage from improper
handling or care, exposure to chemicals or undue stress.
Damage caused by third parties or non-authorized service
centers renders the warranty null and void. This warranty
does not include any services performed by a hearing care
professional in their oce.
Serial numbers
Hearing aid left side:
Hearing aid right side:
Charger Case RIC:
Power Pack:
Mini Charger RIC:
Date of purchase:
Authorized hearing care
professional (stamp/signature):

36 37
Europe:
Declaration of Conformity for the hearing aid
Hereby Phonak AG declares that this Phonak product
meets the requirements of the Medical Devices Directive
93/42/EEC as well as the Radio and Telecommunications
Terminal Equipment Directive 1999/5/EC. The full text of
the Declaration of Conformity can be obtained from the
manufacturer or the local Phonak representative whose
address can be taken from the list on www.phonak.com
(Phonak worldwide locations).
Australia/New Zealand:
Indicates a device’s compliance with applicable
Radio Spectrum Management’s (RSM) and
Australian Communications and Media Authority
(ACMA) regulatory arrangements for the legal
sale in New Zealand and Australia.
The compliance label R-NZ is for radio products
supplied in the New Zealand market under
conformity level A1.
15. Compliance information
The wireless models listed on page 2 are certied under:
Phonak Audéo B-R (B90/B70/B50)
USA FCC ID: KWC-RICR
Canada IC: 2262-RICR

38 39
Notice 1:
This device complies with Part 15 of the FCC Rules and
with RSS-210 of Industry Canada. Operation is subject to
the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired operation.
Notice 2:
Changes or modications made to this device not
expressly approved by Phonak may void the FCC
authorization to operate this device.
Notice 3:
This device has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules and ICES-003 of Industry Canada.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This device generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this device does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device
and receiver.
• Connect the device into an outlet on a circuit
dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
