Introduction
PHYTEC Meßtechnik GmbH 2000 L-525e_2 3
1Introduction
The PHYTEC phyCORE Development Board, in EURO-card
dimensions (160 x 100 mm.), is a universal carrier board for start-up
and programming of the PHYTEC phyCORE-MPC555 Single Board
Computer module with two high density SMT (160 pins each, 0.63
mm. pitch) pin header connectors. The Development Board is fully
equipped with all mechanical and electrical components necessary for
the speedy and secure insertion and subsequent programming of the
high density PHYTEC phyCORE module. These components include
DB-9, DB-25, VG-96 and power socket connectors. The phyCORE
module can be plugged like a “big chip” onto the Development
Board’s pin header receptacles. Once programmed, the phyCORE
module can be removed from the Development Board and inserted
like a “big chip” in a target hardware application.
The following phyCORE Single Board Computer modules can be
used in conjunction with the Development Board:
•phyCORE-MPC555
The hardware manual for this Development Board does not describe
in detail the features of the phyCORE modules, which are not relevant
for the basic functioning of the Development Board. For module and
controller-specific features please refer to the corresponding hardware
manuals/User’s Manuals.

Development Board for phyCORE-MPC555
4PHYTEC Meßtechnik GmbH 2000 L-525e_2
The Development Board offers the following features:
•Reset push-button, configurable via jumper for different Reset
signals
•IRQ push-button, configurable via jumper for different interrupts
•Wake-Up push-button
•Boot jumper to select internal or external FLASH memory
•Jumper to enable the programming voltage for internal FLASH
memory
•Reset jumper to choose between internal and external Reset
configuration
•two software programmable LED’s (red/green)
•LED’s for power monitoring
•LED to monitor debug or run mode
•power supply for unregulated input voltage from 7 V to 13 V. It
supplies regulated +5V, +3.3V for the phyCORE-MPC555.
Additional +5V is created for the VG96-connector.
•VG-96 connector with all I/O-signals of the MPC555
•two standard width pin header rows (3x54) which provide all
phyCORE-MPC555 signals
•two DB-9 sockets for RS-232 interface
•two DB-9 plugs for two separate CAN interfaces with configurable
terminating resistors
•DB-25 plug for BDM interface to support direct connection to PC
printer-port
•2 x 5 standard width pin header rows to support other BDM-
interfaces

Introduction
PHYTEC Meßtechnik GmbH 2000 L-525e_2 5
1.1 Development Board Block Diagram
terminator
terminator
all reset signals
j
umper field
j
umper field
phyCORE-
connector
TPU, MDA,
ADC, QGPIO,
RS232, IRQ
MPIO1
MPIO0
power control
5V
3.3V
5V
7..13V DC VG96
connector
Extension connector
6x54 pin
2.54 mm width
BDM-interface
DB25
debug/run
PC
printer port
DSUB-P2
all signals of
phyCORE -
connector X1
/IRQ[0..7]
LED
D8
LED
D9
LED
D10
Reset
Switch S2
IRQ
Switch S5
Wake-UP
Switch S1
LED
D11
LED
D4 LED
D5
CAN_0
RS232_0
RS232_1
CAN_1
DSUB-P5DSUB-P4DSUB-P3
power connector

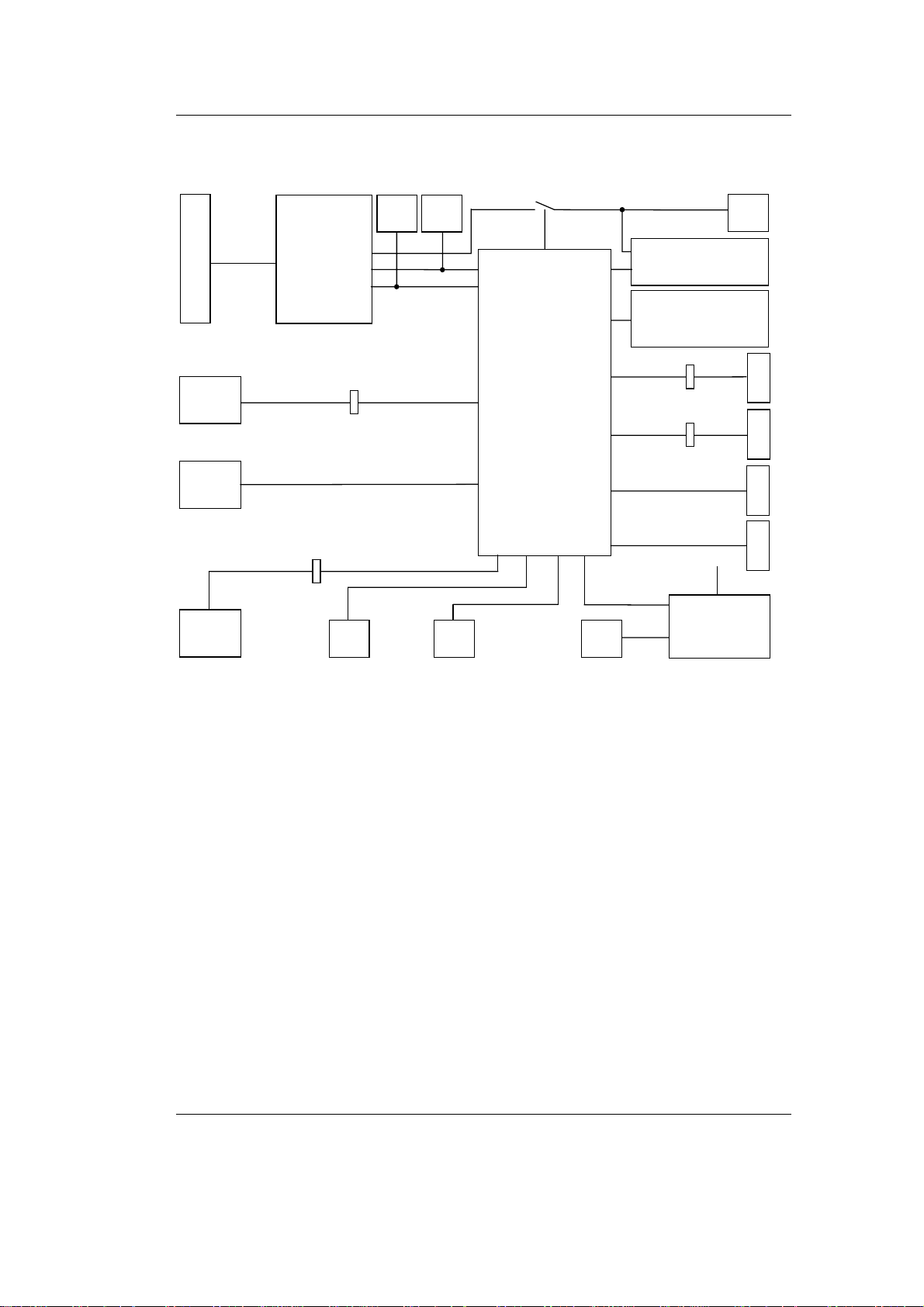

Figure 1: Block Diagram of the Development Board

Development Board for phyCORE-MPC555
6PHYTEC Meßtechnik GmbH 2000 L-525e_2
1.2 Overview of the Development Board

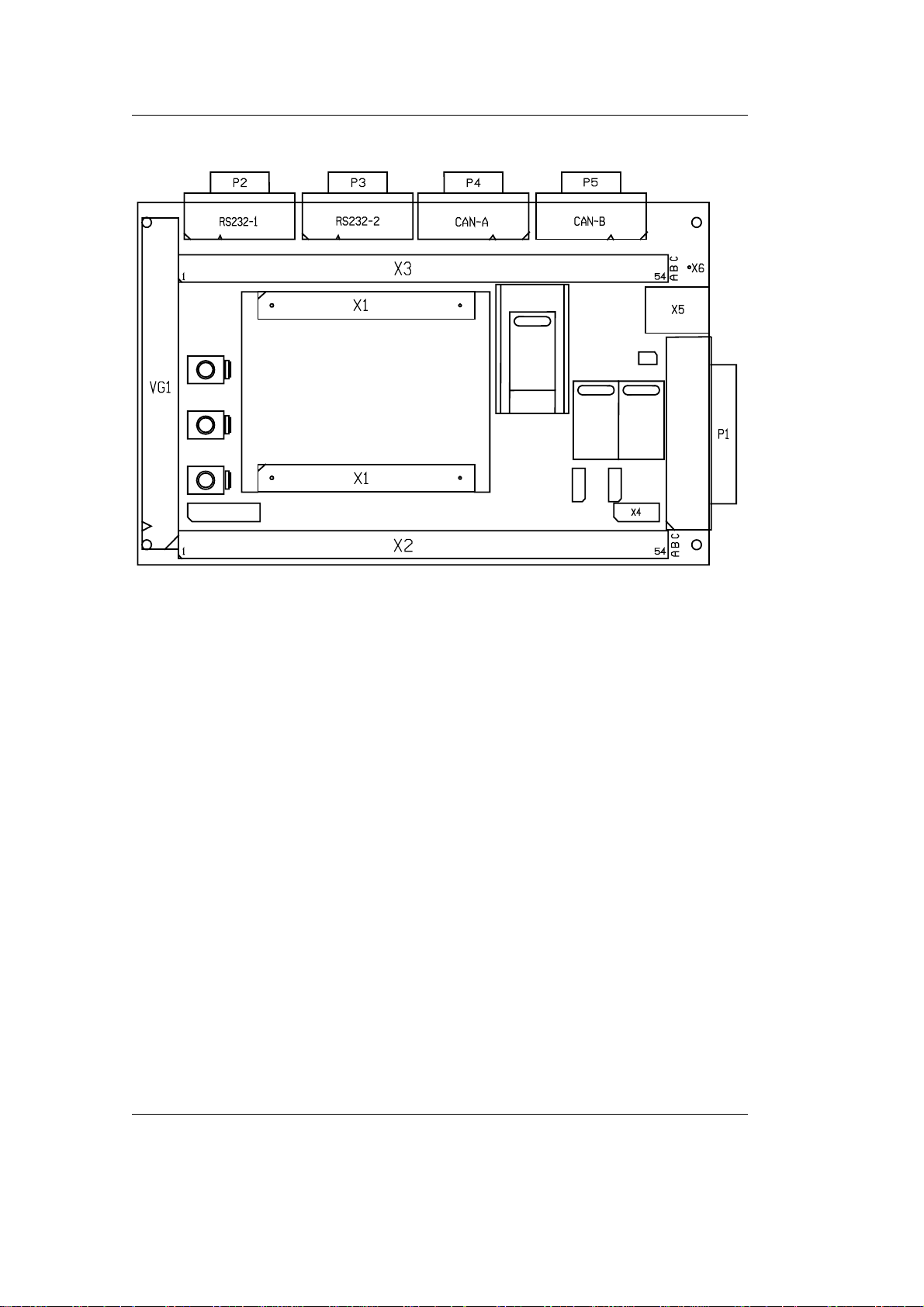

Figure 2: Development Board Overview (component side)

Development Board Connectors
PHYTEC Meßtechnik GmbH 2000 L-525e_2 7
2Development Board Connectors
Please note that all connections are not to exceed their expressed
maximum voltage or current. Maximum signal input values are
indicated in the corresponding controller manuals/data sheets. As
damage from improper connections varies according to use and
application, it is the user’s responsibility to take appropriate safety
measures to ensure that the module connections are protected from
overloading through connected peripherals.
As depicted below, the following connectors are available on the
Development Board:
•X1 – receptacle to install PHYTECs phyCORE-MODULs,
•X2 and X3 – 2,54mm standard width pin header rows for
extension boards, providing all signals of the phyCORE connector
X1,
•X4 – 2 x 5 2,54 mm standard width pin header row to feed an
external BDM interface,
•X5 – low voltage power source connector,
•VG1 – VG-96 periphery connector,
•P1 – DB-25 plug of the onboard BDM-Interface,
•P2 and P3 – DB-9 sockets for both RS-232 interfaces,
•P4 and P5 – DB-9 plugs for both CAN interfaces.

Development Board for phyCORE-MPC555
8PHYTEC Meßtechnik GmbH 2000 L-525e_2
Figure 3: Location of the Connectors

Development Board Connectors
PHYTEC Meßtechnik GmbH 2000 L-525e_2 9
2.1 Power Connectors X5
To provide power to the Development Board the low voltage socket
at X5 must be used
Attention:
Please do not use a laboratory or variable power supply, as power
spikes during power-up could destroy the PHYTEC module mounted
on the Development Board.
Please also avoid changing Jumpers or modules while the
Development Board is powered up.
2.1.1 Connection via the Low Voltage Socket X5
An unregulated power supply with the following characteristics can
be connected to the Development Board at low voltage socket X5.
DC input voltage range: 7V to 13V
recommended power supply: 9V@1000mA
(without additional periphery: 9V@500mA minimum)
The on-board power-regulation consists of two paths. One path to
generate +5 V and +3.3 V (U3 and U4) for the phyCORE module and
the other path to generate +5V (U5) that supplies the VG-96
periphery connector. To feed the regulated voltages jumpers
JP11/JP12 (+5V/+3.3V to phyCORE) and JP10 (+5 VEXT to VG-96)
must be closed. +5 VEXT can be switched with FET T1 which is
controlled by the /PWRON signal of the phyCORE-MPC555. This
allows to switch off any peripheral circuitry attached to the I/O
connector VG1 if the target module goes into power down mode. If
+5 VEXT is required constantly J1 must be closed (i.g. FET T1 is by-
passed).
The status of each output voltage is monitored by a LED.
LED D9: +5 V for phyCORE-MPC555
LED D10: +3.3 V for phyCORE-MPC555
LED D11: +5 VEXT for the VG-96 connector

Development Board for phyCORE-MPC555
10 PHYTEC Meßtechnik GmbH 2000 L-525e_2
•The maximum total power dissipation of the +5 V/+3V3 path must
not exceed 5 Watt. The current is limited by the input EMI-filter to
600 mA.
5 Watt > (input voltage – 5 V) x total current
and
max total current < 600 mA
The nominal current consumption of phyCORE-MPC555 is about
400mA@3V3 and 100mA@5V. It is not recommended to supply
additional loads with these voltages.
For the maximum current of 600 mA the input voltage is limited to
13 V.
•The maximum power dissipation of the +5 VEXT path must not
exceed 2 Watt. The current is limited by the input EMI-filter to
600 mA.
2 Watt > (input voltage – 5V ) x current
and
max current < 600 mA
For 13 V input voltage, the maximum current allowed for +5 VEXT
path adds up to 250 mA.
If the power supply adapter that ships with the Development Board is
not used, ensure the right polarity of any other implemented power
supply as depicted in the figure below.
+7V=..13V=
GND
1000mA center hole
2,0mm 5,5mm
-+
polatity:
Figure 4: Polarity of the Power Connector at X5

Development Board Connectors
PHYTEC Meßtechnik GmbH 2000 L-525e_2 11
2.2 DB-25 socket P1 – BDM Interface
The DB-25 socket (male) P1 connects the on-board BDM Interface
Logic to a PC’s printer port. To establish the connection, a standard
DB-25 male-female cable must be used. The cable length must be less
than 2m.
A set of associated jumpers are available to configure the on-board
BDM interface.
Two LED’s display the status of the target. While the phyCORE is
held in debug mode, D11 is illuminating.
2.3 DB-9 sockets P2 and P3 – RS-232 Interfaces
The DB-9 sockets at P2 and P3 can be used as RS-232 interfaces.
P2 corresponds to MPC555 UART 1 and P3 to MPC555 UART 2.
The pinout is shown in the figure below:

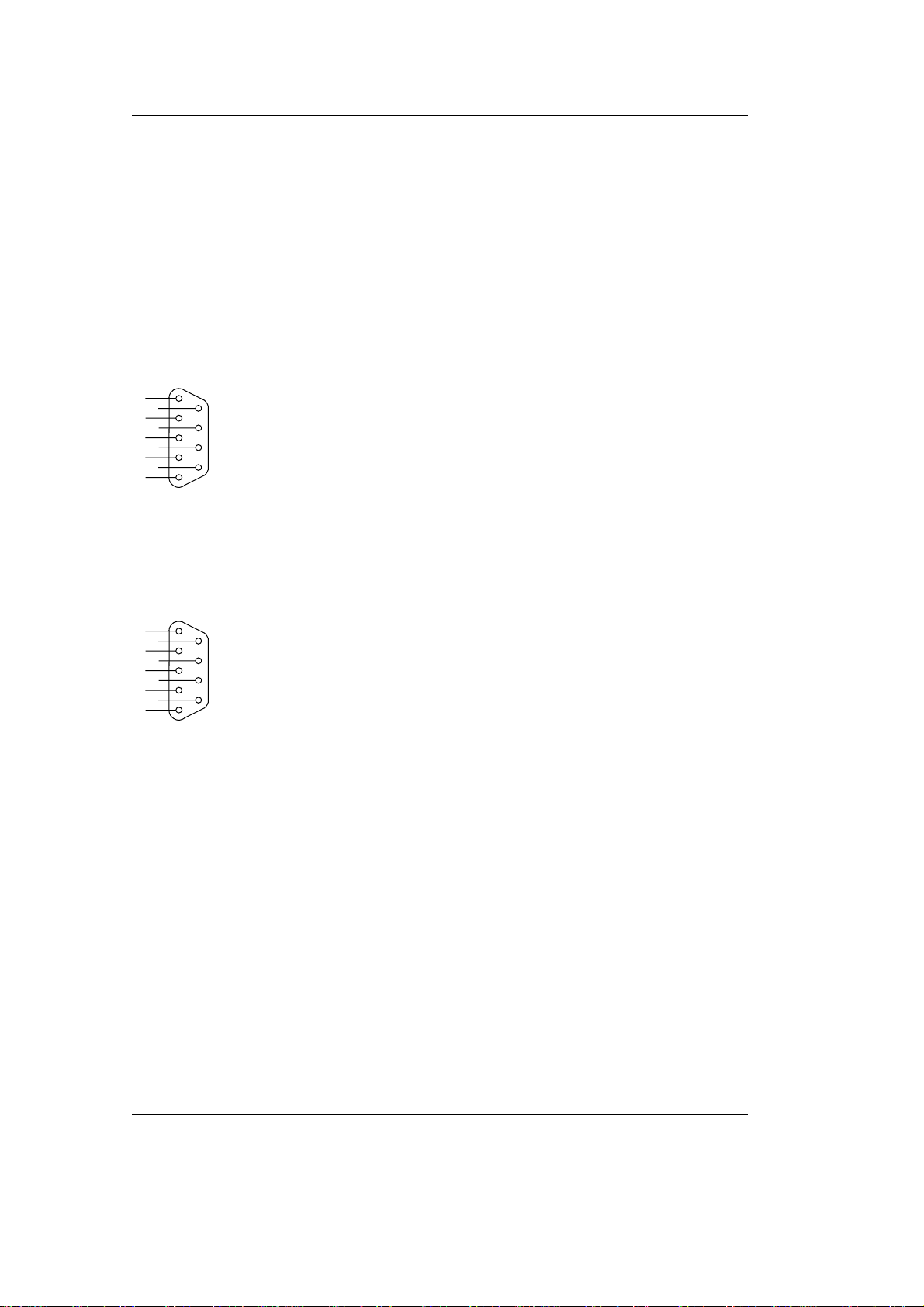

DB-9 socket P2
Pin 2: TXD1 (RS-232)
Pin 3: RXD1 (RS-232)
Pin 5: GND
Figure 5:Pinout of DB-9 socket P2 (front view)
DB-9 socket P3
Pin 2: TXD2 (RS-232)
Pin 3: RXD2 (RS-232)
Pin 5: GND
Figure 6: Pinout of DB-9 socket P3 (front view)
1
2
3
4
7
6
5
8
9
1
2
3
4
7
6
5
8
9

Development Board for phyCORE-MPC555
12 PHYTEC Meßtechnik GmbH 2000 L-525e_2
2.4 DB-9 plugs P4 and P5 – CAN Interfaces
The DB-9 plugs at P4 and P5 can be used as CAN interfaces.
P4 corespondents to MPC555 CAN channel A and P5 to MPC555
CAN channel B.
The pinout is shown in the figure below:

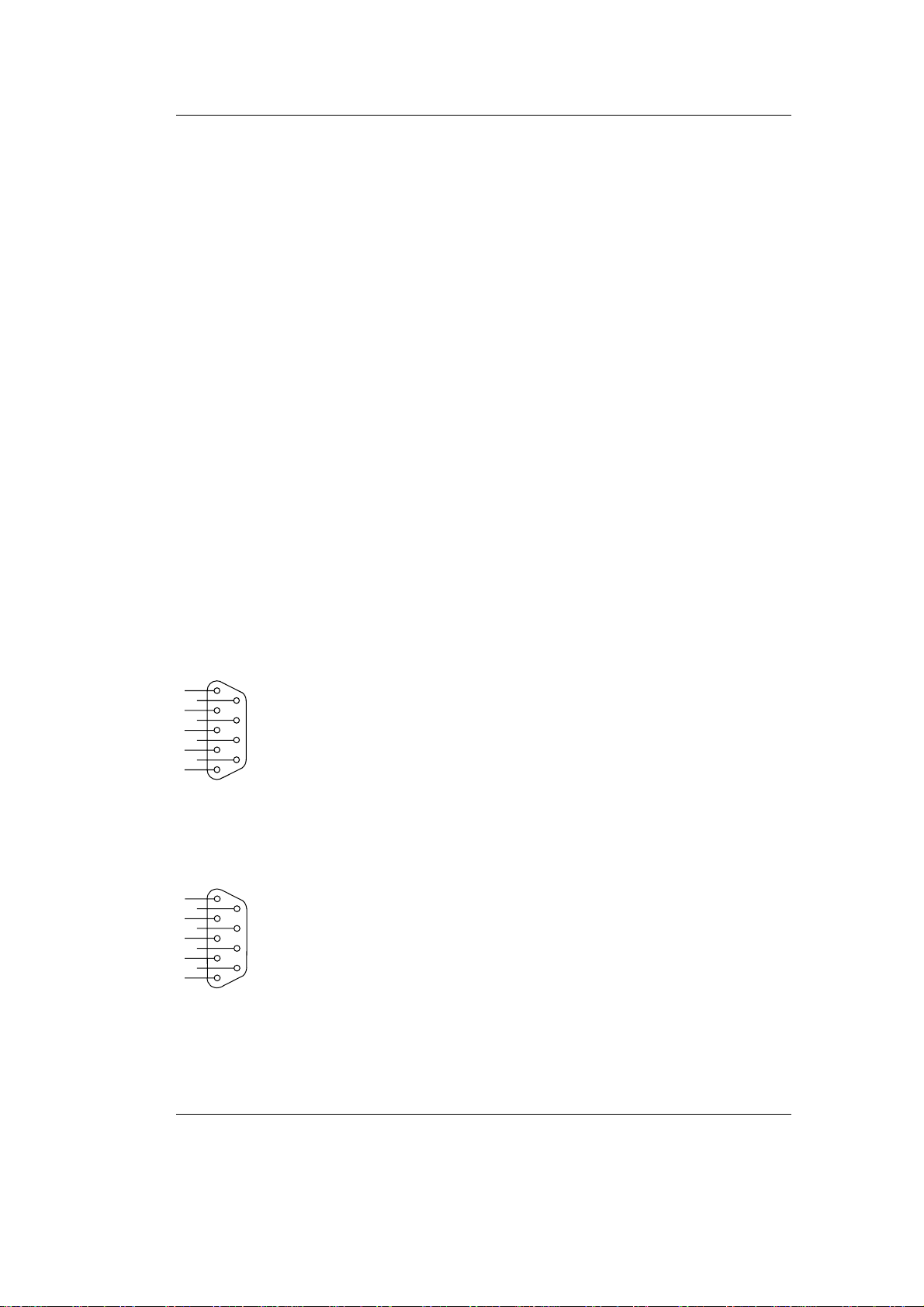

DB-9 plug P4
Pin 2: A_CANL
Pin 7: A_CANH
Pin 3,6: GND
Figure 7:Pinout of the DB-9 plug at P4 (front view)
DB-9 plug P5
Pin 2: B_CANL
Pin 7: B_CANH
Pin 3,6: GND
Figure 8:Pinout of the DB-9 plug at P5 (front view)
For each CAN channel a terminating resistor of 120R is configurable
via jumper. Closing Jumper JP13 terminates CAN channel A (P4),
while closing Jumper JP14 terminates CAN channel B (P5).
1
2
3
4
7
6
5
8
9
1
2
3
4
7
6
5
8
9

Development Board Connectors
PHYTEC Meßtechnik GmbH 2000 L-525e_2 13
2.5 VG-96 I/O-Connector VG1
The I/O-Connector VG1 is a standard 96 pin (3 x 32 A-B-C, male)
DIN41612 connector.
AB C
1 GND 33 GND 65 GND
2 nc 34 /IRQ2 66 /IRQ3
3 /IRQ4 35 B_CNRX 67 B_CNTX0
4 RXD2_TTL 36 TXD2_TTL 68 B_TPU0
5 B_TPU1 37 B_TPU2 69 B_TPU3
6 B_TPU4 38 B_TPU5 70 B_TPU6
7 B_TPU7 39 B_TPU8 71 B_TPU9
8 B_TPU10 40 B_TPU11 72 B_TPU12
9 B_TPU13 41 B_TPU14 73 B_TPU15
10 B_T2CLK 42 A_T2CLK 74 A_TPU0
11 A_TPU1 43 A_TPU2 75 A_TPU3
12 A_TPU4 44 A_TPU5 76 A_TPU6
13 A_TPU7 45 A_TPU8 77 A_TPU9
14 A_TPU10 46 A_TPU11 78 A_TPU12
15 A_TPU13 47 A_TPU14 79 A_TPU15
16 VRH 48 GNDA 80 A_AD0
17 A_AD1 49 A_AD2 81 A_AD3
18 A_AD4 50 A_AD5 82 A_AD6
19 A_AD7 51 A_AD8 83 A_AD9
20 A_AD10 52 A_AD11 84 A_AD12
21 A_AD13 53 A_AD14 85 A_AD15
22 ETRIG1 54 MDA0 86 MDA1
23 MDA2 55 MDA3 87 MDA4
24 MDA5 56 MDA6 88 MDA7
25 MDA8 57 MDA9 89 MPWM0
26 MPWM1 58 MPWM2 90 MPWM3
27 MPIO8 59 MPIO9 91 MPIO10
28 MPIO11 60 MPIO12 92 MPIO13
29 MPIO14 61 MPIO15 93 QGPIO0
30 QGPIO1 62 QGPIO2 94 QGPIO3
31 QGPIO4 63 QGPIO5 95 QGPIO6
32 +5VEXT 64 +5VEXT 96 +5VEXT
Table 1: Pinout of the I/O connector VG1

Development Board for phyCORE-MPC555
14 PHYTEC Meßtechnik GmbH 2000 L-525e_2
The +5VEXT supply voltage is generated by the regulator U5. +5 VEXT
can be switched with FET T1 which is controlled by the /PWRON
signal of the phyCORE-MPC555. This allows to switch off any
peripheral circuitry attached to the I/O connector VG1 if the target
module goes into power down mode. If +5 VEXT is required constantly
J1 must be closed (i.g. FET T1 is by-passed).
•The maximum power dissipation of the +5VEXT path must not
exceed 2 Watt. The current is limited by the input EMI-filter to
600mA.
2 Watt > (input voltage – 5V) x current
and
max current < 600mA
For 13V input voltage, the maximum current allowed for the +5VEXT
path amounts to 250mA.
Additional information of the signals can be found in the
phyCORE-MPC555 Hardware-manual and in the Motorola User’s
Manual MPC555.

Jumper Layout
PHYTEC Meßtechnik GmbH 2000 L-525e_2 15
3Jumper Layout
To provide different signal configurations and operation modes, the
phyCORE-MPC555 has 18 insertable jumpers and 1 solderable
jumper. Figure 9 illustrates the numbering of the jumper-pads, while
Figure 10 indicates the location of the jumpers on the board.
Figure 9: Numbering of the Jumper-pads
Figure 10: Location of the Jumpers (top side)
eg.: JP18 eg.: JP1, JP3 eg.: JP2, JP15, .. eg.: JP17 eg.: J1, JP4 –JP14

Development Board for phyCORE-MPC555
16 PHYTEC Meßtechnik GmbH 2000 L-525e_2
The jumpers are grouped as follows:
•BDM interface related jumpers: JP1, JP2, JP5 to JP9, JP17
•Supply Voltage related jumpers: J1, JP10 to JP12
•Interrupt-Push-Button related jumper: JP18
•Reset-Push-Button related jumper: JP3
•Target configuration jumpers: JP4, JP13, JP16
•CAN bus termination jumper: JP13 and JP14
