Pichler AMELIA User manual

Montageanleitung
Instruction Manual # C5103
Technische Daten
Spannweite:
Länge:
Gewicht:
R/C Funktionen:
Servos (empfohlen):
Antrieb „Standard“ (empf.):
+Akku:
+Luftschraube:
Antrieb „Tuning“ (empf.):
+Akku:
+Luftschraube:
1520mm
1080mm
ab 1450g (flugfertig)
Seiten-, Höhen-, Querruder, Gas
4 x Servo DS 3012 [# C4995]
Brushless Combo Set BOOST 25 [#C4390]
LiPo Akku RED POWER 2200 [#C2158]
11*7 [#C2840]
oder:
Brushless Combo Set BOOST 40 [#C2983]
LiPo Akku RED POWER 3200 [#C3164]
12*8 [#C2843]
Specifications
Wingspan:
Length:
Weight:
R/C Functions:
Servos (recommended):
„Standard“ Power (rec.):
+Battery:
+Propeller:
„Tuning“ Power (rec.):
+Battery:
+Propeller:
1520mm
1080mm
from 1450g (flight-ready)
Rudder, Elevator, Aileron, Speed Control
4 x Servo DS 3012 [# C4995]
Brushless Combo Set BOOST 25 [#C4390]
LiPo Battery RED POWER 2200 [#C2158]
11*7 [C2840]
or:
Brushless Combo Set BOOST 40 [#C2983]
LiPo Battery RED POWER 3200 [#C3164]
12*8 [#C2843]
AmeliaAmelia
ARF ARF
ALMOST READY TO FLY
95% PRE BUILT
R/C Modellflugzeug in Holz-Fertigbauweise
Ergänzungen zu dieser Anleitung und neueste Infos unter:
www.pichler-modellbau.de/downloads
Latest Infos at: www.pichler-modellbau.de/downloads

AMELIA Instruction Manual
This instruction manual is designed to help you build a great flying aeroplane. Please read this
2
manual thoroughly before starting assembly of your AMELIA. Use the parts listing below to identify
all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C supplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
procedures designed to help the new pilot on his way to successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
Some more parts.
HARDWARE PACK
COWLING.
Landing gear.....
To avoid scratching your new airplane, do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the air-
craft and to protect the table. Keep a couple of
jars or bowls handy to hold the small parts af-
ter you open the bag.
Please trial fit all the parts. Make sure you have
the correct parts and that they fit and are aligned
properly before gluing! This will assure proper
assembly. AMELIAis hand made from
natural materials, every plane is unique and
minor adjustments may have to be made. How-
ever, you should find the fit superior and as-
sembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the follow-
ing:paint thinner, C/Aglue accelerator, C/Aglue
debonder and acetone. Do not let these chemi-
cals come in contact with the colors on the
covering and the plastic parts.
PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Tail section assembly
(1) Vertical stabilizer with pre-
installed rudder.
(1) Horizontal stabilizer with pre-
installed elevator halves.
SUGGESTION.
NOTE.

AMELIA INSTRUCTION MANUAL
+
3
This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+The glow plug clip must be securely attached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
the propeller.
SAFETY PRECAUTION.
MAIN PARTS
B. Wing panel.
C. Fuselage.
A. Cowling.
D . Horizon stabilizer.
F. Aluminium wing dihedral brace.
E.Vertical stabilizer.
SMALL PARTS
1.INSTALLING THE AILERON SERVOS.
I. AILERON.
1. Wheel
2. Main gear.
6. Plastic part gear set.
3. Gear fairing
4.Tail gear set.
C/A glue
1. 1.
2.
3. 4.
5. 6.
Bottom side Aileron
C/A glue
Bottom side
5.
5.PlywoodMotor Mounting Box and Mounting Plate.
A.
B.
B.
D.
E.
F.
C.

AMELIA Instruction Manual
2) Using a modeling knife, remove the cov-
ering at possition show below.
C/A glue
C/A glue
1) Install the rubber grommets and brass
eyelets onto the aileron servos.
1.INSTALLING THE AILERON SERVOS.
Remove
covering
Bottom of wing.
3) Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out, re-
move the masking tape and the servo lead
from the thread.
4) Drill 1,6mm pilot holes through the block
of wood for each of the four mounting screws
provided with the servo.
5. Instal servo tray with aileron servo into
the wing as same as picture below.
thread
Electric wire
4
Aileron
Bottom side

AMELIA INSTRUCTION MANUAL
5

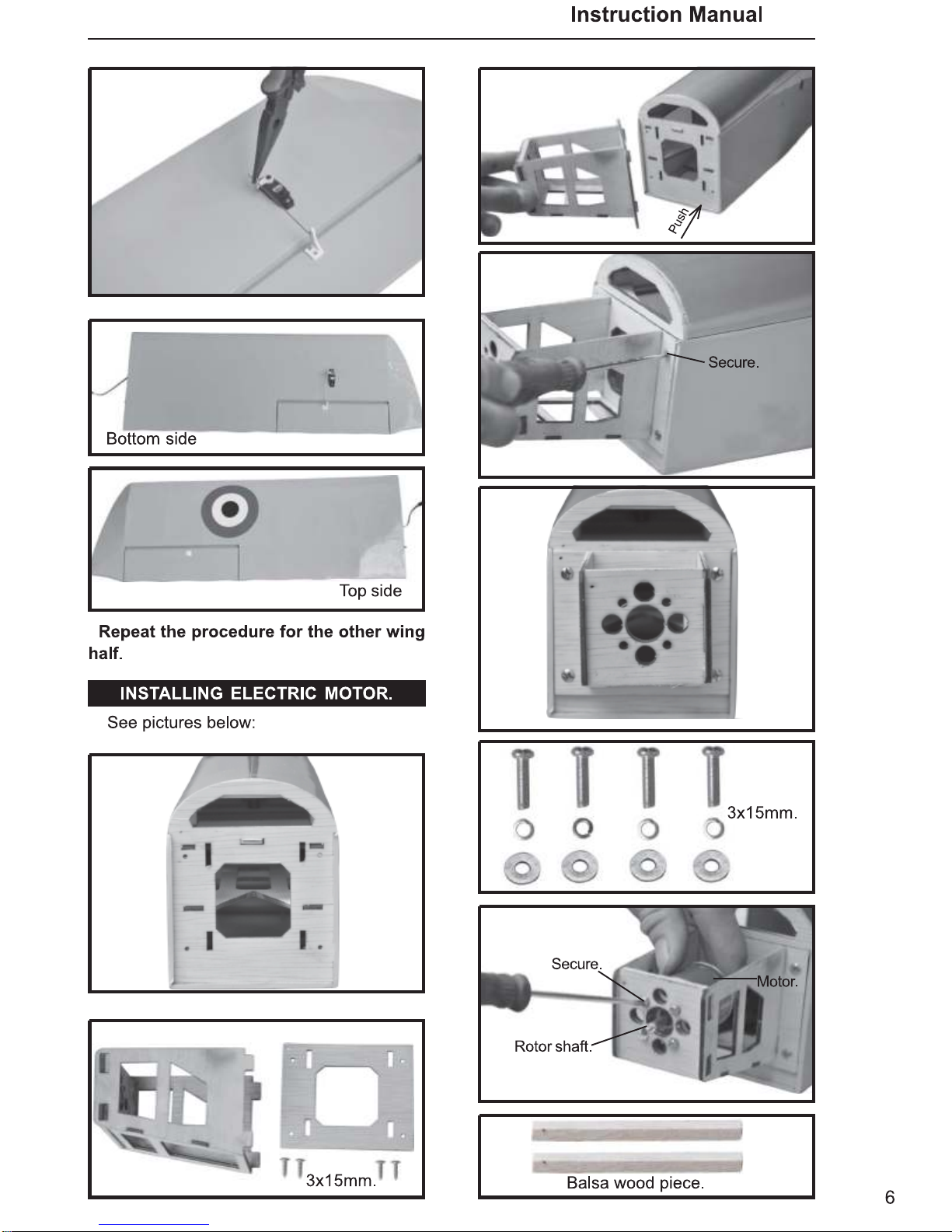

Repeat the procedure for the other wing
half.
INSTALLING THE AILERON
CONTROLHORN.
1) Using a ruler & pen to draw a straight
line as below picture.
2mm X 20mm.
Pen.
2) Insert aileron control horn to the aileron.
3) Drill two 2mm holes through the aileron
using the control horn as a guide and screw
the control horn in place.
Straitgh line.
Secure.
INSTALLING THE AILERON
LINKAGES.
Aileron pushrod.
Aileron pushrod.
Mark point

AMELIA

INSTRUCTION MANUAL
7
Epoxy glue.

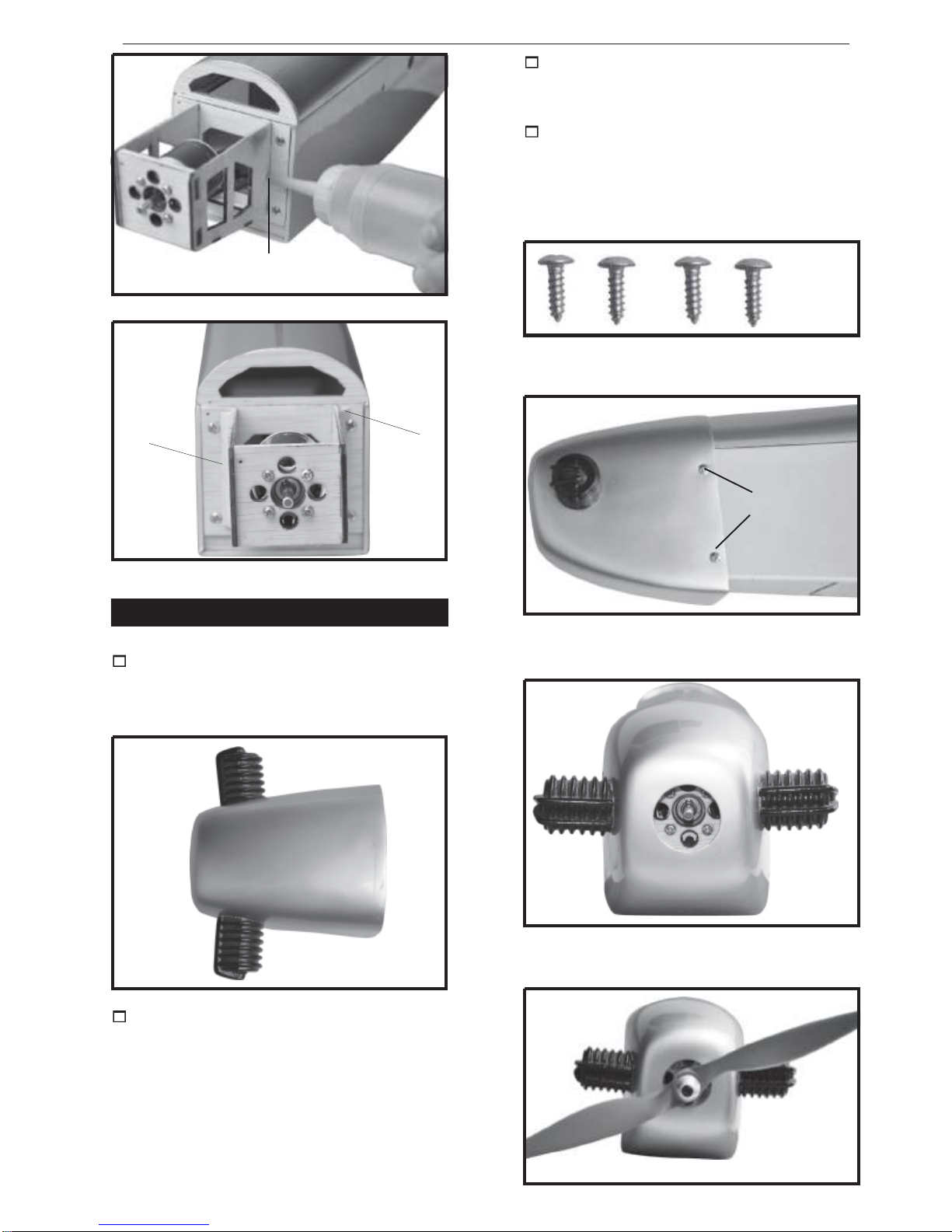

1. Slide the fiberglass cowl over the en-
gine and line up the back edge of the cowl with
the marks you made on the fuselage.
COWLING.
2. While keeping the back edge of the
cowl flush with the marks, align the front of
the cowl with the crankshaft of the engine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Hold the cowl firmly in place using
pieces of masking tape.
Front view.
3. Slide the cowl back over the engine
and secure it in place using four wood screws.
See picture below.
4. Install the muffler and muffler extension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve.
3x10mm.
Machine screw.
Left side
Front view.
AMELIA
Balsa
wood
piece Balsa
wood
piece

VINTAGE.
HORIZONTAL STABILIZER.
See pictures below:
C/A glue
C/A glue
C/A glue
8
C/A glue
Top side
1. Install the rubber grommets and brass
collets into the elevator servo.Test fit the servo
into the servo tray.
2. Mount the servo to the tray using the
mounting screws provided with your radio sys-
tem.
SERVO INSTALLATION.
ELEVATOR INSTALLATION.
Instruction Manual
Bottom side

INSTRUCTION MANUAL
9
C/A glue
C/A glue
1. Draw a center line onto the horizontal
stabilizer. Then slide the horizontal into the
fuselage.
2 Using a modeling knife, cut away the
covering from the fuselage for the stabilizer
and remove it.
Center line
Remove covering
3. Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a modeling
knife. When cutting through the cover-
ing to remove it, cut with only enough pres-
sure to only cut through the covering it’s
self. Cutting into the balsa structure may
weaken it. This could lead to possible fail-
ure during flight
4. When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
top and bottom of the stabilizer mounting area
and to the stabilizer mounting platform sides
in the fuselage. Slide the stabilizer in place and
re-align. Double check all of your measure-
ments one more time before the epoxy cures.
Removeany excessepoxy using a paper
towel and rubbing alcohol and hold the stabi-
lizer in place with T-pins or masking tape.
Remove covering
5. After the epoxy has fully cured, remove
the masking tape orT-pins used to hold the
stabilizer in place and carefully inspect the
glue joints. Use more epoxy to fill in any
gaps that were not filled previously and
clean up the excess using a paper towel and
rubbing alcohol.
Epoxy glue
AMELIA

Instruction Manual
10
C/A glue.
C/A glue.
C/A glue.
Elevator control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
ELEVATOR CONTROL HORN INSTALLA-
TION.
Secure
Elevator and rudder pushrod install as same
as the way of aileron pushrod.
ELEVATOR PUSHROD INSTALLATION.
M2 M2 lock nut.
2*12mm.
Drill a hole 2mm
diameter.
AMELIA

INSTRUCTION MANUAL
11
Rudder servo install as same as method of
elevator servo. See picture below:
VERTICAL INSTALLATION.
C/A glue
C/A glue
C/A glue
Elevator pushrod.
Rudder servo.
Elevator servo.
Elevator servo.
AMELIA

12
Instruction Manual
Mark line
Bottom side
Remove covering

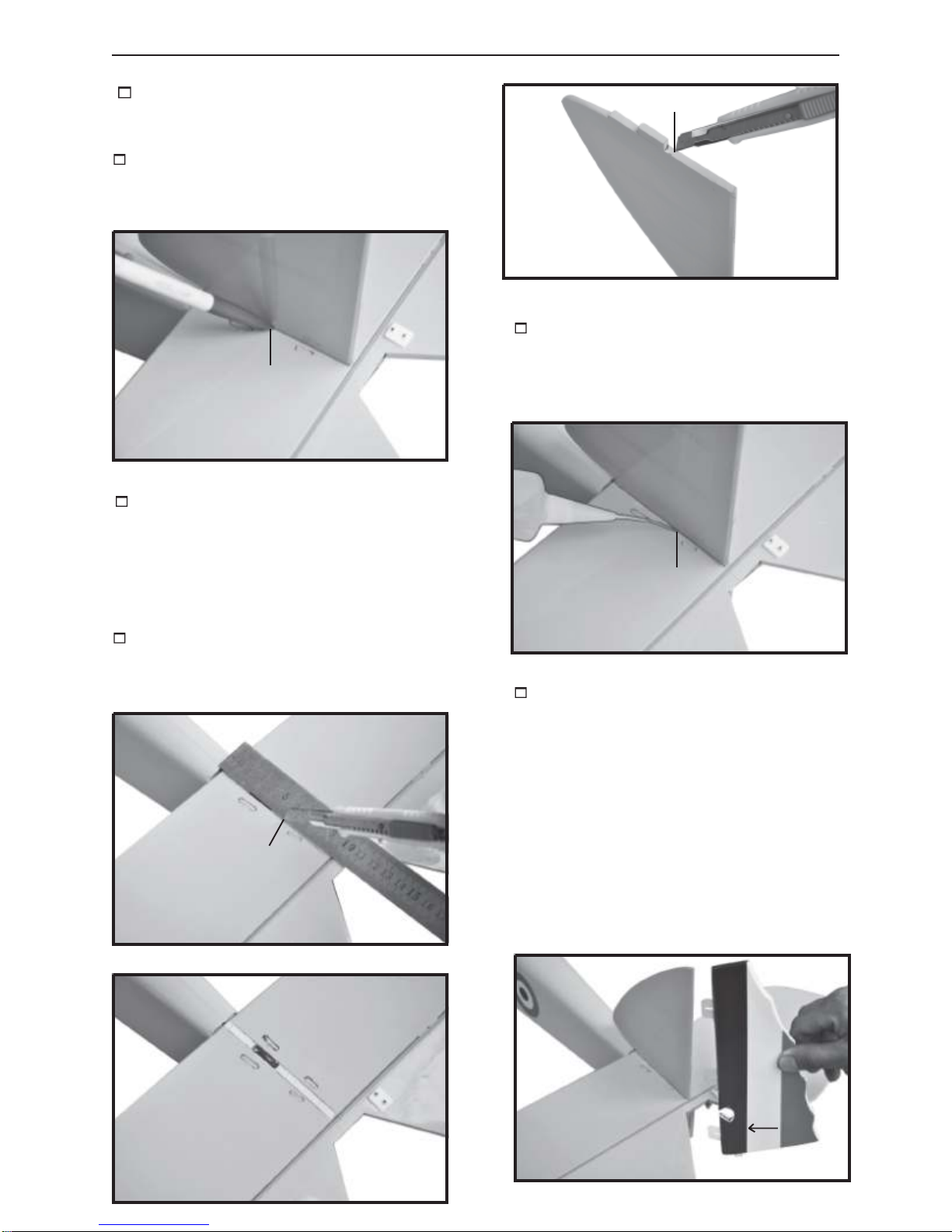

5. Put the vertical stabilizer back i n
place. Using a triangle, check to ensure
that the vertical stabilizer is aligned 90 de-
gree to the horizontal stabilizer.
6) When you are sure that everything is a
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
slot in the mounting platform and to the verti-
cal stabilizer mounting area. Apply epoxy to
the lower rudder hinge. Set the stabilizer in
place and re-align. Double check all of your
measurements once more before the epoxy
cures. Remove any excess epoxy using a
paper towel and rubbing alcohol and hold the
stabilizer in place withT-pins or maskingtape.
Allow the epoxy to fully cure before proceed-
ing.
C/A glue
3. Mark the shape of the vertical on the
left and right side of the rudder on to the hori-
zontal stabilizer using a felt-tip pen.
2. Put the rudder into the fuselage as
same as picture below.
4. Now, remove the rudder and using a
modeling knife, carefully cut just inside the
marked lines and remove the film of the rud-
der. Just as you did with the horizontal stabi-
lizer, make sure you only press hard enough
to cut the film, not the balsa rudder.
Also carefully remove the covering from
the horizontal fin as below the lines which
you drew as same picture below.
Remove covering
AMELIA

INSTRUCTION MANUAL
13
C/A glue

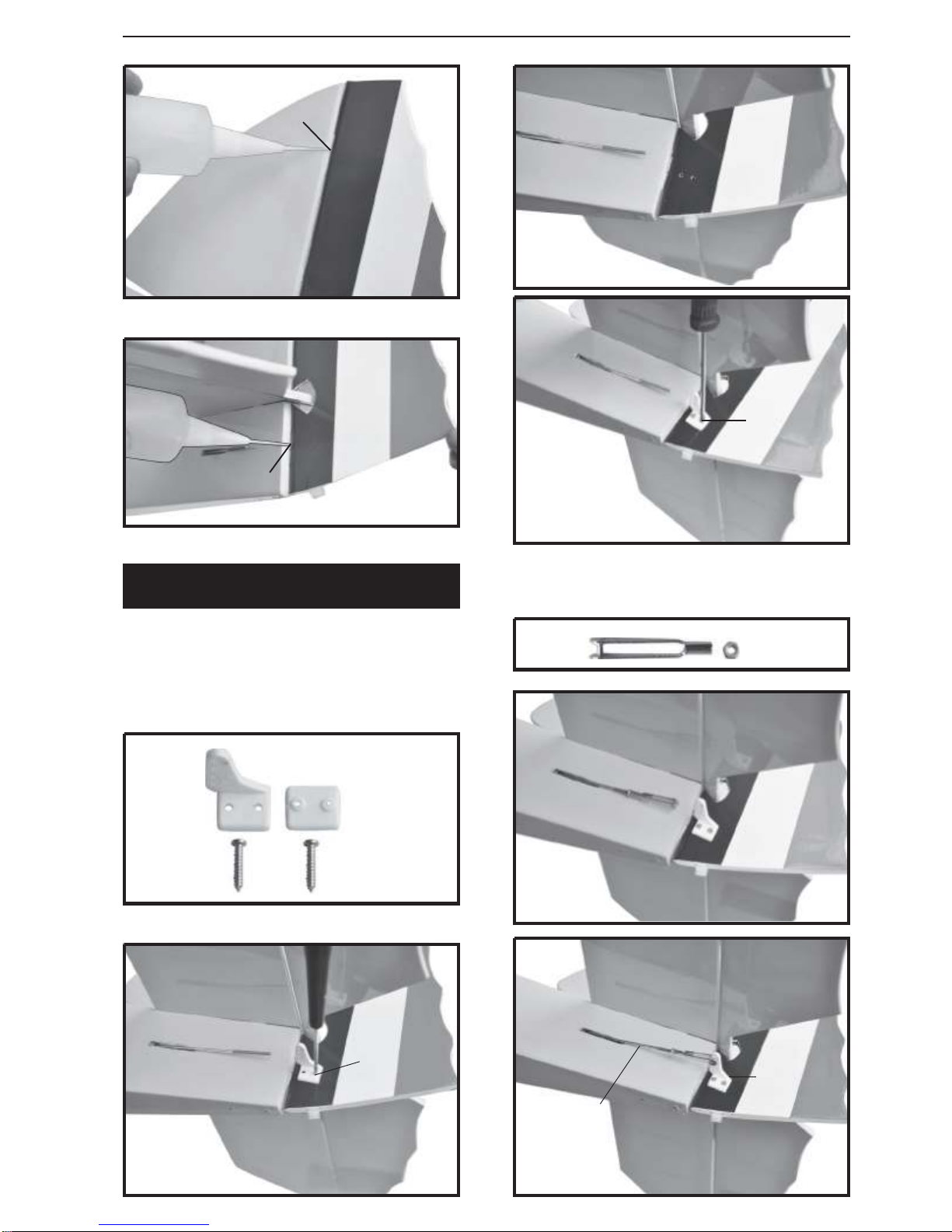

Rudder control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
RUDDER CONTROL HORN INSTALLA-
TION.
C/A glue
Drill a hole
2mm diameter
Secure
Rudder pushrod install as same as the way
of aileron pushrod.
RUDDER PUSHROD INSTALLATION.
2 x 12mm M2
M2 lock nut.
Rudder
pushrod.
Rudder
control horn
AMELIA

Instruction Manual
PARTS
14
REQUIRED

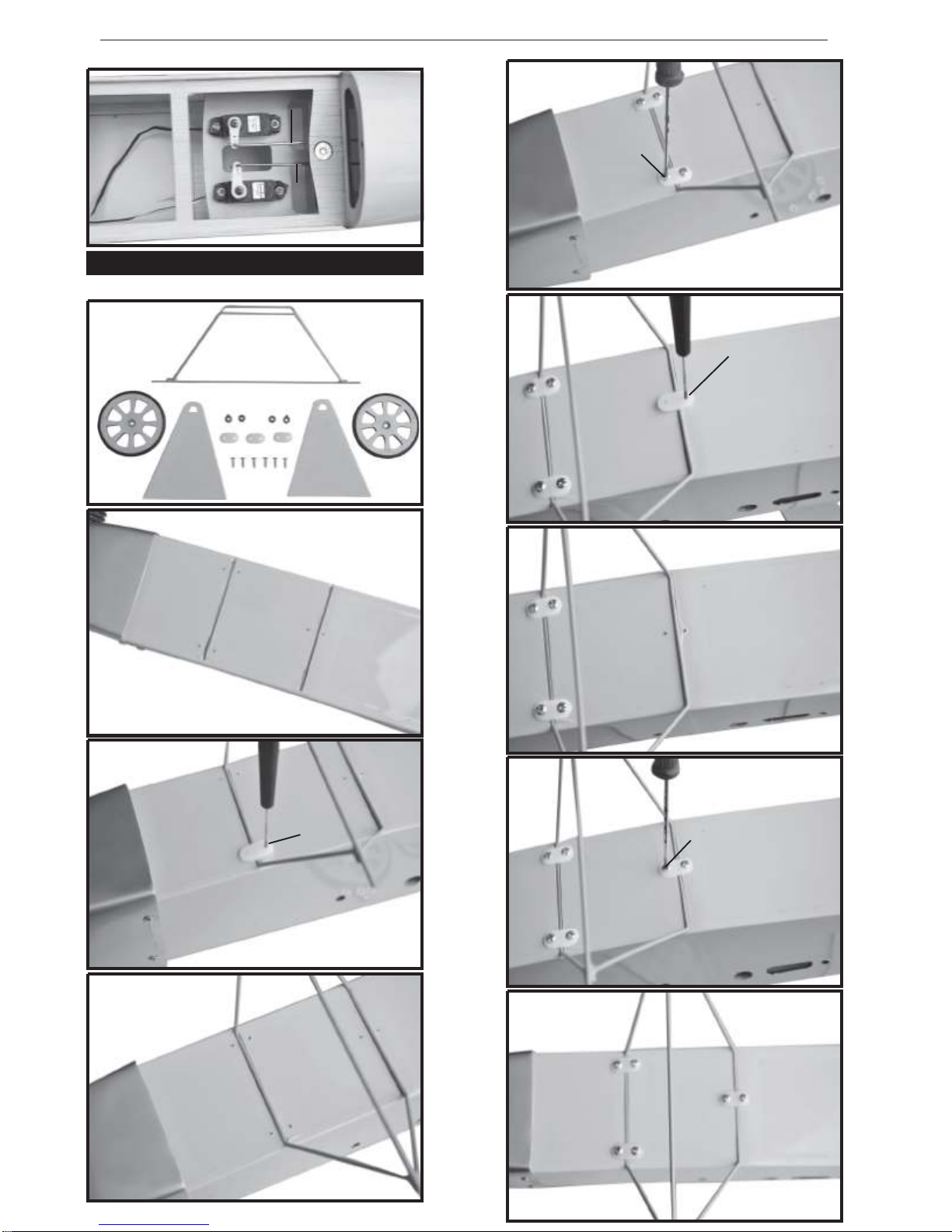

INSTALLING THE MAIN LANDING GEAR.
Secure
Drill a hole
2mm diametter
Elevator
pushrod.
Rudder
pushrod.
Rudder servo.
3 x 12mm
Mark point
Secure
AMELIA

INSTRUCTION MANUAL
15
Cut
C/A glue
AMELIA

Instruction Manual
16
Secure
1. Set the tail wheel assembly in place
on the plywood plate. The pivot point of the
tail wheel wire should be even with the rud-
der hinge line and the tail wheel bracket should
be centered on the plywood plate.
3mm x 12mm
2. Using a pen, mark the locations of the
two mounting screws. Remove the tail wheel
bracket and drill 1mm pilot holes at the loca-
tions marked.
Mark point
MOUNTING THE TAIL WHEEL
BRACKET.
3. Secure the tail wheel bracket in place
using three 3mm x 15mm wood screws. Be
careful not to overtighten the screws.
Secure
AMELIA

INSTRUCTION MANUAL
17
2. Wrap the receiver and battery pack in
the protective foam to protect them from vi-
bration. Use a rubber band or masking tape to
hold the foam in place.
3. Position the battery pack and receiver
behind the fuel tank. Use two tie wraps t o
hold the battery and receiver securely in place.
As pictures below.
Do not permanently secure the receiver
and battery until after balancing the model.
4. Using a 2mm drill bit, drill a hole through
the side of the fuselage, near the receiver ,
for the antenna to exit.
INSTALLING THE RECEIVER AND BATTERY.
1. Plug the servo leads and the switch
lead into the receiver. You may want to plug
an aileron extension into the receiver to make
plugging in the aileron servo lead easier
when you are installing the wing. Plug the
battery pack lead into the switch.
Tie wrap.
Battery
Tie wrap.

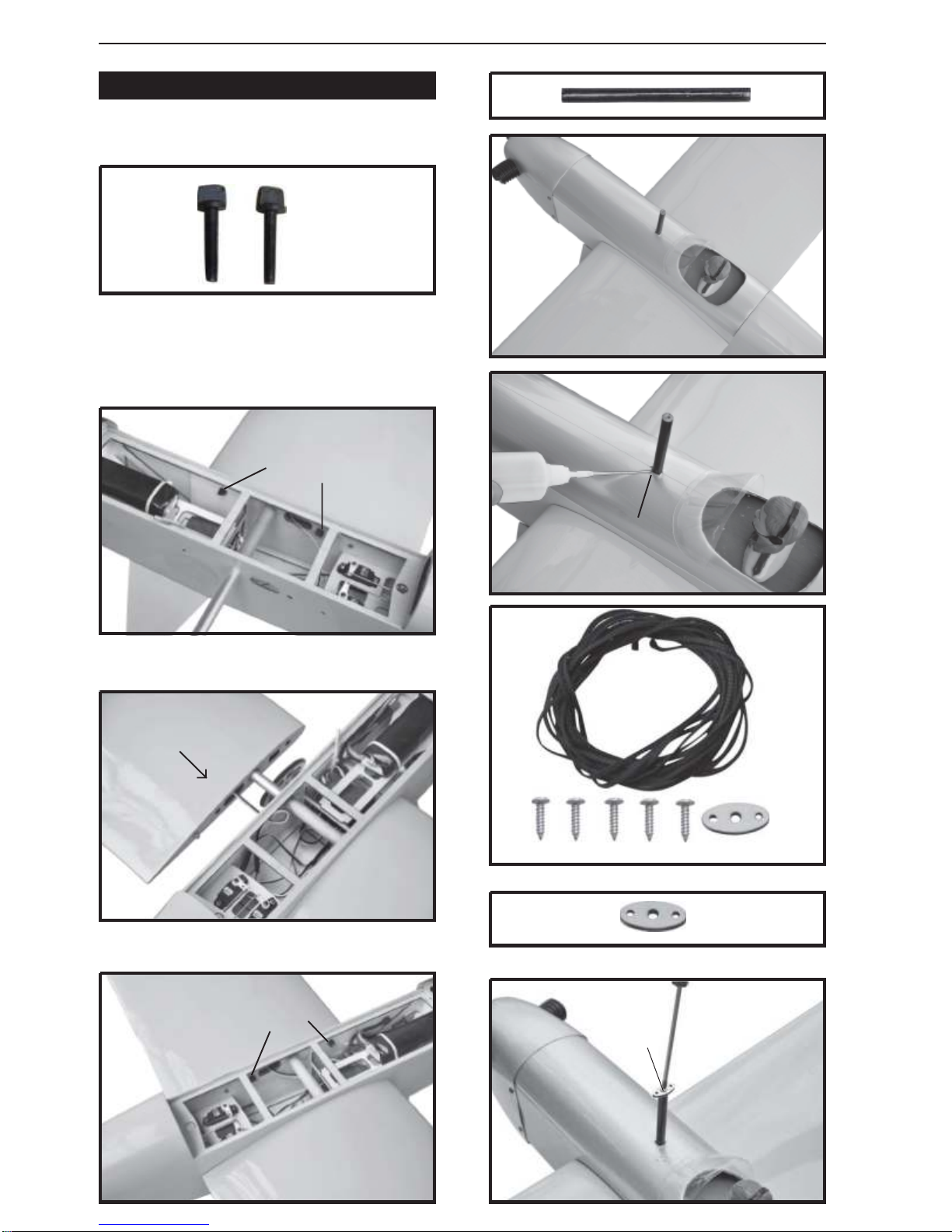

WING ATTACHMENT
Locate the aluminium wing dihedral
brace.
.
***Test fit the aluminium tube dihedral brace
into each wing haft. The brace should slide in
easily. If not, use 220 grit sand around the
edges and ends of the brace until it fits prop-
erly.
AMELIA

Instruction Manual
See picture wing attach to fuselage.
18
WING ATTACHMENT.
Installing the fuselage hatch as same as pic-
ture below.
Wing bolt.
Wing bolt.
Secure
C/A glue
3 x 15mm
Secure
AMELIA

VINTAGE. INSTRUCTION MANUAL
19
3 x 15mm
Secure

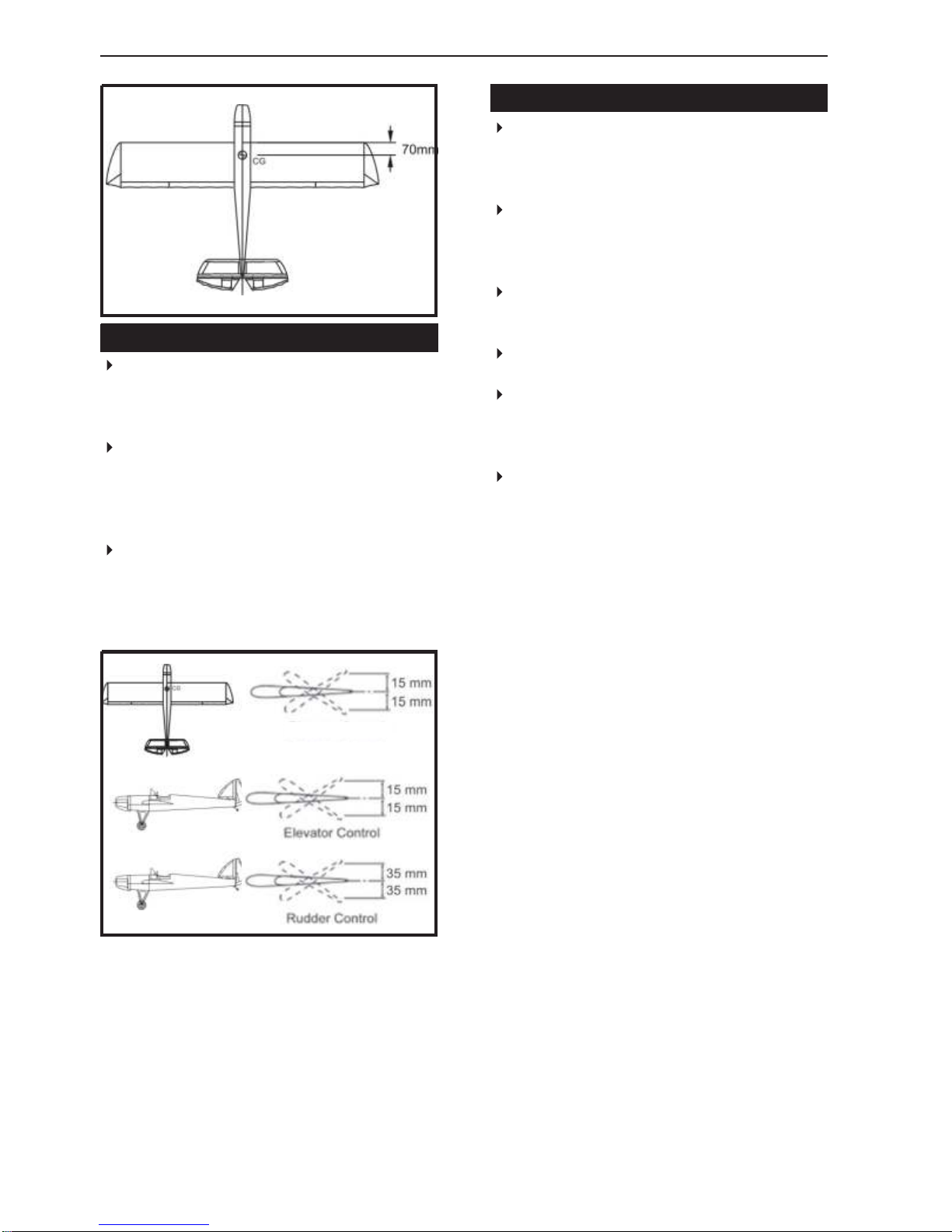

1) It is critical that your airplane be bal-
anced correctly. Improper balance will cause
your plane to lose control and crash.
THE CENTER OF GRAVITY IS LOCATED
70MM BACK FROM THE LEADING EDGE
OF THE WING.
2) Mount the wing to the fuselage. Usinga
couple of pieces of masking tape, place them
on the top side of the wing 70mm back from
the leading edge, at the fuselage sides.
Accurately mark the balance point on the top
of the wing on both sides of the fuselage. The
balance point is located 70mm back from the
leading edge. This is the balance point at
which your model should balance for your first
flights. Later, you may wish to experiment by
shifting the balance up to 10mm forward or
back to change the flying characteristics.
Moving the balance forward may improve the
smoothness and arrow- like tracking, but it
may then require more speed for take off
and make it more difficult to slow down for
landing. Moving the balance aft makes the
model more agile with a lighter and snappier
”feel”. In any case, please start at the loca-
tion we recommend .
3. Turn the airplane upside down. Place
your fingers on the masking tape and care-
fully lift the plane
.
BALANCING.
With the wing attached to the fuselage, all
parts of the model installed ( ready to fly), and
emptyfueltanks,holdthe modelat the
marked balance point with the stabilizer level.
Lift the model. If the tail drops when you
lift, the model is “tail heavy” and you must
add weigh* to the nose. If the nose drops, it
is “nose heavy” and you must add weight* to
the tail to balance.
*If possible, first attempt to balance the model
by changing the position of the receiver bat-
tery and receiver. If you are unable to obtain
good balance by doing so, then it will be nec-
essary to add weight to the nose or tail to
achieve the proper balance point.

20
Instruction Manual
Ailerons : 15mm up 15mm down
Elevator : 15mm up 15mm down
Rudder : 20mm right 20mm left
1) We highly recommendsettingup a
plane using the control throws listed.
2) The control throws should be meas-
ured at the widest point of each control sur-
face.
3) Check to be sure the control surfaces
move in the correct directions.
CONTROLTHROWS.
1) Completely charge your transmitter and
receiver batteries before your first day of fly-
ing.
2) Check every bolt and every glue joint in
your plane to ensure that everything is tight
and well bonded.
3) Doublecheckthebalance of the
airplane.
4) Check the control surface.
5) Check the receiver antenna . It should
be fully extended and not coiled up inside the
fuselage.
6) Properly balance the propeller.
We wish you many safe and enjoy-
able flights with your
AMELIA
PRE-FLIGHTCHECK.
Aileron control
15
15
15
15
20
20
AMELIA
