Pichler Joker XL User manual

Anleitung / Manual
Spannweite
Länge
Flächeninhalt
Flächenbelastung
Fluggewicht **
R/C
Servos
Motor
Regler
Akku
* Änderungen und Irrtümer vorbehalten
** Abfluggewicht inklusive Antriebsakku RED POWER 6100-6S
2120mm
1600mm
75dm²
50g/dm²
3800g
4 -6 Kanal
4 -7
BOOST 80 Brushless
Combo
4250-6100mAh / 22,2V
Technische Daten *
Joker XLJoker XL R/C Elektromodell /
Electric Powered Model
Wingspan
Length
Wing Area
Wing loading
Flying Weight **
R/C
Servos
Motor
ESC
Akku
* Subject to change without notice
** Flying weight including flight battery RED POWER 6100-6S
2120mm
1600mm
75dm²
50g/dm²
3800g
4 -6 channels
4 -7
BOOST 80 Brushless
Combo
4250-6100mAh / 22,2V
Specifications *
Vorbereitet für den Einbau eines Elektroantriebs
und einer Schleppkupplung für den Seglerschlepp.
Factory-prepared for use of electric motor
and convinient glider towing system.
PICHLER
95% vormontiert
ALMOST READY TO FLY
ARF
ARFARF
Vorbereitet für Landeklappen.
Factory-prepared for Flaps.

TOOLS & SUPPLIES NEEDED.
WARNING.
2
JOCKER Instruction Manual
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C supplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
procedures designed to help the new pilot on his way to successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
To avoid scratching your new airplane, do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the air-
craft and to protect the table. Keep a couple of
jars or bowls handy to hold the small parts af-
ter you open the bag.
Please trial fit all the parts. Make sure you have
the correct parts and that they fit and are aligned
properly before gluing! This will assure proper
assemblyJOCKER-ARF is hand made from natu-
ral materials, every plane is unique and minor
adjustments may have to be made. However,
you should find the fit superior and assembly
simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the follow-
ing: paint thinner, C/A glue accelerator, C/A glue
debonder and acetone. Do not let these chemi-
cals come in contact with the colors on the
covering and the plastic parts.
SUGGESTION.
NOTE.
Dieses ferngesteuerte R/C Flugmodell ist für Anfänger nicht geeignet sondern richtet sich an fortgeschrittene Modellbauer.
Trotz sehr hoher Vorfertigung erfordern die Endmontage und der Betrieb des Modells etwas Übung sowie grundlegende Erfahrungen.
Wenn Sie unerfahren sind, bitten Sie einen Modellbaukollegen um Hilfe oder fragen Ihren Modellbau-Fachhändler vor Ort.
Bevor Sie mit dem Zusammenbau beginnen, prüfen Sie den Inhalt auf Vollständigkeit, Passgenauigkeit bzw. eventuelle Mängel.
Für den Zusammenbau benötigen Sie das übliche Werkzeug sowie Klebstoffe wie Sekundenkleber und 5-Minuten Epoxy.
Der Lieferumfang kann ggf. abweichen. Das Modell wurde von erfahrenen Mitarbeitern weitgehenst in Handarbeit gefertigt und
selbstverständlich vor dem Versand im Werk sorgfältig geprüft. Trotzdem bitten wir Sie zu beachten:
Wir entwickeln und fertigen unsere Modelle zum Fliegen, und nicht um damit einen Scale-Wettbewerb zu gewinnen.
Deshalb gilt: Kleine Unregelmäßigkeiten am Modell sind normal und berechtigen nicht zur Reklamation. Ein gewisses Maß an Nacharbeit
kann erforderlich sein und ist dem Kunden (= fortgeschrittener Modellbauer) zuzumuten.
Das Modell wurde werksseitig mit hochwertiger, bedruckter, selbstklebender PVC-Folie falten- und blasenfrei bespannt.
Aufgrund von Temperaturschwankungen während Transport und Lagerung sowie auch an warmen und heißen Plätzen kann es zu mehr
oder weniger starker Falten- und Blasenbildung kommen. Dies ist normal und kein Reklamationsgrund. Mit einem Heißluftgebläse (Fön) kann
die Folie unter vorsichtiger Wärmeeinwirkung wieder gespannt werden. Verwenden Sie unter keinen Umständen ein Bügeleisen da sonst die
Druckfarbe auf der Folie verschmiert. Vielen Dank für Ihr Verständnis.

ASK-14 Anleitung / Manual
# C4504
Brushless Combo BOOST 80 inklusive Motor, Regler und
Programmierkarte
Sonderzubehör für Joker XL / Accessories for Joker XL
# C5154
Akku RED POWER 6100-6S
Battery RED POWER 6100-6S
4 -7 x # C1689 Servo DS6020
oder / or
4 -7 x # C4994 Servo DS4020
Nachstehendes Zubehör wurde von uns ausgiebig erprobt und wird für beste Flugeigenschaften
empfohlen. Weitere Informationen und Bestellmöglichkeit unter www.pichler-modellbau.de
These accessories have been extensively tested and are recommended for best flying performance.
For more information please visit www.pichler-modellbau.de
# C5758
PI-CON Propeller 17 x 8 # C4740 Akku Klettband
Battery Straps
# C5906 Contest Spinner 70mm schwarz/black
# C5905 Contest Spinner 70mm rot/red
# C5904 Contest Spinner 70mm weiß/white
# C6219 Schutztaschenset für Tragflächen (1 Paar)
Geheimtipp! Must Have !

3
JOCKER Instruction Manual
SMALL PARTS / Kleinteile
SAFETY PRECAUTION.
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Wear safety glasses.
+ Keep loose clothing and wires away from
the propeller.
+ Do not start the motor if people are near.
Do not stand in line with the side of the propel-
ler.
+ Make motor adjustments from behind the
propeller only. Do not reach around the spin-
ning propeller.
B. Fuselage.
A. Wing panel.
C. Horizontal stabilizer
B.
C.
D.
A.
A.
E.
E. Aluminium wing dihedral brace.
G. Decal sheet.
2. Wheels.
1. Aluminium landing gear. 3. Tail gear set.
4.Spinner
2.
1.
3.
4.
4x 15mm.
3x 15mm
5x 35mm.
E. Vertical stabilizer

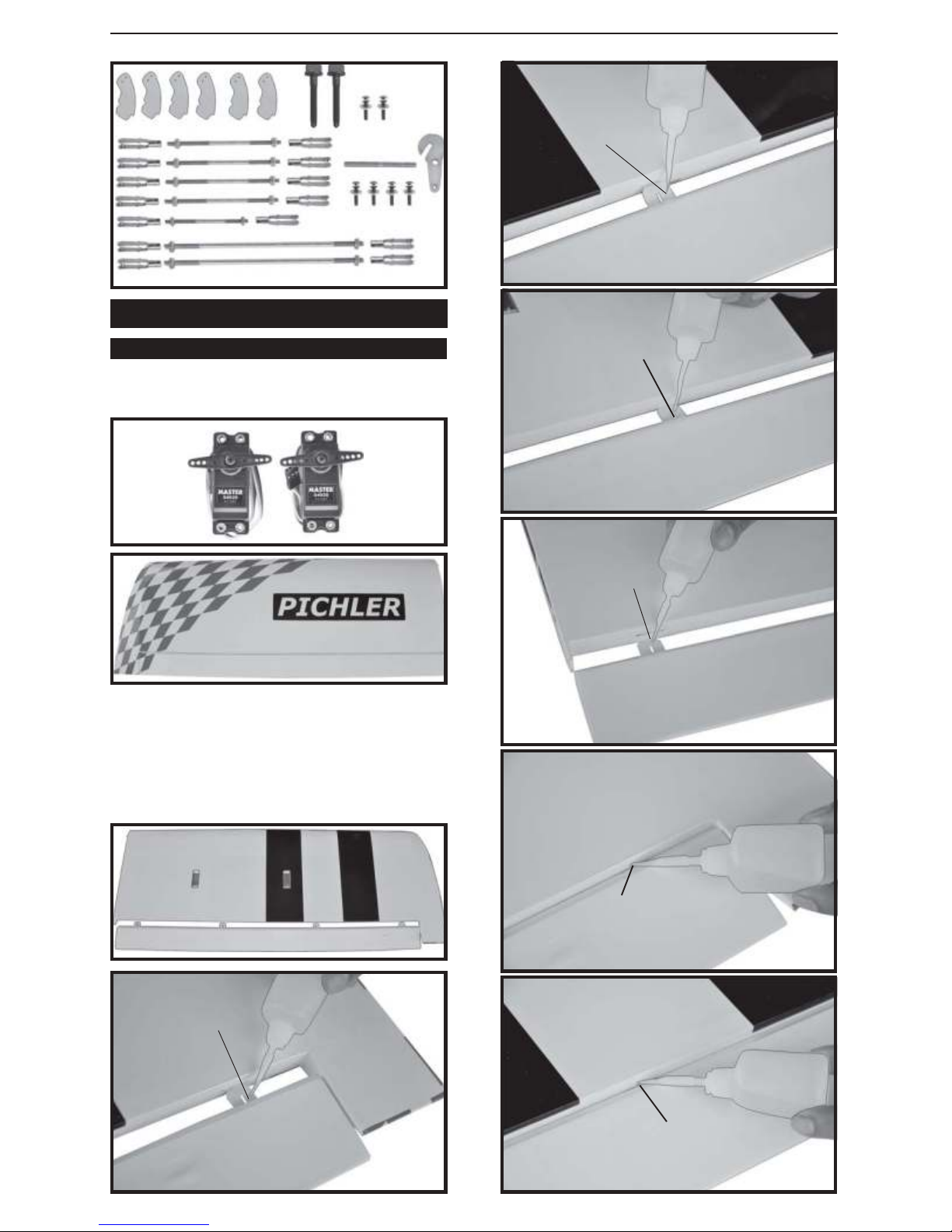

1) Install the rubber grommets and brass
eyelets onto the aileron servos.
1.INSTALLING THE AILERON SERVOS.
AILERON SERVOS.
4
JOCKER Instruction Manual
Aileron.
C/A glue
C/A glue
C/A glue
C/A glue
C/A glue
C/A glue
Flap.
Attention: You can use either 1 or 2 aileron
servos per wing panel.
Achtung: Sie können entweder 1 oder 2
Querruderservos pro Tragflächenhälfte
verwenden.

thread.
Electric wire
5
JOCKER Instruction Manual

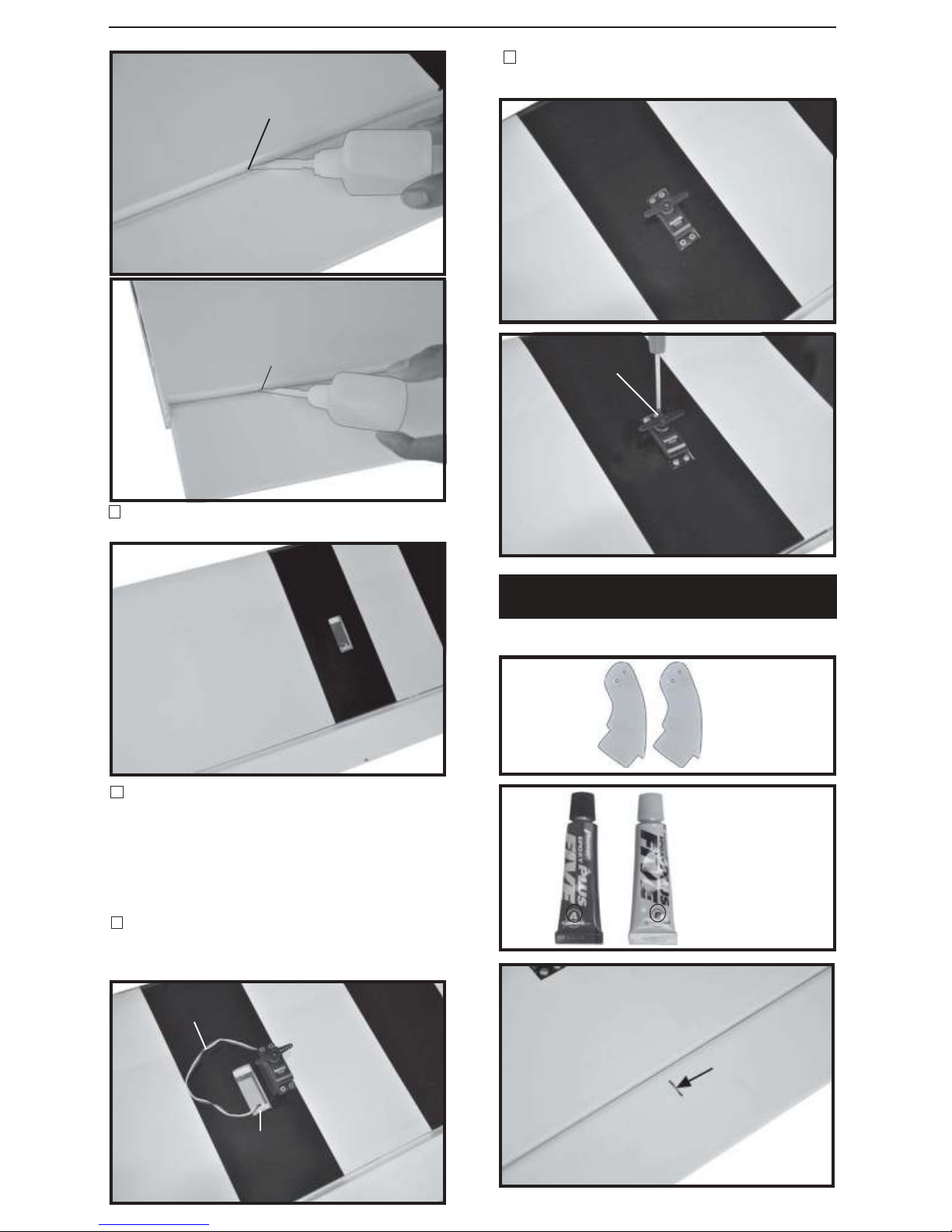

2) Using a modeling knife, remove the cov-
ering at possition show below.
C/A glue
C/A glue Secure.
4) Drill 1,6mm pilot holes through the block
of wood for each of the four mounting screws
provided with the servo.
5. Instal servo tray with aileron servo into
the wing as same as picture below.
3) Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out, re-
move the masking tape and the servo lead
from the thread.
Aileroncontrol horn
2.INSTALLING THE AILERON
CONTROL HORN.
A+B Epoxy
PLUS glue
AB
A+B Epoxy
PLUS glue

FLAP SERVOS.
1.INSTALLING THE FLAP SERVOS.
6
JOCKER Instruction Manual
Installing the air brake linkages as pictures
below.
3.INSTALLING THE AILERON
LINKAGES.
Flapcontrol horn.
2.INSTALLING THE FLAP CONTROL
HORN.
Aileron
control horn.
Secure.
Electric wire.
thread
Secure.
Repeat the procedure for the other wing
half.
Repeat the procedure for the other wing
half.
115 mm.
M3
M3 lock nut.

Bottom side.
Aileron
Flap.
3.INSTALLING THE FLAP
LINKAGES.
7
JOCKER Instruction Manual
Flap
Control horn.
Installing the air brake linkages as pictures
below.
115 mm.
M3
M3 lock nut.
Straight line.
Flap.
cut.
Flap.
408 mm Mark line.
Wenn Sie Landeklappen nutzen möchten
trennen Sie bitte hier das Querruder mit einer
feinen Säge.
If you want to use flaps, cut the aileron
as shown above.
hier trennen

INSTALLING ELECTRIC MOTOR.
Front view.
3x 15mm
Secure.
Secure.
8
JOCKER Instruction Manual
Install the spinner backplate, propeller
and spinner cone. The spinner cone is held in
place using two 3mm x 15mm wood screws.
INSTALLING THE SPINNER.
Secure.
3 x15mm
See picture below:

SERVO INSTALLATION.
9
JOCKER Instruction Manual
INSTALLING THE BATTERY.
See picture below:
See picture below:
50mm

10
JOCKER Instruction Manual
A+B Epoxy
PLUS glue
3 x 15mm

11
JOCKER Instruction Manual
Secure. PARTS REQUIRED
3. Using the hardware provided, mount
the main landing gear to the fuselage.
Secure.
4x15mm
1. The blind nuts are already mounted in-
side the fuselage.
2. The holes in the landing gear should be
to accept the mounting bolts.
Landing gear.
INSTALLING THE MAIN LANDING GEAR.
4x15mm 5 x35mm
55mm
M3 M3 lock nut .

12
JOCKER Instruction Manual

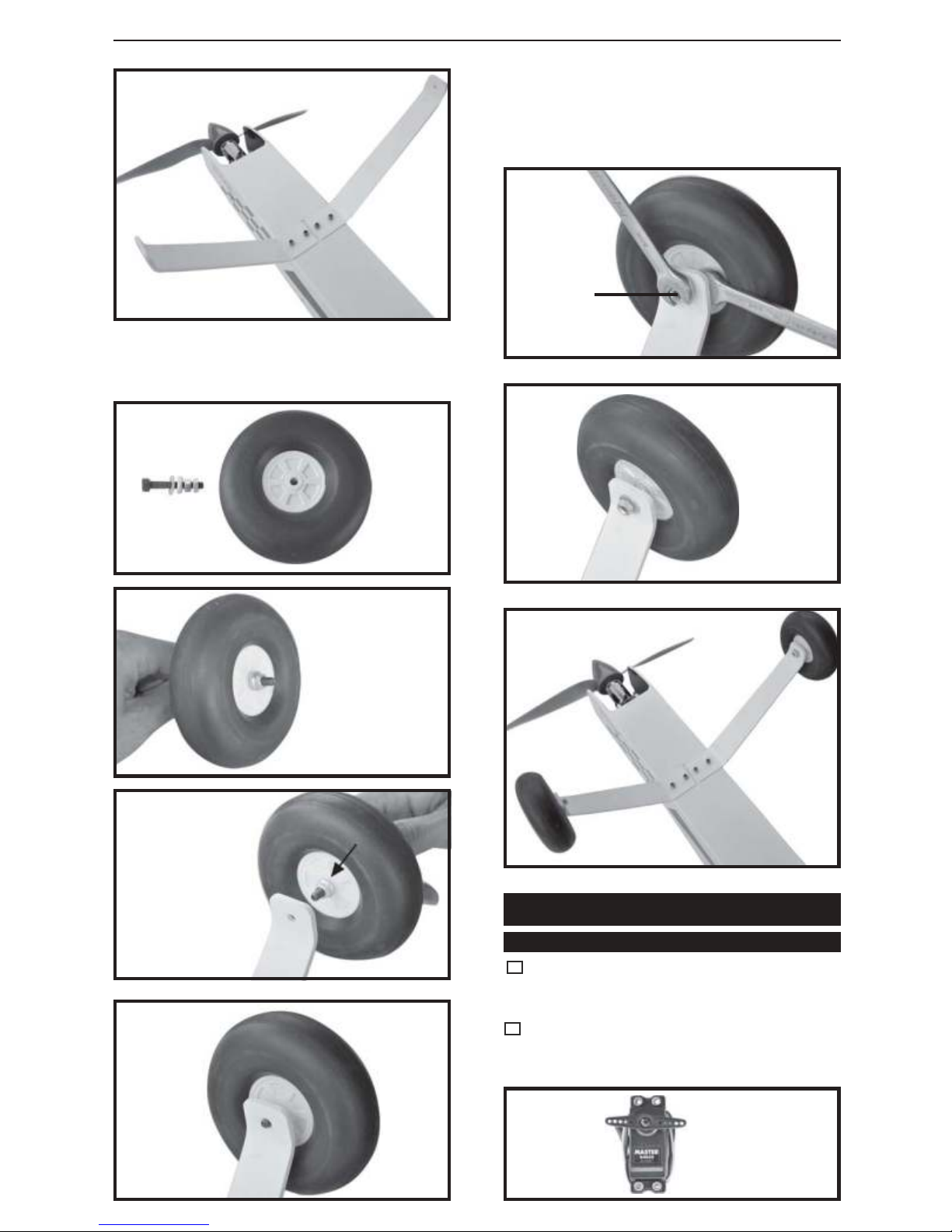

4. Assemble and mounting the wheel pants
as shown in the following pictures.
5. A drop of C/A glue on the wheel collar
screws will help keep them from coming lose
during operation.
Repeat the process for the other wheel.
Secure.
Bottom side.
1. Install the rubber grommets and brass
collets into the elevator servo. Test fit the servo
into the servo tray.
2. Mount the servo to the tray using the
mounting screws provided with your radio sys-
tem.
5x 35mm
elevator
servo
SERVO INSTALLATION.
ELEVATOR INSTALLATION.
Bottom side.

13
JOCKER Instruction Manual
Secure.
C/A glue
C/A glue
C/A glue
C/A glue
C/A glue
Bottom side.
Horizontal stabilize installation .
See picture below.
elevator servo right side
Right side.

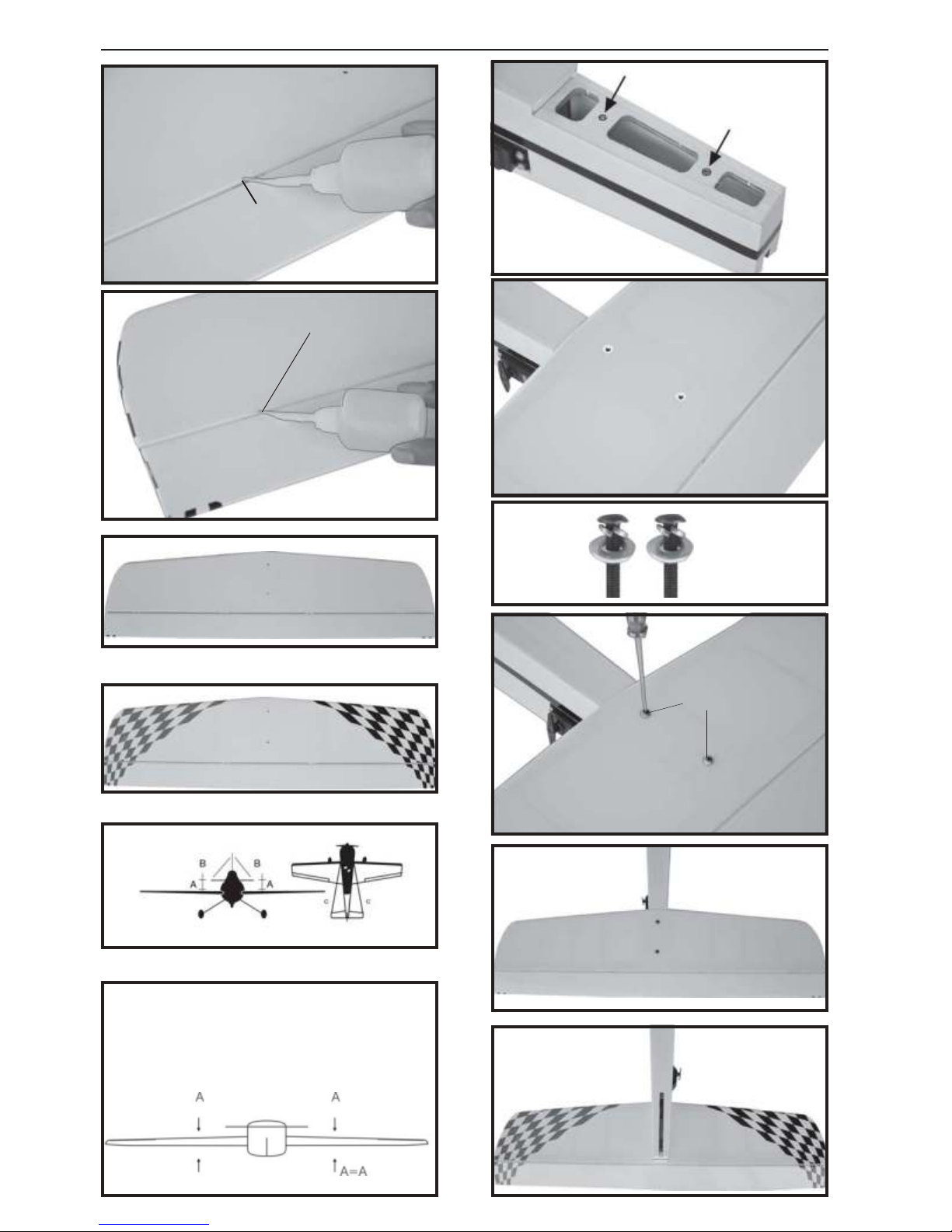

HORIZONTAL STABILIZER INSTALLA-
TION

14
JOCKER Instruction Manual
C/A glue
Top side. Secure.
Top side.
Bottom side.
Bottom side
Bottom side
C/A glue
Check to mark sure the wing and stabi-
lizer are paralell. If they are not, lightly sand
the opening in the fuselage for the stabilizer
until the stabilizer is paralell to the wing.
3x 15mm

15
JOCKER Instruction Manual
A+B Epoxy
PLUS glue
Elevator pushrod install as same as the way
of aileron pushrod.
Elevator
control horn.
ELEVATOR PUSHROD INSTALLATION.
160 mm.
M3
M3 lock nut.
Elevator
pushrod
Top side. Elevator
pushrod
Elevator control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
Elevator control horn.
ELEVATOR CONTROL HORN INSTALLA-
TION. Top side.

16
JOCKER Instruction Manual
Mark point.
Secure.
Secure.
Rudder servo install as same as method of
elevator servo. See picture below:
RUDDER SERVO INSTALLATION.
Rudder servo.
3x 12mm
Left side

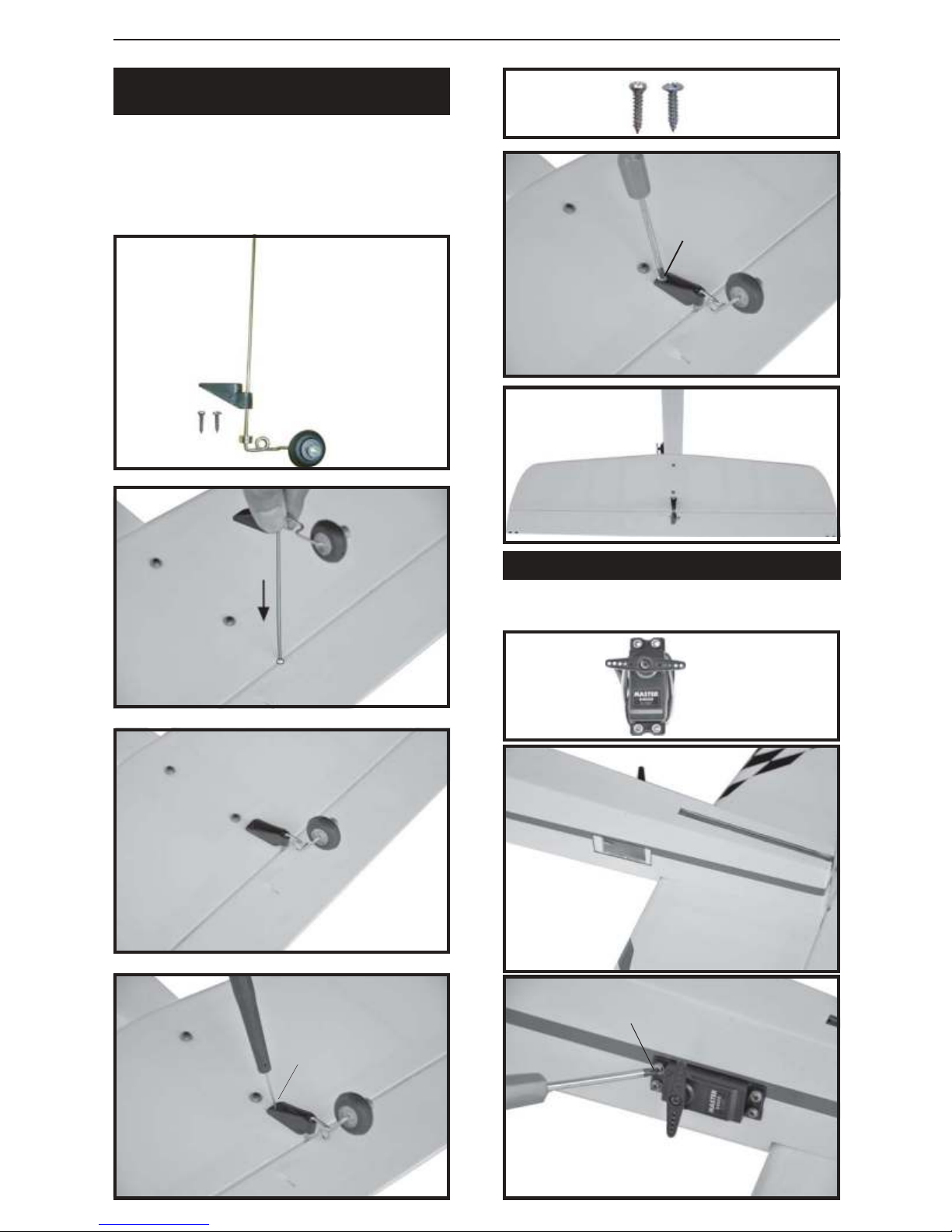

1) Set the tail wheel assembly in place
on the plywood plate. The pivot point of the
tail wheel wire should be even with the rud-
der hinge line and the tail wheel bracket should
be centered on the plywood plate.
MOUNTING THE TAIL WHEEL
BRACKET.
Bottom side.
3 x 12mm
Push in to.

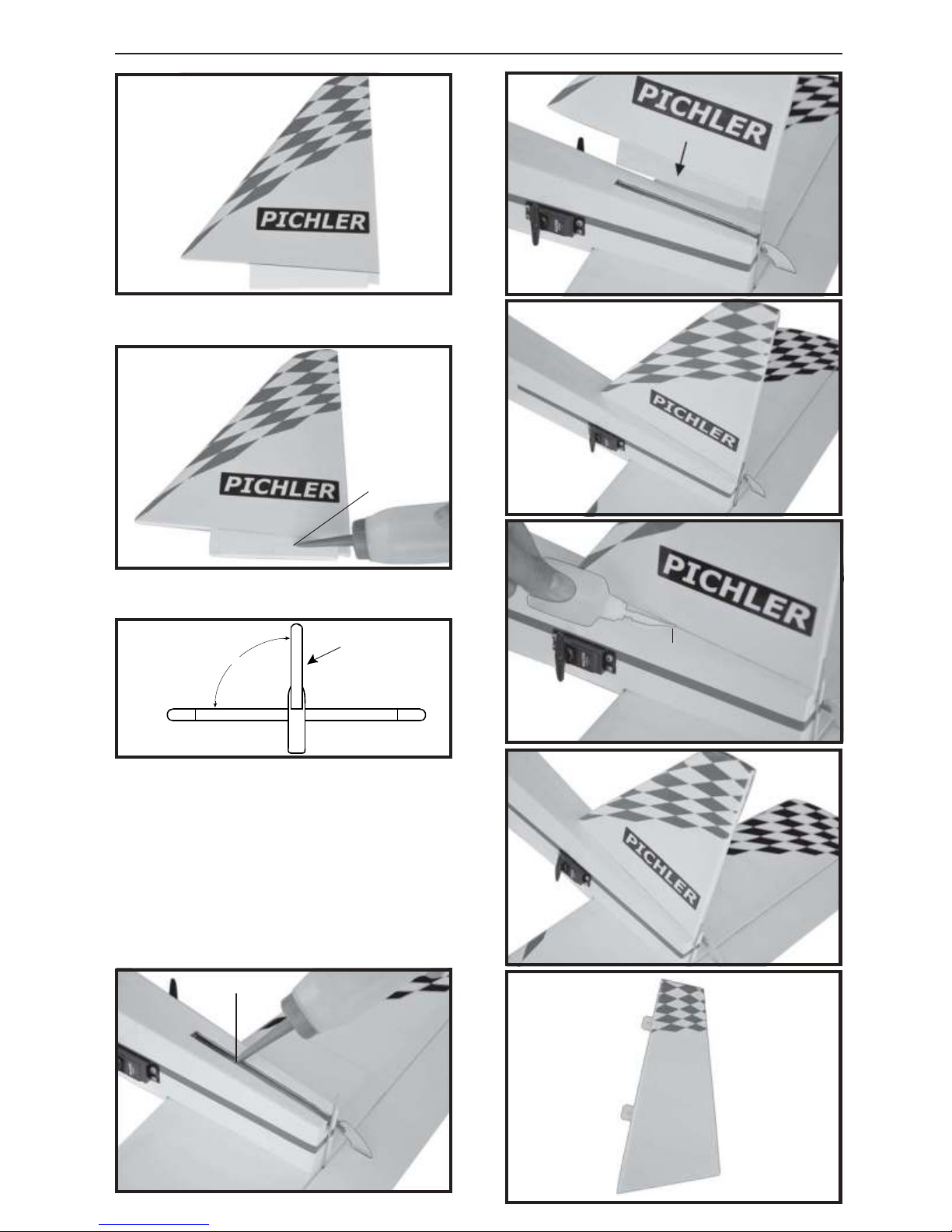

VERTICAL INSTALLATION.
Top side.
Mark line.

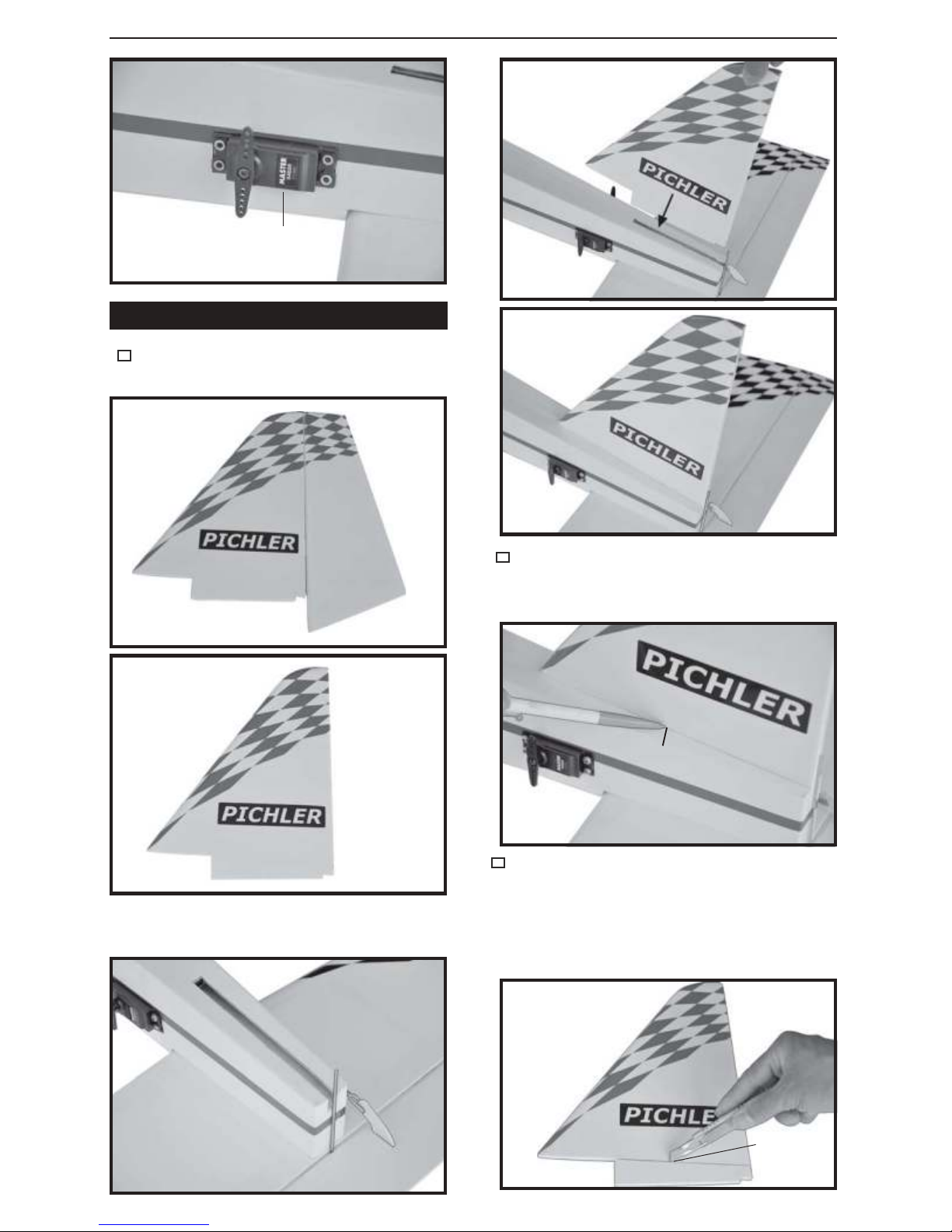

1. Slide the rudder into the fuselage as same
as picture below.
2.Mark the shape of the vertical on the left
and right side on the rudder using a felt-tip
pen.
3.Now, remove the rudder and using a
modeling knife, carefully cut just inside the
marked lines and remove the film of the rud-
der. Just as you did with the horizontal stabi-
lizer, make sure you only press hard enough
to cut the film, not the balsa rudder.
Remove
covering
Vertical stabilizer installation
See picture below.
Rudder servo left side
17
JOCKER Instruction Manual

Epoxy glue.
Push.
18
JOCKER Instruction Manual
4. Put the vertical stabilizer back in
place. Using a triangle, check to ensure
that the vertical stabilizer is aligned 90 de-
gree to the horizontal stabilizer.
Epoxy glue.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
C/A glue.

20mm.
Bend 90 degree.
19
JOCKER Instruction Manual
C/A glue.
C/A glue.
A+B Epoxy
PLUS glue
Push.
Bend and cut.
Carefully make a 90 degree bend down
at the mark made. Cut off the excess wire,
leaving about 20mm beyond the bend.
Mark point.
