Pickering 60-772 User manual

pickeringtest.com
Issue 4.4 January 2023
60-772 User Manual
LXI 2.4 GHz RF Matrix

Page (II) LXI 2.4GHz MATRIX 60-772
pickering
Page (II) REED RELAY MODULE 40-110/115/120/125
pickering
© COPYRIGHT (2023) PICKERING INTERFACES. ALL RIGHTS RESERVED.
No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by
any means without the written permission of Pickering Interfaces.
Technical details contained within this publication are subject to change without notice.
ISO 9001
Reg No. FM38792

Page (III)
LXI 2.4GHz MATRIX 60-772
pickering
Page (III)
REED RELAY MODULE 40-110/115/120/125
pickering
TECHNICAL SUPPORT
For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.
WARRANTY
All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of
three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be
defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.
Products serviced and repaired outside of the warranty period are warranted for ninety days.
Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.
ENVIRONMENTAL POLICY
Pickering Interfaces operates under an environmental management system similar to ISO 14001.
Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the
environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and
safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can
be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
Worldwide Technical Support and Product Information
pickeringtest.com
Germany
Tel: [phone]
E-mail: [email protected]
Sweden
Tel: [phone]
E-mail: [email protected]
USA
Tel: (West) [phone]
Tel: (East) [phone]
E-mail: [email protected]
Czech Republic
Tel: [phone]
E-mail: [email protected]
France
Tel [phone]
E-mail [email protected]
Pickering Interfaces Headquarters
Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom
Tel: [phone]
E-Mail: [email protected]
China
Tel: [phone]
E-mail: [email protected]

Page (IV) LXI 2.4GHz MATRIX 60-772
pickering
Page (IV) REED RELAY MODULE 40-110/115/120/125
pickering
MEANING / DESCRIPTION SYMBOL
PROTECTIVE EARTH (GROUND)
To identify any terminal which is intended for connection to an external conductor for
protection against electric shock in case of a fault, or the terminal of a protective earth
(ground) electrode.
DANGEROUS VOLTAGE
To indicate hazards arising from dangerous voltages.
WARNING / CAUTION
An appropriate safety instruction should be followed or caution to a potential hazard
exists.
Refer to the relevant instructions detailed within the product manual.
HEAVY
If this product is heavy reference should be made to the safety instructions for
provisions of lifting and moving.
STATIC SENSITIVE
To indicate that static sensitive devices are present and handling precautions should
be followed.
!
kg
SAFETY SYMBOLS
PRODUCT SAFETY
The following safety symbols may be used on the product and throughout the product documentation.

Page (V)
LXI 2.4GHz MATRIX 60-772
pickering
Copyright Statement ......................................................................II
Technical Support and Warranty..................................................III
Product Safety .............................................................................. IV
Contents (this page)...................................................................... V
Warnings and Cautions .............................................................. VII
Section 1
Technical Specication...............................................................1.1
Section 2
Technical Desctiption..................................................................2.1
Section 3
Installation....................................................................................3.1
Pre Operation Checks .....................................................3.1
Hardware Installation.......................................................3.1
Setting The IP Address ....................................................3.2
Instaliing The Software....................................................3.3
Soft Front Panel Operation .............................................3.3
Section 4
Programming Guide....................................................................4.1
Programming Options for LXI Units...............................4.1
Programming the 60-772 .................................................4.2
Command Line Control ...................................................4.6
Using The Soft Front Panel...........................................4.13
Section 5
Connections.................................................................................5.1
Section 6
Trouble Shooting.........................................................................6.1
LXI Status Indicators .......................................................6.1
LAN Reset.........................................................................6.2
Section 7
Maintenance Information............................................................7.1
Appendix A
Fitting Rack Mounting Flanges .................................................A.1
CONTENTS

Page (VI) LXI 2.4GHz MATRIX 60-772
pickering
THIS PAGE INTENTIONALLY BLANK

Page (VII)
LXI 2.4GHz MATRIX 60-772
pickering
Page vii
LXI HIGH VOLTAGE 2-POLE MATRIX 60-310
pickering
WARNINGS & CAUTIONS
WARNING - HAZARDOUS ENVIRONMENTS SYMBOL
This product is not specically designed for use in hazardous environments, for example in explosive
atmospheres. If the product is to be used in hazardous environments we recommend that the user
ensures suitable protective measures are taken.
!
CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL
Certain semiconductor devices used in this equipment are liable to damage due to static voltage.
Observe the following precautions when handling these devices in their unterminated state, or
sub-assemblies containing these devices:
1. Persons removing sub-assemblies from equipment using these devices must be earthed by a
wrist strap and a resistor at the point provided on the equipment.
2. Soldering irons used during the repair operations must be low voltage types with earthed tips and
isolated from the mains voltage by a double insulated transformer.
3. Outer clothing worn must be unable to generate static charges.
4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in
anti-static bags.
WARNING - DANGER OF ELECTRIC SHOCK SYMBOL
This unit may contain hazardous voltages. Before removing the unit from the rack remove all supplies
and disconnect user I/O signals.
If the unit has removable modules, unused slots in the chassis must be populated with blanking
panels to prevent access to user I/O signals that may be present. Blanking panels are available to
order from Pickering. If the product is not used in this manner for example by using an extender card
then additional care must be taken to avoid contact with exposed signals.
Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.
This unit must not be used for the switching of Mains Circuits. For the switching of voltages up to the
unit’s full specication, Secondary Circuit power supplies and the Device Under Test must be fully
isolated from the Mains Circuit and the safety earth.
The chassis must be correctly installed and be connected to mains or factory safety ground,
please refer to the installation section of this manual.
Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT
For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage
Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved
by a transformer in which the primary windings are separated from the secondary windings by
reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.
Switching
Function
Device
Under Test
Power
Supply
Power
Supply
LXI Unit’s Chassis
Secondary Circuit
Mains
Circuit
Mains
Circuit
Mains/Factory
Safety Ground

Page (VIII) LXI 2.4GHz MATRIX 60-772
pickering
Page viii
LXI HIGH VOLTAGE 2-POLE MATRIX 60-310
pickering
CAUTION - PRODUCT DOCUMENTATION SYMBOL
Suitably qualied & trained users should ensure that the accompanying documentation is fully read
and understood before attempting to install or operate the product.
!
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O
signals (refer to the Maintenance Section).
• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or
the combined weight of the modules & chassis.
• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the
chassis and the user I/O signals.
• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.
• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on
the front of the unit.
WARNING - RACK MOUNTING
If it is required to t this unit into a 19 inch rack, its weight must be
supported by side brackets, runners or a suitable equipment shelf.
The xing holes in the front panel anges are designed only for
securing the device in the rack and must NOT be used to support
the weight of the whole device.
Please refer to Appendix A for the procedure for tting the
supplied anges to either side of the front panel.
!
HIGH VOLTAGE SAFETY WARNING
THIS UNIT IS CAPABLE OF SWITCHING VOLTAGES AND CURRENTS THAT CAN
CAUSE SERIOUS INJURIES. IN APPLICATIONS INVOLVING HIGH VOLTAGES IT
IS STRONGLY RECOMMENDED THAT UNUSED CONNECTORS ARE CAPPED
TO PREVENT ACCIDENTAL CONTACT WHILE IN USE. SYSTEM INTEGRATORS
AND USERS SHOULD CONNECT TO THE FRONT PANEL CONNECTORS WITH
CONNECTORS OR CABLE ASSEMBLIES THAT ENSURE OPERATORS WILL NOT
INADVERTENTLY COME IN CONTACT WITH HIGH VOLTAGES.

Page 1.1
LXI 2.4GHz MATRIX 60-772
pickering SECTION 1 - TECHNICAL SPECIFICATION
SECTION 1 - TECHNICAL SPECIFICATION
pickeringtest.com
LXI 2.4 GHz Matrix 60-772
ISSUE 3.6 JAN 2023
yHigh Bandwidth 50 Ω RF Matrix
yConfigurations Up To 32x4
yAutomatic Termination Of Unused Inputs
yConsistent Signal Performance On All Paths
yFully Integrated Design In 2U Enclosure
ySimple Remote Control Via LXI Interface
yLXI Standard 1.4 Compliant
y3 Year Warranty
Schematic Diagram for the 60-772 Matrix in 32x4 Format With Termination For Unused Signals
and Loop-Thru Connections on Y-axis
Y1LT
Y2LT
Y3LT
Y4LT
Y1
Y2
Y3
Y4
X23 X21 X17 X24 X22 X20 X19 X18 X13 X16 X15 X14 X11 X9 X12 X10 X8 X7 X6 X1
X3
X2 X4 X5 X31 X29 X25 X32 X30 X28 X27 X26
50Ω SIGNAL TERMINATION SWITCHING
50Ω SIGNAL
TERMINATION
SWITCHING
LOOP-THRU
SWITCHING
The 60-772 is a family of integrated RF matrices suitable
for use up to 2.4 GHz in a 50 Ω transmission line system.
The matrix design permits any one Y input to be connected
to any one X input, allowing the concurrent connection of
4 signal paths. All paths are bi-directional permitting any
connection to be used as an input or an output.
The 60-772 can be supplied in a variety of configurations
based on Y axis sizes of 4 and X axis sizes of 8, 16, 24
and 32. The matrix is factory re-configurable up to the
maximum size of 32x4.
The matrix exhibits excellent RF characteristics. Unused
input connections are automatically terminated in 50 Ω
to ensure that VSWR effects do not impact crosstalk. Y
signals are also routed via isolation switches to Loop-Thru
connections to enable easy matrix expansion with minimal
signal loss.
The 60-772 is contained in a 2U full rack width enclosure
and is controlled via an LXI compliant interface. The unit
can be manually controlled through any industry standard
(W3C) web browser using the built in web interface.
Remote control via the LXI Ethernet connection is provided
through Pickering Interfaces switch driver.
Pickering Interfaces can use the design methods applied to
60-772 to construct RF matrices with other architectures,
for more information contact your Pickering Interfaces
sales representative.

Page 1.2 LXI 2.4GHz MATRIX 60-772
pickering
SECTION 1 - TECHNICAL SPECIFICATION
LXI 2.4 GHz Matrix, 60-772
pickeringtest.com
Overview
Y1 Y2 Y3 Y4
X31
X29
X32
X30
X1
X3
X2
X4
50Ω SIGNAL TERMINATION SWITCHING
50Ω SIGNAL TERMINATION
SWITCHING
32 x 4 RF MATRIX
LOOP-THRU SWITCHING
X63
X61
X64
X62
X33
X35
X34
X36
50Ω SIGNAL TERMINATION SWITCHING
50Ω SIGNAL TERMINATION
SWITCHING
Y1LT Y2LT Y3LT Y4LT
32 x 4 RF MATRIX
LOOP-THRU SWITCHING
4-off
SMA to SMA
Loop-Thru
Leads
Connections
X1 to X64
Connections Y1 to Y4
Example of how two 60-772-001 32x4 matrices can be interlinked to create a 64x4 matrix. Four SMA to
SMA leads are used to link the Y Loop-Thru connections from the first matrix to the Y connections of the
second matrix.

Page 1.3
LXI 2.4GHz MATRIX 60-772
pickering SECTION 1 - TECHNICAL SPECIFICATION
LXI 2.4 GHz Matrix, 60-772
pickeringtest.com
Specifications
60-772 Typical Isolation Plot - X to Y60-772 Typical Insertion Loss Plot - X to Y
60-772 Typical Crosstalk Plot - Adjacent Thru Paths
60-772 Typical VSWR Plot - Internal Termination
60-772 Typical VSWR Plot - X to Y

Page 1.4 LXI 2.4GHz MATRIX 60-772
pickering
SECTION 1 - TECHNICAL SPECIFICATION
LXI 2.4 GHz Matrix, 60-772
pickeringtest.com
Specifications
Operating/Storage Conditions
Operating Conditions
Operating Temperature:
Humidity:
Altitude:
0 °C to +55 °C
Up to 90 % non-condensing
5000 m
Storage and Transport Conditions
Storage Temperature:
Humidity:
Altitude:
-20 °C to +75 °C
Up to 90 % non-condensing
15000 m
Safety & CE Compliance
All products are fully CE compliant and meet applicable
EU directives: Low-voltage safety EN61010-1:2010,
EMC Immunity EN61326-1:2013,
Emissions EN55011:2009+A1:2010.
Mechanical Characteristics
Supplied with front panel ears to enable rack mounting on a
shelf or other rear support mechanism.
Dimensions: 2U high, full 19” rack width, 500 mm depth
3D models for all versions in a variety of popular file
formats are available on request.
Connectors
Signals via front panel SMA connectors
LAN Interface
Compliant to LXI Standard 1.4, the 60-772 has a
1000Base-T Ethernet Interface via a standard RJ-45
connector mounted on the rear panel with an LCD display
showing the unit’s IP address*.
*Note: Legacy units may not have 1000Base-T support or
be fitted with an LCD display.
General Matrix Information
Matrix Size: 32x4, 24x4, 16x4 or 8x4
Connectors: Front panel SMA
Operating Time: 3 ms
Max. DC Switch Voltage: 5 V
Max. DC Current: 0.1 A
Max Power Rating: 0.5 W per path
Life Expectancy: 106 operations at
<100 mW
Matrix RF Specification
Characteristic Impedance: 50 Ω
Usable Frequency Range: DC to 2.4 GHz
Insertion Loss
X to Y Switch Path:
Y to Y Loop-Thru:
-2.5 dB (typical)
-1.3 dB (typical)
VSWR
X to Y / Y to X Switch Path:
Y to Y Loop-Thru:
Internally Terminated:
1.6:1 (typical) to 2.2 GHz
2:1 (typical) 2.2-2.4 GHz
1.4:1 (typical)
1.6:1 (typical)
Crosstalk: -50 dB (typical)
Isolation
X to Y:
X-channel to X channel:
Y-channel to Y channel:
Y to Y Loop-Thru:
-75 dB (typical)
-60 dB (typical)
-70 dB (typical)
-60 dB (typical)
Maximum RF Power: 0.5 W (limited by
termination resistors)
Power Source
Universal AC mains supply, 90-120/200-240 V 50-60 Hz
Power Inlet: Male IEC connector
Power Rating: 100 VA maximum
Fuse Rating: (F) 5 A, 250 V
LXI Status Indicators
Front panel mounted LEDs:
• Power
• Ready
• Error
• LAN
• Active

Page 1.5
LXI 2.4GHz MATRIX 60-772
pickering SECTION 1 - TECHNICAL SPECIFICATION
LXI 2.4 GHz Matrix, 60-772
pickeringtest.com
Ordering Information
Mating Connectors & Cabling
For connection accessories for the 60-772 please refer
to the 90-011D RF Cable Assemblies data sheet where
a complete list and documentation can be found for
accessories, or refer to the Connection Solutions catalog.
Product Order Codes
2.4 GHz 50 Ω Matrix, 32x4 terminated
2.4 GHz 50 Ω Matrix, 24x4 terminated
2.4 GHz 50 Ω Matrix, 16x4 terminated
2.4 GHz 50 Ω Matrix, 8x4 terminated
60-772-001
60-772-002
60-772-003
60-772-004
Product Customization
Pickering LXI units are designed and manufactured on our
own flexible manufacturing lines, giving complete product
control and enabling simple customization to meet very
specific requirements.
Customization can include:
• Alternative relay types
• Mixture of relay types
• Alternative number of relays
• Different performance specifications
All customized products are given a unique part number,
fully documented and may be ordered at any time in the
future. Please contact your local sales office to discuss.

Page 1.6 LXI 2.4GHz MATRIX 60-772
pickering
SECTION 1 - TECHNICAL SPECIFICATION
LXI 2.4 GHz Matrix, 60-772
pickeringtest.com

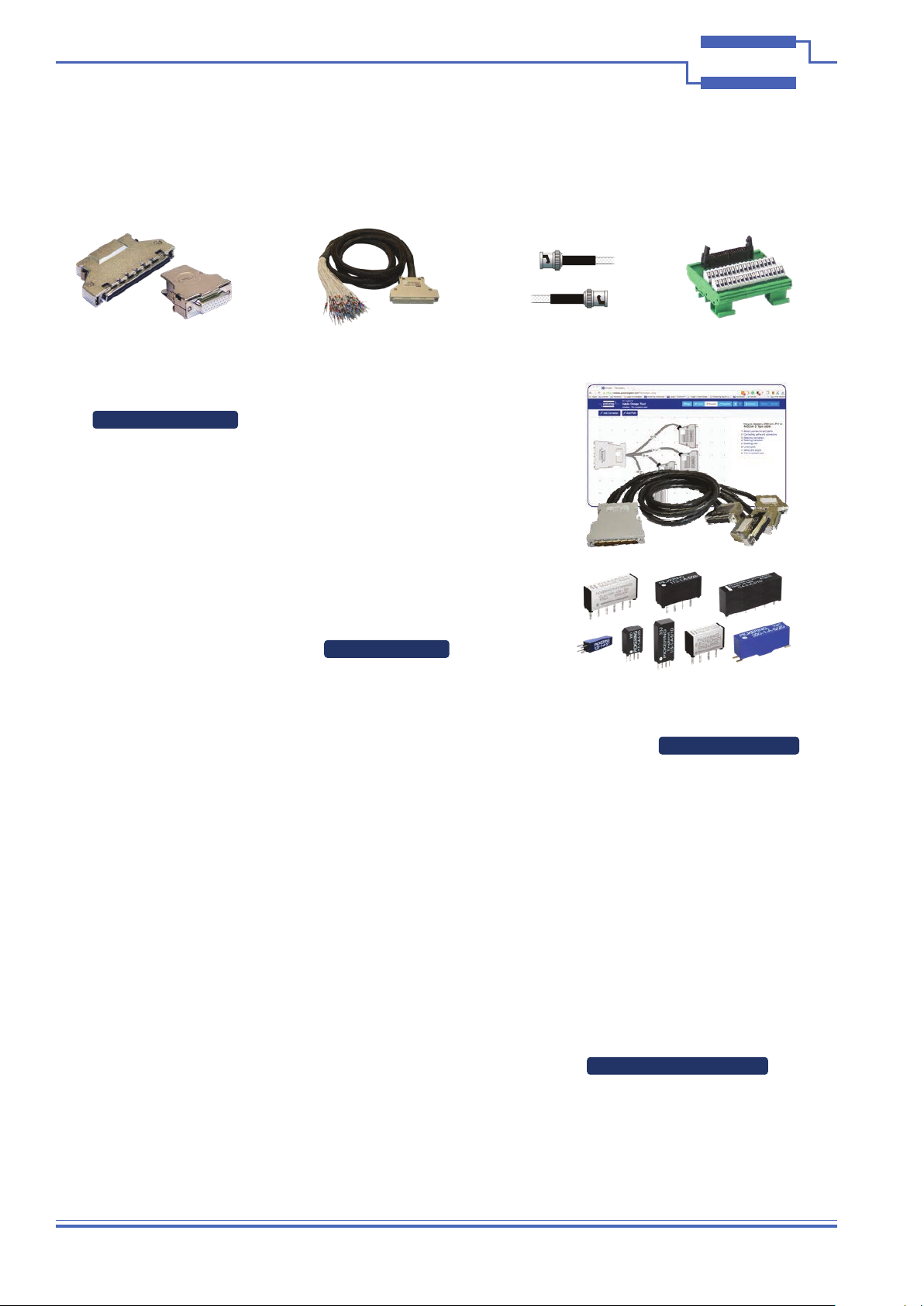

Supporting Products & Software
We also offer customized cabling and have a free online Cable Design Tool
that can be used to create custom cable solutions for many applications.
Visit: pickeringtest.com/cdt to start your design.
Mass Interconnect
We recommend the use of a mass interconnect solution when an
Interchangeable Test Adapter (ITA) is required for a PXI or LXI based
test system. Our modules are fully supported by both Virginia Panel and
MacPanel.
Pickering Reed Relays
We are the only switch provider with in-house reed relay manufacturing
capability via our Relay Division. These instrument grade reed relays feature
SoftCenter™ technology, ensuring long service life and repeatable contact
performance. To learn more, please go to: pickeringrelay.com
Connectivity Solutions
We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families
with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks.
All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules.
Connectors & Backshells Multiway Cable Assemblies RF Cable Assemblies Connector Blocks
Programming
Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of
Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os
The VISA driver support is provided for LabVIEW Real Time Operating Systems (Pharlap and Linux-RT). For other RTOS
support contact Pickering. These drivers may be used with a variety of programming environments and applications
including:
• Pickering Interfaces Switch Path Manager
• National Instruments products (LabVIEW, LabWindows/CVI, Switch Executive, MAX, TestStand, VeriStand, etc.)
• Microsoft Visual Studio products (Visual Basic, Visual C++)
• Programming Languages C, C++, C#, Python
• Keysight VEE and OpenTAP
• Mathworks Matlab
• Marvin ATEasy
• MTQ Testsolutions Tecap Test & Measurement Suite
As well as various open source environments such as:
• Sharp Develop
• Dev-C++
To learn more about software drivers and development environments, please go to: pickeringtest.com/software

Page 1.7
LXI 2.4GHz MATRIX 60-772
pickering SECTION 1 - TECHNICAL SPECIFICATION
LXI 2.4 GHz Matrix, 60-772
pickeringtest.com
Supporting Products & Software
© Copyright (2023) Pickering Interfaces. All Rights Reserved Pickering Interfaces maintains a commitment to continuous product development, consequently we reserve the right to vary from the description given in this data sheet.
Signal Routing Software
Our signal routing software, Switch Path Manager, automatically selects and energizes
switch paths through Pickering switching systems. Signal routing is performed by simply
defining test system endpoints to be connected together, greatly accelerating Test System
software development. To learn more, please go to: pickeringtest.com/spm
Diagnostic Relay Test Tools
eBIRST Switching System Test Tools are designed specifically for our PXI,
PCI or LXI products, these tools simplify switching system fault-finding by
quickly testing the system and graphically identifying the faulty relay.
To learn more, please go to: pickeringtest.com/ebirst
Three Year Warranty & Guaranteed Long-Term Support
All standard products manufactured by Pickering Interfaces are warranted against defective materials and workmanship
for a period of three years from the date of delivery to the original purchaser. Extended warranty and service agreements
are available for all our modules and systems with various levels to suit your requirements. Although we offer a 3-year
warranty as standard, we also include guaranteed long-term support—with a history of supporting our products for typically
15-20 years. To learn more, please go to: pickeringtest.com/support
Available Product Resources
We have a large library of product resources including success stories, product and support videos, articles and white
papers as well as application specific product brochures to assist when looking for the switching, simulation and
connection solutions you need. We have also published handy reference books on Switching Technology and for the PXI
and LXI standards.
To view, download or request any of our product resources, please visit: pickeringtest.com/resources

Page 1.8 LXI 2.4GHz MATRIX 60-772
pickering
SECTION 1 - TECHNICAL SPECIFICATION
THIS PAGE INTENTIONALLY BLANK

Page 2.1
LXI 2.4GHz MATRIX 60-772
pickering SECTION 2 - TECHNICAL DESCRIPTION
SECTION 2 - TECHNICAL DESCRIPTION
The 60-772 is an RF matrix arranged in 32x4, 24x4, 16x4 or 8x4 format under the control of an LXI interface
designed for the routing of signals with frequencies up to 2.4GHz. An overall block diagram for the unit is shown in
Figure 2-1.
The 60-772 uses tree style multiplexers to create a matrix that can connect the Y axis inputs to any of the X outputs,
but only one Y connector can be connected to a specic X connector.
Example: Y1 can be connected to X1, Y2 to X2, X3 to Y3, and X4 to Y4 at the same time. However, both X1
and X2 cannot be connected to Y1 at the same time.
The structure also means that a link between X axis connectors cannot be established.
Example: X1 cannot be connected to X2.
Throughout this manual, and in the soft front panel, the matrix is shown as crosspoints as shown in Figure 2-2. The
driver and soft front panel automatically take care of all the relay settings required to control the tree multiplexers
without the user understanding the internal architecture of the product. Showing the switches as a crosspoint matrix
provides a much simpler understanding of how to control the unit and to see what the soft front panel is doing.
POWER
SUPPLY
LAN
INTERFACE
PWR
RDY
ERR
LAN
ACT
STATUS LEDs
RJ45
SOCKET
EMBEDDED
PROCESSOR
LOGIC
SUPPLY
RELAY COIL
SUPPLY
CONTROL
BRIDGE
BOARD
32 X 4 RF MATRIX
POWER & SIGNAL
DISTRIBUTION BOARDS
RELAY DRIVERS
RF MATRIX ASSEMBLY
4 OFF 32-WAY TREE MULTIPLEXERS
Y1 Y2 Y3 Y4
FRONT PANEL SMA CONNECTORS
X23 X21 X17 X24 X22 X20 X19 X18 X13 X16 X15 X14 X11
X9
X12 X10
X8 X7 X6 X1
X3
X2 X4 X5
X31 X29 X25 X32 X30 X28 X27 X26
Y4LT Y3LT Y2LT Y1LT
LOOP-THRU AND
TERMINATION
SWITCHING TERMINATION RESISTOR SWITCHING
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10
9 8 7 6 5 4 3 2
4:1 MUX
1
4 3 2
32:1 MUX
1
32 OFF 4-WAY TREE MULTIPLEXERS
MULTIPLEXER INTERCONNECTIONS
Figure 2-1. Block Diagram for the 60-772 RF Matrix (60-772-001 32x4 version shown)

Page 2.2 LXI 2.4GHz MATRIX 60-772
pickering
SECTION 2 - TECHNICAL DESCRIPTION
The Bridge Board is mounted on the Embedded Processor assembly and forms the interface between the
processor’s PCI bus and the serial data stream required for controlling the relay drivers. The serial data is fed from
the Bridge Board to Distribution Boards, from here the serial data, as well as voltage rails from the Power Supply,
are distributed to the relay drivers in the different sections of the switching matrix. The external X and Y connections
of the matrix are accessible via 50Ω SMA sockets on the front panel of the chassis
Programming information for the processor is sent to the unit via the LAN interface from a remote computer using
the unit’s unique Ethernet address. Programming documentation for the unit as well as data for Pickering’s other LXI
compatible switching products is stored in the embedded processor and can be downloaded over the LAN interface.
Status LEDs on the front of the chassis indicate the condition of the unit and the LAN connection.
Y1LT
Y2LT
Y3LT
Y4LT
Y1
Y2
Y3
Y4
X23 X21 X17 X24 X22 X20 X19 X18 X13 X16 X15 X14 X11 X9 X12 X10 X8 X7 X6 X1
X3
X2 X4 X5 X31 X29 X25 X32 X30 X28 X27 X26
50Ω SIGNAL TERMINATION SWITCHING
50Ω SIGNAL
TERMINATION
SWITCHING
LOOP-THRU
SWITCHING
Figure 2-2. Crosspoint Matrix Representation of the 60-772-001 RF Matrix (32x4 version)
Y1LT
Y2LT
Y3LT
Y4LT
Y1
Y2
Y3
Y4
X23 X21 X17 X24 X22 X20 X19 X18 X13 X16 X15 X14 X11 X9 X12 X10 X8 X7 X6 X1
X3
X2 X4 X5
50Ω SIGNAL TERMINATION SWITCHING
50Ω SIGNAL
TERMINATION
SWITCHING
LOOP-THRU
SWITCHING
Figure 2-3. Crosspoint Matrix Representation of the 60-772-002 RF Matrix (24x4 version)
Y1LT
Y2LT
Y3LT
Y4LT
Y1
Y2
Y3
Y4
X13 X16 X15 X14 X11 X9 X12 X10 X8 X7 X6 X1
X3
X2 X4 X5
50Ω SIGNAL TERMINATION SWITCHING
50Ω SIGNAL
TERMINATION
SWITCHING
LOOP-THRU
SWITCHING
Figure 2-4. Crosspoint Matrix Representation of the 60-772-003 RF Matrix (16x4 version)
Y1LT
Y2LT
Y3LT
Y4LT
Y1
Y2
Y3
Y4
X8 X7 X6 X1
X3
X2 X4 X5
50Ω SIGNAL
TERMINATION SWITCHING
50Ω SIGNAL
TERMINATION
SWITCHING
LOOP-THRU
SWITCHING
Figure 2-5. Crosspoint Matrix Representation of the 60-772-004 RF Matrix (8x4 version)

Page 3.1
LXI 2.4GHz MATRIX 60-772
pickering SECTION 3 - INSTALLATION
Page 3.1
LXI HIGH VOLTAGE 2-POLE MATRIX 60-310
pickering SECTION 3 - INSTALLATION
SECTION 3 - INSTALLATION
Refer to the Warnings and Cautions at the front of this manual
The product is designed for indoor use only.
!
kg
PREOPERATION CHECKS (UNPACKING)
1. Check the module for transport damage and report any damage immediately to Pickering Interfaces.
Do not attempt to install the product if any damage is evident.
2. Ensure that the designated area for the product is of a at and solid construction to support its weight.
HARDWARE INSTALLATION
The 60-772 may be mounted on a desk top or tted into a standard 19 inch rack (rack mounting anges are
supplied with the device and can be tted to either side of the front panel). When tting into a rack it is important
to provide adequate support using side brackets or runners, the mounting holes in the front panel anges
are designed only for securing the device in the rack and must NOT be used to support the weight of the
whole device.
The 60-772 relies upon forced air cooling for the power supply, processor and relay circuit boards. An internal fan
draws air through slots in the side extrusions of the chassis and expels air through a vent on the rear panel. When
positioning the device, make sure that there is adequate clearance to allow unrestricted air ow through these
vents. The locations of the air intakes and outlets are shown in Figure 3-1.
Power is supplied to the rear of the device using a standard IEC power lead and the power on/off switch is located
next to the power inlet socket. The device is supplied with a suitable Earthed mains power lead, If a different lead
is used it is important to ensure that an adequate Earth connection is present. When mounted in a rack, provision
should be made to allow access to the rear of the device. This is to enable the operation of the power on/off switch
and the LAN Reset button. The rear panel layout is shown below.
The Matrix is controlled by the host computer via an Ethernet interface. The RJ45 socket on the rear of the device
can be connected to a hub or switch via an Ethernet cable to allow control over a local area or wide area network.
Alternatively a crossover Ethernet cable can be used to connect the device to a laptop PC and local control can
be carried out isolated from a network. The IP address of the unit has to be manually or automatically congured
before it can be used on a network, please refer to “Setting the IP Address” in the following section and the “LXI
Getting Started Guide” document to carry out this process.
Figure 3-1. Rear view of the 60-772 RF Matrix showing the mains supply connection with power switch,
LAN socket and the Reset button. Cooling air is drawn through slots in the left and right side extrusions
and exits through the vent in the rear panel
Cooling Air
Intake (left
hand side)

Page 3.2 LXI 2.4GHz MATRIX 60-772
pickering
SECTION 3 - INSTALLATION
SETTING THE IP ADDRESS
To use the 60-772 RF Matrix over a LAN connection it should be set up and congured as described in the “LXI
Getting Started Guide” document.
If the IP address is to be set manually and before connecting to a network, contact your IT department so they can
give you the correct settings for:
• IP Address
• Subnet Mask
• Default Gateway
• DNS Server(s)
Once you have the required information, the IP conguration window is used to manually set the IP address. This
is shown in Figure 3-3.
The current IP address setting of the 60-772 is indicated on an LCD display on the rear panel of the chassis.
Incorrect setting will result in a loss of communication and may also be indicated by a red LAN LED on the front
panel. If this does occur press and hold the LAN Reset button on the back panel of the device for a full factory reset
(see Section 6 “Troubleshooting” for details).
Figure 3-2. Display for IP Address on Rear Panel
