PIE 820-ELITE User manual

PIE 820-ELITE
Multifunction
Process Calibrator
mA • V • pH • TC • Ω• RTD • Freq • Pressure
Operating Instructions
PIE 820-ELITE
Multifunction
Process Calibrator
mA • V • pH • TC • Ω• RTD • Freq • Pressure
Operating Instructions
Practical Instrument Electronics
82 East Main Street Suite 3.14 • Webster, NY 14580 USA
Tel: [phone] • Fax: [phone] • [email protected] • www.piecal.com
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Contents
General Operations
Accessories............................................................................. 3
Carrying Case, Boot & Changing Batteries ............................ 4
Storing EZ-CHECK Outputs & Connections........................... 5
Basic Operation
Switches & Knobs................................................................... 6
Double Click Menus ................................................................ 8
Stepping & Ramping / Auto Off............................................. 10
Backlight ............................................................................... 11
Functions and Hookup Diagrams
Milliamp
Source mA ............................................................................ 12
Simulate 2 Wire Transmitters................................................. 13
Read mA ............................................................................... 14
Power/Measure Transmitters ................................................. 15
Power/Measure Transmitters with Leak Detection ................ 16
Voltage & Millivolt
Source V & mV ..................................................................... 18
Read V & mV ........................................................................ 19
pH
Source pH ............................................................................. 20
Thermocouple
Source T/C............................................................................ 22
Read T/C Sensors................................................................. 23
Resistance
Source Resistance................................................................ 24
Read Resistance & Check Continuity................................... 25
RTD
Source RTD .......................................................................... 26
Read RTD Sensors............................................................... 27
Frequency
Source KHz, Hz & CPM........................................................ 28
Read KHz, Hz & CPM .......................................................... 29
Pressure
Read Pressure ...................................................................... 30
Specifications
General ................................................................................. 32
Thermocouple Ranges & Accuracies.................................... 37
RTD Ranges & Accuracies ................................................... 40
Warranty
Warranty & Additional Information ........................................ 41
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 1
General Information
Technician friendly operation
The unique and intuitive EZ-DIAL Double Click Menu makes it
easier to setup than other multifunction calibrators. Uses the same
menus as the single function PIE Evolution Calibrators .
Use it as a milliamp and voltage calibrator
Source 0 to 24.000 mA, 0 to 10.250 V dc, -20.000 to 99.999
mV and -500.00 to 999.99 mV
Read to 24.000 mA, 60.00 V dc ±99.999 mV & ±999.99 mV
Simulate 2-Wire Transmitters & Power up transmitters & loops
Calibrate in temperature with 0.1°C/°F resolution
Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P II
Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850) RTD
Copper 10 & 50 Ohm, Nickel 100 and 120 Ohm RTD
Checkout flow and vibration systems
Source & read frequency from 0 to 2000 CPM (Counts-Per-
Minute), 0.00 to 999.99 Hz, 0.0 to 9999.9 Hz and 0.000 to 20.000 kHz.
Checkout resistance instruments, loop & wiring problems
Source and read resistance from 0.00 to 410.00 and 0.0 to 4001.0
ohms. ‘Beep’ out connections with the built-in continuity checker.
Troubleshoot loop problems
Quickly diagnose ground fault and current leakage with patented
loop diagnostic technology (US Patent 7,248,058).
Simulate pH probes into transmitters & analyzers
Source from 0.000 to 14.000 pH @ 25°C (77°F) corresponding
to -414.12 to +414.12 mV to verify the pH system is operating
properly before placing the probe into calibrated buffers.
Measure pressure with optional pressure modules
Three modules for 30 PSI/2 bar gauge, 500 PIS/35 bar gauge
and 30 PSI/2 bar absolute
Guaranteed compatible with all instrumentation
Works with Rosemount & Honeywell Smart Transmitters, PLCs,
DCSs, Multi-Channel Recorders and other pulsed excitation devices.
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 2
Easy to read
Turn on the backlight & easily see the display in dark areas.
Quickly set any three outputs plus automatic stepping & ramping
Easily set any value quickly with the adjustable “DIAL” plus
store any three output settings for instant recall with the
EZ-CHECK™ switch. Choose between 2, 3, 5 & 11 steps or
RAMP to increase and decrease the output between Zero and
Span from 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 and 60 seconds.
Measure temperature sensors, frequency pickups, mA & V
Check the values of your process sensors. Instantly recall
MAX and MIN values to see process variability.
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 3
Accessories
INCLUDED:
Four “AA” Alkaline batteries, Certificate of Calibration
Evolution Hands Free Carrying Case Part No. 020-0211
Blue Rubber Boot Part No. 020-0213
Evolution mA/V Test Leads - one pair: Part No. 020-0207
with banana plug & alligator clips
Evolution RTD Wire Kit Part No. 020-0208
2 Red & 2 Black Leads with
Banana Plugs & Spade Lugs
OPTIONAL:
Ni-MH 1 Hour Charger with 4 Ni-MH AA Part No. 020-0103
Batteries (100-120 V AC input for North America Only)
T/C Wire Kit 1* for Types J, K, T & E Part No. 020-0202
T/C Wire Kit 2* for Types B, R/S & N Part No. 020-0203
*Three feet (1 meter) of T/C extension wire, stripped on one
end with a miniature T/C male connector on the other end.
Female BNC to Banana Plug Adaptor Part No. 020-0218
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 4
Operating Instructions
FIELD & BENCH USE
PIE 820-ELITE comes with a carrying case designed for hands-
free operation and a rubber boot with a built-in tilt stand. The PIE
820-ELITE is held in the case by elastic straps for use with the
carrying case open. The tilt stand is easily raised by pulling the
stand until it locks into place.
CHANGING BATTERIES
Low battery is indicated by “BAT” on the display. Approximately
one to four hours of typical operation remain before the PIE
820-ELITE will automatically turn off. To change the batteries;
remove the rubber boot, remove the battery door from the back of
the unit by sliding the door downward. This allows access to the
battery compartment. Replace with four (4) “AA” 1.5V batteries
being careful to check the polarity. Replace the battery door and
replace the boot. All stored configuration options (T/C Type,
EZ-CHECK Memories, etc.) are reset to factory settings when the
batteries are removed.
Note: Alkaline batteries are supplied and recommended for
typical battery life and performance. Optional rechargeable
batteries (charged externally) are available.
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 5
Operating Instructions
STORING HI and LO EZ-CHECK Source Outputs
Speed up your calibration by storing Span & Zero output setting
for instant recall with the EZ-CHECK switch.
1) Store your high (SPAN) output temperature by moving the
EZ-CHECK switch to the HI position and turning the EZ-Dial
knob until the desired output value is on the display. Press
and hold the EZ-Dial knob until STORED appears to store
the value. Release the EZ-Dial knob.
2) Store your low (ZERO) output value by moving the EZ-CHECK
switch to the LO position and turning the EZ-Dial knob until
the desired output value is on the display. Press and hold the
EZ-Dial knob until STORED appears to store the value.
Release the EZ-Dial knob.
3) Instantly output your SPAN and ZERO output settings by
moving the EZ-CHECK switch between HI and LO. You may
also select any third output setting (such as mid-range) using
the SET position on the EZ-CHECK switch.
Connections
PIE 820-ELITE has banana jacks compatible with unshielded or
retractable banana plugs. Included with your calibrator are: a
pair of test leads with alligator clips for mA, V, pH & Hz
connections. Four test leads with spade lugs are also included
for 2, 3 and 4 Wire RTD connections. Thermocouple connections
are made through a miniature thermocouple socket.
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 6
SOURCE
HI
SET
LO
OFF
MAX
READ
MIN
READ
OVERLOAD
Hz SYNC
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
READ
HI
TYPE K °C
820.1
qEZ-CHECK™ SWITCH
SOURCE: Instantly output two preset settings by moving the
EZ-CHECK™ switch to the “LO” position or “HI” position. For fast
three point checks select the “SET” position.The PIE 820-ELITE
will remember the last “SET” value, even with the power off.
These values can easily be changed to suit the calibration requirements.
The values stored in the HI and LO positions are also used for Auto
Stepping.
READ: Slide the switch to the SET position. The PIE 820-ELITE will
display the current reading from the sensor or device being measured.
Slide the switch to MAX and the highest value measured since turn-on
or reset will be displayed; slide the switch to MIN and the lowest value
measured since turn-on or reset will be displayed.
Operating Instructions
Basic Operation
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 7
wSOURCE/OFF/READ Switch
Select “SOURCE” to output mA, V, T/C, Ohms, RTD or frequency.
Select “READ” to read mA, V, T/C, Ohms, RTD or frequency.
eEZ-DIAL™ KNOB
SOURCE: Turn the knob to adjust the output level. Turn clockwise to
increase the output, counter clockwise to decrease the output in one
least significant digit steps at a time. Push down and turn the
EZ-DIAL knob for faster dialing.
Press and hold the knob for two seconds to store desired
EZ-Check™ HI/LO points in SOURCE mode. Continue to press and
hold the knob for two more seconds to start the automatic ramping.
READ: Press and hold to transfer the current temperature into
the EZ-Check™ MIN/MAX points. This clears the MIN/MAX
readings which will update as the input value changes.
SELECTING FUNCTIONS
The EZ-DIAL knob is used to setup the PIE 820-ELITE to match
the instrument to be calibrated or signal to be measured. Each
time you turn on the PIE 820-ELITE the LCD displays the fol-
lowing screen for about 1 second followed by operating in the
function used the last time it was operated.
Double Click the EZ-DIAL knob to change the function of the
calibrator and to select ranges, units and other user settings.
Each function (mA, V, T/C, Ohms, RTD, Frequency) has two
pages of menus. The first menu page has settings for the func-
tion and the second menu page has settings for STEPPING,
AUTO OFF and BACKLIGHT. Settings are remembered even
with the power off but are reset when the batteries are changed.
PIE 820-ELITE
DOUBLE CLICK
EZ-DIAL KNOB
FOR CONFIGURATION
Operating Instructions
Basic Operation
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 8
Operating Instructions
Double Click Menus
> EXIT
FUNCTION mA
MODE SOURCE 2W SIM
UNITS mA %
HART 250ΩON OFF
>EXIT
FUNCTION V
RANGE 10V 100mV 1V
> EXIT
FUNCTION mA
MODE READ PWR MEAS PWRM LEAK
UNITS mA %
HART 250ΩON OFF
Double click the EZ-DIAL knob to access the Double Click
Menus to select each function and the options for each function.
Available choices are shown in grey.
>EXIT
FUNCTION V
RANGE 10V 1V 60V 100mV
Source mA & Simulate 2 Wire Transmitters
Read mA, Power/Measure Transmitters
& Leak Detect
Source V & mV Read V & mV
> EXIT
FUNCTION FREQ
RANGE 20KHZ 10000HZ 1000HZ 2000CPM
Source & Read Frequency
> EXIT
FUNCTION pH
Source pH
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 9
> EXIT
FUNCTION T/C
UNITS °C °F
T/C TYPE J K E T R S B N L U G C D P
COLD JUNC ON
> EXIT
FUNCTION RTD
UNITS °C °F
RTD Pt 100 a=3850 [* RTD Types]
WIRE MODE 234W
> EXIT
FUNCTION RTD
UNITS °C °F
RTD Pt 100 a=3850 [* RTD Types]
WIRE MODE 2W 3W 4W
*Pt 100 a=3902,
a=3916, a=3926
Pt 1000 a=3850;
Cu 10 a=4274,
Cu 50 a=4280
Ni 120 a=6720,
Ni 110 a=5801
Source & Read Thermocouples
Source RTD
Operating Instructions
Double Click Menus
Read RTD
>EXIT
FUNCTION OHMS
RANGE 400Ω 4000Ω
WIRE MODE 234W
>EXIT
FUNCTION OHMS
RANGE 400Ω 4000Ω CONT
WIRE MODE 2W 3W 4W
Source Ohms Read Ohms
>EXIT
FUNCTION PRESSURE
UNITS psi inH2O* inHg bar mbar kPa Mpa ksc cmH2O*
mmH2O* mmHg *Multiple temperatures in °C & °F
Read Pressure
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 10
To change the Automatic Stepping settings
Double click the eDIAL KNOB at any time the unit is on and
the following typical display (will be different for each FUNCTION)
will appear for 15 seconds:
Turn the eDIAL KNOB to move to the second menu page.
Turn the eDIAL KNOB to move through the menu. Press the e
DIAL KNOB to toggle between OFF and ON or to change the
STEPS and the STEP TIME settings. These settings are
remembered even with the power off.
EXIT MENU - exits this menu immediately and saves any
changes. Menu will automatically exit after 15 seconds of
inactivity.
AUTO OFF - If AUTO OFF is ON, the unit will turn off after 30
minutes of inactivity to save battery life. If AUTO OFF is OFF the
unit will stay on until the POWER SWITCH is moved to the off
position.
> EXIT
STEPS 3
STEP TIME 5
AUTO OFF ON
BACKLIGHT ON
> EXIT
FUNCTION mA
MODE SOURCE
UNITS mA
HART 250ΩON
Operating Instructions
Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 11
To start the Automatic Stepping
Start automatic stepping or ramping by placing the EZ-CHECK
Switch into the HI or LO position then press and hold the e
DIAL KNOB for 6 seconds (the word STORE will appear on the
display after 3 seconds and continue to press the EZ-DIAL
KNOB) until the word STEPPING appears on the display. The
word STEPPING will appear on the display anytime the selected
automatic function is running. Stop the stepping by again
pressing and holding the eDIAL KNOB for 3 seconds.
BACKLIGHT - If BACKLIGHT is ON the backlight will light all the
time the unit is powered up. For maximum battery life turn the
backlight off when using the calibrator in areas with enough
ambient light to read the display.
STEPS - pressing the knob will cycle through 2, 3, 5, 11 and
RAMP. The endpoints of the steps or ramp are based on the
values stored in the HI and LO EZ-CHECK outputs.
2 steps will automatically switch between the values stored in
the HI & LO EZ-CHECK (0 & 100%).
3 steps between the HI, Midpoint and LO EZ-CHECK (0, 50
& 100%).
5 steps between the HI and LO EZ-CHECK in 25%
increments (0, 25, 50, 75 & 100%).
11 steps between the HI and LO EZ-CHECK in 10%
increments (0, 10, 20...80, 90 &100%).
RAMP continuously ramps up and down between the HI and
LO EZ-CHECK outputs.
STEP TIME - pressing the knob will cycle through 5, 6, 7, 8, 9,
10, 15, 20, 25, 30 and 60 seconds.
Operating Instructions
Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 12
READ
HI
mA
20.000
SOURCE
HI
SET
LO
OFF
MAX
READ
MIN
READ
OVERLOAD
Hz SYNC
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
Milliamp Receiver Input
Controller
Transmitter
Computer
Logger
I/P
DCS
All milliamp connections

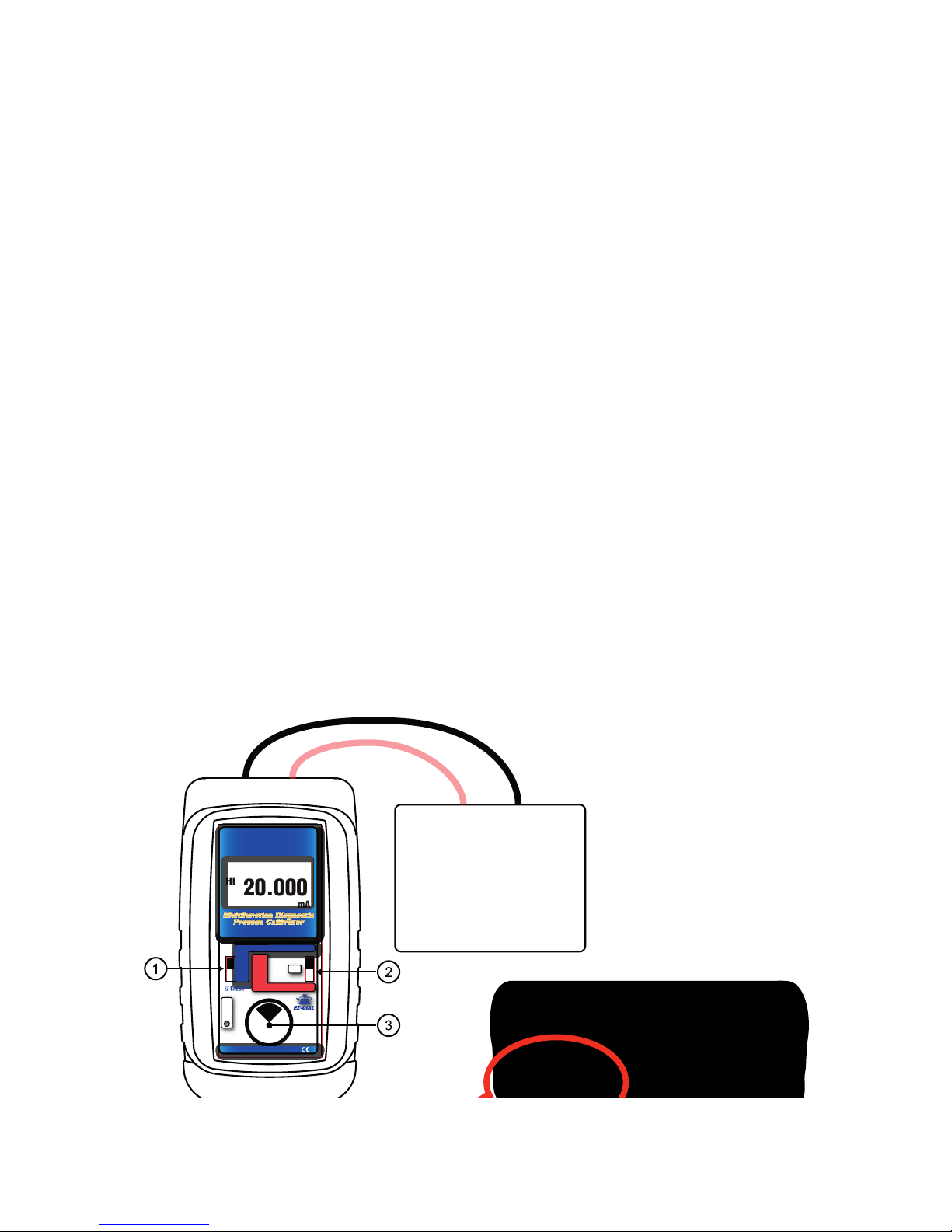

mA SOURCE/ % SOURCE (Percent of 4 to 20 mA)
Choose this function to provide an output from 0.000 to 24.000
milliamps. The compliance voltage is a nominal 24 VDC to
provide the driving power to your milliamp receivers.
Move the power switch w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and SOURCE for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the output leads of the PIE 820-ELITE to the inputs of
the device being calibrated, making sure to check polarity. Red
lead to the plus (+) input and black lead to the minus (-) input.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO (defaults to 20 & 4
mA). You may also select any third output setting (such as
mid-range) using the SET position on the EZ-CHECK switch.
The output is adjusted in 0.001 mA (0.01%) increments by
turning the knob e. Press and turn the knob for faster dialing
with 0.100 mA (1.00%) increments.
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 13
READ
HI
2 WIRE SIM mA
20.000
SOURCE
HI
SET
LO
OFF
MAX
READ
MIN
READ
OVERLOAD
Hz SYNC
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
To
Sensor
Typical
2-Wire
Transmitter
(Disconnected)
+ IN - REF +OUT-
Receiver
Powers External
2-Wire Transmitter
Power Supply
(2 to 100 VDC)
2 Wire SIM mA, 2 Wire SIM % (Percent of 4 to 20 mA)
Choose this function to simulate a 2 Wire Transmitter output from
0.000 to 24.000 milliamps. Operates in loops with power supply
voltages from 2 to 60 VDC.
Move the power switch w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and 2W SIM for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the output leads of the PIE 820-ELITE to the inputs of
the device being calibrated, making sure to check polarity. Red
lead to the plus (+) input and black lead to the minus (-) input.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO (defaults to 20 & 4
mA). You may also select any third output setting (such as
mid-range) using the SET position on the EZ-CHECK switch.
The output is adjusted in 0.001 mA (0.01%) increments by
turning the knob e. Press and turn the knob for faster dialing
with 0.100 mA (1.00%) increments.
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 14
READ
mA
18.203
SOURCE
HI
SET
LO
OFF
MAX
READ
MIN
READ
OVERLOAD
Hz SYNC
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
Milliamp Output Signal
Controller
Transmitter
P/I
DCS
READ mA, READ % (Percent of 4 to 20 mA)
Choose this function to measure from 0.000 to 24.000 milliamps
or -25.00 to 125.00%.
Move the power switch w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
eto scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and READ for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the red input lead (+) of the PIE 820-ELITE to the more
positive point of the break and the black input to the more
negative point.
Signals below 0 mA or open circuits are indicated by 0.00 mA
(-25.0%) on the display. Signals above 24 mA are current limited
by protection circuitry with “OVERRANGE” flashed on the
display and the red OVERLOAD LED lit.
The PIE 820-ELITE measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch q to MAX to see the highest reading and to
MIN to see the lowest reading. Press and hold the knob eto
clear the MAX and MIN readings.
All milliamp connections
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 15
READ
%
PWR MEASURE
28.20
SOURCE
HI
SET
LO
OFF
MAX
READ
MIN
READ
OVERLOAD
Hz SYNC
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
Typical
2-Wire
Transmitter
+ IN - REF +OUT-
Transmitter Input
Sensor
Process Signal
Simulated Input
SOURCE
HI
SET
LO
MAX
READ
MIN
READ
Power/Measure mA, Power/Measure % (Percent of 4 to 20 mA)
Choose this function to simultaneously supply power to a 2 Wire
Transmitter while displaying the 4.000 to 20.000 mA output of
the transmitter.
Move the power switch w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
eto scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and PWR MEAS for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Disconnect one or both input wires from the device to be
calibrated. Connect the red source lead of the PIE 820-ELITE to
the plus (+) input of the device and the black source lead to the
minus (-).
The PIE 820-ELITE supplies a nominal 24 volts DC at 24 mA to
the 2 Wire Transmitter. The current passed by the transmitter will
be accurately displayed by the PIE 820-ELITE. Calibrate the
transmitter in the usual manner and disconnect the PIE
820-ELITE. Signals above 24 mA are current limited by protection
circuitry with “OVERRANGE” flashed on the display and the red
OVERLOAD LED lit.
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 16
mA OUT, % OUT (Percent of 4 to 20 mA)
Find current leaks in loops caused by ground faults, moisture or
corrosion. The 820-ELITE simultaneously supplies power to a 2
Wire Transmitter (or loop with a transmitter) while displaying the
4 to 20 mA output and the amount of current leaking in the loop.
1) Move the power switch w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the
knob eto scroll through the settings and press the knob to
make your selection. Select mA for the FUNCTION and
PWRM LEAK for the MODE. Choose either mA or %.
2) Connect the red source lead from the mA (+) jack of the 820-
ELITE to the plus (+) input of the device and the black source
lead from the mA (-) to the minus (-).
The PIE 820-ELITE supplies a nominal 24 volts DC at 24 mA to
the 2 Wire Transmitter or loop. The current passed by the
transmitter will be accurately displayed by the 820-ELITE along
with an indication of leakage current at the top of the display. If
there is an uncontrolled loop, a transmitter with upscale burnout
and bad or missing sensor or a short the display shows "OVER
RANGE”
Note: Many installed transmitters will normally indicate 0.01 to
0.02 mA leakage without significant control problem. Unstable
readings may indicate loose connections or the presence of
moisture.
Using Ground Leak Detection
All milliamp connections
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 17
The PIE 820-ELITE is
supplying the loop voltage.
There is a control loop
error. This may be a
transmitter (set for upscale
burnout) with a bad or
missing sensor, or a short
in the loop.
The PIE 820-ELITE is
supplying the loop voltage.
A calibrated transmitter is
limiting the loop current to
12.00 mA. An additional
0.28 mA is not controlled
by the transmitter and is
leaking somewhere in the
loop.
LEAK ERROR =
OVER RANGE
PWR MEAS
LEAK ERROR = 00.28
12.280 mA
PWR MEAS
Typical Error Conditions
READ
SOURCE
HI
SET
LO
OFF
MAX
READ
MIN
READ
OVERLOAD
Hz SYNC
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
12.280
PWR MEAS
LEAK ERROR = 00.28
mA
Typical
2-Wire
Transmitter
+ IN - REF +OUT-
Transmitter Input
Sensor
Process Signal
Simulated Input
12.280
PROCESS
INDICATOR
Using Ground Leak Detection
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]

Page 18
Process Calibrator
SOURCE
HI
SET
LO
OFF
MAX
READ
MIN
READ
OVERLOAD Hz SYNC
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
READ
V
10.000
HI
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
Voltage Receiver Input
Controller
Transmitter
Computer
Logger
DCS V & mV Source
mV/V SOURCE
Choose this function to provide an output from -20.000 to 99.999
mV, -500.00 TO 999.99 mV or from 0.000 to 10.250 V. The
source current is a nominal 24 mA to provide the driving power
to your voltage receivers.
Move the power switch w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select V for the FUNCTION and 10V or 80 mV for the
RANGE.
Connect the output leads of the PIE 820-ELITE to the inputs of
the device being calibrated, making sure to check polarity. Red
lead to the plus (+) input and black lead to the minus (-) input.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in
0.001 mV, 0.01 mV or 0.001 V increments by turning the knob e.
Press and turn the knob for faster dialing with 0.100 mV, 1.00 mV
or 0.100 V increments.
www.GlobalTestSupply.com
Quality PIECAL Products Online at: [e-mail]
