Planet IPOE-E174 User manual

1-Port Ultra PoE to 4-Port 802.3af/at Gigabit
PoE Extender
IPOE-E174
User’s Manual

Table of Contents
1. Introduction ............................................................................... 3
1.1 Packet Contents................................................................... 3
1.2 Application Diagram ............................................................. 4
1.3 Key Features ....................................................................... 5
1.4 TechnicalSpecications ........................................................ 7
1.5 Power over Ethernet Budget ................................................10
2. Installation................................................................................11
2.1 Physical Dimensions ............................................................11
2.2 Front Panel.........................................................................12
2.3 Mounting Installation...........................................................14
2.3.1 DIN-rail Mounting.......................................................14
2.3.2 Wall-mount Plate Mounting .........................................15
2.4 Connecting IPOE-E174 to Power Source Equipment (PSE) ......16
2.5 Connecting IPOE-E174 to Powered Device (PD) .....................17
3. Customer Support .....................................................................19

3
1. Introduction
1.1 Packet Contents
Thank you for purchasing PLANET IPOE-E174 1-Port Ultra PoE
to 4-Port 802.3af/at Gigabit PoE Extender. Open the box of
the IPOE-E174 and carefully unpack it. The box should contain the
following items:

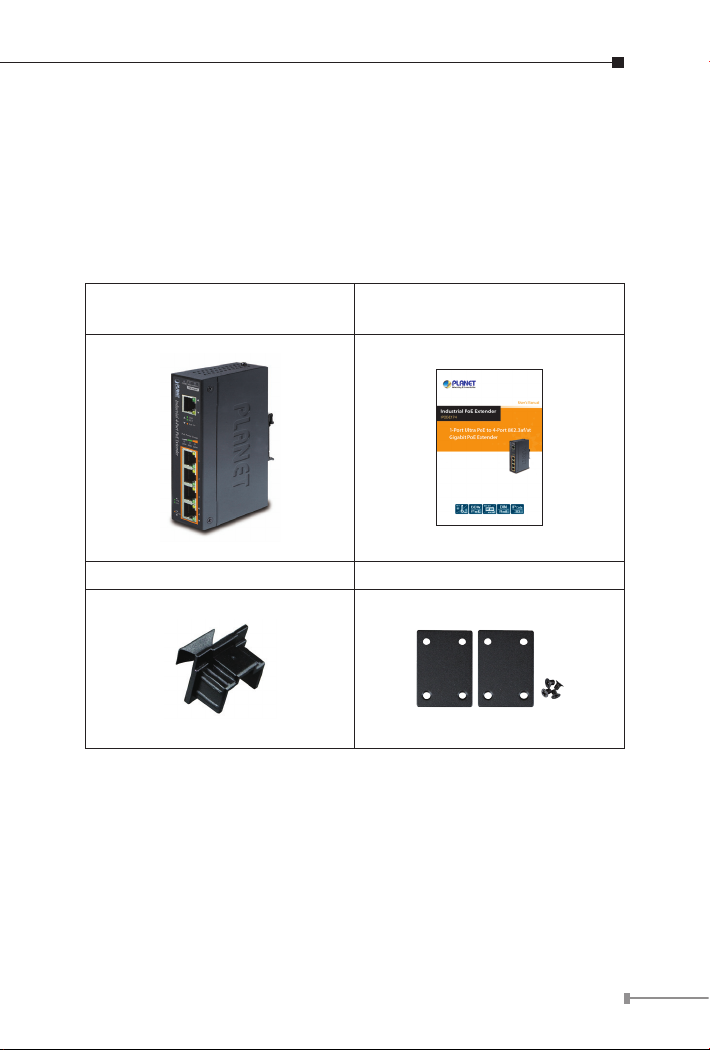

Industrial Power over Ethernet
Extender x 1 User's Manual x 1
RJ45 Dust Cap x 5 Wall Mounting Kit x 1
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a
need to return it to us for repair.

4
1.2 Application Diagram
The IPOE-E174 is designed as a repeater to forward both Gigabit
Ethernet data and IEEE 802.3at PoE power, thus extending the range
of PoE installation. With just plug and play and without additional
power supply and setup, one single IPOE-E174 can increase the PoE
range to 200m and drive up four remote PoE IP cameras or wireless
access point.
Ultra PoE Injector
Power
Data
DC
Switch
100 meters
100 meters
100 meters100 meters
Power Line (DC)
DC
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
PoE
PoE
PoE
PoE
PoE
1000BASE-T UTP with Ultra PoE
PoE
IPOE-E174

5
1.3 Key Features
Physical Port
5-port 10/100/1000BASE-T Gigabit RJ45 interface
1-port data + power input
4-port data + power output
Power over Ethernet
1-port data + power input
Complies with ultra Power over Ethernet end-span and mid-
span PD
Complies with IEEE 802.3at Power over Ethernet Plus end-
span/mid-span PD
Supports PoE input power up to 75 watts
4-port data + power output
Complies with IEEE 802.3af/at PoE/end-span PSE
Up to 4 IEEE 802.3af/802.3at devices powered
Supports PoE power up to 30 watts for each PoE port
Auto detects powered device (PD)
Extends the range of PoE to an additional 100 meters (328ft.)
Forwards both Ethernet data and PoE power to remote device
Layer 2 Features
Features Store-and-Forward mode with wire-speed ltering and
forwarding rates
Integrates address look-up engine, supporting 2K absolute MAC
addresses
9K jumbo frame support in 1000Mbps duplex mode
Automatic address learning and address aging

6
Industrial Case and Installation
IP30 metal case
DIN rail and wall-mount design
Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
No external power cable required for installation
Plug and Play installation
Note
PSE (Power Sourcing Equipment) is a device (switch,
or hub for instance) that provides power in a PoE setup.
Maximum allowed continuous output power per such
device in IEEE 802.3af is 15.4W, and in IEEE 802.3at is
30W and in IEEE 802.3bt is 75W.
PD (Powered Device) is a PoE-enabled terminal by
PSE and thus consumes energy, such as PoE IP phones,
PoE IP cameras, PoE wireless access points, etc.

7
1.4 TechnicalSpecications
Model IPOE-E174
HardwareSpecications
Network Connector
PoE In Port
1 x 10/100/1000BASE-T Ethernet with ultra
PoE “Data + DC” in, auto MDI/MDI-X,
auto-negotiation RJ45 connector
PoE Out Port
4 x 10/100/1000BASE-T Ethernet with IEEE
802.3af/at PoE “Data + DC” out, auto
MDI/MDI-X, auto-negotiation RJ45 connector
Switch Architecture Store-and-Forward switch architecture
MAC Address Table 2K MAC address table with auto learning
function
Switch Fabric 10Gbps
Switch Throughput 7.44Mpps @ 64Bytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 9Kbytes
ESD Protection 6KV DC
Enclosure IP30 metal case
Installation DIN rail kit and wall-mount ear
Cable
Twisted-pair cable:
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100
meters
100BASE-TX: 2-pair UTP Cat. 5, 5e up to
100 meters
1000BASE-T: 4-pair UTP Cat. 5e,6 up to
100 meters
Dimensions
(W x D x H) 32 x 87.8 x 135 mm
Weignt 424g

8
Power Consumption
4.1 watts/13.98 BTU (Power On)
5.3 watts/18.1 BTU (Full loading without PoE
function)
64 watts/218.3 BTU (Full loading with PoE
function)
LED Display
System: PWR (Green)
Power Input: 30W, 2-pair 802.3at PoE in
(Green)
Power Input: 60W+, 4-pair 802.3bt, UltraPoE
or UPOE in (Green)
PoE Power usage: 20W, 40W and 60W
PoE Input Port: PoE In (Orange)
PoE Input Port: LNK/ACT (Green)
Per PoE Output Port: LNK/ACT (Green)
Per PoE Output Port: PoE-in-Use (Orange)
Power over Ethernet
PoE Standard
PoE in Port
IEEE 802.3at High Power over Ethernet
end-span / mid-span PD class 4 PD
Per PoE out Port
IEEE 802.3at High Power over Ethernet
end-span PSE
IEEE 802.3af Power over Ethernet end-span
PSE
PoE Power
PoE in Port
50~57V DC, max. 72 watts
Per PoE out Port
44~55V DC, max. 30.8 watts
Power Pin Assignment
PoE in Port
1/2(-), 3/6(+); 4/5(+), 7/8(-)
Per PoE out Port
1/2(+), 3/6(-)

9
PoE Power Budget
64 watts (max.) @ PoE Type 3 input (Ultra
PoE input)
30 watts (max.) @ PoE Type 2 input (802.3at
input)
15 watts (max.) @ PoE Type 1 input (802.3af
input)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 free fall
IEC60068-2-27 shock
IEC60068-2-6 vibration
Standards Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Higher Power over Ethernet
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity:5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity:5 ~ 95% (non-condensing)

10
1.5 Power over Ethernet Budget
The following table lists how many PoE devices can be powered by the
IPOE-E174:
Power Source PoE Output
Budget*
Max. Number of PDs
supported
PLANET Ultra PoE PSE 64 watts
max.
Class 4 PD@25 watts 2 units
Class 3 PD@15 watts 4 units
Class 2 PD@7 watts 4 units
IEEE 802.3at PoE+
PSE
30 watts
max.
Class 3 PD@15 watts 2 units
Class 2 PD@7 watts 4 units
IEEE 802.3af PoE PSE 15 watts
max. Class 2 PD@7 watts 2 units
Remarks
1. The PoE Output Budget means the 4-port PD
aggregated power output. The aggregated power
consumption will be below 64 watts if with 802.3bt
or ultra PoE PSE.
2. Please check the power input LED for optimal power
output.

11
2. Installation
2.1 Physical Dimensions
The IPOE-E174’s dimensions (W x D x H) are 32 x 87.8 x 135 mm.
Dimensions ( unit = mm )
Top View
Side View Front View
Mounting Kit Mounting Kit
DIN-Rail Kit
Side View Rear View
ACT LNK PoE IN
PoE Power Usage
60W40W20W
PWR 30W 60W+
Industrial 4-Port PoE Extender
PoE Input
1 2 3 4
AC
T
LNK
PoE IN-Use

12
2.2 Front Panel
Figure 2-1 shows the front panel of Industrial Power over Ethernet
Extender
ACT
LNK
PoE IN
PoE Power Usage
60W40W20W
PWR 30W 60W+
Industrial 4-Port PoE Extender
PoE Input
1
2
3
4
AC T
LNK
PoE
IN-Use
Figure 2-1: IPOE-E174 Front Panel

13
System
LED Color Function
PWR Green
Lights to indicate above 48VDC input
Blinks for 2 secondstoindicate>44VDC,≤
48VDC
Blinks for 4 secondstoindicate>40VDC,≤
44VDC
Blinks for 4 seconds and TP ports ash
orange for 1 second to indicate the input
power is lower than 40VDC
30W IN Green Lights to indicate IPOE-E174 is working in
2-pair mode and offers up to 30-watt power.
60W+ IN Green
Lights to indicate IPOE-E174 is working in
4-pair mode and offers more than 60-watt
power.
PoE Power Usage
LED Color Function
20W Green
Blinks to indicate the system is providing 10W
~ 20W PoE power usage.
Lights to indicate the system is providing 20W
~ 30W PoE power usage.
40W Green
Blinks to indicate the system is providing 30W
~ 40W PoE power usage.
Lights to indicate the system is providing 40W
~ 50W PoE power usage.
60W Green
Blinks to indicate the system is providing 50W
~ 60W PoE power usage.
Lights to indicate the system is providing
60W+ PoE power usage.

14
Per PoE Output Port (Port 1 ~ 4)
LED Color Function
LNK/ACT Green
Lights to indicate the port is linked up.
Blinks to indicate that the IPOE-E174 is actively
sending or receiving data over that port.
PoE-in-Use Orange
Lights to indicate the port is providing PoE
power.
OFF to indicate the connected device is not a
PoE Powered Device (PD).
2.3 Mounting Installation
This section describes how to install the Industrial Power over Ethernet
Extender and make connections to it. Please read the following topics
and perform the procedures in the order being presented.
Note
In the installation steps below, this Manual usesIGS-801
(PLANET 8 Port Industrial Gigabit Switch) as an example.
However, the stepsfor PLANET Industrial Power over
Ethernet Extender are similar.
2.3.1 DIN-rail Mounting
Place the Industrial Power over Ethernet Extender on the DIN rail,
which is mounted on the wall, and screw it. Just follow the steps below
to install the Extender.
Step 1: Lightly insert the bottom of the switch into the track.
2
1

15
Step 2: Check if the DIN rail is tightly on the track.
Please refer to the following procedures to remove the Industrial Power
over Ethernet Extender from the track.
Step 3: Lightly remove the DIN rail from the track.
2
1
2.3.2 Wall-mount Plate Mounting
To mount the Industrial Power over Ethernet Extender on the wall,
please follow the instructions described below.
Step 1: To remove the DIN rail from the Industrial Power over
Ethernet Extender, loosen the screws.

16
Step 2: Place the wall-mount plate on the rear panel of the Industrial
Power over Ethernet Extender.
Step 3: Use the screws to screw the wall-mount plate on the
Industrial Power over Ethernet Extender.
Step 4: Use the hook holes in the corners of the wall-mount plate to
hang the Industrial Gigabit Ethernet Switch on the wall.
Step 5: To remove the wall-mount plate, reverse the steps above.
2.4 Connecting IPOE-E174 to Power Source Equipment
(PSE)
This section describes how to install the Industrial Power over Ethernet
Extender and make connections to it. Please read the following topics
and perform the procedures in the order being presented.
There are ve RJ45 ports in the Industrial Power over Ethernet
Extender, of which the “PoE IN” port functions as “PoE (Data and
Power) input” and the “PoE-in-Use” port on the other side functions
as “PoE (Data and Power) output”.

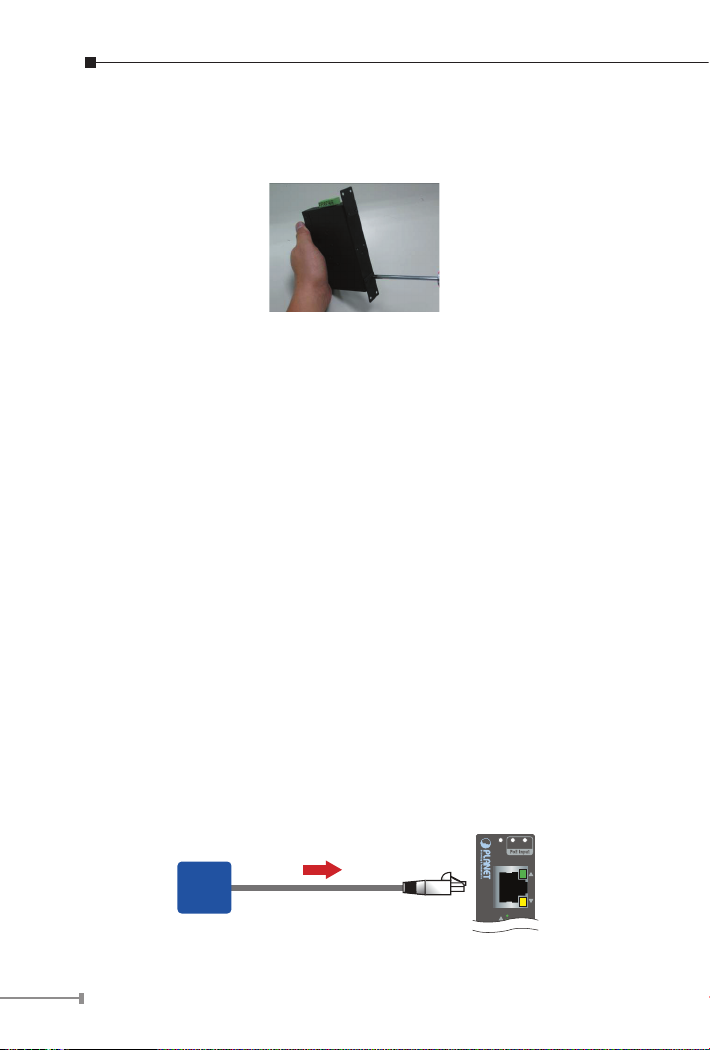

Step 1: Connect a standard Cat.5e/6 UTP cable from Power Source
Equipment (PSE), such as PoE Switch, PoE injector hub or
single port PoE injector, to the “PoE IN” port of the IPOE-
E174.
ACT
LNK
PWR 30W 60W+
Industrial
PoE Input
PoE
PSE 802.3bt/Ultra PoE input

17
Step 2: The PSE delivers both Ethernet Data and PoE power over
UTP cable to the IPOE-E174 and the “PoE IN” LED will be lit
steadily.
Note
1. When the LED turns steady green, it means the
IPOE-E174 is being powered successfully with PoE.
2. If the LED is not lit, please check the remote PSE or
the cable connecting to a PC or a network device to
see if the cable is correct. Or with an 802.3at device
such as the target PD, check whether the power
injection is correct.
3. Never connect any non-standard POE PSE to the
IPOE-E174; it will damage the device permanently.
4. Please reference Chapter 2.2 for more information
about LED function.
2.5 Connecting IPOE-E174 to Powered Device (PD)
Step 1: Connect the additional Cat.5e/6 cable that will be used to
connect to the remote Powered Device (PD) to the “PoE-
in-Use” port of the IPOE-E174.
PoE Power Usage
60W40W20W
1
2
802.3at/802.3af PoE output
PoE
PD
Step 2: The “PoE-in-Use” port is also the power injector which
transmits DC voltage to the Cat.5e/6 cable and transfer data
and power simultaneously between the PSE and PD.

18
Step 3: Once the IPOE-E174 detects the existence of an IEEE
802.3at/af device, the “PoE-in-Use” LED indicator will be lit
steadily, showing it is providing power.
Ultra PoE (60W)
IEEE 802.3at (25W)
IEEE 802.3at (25W)
PoE PTZ IP Cemera
Ultra PoE (60W)
IEEE 802.3at (12W)
IEEE 802.3at (12W)
IEEE 802.3at (12W)
IEEE 802.3at (12W)
PoE Dome IP Camera
Power
Data
Power
Data
Note
1. If the connected device is not fully complying with
IEEE 802.3af/at standard or in-line power device, the
PoE-in-Use LED indicator of the IPOE-E174 will not be
lit steadily.
2. According to IEEE 802.3af/at standard, the IPOE-E174
will not inject power to the cable if not connecting to
a standard IEEE 802.3af/at device.
3. DO NOT connect any PSE to port 1 ~ port 4 of the
IPOE-E174; it may damage the device permanently.

19
3. Customer Support
Thank you for purchasing PLANET products. You can browse our online
FAQ resource anduser’smanualonPLANETWeb sitersttocheck if it
could solve your issue. If you need more support information, please
contact PLANET switch support team.
PLANET online FAQ:
http://www.planet.com.tw/en/support/faq.php?type=1
Switch support team mail address:
[email protected]
Copyright © PLANET Technology Corp. 2017.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks
belong to their respective owners.
