Planet IPOE-E174 User manual

1-Port Ultra PoE to 4-Port 802.3af/at Gigabit
PoE Extender
IPOE-E174
User’s Manual

Table of Contents
1. Introduction.............................................................................. 3
1.1 Packet Contents.................................................................. 3
1.2 Application Diagram ............................................................ 4
1.3 Key Features ...................................................................... 5
1.4 TechnicalSpecications ....................................................... 7
1.5 Power over Ethernet Budget ...............................................10
2. InSTALLATION..........................................................................11
2.1 Physical Dimensions ...........................................................11
2.2 Front Panel .......................................................................12
2.3 Mounting Installation..........................................................14
2.3.1DIN-rail Mounting.......................................................14
2.3.2Wall-mount Plate Mounting .........................................15
2.4 Connecting IPOE-E174 to Power Source Equipment (PSE) .....16
2.5 Connecting IPOE-E174 to Powered Device (PD) ....................17
3. Customer Support ....................................................................19

3
1. Introduction
1.1 Packet Contents
Thank you for purchasing PLANET IPOE-E174- 1-Port Ultra PoE
to 4-Port 802.3af/at Gigabit PoE Extender. Open the box of
the IPOE-E174 and carefully unpack it. The box should contain the
following items:
Industrial Power over Ethernet Extender x 1
User’s Manual x 1
RJ45 Dust Cap x 5
Wall Mounting Kit x 1
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a
need to return it to us for repair.

4
1.2 Application Diagram
The IPOE-E174 is designed as the repeater to forward both Gigabit
Ethernet data and IEEE 802.3at PoE power, thus extending the range
of PoE installation. With just plug and play and without additional
power supply and setup, one single IPOE-E174 can increase the PoE
range to 200m and drive up four remote PoE IP cameras or wireless
access point.
Ultra PoE Injector
Power
Data
DC
Switch
100meters
100meters
100meters
100meters
Power Line (DC)
DC
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
PoE
PoE
PoE
PoE
PoE
1000BASE-T UTP with Ultra PoE
PoE

5
1.3 Key Features
Physical Port
5-port 10/100/1000BASE-T Gigabit RJ45 interface
1-port data + power input
4-port data + power output
Power over Ethernet
1-port data + power input
Complies with ultra Power over Ethernet end-span and mid-
span PD
Complies with IEEE 802.3at High Power over Ethernet end-span
/ mid-span PD
Supports PoE input power up to 60 watts
4-port data + power output
Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet
/ end-span PSE
Up to 4 IEEE 802.3af / 802.3at devices powered
Supports PoE power up to 30.8 watts for each PoE port
Auto detects powered device (PD)
Extends the range of PoE to an additional 100 meters (328ft.)
Forwards both Ethernet data and PoE power to remote device
Layer 2 Features
Hardware based 10/100Mbps, half / full duplex and 1000Mbps full
duplexmode,owcontrol,auto-negotiationand autoMDI/MDI-X
Features Store-and-Forward mode with wire-speed ltering and
forwarding rates
IEEE 802.3x ow control for full duplex operation and back pres-
sure for half duplex operation
Integrates address look-up engine, supporting 8K absolute MAC
addresses
9K jumbo frame support in 1000Mbps duplex mode

6
Automatic address learning and address aging
Supports CSMA/CD protocol
Industrial Case / Installation
IP30 aluminum case protection
DIN rail and wall-mount design
Supports EFT protection for 6000V DC power, and 6000V DC
Ethernet ESD protection
-40 to 75 degrees C operating temperature
No external power cable required for installation
Plug and Play installation
Standard Compliance
IEEE 802.3 10BASE-T
IEEE802.3u100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet
FCC Part 15 Class A, CE
Note
PSE (Power Sourcing Equipment) is a device (switch,
or hub for instance) that provides power in a PoE setup.
Maximum allowed continuous output power per such
device in IEEE 802.3af is 15.4W, and in IEEE 802.3at is
30W.
PD (Powered Device) is a PoE-enabled terminal by
PSE and thus consumes energy, such as PoE IP Phones,
PoE IP cameras, PoE wireless access points, etc.

7
1.4 TechnicalSpecications
Model IPOE-E174
HardwareSpecications
Network Connector
PoE In Port
1 x 10/100/1000BASE-T Ethernet with ultra
PoE “Data + DC”in,autoMDI/MDI-X,
auto-negotiation RJ45 connector
PoE Out Port
4 x 10/100/1000BASE-T Ethernet with IEEE
802.3af/at PoE “Data + DC” out, auto
MDI/MDI-X,auto-negotiationRJ45connector
Switch Architecture Store-and-Forward switch architecture
MAC Address Table 8K MAC address table with auto learning
function
Data Buffer 1Mbit
Switch Fabric 10Gbps
Switch Throughput 7.44Mpps @ 64Bytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 9Kbytes
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 aluminum metal case
Installation DIN rail kit and wall-mount ear

8
LED Display
System: PWR (Green)
Power Input: Midspan in (Green)
Power Input: Endspan in (Green)
PoE Power Usage (%): 25 (Green)
PoE Power Usage (%): 50 (Green)
PoE Power Usage (%): 75 (Green)
PoE Input Port: LNK/ACT (Green)
PoE Input Port: PoE in (Orange)
Per PoE Output Port: LNK/ACT (Green)
Per PoE Output Port: PoE-in-Use (Orange)
Cable
Twisted-pair cable:
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100
meters
100BASE-TX:2-pairUTPCat.5,5eupto
100 meters
1000BASE-T: 4-pair UTP Cat. 5e,6 up to
100 meters
Dimensions
(W x D x H) 135 x 87.8 x 56 mm
Weignt 715g
Power Consumption 60 watts / 204.6BTU (Full loading with PoE
function)
Power over Ethernet
PoE Standard
PoE in Port
IEEE 802.3at High Power over Ethernet
end-span / mid-span PD class 4 PD
Per PoE out Port
IEEE 802.3at High Power over Ethernet
end-span PSE
IEEE 802.3af Power over Ethernet end-span
PSE

9
PoE Power
PoE in Port
50~57V DC, max. 60 watts
Per PoE out Port
44~55V DC, max. 30.8 watts
Power Pin Assignment
PoE in Port
1/2(+), 3/6(-); 4/5(+), 7/8(-)
Per PoE out Port
1/2(+), 3/6(-)
PoE Power Budget
50 watts (max.) @ Ultra PoE input
20 watts (max.) @ IEEE 802.3at PoE+ input
No support @ IEEE 802.3af PoE input
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at High Power over Ethernet
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity:5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity:5 ~ 95% (non-condensing)

10
1.5 Power over Ethernet Budget
The following table lists how many PoE devices can be powered by
IPOE-E174:
Power Source PoE Output
Budget*
Max. Number of PDs
supported
PLANET Ultra PoE PSE 50 watts max.
Class 4 PD@25-watt 2 units
Class 3 PD@15-watt 3 units
Class 2 PD@7-watt 4 units
IEEE 802.3at PoE+
PSE 20 watts max.
Class 4 PD@25-watt 0
Class 3 PD@15-watt 1 unit
Class 2 PD@7-watt 2 units
IEEE 802.3af PoE PSE 10 watts max. Class 2 PD@7-watt 1 unit
Remarks
1. The PoE Output Budget means the 4-port PD
aggregated power output. The aggregated power
consumption will be below 50 watts if with ultra PoE
PSE.
2. Please check the power input LED (60W PoE) for
optimal power output. Both mid-span and end-span
LEDs should be turned on for maximum capability.

11
2. InSTALLATION
2.1 Physical Dimensions
IPOE-E174 1-port Ultra PoE to 4-port 802.3af/at Gigabit PoE Extender
dimensions (W x D x H): 135 x 87.8 x 56 mm
Mounting Kit
Mounting Kit
DIN-Rail Kit
Dimensions ( unit = mm )
Front View Side View
Top View
Bottom View
Side ViewRear View
IPOE-E174
1 2 3 4
4-Port PoE Extender
PoE Power Usage (%)
75
PWR
Midspan IN
Endspan IN
5025
60W PoE
ACT
LNK PoE IN
ACT
LNK PoE In-Use

12
2.2 Front Panel
Figure 2-1 shows the front panel of Industrial Power over Ethernet
Extender
IPOE-E174
1
2
3
4
4-Port PoE Extender
PoE Power
Usage (%)
75
PWR
Midspan IN
Endspan IN
5025
60W PoE
ACT
LNK
PoE IN
ACT
LNK
PoE In-Use
Figure 2-1: IPOE-E174 Front Panel
System
LED Color Function
PWR Green Light to indicate IPOE-E174 has power.
Midspan IN Green
Light to indicate IPOE-E174 is working in
midspan mode and offers up to 30-watt
power.
Endspan IN Green
Light to indicate IPOE-E174 is working in
endspan mode and offers up to 30-watt
power.

13
PoE Input Por
LED Color Function
LNK/ACT Green
Light to indicate the port is linked up.
Blink to indicate that the IPOE-E174 is actively
sending or receiving data over that port.
PoE In Orange Light to indicate IPOE-E174 has power.
Per PoE Output Port (Port 1 ~ 4)
LED Color Function
LNK/ACT Green
Light to indicate the port is linked up.
Blink to indicate that the IPOE-E174 is actively
sending or receiving data over that port.
PoE In-Use Orange
Light to indicate the port is providing PoE
power.
OFF to indicate that the Switch is inactively
sending or receiving data over that port.
PoE Power Usage (%)
LED Color Function
25 Green Light to indicate the system is providing
>25% PoE power usage.
50 Green Light to indicate the system is providing
>50% PoE power usage.
75 Green Light to indicate the system is providing
>75% PoE power usage.

14
2.3 Mounting Installation
This section describes how to install the Industrial Power over Ethernet
Extender and make connections to it. Please read the following topics
and perform the procedures in the order being presented.
Note
In the installation steps below, this Manual usesIGS-801
(PLANET 8 Port Industrial Gigabit Switch) as an example.
However, the stepsfor PLANET Industrial Power over
Ethernet Extender are similar.

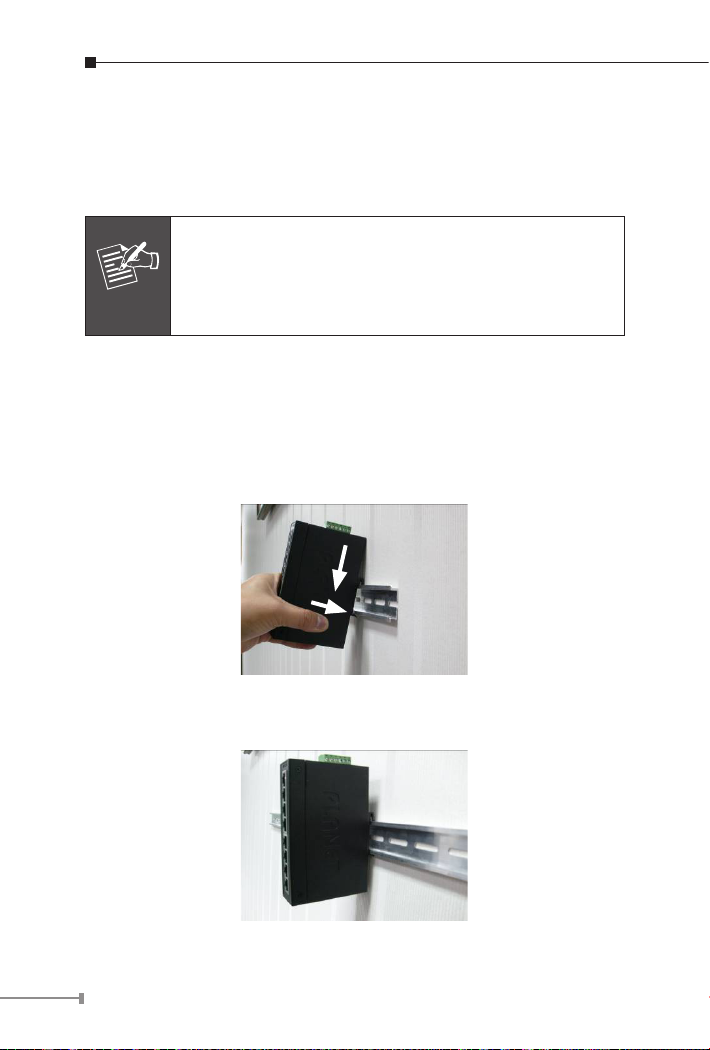

2.3.1 DIN-rail Mounting
Place the Industrial Power over Ethernet Extender on the DIN rail,
which is mounted on the wall, and screw it. Just follow the steps below
to install the Extender.
Step 1: Lightly insert the bottom of the switch into the track.
2
1
Step 2: Check if the DIN rail is tightly on the track.

15
Please refer to the following procedures to remove the Industrial Power
over Ethernet Extender from the track.
Step 3: Lightly remove the DIN rail from the track.
2
1
2.3.2 Wall-mount Plate Mounting
To mount the Industrial Power over Ethernet Extender on the wall,
please follow the instructions described below.
Step 1: To remove the DIN rail from the Industrial Power over
Ethernet Extender, loosen the screws.
Step 2: Place the wall-mount plate on the rear panel of the Industrial
Power over Ethernet Extender.

16
Step 3: Use the screws to screw the wall-mount plate on the
Industrial Power over Ethernet Extender.
Step 4: Use the hook holes in the corners of the wall-mount plate to
hang the Industrial Gigabit Ethernet Switch on the wall.
Step 5: To remove the wall-mount plate, reverse the steps above.
2.4 Connecting IPOE-E174 to Power Source Equipment
(PSE)
This section describes how to install the Industrial Power over Ethernet
Extender and make connections to it. Please read the following topics
and perform the procedures in the order being presented.
There are ve RJ45 ports in the Industrial Power over Ethernet
Extender, of which the “PoE IN” port functions as “PoE (Data
and Power) input” and the “PoE In-Use” port on the other side
functions as “PoE (Data and Power) output”.
Step 1: Connect a standard CAT-5e/6 UTP cable from Power Source
Equipment (PSE), such as PoE Switch, PoE injector hub and
single port PoE injector, to the “PoE IN” port of the IPOE-
E174.
4-P
PWR
Midspan IN
Endspan IN
60W PoE
ACT
LNK
PoE IN

17
Step 2: The PSE delivers both Ethernet Data and PoE power over
UTP cable to the IPOE-E174 and the “PoE IN” LED will be lit
steadily.
Note
1. When the LED turns steady green, it means the
IPOE-E174 is being powered successfully with PoE.
2. If the LED is not lit, please check the remote PSE or
the cable connecting to a PC or a network device to
see if the cable is correct. Or with an 802.3at device
such as the target PD, check whether the power
injection is correct.
3. Never connect any non-standard POE PSE to the
IPOE-E174, it will damage the device permanently.
2.5 Connecting IPOE-E174 to Powered Device (PD)
Step 1: Connect the additional CAT-5e/6 cable that will be used to
connect to the remote Powered Device (PD) to the “PoE
In-Use” port of the IPOE-E174.
Step 2: The “PoE In-Use” port is also the power injector which
transmits DC voltage to the CAT-5e/6 cable and transfer data
and power simultaneously between the PSE and PD.

18
Step 3: Once the IPOE-E174 detects the existence of an IEEE
802.3at/af device, the “PoE In-Use” LED indicator will be lit
steadily, showing it is providing power.
Ultra PoE/60W
IEEE 802.3at/25W
IEEE 802.3at/25W
PoE PTZ IP Cemera
Ultra PoE/60W
IEEE 802.3af/12W
IEEE 802.3af/12W
IEEE 802.3af/12W
IEEE 802.3af/12W
PoE Dome IP Camera
Power
Data
Power
Data
Note
1. If the connected device is not fully complying with
IEEE 802.3af/at standard or in-line power device, the
PoE In-Use LED indicator of the IPOE-E174 will not be
lit steadily.
2. According to IEEE 802.3af/at standard, the IPOE-E174
will not inject power to the cable if not connecting to
a standard IEEE 802.3af/at device.
3. DONOT connect any PSE to port 1 ~ port 4 of the
IPOE-E174, it may damage the device permanently.

19
3. Customer Support
Thank you for purchasing PLANET products. You can browse our online
FAQ resource and User’s Manual on PLANET Web site rst to check if it
could solve your issue. If you need more support information, please
contact PLANET switch support team.
PLANET online FAQ:
http://www.planet.com.tw/en/support/faq.php?type=1
Switch support team mail address:
[email protected]
Copyright © PLANET Technology Corp. 2014.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks
belong to their respective owners.
