Planet CIA-3250V User manual

User’s Man
►ICA-3250V
Full HD Outdoor IR
PoE IP Camera

User’s Manual of ICA-3250V
2
Copyright
Copyright ©2013 by PLANET Technology Corp. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular
purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes
the entire cost of all necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, PLANET reserves the right to revise this publication
and to make changes from time to time in the contents hereof without obligation to notify any person of
such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered
trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance. (Example-use only shielded interface cables when connecting to
computer or peripheral devices). Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two
conditions: (1) This device may not cause harmful interference, and (2) this Device must accept any
interference received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity
to the antenna shall not be less than 20 cm (8 inches) during normal operation.

User’s Manual of ICA-3250V
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However,
special attention must be paid to the dangers of electric shock and static electricity when working with
electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed
at all times to ensure the safe use of the equipment.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
WEEE Regulation
3
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to
collect such WEEE separately.
Revision
User’s Manual for PLANET Full HD Outdoor IR PoE IP Camera
Model: ICA-3250V
Rev: 1.00 (January. 2013)
Part No. EM-ICA3250V

User’s Manual of ICA-3250V
4
Table of Content
1.Introduction...............................................................................................6
1.1 Features ..............................................................................................6
1.2 Product Specification ........................................................................8
1.3 Package Contents ..............................................................................9
2.Basic Setup .............................................................................................10
2.1 System Requirements......................................................................10
2.2 Physical Description........................................................................ 11
2.2.1 Identification of ICA-3250V cable ............................................. 11

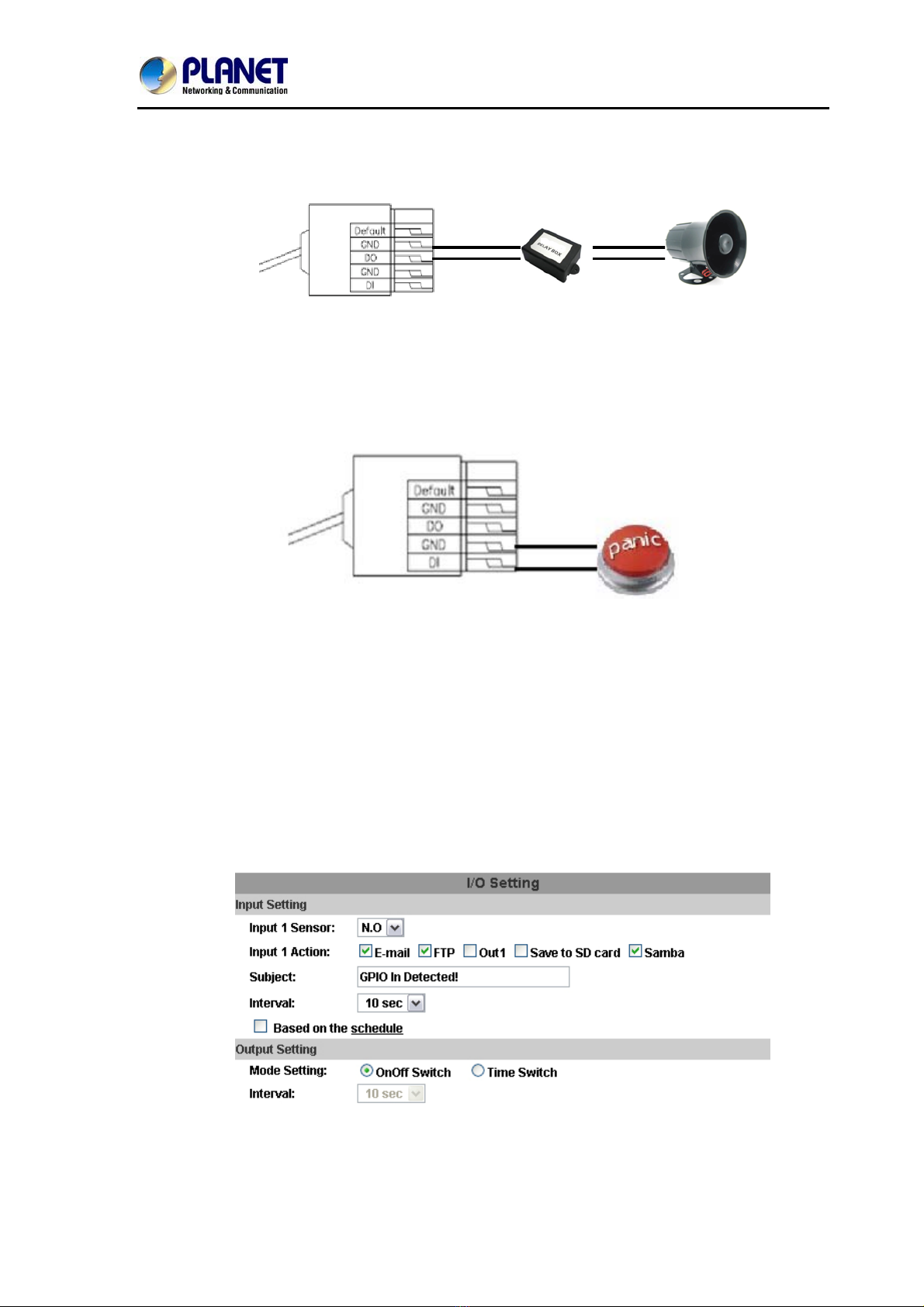

2.2.2 ICA-3250V I/O Control Instruction............................................12
2.3 Hardware Installation .......................................................................15
2.3.1 Physical Installation ..................................................................15
2.4 Initial Utility Installation ...................................................................17

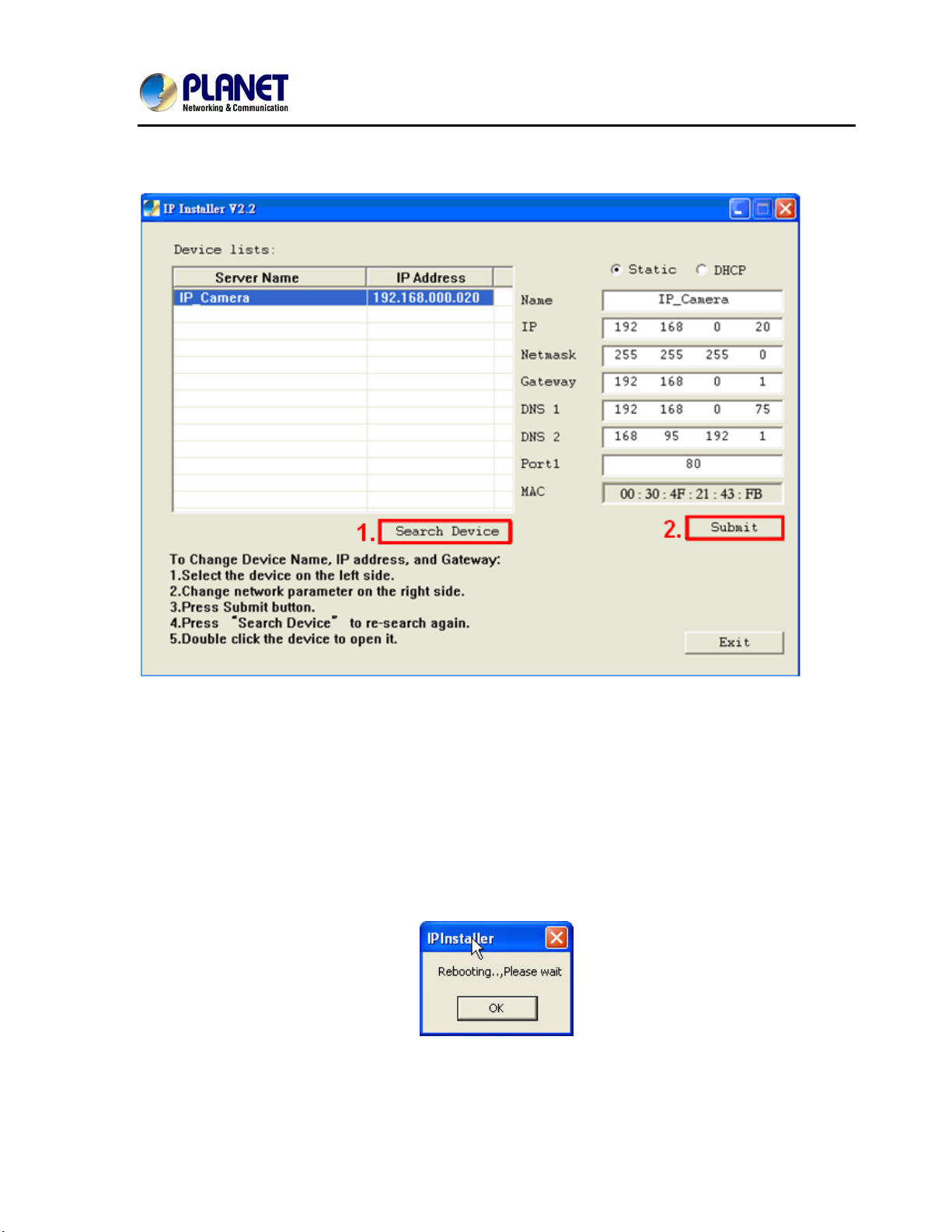

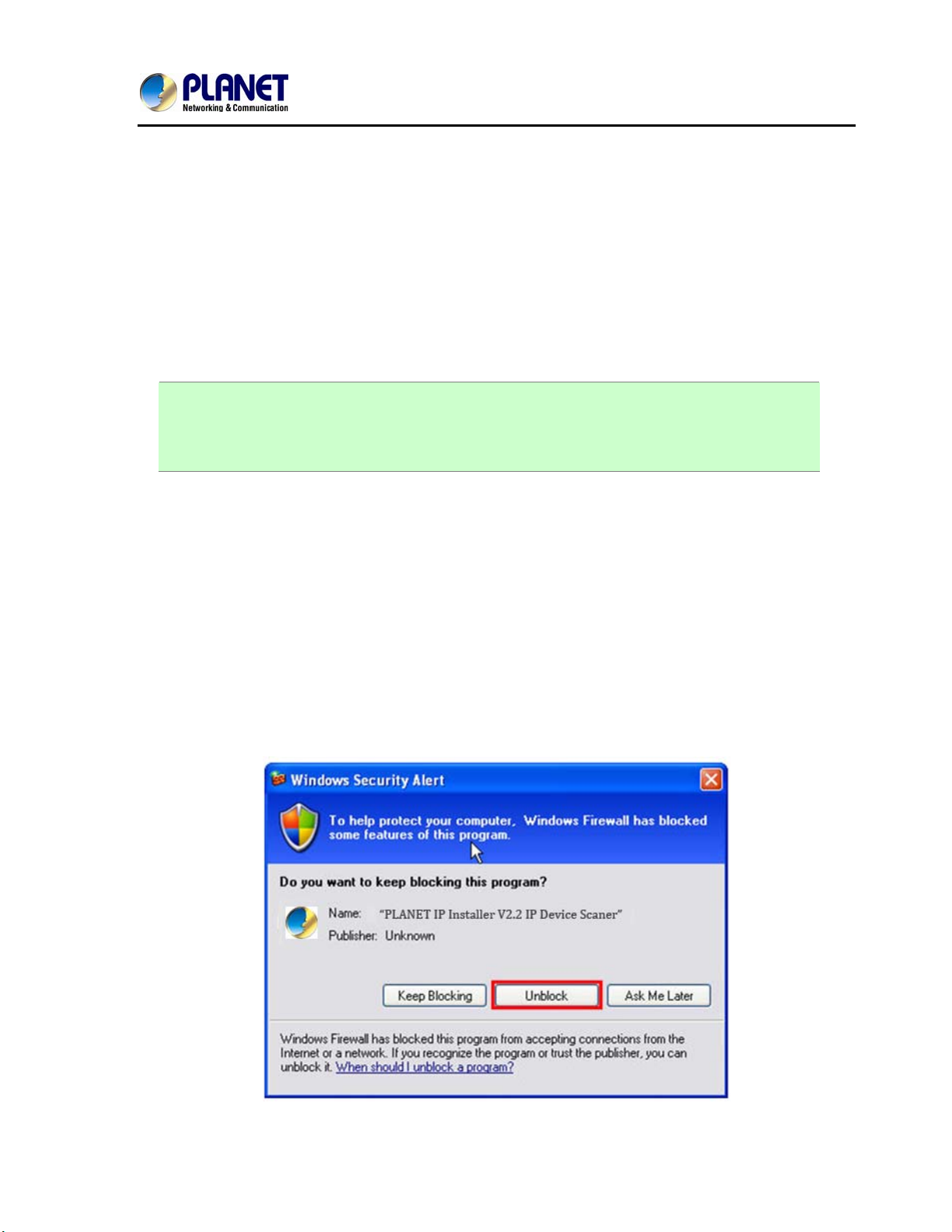

2.4.1 Search and Configure Network by PLANET IP Installer .........17
2.5 Setup ActiveX to use the Internet Camera .....................................21
2.5.1 Internet Explorer 6 for Windows XP.........................................21
2.5.2 Internet Explorer 7 for Windows XP.........................................22
2.5.3 Internet Explorer 7 for Windows Vista .....................................23
3. Web-based Management.......................................................................24
3.1 Introduction ......................................................................................24

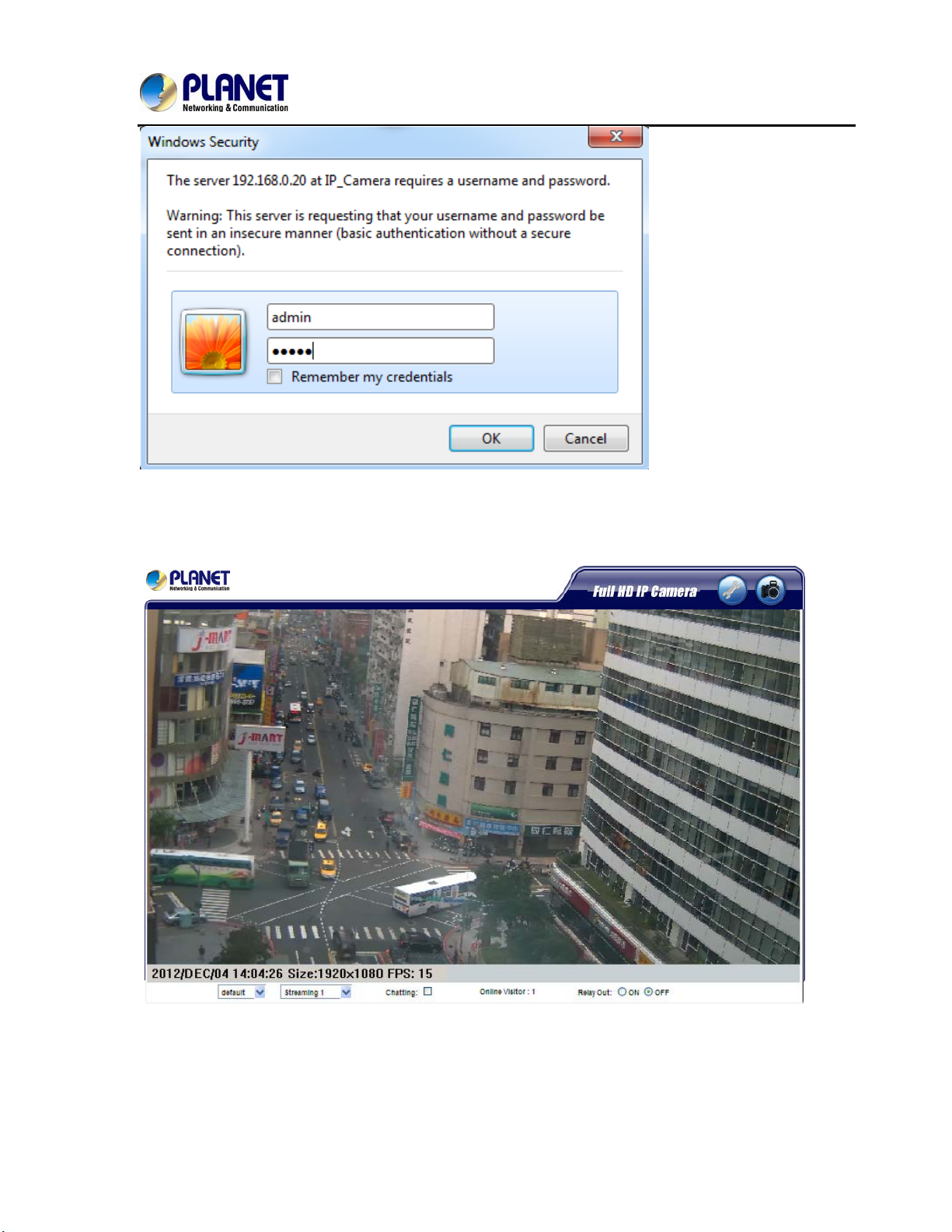

3.2 Connecting to Internet Camera.......................................................24
4.Live View .................................................................................................26
5.Configuration ..........................................................................................28
5.1 System ..............................................................................................29
5.1.1 System Information ...................................................................29
5.1.2 User Management......................................................................31
5.1.3 System Update...........................................................................32
5.2 Network .............................................................................................33
5.2.1 IP Setting ....................................................................................33
5.2.2 Advanced....................................................................................36
5.2.3 Using UPnP of Windows XP or Vista........................................42
5.2.3.1 Windows XP ............................................................................42
5.2.3.2 Windows Vista.........................................................................47
5.2.4 PPPoE.........................................................................................50
5.2.5 DDNS ..........................................................................................50
5.2.6 Mail & FTP & SAMBA.................................................................53
5.3 A/V Setting ........................................................................................55
5.3.1 Image Setting .............................................................................55
5.3.2 Video Setting..............................................................................56
5.3.3 Audio...........................................................................................60
5.4 Event List ..........................................................................................61
5.4.1 Event Setting..............................................................................61
5.4.2 Schedule.....................................................................................62
5.4.3 I/O Setting...................................................................................63
5.4.4 Log List.......................................................................................65

User’s Manual of ICA-3250V
5
5.4.5 SD card .....................................................................................66
5.4.5.1 Playback...........................................................................66
5.4.5.2 SD Management...............................................................66
5.4.5.3 Copy to PC .......................................................................66
Appendix A: Factory Default.....................................................................69
Appendix B: PING IP Address ..................................................................70
Appendix C: 3GPP Access........................................................................71
Appendix D: Planet DDNS Application ....................................................72
Appendix E: Configure Port Forwarding Manually .................................73
Appendix F: Troubleshooting & Frequently Asked Questions ..............76
Appendix G: Micro SD Card Compatibility ..............................................80

User’s Manual of ICA-3250V
6
1.Introduction
Superb Full HD Quality for Professional Surveillance
The ICA-3250V, 25 meters IR / Vari-Focal Outdoor PoE IP Camera, supports the highest video
compression – H.264, which provides small video size and save you lots of bandwidth usage. The new
video compression is the best solution for Internet video transmission.
Dual Streaming / Multi Profiles
The Multi-Profile function enables the ICA-3250V to generate H.264 / MPEG-4 / M-JPEG streaming
simultaneously to differentiate users in different resolutions. This state-of-the-art design is
considerable to fit in various network environments. The ICA-3250V provides 2-Way audio function for
surveillance. It can remotely talk to anyone at the ICA-3250V site with additional speaker connected to
the camera.
PoE Support Enables Installation Anywhere and IP-66 protection for outdoor application
Compliant with IEEE 802.3af PoE interface, the ICA-3250V can be located in places where there are
no power outlets. Through Power over Ethernet function and with UPS installed in the network center,
the administrators are fearless of any power breakdown.
Vari-Focal IR Lens
With water-proof & Vari-Focal IR lens, the ICA-3250V meet various demand of installations, for
instance, traffic monitoring on two more lanes or focus on one specified lane. The IR function makes
the monitoring 24/7 both in day and night.
Day & Night Operations
The ICA-3250V features zero-lux illumination. Its 35 IR illuminators built around the lens bring the
clearest vision at night. Via the new LED technology, the illuminator ensures high-quality monochrome
images in complete darkness up to 25 meters. With the aluminum rugged all-weather waterproof
housing, the ICA-3250V performs reliable operation in any environment. It can work with the PLANET
Cam Viewer 3 Lite/Pro Management software and Network Video Recorder products for various field
demands in surveillance network.
1.1 Features
¾Camera
■2 Mega-Pixel COMS Sensor with Vari-Focal Lens in 25 meters IR distance
■IP-66 protection for outdoor application
■Maximum resolution 1920 x 1080 (30fps)
¾Video / Audio
■2-Way audio supported with external speaker and microphone
■Cut filter brings better video quality in the daytime and nighttime
■Supports H.264, MPEG-4 and M-JPEG video compression
¾Network and Configuration
Compliant with IEEE 802.3af PoE interface
DDNS, PPPoE and FTP upload supports more alternatives in surveillance network
Motion Detection feature can monitor any suspicious movement in specific area

User’s Manual of ICA-3250V
7
Supports IPv6 protocol in addition to the standard IP protocol version 4 (IPv4)
¾Easy Installation & Management
■Easy configuration and management via Windows-based utility or web interface
■Support 3GPP and JAVA for iPhone and Windows mobile for remote view
■Supports ONVIF v1.02 / v1.01 Standard
■Easy setup through cable management

User’s Manual of ICA-3250V
8
1.2 Product Specification
Model ICA-3250V
Camera
Image Device 1/2.7” 2Mega-Pixel CMOS Sensor
Effective Pixels 1920 x 1080@30fps
Sensitivity 0.05lux
Lens 3.6 ~ 16mm Vari-focal lens with auto iris and IR cut filter/ F1.2
Illuminator 0 Lux IR on
View Angle H: 23.6~97.9 Degree / V: 14.2~51.6 Degree
Video
Video Encoder H.264, MPEG4 and Motion JPEG simultaneously (Tri-encoders)
Video Profile
13 profiles simultaneously
- H.264 1080p / 720p / VGA / QVGA / QCIF
- JPEG 1080p / 720p / VGA / QVGA / QCIF
- MPEG4 VGA / QVGA / QCIF (Only for 3GPP)
Frame Rate HD-1080p / 720p / VGA / QVGA / QCIF Up to 30fps
Image Setting Brightness, sharpness, contrast, AGC, Night Mode
Text, time and date overlay
Streaming Simultaneously multi-profile streaming
M-JPEG streaming over HTTP
Supports 3GPP mobile surveillance
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
Audio
Audio Encoder RTSP:G.711 / G.726
3GPP:AMR
Audio Streaming One-way or Two-way
Microphone External microphone input
Audio Output Phone Jack
Network and Configuration
Network Standard IEEE 802.3 / IEEE 802.3u
Supported Protocols IPv4, IPv6, TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP,
UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP
Security Password protection, user access log
Users 10 simultaneous unicast users
Ethernet 10/100M auto negotiation
System Integration
Application Programming
Interface
Open API for software integration
SDK
Alarm Triggers Intelligent video motion detection and external input
Motion Detection 3-zone video motion detection

User’s Manual of ICA-3250V
9
Alarm Events File upload via FTP, email and SAMBA.
External output activation
Video Buffer Pre- 5sec and post- 10 sec alarm buffering
General
Power Supply 12V DC external power adapter
PoE IEEE 802.3af
PoE Consumption Max 7.68 W while IR LED ON
Max 4.8 W while IR LED OFF
Illumination LED IR LEDS
IR LED Infrared LED ×35pcs
IR Wavelength 850nm
IR Distance 25M
Power Consumption IR on: 5.76W
IR off: 3.84W
Protection Class IP-66 classification
Operating Temperature -20 ~ 50 degree C
Viewing System
OS Windows® XP, Vista 32bit, Win7 32bit, Server 2003
Browser IE 8.0 or latter
Cell Phone With 3GPP player
Video Player VLC, Quick Time, Real Player
Software
Monitor/ Recording /
Management
PLANET CV3P (2-ch Cam Viewer Three Pro Trail Version)
PLANET CV3L (64-ch Cam Viewer Three Lite Bundle Version)
Search & Installation PLANET IP Installer
1.3 Package Contents
The package should contain the followings:
ICA-3250V x 1
Power Adapter x 1
Screw package x 1
Female to Female RJ-45 connector x 1
User’s Manual CD x 1
Quick Installation Guide x 1

User’s Manual of ICA-3250V
NOTE:1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in Internet camera packet
will cause damage and void the warranty for this product.
2.Basic Setup
This chapter provides details of installing and configuring the Internet camera
2.1 System Requirements
Network Interface 10/100Base-TX Ethernet
Monitoring System Recommended for Internet Explorer 8.0 or later
System Hardware
(Suggested)
· CPU: Intel Core i3-530
· Memory Size : 2048 MB (1024 MB or above Recommended )
· VGA card resolution : 1920 x 1200
· VGA card memory : 512 MB or above
System Hardware
(Minimum)
· CPU: Intel C-2.8G
· Memory Size : 512 MB
· VGA card resolution : 1280 x 1024
· VGA card memory : 64 MB
NOTE: The listed information is minimum system requirements only. Actual requirement will
vary depending on the nature of your environment.
10

User’s Manual of ICA-3250V
2.2 Physical Description
2.2.1 Identification of ICA-3250V cable
1. RJ-45 LAN socket: Connect to PC or Hub/Switch.
For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way
protocol can detect or negotiate the transmission speed of the network automatically. Please use CAT-5
cable to connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub.
2. Power Jack: The input power is DC 12V.
NOTE: ONLY use package power adapter supplied with the Internet. Otherwise, the
product may be damaged.
3. I/O Control Instruction
I/O terminal connector – used in application, for e.g., motion detection, event triggering, alarm notifications
4. Video Output
The internet camera also provides composite video output. User can use BNC video cable to connect the
internet camera with a TV monitor or VCR.
5. MIC in (audio in)
Connect a microphone to the network camera.
6. Line out (audio out)
Connect a loud speaker to the network camera. This is for voice alerting and two-way audio.
11

User’s Manual of ICA-3250V
2.2.2 ICA-3250V I/O Control Instruction
1) Please connect the GND & DO pin to the external relay (buzzer) device.
2) Please connect the GND & DI pin to the external trigger device.
3) I/O PIN definition
zGND (Ground): Initial state is LOW
zDO (Digital Output): DC 5V
zDI (Digital Input): Max. 50mA, DC 5V
4) I/O Setup
zClick I/O Setting from the system setup page via IE, and check “Out1” to
enable I/O signal.
12

User’s Manual of ICA-3250V
5) Output Test
After the external input and output hardware is installed, you can use the
"Relay Out" button on the live video page to test if DO / Relay Out works.
zOn/Off Switch mode:
Click "ON"; the camera will trigger the external output devise for
10 seconds. For example, your alarm buzzer will continuously ring for
10 seconds. After 10 seconds the buzzer stops ringing, or you can manually
break off the output signal by clicking "OFF".
13

User’s Manual of ICA-3250V
zTime Switch mode:
Click "Pulse", the camera will trigger the external output devise for several
seconds; the duration length is according to the "interval" setting in Output Setting.
Note: Relay out function need extra purchase relay box. Relay out
box need connected to I/O terminal connector will provide relay
out function with ICA-3250V.
14

User’s Manual of ICA-3250V
15
2.3 Hardware Installation
2.3.1 Physical Installation
1. Connect an Ethernet cable
Connect the LAN cable on the camera to the network device (hub or switch).
NOTE: If there has an IEEE802.3af PoE switch in your network, you can connect the
camera LAN cable to this PoE switch to obtain power. The power adapter is
unnecessary when Internet camera is connected to a PoE switch.
2. Attach the power supply
Plug in power adapter and connect to power source. After power on, the camera will start to
operate.
NOTE: 1. Only use the power adapter supplied with Internet camera Otherwise, the
product may be damaged.
2. The power adapter is unnecessary when Internet camera is connected to a
PoE switch. Otherwise, the product may be damaged when Internet camera is
connected to a PoE switch and power adapter simultaneously.
3. Attach BNC connector
Connect the video BNC connector to a monitor set if necessary check camera viewing angle and
focus.
4. Attach Speaker to camera (option)
If user needs not only video stream but also audio stream, then the speaker should be attached to
camera.

User’s Manual of ICA-3250V
5. PoE (Power over Ethernet)
Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure.
It enables power to be provided to the network device, such as an IP phone or a network camera,
using the same cable as that used for network connection. It eliminates the need for power outlets
at the camera locations and enables easier application of uninterruptible power supplies (UPS) to
ensure 24 hours a day, 7 days a week operation.
16

User’s Manual of ICA-3250V
2.4 Initial Utility Installation
This chapter shows how to quick set up your H.264 camera. The camera is with the default settings.
However to help you find the networked camera quickly the windows utility PLANET IP Installer can
search the cameras in the network that shall help you to configure some basic setting before you started
advanced management and monitoring.
1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once completed, a
welcome menu screen will appear.
2. Click the “PLANET IPInstaller II” hyperlink; you will see the dialog box as below.
NOTE: If the welcome screen does not appear, click “Start” at the taskbar. Then, select
“Run” and type “D:\Utility\PLANETIPinstaller\PLANETIPinstaller.exe”, assume D
drive is your CD-ROM drive.
When you installed the camera on a LAN environment, you may execute PLANET IP Installer to discover
camera’s IP address and set up related parameters in the camera.
2.4.1 Search and Configure Network by PLANET IP Installer
When you installed the Camera on a LAN environment, you have two easy ways to search your
Cameras by PLANET IP Installer or UPnP discovery. Here is the way to execute PLANET IP Installer to
discover Camera’s IP address and set up related parameter in a Camera.
Search and Configure Network
1. OS: Windows XP SP2 or above. If the following “Windows Security Alert” popup, please click
“Unblock”.
17

User’s Manual of ICA-3250V
3. The GUI of IP Installer is as follows (Default IP: 192.168.0.20).
(1) IP Installer will search all IP Cameras connected on LAN. The user can click “Search Device” to
search again.
(2) Click one of IP Cameras listed on the left side of IP Installer, then the network configuration of that
IP Camera will be listed on the right side. If parameters changed, click on “Submit”. Then, the
network configuration will be changed. Just click “OK” to reboot
18

User’s Manual of ICA-3250V
(3) Please make sure the subnet of PC IP address and IP CAM IP address are the same.
IP CAM IP address: 192.168.0.20
PC IP address: 192.168.0.100
(4) Different Subnets:
IP CAM IP address: 192.168.0.20
PC IP address: 192.168.1.100
(5) To Change PC IP addresses:
Control PanelÆNetwork ConnectionsÆLocal Area Connection PropertiesÆInternet Protocol
(TCP/IP) ÆProperties
Please make sure your IP Camera and PC have the same Subnet. If not, please change IP
Camera IP subnet or PC IP subnet accordingly.
(6) A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera
listed on “Device list” of PLANET IP Installer. An IE browser will be opened.
(7) Then, please key in the default “Username: admin” and “Password: admin” in the following
message box.
19

User’s Manual of ICA-3250V
20
(8) If the user name and password are input correctly, the following web page will be displayed.
