Planet TSN-6325-8T4S4X User manual

Industrial Layer 3
Managed TSN Switch
TSN-6325-8T4S4X
Quick Installation Guide

Table of Contents
1. Package Contents...................................................................... 3
2. Requirements............................................................................ 4
3. Wiring the Power Inputs ............................................................ 5
3.1 Grounding the Device.......................................................... 6
4. Terminal Setup.......................................................................... 7
4.1 Logging on to the Console................................................... 8
 4.2 ConguringIPAddressviaConsole ...................................... 9
 4.3 StoringCurrentSwitchConguration ...................................11
5. Starting Web Management ........................................................12
5.1 Logging in to the Industrial Managed Switch ........................13
 5.2 SavingCongurationviaWeb .............................................15
6. RecoveringBacktoDefaultConguration ...................................17
7. Customer Support ....................................................................18

3
1. Package Contents
Thank you for purchasing PLANET L3 Industrial Managed TSN Switch,
TSN-6325-8T4S4X. “Industrial Managed Switch” mentioned in this
Quick Installation Guide refers to the above model.
Open the box of the Industrial Managed Switch and carefully
unpack it. The box should contain the following items:
TSN-6325-8T4S4X
The Industrial Managed Switch x 1
DB9 to RJ45 Interface RS232 Console Cable x 1
Quick Installation Guide sheet x 1
Wall Mounting Kit x 1
RJ45 Dust Cap x 9
SFP Dust Cap x 8
If any of these are missing or damaged, please contact your dealer
immediately.Ifpossible, retain the carton includingtheoriginalpacking
materials to enable you to repack the product in case there is a need
to return it to us for repair.

4
2. Requirements
The Industrial Managed Switch provides remote login interface for
management purposes. The following equipment is necessary for
further management:
• Workstations running Windows XP/2003/2008/Vista/7/8/10/11,
MAC OS X or later, Linux, UNIX, or other platforms are compatible
withTCP/IPProtocols.
• Workstations are installed with Ethernet NIC (Network Interface
Card).
• Serial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-
RS232 converter.
The above Workstations have been installed with terminal
emulator, such as Hyper Terminal included in Windows XP/2003,
putty or tera term.
Serial cable -- one end is attached to the RS232 serial port,
while the other end to the console port of the Industrial
Managed Switch.
• Ethernet Port Connection
Network cables--Use standard network (UTP) cables with RJ45
connectors.
The above PC is installed with Web browser.
Note
It is recommended to use Chrome 98.0.xxx or above to
access the Industrial Managed Switch.

5
3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch indicates an inlet
power socket and consists of one green terminal block connector within
6 contacts. Please follow the steps below to insert the power wire.
1.Insert positive/negative DC power wires into Contacts 1 and 2 for
Power1,orContacts5and6forPower2.
DC9-48V,AC24V
Max. Fault Alar m Loadin g: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V , 5A max.
AC Input: 24V , 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: TSN-6325-8T4S4X Upper Panel
Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
1 2 3 4 5 6
 V+ V-   V+ V-
Power 1 Power 2
Figure 3-2: Power 1 & 2 Pins of Terminal Block Connector
Note
1. The wire gauge for the terminal block should be in the
range from 12 to 24 AWG.
2. Please check the AWG Ampere specification before
connectingPLANETIndustrialManagedSwitch.

6
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a
sudden lightning could cause fatal damage to the device.
Max. Fault Alar m Loadin g: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V , 5A max.
AC Input: 24V , 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground

7

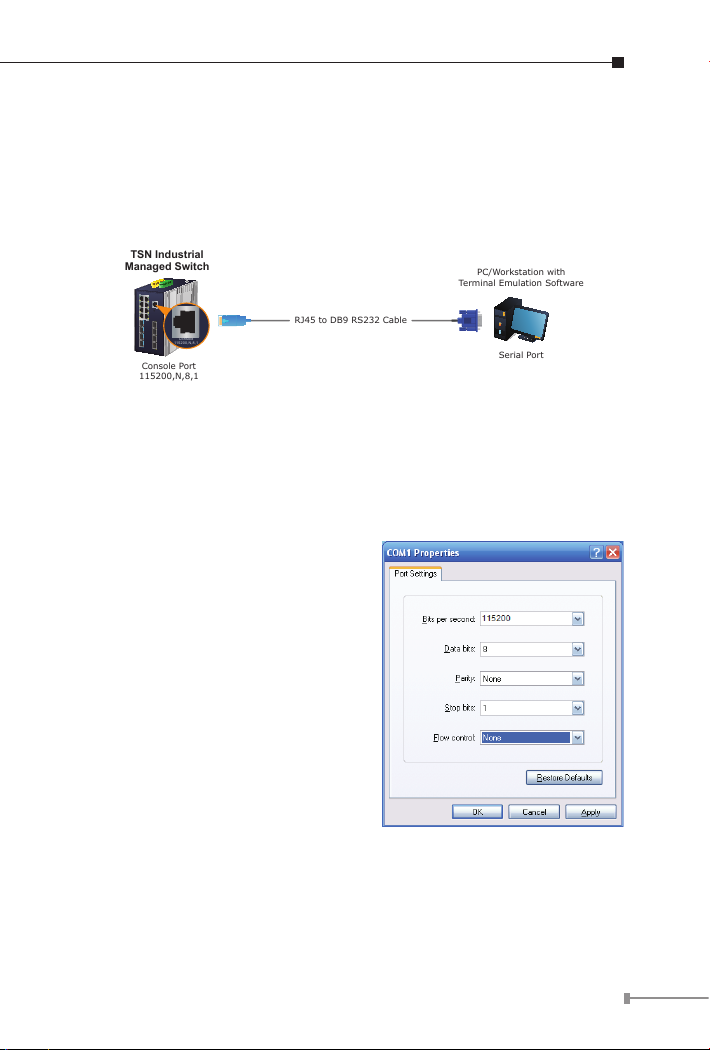

4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a
PC or notebook computer and to RJ45 type serial (console) port of the
Industrial Managed Switch.
PC/Workstation with
Terminal Emulation Software
Serial Port
Console Port
115200,N,8,1
TSN Industrial
Managed Switch
RJ45 to DB9 RS232 Cable
Reset
Console
115200,N,8,1
Ring R.O. I/O
A terminal program is required to make the software connected to the
Industrial Managed Switch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port
shouldbeconguredas:
Baud:115200
Parity:None
Data bits: 8
Stop bits: 1
Flowcontrol:None

8
4.1 Logging on to the Console
Once the terminal has been connected to the device, power on the
Industrial Managed Switch and the terminal will display “running testing
procedures”.
Then, the following message asks to log in user name and password.
The factory default user name and password are shown as follows as
theloginscreeninFigure4-1appears.
Username:admin
Password: admin
Figure 4-1: Console Login Screen
The user can now enter commands to manage the Industrial Managed
Switch. For a detailed description of the commands, please refer to the
following chapters.
Note
1.For security reason, please change and memorize
the new password after this first setup.
2. Only accept command in lowercase letter under console
interface.

9
4.2 ConguringIPAddressviaConsole
The Industrial Managed Switch is shipped with default IP address
shown below:
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the
Switch,pleaseusetheprocedureasfollows:
Display of the Current IP Address
1.Atthe“#”prompt,enter“show ip interface brief”.
TSN-6325-8T4S4X # show ip interface brief
2.ThescreendisplaysthecurrentIPaddressshowninFigure4-2.
Figure 4-2: IP Information Screen

10
 Conguration of the IP Address
3.Atthe “#” prompt, enter thefollowingcommandand press <Enter>
asshowninFigure4-3.
TSN-6325-8T4S4X#congure terminal
TSN-6325-8T4S4X(cong)#interface vlan 1
TSN-6325-8T4S4X(cong-if-vlan)#ip address 192.168.1.100
255.255.255.0
The previous command would apply the following settings for the
Industrial Managed Switch.
IPAddress:192.168.1.100
Subnet Mask: 255.255.255.0
Figure 4-3: Conguring IP Address Screen
4. Repeat step 1 to check if the IP address has changed.

11
4.3 StoringCurrentSwitchConguration
1.Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.
# copy running-cong startup-cong
Figure 4-4: Saving Current Conguration Command Screen
If the IP is successfully congured, the Industrial Managed Switch will
apply the new IP address setting immediately. You can access the Web
interface of the Industrial Managed Switch through the new IP address.
Note
If you are not familiar with the console command or the
related parameter, enter “help” anytime in console to get
the help description.

12
5. Starting Web Management
The following shows how to start up the Web Management of the
Industrial Managed Switch. Note the Industrial Managed Switch is
congured through an Ethernet connection. Please make sure the
manager PC must be set to the same IP subnet address.
Forexample,thedefault IPaddressoftheIndustrialManagedSwitchis
192.168.0.100, then the manager PC should be set to 192.168.0.x
(where x is a number between 1 and 254, except 100), and the
defaultsubnetmaskis255.255.255.0.
RJ45/UTP Cable
IP Address:
192.168.0.100
TSN Industrial
Managed Switch
IP Address:
192.168.0.x
Figure 5-1: IP Management Diagram

13
5.1 Logging in to the Industrial Managed Switch
1.Use Chrome 98.0.xxx or above for Web browser and enter IP
address https://192.168.0.100 (the factory-default IP address) to
access the Web interface.
2.When thefollowingdialog boxappears, pleaseenterthe defaultuser
name “admin” and password “admin” (or the password you have
changedbefore)asshowninFigure5-2.
DefaultIPAddress:192.168.0.100
DefaultUserName:admin
Default Password: admin
Figure 5-2: Login Screen

14
3.After entering the password, the main screen appears as shown in
Figure5-3.
Figure 5-3: Web Main Screen of Industrial Managed Switch
The Switch Menu on the top of the Web page lets you access all the
commands and statistics the Industrial Managed Switch provides.
The Switch Menu always contains one or more buttons, such as
“System”,“Switching”,“Routing”, “QoS”, “Security”, “Ring” and
“Maintenance”.
Figure 5-4: Switch Menu
Figure 5-5: Switch Sub-menu

15
Figure 5-6: Switch Sub-menu
Now, you can use the Web management interface to continue the
Switch management. Please refer to the user manual for more.
Note
If you are not familiar with Switch functions or the related
parameter, press “Help icon” anytime on the Web page
to get the help description.
5.2 SavingCongurationviaWeb
To save all applied changes and set the current conguration as a
startup conguration, the startup-conguration le will be loaded
automatically across a system reboot.
1. Click the Save icon on the top Switch Menu bar.

16
2. Press the “Save Conguration” button.
3. Or the other way to save the setting is to Click Maintenance, Save
Startup Cong.

17
6.RecoveringBacktoDefaultConguration
IP address has been changed or admin password has been
forgotten –
To reset the IP address to the default IP address “192.168.0.100”
and the user password to factory default mode (default password is
admin), press the hardware-based reset button on the front panel
for about 10 seconds.Afterthedevice is rebooted, you can log in the
management Web interface within the same subnet of 192.168.0.xx
and default password. Be noted that all the previous setups will be
disappeared after the factory default reset is made.
1
3
5
7
2
4
6
8
Reset
Console
115200,N,8,1
P1 P2
Ring R.O.
Alarm
I/O
1000
LNK/ACT
10/100
LNK/ACT
1G/2.5G
10G
TSN-6325-8T4S4X
13
14
15
16
1G/2.5G
100
9
10
11
12
Reset Button
Figure 6-1: TSN-6325-8T4S4X Reset Button

18
7. Customer Support
Thank you for purchasing PLANET products. You can browse our online
FAQ resource on PLANET web site rst to check if it could solve your
issue. If you need more support information, please contact PLANET
switch support team.
PLANETonlineFAQs:
https://www.planet.com.tw/en/support/faq
Switch support team mail address:
[email protected]
TSN-6325-8T4S4XUser’sManual:
https://www.planet.com.tw/en/support/downloads?&method=keyword&
keyword=TSN-6325&view=3#list
(Please select your switch model name from the Product Model drop-
down menu)
Copyright © PLANET Technology Corp. 2022.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
