Planet XGS-6350-12X8TR User manual

Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T
Managed Switch with Dual 100~240V AC Redundant Power
XGS-6350-12X8TR
Quick Installation Guide

Table of Contents
1. Package Contents ....................................................................................... 3
2. Switch Management.................................................................................... 4
3. Requirements ............................................................................................. 5
4. Terminal Setup ........................................................................................... 6
4.1 Logon to the Console........................................................................... 7
4.2 ConguringIPAddress......................................................................... 7
4.3 Setting100BASE-TXforGigabitEthernetPort ........................................ 9
4.4 Setting1000BASE-XforSFP+Port........................................................ 9
4.5 ChangingPassword.............................................................................10
4.6 SavingtheConguration .....................................................................10
5. StartingWebManagement .........................................................................11
5.1 LoggingintotheManagedSwitch .......................................................12
5.2 SavingCongurationviatheWeb ........................................................13
6. RecoveringBacktoDefaultConguration.....................................................14
7. Customer Support .....................................................................................15

3
1. Package Contents
Thank you for purchasing PLANET Layer 3 12-Port 10G SFP+ + 8-Port
10/100/1000TManagedSwitch,XGS-6350-12X8TR.
Unless specied, “Managed Switch” mentioned in this Quick Installation Guide
referstotheXGS-6350-12X8TR.
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
zTheManagedSwitchx1
zQuickInstallationGuidex1
zRJ45-to-DB9ConsoleCablex1
zPowerCordx2
zRubberFeetx4
zTwoRack-mountingBracketswithAttachmentScrewsx6
zSFPDustCapx12(installedonthemachine)
If any item is found missing or damaged, please contact your local reseller for
replacement.

4
2. Switch Management
To set up the Managed Switch, the user needs to congure the Managed Switch
fornetwork management.The ManagedSwitch providestwo managementoptions:
Out-of-Band ManagementandIn-Band Management.
Out-of-Band Management
Out-of-band management is the management through console interface.
Generally, the user will use out-of-band management for the initial switch
conguration,orwhenin-bandmanagementisnotavailable.
Important
The Managed Switch is shipped with IP address 192.168.0.254/24
assigned by default. User can assign another IP address to the
Managed Switch via the console interface to be able to remotely
accesstheManagedSwitchthroughTelnetorHTTP.
In-Band Management
In-band management refers to the management by logging in to the Managed
Switchusing Telnetor HTTP, orusing SNMPmanagement softwaretocongure the
Managed Switch. In-band management enables the management of the Managed
SwitchtoattachsomedevicestotheSwitch.Thefollowing proceduresarerequired
toenablein-bandmanagement:
1. Logon to console
2.Assign/CongureIPaddress
3. Create a remote login account
4.EnableHTTPorTelnetserverontheManagedSwitch
In case in-band management fails due to Managed Switch conguration changes,
out-of-band management can be used for conguring and managing the Managed
Switch.

5
3. Requirements
zWorkstations running Windows XP/2003/Vista/2008/7/8/10, MAC OS X or later,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zSerialPortConnection(Terminal)
 The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
 The above Workstations have been installed with terminal emulator, such as
Tera Term or PuTTY.
 Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zEthernetPortConnection
 Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
 The above PC is installed with Web browser and JAVA runtime environment
plug-in.
Note
It is recommended to use Internet Explorer 8.0 or above to access
the Managed Switch. If the Web interface of the Managed Switch
is not accessible, please turn off the anti-virus software or firewall
andthentryitagain.

6
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to serial (console) port of the Managed Switch. The
console port of the Managed Switch is DCE already, so that you can connect the
consoleportdirectlythroughPCwithouttheneedofNullModem.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 4-1 Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
Switch. Tera Term program may be a good choice. The Tera Term can be accessed
fromtheStart menu.
1. Click STARTmenu,thenPrograms,andthenTera Term.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:9600
Parity:None
Databits:8
Stopbits:1
Flowcontrol:None 
Figure 4-2 Tera Term COM Port Conguration

7

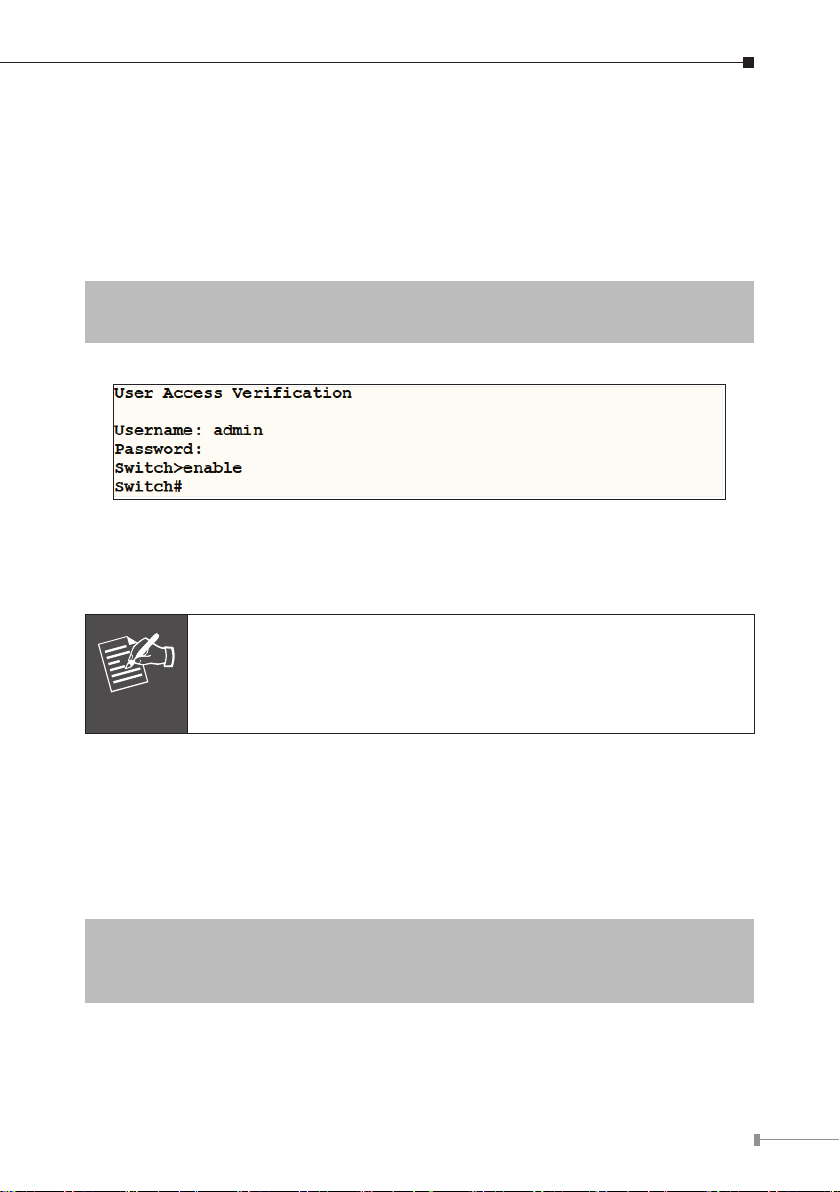

4.1 Logon to the Console
Once the terminal is connected to the device, power on the Managed Switch, and
theterminalwilldisplay“running testing procedures”.
Then, the following message asks for the login user name and password. The
factory default user name and password are as follows as the login screen in
Figure4-3appears.
Username:admin
Password:admin
Figure 4-3 Managed Switch Console Login Screen
The user can now enter commands to manage the Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Accept command in lowercase or uppercase letter under console
interface.
4.2 ConguringIPAddress
The IP address conguration commands for VLAN1 interface are listed below.
Before using in-band management, the Managed Switch must be congured with
an IP address by out-of-band management (i.e. console mode). The conguration
commandsareasfollows:
Switch#cong
Switch(cong)#interface vlan 1
Switch(cong-if-Vlan1)#ip address 192.168.1.254 255.255.255.0

8
ThepreviouscommandwouldapplythefollowingsettingsfortheManagedSwitch.
IPv4 Address: 192.168.1.254
Subnet Mask: 255.255.255.0
Figure 4-4 Conguring IPv4 Address Screen
To check the current IP address or modify a new IP address for the Managed
Switch,pleaseusetheproceduresasfollows:
Show the current IP address
1. On “Switch#”prompt,enter“show ip interface brief”.
2.The screen displays the current IP address, subnet mask and gateway as shown
inFigure4-5.
Figure 4-5 Showing IP Information Screen
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of Managed Switch
throughthenewIPaddress.
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter,enter“help”anytimeinconsoletogetthehelpdescription.

9
4.3 Setting 100BASE-TX for Gigabit Ethernet Port
The Managed Switch supports both 1000BASE-T and 100BASE-TX by manual
setting and the default Ethernet port speed is set to 1000Mbps. To establish the
UTPconnectionwith100BASE-TX,thefollowingcommandcongurationisrequired:
Switch#cong
Switch_cong#interface gigaethernet 0/1
Switch_cong_g0/1#speed 100
Switch_cong_g0/1#exit
Switch_cong#interface range gigaethernet 0/2-8
Switch_cong_if_range#speed 100
Switch_cong_if_range#
Figure 4-6 Setting 100BASE-TX Screen
4.4 Setting 1000BASE-X for SFP+ Port
The Managed Switch supports both 1000BASE-X and 10GBASE-X SFP
transceivers by manual setting and the default SFP+ port speed is set to 10Gbps.
For example, to establish the ber connection with 1000BASE-X SFP transceiver in
the tgigaethernet 1/1,thefollowingcommandcongurationisrequired:

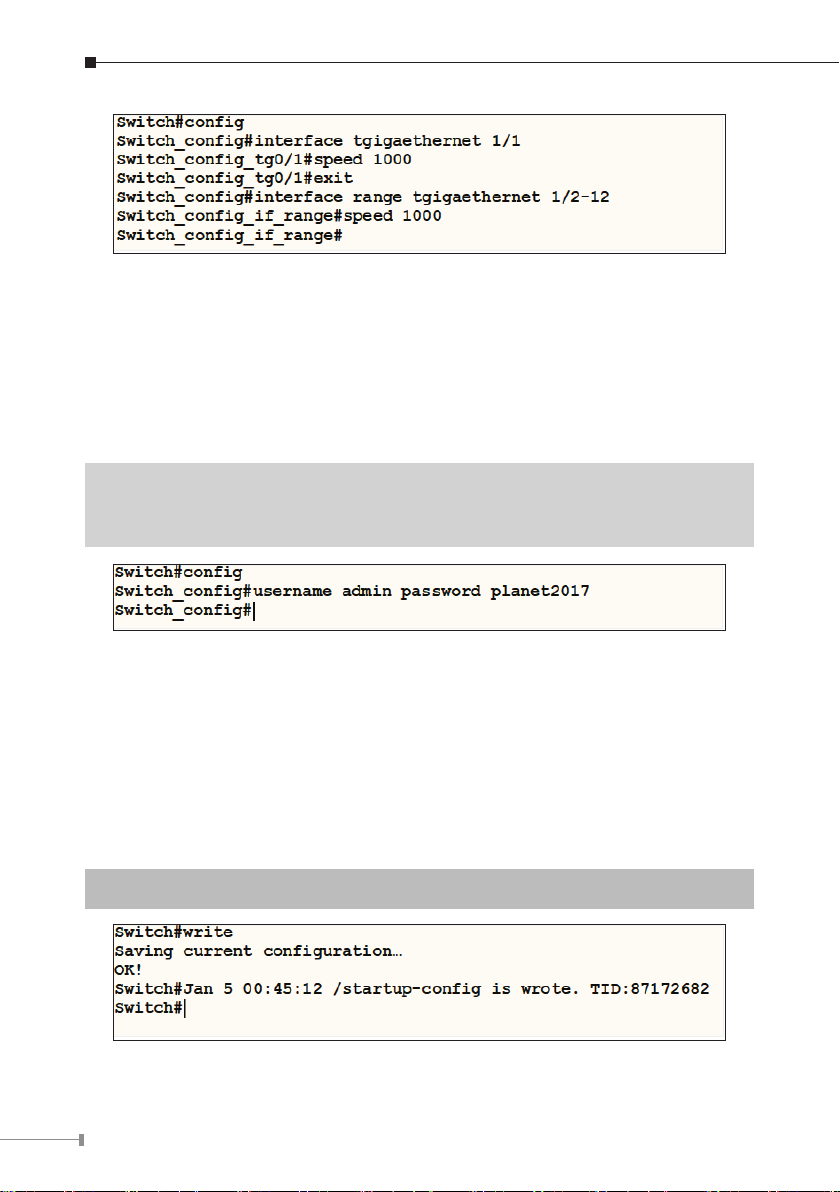

Switch#cong
Switch_cong#interface tgigaethernet 1/1
Switch_cong_tg1/1#speed 1000
Switch_cong_tg1/1#exit
Switch_cong#interface range tgigaethernet 1/2-12
Switch_cong_if_range#speed 1000
Switch_cong_if_range#

10
Figure 4-7 Setting 1000BASE-FX Screen
4.5 Changing Password
The default password of the switch is “admin”. For security reason, it is
recommended to change password and the following command conguration is
required:
Switch#cong
Switch_cong#username admin password planet2017
Switch_cong#
Figure 4-8 Changing Password Interface Screen
4.6 SavingtheConguration
InManaged Switch,therunningcongurationle storesinthe RAM.Inthe current
version, the running conguration sequence running-cong can be saved from the
RAM to FLASH by write command, so that the running conguration sequence
becomesthestart-upcongurationle,whichiscalledcongurationsave.
Switch#write
Figure 4-9 Write Screen
