Portech MV-370 User manual

MV-370 / MV-372
VoIP GSM Gateway
User Manual
MV-370
MV-372
PORTech Communications Inc.

【Content】
1. Introduction........................................................................................................... 1
2. Function description............................................................................................ 1
3. Parts list ................................................................................................................ 1
4. Dimension: 14.5cm x 17cm x 3.9cm.................................................................... 2
5. MV-370 Panel description.................................................................................... 3
6. MV-372 Panel description.................................................................................... 4
7. CABLING............................................................................................................... 5
8. Web Page Setting ................................................................................................. 6
9. System Information.............................................................................................. 7
10. Route ................................................................................................................... 7
10.1 Mobile TO LAN Settings.................................................................................. 8
10.2 Call Back Service (50 sets)........................................................................... 10
10.3 Mobile to LAN Speed Dial Settings............................................................... 11
10.4 LAN to Mobile Settings.................................................................................. 12
11. Mobile................................................................................................................ 14
11.1 Mobile Status................................................................................................ 14
11.2 Mobile Setting............................................................................................... 15
11.3 Mobile / Forward Setting:.............................................................................. 18
11.4 Mobile / SMS Agent: ..................................................................................... 20
11.5 Send Bulk of SMS via Microsoft Excel.......................................................... 22
11.6 use AT Command via Telnet or your program .............................................. 32
11.7 USSD SIM Balance Check via Telnet.......................................................... 33
11.8 SIM Setting ................................................................................................... 35
11.9 Operator Setting............................................................................................ 37
11.10 Cell Info....................................................................................................... 39
11.11 USSD (Unstructured Supplementary Service Data).................................... 44
12. Network ............................................................................................................. 48

13. SIP Setting......................................................................................................... 52
13.7.1 486(busy here), 503(Service unavailable):................................................. 60
13.7.2 180 Ring on/off:.......................................................................................... 60
13.7.3 183(Session Progress)............................................................................... 60
13.7.4 Dial Peer.................................................................................................... 60
13.7.5 Call data to server...................................................................................... 60
14. NAT Trans ......................................................................................................... 65
15. Update ............................................................................................................... 66
16. System Auth...................................................................................................... 68
17. Save Change..................................................................................................... 69
18. Reboot............................................................................................................... 70
19. IP Setting........................................................................................................... 71
20. Specification ..................................................................................................... 73
20.1 Protocols....................................................................................................... 73
20.2 TCP/IP .......................................................................................................... 73
20.3 Codec............................................................................................................ 73
20.4 Voice Quality................................................................................................. 73
20.5 GSM (MV-370/MV-372) ................................................................................ 74
21. Simple Steps..................................................................................................... 75
22. Appendix: Setup MV-370/MV-372 with Asterisk............................................. 76

-1-
1. Introduction
MV-370/MV-372 is a 1/2 channels VoIP GSM Gateway for call
termination (VoIP to GSM) and origination (GSM to VoIP). It is SIP based
and compatible with Asterisk. It can enable to make 1/2 calls
simultaneously from IP phones to GSM networks and GSM network to IP
phone.
2. Function description
2.1 VoIP(SIP)、GSM(MV-370/MV-372) conversion.
2.2 50 sets of LAN->MOBILE routes setting，50 sets of MOBILE->LAN
routes setting.
2.3 Voice response for setting and status (dial in from mobile).
2.4 Series connections to save bills.
2.5 Standard SIP(RFC2543,RFC3261) protocol，
Communicates with other gateway or PC.
3. Parts list
Please check the parts for any missing parts. If do, please contact
our agents：
3.1 「MV-370/MV-372」main body
3.2 Power adaptor AC-DC (110V AC – 12V DC) or (220V AC – 12V DC)
3.3 Network cable
3.4 Antenna
3.5 User Manual

-2-
4. Dimension: 14.5cm x 17cm x 3.9cm
(3.1) MV-370
(2)
(4)
(3)
14.5cm
17cm
3.9cm
(3.1) MV-372

-3-
5. MV-370 Panel description
5.1 Antenna：Antenna connector.
5.2 DC 12V：Power socket.
5.3 LAN: Standard RJ-45 socket, connecting to Hub circuit.
5.4 PWR: Power indicator light, red light. Light is on when system’s
power supply is normal.
5.5 MOBILE: GSM indicator light, green light. Light flashes when
GSM status is normal; light turns on constantly when GSM is
called.
5.6 LAN: LAN indicator light, green light. Light flashes when Lan is
called; light turns off when GSM answered.
5.7 LINK: Link indicator light, green light. Light is on when network
is connected correctly.
(5.1) (5.2) (5.3) (5.4) (5.6)
(5.5) (5.7)
17cm
14.5cm
3.9cm

-4-

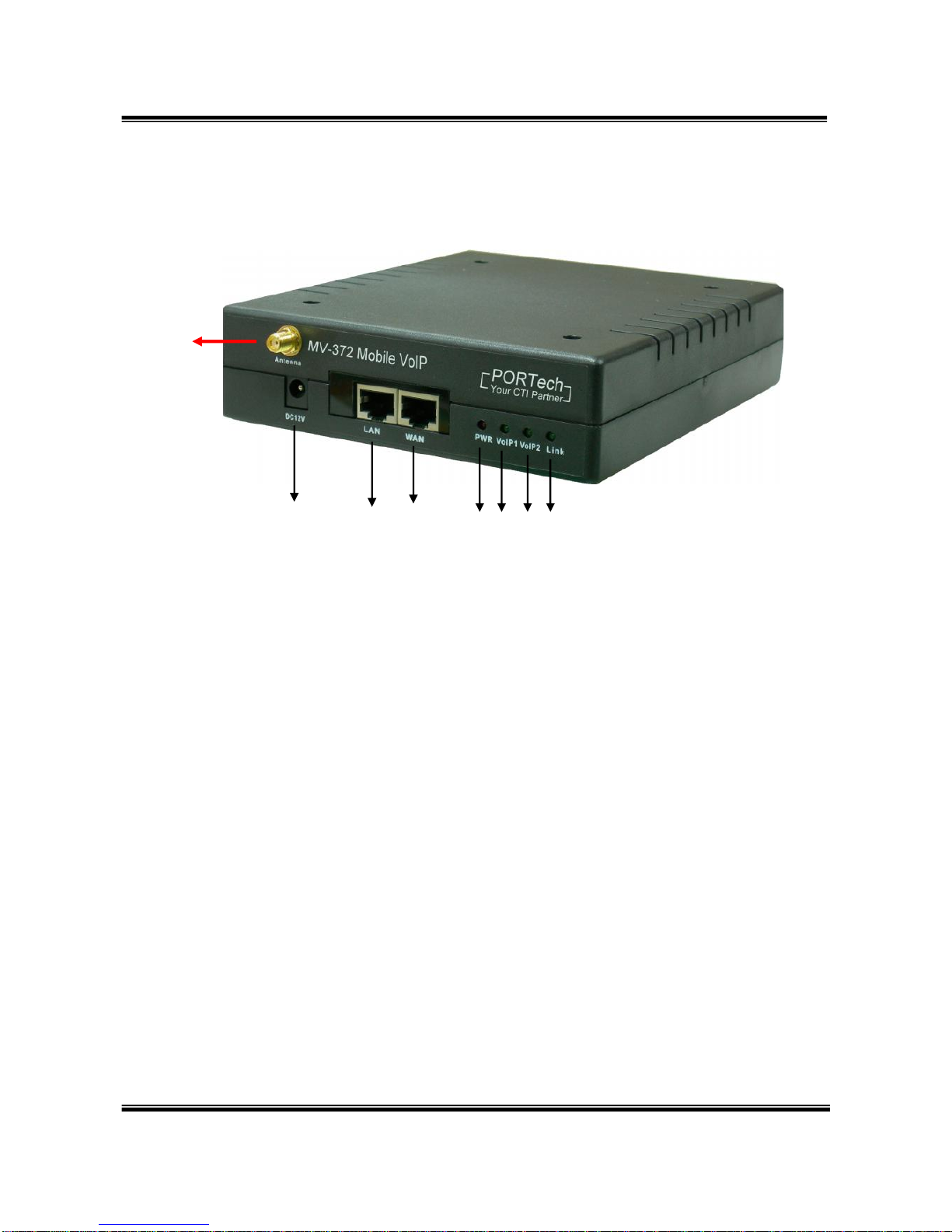

6. MV-372 Panel description
6.1 Antenna：Antenna connector.
6.2 DC 12V：Power input.
6.3 LAN：LAN port. It also can be DHCP Server.
6.4 WAN: RJ-45 internet connector，standard RJ-45 socket，connect to
HUB.
6.5 PWR (Power LED)：Light up when power is normal.
6.6 VoIP1：an indicator light of VoIP1
6.7 VoIP2：an indicator light of VoIP2
6.8 LINK Indicator：Light up when network is connected.
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8

-5-
7. CABLING
7.1 Connect the internet cable from HUB to the ‘WAN’ connector of the
MV-372.
*If you need to stack up more MV-372, you can stack up as follows.
7.2 Connect the antenna and put it in proper position to get the best
signal reception.
7.3 Insert the SIM card from back of the main body. (Take the slide off
first).
7.4 MV-370/MV-372 support manual switch IP MODE to DHCP and
manual restore to original firmware for update failure.
There are SW1 and SW2 button shows as follow diagram:
7.4.1 SW1 function: Restore the factory default IP 192.168.0.100
STEP: Please press the SW1 in 7~8 seconds till the Mobile and LAN led flash blink.
7.4.2 SW2 function: Switch MV-37X IP to DHCP MODE

-6-
STEP: Please press the SW2 about 7~8 seconds till the Mobile and LAN led flash
blink.
7.4.3 SW1 + SW2 function: Manual restore and restart MV to original firmware for
update failure.
STEP: Please remove the MV power cable, and press the SW1 and SW2 at
meantime. Then plug in the power DC 12V and don’t let go in 4~5 seconds. When
Mobile and LAN led flash blink, you can reboot the device and login to 192.168.0.100
for firmware update procedure.
7.5 Connect the power adaptor. The ‘POWER’ LED should be light up.

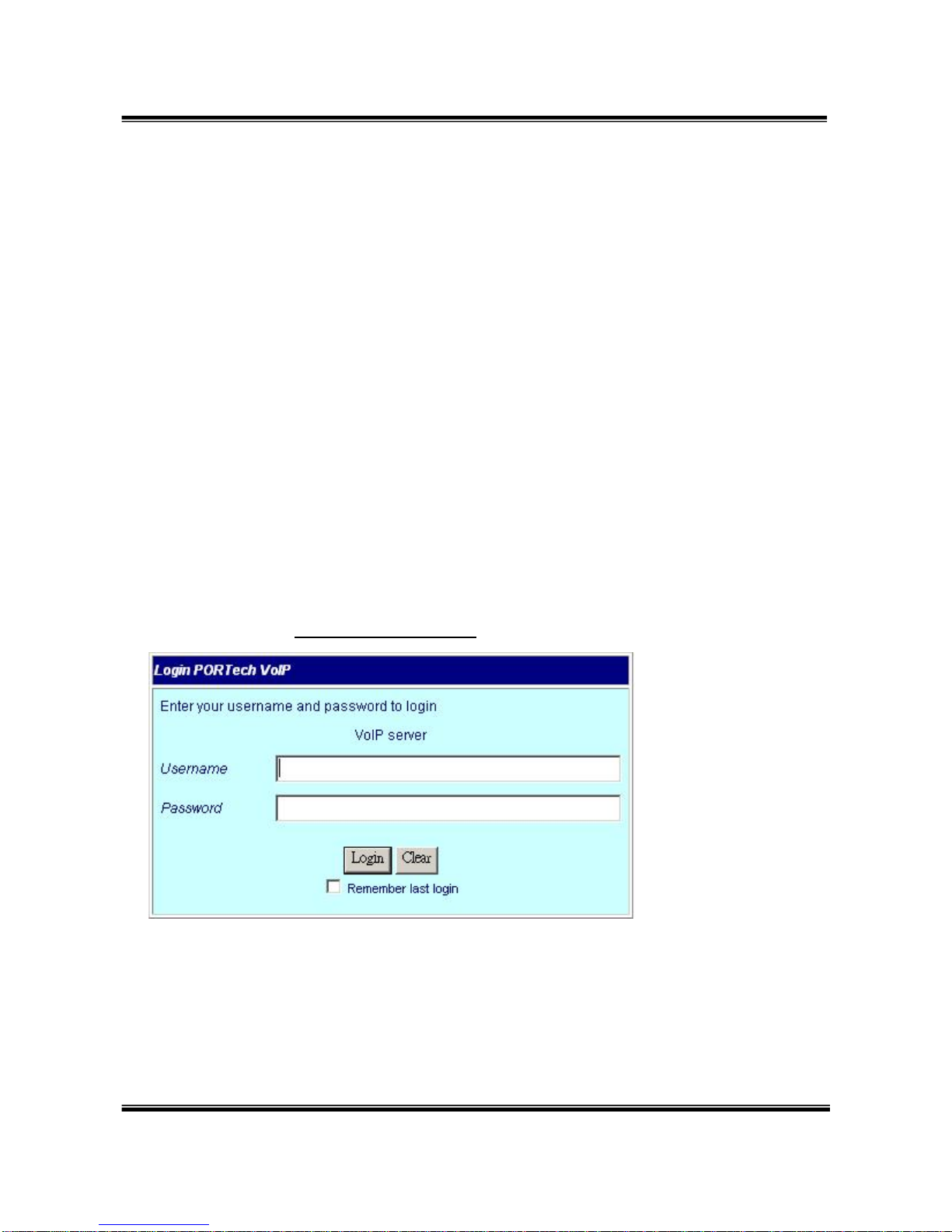

8. Web Page Setting
When the IP setting is done, the operator may setup all the rest
parameters via web page. Browse the IP address from Internet
Explorer (e.g. http://192.168.0.100). The following page shows up：
Enter the username and password for authentication. (default
username=voip, password=1234). The page follows when the
username and password are correct.

-7-
9. System Information.
9.1 When you login the web page, you can see the demo system current
system information like firmware version, company… etc in this
page.
9.2 Also you can see the function lists in the left side. You can use
mouse to click the function you want to set up.
10. Route
Important:
The route table -50 sets can share by two channels
The setting,please refer 11.2 Mobile setting
ex: Mobile 1 use the route table for item 0-24,
Mobile 2 use the route table for item 25-49

-8-
10.1 Mobile TO LAN Settings
The operator may assign 50 sets of routing rule to transfer the call
incoming from MOBILE to LAN.
The MV-370/MV-372 will transfer to the URL according to the caller ID of
the Mobile.
*CID：
(1) may enter the whole number, e.g. 0911111111
(2) only part of the number (prefix) e.g. 0911* means any number
starting with 0911 will be accepted

-9-
(3) * means all numbers can be accepted
(4) N means the calls without the CID
Please note the priority of the rules. The item which has more digits will
have higher priority. If the digits are the same, then former one gets the
higher priority.
*URL：The IP address to transfer this call
(1)may enter the whole IP address, e.g. 192.168.0.101 or proxy
extension or phone number.
(2)If this field is blank or simply ‘N’, it means refuse to transfer.
(3)If an ‘*’ entered, it means 2-stages-dialing. The call will be
answered and prompt dial tone again to receive the IP address/sip
extension or any phone number as the destination. The caller may
enter the IP such as 192*168*0*101#.
*If the device have register proxy server/Asterisk ,you can enter any
destination phone number. Please note the proxy server/Asterisk
need to set the route of destination phone number.
Example:
(1) Mobile to Lan: 0932*,0911123456
MV-370/MV-372 have register proxy server/Asterisk
The proxy server/Asterisk have the route “09”
When the caller’s prefix number is 0932,MV-370/MV-372 will
connect 0911123456 automatically
(2) Mobile to Lan: *,*
Any caller call the MV-370/MV-372’s sim,MV-370/MV-372 will prompt dial tone.
Caller can enter IP or sip extension or phone number.
*sip extension or phone number both need to register SIP Proxy
Server or Asterisk.
*Phone number, SIP Proxy Server or Asterisk need to set the route
of this phone number.

-10-

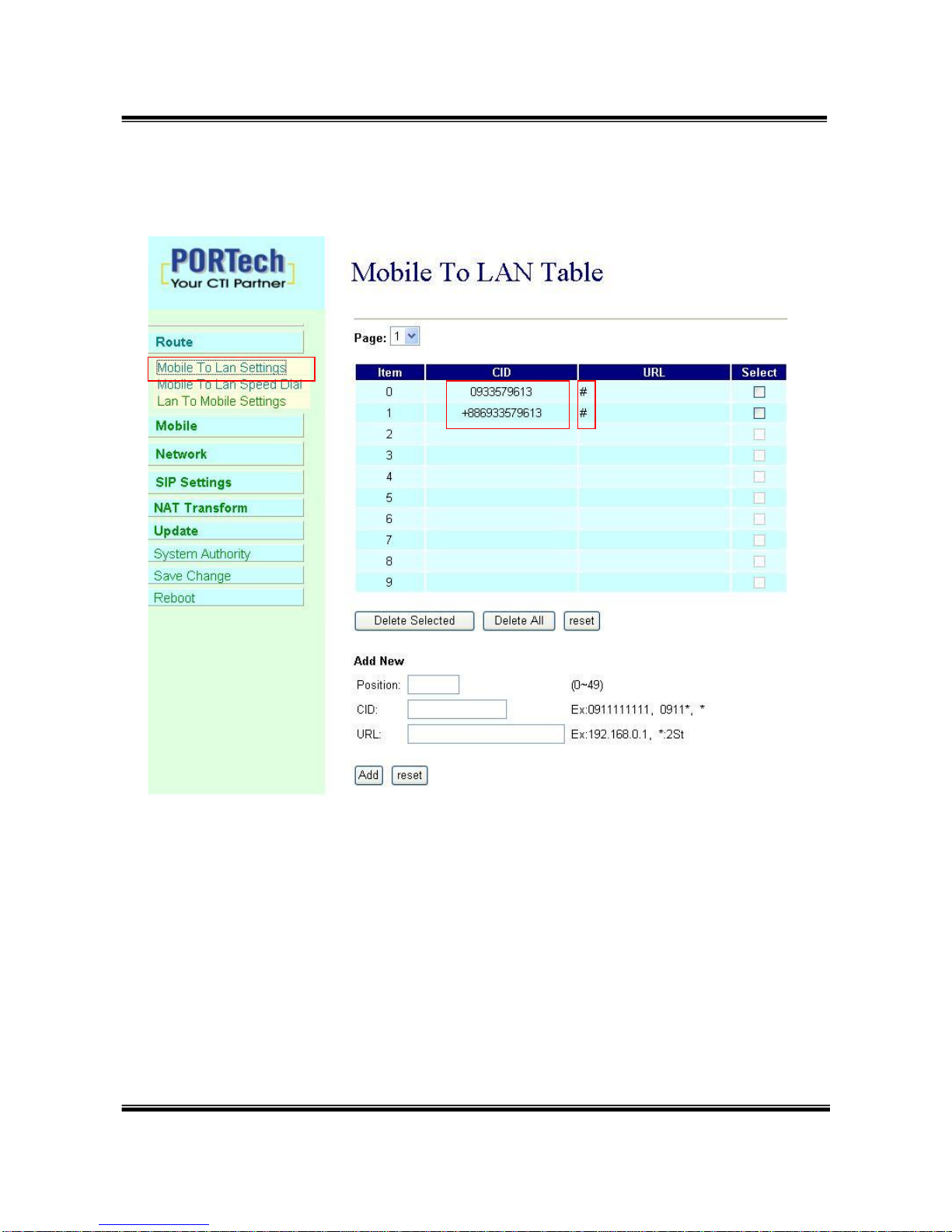

10.2 Call Back Service (50 sets)
You can set call back service as the following steps
(1) CID : set the phone number here (up to 50 sets)
(2) URL: # (# is the command of call back)
Application:
a.Call MV-370/ MV-372
b.MV-370/ MV-372 will detect the phone number is in callback list or not
c.If yes, MV-370/ MV-372 will reject the call, and call it back
d.You will receive the call from MV-370/ MV-372, and prompt a dial tone

-11-
10.3 Mobile to LAN Speed Dial Settings
When you set Mobile to LAN Speed Dial Settings and Mobile to
LAN at the same time, MV-370/MV-372 will give priority to Mobile to LAN
Speed Dial Settings.
*The call will be answered and prompt dial tone again. When the caller
may enter the “Num”, system will connect the “URL” as destination.
E.g Num: 0 Name: test URL:192.168.0.107
When the caller hear dial tone and enter 0, system will connect
192.168.0.107

-12-
10.4 LAN to Mobile Settings
The operator may assign 50 sets of routing rule to transfer the call
incoming from LAN to MOBILE.
The MV-370/MV-372 will transfer to the mobile number according to the
incoming URL
*URL：The IP address of the incoming call.
may enter the whole IP address, e.g. 192.168.0.101 or proxy server’s extension. If
a simple ‘*’ is entered, means no restriction for the incoming IP address.
*Call Num：

-13-
1. May enter the whole number, e.g. 0911111111
2. A simple *”means 2-stages-dialing. The call will be answered and prompt dial
tone again to receive the called number as the destination, e.g. 0911111111 or
0911111111#
3. # for one-stage dialing
4. # ['d'n]['a'ppp] for one-stage-dialing
[...] is option
'd'n means to delete the beginning n codes,
'a'ppp means to add 'ppp' in front.
For example #d123a456 means one-stage dialing,
delete the first 123 from your destination number,
then add 456 in front as the new destination number.
Example:
Lan to Mobile: *, #
(1)MV-370/MV-372 and Lan Phone both need to register proxy server or Asterisk.
(2)Proxy server/asterisk set the route that the prefix of destination number
(3)When you dial any destination phone number from lan phone,MV-370/MV-372 will
connect this call auto.
Example of Application:
When you call the ch.1 MV-370/MV-372 GSM number, it will provide dial tone and
you enter a destination number.
Then ch.2 MV-370/MV-372 will dial this number and connect.
ch.1 MV-370/MV-372: mobile to lan set route table *,*
ch.2 MV-370/MV-372:lan to mobile set route table *,#
Additionally, two channels MV-370/MV-372 both need to register proxy server or
Asterisk.And proxy server/asterisk set the route that the prefix of destination
number dial out from ch.2 MV-370/MV-372.
*The channel 2 MV-370/MV-372’s IP: the first IP :5062(e.g.
http://192.168.0.100:5062)

-14-
11. Mobile
11.1 Mobile Status
(1)Network Registration：The SIM card of telecom carrier is been
registered
(2)SIM Card ID：SIM card ID.
(3)Signal Quality：Signal quality. (4)GSM S/N : IMEI Number
(5)Motion State: The status of SIM card
(6)Incoming IP：The IP address of the last incoming call from LAN.
(7)Incoming IP Name: proxy server name
(8)Outgoing IP：The IP address of the last outgoing call to LAN.
(9)Incoming Mob：The caller ID of the last incoming call from MOBILE.
(10)Outgoing Mob: The called number of the last outgoing call to
MOBILE.

-15-
11.2 Mobile Setting
(1) VoIP Tx Gain: To adjust the volume of LAN side.
(2) VoIP Rx Gain: To adjust the volume of Mobile side.
GSM
VoIP
Codec
LAN
(6)Rx
(5) Tx
DTMF
(1)VoIP Tx Gain
(2) VoIP Rx Gain
GSM
Codec
Rx
Tx
DTMF
Mobile 1:
Mobile 2:
(1)
(3)
(2)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(13)
Only change “mobile” into “on” or
“off”, just click “submit”, no need
to click “save change”
(12)
(14)
(15)
(16)

-16-
(3)LAN Dial tone Gain: DTMF Receiver is not good, you can adjust gain
down.
(4)Routing Range: The route table -50 sets can share by two channels
ex: Mobile 1 use the route table for item 0-24,
Mobile 2 use the route table for item 25-49
(5)CODEC Tx Gain: as above
(6)CODEC Rx Gain: as above
(7) SIP From: Caller ID transfer
Tel/User (Standard): If you need to register to Asterisk and proxy
server, please choose this option. And how to transfer the caller ID
to LAN, please refer 21.How to setup Asterisk to receive Caller ID
from MV-370/MV-372 (page 42)
MV-370/MV-372 will send the message as follows in the Packet.
From: “caller number” <sip:3001@192.168.0.228>;tag=51088abb
User/User (Standard): If you need to register to Asterisk and proxy
server, please choose this option.
MV-370/MV-372 will send the message as follows in the Packet.
From: " 3001" <sip:300[email protected]>;tag=51088abb
Tel/Tel :
MV-370/MV-372 will send the message as follows in the Packet.
From: "caller number" <sip: caller number @192.168.0.228>;tag=6ac93f7c
※Please note: If you choose this option, please don’t register to
Asterisk and proxy server. Please only fill proxy server IP and
choose Active: on (else field empty) in sip setting/service domain
User/Tel
MV-370/MV-372 will send the message as follows in the Packet.
From: “Username” <sip: caller number @192.168.0.228>;tag=7f130947
