Portech MV-372 User manual

MV-372
VoIP GSM Gateway
User Manual
PORTech Communications Inc

【Content】
1.INTRODUCTION .................................................................................................................1
2.FUNCTION DESCRIPTION ............................................................................................... 1
3.PARTS LIST ..........................................................................................................................1
4.DIMENSION..........................................................................................................................2
5.CHART OF THE DEVICE .................................................................................................. 3
6.CABLING...............................................................................................................................4
7.WEB PAGE SETTING .........................................................................................................5
8.SYSTEM INFORMATION. .................................................................................................6
. ROUTE ..................................................................................................................................6
10.MOBILE.............................................................................................................................12
11.NETWORK ........................................................................................................................1
12.SIP SETTING .................................................................................................................... 23
13. NAT TRANS ..................................................................................................................... 32
14.SYSTEM AUTH. ............................................................................................................... 33
15.SAVE CHANGE ................................................................................................................34
16.UPDATE.............................................................................................................................35
17.REBOOT ............................................................................................................................ 37
18. IP SETTING .....................................................................................................................38
1 .SPECIFICATION .............................................................................................................40
20. APPENDIX: SETUP MV-370 WITH ASTERISK........................................................41
21.HOW TO SETUP ASTERISK TO RECEIVE CALLER ID FROM MV-372............ 47
22. SIMPLE STEPS................................................................................................................57

-1-
1.Introduction
MV-372 is a 2 channels VoIP GSM Gateway for call termination (VoIP to
GSM ) and origination (GSM to VoIP) It is SIP based and compatible
with Asterisk It can enable to make 2 calls simultaneously from IP
phones to GSM networks and GSM network to IP phone
2.Function description
2 1 VoIP(SIP)、GSM(MV-372) conversion
2 2 50 sets of LAN->MOBILE routes setting,50 sets of MOBILE->LAN
routes setting
2 3 Voice response for setting and status (dial in from mobile)
2 4 Series connections to save bills
2 5 Standard SIP(RFC2543,RFC3261) protocol,
Communicates with other gateway or PC
3.Parts list
Please check the parts for any missing parts If do, please contact
our agents:
3 1 「MV-372」main body
3 2 Power adaptor AC-DC (110V AC – 12V DC) or (220V AC – 12V DC)
3 3 Network cable
3 4 Antenna
3 5 User Manual

-2-
4.Dimension
(1)
(2)
(4)
(3)
14.5cm
17cm
3.9
cm

-3-
5.Chart of the device
5 1 Antenna:Antenna connector
5 2 DC 12V:Power input
5 3 LAN:LAN port It also can be DHCP Server
5 4 WAN: RJ-45 internet connector,standard RJ-45 socket,connect to
HUB
5 5 PWR (Power LED):Light up when power is normal
5 6 VoIP1:an indicator light of VoIP1
5 7 VoIP2:an indicator light of VoIP2
5 8 LINK Indicator:Light up when network is connected
5.1
5.2 5.3 5.4 5.5 5.6 5.7
5.8

-4-
6.CA LING
6 1 Connect the internet cable from HUB to the ‘WAN’ connector of the
MV-372
*If you need to stack up more MV-372,you can stack up as follows
6 2 Connect the antenna and put it in proper position to get the best
signal reception
6 3 Insert the SIM card from back of the main body (take the slide off
first)
6.4 Click reset button 3 sec. MV-372 will restore default IP. Other
setting as usual.
6 5 Connect the power adaptor The ‘POWER’ LED should be light up

-5-
7.Web Page Setting
When the IP setting is done, the operator may setup all the rest
parameters via web page Browse the IP address from Internet
Explorer (e g http://192 168 0 100)。The following page shows up:
Enter the username and password for authentication (default
username=voip, password=1234) The page follows when the
username and password are correct

-6-
8.System Information.
8 1 When you login the web page, you can see the demo system current
system information like firmware version, company… etc in this
page
8 2 Also you can see the function lists in the left side You can use
mouse to click the function you want to set up
9. Route
Important:
The route table -50 sets can share by two channels
The setting,please refer 10 2 Mobile setting
ex: Mobile 1 use the route table for item 0-24,
Mobile 2 use the route table for item 25-49

-7-
9 1 Mobile TO LAN Settings
The operator may assign 50 sets of routing rule to transfer the call
incoming from MOBILE to LAN
The MV-372 will transfer to the URL according to the caller ID of the
Mobile
*CID:
(1) may enter the whole number, e g 0911111111
(2) only part of the number (prefix) e g 0911* means any number
starting with 0911 will be accepted
(3) * means all numbers can be accepted

-8-
(4) N means the calls without the CID
Please note the priority of the rules The item which has more digits will
have higher priority If the digits are the same, then former one gets the
higher priority
*URL:The IP address to transfer this call
(1) may enter the whole IP address, e g 192 168 0 101 or proxy
extension or phone number
(2) If this field is blank or simply ‘N’, it means refuse to transfer
(3) If an ‘*’ entered, it means 2-stages-dialing The call will be
answered and prompt dial tone again to receive the IP address/sip
extension or any phone number as the destination The caller may
enter the IP such as 192*168*0*101#
*If the device have register proxy server/Asterisk ,you can enter any
destination phone number Please note the proxy server/Asterisk
need to set the route of destination phone number
Example:
(1) Mobile to Lan: 0932*,0911123456
MV-372 have register proxy server/Asterisk
The proxy server/Asterisk have the route “09”
When the caller’s prefix number is 0932,MV-372 will connect
0911123456 automaticlly
(2) Mobile to Lan: *,*
Any caller call the MV-372’s sim,MV-372 will prompt dial tone Caller
can enter IP or sip extension or phone number
*sip extension or phone number both need to register SIP Proxy
Server or Asterisk
*Phone number, SIP Proxy Server or Asterisk need to set the route
of this phone number

-9-
9 2 Mobile to LAN Speed Dial Settings
When you set Mobile to LAN Speed Dial Settings and Mobile to
LAN at the same time,MV-372 will give priority to Mobile to LAN Speed
Dial Settings
*The call will be answered and prompt dial tone again When the caller
may enter the “Num”, system will connect the “URL” as destination
E g Num:0 Name:test URL:192 168 0 107
When the caller hear dial tone and enter 0, system will connect
192 168 0 107

-10-

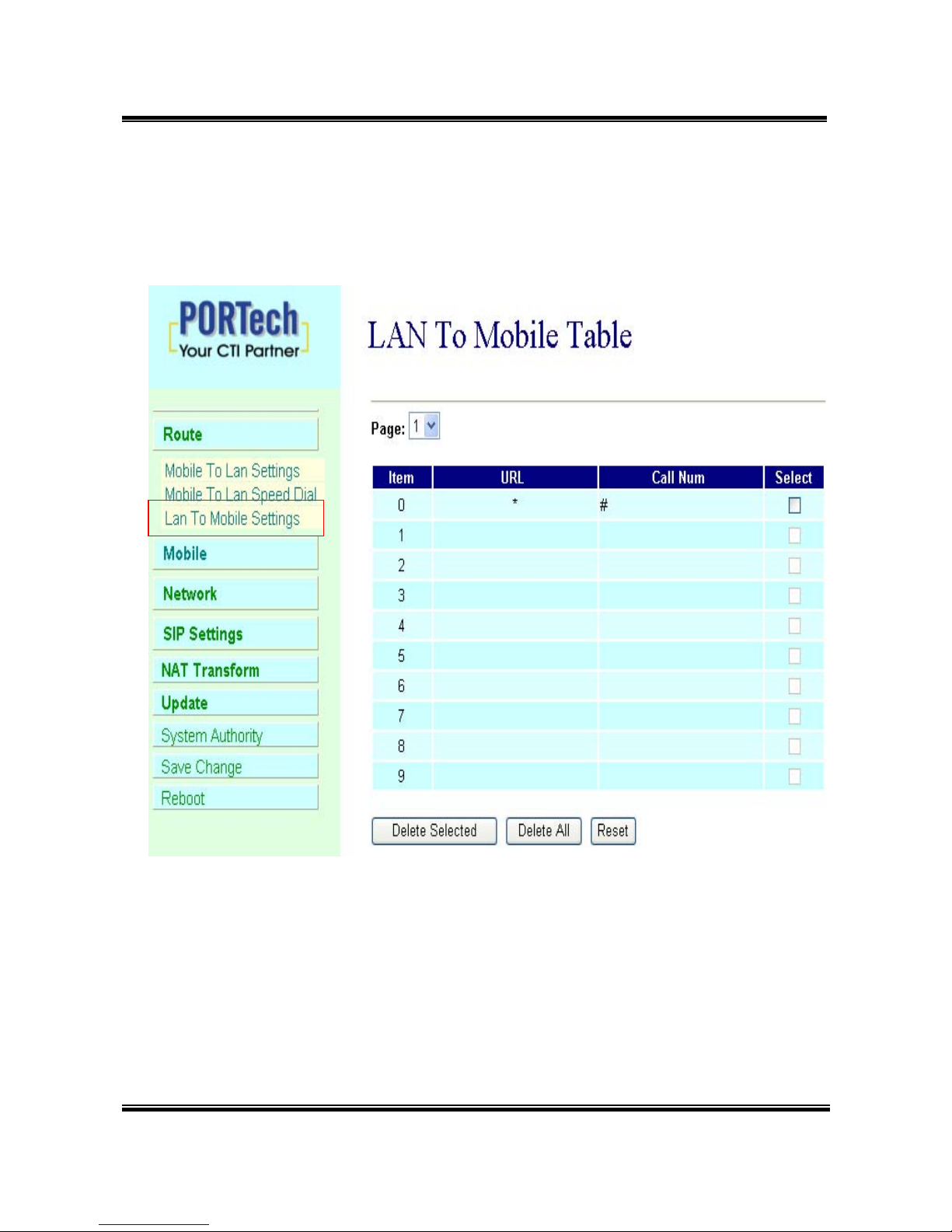

9 3 LAN to Mobile Settings
The operator may assign 50 sets of routing rule to transfer the call
incoming from LAN to MOBILE
The MV-372 will transfer to the mobile number according to the incoming
URL
*URL:The IP address of the incoming call
may enter the whole IP address, e g 192 168 0 101 or proxy server’s
extension If a simple ‘*’ is entered, means no restriction for the
incoming IP address

-11-
*Call Num:
1 may enter the whole number, e g 0911111111
2 a simple *”means 2-stages-dialing The call will be answered and
prompt dial tone again to receive the called number as the
destination, e g 0911111111 or 0911111111#
3 #['d'n]['a'ppp] for one-stage dialing
[ ] is option
'd'n means to delete the beginning n codes,
'a'ppp means to add 'ppp' in front
for example #d2a09 means one-stage dialing,
delete the first 2 codes from your destination number,
then add 09 in front as the new destination number
Example:
Lan to Mobile: *, #
(1)MV-372 and Lan Phone both need to register proxy server or Asterisk
(2)Proxy server/asterisk set the route that the prefix of destination number
(3)When you dial any destination phone number from lan phone,MV-372 will connect
this call auto
Example of Application:
When you call the ch 1 MV-372 gsm number,it will provide dial tone and you enter a
destination number
Then ch 2 MV-372 will dial this number and connect
ch 1 MV-372: mobile to lan set route table *,*
ch 2 MV-372:lan to mobile set route table *,#
Additionally, two channels MV-372 both need to register proxy server or Asterisk
And proxy server/asterisk set the route that the prefix of destination number dial out
from ch 2 MV-372
*The channel 2 MV-372's ip: the first ip + :5062 (e g http://192 168 0 100:5062)

-12-
10.Mobile

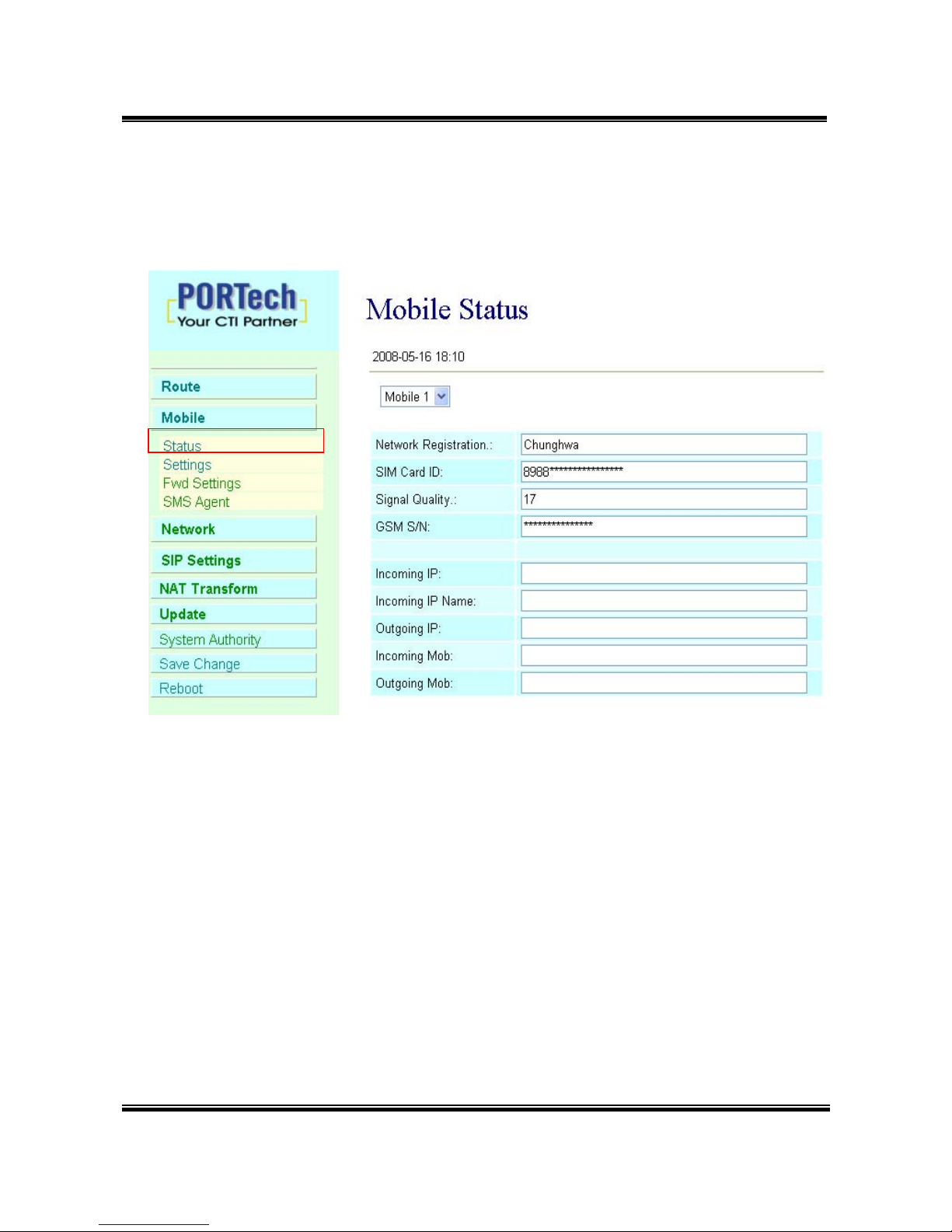

10 1 Mobile Status
(1)Network Registration:The telecom carrier which the SIM card been
registered
(2)SIM Card ID:SIM card ID
(3)Signal Quality:Signal quality
(4)GSM S/N : IMEI Number
(5)Incoming IP:The IP address of the last incoming call from LAN
(6)Incoming IP Name: proxy server name
(7)Outgoing IP:The IP address of the last outgoing call to LAN
(8)Incoming Mob:The caller ID of the last incoming call from MOBILE
(9)Outgoing Mob:The called number of the last outgoing call to MOBILE

-13-
10 2 Mobile Setting
(1) VoIP Tx Gain: To adjust the volume of LAN side
(2) VoIP Rx Gain: To adjust the volume of Mobile side
GSM
VoIP Codec
LAN (6)Rx
(5) Tx
TMF
(1)VoIP Tx Gain
(2) VoIP Rx Gain
(1)
(2)
(3)
(6)
(7)
(8)
(9)
(10)
(11)
GSM
Codec
Rx
Tx
TM
F
Mobile 1:
Mobile 2:
(4)
(12)
(5)

-14-
(3)LAN Dialtone Gain: DTMF Reciver is not good,you can adjust gain
down
(4) ON/Off: If you use this channel,please click on Otherwise,please
click off
(5)Routing Range:The route table -50 sets can share by two channels
ex: Mobile 1 use the route table for item 0-24,
Mobile 2 use the route table for item 25-49
(6)CODEC Tx Gain: as above
(7)CODEC Rx Gain: as above
(8) SIP From: Caller ID transfer
Tel/User(Standard): If you need to register to Asterisk and proxy
server,please choose this option And how to transfer the caller ID
to LAN,please refer 21 How to setup Asterisk to receive Caller ID
from MV-372 (page 42)
MV-372 will send the message as follows in the Packet
From: " caller number " <sip:[email protected]>;tag=51088abb
Tel/Tel :
MV-372 will send the message as follows in the Packet
From: "caller number" <sip: caller number @192.168.0.228>;tag=6ac93f7c
※Please note:If you choose this option,please don’t register to
Asterisk and proxy server Please only fill proxy server ip and
choose Active: on (else field empty) in sip setting/service demain
User/Tel
MV-372 will send the message as follows in the Packet
From: " Username " <sip: caller number @192.168.0.228>;tag=7f130947
※ If you choose this option,please don’t register to Asterisk and
proxy server Please only fill proxy server ip,Username and

-15-
choose Active: on (else field empty) in sip setting/service
demain
(9)Presentation CLIR : If you need to block the Caller Id for call
termination,please choose Suppression
(10)Mobile PIN Code:If you need to unlock pin code via MV-372,you can
click “On” and enter pin code
(11)LAN Answer Mode:
Answered : when mobile answer,then connect the call
Alerted : when the mobile is ringing back tone,then connect the call
Income : when lan dial out,then connect soon
(12)Answer Delay: Delay for incoming call when the ring
(13)When you buy Quad band,you need to choose your GSM frequency
10 3 Mobile / Forward Setting :
When the first route are busying, SIP can transfer phone call to
another free route When the device are busying, the phone call
can be transfer to another device (external equipments)

-16-
*
"Forward Enable" is not motivate on Defualt value
So please, mark "Forward Enable" this blank to motivate this function
Take SJ Phone for example: Profiles -> Edit -> Advanced -> Accept
redirection replies (Turn on the "Forward Enable", therefore the SJ
Phone can designate a port which are free to use )

-17-
Name URL:Port
Fwd to Mobile1: 192.168.0.100:5060
Fwd to Mobile2: 192.168.0.100:5062
Fwd to External:
The Explanation of Picture:
Fwd to Mobile1:192 168 0 100 : 5060, it means when 5062 Port are
busying, SJ Phone can transfer the call to 5060 Port (192 168 0 100)
Fwd to Mobile2:192 168 0 100 : 5062, it means when 5060 Port are
busying, SJ Phone can transfer the call to 5062 Port (192 168 0 100)
If both 5060 port and 5062 port are busying at same time, you can set
up "Fwd to External", then you can transfer the phone call to another
designate device

-18-
10 4 Mobile / SMS Agent :
(1) Rx List: Read received SMS
(2) Dest Num: the Receiver’s phone number
(3) Message: Please fill the message that want to send to receiver
When you click Rx List, you can view all received SMS as follows
Click the serial no,you can view message as follows
Read received SMS
Other manuals for MV-372
1
Table of contents
Other Portech Gateway manuals

Portech
Portech MV-374 User manual

Portech
Portech 372 Instruction Manual

Portech
Portech IS-381 User manual

Portech
Portech MV-374 User manual

Portech
Portech MV-370 User manual

Portech
Portech MV-372 User manual

Portech
Portech MV-374 User manual

Portech
Portech MV-370S User manual

Portech
Portech MV-370 User manual

Portech
Portech MV-370 User manual
