Portech MV-374 User manual

MV-374 / MV-378
VoIP GSM Gateway
User Manual
MV-374
MV-378
PORTech Co unications Inc.

【Content】
1.INTRODUCTION ................................................................................................................. 1
2.FUNCTION DESCRIPTION ...............................................................................................1
3.PARTS LIST .......................................................................................................................... 1
4.DIMENSION : 30X28X4 CM ............................................................................................... 2
5.CHART OF THE DEVICE ..................................................................................................3
6.WEB PA E SETTIN .........................................................................................................4
7.SYSTEM INFORMATION. .................................................................................................5
8. ROUTE .................................................................................................................................. 5
9.MOBILE............................................................................................................................... 12
10.NETWORK ........................................................................................................................20
11.SIP SETTIN .................................................................................................................... 25
12. NAT TRANS ..................................................................................................................... 34
13.SYSTEM AUTHORITY ...................................................................................................35
14.UPDATE............................................................................................................................. 36
15.SAVE CHAN E ................................................................................................................38
16.REBOOT ............................................................................................................................39
17. IP SETTIN ..................................................................................................................... 40
18.SPECIFICATION ............................................................................................................. 42
19. APPENDIX: SETUP MV-374/MV-378 WITH ASTERISK.........................................43
20.HOW TO SETUP ASTERISK TO RECEIVE CALLER ID FROM MV-374/MV-378
.................................................................................................................................................. 50
21. SIMPLE STEPS................................................................................................................ 59

-1-
1.Introduction
MV-374/MV-378 is a 4 / 8 channels VoIP GSM Gateway for call
ter ination (VoIP to GSM ) and origination (GSM to VoIP). It is SIP
based and co patible with Asterisk. It can enable to ake 4 / 8 calls
si ultaneously fro IP phones to GSM networks and GSM network to IP
phone.
2.Function description
2.1 VoIP(SIP)、GSM conversion.
2.2 50 sets of LAN->MOBILE routes setting，50 sets of MOBILE->LAN
routes setting.
2.3 Voice response for setting and status (dial in fro obile).
2.4 Series connections to save bills.
2.5 Standard SIP(RFC2543,RFC3261) protocol，
Co unicates with other gateway or PC.
3.Parts list
Please check the parts for any issing parts. If do, please contact
our agents：
3.1 「MV-374/MV-378」ain body
3.2 Power adaptor AC-DC (110V AC – 12V DC) or (220V AC – 12V DC)
3.3 Network cable
3.4 Antenna: MV-374:1 pcs / MV-378: 2 pcs
3.5 Rack ount (co patible with 19“Rack) – option
3.6 User Manual

-2-
(3.5)-option
4.Dimension : 30x28x4 cm
(3.1) MV-374
(3.2) MV-374
(3.4)
(3.3)
(3.1) MV-378
(3.2) MV-378

-3-
5.Chart o the device
5.1 Antenna：Antenna connector.
5.2 WAN: RJ-45 internet connector，standard RJ-45 socket，connect to
HUB.
5.3 DC 12V：Power input.
5.4 SIM Card
5.5 LINK Indicator：Light up when network is connected.
5.6 CH3：an indicator light of VoIP3
5.7 CH4：an indicator light of VoIP4
5.8 PWR (Power LED)：Light up when power is nor al.
5.1
5.3
5.4
5.2
5.5 5.6 5.7 5.8

-4-
6.Web Page Setting
When the IP setting is done, the operator ay setup all the rest
para eters via web page. Browse the IP address fro Internet
Explorer (e.g. http://192.168.0.100)。The following page shows up：
Enter the userna e and password for authentication. (default
userna e=voip, password=1234). The page follows when the
userna e and password are correct.

-5-
7.System In ormation.
7.1 When you login the web page, you can see the de o syste current
syste infor ation like fir ware version, co pany… etc in this
page.
7.2 Also you can see the function lists in the left side. You can use
ouse to click the function you want to set up.
8. Route
Important:
The route table -50 sets can share by two channels(1,2 ch / 3,4 ch /
5,6 ch / 7,8 ch ) . The setting,please refer 9.2 Mobile setting
ex: Mobile 1 use the route table for ite 0-24,
Mobile 2 use the route table for ite 25-49

-6-

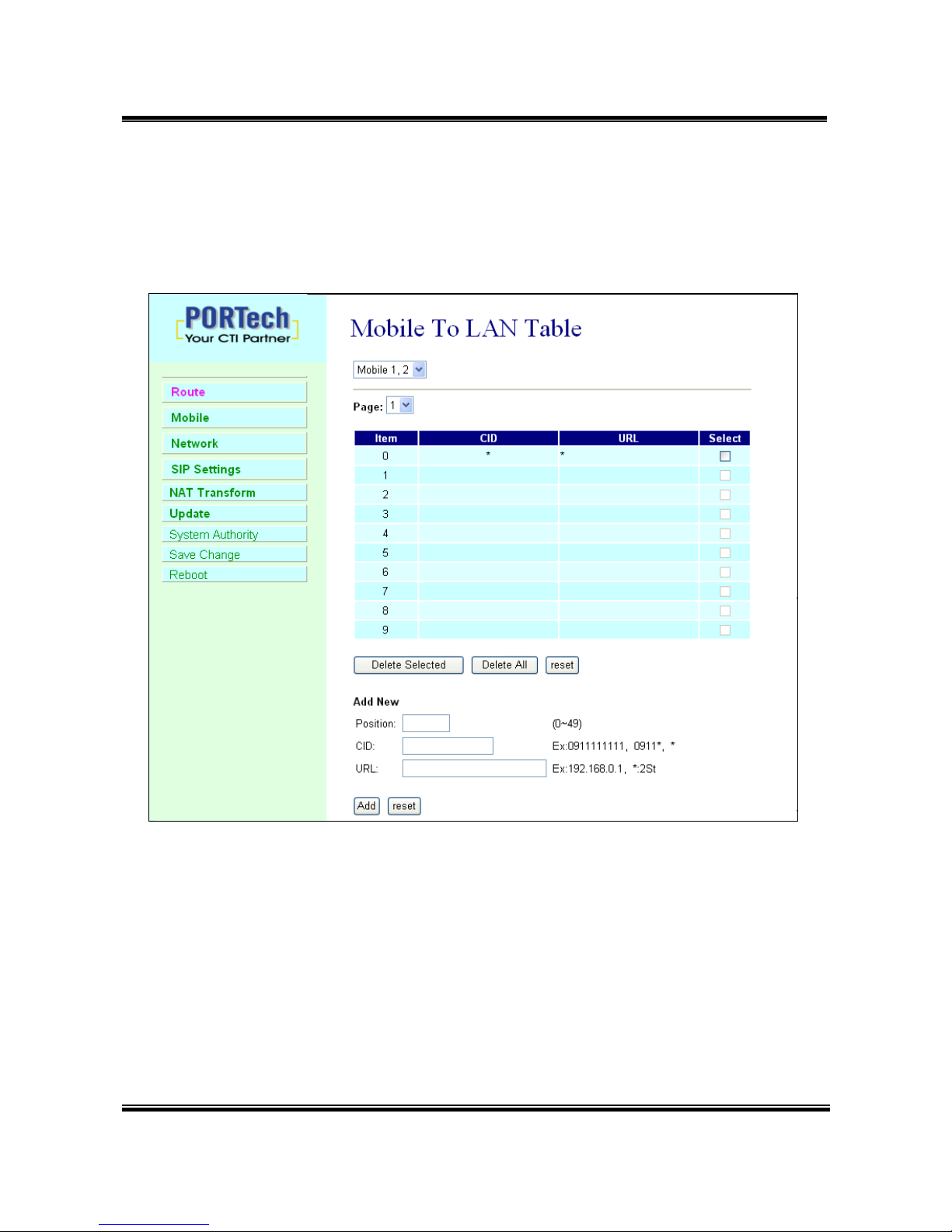

8.1 Mobile TO LAN Settings
The operator ay assign 50 sets of routing rule to transfer the call
inco ing fro MOBILE to LAN.
The MV-374/MV-378 will transfer to the URL according to the caller ID of
the Mobile.
*CID：
(1) ay enter the whole nu ber, e.g. 0911111111
(2) only part of the nu ber (prefix) e.g. 0911* eans any nu ber
starting with 0911 will be accepted
(3) * eans all nu bers can be accepted

-7-
(4) N eans the calls without the CID
Please note the priority of the rules. The ite which has ore digits will
have higher priority. If the digits are the sa e, then for er one gets the
higher priority.
*URL：The IP address to transfer this call
(1) ay enter the whole IP address, e.g. 192.168.0.101 or proxy
extension or phone nu ber.
(2) If this field is blank or si ply ‘N’, it eans refuse to transfer.
(3) If an ‘*’ entered, it eans 2-stages-dialing. The call will be
answered and pro pt dial tone again to receive the IP address/sip
extension or any phone number as the destination. The caller ay
enter the IP such as 192*168*0*101#.
*If the device have register proxy server/Asterisk ,you can enter any
destination phone nu ber. Please note the proxy server/Asterisk
need to set the route of destination phone nu ber.
Exa ple:
(1) Mobile to Lan: 0932*,0911123456
MV-374/MV-378 have register proxy server/Asterisk
The proxy server/Asterisk have the route “09”
When the caller’s prefix nu ber is 0932,MV-374/MV-378 will
connect 0911123456 auto aticlly
(2) Mobile to Lan: *,*
Any caller call the MV-374/MV-378’s si ,MV-374/MV-378 will
pro pt dial tone.Caller can enter IP or sip extension or phone
nu ber.
*sip extension or phone nu ber both need to register SIP Proxy
Server or Asterisk.
*Phone nu ber, SIP Proxy Server or Asterisk need to set the route
of this phone nu ber.

-8-

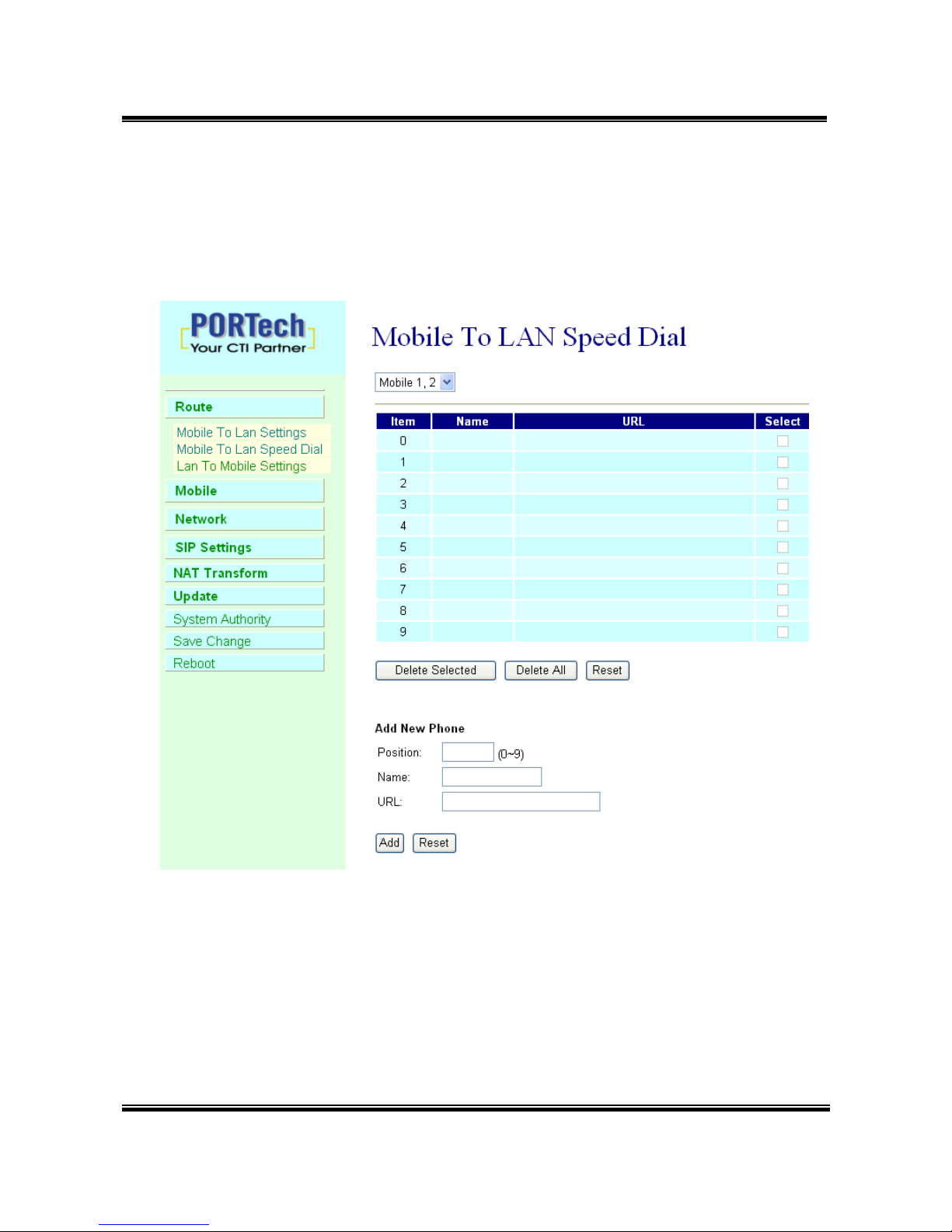

8.2 Mobile to LAN Speed Dial Settings
When you set Mobile to LAN Speed Dial Settings and Mobile to
LAN at the sa e ti e,MV-374/MV-378 will give priority to Mobile to LAN
Speed Dial Settings.
*The call will be answered and pro pt dial tone again. When the caller
ay enter the “Nu ”, syste will connect the “URL” as destination.
E.g Nu :0 Na e:test URL:192.168.0.107
When the caller hear dial tone and enter 0, syste will connect
192.168.0.107

-9-

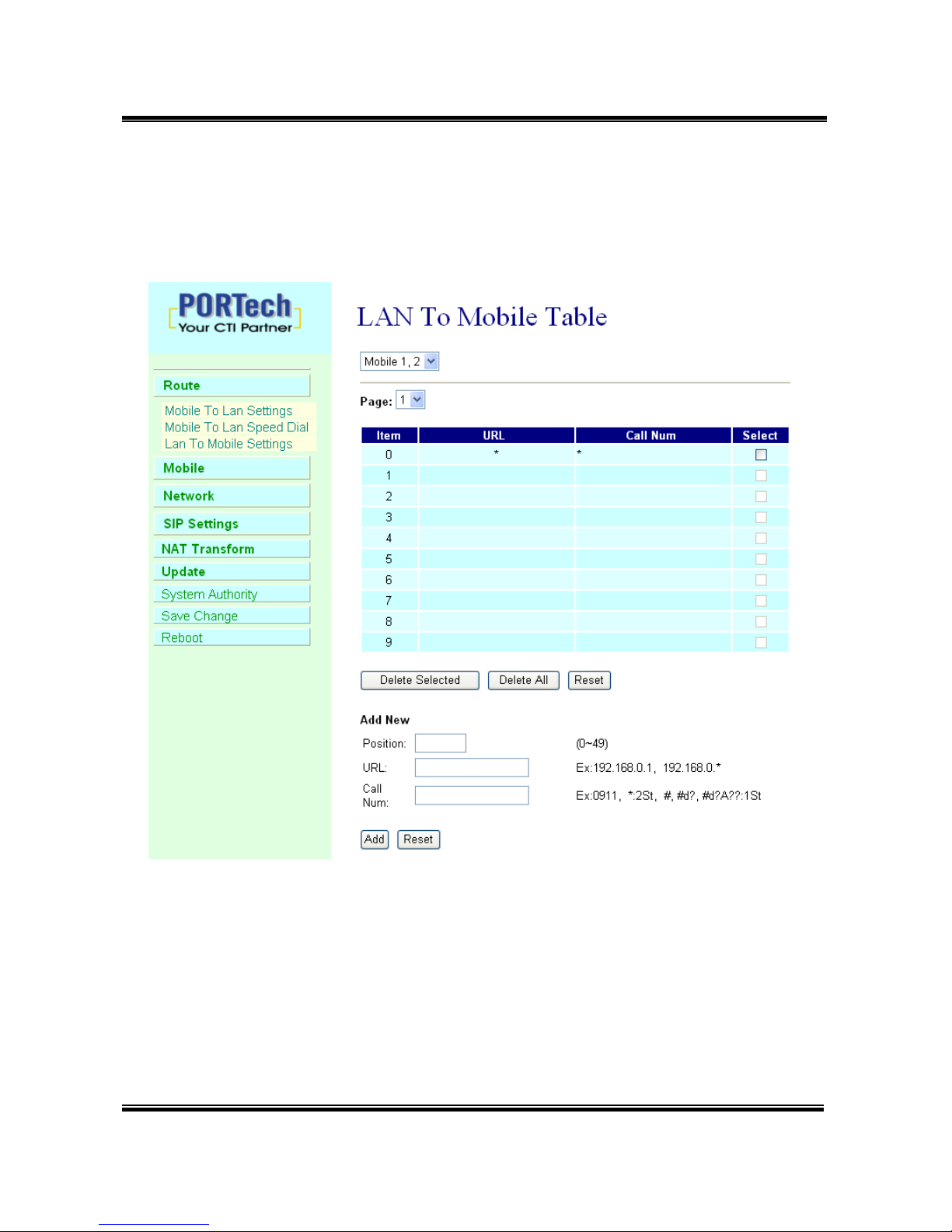

8.3 LAN to Mobile Settings
The operator ay assign 50 sets of routing rule to transfer the call
inco ing fro LAN to MOBILE.
The MV-374/MV-378 will transfer to the obile nu ber according to the
inco ing URL
*URL：The IP address of the inco ing call.
ay enter the whole IP address, e.g. 192.168.0.101 or proxy server’s
extension. If a si ple ‘*’ is entered, eans no restriction for the
inco ing IP address.

-10-
*Call Nu ：
1. ay enter the whole nu ber, e.g. 0911111111
2.a si ple *” eans 2-stages-dialing. The call will be answered and
pro pt dial tone again to receive the called nu ber as the
destination, e.g. 0911111111 or 0911111111#
3.#['d'n]['a'ppp] for one-stage dialing
[...] is option
'd'n eans to delete the beginning n codes,
'a'ppp eans to add 'ppp' in front.
for exa ple #d2a09 eans one-stage dialing,
delete the first 2 codes fro your destination nu ber,
then add 09 in front as the new destination nu ber.
Example:
Lan to Mobile: *, #
(1)MV-374/MV-378 and Lan Phone both need to register proxy server or Asterisk.
(2)Proxy server/asterisk set the route that the prefix of destination nu ber
(3)When you dial any destination phone nu ber fro lan phone,MV-374/MV-378 will
connect this call auto.
Example o Application:
When you call the ch.1 MV-374/MV-378 gs nu ber,it will provide dial tone and you
enter a destination nu ber.
Then ch.2 MV-374/MV-378 will dial this nu ber and connect.
ch.1 MV-374/MV-378: obile to lan set route table *,*
ch.2 MV-374/MV-378:lan to obile set route table *,#
Additionally, two channels MV-374/MV-378 both need to register proxy server or
Asterisk.
And proxy server/asterisk set the route that the prefix of destination nu ber dial out
fro ch.2 MV-374/MV-378.

-11-
MV-374/MV-378’s IP:
The channel 1:192.168.0.100:5060
The channel 2:192.168.0.100:5062
The channel 3:192.168.0.102:5060
The channel 4:192.168.0.102:5062
The channel 5:192.168.0.104:5060
The channel 6:192.168.0.104:5062
The channel 7:192.168.0.106:5060
The channel 8:192.168.0.106:5062

-12-
9.Mobile

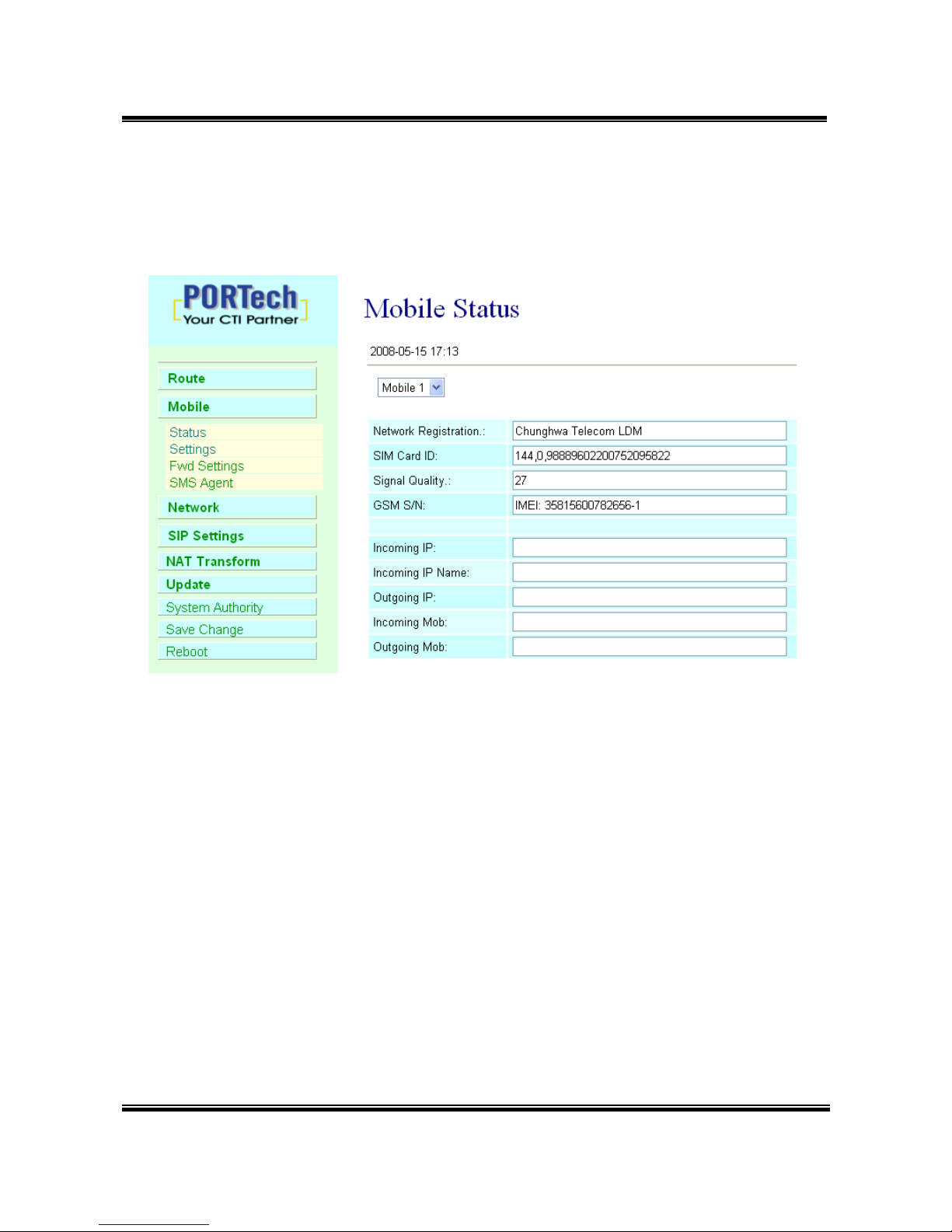

9.1 Mobile Status
(1)Choose Mobile 1,2,3 or 4 (MV-378: Mobile 1,2,3,4,5,6,7,8)
(2)Network Registration：The teleco carrier which the SIM card been
registered.
(3)SIM Card ID：SIM card ID.
(4)Signal Quality：Signal quality.
(5)GSM S/N : IMEI Nu ber
(6)Inco ing IP：The IP address of the last inco ing call fro LAN.
(7)Inco ing IP Na e: proxy server na e
(8)Outgoing IP：The IP address of the last outgoing call to LAN.
(9)Inco ing Mob：The caller ID of the last inco ing call fro MOBILE.
(10)Outgoing Mob：The called nu ber of the last outgoing call to
MOBILE.

-13-
9.2 Mobile Setting
GSM VoIP Codec
LAN (6)Rx
(5) Tx
TMF
(1)VoIP Tx Gain
(2) VoIP Rx Gain
GSM Codec
Rx
Tx
TMF
Mobile 1:
Mobile 2:
(1)
(3)
(2)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)

-14-
(1) VoIP Tx Gain: To adjust the volu e of LAN side.
(2) VoIP Rx Gain: To adjust the volu e of Mobile side.
(3)LAN Dialtone Gain: DTMF Reciver is not good, you can adjust gain
down.
(4)Routing Range:The route table -50 sets can share by two
channels(1,2 ch / 3,4 ch / 5,6 ch / 7,8 ch )
ex: Mobile 1 use the route table for ite 0-24,
Mobile 2 use the route table for ite 25-49
(5)CODEC Tx Gain: as above
(6)CODEC Rx Gain: as above
(7) SIP Fro : Caller ID transfer
 Tel/User(Standard): If you need to register to Asterisk and proxy
server, please choose this option. And how to transfer the caller ID
to LAN, please refer 21.How to setup Asterisk to receive Caller ID
fro MV-374/MV-378 (page 42)
MV-374/MV-378 will send the essage as follows in the Packet.
From: " caller number " <sip:[email protected].228>;tag=51088abb
 User/User(Standard): If you need to register to Asterisk and proxy
server, please choose this option.
MV-374/MV-378 will send the essage as follows in the Packet.
From: " 3001" <sip:[email protected].0.228>;tag=51088abb
 Tel/Tel :
MV-374/MV-378 will send the essage as follows in the Packet.
From: "caller number" <sip: caller number @192.168.0.228>;tag=6ac93 7c
※Please note: If you choose this option, please don’t register to
Asterisk and proxy server. Please only fill proxy server IP and
choose Active: on (else field e pty) in sip setting/service de ain

-15-
 User/Tel
MV-374/MV-378 will send the essage as follows in the Packet.
From: " Username " <sip: caller number @192.168.0.228>;tag=7 130947
※ If you choose this option, please don’t register to Asterisk and
proxy server. Please only fill proxy server ip,Userna e and
choose Active: on (else field e pty) in sip setting/service
de ain
(8)Answer Delay: Delay for inco ing call when the ring.
(9)Presentation CLIR : If you need to block the Caller Id for call
ter ination, please choose Suppression
(10)Mobile PIN Code: If you need to unlock pin code via
MV-374/MV-378,you can click “On” and enter pin code.
(11)LAN Answer Mode:
Answered : when obile answer,then connect the call
Alerted : when the obile is ringing back tone,then connect the call
Inco e : when lan dial out,then connect soon
(12) ON/Off: If you use this channel, please click on. Otherwise, please
click off.

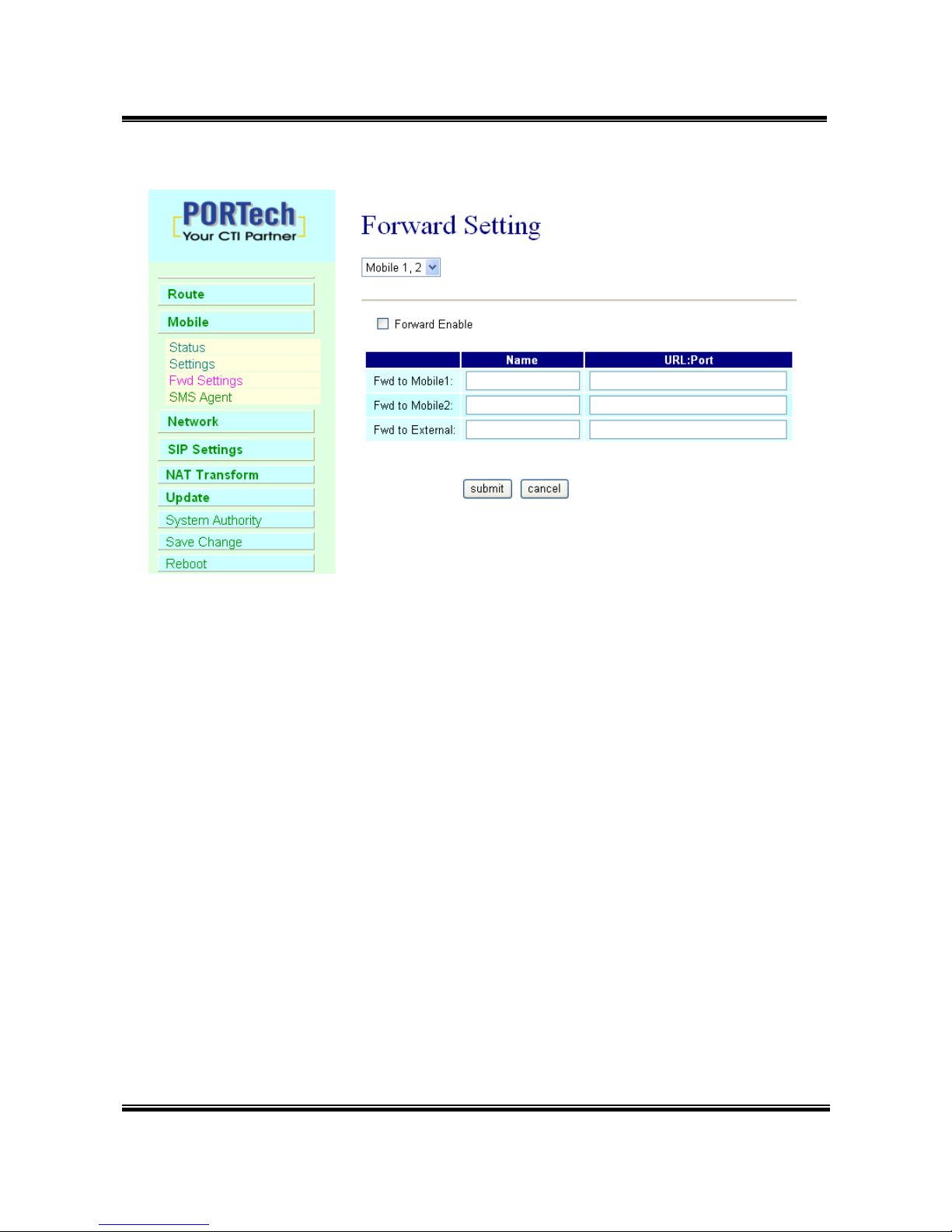

9.3 Mobile / Forward Setting :
When the first route are busying, SIP can transfer phone call to
another free route. When the device are busying, the phone call
can be transfer to another device (external equip ents).

-16-
* "Forward Enable" is not otivate on Defualt value.
So please, ark "Forward Enable" this blank to otivate this function.
Take SJ Phone for exa ple: Profiles -> Edit -> Advanced -> Accept
redirection replies (Turn on the "Forward Enable", therefore the SJ
Phone can designate a port which are free to use.)

-17-
Name URL:Port
Fwd to Mobile1:
192.168.0.100:5060
Fwd to Mobile2:
192.168.0.100:5062
Fwd to External:
The Explanation of Picture:
Fwd to Mobile1:192.168.0.100 : 5060, it eans when 5062 Port are
busying, SJ Phone can transfer the call to 5060 Port (192.168.0.100).
Fwd to Mobile2:192.168.0.100 : 5062, it eans when 5060 Port are
busying, SJ Phone can transfer the call to 5062 Port (192.168.0.100).
 If both 5060 port and 5062 port are busying at sa e ti e, you can set
up "Fwd to External", then you can transfer the phone call to another
designate device.

-18-
9.4 Mobile / SMS Agent :
(1) Rx List: Read received SMS
(2) Dest Nu : the Receiver’s phone nu ber
(3) Message: Please fill the essage that want to send to receiver.
When you click Rx List, you can view all received SMS as follows.
Read received SMS
