Portwell AUDA-S08BS V3 User manual

AUDA-S08BS V3
8" Intel Low Power Atom D2550 Fanless Panel PC
User Manual
Release Date Revision
Dec. 2015 V1.0

AUDA-S08BS V3 User Manual 1
Revision History
Reversion
Date
Description
1.0
2015/12/10
Official Version

AUDA-S08BS V3 User Manual 2
Warning!___________________________
Electric Shock Hazard –Do not operate the machine with its back cover removed.
There are dangerous high voltages inside.
This equipment generates, uses and can radiate radio frequency energy and if
not installed and used in accordance with the instructions manual, it may cause
interference to radio communications. It has been tested and found to comply with
the limits for a Class A computing device pursuant to FCC Rules, which are designed
to provide reasonable protection against such interference when operated in a
commercial environment. Operation of this equipment in a residential area is likely
to cause interference in which case the user at his own expense will be required to
take whatever measures may be required to correct the interference.

AUDA-S08BS V3 User Manual 3
Packing List
Accessories (as checked) included in this package are:
□Adaptor
□Driver & manual CD disc
□Other.___________________(please specify)
Safety Precautions
Follow the messages below to prevent your systems from damage:
◆Avoid your system from static electricity on all occasions.
◆Prevent electric shock. Don‘t touch any components of this card when the card
is power-on. Always disconnect power when the system is not in use.
◆Disconnect power when you change any hardware devices. For instance, when
you connect a jumper or install any cards, a surge of power may damage the
electronic components or the whole system.

AUDA-S08BS V3 User Manual 4
Table of Contents
Revision History……………………………………………………………………..………………………………………….1
Warning!..................………………..............................…………………….………………………….……..….2
Packing List/Safety Precautions.....…………………………………………………..………………………………..3
Chapter 1 Getting Started
1.1 Features……………………………………………………………………………………………6
1.2 Specifications………………………………………………………………………………......6
1.3 Dimensions……………………………………………………………………....................7
1.4 Brief Description of AUDA-S08BS V3.………………………………………………..8
Chapter 2 Hardware
2.1 Motherboard Introduction……..……………..…………………..………………..…..9
2.2 Specifications……………………………….……………………………..…………………...9
2.3 Jumpers Setting and Connectors…………..............................................13
Chapter 3 BIOS Setup
3.1 Operations after POST Screen..............................................................22
3.2 BIOS Setup Utility….............................................................................22
3.3 Main Settings…....................................................................................23
3.4 Advanced Settings...............................................................................24
3.5 Chipset Settings...................................................................................30
3.6 Boot Settings…....................................................................................33
3.7 Security Settings..................................................................................35
3.8 Save and Exit Settings.........................................................................36

AUDA-S08BS V3 User Manual 5
Figures
Figure 1.1: Dimensions of AUDA-S08BS V3………....………………………...……...7
Figure 1.2: Front View of AUDA-S08BS V3……………………………………………..8
Figure 1.3: Rear View of AUDA-S08BS V3…………………………………….....….....8
Figure 2.1: Motherboard Dimensions………………………....………………..………11
Figure 2.2: Jumpers and Connectors Location_ Board Top…………………....12
Figure 2.3: Jumpers and Connectors Location_ Board Bottom………………12

AUDA-S08BS V3 User Manual 6
Chapter 1 Getting Started
1.1 Features
8”TFT LCD with Resolution of 800 x 600
Intel Atom D2550 1.8GHz Processor
Onboard 2GB DDR3 Memory
Fanless and NEMA4/IP65 Compliant Front Bezel
Support Panel Mount and VESA Mount
Sealed Resistive Touch Screen
12V DC Power Input
1.2 Specifications
System
Processor
Onboard Intel Atom D2550(1.8GHz) Processor
System Chipset
Intel NM10 Express
System Memory
Onboard 2GB DDR3 Memory
Outside I/O
USB
4 x USB 2.0 type A
Serial/Parallel
1 x RS-232/422/485 DB-9, COM1
1 x RS-232 DB-9, COM2
Audio
1 x Line Out
LAN
2 x GbE LAN RJ-45
Power
1 x DC Power Input with Lockable Connector (2.5/5.5/7.5)
Storage
Storage
1 x 2.5”SATA HDD Space
1 x SD Slot on board
Display
Display Type
8”color TFT LCD
Max. Resolution
800 x 600
Max. Color
16.2M
Luminance (cd/m2)
350
Viewing Angle
140(H) / 125(V)
Contrast Ratio
500: 1
Backlight Lifetime
40,000 hrs
Touch Screen –Resistive Touch Screen
Interface
USB
Light Transmission
Over 80%

AUDA-S08BS V3 User Manual 7
Power
Power Input
9~36V DC
Power Consumption
MAX: 16.8W
Mechanical
Construction
Plastic Front/Steel Back Color Black
Mounting
Panel Mount/VESA Mount 75 x 75
IP Rating
IP65 Compliant Front Bezel
Dimension
231 x 176 x 76 mm
Net Weight
2.3 Kg
Environmental
Operating Temperature
0~50 °C
Storage Temperature
-20~60 °C
Storage Temperature
10%~90%@ 40℃, non-condensing
Certificate
Meet CE / FCC Class A
OS Support
Windows 7, Windows XP, Windows XPE
1.3 Dimensions
Figure 1.1: Dimensions of AUDA-S08BS V3

AUDA-S08BS V3 User Manual 8
1.4 Brief Description of AUDA-S08BS V3
AUDA-S08BS V3 is a fanless and IP65 compliant front panel designed industrial panel PC,
and is powered by Intel low power Atom D2550 1.8GHz Processor built-in. It supports 2G
DDR3 onboard memory. The model comes with an 8”resistive touch screen display with
color TFT LCD resolution 800 x 600, 12V DC power input, and supports 4 x USB 2.0, 2 x COM
ports, 2 x LAN, 1 x line out, and 1 x DC power input with lockable connector. The construction
of the model is plastic front, steel black back cover enclosure, and it can be VESA 75 x 75
mounted. The panel PC has a rich variety of functions and peripherals. Regarding the storage
capability, AUDA-S08BS V3 provides 1 x 2.5”SATA HDD space, allowing customers to easily
access/backup the data.
Figure 1.2: Front View of AUDA-S08BS V3
Figure 1.3: Rear View of AUDA-S08BS V3

AUDA-S08BS V3 User Manual 9
Chapter 2 Hardware
2.1 Motherboard Introduction
AUDA-S08BS V3 developed on the industrial motherboard basis of Intel Cedarview-M
Processors and NM10, which provides abundant peripheral interfaces to meet the needs of
different customers. Also, it features dual GbE ports, 3-COM ports and one Mini PCIE
configuration, one VGA port, one HDMI port, one LVDS interface. To satisfy the special needs
of high-end customers, CN1 and CN2 and CN3 richer extension functions. The product is
widely used in various sectors of industrial control.
2.2 Specifications
Specifications
Board Size
170mm x 113mm
CPU Support
Intel Atom N2600 /1.60GHz (2cores,3.5W, onboard）
Intel Atom D2550 /1.86GHz(2cores,10W, option)
Chipset
Intel NM10 Express
Memory Support
Onboard 2GB DDRIII SDRAM (N2600)
Onboard 4GB DDRIII SDRAM (D2550)
Graphics
Integrated Intel GMA 3600 (N2600)
Integrated Intel GMA 3650 (D2550)
Display Mode
1 x CRT Port
1 x HDMI Port
1 x LVDS1 (18/24-bit single LVDS)
Support
Resolution
Up to 1920 x1200 for CRT
Up to 1920 x1200 for HDMI
Up to 1366 x768 for LVDS1 (N2600)
Up to 1440 x 900 for LVDS1 (D2550)
Dual Display
CRT+LVDS1
CRT+HDMI
LVDS1+HDMI
Super I/O
Winbond W83627UHG-E
BIOS
AMIBIOS

AUDA-S08BS V3 User Manual 10
Storage
1 x SATA Connector (7P)
1 x SATA Connector (7P+15P)
1 x SD Socket (USB to SD)
Ethernet
2 x PCIe Gbe LAN by Realtek RTL8111E
USB
2 x USB 2.0 (type A)stack ports (USB4/USB5)
2 x USB 2.0 Pin header for CN3 (USB2/USB3)
2 x USB 2.0 Pin header for CN1 (USB0/USB1)
1 x USB 2.0 for MPCIE1 (USB7)
Serial
1 x RS232/RS422/RS485 port, DB9 connector for external (COM1)
pin 9 w/5V/12V/Ring select
1 x RS232 port, DB9 connector for external (COM2)
pin 9 w/5V/12V/Ring select
1 x RS422/485 header for CN2 (COM3)
2 x UART for CN3 (COM5,COM6)
Digital I/O
8-bit digital I/O by Pin header (CN2)
4-bit digital Input
4-bit digital Output
4-bit digital I/O by Pin header (CN3)
2-bit digital Input
2-bit digital Output
Battery
Support CR2477 Li battery by 2-pin header
Audio
Support Audio via Realtek ALC662 HD audio codec
Support Line-in, Line-out, MIC by 2x6-pin header
Keyboard /Mouse
1 x PS2 keyboard/mouse by 1x6 box pin header (CN3)
Expansion Bus
1 x mini-PCI-express slot
1 x PCI-express (CN3)
Touch Ctrl
1 x Touch ctrl header for TCH1 (COM4)
Power
Management
Wide Range DC9V~36V input
1 x 3-pin power input connector
Switches and
LED Indicators
1 x Power on/off switch (CN1)
1 x Reset switch (CN1)
1 x Power LED status (CN1)
1 x HDD LED status (CN1)
1 x Buzzer

AUDA-S08BS V3 User Manual 11
External I/O port
2 x COM Ports (COM1/COM2)
2 x USB 2.0 Ports (stack)
2 x RJ45 GbE LAN Ports
1 x HDMI Port
1 x Stack audio Jack (Line out)
Watchdog Timer
Software programmable 1 –255 second by Super I/O
Temperature
Operating: -20℃to 70℃
Storage: -40℃to 85℃
Humidity
5% - 95%, non-condensing, operating
Power
Consumption
12V /0.95A (Intel Atom N2600 processor with 2GB DDR3 DRAM)
EMI/EMS
Meet CE/FCC class A
(units :mm)
Figure 2.1: Motherboard Dimensions

AUDA-S08BS V3 User Manual 12

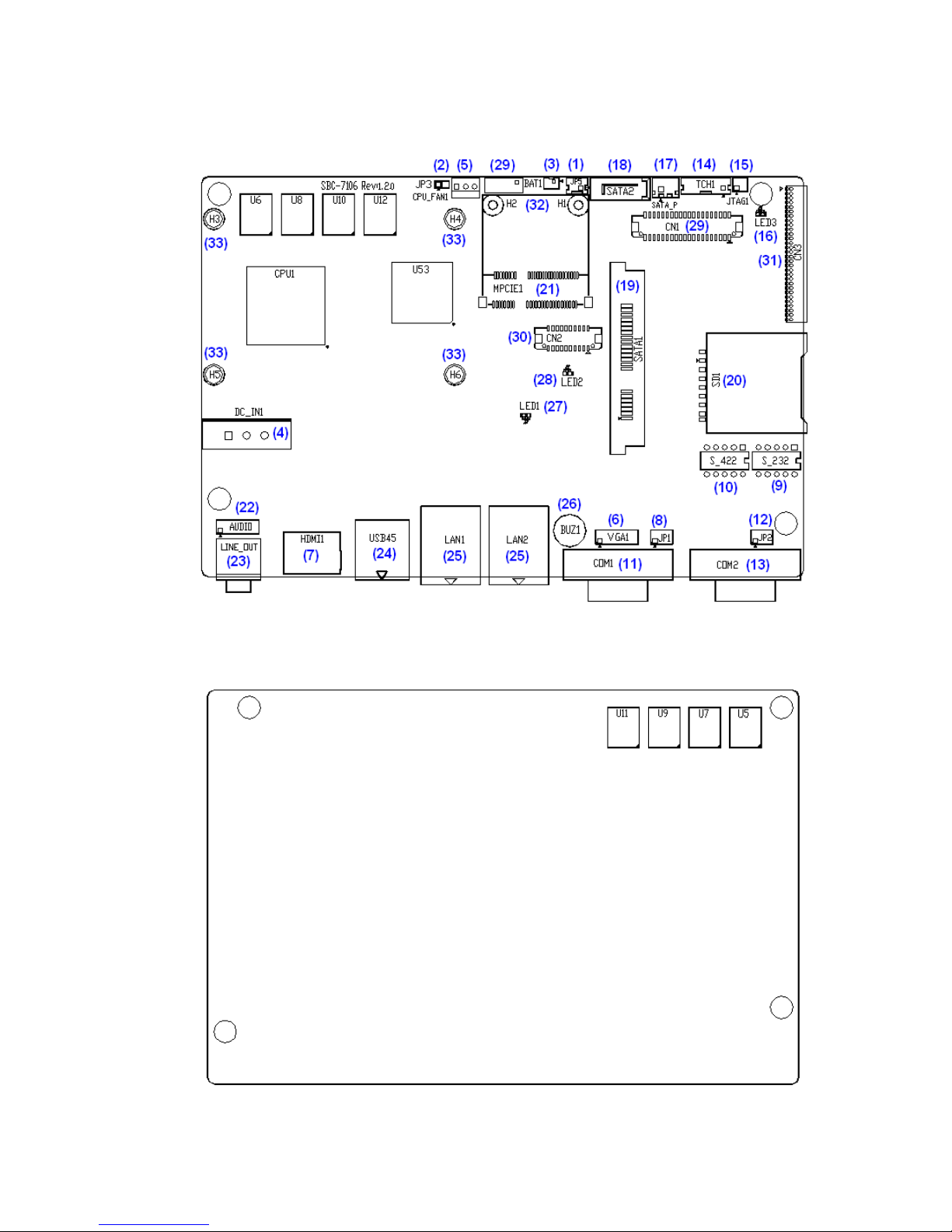

2.2.1 Jumpers Setting and Connectors
Board Top
Figure 2.2: Jumpers and Connectors Location_ Board Top
Board Bottom
Figure 2.3: Jumpers and Connectors Location_ Board Bottom

AUDA-S08BS V3 User Manual 13
2.3 Jumpers Setting and Connectors
1. JP5:
(2.0mm Pitch 1X2 box Pin Header), ATX Power and Auto Power on jumper setting.
JP5
Mode
Open
ATX Power
Close
Auto Power on (Default)
2. JP3:
(2.0mm Pitch 1X2 Pin Header)CMOS clear jumper, CMOS clear operation will
permanently reset old BIOS settings to factory defaults.
JP3
CM OS
Open
NORMAL (Default)
Close 1-2
Clear CMOS
Procedures of CMOS clear:
a) Turn off the system and unplug the power cord from the power outlet.
b) To clear the CMOS settings, use the jumper cap to close pins 1 and 2 for about 3
seconds then reinstall the jumper clip back to pins open.
c) Power on the system again.
d) When entering the POST screen, press the <F1> or <DEL> key to enter CMOS Setup
Utility to load optimal defaults.
e) After the above operations, save changes and exit BIOS Setup.
Model/CPU
JP3
N2600
No
N2600-P
No
D2550
Y es
3. BAT1 :
(1.25mm Pitch 1X2 box Pin Header) 3.0V Li battery is embedded to provide power for
CMOS.
Pin#
Signal Name
Pin1
VBAT
PIN2
Ground
4. DC_IN1:
(5.08mm Pitch 1x3 Pin Connector),DC9V~32V System power input connector。

AUDA-S08BS V3 User Manual 14
Pin#
Power Input
Pin1
DC+9V~32V
Pin2
Ground
Pin3
FG
Model/CPU
DC_IN1
N2600
180°Connector
N2600-P
45°C onnector
D2550
45°C onnector
5. CPU_FAN1:
(2.54mm Pitch 1x3 Pin Header), Fan connector, cooling fans can be connected directly
for use. You may set the rotation condition of cooling fan in menu of BIOS CMOS Setup.
Pin#
Signal Name
1
Ground
2
VCC
3
Rotation detection
Note:
Output power of cooling fan must be limited under 5W.
Model/CPU
CPU_FAN1
N2600
No
N2600-P
No
D2550
Y es
6. VGA1:
(CRT 2.0mm Pitch 2X6 Pin Header), Video Graphic Array Port, Provide 2x6Pin cable to
VGA Port.
Signal Name
Pin#
Pin#
Signal Name
CRT_RED
1
2
Ground
CRT_GREEN
3
4
Ground
CRT_BLUE
5
6
VGA_EN
CRT_H_SYNC
7
8
CRT_DDCDATA
CRT_V_SYNC
9
10
CRT_DDCCLK
Ground
11
12
Ground
VGA hot plug setting for Windows XP：
VGA1（Pin Header）
Function

AUDA-S08BS V3 User Manual 15
Pin4-Pin6（Close）
VGA Simulation Disabled
Pin4-Pin6（Open）
VGA Simulation Enabled
use the 2.0mm jumper cap to close pin 4 and pin6
7. HDMI1:
(HDMI 19P Connector), High Definition Multimedia Interface connector.
8. JP1:
(2.0mm Pitch 2x3 Pin Header), COM1 jumper setting, pin 1~6 are used to select signal
out of pin 9 of COM1 port.
JP1 Pin#
Function
Close 1-2
COM1 RI (Ring Indicator) (default)
Close 3-4
COM1 Pin9=+5V (option)
Close 5-6
COM1 Pin9=+12V (option)
9. S_232:
(Switch), COM1 jumper setting, it provides selectable RS232 or RS422 or RS485 serial
signal output.
Function
S_232 Pin#
RS232 (Default)
ON: Pin1, Pin2, Pin3, Pin4, Pin5
RS422 (option)
OFF: Pin1, Pin2, Pin3, Pin4, Pin5
RS485 (option)
OFF: Pin1, Pin2, Pin3, Pin4, Pin5
10. S_422:
(Switch), COM1 setting, it provides selectable RS232 or RS422 or RS485 serial signal
output.
Function
S_422 Pin#
RS232 (Default)
OFF: Pin1, Pin2, Pin3, Pin4, Pin5
RS422 (option)
ON: Pin1, Pin2, Pin3, Pin4, Pin5
RS485 (option)
ON: Pin1, Pin2, Pin3, Pin4, Pin5
11. COM1:
(Type DB9),Rear serial port, standard DB9 Male serial port is provided to make a
direct connection to serial devices. COM1 port is controlled by pins No.1~6 of
JP1,select output Signal RI or 5V or 12V, For details, please refer to description of JP1
and S_232 and S_422 setting.

AUDA-S08BS V3 User Manual 16
RS232 (Default):
Pin#
Signal Name
1
DCD# (Data Carrier Detect)
2
RXD (Received Data)
3
TXD (Transmit Data)
4
DTR (Data Terminal Ready)
5
Ground
6
DSR (Data Set Ready)
7
RTS (Request To Send)
8
CTS (Clear To Send)
9
JP1 select Setting (RI/5V/12V)
BIOS Setup：
Advanced/W83627UHG Super IO Configuration/Serial Port
1 Configuration【RS-232】
RS422 (option):
Pin#
Signal Name
1
422_RX+
2
422_RX-
3
422_TX-
4
422_TX+
5
Ground
6
NC
7
NC
8
NC
9
NC
BIOS Setup：
Advanced/W83627UHG Super IO Configuration/Serial Port
1 Configuration【RS-422】
RS485 (option):
Pin#
Signal Name
1
NC
2
NC
3
485-
4
485+
5
Ground
6
NC
7
NC

AUDA-S08BS V3 User Manual 17
8
NC
9
NC
BIOS Setup：
Advanced/W83627UHG Super IO Configuration/Serial Port
1 Configuration【RS-485】
12. JP2:
(2.0mm Pitch 2x3 Pin Header),COM2 jumper setting, pin 1~6 are used to select signal
out of pin 9 of COM2 port.
JP2 Pin#
Function
Close 1-2
COM2 RI (Ring Indicator) (default)
Close 3-4
COM2 Pin9=+5V (option)
Close 5-6
COM2 Pin9=+12V (option)
13. COM2:
(Type DB9),Rear serial port, standard DB9 Male serial port is provided to make a
direct connection to serial devices.
Pin#
Signal Name
1
DCD# (Data Carrier Detect)
2
RXD (Received Data)
3
TXD (Transmit Data)
4
DTR (Data Terminal Ready)
5
Ground
6
DSR (Data Set Ready)
7
RTS (Request To Send)
8
CTS (Clear To Send)
9
RI (Ring Indicator)
14. TCH1:
(2.0mm Pitch 1x6 box Pin Header), internal Touch controller connector.
Pin#
Signal Name
1
SENSE
2
X+
3
X-
4
Y+
5
Y-
6
GND_EARCH

AUDA-S08BS V3 User Manual 18
15. JTAG1(option):
(2.0mm Pitch 2x2 Pin Header), Touch eeprom program to write interface
Signal Name
Pin#
Signal Name
3.3V
1
2
C2D_BR
YC2CK_RST
3
4
Ground
16. LED3:
LED STATUS. Green LED for Touch Power status.
17. SATA_P:
(2.5mm Pitch 1x2 box Pin Header), Two onboard 5V output connectors are reserved
to provide power for SATA devices.
Pin#
Signal Name
1
+DC5V
2
Ground
Note:
Output current of the connector must not be above 1A.
18. SATA2:
(SATA 7Pin), SATA Connectors, one SATA connectors are provided, with transfer speed
up to 3.0Gb/s.
19. SATA1:
(SATA 7Pin+15Pin), SATA Connectors, one SATA connectors are provided, with transfer
speed up to 3.0Gb/s.
20. SD1:
(SD card socket),Secure Digital Memory Card socket.
21. MPCIE1:
(Socket 52Pin),mini PCIe socket, it is located at the top, it supports mini PCIe devices
with USB2.0 and LPC and SMBUS and PCIe signal. MPCIe card size is 30x30mm.
22. AUDIO:
(2.0mm Pitch 2X6 Pin Header), Front Audio, An onboard Realtek ALC662 codec is used
to provide high-quality audio I/O ports. Line Out can be connected to a headphone or
amplifier. Line In is used for the connection of external audio source via a Line in cable.
MIC is the port for microphone input audio.

AUDA-S08BS V3 User Manual 19
Signal Name
Pin#
Pin#
Signal Name
5V
1
2
GND_AUD
LINE-OUT-L
3
4
LINE-OUT-R
FRONT_JD
5
6
LINE1_JD
LINE-IN-L
7
8
LINE-IN-R
MIC-IN-L
9
10
MIC-IN-R
GND_AUD
11
12
MIC1_JD
23. LINE_OUT:
(Diameter 3.5mm Jack), HD Audio port, An onboard Realtek ALC662 codec is used to
provide high quality audio I/O ports. Line Out can be connected to a headphone or
amplifier.
24. USB45:
USB4/USB5：(Double stack USB type A), Rear USB connector, it provides up to 4
USB2.0 ports, High-speed USB 2.0 allows data transfers up to480 Mb/s ,support USB
full-speed and low-speed signaling.
Each USB Type A Receptacle (2 Ports) Current limited value is 1.5A.
If the external USB device current exceeds 1.5A, please separate connectors into
different Receptacle.
25. LAN1/LAN2:
LAN1/LAN2: (RJ45 Connector), Rear LAN port, Two standard 10/100/1000M
RJ-45 Ethernet ports are provided. Used Realtek RTL8111E chipset, LINK LED
(green) and ACTIVE LED (yellow) respectively located at the left-hand and
right-hand side of the Ethernet port indicate the activity and transmission state
of LAN.
26. BUZ1:
Onboard buzzer.
