Stylish Design and Premium Performance
®

2Jet 1
SAFETY GUIDELINES
Read and follow all of the instructions in this manual before you attempt to operate your power chair for the first
time. If you are unable to understand any of this information or require additional assistance for set-up, contact
your authorized Pride Pro ider.
The following symbols will be used throughout this owners manual to identify warnings and cautions. It is ery
important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal
injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to
your Jazzy.
INFMANU1439/REV C/JULY 2002
Copyright © 2001
Pride Mobility Products Australia, Pty. Ltd.

3
Jet 1
CONTENTS
I. INTRODUCTION......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6
III. THE JET 1 ................................................................................................................................... 8
IV. ASSEMBLY................................................................................................................................. 13
V. COMFORT ADJUSTMENTS................................................................................................ 16
VI. DISASSEMBLY ......................................................................................................................... 20
VII. OPERATION ............................................................................................................................... 21
VIII. BATTERIES AND CHARGING ............................................................................................ 24
IX. CARE AND MAINTENANCE ................................................................................................ 29
X. OPTIONS AND ACCESSORIES ......................................................................................... 34
XI. WARRANTY ................................................................................................................................35

4Jet 1
I. INTRODUCTION
Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Jet Power
Chair. The Jet 1 design combines the most ad anced state-of-the-art components with modern, attracti e styling.
We are certain that the design features and trouble-free operation of your new Jet Power Chair will add con enience
to your daily li ing.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your Jet for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new Jet Power Chair.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a Jet Power Chair. Pride
is also not liable for any property damage or personal injury arising out of the failure of any person and or/user to
following the instructions and recommendations set forth in this manual or any other instructions or recommendations
contained in other Jazzy related literature issued by Pride or contained on the Jet Power Chair itself.
This owners manual is compiled from the latest specifications and product information a ailable at the time of
publication. We reser e the right to make changes as they become necessary. Any changes to our products may
cause slight ariations between the illustrations and explanations in this manual and the product you had purchased.
If you experience any problems with your Jet that your are unable to sol e, or if you do not feel capable of safely
following any of the instructions and/or recommendations as contained in this manual, please contact your authorized
Pride pro ider for assistance.
Once you understand how to operate and take care of your Jet, we are certain that it will gi e you years of trouble-free
ser ice and enjoyment.
Information Exchange
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the
safety and reliability of your new Jet Power Chair, and about the ser ice you recei ed from your authorized Pride
pro ider.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products, and new options that can increase your ability to use and enjoy your Jet. Please feel free to write us at the
address below:
Pride Mobility Products Australia Pty. Ltd.
21 Healey Road
Dandenong, 3175
Victoria, Australia

5
Jet 1
I. INTRODUCTION
Pride Owners Club
As an owner of a Pride product, you are in ited to register your products warranty and enroll in the Pride Owners
Club. You may do so by filling out and returning your enclosed registration card or by isiting Prides web site at
www.pridemobility.com. As a registered member, each time you isit our site, you will ha e access to the most
interacti e and honest educational enue a ailable today for people with mobility needs, their families and friends.
From our home page, click on the button that reads Owners Club to enter a page dedicated to current and
potential Pride product owners. You will gain access to inter iews, stories, recreation ideas, daily li ing tips,
product and funding information, and interacti e message boards. On these message boards you are in ited to
speak with other Pride customers as well as Pride representati es who are a ailable to assist you with any questions
or concerns you may ha e. You will recei e a free gift simply for registering with the Pride Owners Club.
My Authorized Pride Provider is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Quick Reference Information:
Jet Model:__________________________________________________________________________
Serial Number:__________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your warranty card or your copy of this manual, call or write to us and
we will be glad to send you a new one immediately.

6Jet 1
Your Jet 1 is a state-of-the-art, life-enhancement de ice designed to increase your mobility. There are certain
situations, including some medical conditions, where you will need to practice operating your Jet 1 in the presence
of an attendant. Below are some safety tips that are designed to help you become accustomed to operating your
new Jet 1 safely.
WARNING! Your Jet 1 is a motorized vehicle. When you are seated in your Jet 1 and you anticipate
that you are going to be in a stationary position for an extended period of time, turn off the power.
his will eliminate the possibility of inadvertent chair movement and conserve battery power.
TRANSFERS
Transferring onto and off of your Jet 1 requires a good sense of balance. Be sure to ha e an attendant or health care
professional present while learning to properly transfer yourself. To eliminate the possibility of injury, we ask that
you erify the following before attempting a transfer:
1. Be sure the power is turned off. See VII. Operation.
2. Be sure your Jet 1 is not in freewheel mode. See III. The Jet 1.
3. Make sure the armrests are flipped up or remo ed from your Jet 1.
4. Flip the footrest up or mo e the leg rests aside; this will help to keep your feet from getting caught on the
footrest or on the leg rests during the transfer.
WARNING! Avoid putting all of your weight on the footrest. his may cause the Jet 1 to tip and
cause injury.
MOTOR VEHICLE TRANSPORT
Though your Jet 1 may be equipped with a positioning belt, this belt was not designed with the intent of pro iding
proper restraint during motor ehicle transport.
nNe er sit on or allow anyone to sit on your Jet 1 when it is in a mo ing ehicle.
nAlways be sure your Jet 1 is properly secured when it is being transported.
WEIGHT LIMITATIONS
Your Jet 1 is rated for a maximum 113-kg weight limit.
WARNING! Exceeding the weight limit will void your warranty and may result in personal injury.
STAIRS AND ESCALATORS
WARNING! Power chairs are not designed to travel up or down stairs or escalators. Always use an
elevator. If you try to navigate steps or escalators, you can cause injury to yourself and to others.
II. SAFETY

7
Jet 1
II. SAFETY
PUBLIC ROADS AND PARKING LOTS
WARNING! Do not operate your Jet 1 on public streets and roadways. Please be aware it
may be difficult for traffic to see you when you are seated in your Jet 1. o ensure your
safety, always assume you cannot be seen. Obey all local pedestrian traffic rules. Safety
accessories like reflectors, fluorescent flags, and various lighting packages are available
to order from your Pride provider.
STEPS AND KERBS
WARNING! Never attempt to have your Jet 1 climb or descend a step or a kerb that is higher than 5
cm unless you have the assistance of an attendant. Never attempt to have your Jet 1 proceed
backwards down any step, kerb, or other obstacle. Doing so could cause your Jet 1 to tip.
INCLINES AND UNEVEN TERRAIN
When climbing an incline, try to keep your Jet 1 mo ing. If you must stop, start up again slowly, and then
accelerate cautiously.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the incline.
Drive your Jet 1 straight up the incline. his will greatly reduce the possibility of a tip or a fall.
Always exercise extreme caution when negotiating an incline. Never travel up or down an incline
that can be potentially hazardous (for example, areas covered with snow, ice, or cut grass).
When dri ing down an incline, do so slowly and in the forward direction only. If your Jet 1 starts to mo e faster
than you anticipated or desired it would, allow the chair to come to a complete stop by releasing the joystick. Push
the joystick slightly forward and continue tra eling slowly down the incline.

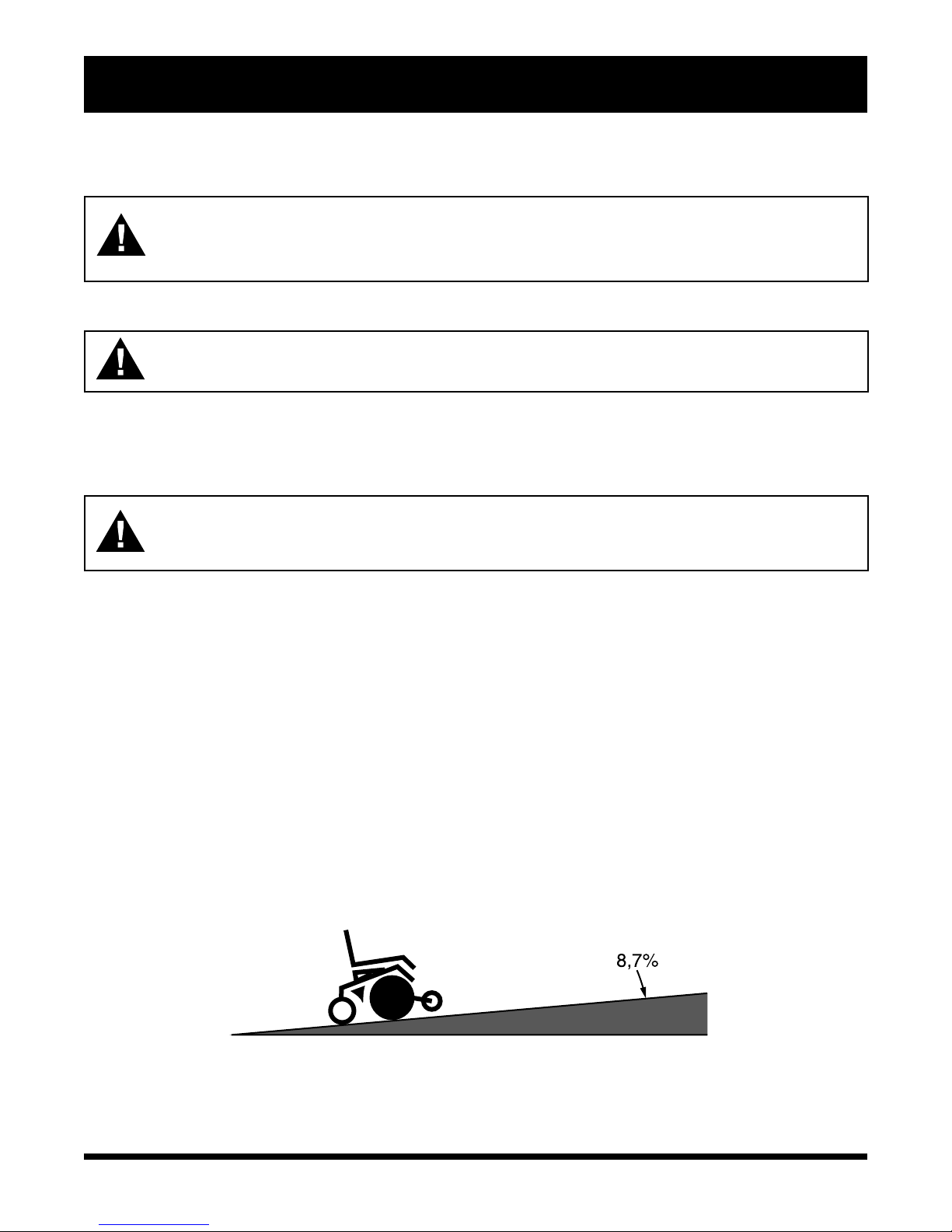

MAXIMUM RECOMMENDED INCLINE
Pride has performed extensi e incline testing with the Jet 1. Our results show that the maximum incline your Jet 1
can safely climb is 8,7% at maximum weight capacity. The angle of most handicap access ramps is 8,7%. Any
attempt to climb a steeper slope may put your Jet 1 in an unstable position.

8Jet 1
SEATBACK
ARMRESTS
Figure 1. The Jet 1
FOOTREST
DRIVE WHEEL
REAR CASTER WHEEL
SEAT ASSEMBLY
POWER BASE ASSEMBLY
III. THE JET 1
ANTI-TIP WHEELS
Your Jet 1 has two main assemblies: the seat and the power base. See figures 1 and 2. Typically, the seat assembly
includes the armrests, seatback, seat base, and a joystick/controller. Your Jet 1 seat may also ha e some optional
accessories attached to it, such as a basket, a cane/crutch holder, a cup holder, or a power seat switch. See X.
Options and Accessories.
The power base is the heart of your Jet 1. The power base assembly includes two dri e wheels, two anti-tip
wheels, two rear caster wheels, a footrest, and a body shroud.
SEAT BASE
JOYSTICK
BODY SHROUD
CONTROLLER

9
Jet 1

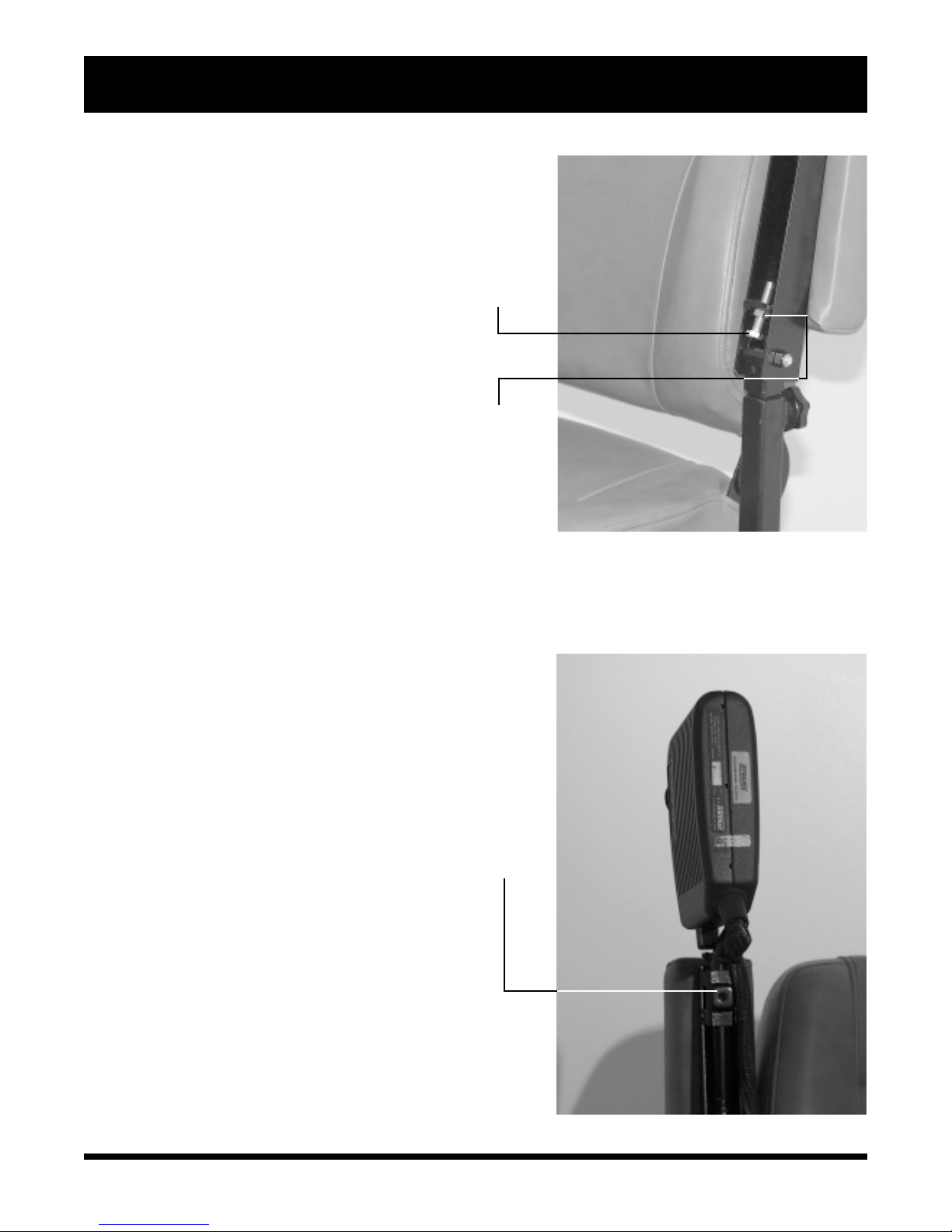

ARMREST
Figure 2. Rear View
ARMREST WIDTH ADJUSTMENT SETSCREWS
III. THE JET 1
ARMREST HEIGHT ADJUSTMENT KNOBS
Figure 3. Battery Charger Cord
CONTROLLER HARNESSES

10 Jet 1
Specifications
Suspension: Dri e Wheels: 36 cm, pneumatic, center mounted
(solid tyres are optional)
Rear Casters: 20 cm, solid, rear articulating
Anti-tip: 15 cm, solid, front mounted
Max. Speed: 7 km/hr
Brakes: Intelligent Braking, electronic regenerati e, disc park brake
Ground Clearance: 9 cm
Turning Radius: 50 cm
O erall Size: Length: 98 cm
Width: 58 cm
Seating Options: Gray inyl medium-back
Dri e Train: Two motor, mid wheel
Batteries: NF-22 batteries
Range: Up to 40 km
Battery Charger: Onboard
Electronics: 50-amp Dynamic DL Controller
Weight Capacity: 113 kg
Jet 1 Weights: Base: 38 kg
Seat: 13 kg
Batteries: 17 kg
Warranty: Fi e year limited warranty on frame
One year warranty on electronics
One year warranty on dri e motors
III. THE JET 1

11
Jet 1
III. THE JET 1
UTILITY TRAY
The utility tray is located on the rear of your Jet 1. The utility tray is exposed through the body shroud. The utility
tray consists of the battery charger power cord outlet, the ammeter, the main circuit breaker, and the joystick
controller harness connectors.
nAmmeter: The ammeter displays the chargers current output in amps. See figure 4. For more information,
see VII. Operation.
nBattery charger power cord outlet: This is where your battery charger power cord plugs in. See figure 4.
The battery charger power cord is not attached to the unit at all times. See figure 3. For more information, see
VIII. Batteries and Charging.
nMain circuit breaker: The main circuit breaker is a safety feature built into your Jet 1. See figure 4. When the
batteries and the motors are hea ily strained (e.g., from excessi e loads), the main circuit breaker will trip to
pre ent damage to the motors and the electronics. If the circuit trips, allow your Jet 1 to rest for approximately
one minute. Next, in the circuit breaker button, turn on the joystick controller and continue normal operation. If
the main circuit breaker continues to trip repeatedly, contact your authorized Pride pro ider.
nJoystick controller harness connectors: This is where the joystick connects to the motors, batteries, and
charger. If your Jet 1 is equipped with a Dynamic DL controller, there are two connectors on the tray. See
figure 4.
Figure 4. Utility Tray
AMMETER JOYSTICK CONTROLLER
HARNESS CONNECTORS
BATTERY CHARGER
POWER CORD OUTLET
MAIN CIRCUIT BREAKER

12 Jet 1
III. THE JET 1
FREEWHEEL LEVERS
For your con enience, your Jet 1 is equipped with two freewheel le ers. See figures 5 and 6. These le ers allow
you to disengage the dri e motors and maneu er the chair manually.
WARNING! DO NO use your Jet 1 while the drive motors are disengaged unless you are in the
presence of an attendant! DO NO disengage the drive motors when your Jet 1 is on an incline. he
chair could roll down on its own, causing injury!

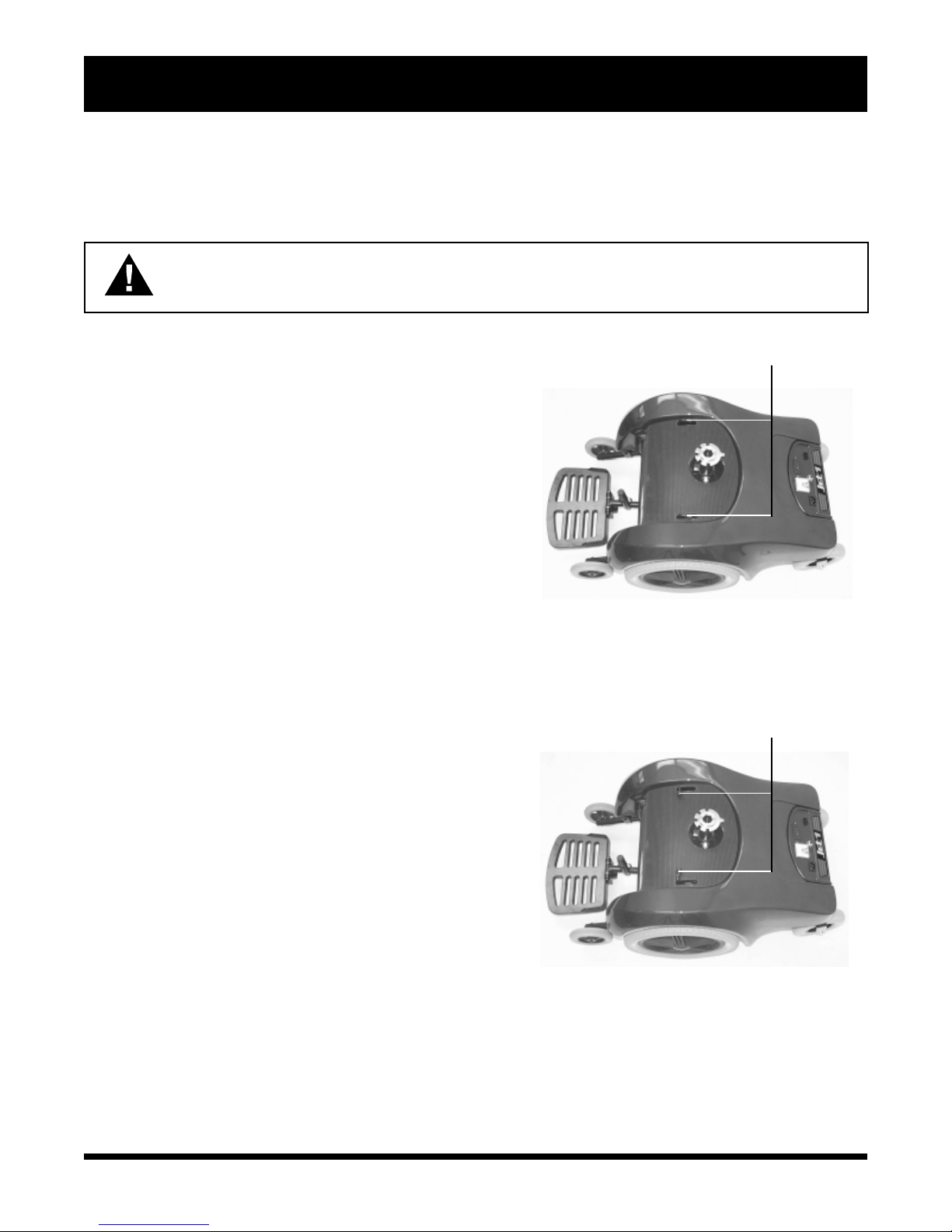

To engage or disengage the freewheel feature:
1. Turn the freewheel le ers outward to disengage the
dri e motors. See figure 5.
2. Turn the freewheel le ers inward, to engage the dri e
motors. See figure 6.
NOTE: It is important to remember that when your Jet
is in freewheel mode, the braking system is disengaged.
If a le er is difficult to mo e in either direction, rock your Jet 1
back and forth slightly. The le er should then mo e to the
desired position.
Figure 5. Drive Dise gaged
FREEWHEEL LEVERS
(TURNED IN)
Figure 6. Drive E gaged
FREEWHEEL LEVERS

13
Jet 1
IV. ASSEMBLY
To reduce the possibility of shipping damage, your Jet 1s seat is remo ed from the power base, and the seatback is
remo ed from the seat assembly before your Jet 1 is shipped. The joystick may ha e also been remo ed from the
armrest. The following is a set of instructions to help you quickly and easily prepare your Jet 1 for immediate use.
Re uired Tool: Phillips screwdri er
Parts List Quantity
Phillips-head seatback mounting screws 4
Knobs - arm width adjustment 2
Expandable arm 1
Expandable arm with joystick 1
Seatback 1
20 cm wire ties 4
SEATBACK ASSEMBLY
The seatback mounts to the back hinges with four (4) Phillips-head screws. To get to the hinges, lift up the reusable
fasteners flap which co ers them in the back. You may install the seatback before or after you install the seat to the
power base.
To mount the seatback to the hinge:
1. Line up the hinges with the holes in the seatback. See figure 7.
2. Insert the Phillips-head screws through the hinge and into the seatback.
3. Tighten the four screws.
Figure 7. Seatback Assembly
PHILLIPS-HEAD
SCREWS

14 Jet 1
IV. ASSEMBLY
Figure 10A. Co troller Har esses
PLUG IN CONTROLLER HARNESSES
Figure 9. Seat I stallatio

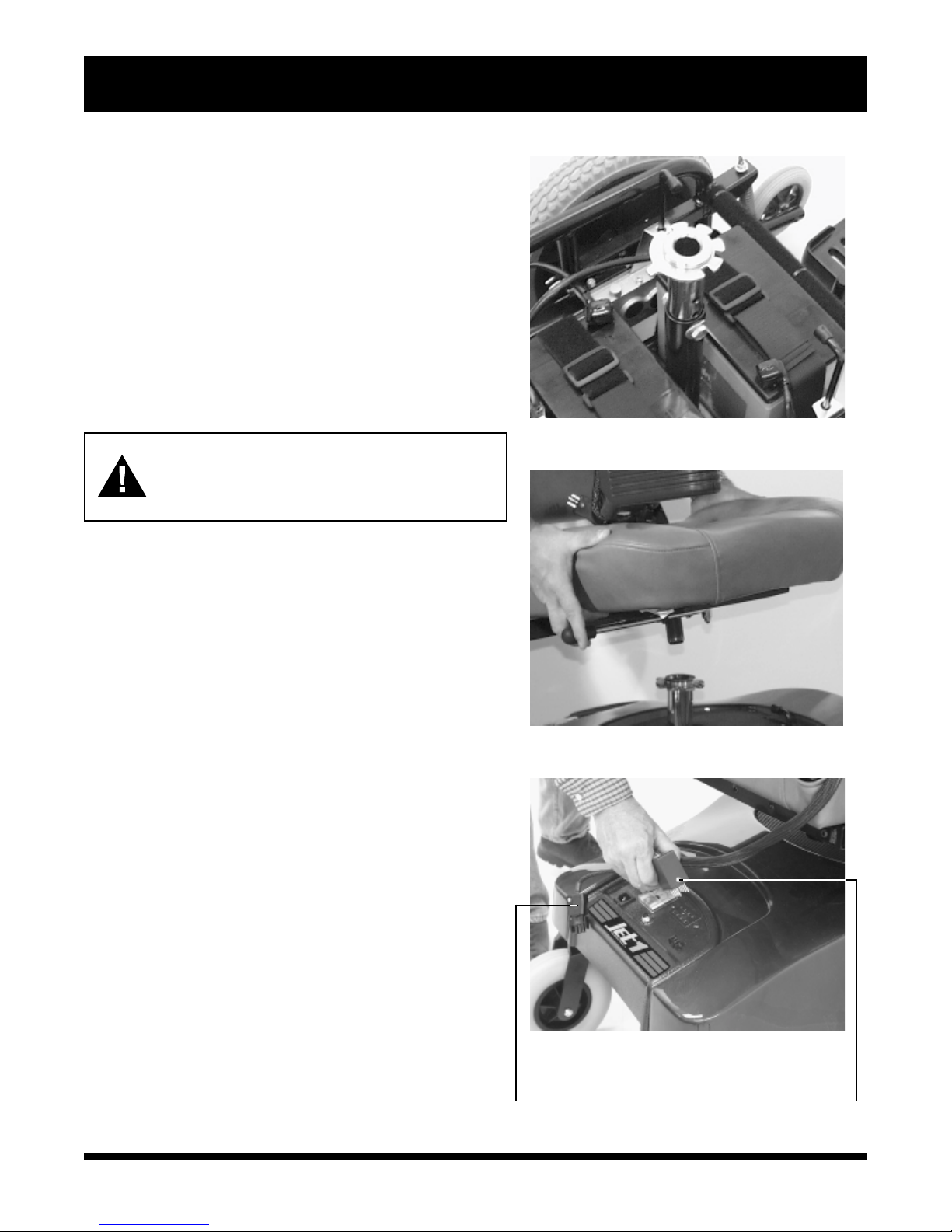

Figure 8. Seat tower
SEAT INSTALLATION
To install the seat:
1. Set the seat on the seat tower. See figure 8.
2. Push the seat down until the latch engages. See figure 9.
3. Plug the controller harness into the connector on the utility
tray. See figure 10A.
CHARGER INHIBIT PLUG CONNECTION
The charger inhibit connector, located on the utility tray, is coded
with coloured dots. The dots are positioned so that the flat side
of the male connector aligns with the flat side of the female
connector while making the connection. See figure 10B.
WARNING! Failure to properly align the con-
nectors can result in damage to the control-
ler, the charger, the charger harness, and the
connectors.
JOYSTICK INSTALLATION
If your Jet 1 is equipped with a Dynamic DL joystick control-
ler without the power seat option, it may ha e been shipped
without the joystick installed in the armrest. See figure 11.
To install the joystick controller:
1. Use a 3/16-in. hex key to loosen the setscrew. See figure 12.
2. Slide the joystick mounting bracket into or out of the arm-
rest to the desired position.
3. Retighten the setscrew by turning it clockwise.

15
Jet 1
IV. ASSEMBLY
Figure 11. Dy amic DL Joystick
Co troller
Figure 10B. Charger I hibit Co ector
SLIDE JOYSTICK
INTO BRACKET
SETSCREW
Figure 12. Joystick A d Bracket

16 Jet 1
V. COMFORT ADJUSTMENTS
After you ha e become familiar with your Jet 1s operation,
you may find the need to adjust the seat. There are some
adjustments you can make to increase your comfort, such as
seat height and angle, armrest height and angle, footrest height
and angle, and joystick position.
CAU ION! If your Jet 1 was configured at
your authorized Jet 1 provider, please con-
sult your health care professional before
changing the seat position or making any
other adjustment. Some adjustments may
degrade your Jet 1s performance and
safety by changing its center of gravity.
SEAT HEIGHT AND ANGLE
You can change the seat height manually.
To change the seat height:
1. Remo e the seat. See VI. Disassembly.
2. Remo e the nut and bolt from the seat tower. See figure 13.
3. Raise or lower the seat tower to the desired position.
4. Install the nut and bolt into the seat tower.
5. Install the seat.
You can change the seat angle by either raising or lowering
the seat towers (front or rear).
ARMREST WIDTH ADJUSTMENT
To change the armrest width:
1. Locate the two setscrews on the armrest recei er
bracket. See figure 14.
2. Loosen the setscrews and slide the armrests in or out
to the desired width.
3. Tighten the setscrews.

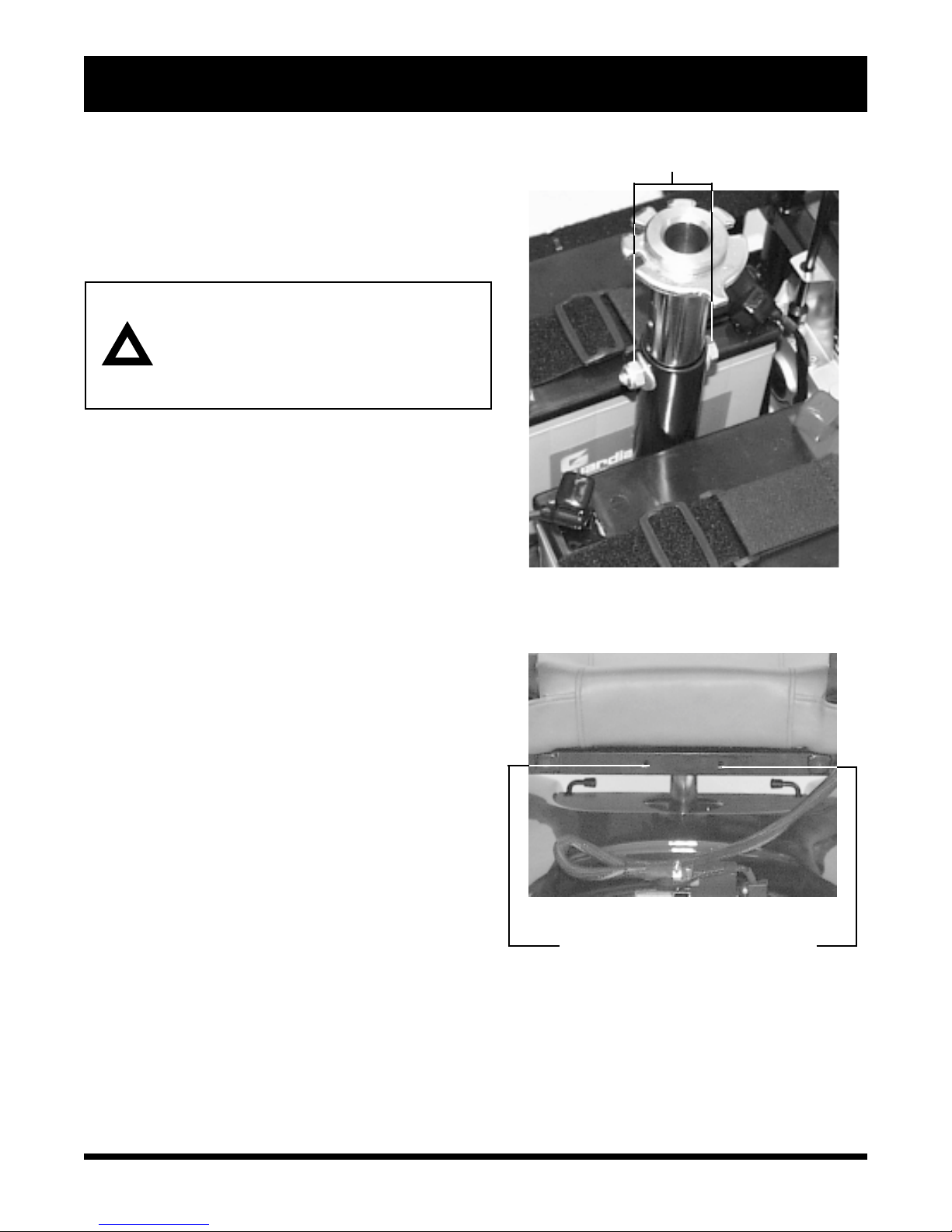

Figure 13. Seat Tower Nut A d Bolt
NUT AND BOLT
Figure 14. Armrest Width
LOOSEN SETSCREWS TO MOVE ARMREST

17
Jet 1
V. COMFORT ADJUSTMENTS
ARMREST ANGLE ADJUSTMENT
You can adjust the armrest angle to fit your specific
needs. See figure 15.
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicu-
lar to the floor.
2. Use a 1/2-in. wrench to loosen the jam nut. See
figure 15.
3. Use a 1/2-in. wrench to loosen the adjusting screw.
4. Turn the screw clockwise to lower the front of the
armrest, or turn the screw counterclockwise to raise
the front of the armrest.
5. Lock the adjusting screw into place by tightening
the jam nut.
ARMREST HEIGHT ADJUSTMENT
(OPTIONAL)
Your Jet 1 may be equipped with height-adjustable
armrests.
To change the armrest height:
Loosen the knob located underneath the armrest, raise
bar to set height, and re-tighten knob.
JOYSTICK EXTENSION ADJUSTMENT
The joystick control can easily slide out away from the
armrest, or in toward the armrest. See figure 16.
To extend the joystick:
1. Use a 5 mm hex key to loosen the setscrew.
2. Slide the joystick mounting bracket into or out of
the armrest to the desired position.
3. Tighten the setscrew by turning the hex key clockwise.
Figure 15. Armrest A gle Adjustme t
TURN THIS
SCREW TO
CHANGE
ARMREST
ANGLE
Figure 16. Joystick Exte sio
JAM NUT
LOCKS
ADJUSTING
SCREW IN
PLACE
LOOSEN
THIS
SETSCREW
TO ADJUST
JOYSTICK

18 Jet 1
V. COMFORT ADJUSTMENTS

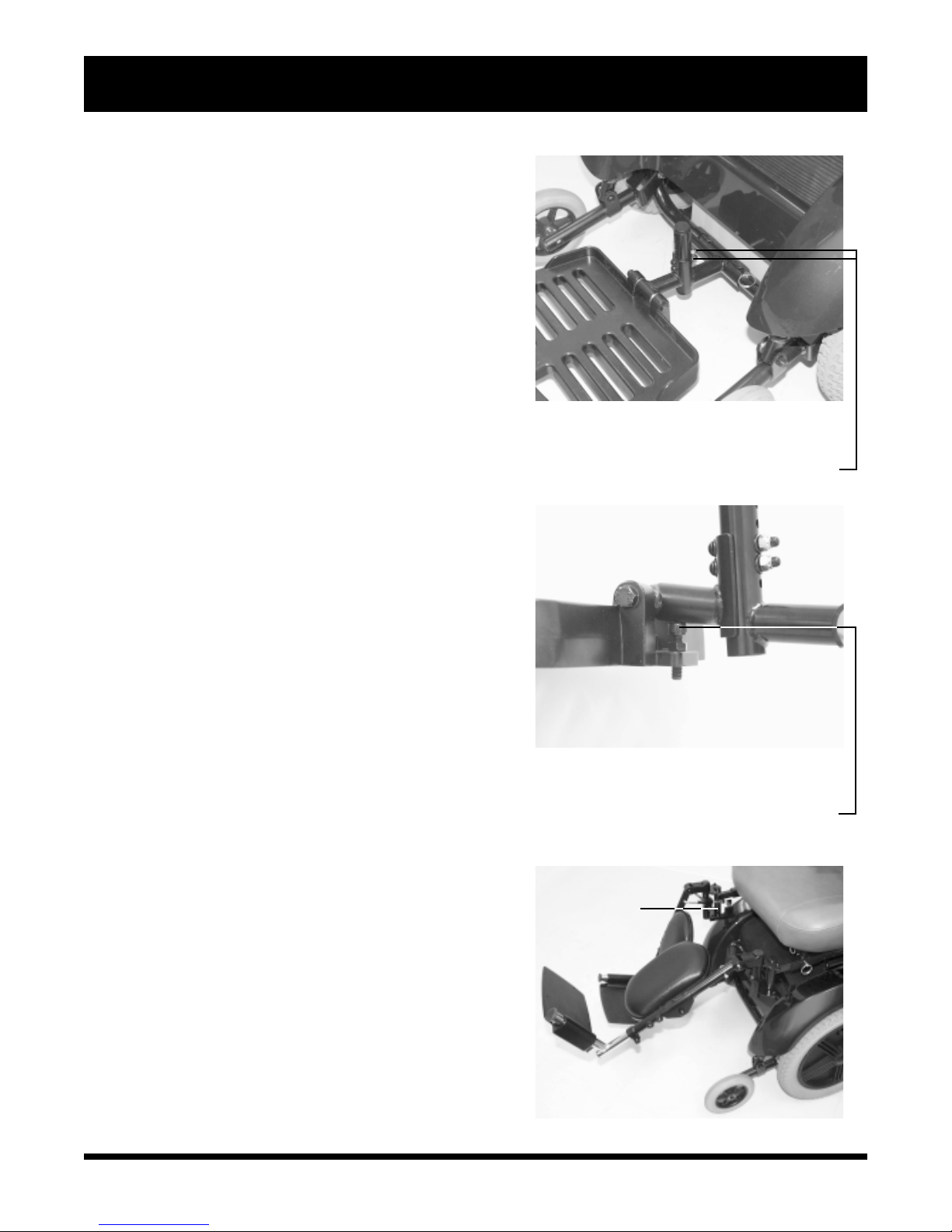

Figure 17. Footrest Height
REMOVE THESE NUTS AND BOLTS
TO RAISE OR LOWER THE FOOTREST
Figure 18. Footrest A gle
TURN SETSCREW TO
CHANGE FOOTREST ANGLE
SFR
RELEASE
LEVER
Figure 19. Swi g-away Footrests
FOOTREST HEIGHT
The footrest height is easily adjusted to one of six different
heights in 2,5 cm increments.
To raise or lower the footrest:
1. Remo e the two 7/16-in. bolts and their nuts from the
footrest. See figure 17.
2. Raise or lower the footrest to the desired height.
3. Reinstall the two 7/16-in. bolts and nuts into the footrest
and tighten.
FOOTREST ANGLE
You can adjust the angle of the footrest with a 7/32-in. hex
key and a 1/2-in. box wrench. See figure 18.
To adjust the footrest angle:
1. Loosen the jam nut.
2. Turn the setscrew clockwise to lower the front of the
footrest.
3. Turn the setscrew counterclockwise to raise the front of
the footrest.
4. Tighten the jam nut.
SWING-AWAY FOOTRESTS OPTION
Swing-away Footrests (SFRs) are an option. They enable you
to mo e the leg rest to the side before getting off your Jet 1.
To move the SFRs:
1. Push in the SFR release le er. See figure 19.
2. Mo e the SFRs away.
ELEVATING LEG RESTS OPTION
Ele ating Leg Rests (ELRs) offer an infinite range of adjustment
for the leg angle and a footrest adjustment range of 30 - 48 cm.
To adjust the ELR angle:
1. Press the release le er. See figure 20.
2. Mo e the leg rest to the desired angle.
To adjust the ELR footrest height:
1. Remo e the two leg rest adjustment screws from the
side of each leg rest extension. See figure 21.
2. Loosen the leg rest adjustment bolt on the side of each
leg rest extension.

19
Jet 1
Figure 21. Elevati g Leg Rests
V. COMFORT ADJUSTMENTS
Figure 20. Elevati g Leg Rests
RELEASE LEVER
LEG REST ADJUSTMENT SCREWS
Figure 22. A ti-tip Adjustme t
ANTI-TIP ADJUSTMENT NUT
LEG REST
ADJUSTMENT BOLT
3. Slide the leg rest in or out to the desired length.
4. Tighten the bolt and reinstall the two screws on each leg
rest extension.
ANTI-TIP WHEEL ADJUSTMENT
The anti-tip wheels are designed to gi e your Jet 1 increased
stability on rough surfaces. The anti-tip wheels are preset at
the factory to a height of 2 cm off of the ground. This setting
is for smooth surfaces or indoor use only. If you plan on using
your Jet 1 on rough surfaces, it may be necessary to adjust
the anti-tip wheels to better suit your needs.
The anti-tip wheels may need adjustment if either of the fol-
lowing occur:
nWhen coming to a stop, your Jet 1 tips forward excessi ely.
nThe anti-tip wheels constantly rub the ground.
Re uired Tool: 13 mm wrench
NOTE: Each drive tyre must have at least 30 lbs. of air
pressure in order for the anti-tip wheels to be properly
adjusted.
To adjust the anti tip wheels:
1. Remo e the seat and body shroud.
2. Adjust the 13 mm anti-tip adjustment nut so that the anti-
tip wheel is 1,2 cm to 2,5 cm off of the ground. Turn the
nut clockwise to raise the anti-tip wheel and counterclock-
wise to lower the anti-tip wheel. See figure 22.
NOTE: The higher you raise the anti-tip wheels, the more
tendency your Jet will have to tilt forward when coming
to a stop. You can compensate for this by making a small
adjustment to the preprogrammed deceleration setting in
the controller.

20 Jet 1
VI. DISASSEMBLY
Figure 23. Removi g The Seat
SEAT REMOVAL
You may wish to remo e the seat for transportation. See figure 23.
To remove the seat:
1. Turn the power off.
2. Make sure your Jet 1 is not in freewheel mode.
3. Unplug the main wire harness behind the seat.
4. Push the le er (located underneath the seat) toward the front of
the seat. If the joystick controller is on the right, swi el the seat
clockwise and then pull the seat upward. If the joystick control-
ler is on the left, swi el the seat counterclockwise and then pull
the seat upward.
BODY SHROUD REMOVAL
The body shroud is a one-piece, molded plastic body that co ers the power base frame. It helps protect the Jet 1
components from the en ironment. It also pro ides mounting points for lights and the standard light switch. You
must remo e the body shroud in order to change the batteries and check the cable connections.
To remove the body shroud:
1. Turn the power off.
2. Make sure your Jet 1 is not in freewheel mode. See III. The Jet 1.
3. Unplug the controller wiring harness.
4. Remo e the seat.
5. Disconnect the lighting harness (if your Jet 1 is equipped with lights).
6. Lift the body shroud straight up. The body shroud is attached to the metal frame by reusable fasteners. The
body shroud should lift up easily.
WARNING! Your Jet 1 batteries weigh approximately 17 kg each. Lifting weight above your
capacity could result in injury.
BATTERY REMOVAL
To remove the batteries:
1. Turn the power off.
2. Disconnect the controller harness.
3. Remo e the seat and lift off the body shroud.
4. Remo e the battery post caps (both red and black).
5. Unscrew the wing nuts on (+) red battery terminals, one at a time.
6. Remo e the (+) red battery cables from the battery posts; be sure to secure them away from the batteries.
7. Loosen the wing nuts on (-) black battery terminals.
8. Remo e the (-) black cables and secure them away from the batteries.
9. You can now remo e the batteries from your Jet 1.
