Pride Rally User manual

The Ultimate In Style & Performance
®
Owner’s Manual
www.pridemobility.com
21 Healey Road
Dandenong, 3175
Victoria, Australia ACN # 088 09 1

Please read and follow all instructions in this owners manual before attempting to operate your
Scooter for the first time. If there is anything in this manual you do not understand, or if you
require additional assistance for set-up, contact your local authorized Pride provider.
sing your Pride product safely depends upon your diligence in following the warnings, cautions,
and instructions in this owners manual. sing your Pride product safely also depends upon your
own good judgement and/or common sense, as well as that of your provider, caregiver, and/or
healthcare professional. Pride is not responsible for injuries and/or damage resulting from any
persons failure to follow the warnings, cautions, and instructions in this owners manual. Pride
is not responsible for injuries and/or damage resulting from any persons failure to exercise
good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It
is very important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your
Scooter.
SAFETY GUIDELINES
Copyright © 2002
Pride Mobility Products Australia Pty. Ltd.
INFMANU1438/REV D/OCTOBER 2002

3
Rally
I. INTRODUCTION ........................................................................................................................ 4
II. SAFETY .........................................................................................................................................
III. SPECIFICATIONS ..................................................................................................................... 9

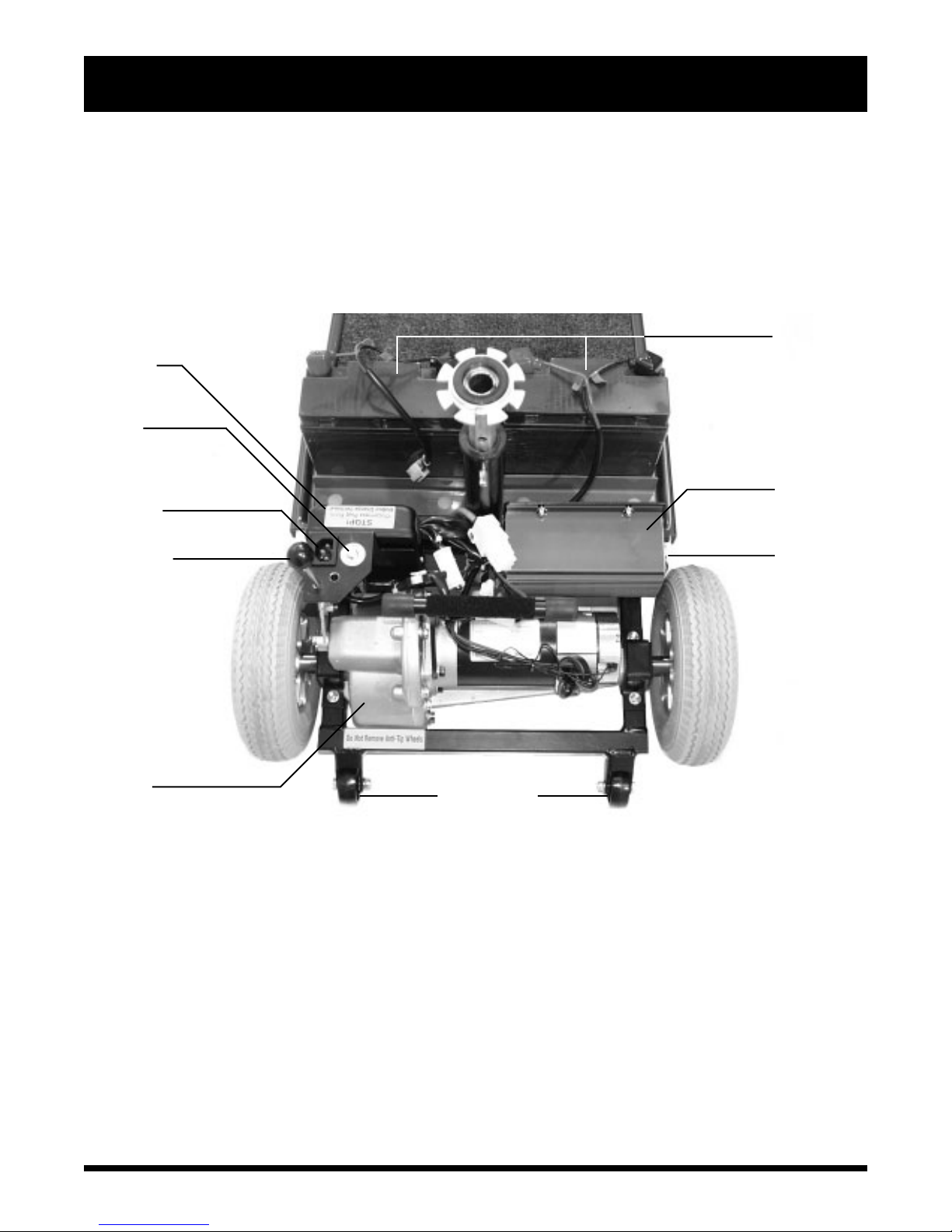

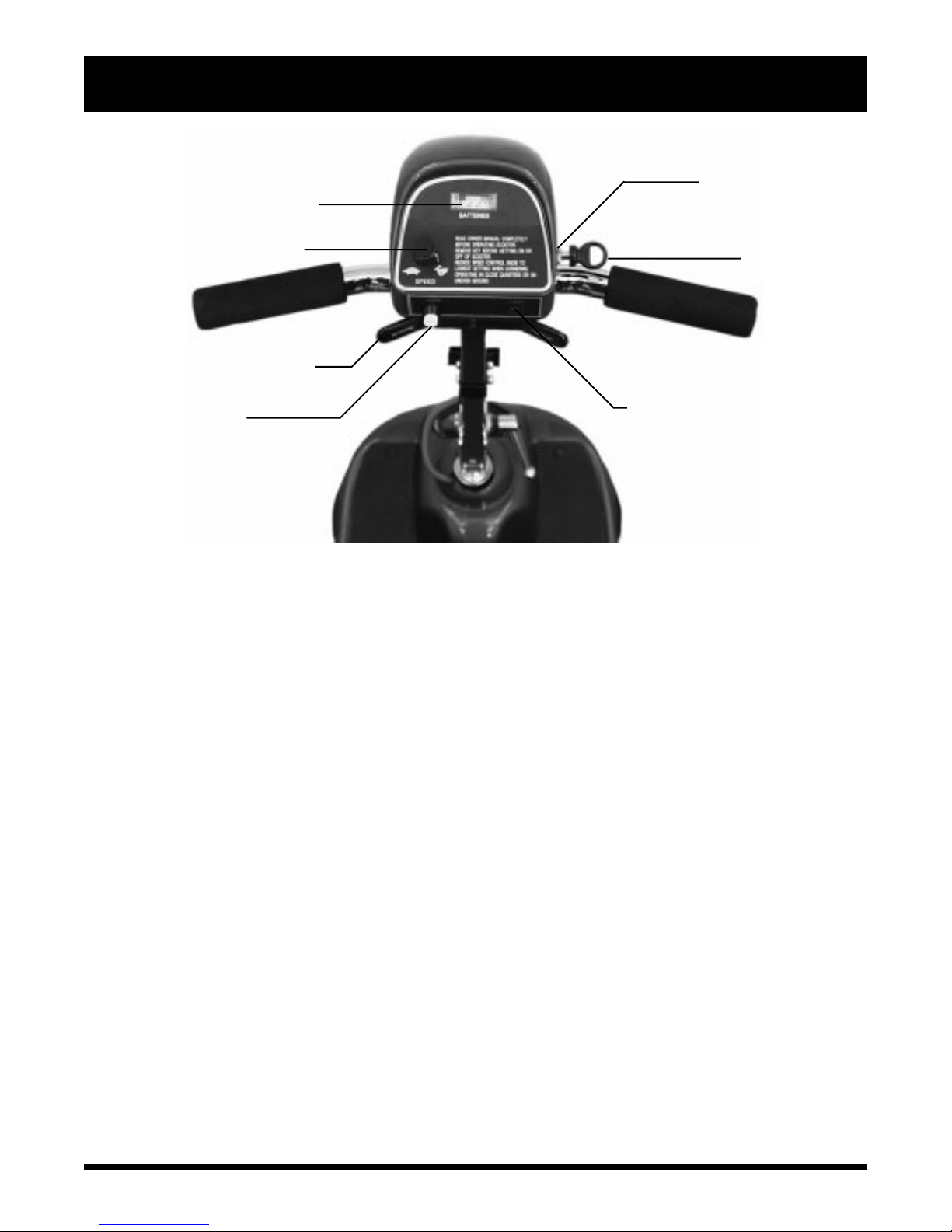

IV. DESCRIPTION .......................................................................................................................... 11

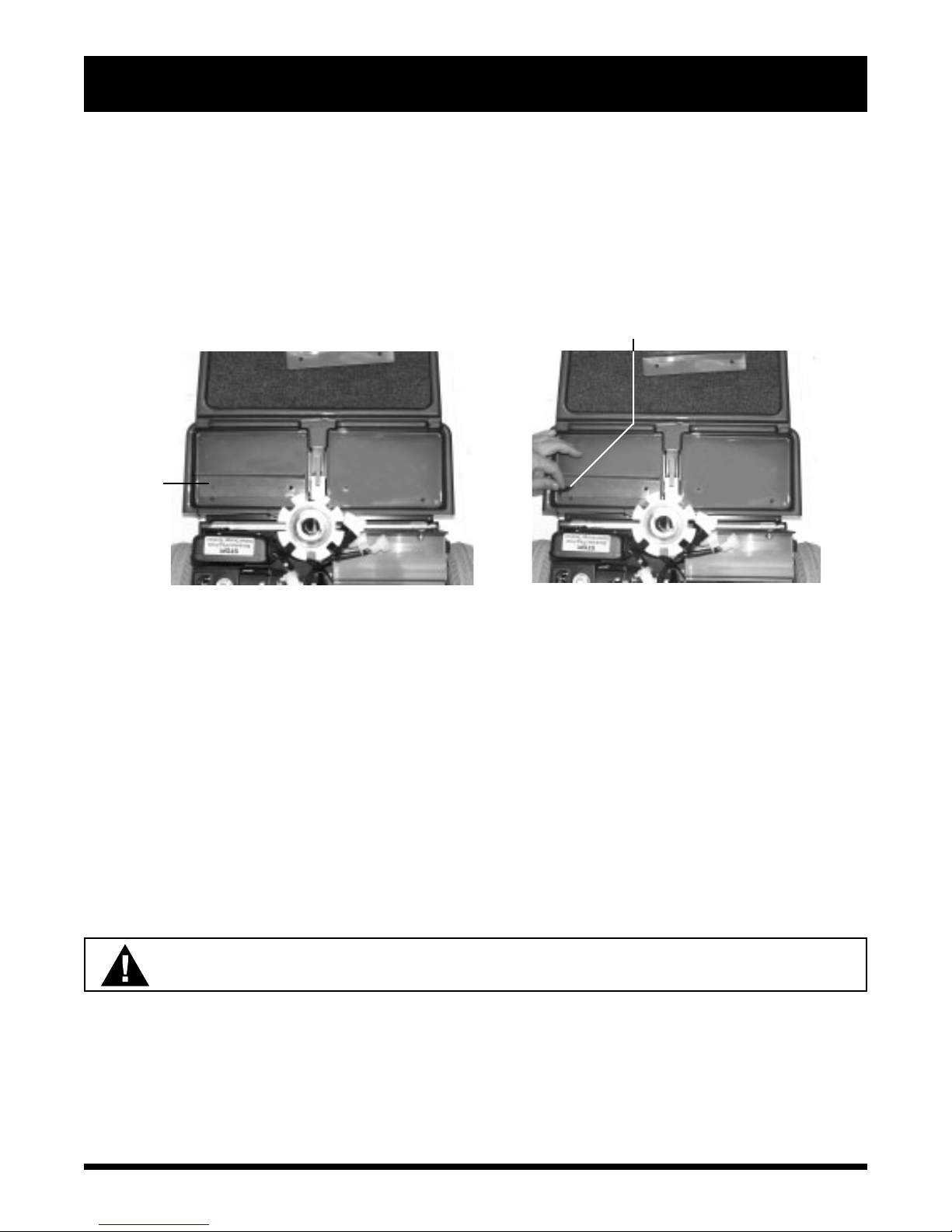

V. BATTERIES AND CHARGING ........................................................................................... 1
VI. OPERATION ............................................................................................................................... 20
VII. COMFORT ADJUSTMENTS ................................................................................................ 22
VIII.DISASSEMBLY AND ASSEMBLY ..................................................................................... 24
IX. TROUBLESHOOTING ............................................................................................................ 2
X. CARE AND MAINTENANCE ............................................................................................... 27
XI. WARRANTY ............................................................................................................................... 28
CONTENTS

4Rally
I. INTRODUCTION
Welcome to Pride Mobility Products Australia Pty. Ltd. (Pride). Congratulations on the purchase of your new
Pride Scooter. Your Scooter design combines the most advanced state-of-the-art components with modern,
attractive styling. We are certain that the design features and trouble-free operation will add convenience to
your daily living and ensure complete satisfaction.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your Scooter for the first time. These instructions were produced for your benefit.
Your understanding of these instructions is essential for the safe operation of your new Pride Scooter.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a Pride Scooter.
Pride is also not liable for any property damage or personal injury arising out of the failure of any person
and or/user to following the instructions and recommendations set forth in this manual or any other
instructions or recommendations contained in other Scooter related literature issued by Pride or contained
on the Pride Scooter itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you had purchased.
If you experience any problems with your Scooter that your are unable to solve, or if you do not feel capable of
safely following any of the instructions and/or recommendations as contained in this manual, please contact
your authorized Pride provider for assistance.
Once you understand how to operate and take care of your Scooter, we are certain that it will give you years of
trouble-free service and enjoyment.
Information Exchange
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about
the safety and reliability of your new Pride Scooter, and about the service you received from your authorized
Pride provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety,
new products, and new options that can increase your ability to use and enjoy your Pride Scooter. Please feel free
to write us at the address below:
Pride Mobility Products Australia Pty. Ltd.
21 Healey Road
Dandenong 3175
Victoria, Australia

5
Rally
My Authorized Pride Provider is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Quick Reference Information:
Scooter Model:________________________________________________________________________
Serial Number:__________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your warranty card or your copy of this manual, call or write to us and
we will be glad to send you a new one immediately.
I. INTRODUCTION

Rally
As you begin to use your Rally during your daily activities, you will encounter situations that, at first, may
require some practice to negotiate on your Scooter. Simply take your time as you operate your Rally and
you will soon be in full and confident control as you maneuver through doorways, on and off of elevators,
up and down ramps, and over moderate terrain.
DOORS
nDetermine if the door opens toward or away from you.
nUse your hand to turn the knob or push the handle or push-bar.
nDrive your Rally gently and slowly forward to push the door open or drive your Rally gently and slowly
backwards to pull the door open.
ELEVATORS
Modern elevators have a door-edge safety mechanism that, when pushed, reopens the elevator door(s).
nIf you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge
or allow the rubber door edge to contact your Scooter and the door will reopen.
nUse care that pocketbooks, packages, or Rally accessories do not become caught in the elevator door(s).
RAMPS AND OTHER INCLINES
More and more buildings have ramps with specified degrees of inclination. These ramps are designed for
easy and safe Scooter access. Some ramps may have turning switchbacks that require that you have good
cornering skills on your Rally.
nTake wide swings with your Rallys front wheel around any tight corners. If you do that, the Rallys rear
wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing
corners.
nWhen driving down a ramp, keep the Rallys speed adjustment dial (see IV. Description) set to the
tortoise (slowest speed setting) to ensure a safely controlled descent.
nNever drive your Rally across the side of an incline or diagonally up or down an incline, and do not
stop, if possible, while driving up or down an incline.
nAvoid sudden stops and starts.
Other inclines may be natural or, if man-made, not designed specifically for Scooters. Figure 1 illustrates
your Rallys stability and its ability to climb grades under various weight loads.
II. SAFETY
68 kg 90 kg 113 kg
8,7% 7,0% 3,5%

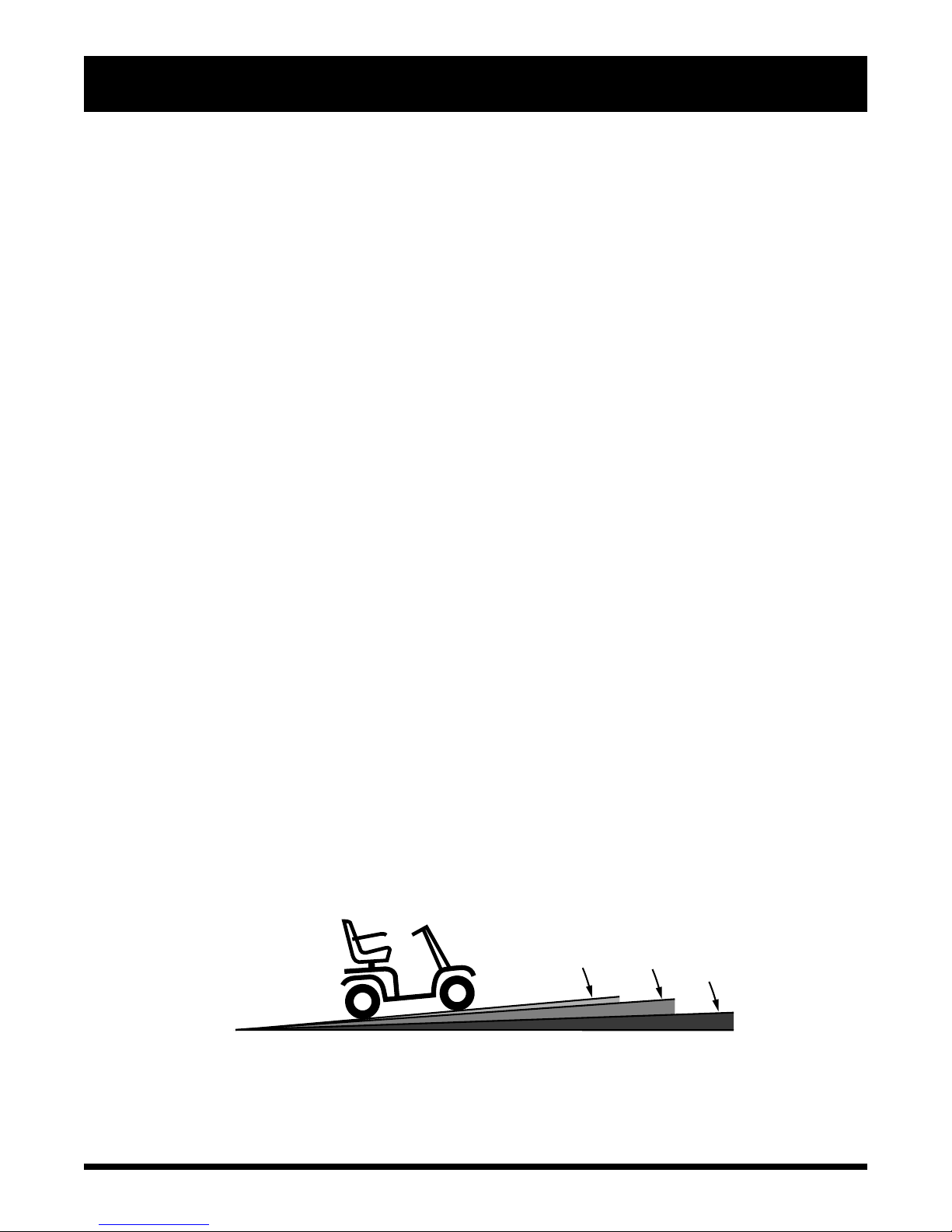

Figure 1. Maximum Recommended Incline Angle

7
Rally
These tests were conducted with the Rallys seat in the highest position and adjusted backward on the seat
base to its farthest rearward position. Use this information as a guideline. Your Rallys ability to travel up
inclines is affected by your weight, your Scooters speed, your angle of approach to the incline, and your
Scooter setup.
nWhen you approach an incline, it is best to lean forward. See figures 2 and 3. This action will shift the
center of gravity of you and your Rally toward the front of your Scooter for improved stability.
DRIVING SURFACES
Your Rally was designed to provide optimum stability under normal driving conditions; dry, level surfaces
composed of concrete or asphalt. However, Pride recognizes the fact that there will be times when you will
operate your Rally on surfaces other than concrete or asphalt. So we have also designed your Rally to
perform admirably on packed soil, grass, and gravel.
nFeel free to use your Rally safely on lawns and in park areas.
nAvoid tall grass that can entangle the running gear.
nPacked soil and gravel, such as driveways or roads, will not present a problem for your Rally.
nAvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface, avoid that surface.

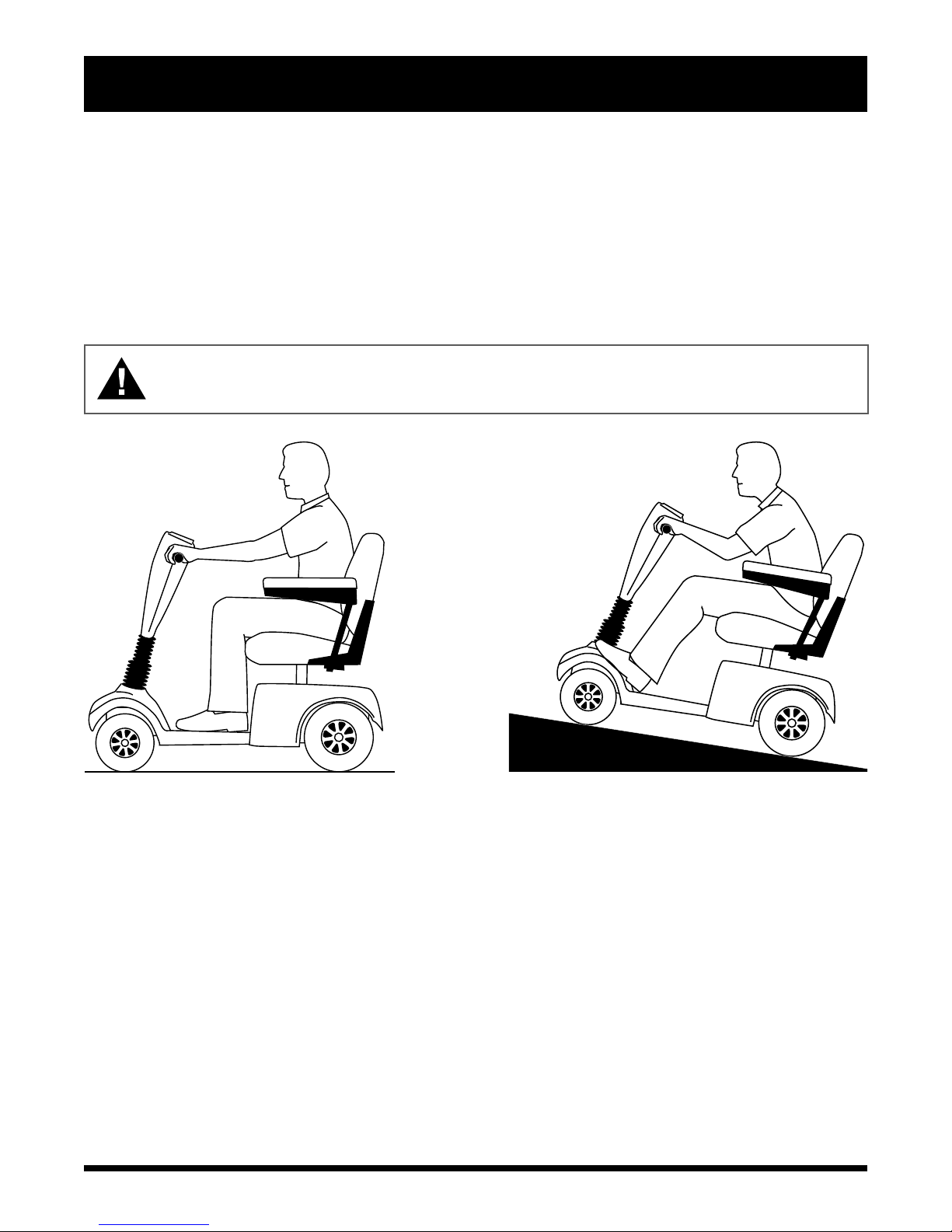

Figure 2. Normal Driving Position Figure 3. Increased Stabilit Driving Position
II. SAFETY
WARNING! Do not exceed the incline guidelines or any other specifications presented in this
manual.

8Rally
WARNING! Do not expose the electronics to any type of moisture at any time (rain, snow, mist, or
wash). Such exposure can damage the electronics. Never attempt to ride a Scooter that has been
exposed to moisture until it has dried thoroughly.
Do not operate or store your Scooter where it may be exposed to inclement weather conditions
such as rain, snow, mist, and below-freezing temperatures (such as storage on an outside car/van
potentially result in loss of control.
Do not operate your Scooter in icy or slippery conditions or on salted surfaces (i.e., footpaths or
roads). Such use may result in an accident, personal injury, or adversely affect the performance
and/or safety of your Scooter.
Always protect batteries from freezing temperatures and never charge a frozen battery. his will
damage the battery and may cause personal injury. Attempting to charge a battery in freezing
conditions does not prevent the battery from freezing.
SAFETY PRECAUTIONS
nDo not operate your new Rally for the first time without completely reading and understanding this
owners manual.
nDo not carry passengers on your Rally.
nDo not leave the key in the key switch when your Rally is unattended.
nMake certain that the seat is locked into place and that the key is removed from the key switch before
getting on or off of your Rally, and make certain that the seat is in a locked position when you are
operating your Scooter.
nReduce your Rallys speed when you are operating it on uneven terrain and soft surfaces.
nReduce your Rallys speed when you are driving it around a corner.
nNever drive your Rally across the side of an incline or diagonally up or down an incline, and do not
stop, if possible, while driving up or down an incline.
nProceed with extreme caution as you approach the downgrade of a ramp or other incline, and when
driving near a raised surface, unprotected ledges and drop offs (kerbs, porches, stairs, etc.).
nNever remove your Rallys anti-tip wheels or modify the Rally in any way that is not authorized by
Pride.
nUse extreme caution when operating your Rally on busy streets and in parking lots or shopping malls.
Never ride your Rally where you cannot safely and legally walk. Consult local municipal or state
agencies with regard to operating your Scooter on public roadways.
nDo not operate your Rally while you are under the influence of alcohol.
nCheck with your physician if you are taking any medications that may affect your ability to operate your
Rally safely.
nKeep your hands on the tiller and your feet on the floorboard when you are operating your Rally.
nMake certain that the tyres are properly inflated (30 pounds per square inch).
nNever use your Scooter as a seat in a moving vehicle.
nMake certain that the Rallys batteries are properly secured when you are transporting your Scooter in
another vehicle.
nDisconnect your Rallys batteries if you will not be using your Scooter for more than 48 hours.
nBattery posts, terminals and related accessories contain lead and lead compounds. Wash hands after
handling.
II. SAFETY

9
Rally

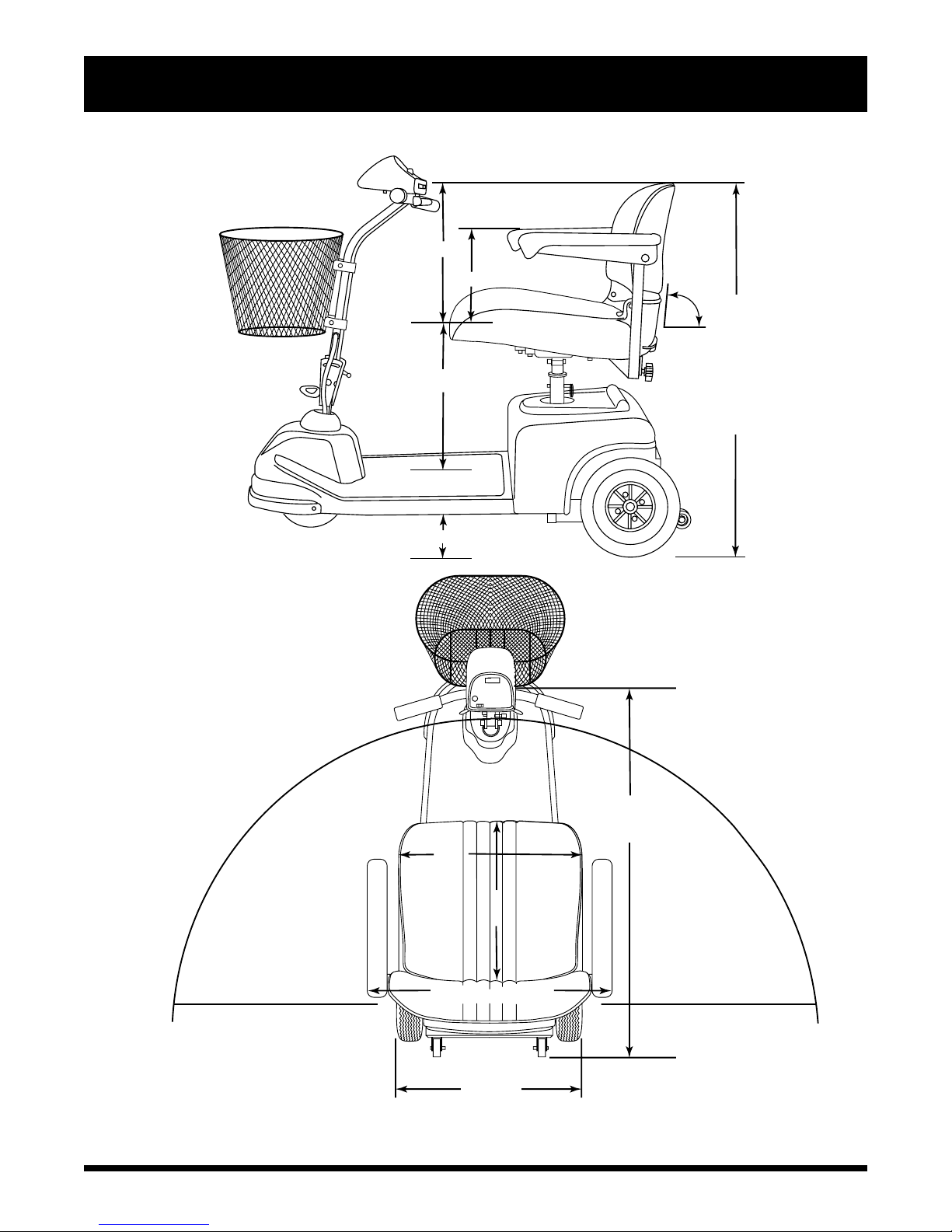

Figure 4. Rall Dimensions
80˚
Length
Rally Turning Radius
81 cm - 86 cm
30,5 cm
19 cm
42 cm - 47 cm
9 cm
104 cm
45,75 cm
40,5 cm
78,75 cm
53 cm
53 cm - 73,5 cm
III. SPECIFICATIONS

10 Rally
Length: 104 cm
Width: 53 cm
Tyre s: Type : Pneumatic
Front: 5 cm X 20 cm , Rear: 7,5 cm X 23 cm
Weight C apacity: 113 kg M aximum
Battery Type
(batteries not included): Two 12V, 17 AH, SLA (sealed lead-acid) or Two 12V, 32 AH, SLA
Horsepower: 1,0 hp (peak)
Charger: Onboard 2,5-Amp Charger
Speed (maximum): Variable up to 6,8 km/h
M a xim um G r a d e : S e e fig ur e 1 fo r inc line sta b ility d ia g ra m
Range: 19 - 24 km with 17 AH batteries, 24 - 32 km with 32 AH batteries
Turning Radius: 78,75 cm
Body Colours: Painted: Apple Red
Seating:
Style: Foldable molded plastic; removable seat covers with foam inserts are attached to seat.
Dimensions: 45,75 cm width (useable) x 30,5 cm height (useable) x 40,5 cm depth
Seat cover material: Gray fabric
Armrests: gray molded rubber
User-adjustable seat height, from ground: 53, 56, 58,5 cm
User-adjustable seat height, from scooter deck: 42; 44,5; 47 cm
Included Features:
Adjustable seat height and positioning, easily accessible battery-charger A/C plug receptacle,
external freewheel release lever, external circuit breaker reset button, removable floormat,
fro nt b a sk e t
Brakes: Electronic regenerative braking and electromechanical disc brake
Rear W heel Drive: Transaxle, 24 V
Wheels: Aluminum alloy wheels (rear wheels only), color matches shrouds
Tille r Typ e : A d justa b le
Freewheeling Mechanism
Av a ila b ility: External freewheel release lever located on upper left portion of rear shroud
Weight:
Total Weight of R ally
With two 12V 17 AH batteries: 53 kg
With two 12V 32 AH batteries: 63 kg

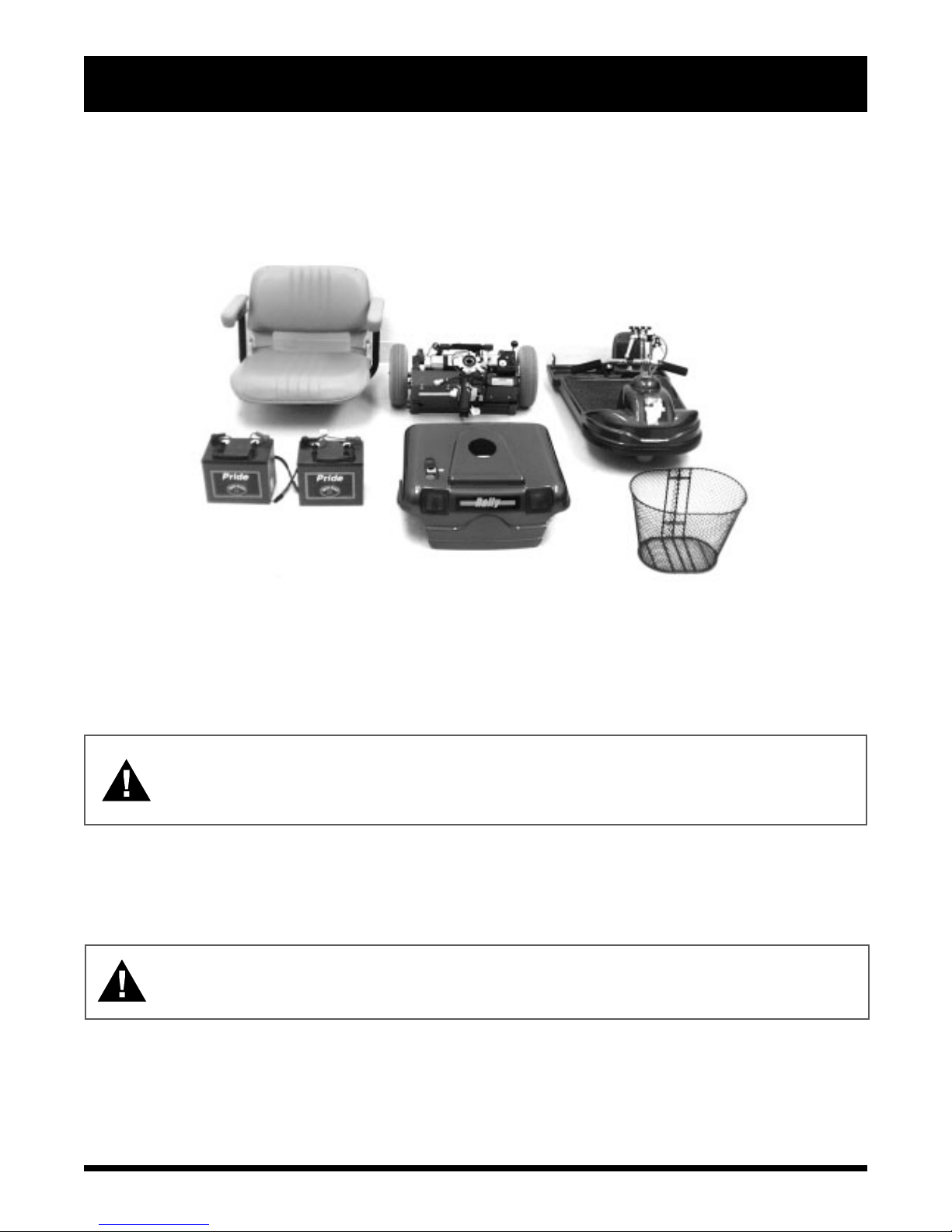

Component breakdown:
Front section: 11.3 kg
Rear section (without batteries or rear shroud): 18,4 kg
Rear plastic shroud: 1,2 kg)
Seat: 8,8 kg
Batteries: 12V, 17 AH: 6,3 kg; 12V, 32 AH: 11,3 kg
(NOTE: two batteries are required per scooter)
Basket: 0,7kg
Front-To-Rear Lockup: Lever lock system
Ground C learance: 9 cm
Optional Accessories:
R e a r b a s k e t, he a d lig ht, ta illight, sa fe ty fla g, s ingle c r ut c h h o ld e r, d o u b le c r utc h ho ld e r, o xygen
holder, walker holder, cane/crutch holder (bracket mount), cane crutch holder (armrest
mount), rearview mirror, cup holder
III. SPECIFICATIONS
