Prince Castle EHB22 Series User manual

540-1730_EN rev.B 1Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
Operation
Manual
Extended Holding Bin
General Market Series
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or workmanship for
a period of one year from date of original installation (with the exception of racks,
pans, and covers). Any component which proves to be faulty in material and/or
workmanship will be replaced or repaired (at the option of Prince Castle, Inc.) with-
out cost to the customer for parts or labor. This warranty covers on location service
(i.e. trip charges and/or mileage). Travel mileage is limited to 100 miles (200 kilome-
ters -International) round trip (one trip warranty) from an authorized service agency
or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor shall be performed during regular work hours. Overtime premium will
be charged to the buyer.
• Damage caused by carelessness, neglect, and/or abuse (e.g., dropping, tam-
pering or altering parts, equipment damaged in shipment, by fire, flood or an
act of God) is not covered under this warranty.
355 EAST KEHOE BLVD. ~ CAROL STREAM, IL, 60188, USA
PHONE: [phone] ~ TOLL FREE: 1-800-PCASTLE
FAX [phone] ~ WWW.PRINCECASTLE.COM
TABLE OF CONTENTS
Model Identification…………………………………………………… 2
Model Specifications…………………………………………………. 2
Safety Information……………………………………………………. 2
Configurations………………………………………………………... 3
Product Identification………………………………………………… 4
Installation…………………………………………………………….. 4
Operation……………………………………………………………… 5
Setting Product Location……………………………………………. 6
Cleaning………………………………………………………………. 6
Setting the Temperature……………………………………………. 7
Calibrating the Heaters……………………………………………... 8
Changing the Hold and Cook More Times……………………….. 9

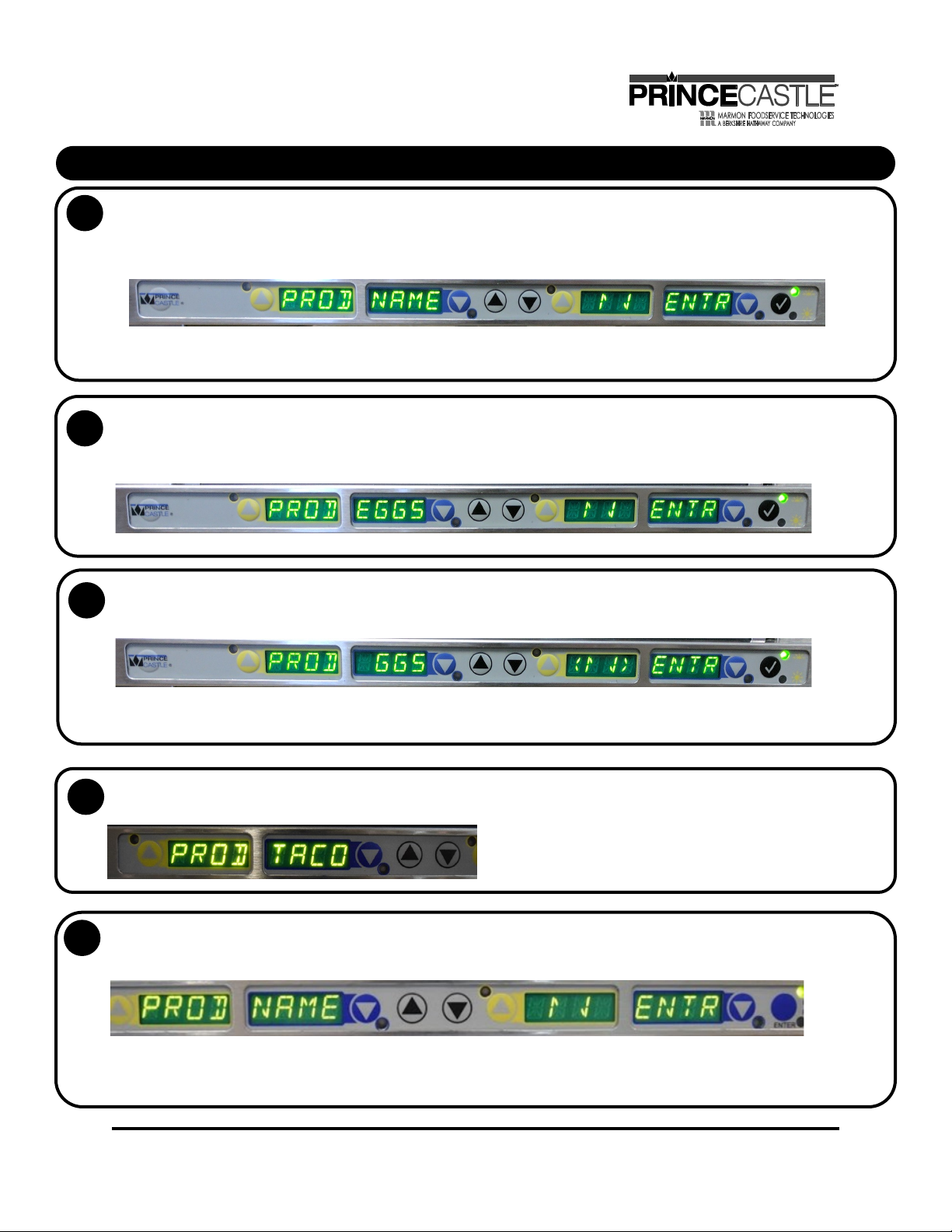

Changing Product Names………………………………………….. 10
Changing Temperature Scale……………………………………… 11
Adjusting Alarm Volume……………………………………………. 11

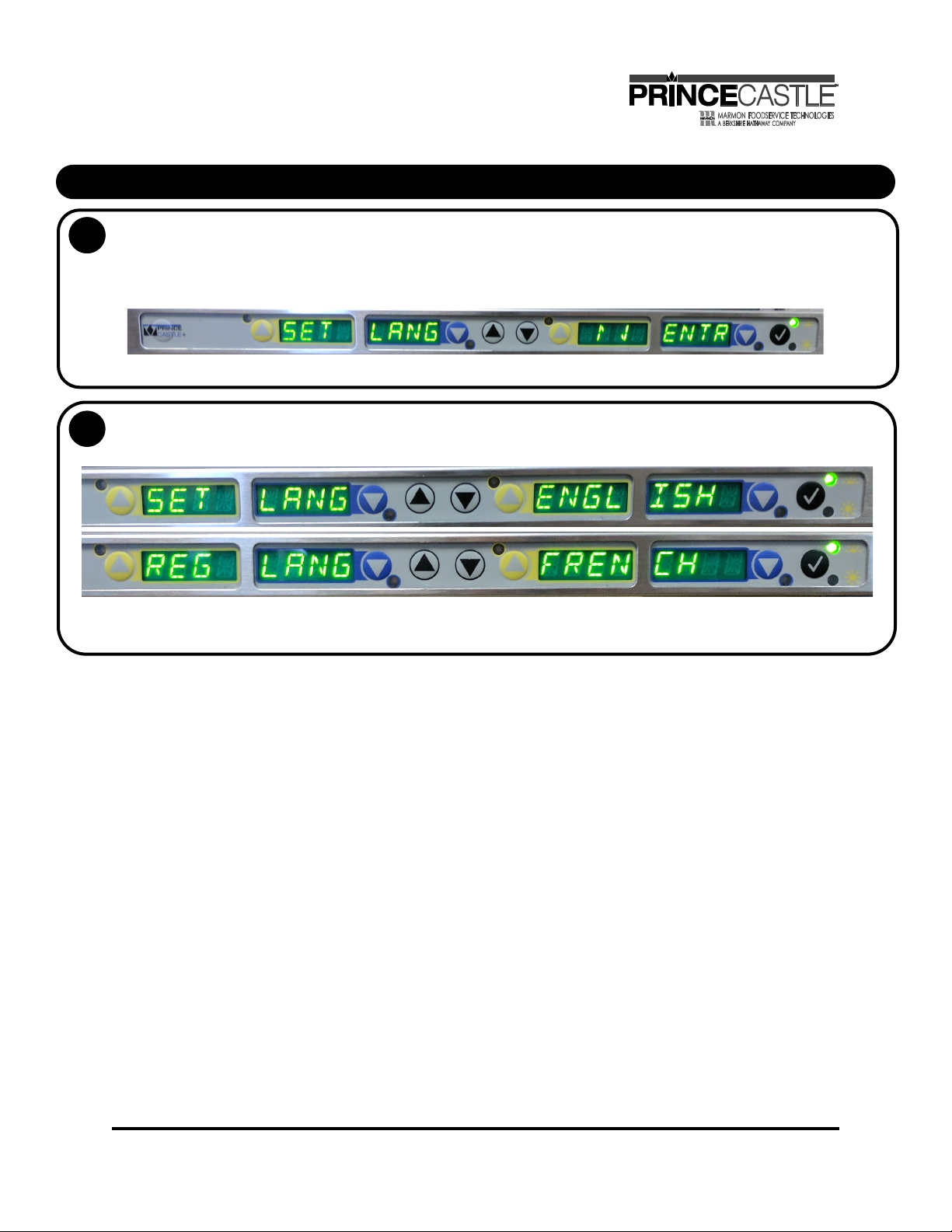

Choosing a Language………………………………………………. 12
Default Menu………………………………………………………… 13

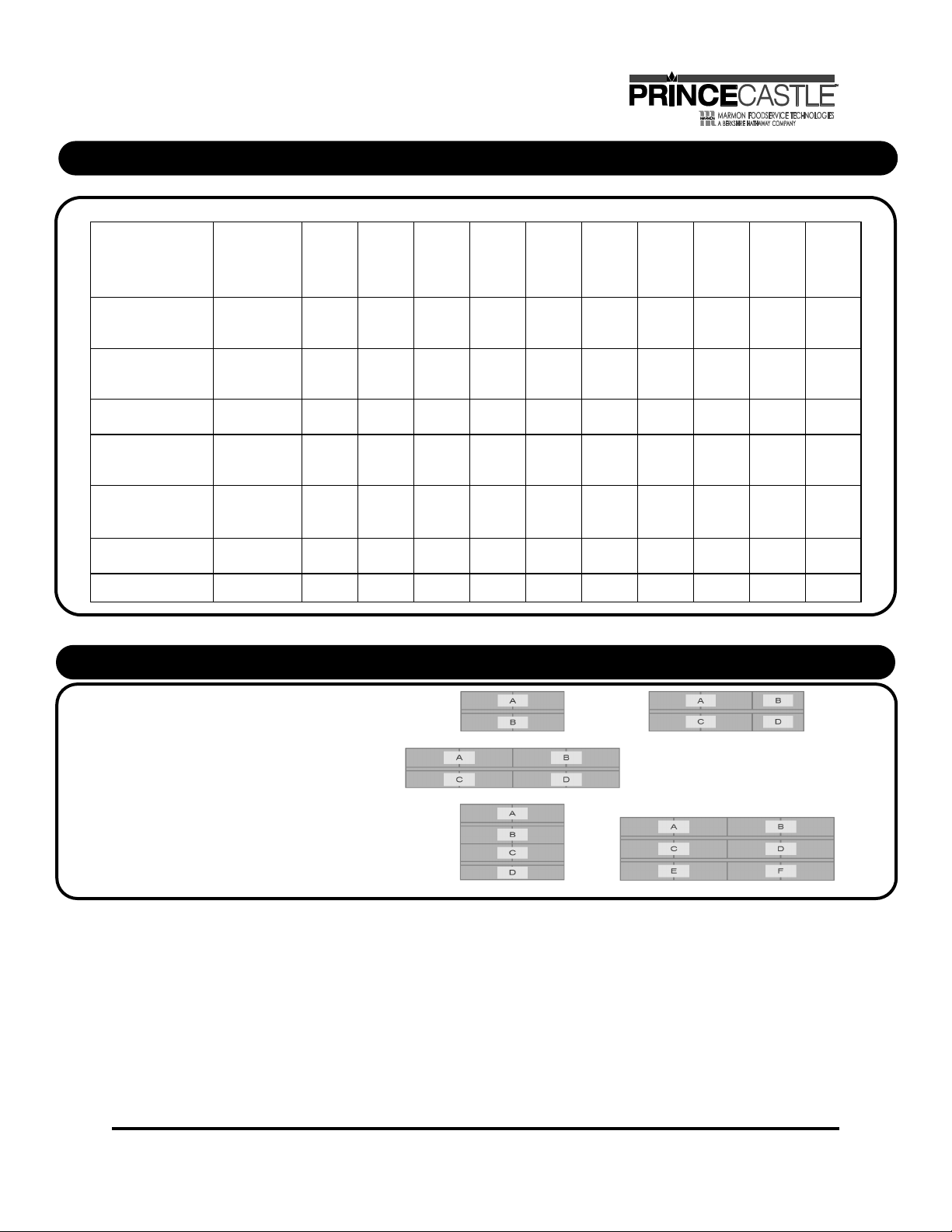

Zone Layouts………………………………………………………... 14
Dayparts……………………………………………………………... 15
Troubleshooting……………………………………………………... 16
Diagnostics…………………………………………………………… 17
Wiring Diagrams……………………………………………………... 18
Exploded Views……………………………………………………... 20
ATTENTION: Read the instructions before using the machine.

Printed in USA 07/2023 © 2023 2540-1730_EN rev.B
Extended Holding Bin
General Market Series
STYLE MODEL NO. WIDTH (mm) HEIGHT (mm) DEPTH (mm) WEIGHT (kgs) VOLTAGE AMPS___
2H X 2W EHB22R1-GMSXX 19.7 (500) 11.4 (290) 14.1 (358) 35 lbs. (16.0) 110-120 6.5-7.0
2H X 2W EHB22R2-GMSXX 19.7 (500) 11.4 (290) 14.1 (358) 35 lbs. (16.0) 208-240 3.8-4.4
4H X 2W EHB42R1-GMSXX 19.7 (500) 20.6 (523) 14.1 (358) 57 lbs. (26.0) 110-120 13.1-14.0
4H X 2W EHB42R2-GMSXX 19.7 (500) 20.6 (523) 14.1 (358) 57 lbs. (26.0) 208-240 7.7-8.8
2H X 4W EHB24R2-GMSXX 33.2 (843) 11.4 (290) 14.1 (358) 55 lbs. (25.0) 208-240 9.0-10.4
3H X 4W EHB34R2-GMSXX 33.2 (843) 18.1 (460) 14.1 (358) 94 lbs. (43.0) 208-240 13.6-15.7
2H X 3W EHB23R2-GMSXX 27.2 (691) 11.4 (290) 14.1 (358) 45 lbs. (20.0) 208-240 13.6-15.7
NOTE: All Model Numbers above with “R” are for double-sided units (with auxiliary timer bars).
If unit above has “R” in part number, it can be substituted for an “F” to get the single-sided version.
NOTE: Weight (kgs) is shipping weight.
NOTE: See kits starting on Page 20 for power cord type.
NOTE: 110-120V SKUs are indicated with an “R1” or “F1” for use in US/CANADA. 208-240V SKUs indicated by “R2” or “F2”.
Model Identification
Model Specifications
Safety Information
WARNING
Indicates information important to the proper operation of the unit.
Failure to observe may result in damage to the equipment and/or
severe bodily injury or death.
CAUTION
Indicates information important to the operation of the unit.
Failure to observe may result in damage to the equipment.
Important
Prince Castle reserves the right to change specifications and
product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements,
additions or replacements for previously purchased
equipment.
EHB24R2-GMS16
Unit Name
Number of
Pans per
Shelf
Three Leer
Customer Code
Indicates Power Cord
Type
“R” for Front and
Rear Timer Bars,
“F” for Front
Only
“2” for 220V
Version, “1”
for 120V
Version
Number of
Shelves

540-1730_EN rev.B 3Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
Conguraons
EHB22
EHB42
EHB24
EHB23
EHB34

Printed in USA 07/2023 © 2023 4540-1730_EN rev.B
Extended Holding Bin
General Market Series
Product Identification
Installation
Remove the unit from the carton and inspect for signs of
damage. If there is damage to the unit:
• notify the carrier within 24 hours of delivery
• save carton and packaging materials for inspection pur-
poses
• contact your local dealer, or if purchased directly,
the Prince Castle Sales Department at 800-722-7853
or 1-630-462-8800 to arrange for a replacement unit.
NOTE: Plug the power cord into the proper electrical
receptacle. All electrical connections must be in accordance
with local electrical codes and any other applicable codes.
1Plug unit into a grounded
receptacle with a matching
plug configuration.
Place Holding Bin on flat surface.
Remove blue and/or white protective covering.
NOTE: When installing this unit, the ambient temperature
at the mounting site should not exceed 100°F (38°C)
2
3
Breakfast LED
Regular LED
Enter Button
LOWER PAN Display
UP/DOWN ARROWS
UPPER PAN Display
PRINCE CASTLE
LOGO Button PAN ARROW Buttons
(Start/Stop Timers)
LED TIMERS ( tri-color)
(1 for each pan arrow button)
Button Bar
Power
ON/OFF
Switch
DISPLAY
Control Panel
PAN LIDS, ONLY used with MOIST products.
(CRISPY products DO NOT require lids)
All electrical connections must be in accordance with local
electrical codes and any other applicable codes.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons
in order to avoid a hazard.
To prevent an electric shock hazard this device must be
bonded to equipment in close proximity with an equipotential
bonding conductor. This device is equipped with a grounding
lug for this purpose.
WARNING:

540-1730_EN rev.B 5Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
To turn on the unit,
Turn Power On/Off switch (A) to ON position.
NOTE: Load pan covers (if used) and insert pans into the unit.
Allow 20 minutes for heaters to
reach operating temperature.
The button bar will read “WARM
UP” as the unit warms up, they
will display the product names.
Press all Pan Arrow buttons.
The Pan displays will show the assigned product name.
If no product is assigned, the display
will be dim and show “----”. Pressing
the Pan Arrow button will not activate
the timer if “----” is displayed. Pressing
Pan Arrow button when product name
is displayed will start timing cycle.
BKFT (Breakfast) or
REG (Regular Menu)
will be lit depending on
pre-programmed menu.
LED Timing Status
LED TIMERS
RED (steady) = Ready for product
RED (flashing) = Discard product
GREEN (steady) = Oldest product, use first
GREEN (flashing) = Cook more product
YELLOW (steady) = Newer product, use green first
YELLOW (flashing) = Cook more product
When LED is steady RED, load product and press
the Pan Arrow button.
If more than one pan
is active for a product,
the LED for the first
pan loaded will turn
from RED to GREEN.
If only one pan is active
for a product, the LED
will turn from RED to
GREEN.
When any of the timer LED flash, cook more product
or remove and discard product as indicated.
GREEN (flashing) = Cook more product
YELLOW (flashing) = Cook more product
RED (flashing) = Discard product
Operation
1
2
3
4
The LED for the 2nd pan loaded
with the same product will turn
from RED to YELLOW.
The LED timer can be stopped
(cancelled) at any time by
pressing and releasing the
corresponding PAN Arrow button.
5
(A)
WARNING: HOT SURFACES
WARNING: This application is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

Printed in USA 07/2023 © 2023 6540-1730_EN rev.B
Extended Holding Bin
General Market Series
To change a menu selection for a specific pan cavity, use the following steps:
A. Press and hold the PRINCE CASTLE LOGO button for 6 seconds.
All Pan displays will show PROG. All LED Timers will be RED.
B. Press a Pan Arrow button to change the menu. The LED Timer will
change to YELLOW and the display will change from PROG to the
assigned menu item.
E. Repeat steps A – D as required for other Pan displays. Press the PRINCE
CASTLE LOGO button to exit the Program Mode.
NOTE: A pan may be set as “not used” by assigning “- - - -” as its product.
C. Press the UP or DOWN Arrow
button to scroll to the desired
menu item.
D. Press the ENTER button
to select the menu item.
1
NOTE: Setting a pan to a particular product will automatically change the other pan in that zone.
To shut down the unit,
turn the Power On/Off switch (A) to OFF position.
2
WARNING:
Before performing any maintenance, turn the
power switch to the OFF position and unplug
the power cord from the electrical receptacle.
Setting Product Location
Cleaning
(A)
CAUTION:
This unit is not watertight. Do not clean with a water jet/jet spray.
Do not immerse the unit in water.
1. Turn the unit off and unplug the power cord from electrical receptacle.
2. Remove the pans and covers. Wipe all parts and unit with a damp cloth.
DO NOT use a green Scotch Bright pad cleaner, ice or water.

540-1730_EN rev.B 7Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
The unit has multiple shelves, each with an upper and lower heater for each zone.
The heaters follow the default set points of the preset products for each pan
Use the instructions below and the following steps to set the set point temperatures for each heater.
UPPER SHELF LED
This LED will be lit to indicate upper shelf is selected.
PROG LED
This LED will be lit to indicate unit is in Program Mode.
LOWER SHELF LED
This LED will be lit to indicate lower shelf is selected.
ACTUAL TEMP BUTTON and LED
Press to display actual temperature for the
selected heater. LED will be lit when actual
temperature is displayed.
SETPOINT BUTTON and LED
Press to display set point temperature of a
selected heater. LED will be lit when set point
temperature is displayed.
TEMPERATURE DISPLAY
A, B, C, D ( E, F ) = ZONES
Upper and Lower Heater
UP/DOWN ARROW BUTTONS
Used with other Buttons to scroll through heater
and temperature selections.
CROWN BUTTON
Press to enter temperature selections.
CAUTION:
DISPLAYED TEMPERATURES
ARE HEATER TEMPERATURES
AND DO NOT INDICATE ACTUAL
FOOD TEMPERATURES.
NOTE: To reset all calibrations to the factory settings,
turn the unit off, then press and hold the UP and DOWN
Arrow buttons simultaneously while turning the unit back
on. A “P” will appear in the display and all calibrations
will be reset to original factory settings.

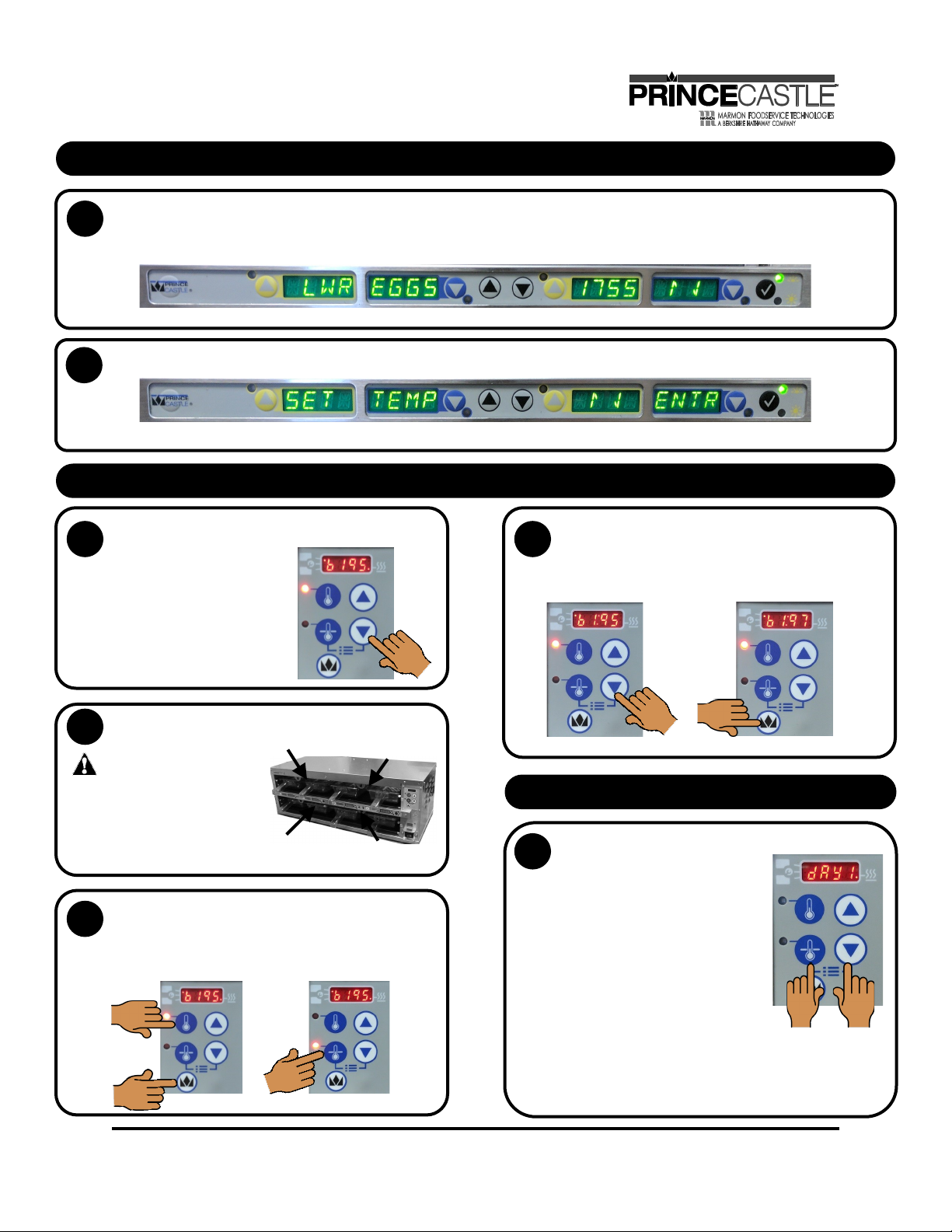

Setting the Temperature
The SET PRODUCT TEMP menu is used to change the Hold and Cook-More times.
Press and hold the PRINCE CASTLE LOGO button on the button bar, then immediately press and hold the ENTER button until the display
shows one of six programming menus…..(hold for about 5 seconds)
Use the UP or DOWN Arrow button to scroll to the PROD BURG ↑ ↓ ENTR (Set Product Temperature) menu.
1
2Press the ENTER button to enter the programming menu, the display should then read SEL TEMP XXXX ↑ ↓ . The XXXX is where the
product abbreviation is displayed. Use the black UP and DOWN arrows to navigate to the desired product.
3Press the ENTER button to select that product profile to update, the display will read SET UPR XXXX ###s↑ ↓ the XXXX is
where the product abbreviation is displayed, and ### is the temperature. Use the UP and DOWN arrows to set the temperature of
the upper heater of that zone. Confirm set point by pressing ENTER

Printed in USA 07/2023 © 2023 8540-1730_EN rev.B
Extended Holding Bin
General Market Series
Setting the Temperature (Continued)
4The display will now show SET LWR XXXX ###s ↑ ↓. Use the UP and DOWN arrows to set the temperature of the Lower heater of that zone.
Press ENTER to confirm setpoint temperature.
5Press PRINCE CASTLE LOGO BUTTON to save the setpoints. Repeat steps 2-5 for all necessary profile upgrades.
Calibrating Heaters
1Use the following steps to calibrate the individual heaters
Press the UP or DOWN Arrow button
until the desired shelf LED and upper
or lower heater is selected.
NOTE: Allow sufficient amount of time
for temperatures to stabilize before
starting calibration. (approx. 30 mins.)
2Take a temperature reading within the shelf near
the center of each heater surface.
NOTE: Use an independent
Temperature meter (not supplied).
WARNING: HOT SURFACES
Use caution when taking
temperature readings
within the shelf.
Press and hold the CROWN BUTTON and ACTUAL TEMP buttons
for 5 seconds. The colon (:) LED indicator will light.
The temperature displayed is the actual heater temperature
sensed by the controller. To clear any offset readings,
press the SETPOINT button.
3
4Press the UP or DOWN Arrow button until the temperature
displayed matches the reading obtained in Step 2.
Press the CROWN BUTTON to save the temperature
value and exit the Calibration Mode.
Selecting Day Part
Press and hold the SETPOINT button
and the DOWN Arrow button for
3 seconds, the current day part will
begin flashing on the screen.
Use the up/down arrows to select
day part 1 through 3 and the Prince
Castle Crown button to confirm your
selection.
NOTE: Whenever a bin is powered
ON it defaults to DAY PART 1 no
matter what time of day it is.
1
NOTE: Setpoints are displayed on the front display board, and should be updated according to the product at this point.

540-1730_EN rev.B 9Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
Changing the Hold and Cook-More Times
1The SET PRODUCT TIME menu is used to change the Hold and Cook-More times.
Press and hold the PRINCE CASTLE LOGO button on the button bar,
then immediately press and hold the ENTER button until the display shows one of six programming menus.
Use the UP or DOWN Arrow button to scroll to the PROD TIME ↑ ↓ ENTR (Set Product Time) menu.
2Press and release the ENTER button to enter the Set Product Time menu. The display will show EGGS TIME ↑↓ ENTR.
Use the UP or DOWN Arrow button to scroll through the list of products.
When the desired product is displayed, press the ENTER button to select it.
NOTE: Holding the UP or DOWN Arrow button for longer than 2 seconds will cause the product list to automatically scroll up or down.
The display will show 240 ↑↓ ENTR.
3
Use the UP or DOWN Arrow button to scroll to the desired Hold time. When the desired Hold time is displayed, press the ENTER
button to save the desired Hold time.
NOTE: Hold time cannot be reduced to less than the Cook-More time plus one minute. NOTE: All times are displayed in minutes only.
For example, 2 and half hours is displayed as 150.
4The display will show COOK 30 ↑ ↓ ENTR.
Use the UP or DOWN Arrow button to scroll to the desired Cook-More time. When the desired Cook-More time is displayed, press the
ENTER button to save it.
NOTE: Cook-More time cannot be increased to more than the Hold time, minus one minute.
5The display will show EGGS TIME ↑ ↓ENTR. Repeat Steps 2 – 4 for any other product.
Press and release the PRINCE CASTLE LOGO button at any time to exit the Program Mode and return to the Run Mode.
NOTE: If the ENTER button has not been pressed to save any changes, the program will revert to the original values.

Printed in USA 07/2023 © 2023 10 540-1730_EN rev.B
Extended Holding Bin
General Market Series
Changing Product Names
The EDIT PRODUCT NAME menu is used to change a default product name to one of your own choosing.
Press and hold the PRINCE CASTLE LOGO button on the button bar,
then immediately press and hold the ENTER button until the display shows one of six programming menus.
Use the UP or DOWN Arrow button to scroll to the PROD NAME ↑ ↓ ENTR (Edit Product Name) menu.
1
2Press and release the ENTER button to enter the Edit Product Name menu.
Use the UP or DOWN Arrow button to scroll through the list of products.
When the desired product is displayed, press the ENTER button to select it.
The first letter (in this case, the E ) will start blinking.
3To change the blinking E, use the UP or DOWN Arrow button to scroll to the desired letter/number/symbol.
When the desired selection is displayed, press the PAN Arrow button to move to the next digit. Repeat for all digits.
NOTE: Holding the UP or DOWN Arrow button for longer than 2 seconds will cause the display to automatically scroll.
When all four digits have been changed, press the ENTER button to select the new name.
4
The display will show PROD NAME ↑↓ ENTR. Repeat Steps 2 – 4 for any other product.
Press and release the PRINCE CASTLE LOGO button at any time to exit the Program Mode and return to the Run Mode.
NOTE: If the ENTER button has not been pressed to save any changes, the program will revert to the original names.
5
...
NOTE: The default menu items and names are listed on page 13.

540-1730_EN rev.B 11 Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
Changing Temperature Scale
The SET F/C menu is used to change the temperature scale.
Press and hold the PRINCE CASTLE LOGO button on the button bar,
then immediately press and hold the ENTER button until the display shows one of six programming menus.
Use the UP or DOWN Arrow button to scroll to the SET F/C XXXX ↑ ↓ ENTR (Edit Product Name) menu.
1
Press the ENTER button to enter the menu.
Bar will display SET DEGR F/C ↑ ↓ ENTR and either the F or C will be blinking.
2
Use the UP and DOWN arrows to select the desired temperature mode (the selected mode will blink)
Press the ENTER button to confirm the selection. Press the PRINCE CASTLE LOGO button to save the setting.
Adjusng Alarm Volume
The SET VOLUME menu is used to change the alarm volume.
Press and hold the PRINCE CASTLE LOGO button on the button bar,
then immediately press and hold the ENTER button until the display shows one of six programming menus.
Use the UP or DOWN Arrow button to scroll to the SET VOL ↑ ↓ ENTR (Set Volume) menu.
1
NOTE: Only applicable in stand-alone mode when not connected to Product Management system.
1
A mer alarm is included to sound aer a hold mer is complete. The volume is adjustable from level 0 to 3.
Once the menu is on the bar, press ENTER . Scroll to the desired volume seng and press ENTER to accept.

Printed in USA 07/2023 © 2023 12 540-1730_EN rev.B
Extended Holding Bin
General Market Series
Choosing a Language
The SET LANGUAGE menu is used to change the language. English is the only language offered unless otherwise noted.
Press and hold the PRINCE CASTLE LOGO button on the button bar, then immediately press and hold the ENTER button until the display
shows one of six programming menus.
Use the UP or DOWN Arrow button to scroll to the SET LANG ↑ ↓ ENTR (Set Language) menu.
1 1
2Use the black arrow buons to select ENGLISH or another opon, if applicable (see example below).
Press the ENTER buon when desired language is selected. Press the Prince Castle buon to exit the sengs menu.

540-1730_EN rev.B 13 Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
Default Menu Items
Product Number Descripon Display
Name
French
Display
Moist
or
Crispy
FCFCCook
More
(min)
Hold
(min)
Lid
1Burger BRG1 BRG1 Moist 240 116 210 99 360 Yes
2Burger BRG2 BRG2 Moist 240 116 210 99 360 Yes
3Crispy
Chicken
CHX1 POU1 Crispy 250 121 225 107 360 No
4Crispy
Chicken
CHX2 POU2 Crispy 250 121 225 107 360 No
5Crispy
Chicken
CHX3 POU3 Crispy 250 121 225 107 360 No
6Chicken
Wings
WING AILE Crispy 250 121 225 107 360 No
7Fish Scks FSTX BATP Crispy 225 107 195 91 360 No
8Scrambled SCRM OEUF Moist 225 107 200 93 375 Yes
9Sausage SAUS SAUC Moist 225 107 200 93 360 Yes
10 Bacon BACN BACN Crispy 225 107 200 93 360 No
11 Ham HAM JAMB Moist 225 107 200 93 360 Yes
12 Popper POP JALP Crispy 225 107 195 91 360 No
13 Mozzarella MOZ MOZZ Crispy 250 121 200 93 360 No
14 Onion Rings ORNG OIGN Crispy 225 107 195 91 340 No
15 Mushroom MUSH CHAM Crispy 225 107 195 91 340 No
16 Chicken
Nuggets
NUGG NUGG Crispy 250 121 225 107 360 No
17 Spicy SPCY EPCE Crispy 250 121 225 107 360 No
18 French
Toast
TOST PAIN Crispy 250 121 225 107 360 No

Printed in USA 07/2023 © 2023 14 540-1730_EN rev.B
Extended Holding Bin
General Market Series
Default Menu Items (Continued)
Zones
All bin configurations are set up with zones,
which correspond to a set of heaters that
work together to hold the product. A single
product can be programmed into each zone.
The timer bars are equipped with this
knowledge. If the product in one slot of a
zone is changed, the other slot will automati-
cally change to that product as well.
3X4
2X32X2
2X4
4X2
Product Number Descripon Display
Name
French
Display
Moist
or
Crispy
FCFCCook
More
(min)
Hold
(min)
Lid
19 Chicken STRS LPOU Crispy 250 121 225 107 360 No
20 Large LRGB GRND Moist 240 116 210 99 360 Yes
21 Fish Pay FISH PSSN Crispy 250 121 225 107 360 No
22 BBQ BBQ BBQ Moist 240 116 210 99 360 Yes
23 Grilled
Chicken
GCHK GPOU Moist 240 116 210 99 360 Yes
24 Strips STRP LANR Crispy 250 121 225 107 360 No
25 Special #1 SPC1 SPC1 Crispy 250 121 225 107 360 No

540-1730_EN rev.B 15 Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
Dayparts
2x2 2x3 2x4 3x4 4x2
Daypart
1
HAM BACN HAM BACN SCRM HAM BACN SCRM SCRM HAM HAM SCRM SCRM SAUS SAUS
SAUS SAUS SAUS SAUS SCRM SAUS SAUS SCRM SCRM BACN BACN SCRM SCRM BACN BACN
SAUS SAUS SCRM SCRM HAM HAM
SCRM SCRM
Daypart
2
BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1
BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1 BRG1
BRG1 BRG1 BRG1 BRG1 BRG1 BRG1
BRG1 BRG1
Daypart
3
CHX1 CHX1 CHX1 CHX1 CHX3 CHX1 CHX1 FISH WING CHX1 CHX1 CHX3 CHX3 CHX1 CHX1
CHX2 CHX2 CHX2 CHX2 CHX3 CHX2 CHX2 CHX3 CHX3 CHX2 CHX2 WING WING CHX2 CHX2
CHX3 CHX3 FISH FISH CHX3 CHX3
WING WING
Daypart
4
CHX1 CHX2 CHX1 CHX2 MOZ WING WING MOZ MOZ CHX1 CHX1 MOZ MOZ FISH FISH
WING WING WING WING MOZ CHX2 CHX1 POP POP CHX2 CHX2 POP POP POP POP
WING WING POP POP MOZ MOZ
MUSH MUSH
Daypart
5
CHX1 CHX3 CHX1 CHX2 CHX3 CHX1 CHX3 MUSH ORNG CHX1 CHX3 POP POP POP POP
CHX2 WING WING WING POP CHX2 WING POP POP CHX2 CHX2 MUSH MUSH ORNG ORNG
WING WING ORNG ORNG MOZ MOZ
MUSH MUSH
Daypart
6
SCRM SCRM SCRM SCRM HAM SCRM SCRM HAM BACN SCRM SCRM HAM HAM SCRM SCRM
SCRM SCRM SCRM SCRM BACN SCRM SCRM SAUS SAUS SCRM SCRM SAUS SAUS HAM HAM
SCRM SCRM BACN BACN BACN BACN
SAUS SAUS

Printed in USA 07/2023 © 2023 16 540-1730_EN rev.B
Extended Holding Bin
General Market Series
Troubleshoong
Problem Probable Cause Solution
No Power
Power switch is turned off,
Power cord is not plugged in.
Turn power switch to ON position,
Ensure power cord is connected
to proper receptacle
Unit will not heat up Wrong power cord, loose connection on
power switch and/or heater
CALL TECH SUPPORT
1-800-722-7853
Unit heats up but timer
bars do not work
Timer bar wiring disconnected,
timer bar is defective
CALL TECH SUPPORT
1-800-722-7853
Unit under/over heats Check temperature settings
CALL TECH SUPPORT
1-800-722-7853
Display flashes OPN and
REL Open relay, circuit or heater inoperable
CALL TECH SUPPORT
1-800-722-7853
Display flashes SHR and
REL
Shorted relay, circuit inoperable,
open heater, unplugged ribbon cable
CALL TECH SUPPORT
1-800-722-7853
Display shows HHH for
extended period and heat-
er surface temperature is
hot
Temperature is above 300 F (149 C),
Abnormal operation
CALL TECH SUPPORT
1-800-722-7853
Display shows HOLD
Only displayed on a 3X4 Bin display
board, when the operator changes the bin
address or during calibration
HOLD message means the 2 PC boards
in the bin are communicating,
wait until the message disappears
Display shows WAIT When in stand alone mode and the oper-
ator makes change to the product profile Wait until the message disappears
Display shows INIT When switching from Kitchen Minder
to stand alone mode
Bin is learning Kitchen Minder menus,
wait for message to disappear
Timer bar displays
COMM DOWN
Bin is not communicating with
Kitchen Minder Refer to Kitchen Minder setup manual
For all technical support in North America, please contact PRINCE CASTLE LLC 1-800-722-7853
For technical support worldwide, contact your local service representative / installer.
WARNING: To avoid personal injury and possible damage to the unit, troubleshooting and repair of electrical equipment
should be performed by qualified service personnel. This unit should be unplugged when servicing. Except when electrical
tests are required. Use extreme caution during electrical circuit tests as live circuits may be exposed.

540-1730_EN rev.B 17 Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
DIAGNOSTICS
For all diagnostic messages on the holding bin, the message will appear on the timer bar located at the pan that is triggering the message.
The message is a two-word message that will cycle through on the timer bar in addition to the product name at that pan location.
1. WARM | UP | XXXX – When turning on holding bin the warm up message will appear until heaters reach within 15°F set point.
a. Cleared when within 15°F of the set point.
2. HTR | OFF | XXXX – Heater off message appears when both the upper and lower heaters are off.
a. Cleared when heater is turned on.
3. HTR | LOW | XXXX – Heater low appears if the temperature falls 15°F below the set point.
a. Cleared when temperature is back in range. If not cleared, would require a service technician to repair.
4. HTR | HIGH | XXXX – Heater high appears if the heater is above 285°F for 20 minutes.
a. Cleared when temperature is back in range. If not cleared, would require a service technician to repair.
5. RLY | SHRT | XXXX – Relay short error occurs when there is a thermocouple or heater problem.
a. Bin requires service to further troubleshoot and repair.
6. RLY | OPEN | XXXX – Relay open error occurs when there is a thermocouple or heater problem.
a. Bin requires service to further troubleshoot and repair.
7. COMM | DOWN | XXXX – Communication down error occurs when the temperature data is not being properly communicated.
a. Check that the Kitchen Minder/Visor/Sicom system is connected properly. Requires service technician to troubleshoot.
USB Update Procedure
1. First, un-plug any communication cables from the holding bin. These devices will interfere with the timer bar boot loading process.
2. Place the update files on the USB flash drive in the main directory (Do not put them in a folder on the flash drive). There are five files that you will need to put
on the drive. Two for the controller board, mainbin.hex and DHBFWBIN.TXT. Three for the timer bars, mainbar.hex, auxbar.hex and DHBFWBAR.TXT.
3. Once all files are on USB drive, turn power off to bin and place the USB drive with the files into USB port on the front of the bin.
4. While holding down crown button on front right side of the bin, above the power switch, turn the power to the bin on.
5. Keeping the crown button pressed, wait for the “BL” (boot load) message to appear on the screen. Release the button approx. 5 seconds after the “BL” message
appears or once the USB stick light begins to flash.
6. Wait for the display to show:
a. (blank while upgrading main bin firmware) e. BL02 (2 timer bars left to upgrade)
b. BL00 (searching for timer bars to upgrade) f. BL01 (1 timer bar left to upgrade)
c. BL04 (4 timer bars left to upgrade) g. BL00 (0 timer bars left to upgrade)
d. BL03 (3 timer bars left to upgrade) h. BN04 (4 timer bars detected and done with programming)
7. You can check the version number on the timer bars by pressing the Prince Castle logo button and the down button on timer bar.
*EHB34XX requires seven files. The two additional to those listed are mainbar2.hex and auxbar2.hex
Diagnoscs

Printed in USA 07/2023 © 2023 18 540-1730_EN rev.B
Extended Holding Bin
General Market Series
Wiring Diagrams
This Wiring diagram is
used in all configura-
tions except the 3X4
LINE IN

540-1730_EN rev.B 19 Printed in USA 07/2023 © 2023
Extended Holding Bin
General Market Series
Wiring Diagrams
This wiring diagram
is used in the 3X4
configuration only
LINE IN

Printed in USA 07/2023 © 2023 20 540-1730_EN rev.B
Extended Holding Bin
General Market Series
Exploded View
1
2
3
4
5
6
8
9
10
11
13 12 14 15
EHB22F1-GMS02
*Only for GMS60 and GMS78
16
ITEM
NO.
PART
NUMBER DESCRIPTION
ITEM
NO.
PART
NUMBER DESCRIPTION
ITEM
NO.
PART
NUMBER DESCRIPTION
1197-232S FOOT, 4 PACK 4* 540-1111S
HEATER ASSY, LOWER
TOP SHELF 2W, 220V 11 POWER CORD SEE CHART ABOVE
2* 540-1233S HTR, BOTTOM SHELF, LOWER, 120V 5* 540-1120S
UPPER HEATER TOP
SHELF, 220V 12 540-1215S OVERLAY AND DISPLAY
3* 540-1234S HTR, CENTER SHELF, UPPER, 120V 6510-520S 4 CH MAIN BAR KIT 13 78-184S POWER SWITCH
4* 540-1235S HTR, CENTER SHELF, LOWER, 120V 7510-521 4 CH AUX BAR KIT 14 94-1819S USB CORD
5* 540-1236S HTR, TOP SHELF, UPPER, 120V 8540-1158S LATCH, CATCH 15 541-1750S EHB GM 2x2 5500 PCB KIT
2* 540-1107S HEATER ASSY LOWER SHELF, 2W, 220V 9540-1251S LID, 4 PACK 16 95-2011S ETHERNET CONNECTOR
3* 540-1108S HEATER ASSY, UPPER, 2W, 220V 10 88-709-2-11S SPEAKER
*2-5 DEPENDENT ON
VOLTAGE OF UNIT
Part Number Descripon
88-824S LINE FILTER*
Model Power Cord
GMS02 72-704S
GMS60 72-693S
GMS78 72-526S
